P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*15*11

Waga brutto:5.00 kg

Dostępność: W magazynie

1184 Osoby oglądają ten produkt

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier

P80-G12 Manual 1 Spool Monoblock Directional Valve | Hydraulic Supplier drawing image

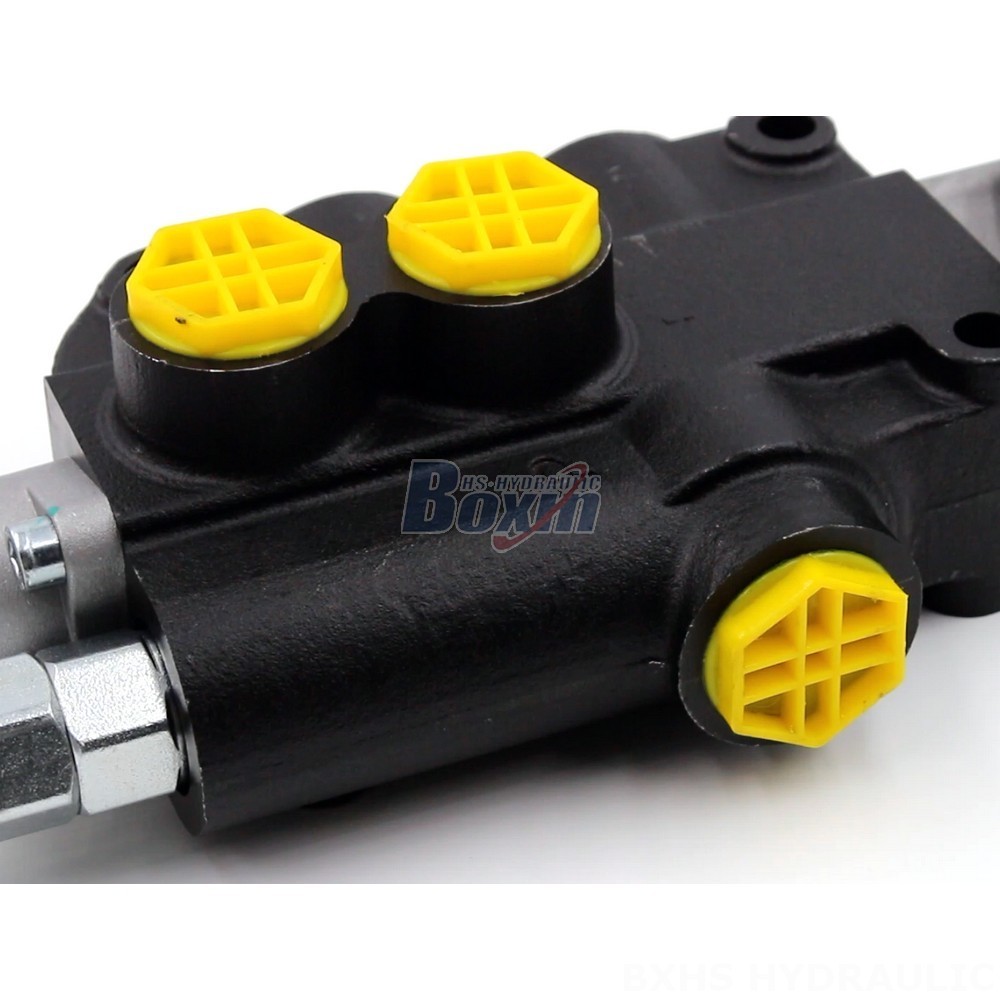

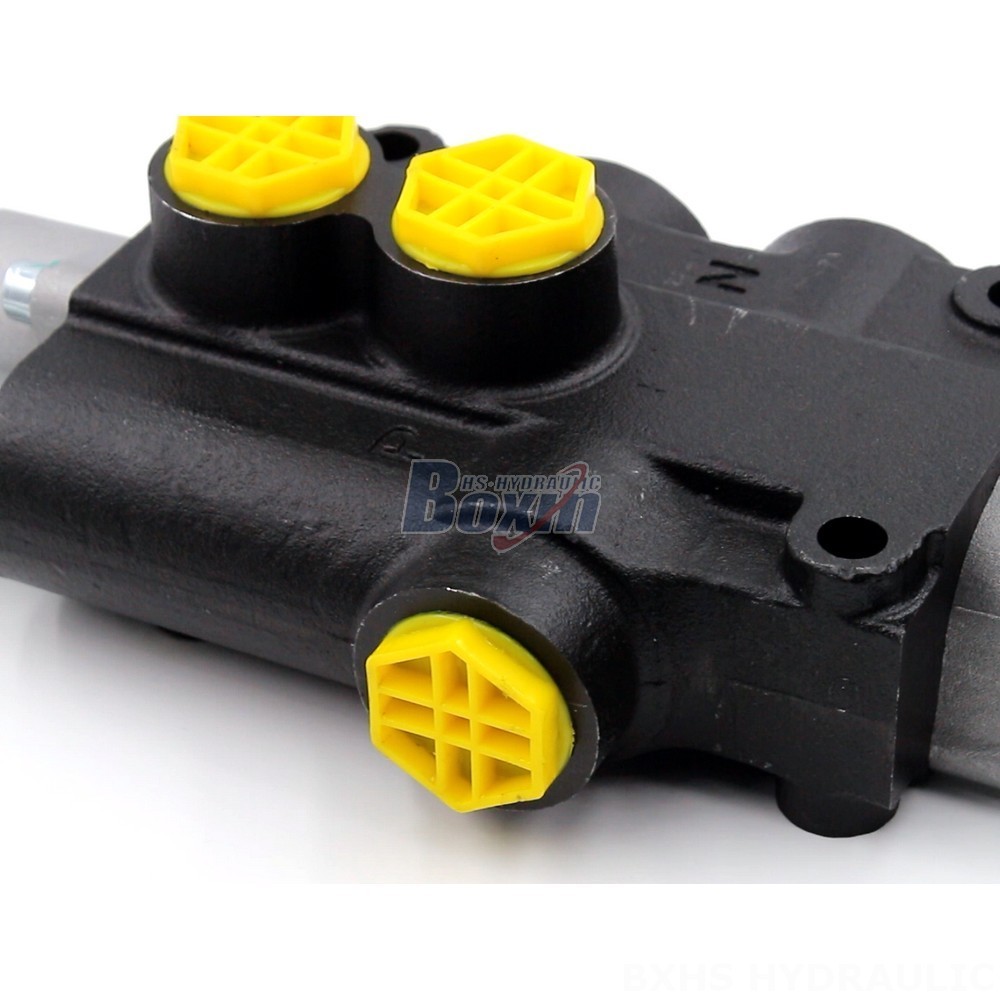

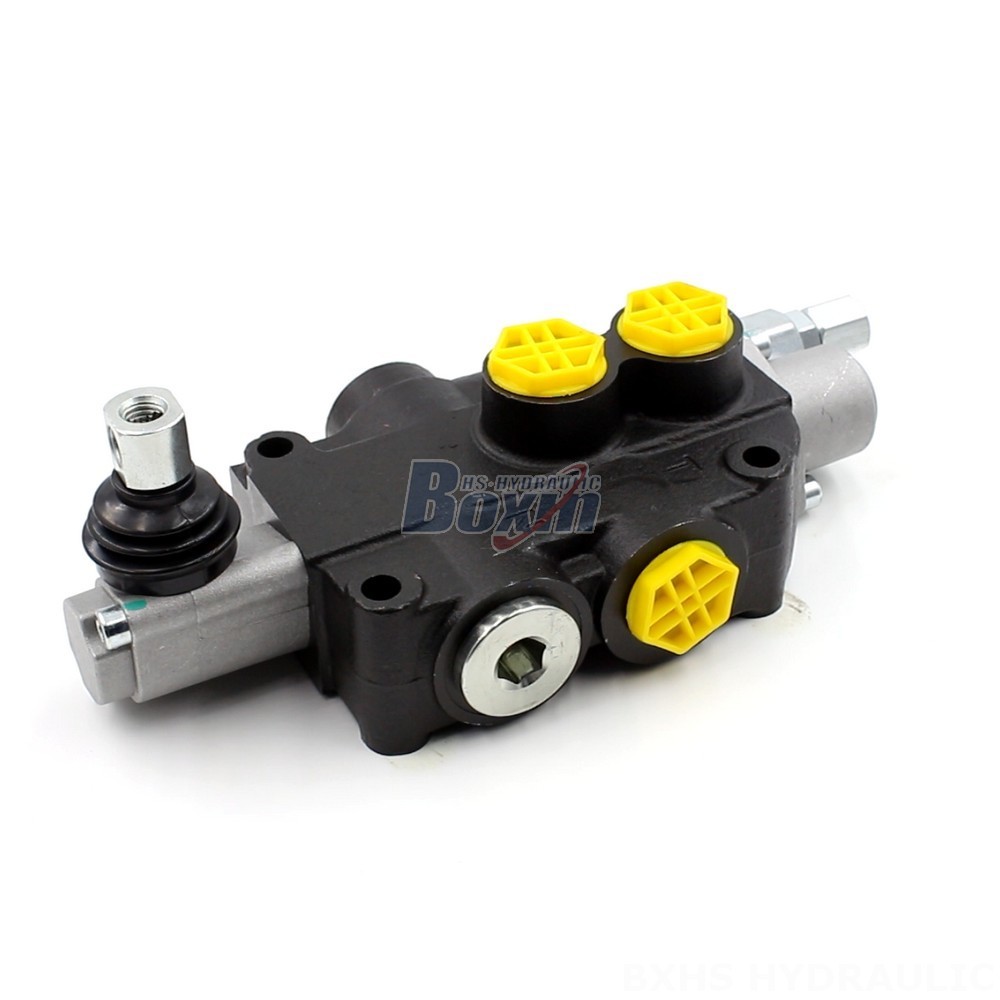

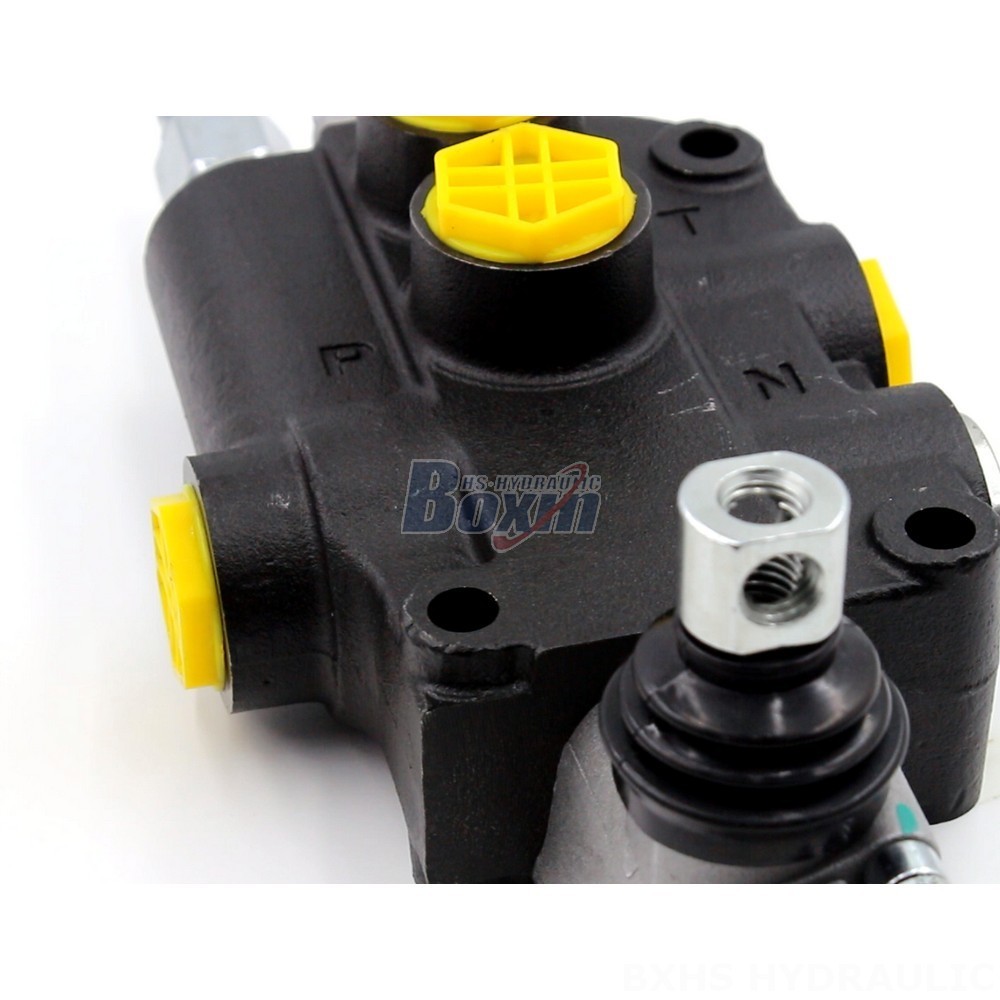

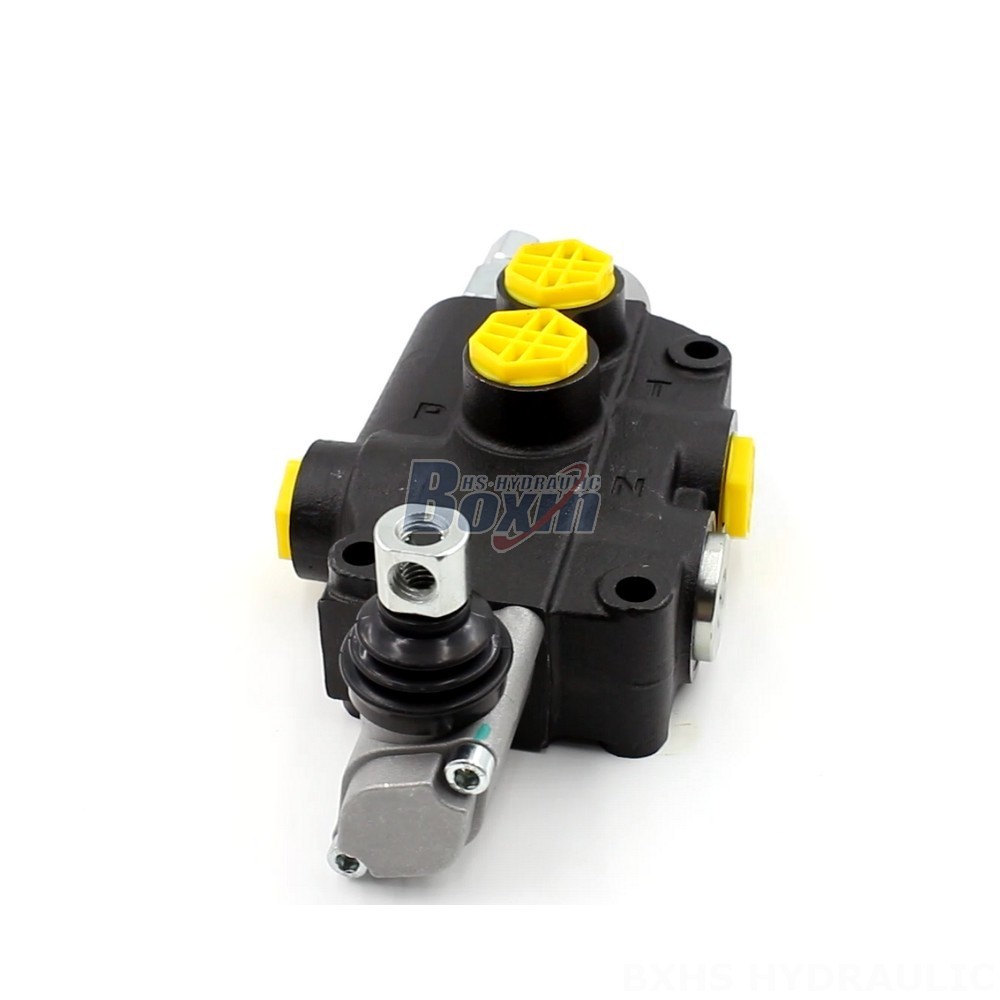

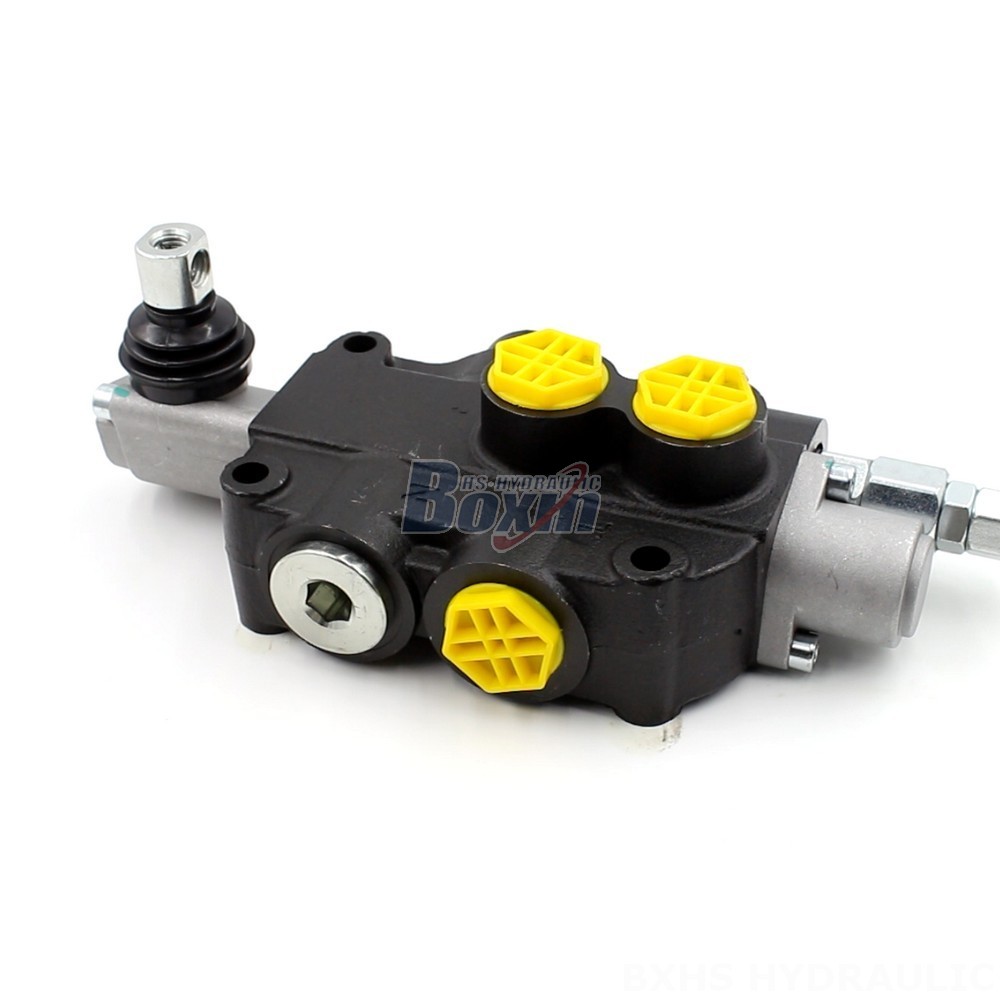

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a reliable and durable hydraulic component designed for use in various applications, including material handling, construction, and agriculture. This manual control valve features a single spool and a maximum pressure rating of 250 bar, making it suitable for a wide range of hydraulic systems.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G12 Manual 1 Spool Monoblock Directional Valve is a high-quality hydraulic component manufactured for global markets. This valve is designed for manual control with a single spool and a monoblock structure, offering a compact and efficient design. It has a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), making it suitable for various demanding applications. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and it can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This valve is specifically designed for use in various applications, including material handling, construction, and agriculture. It is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. As a leading hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM, private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
