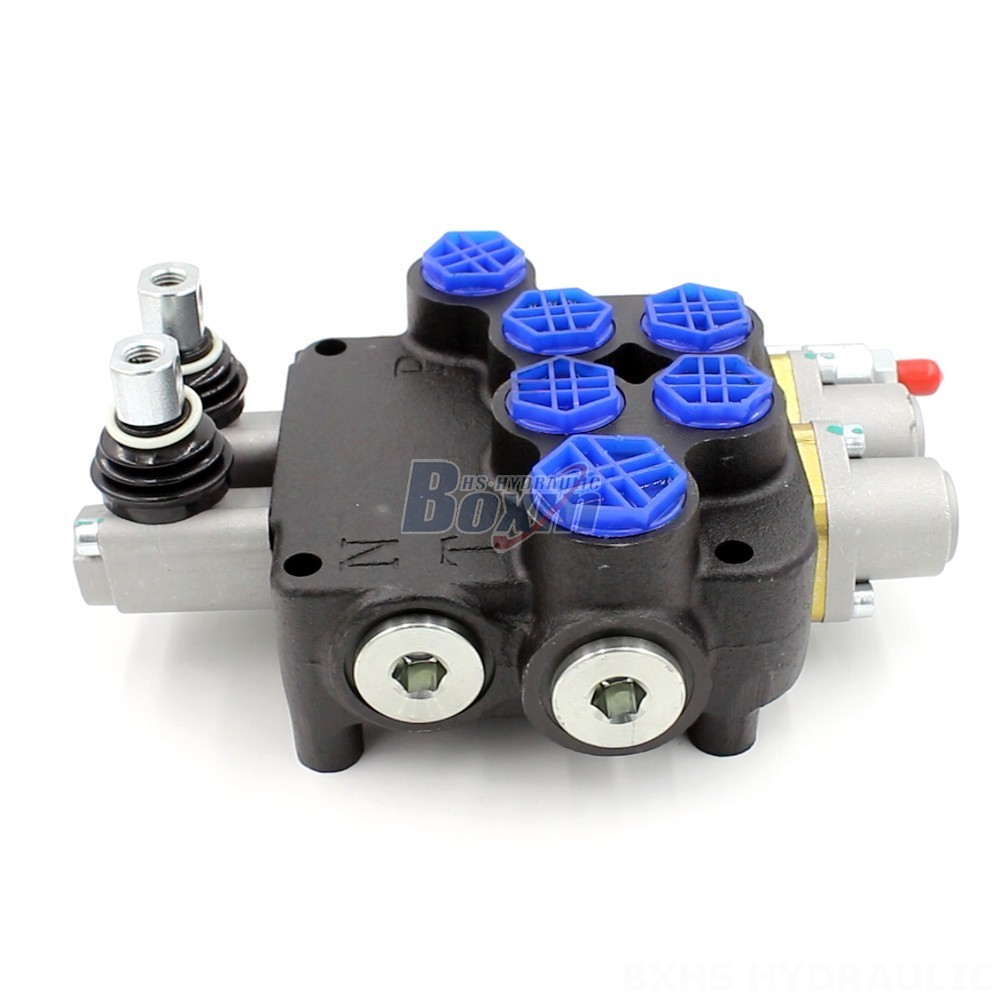

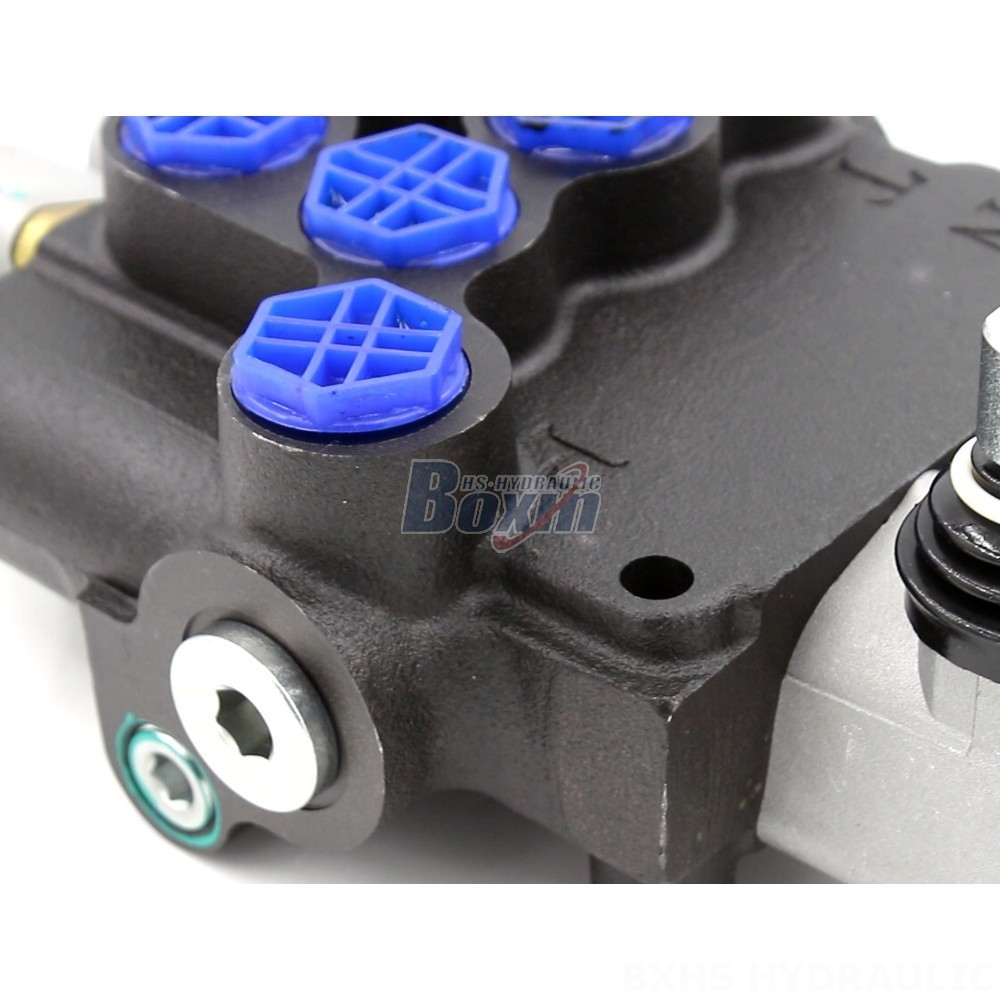

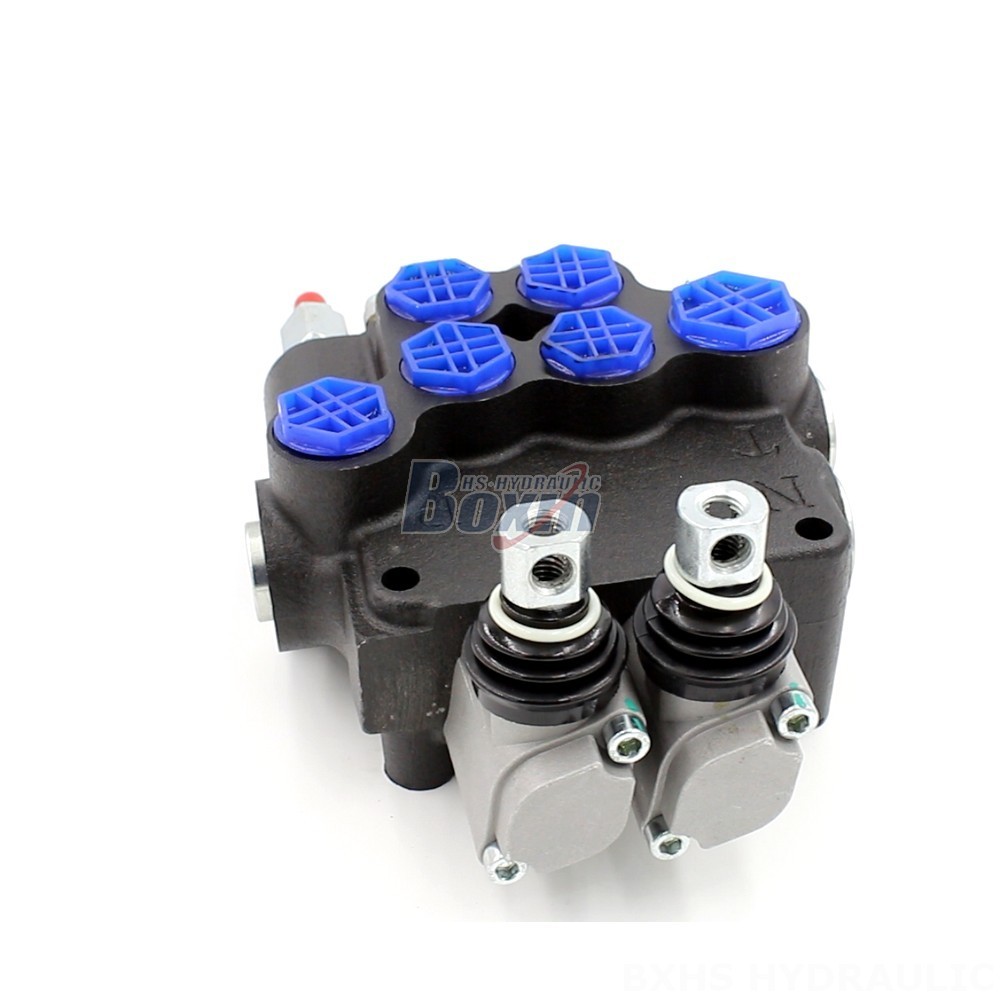

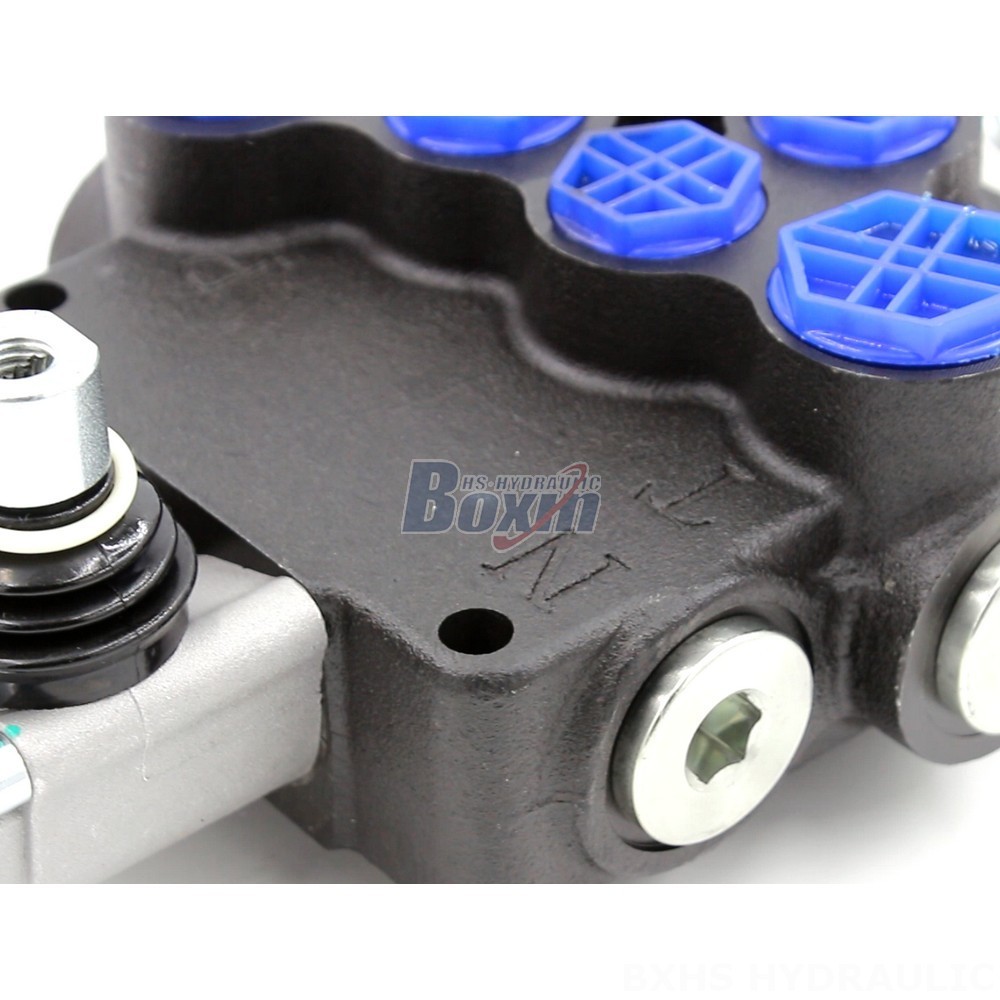

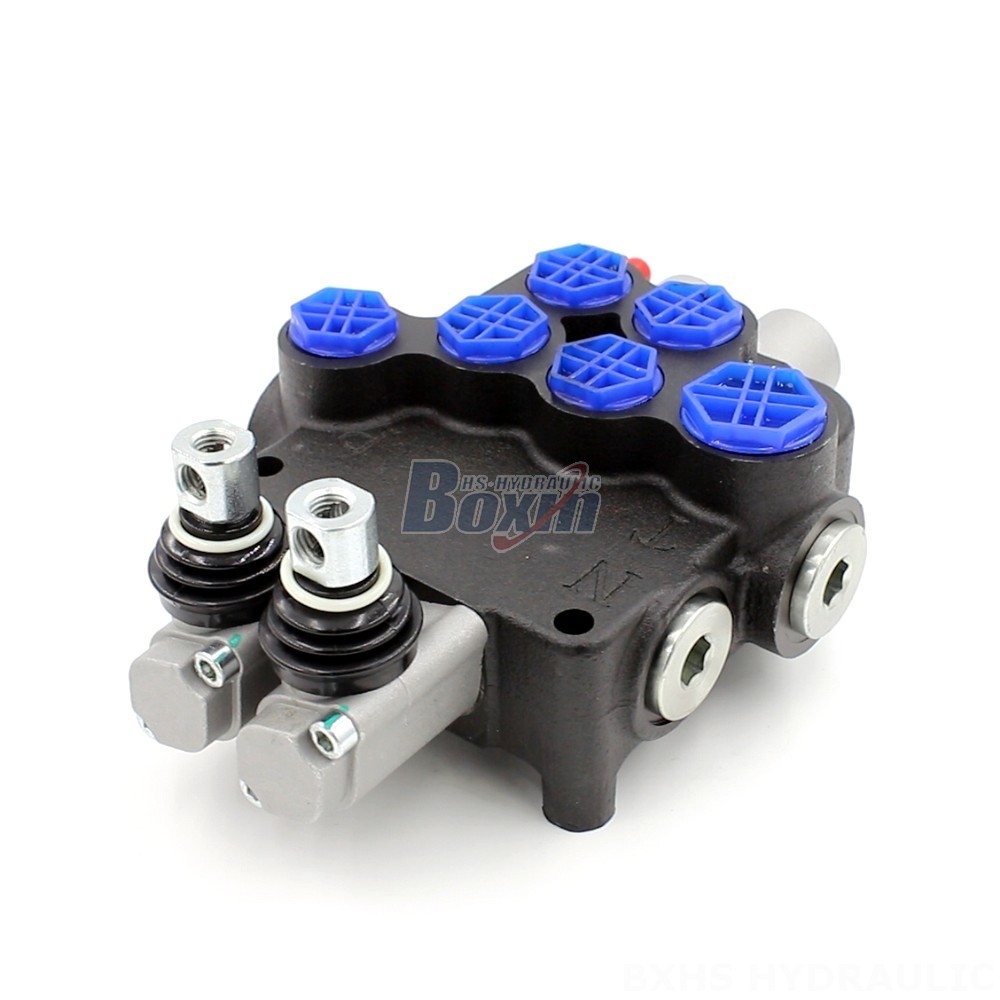

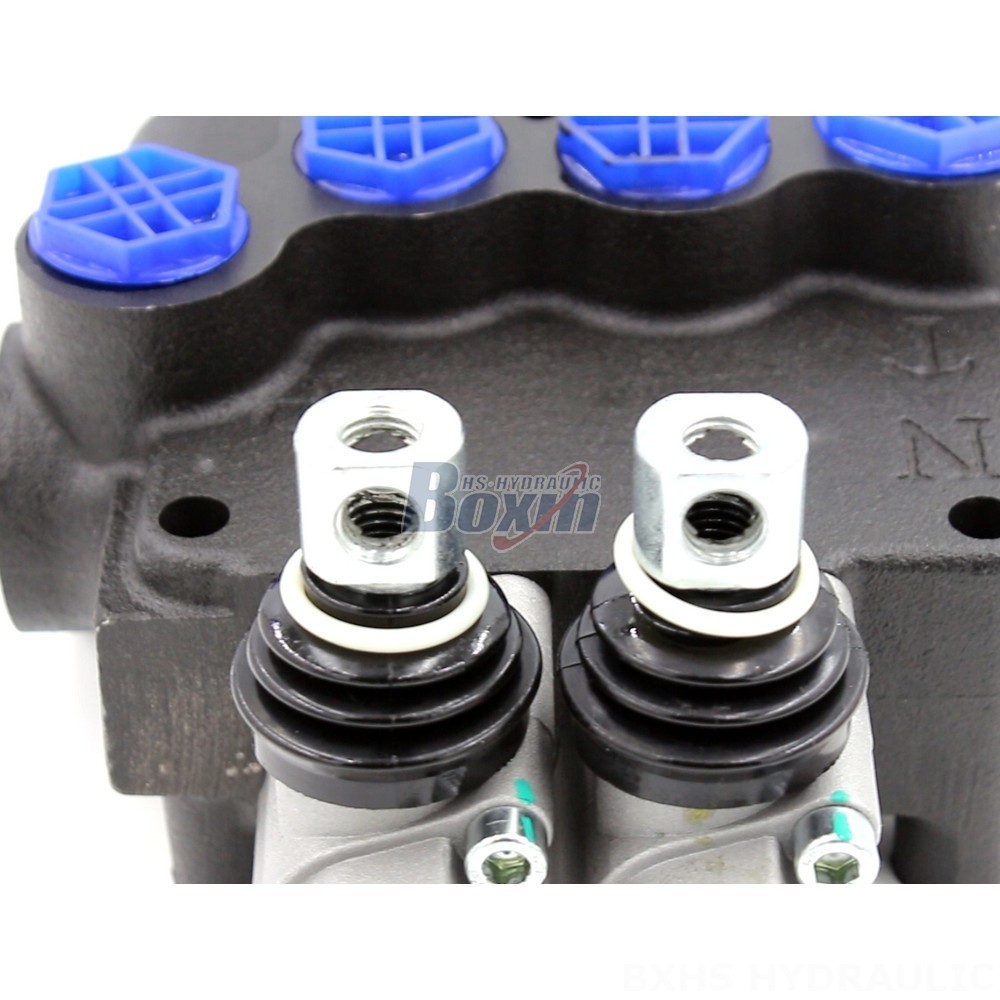

P80-G12-G38-QW Directional Valve: Quality Hydraulic Control Solutions

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*18*11

Waga brutto:8.00 kg

Dostępność: W magazynie

1195 Osoby oglądają ten produkt

P80-G12-G38-QW Directional Valve: Quality Hydraulic Control Solutions

P80-G12-G38-QW Directional Valve: Quality Hydraulic Control Solutions

P80-G12-G38-QW Directional Valve: Quality Hydraulic Control Solutions drawing image

The Chief Hydraulics P80 Series Directional Valve offers reliable and efficient hydraulic control solutions for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This high-performance, manual control valve features a 2-section, monoblock design and delivers a rated flow of 80 L/min with a maximum pressure of 250 bar.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The Chief Hydraulics P80-G12-G38-QW Directional Valve is a robust and reliable hydraulic control solution designed for demanding applications. This manual control valve features a 2-section, monoblock design for optimal performance and durability. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is ideal for various mobile equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, backhoe loaders, and skip loaders. The P80 Series valve is engineered to deliver consistent and precise hydraulic control in demanding environments. It is designed to operate within a wide viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. The valve's durable construction and reliable performance make it an ideal choice for heavy-duty applications in diverse industries.
