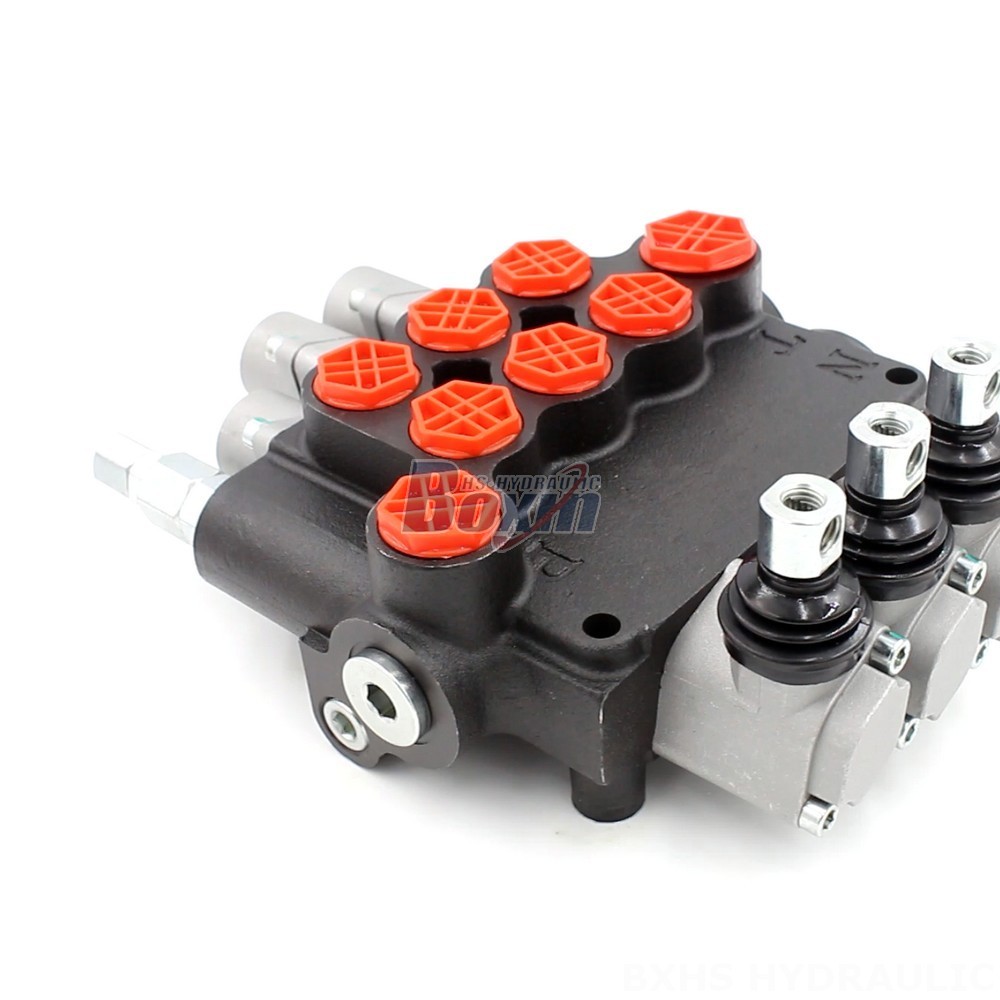

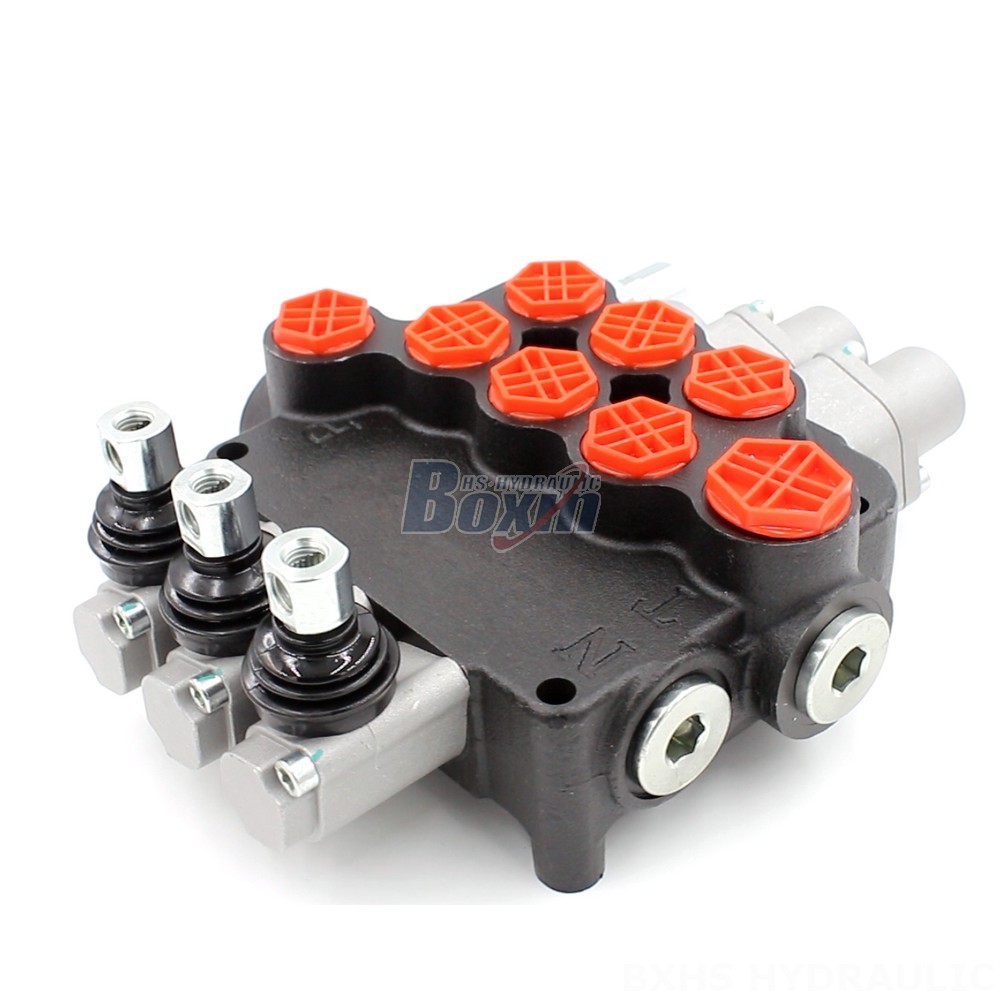

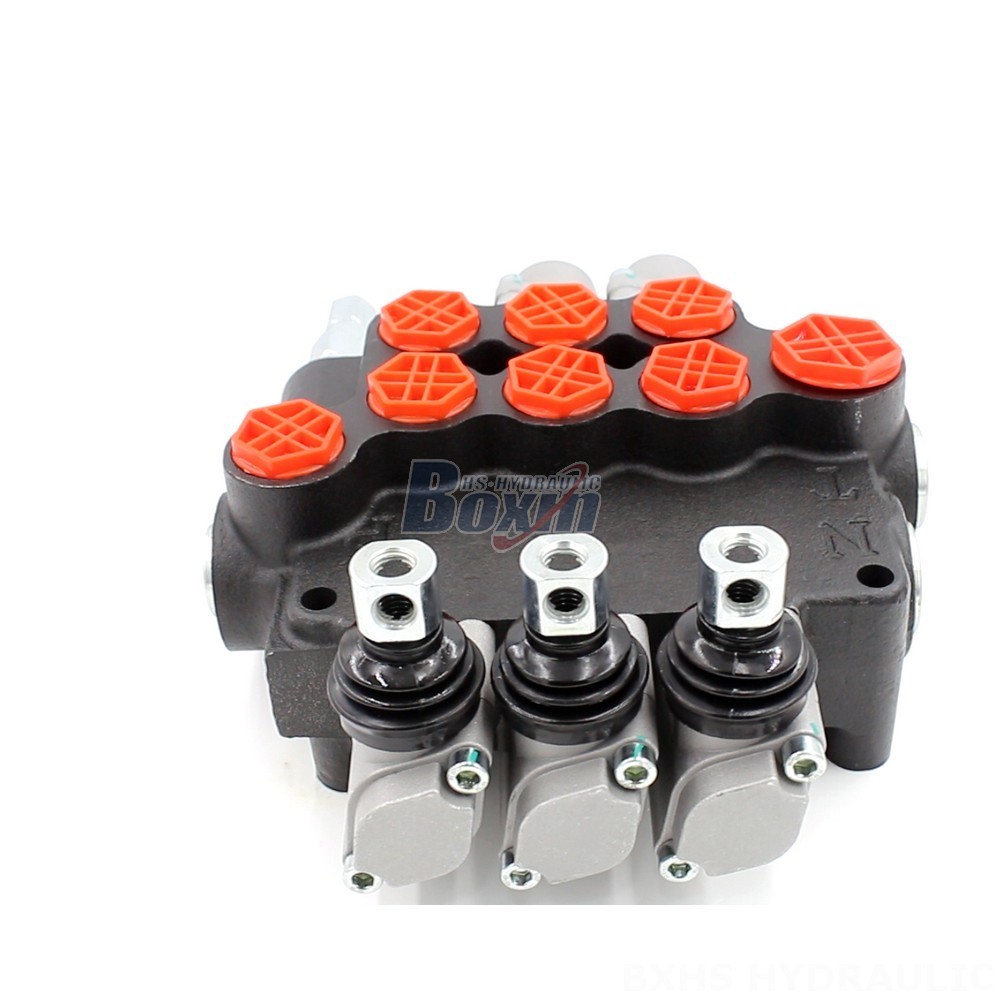

P80-G12-G34 Manual 3 Spool Monoblock Directional Valve | Manufacturer

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*23*11

Waga brutto:10.60 kg

Dostępność: W magazynie

1056 Osoby oglądają ten produkt

P80-G12-G34 Manual 3 Spool Monoblock Directional Valve | Manufacturer

P80-G12-G34 Manual 3 Spool Monoblock Directional Valve | Manufacturer

P80-G12-G34 Manual 3 Spool Monoblock Directional Valve | Manufacturer drawing image

The P80-G12-G34 is a high-performance, manual, 3-spool monoblock directional valve designed for heavy-duty applications in construction, material handling, and industrial vehicles. It features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This robust hydraulic valve offers exceptional control and reliability in demanding environments. With its 3-spool configuration, it provides precise direction control of hydraulic actuators. The monoblock construction ensures high strength and durability, while the manual control allows for easy operation. The P80-G12-G34 is compatible with a wide range of operating fluids and temperatures, making it suitable for various applications. It features a rated flow of 80 L/min, a maximum pressure of 250 bar, and an operating viscosity range of 15-75 mm²/s. Its compact design and lightweight construction allow for easy installation and integration into various hydraulic systems. This valve is designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders, among other industrial vehicles.
