Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

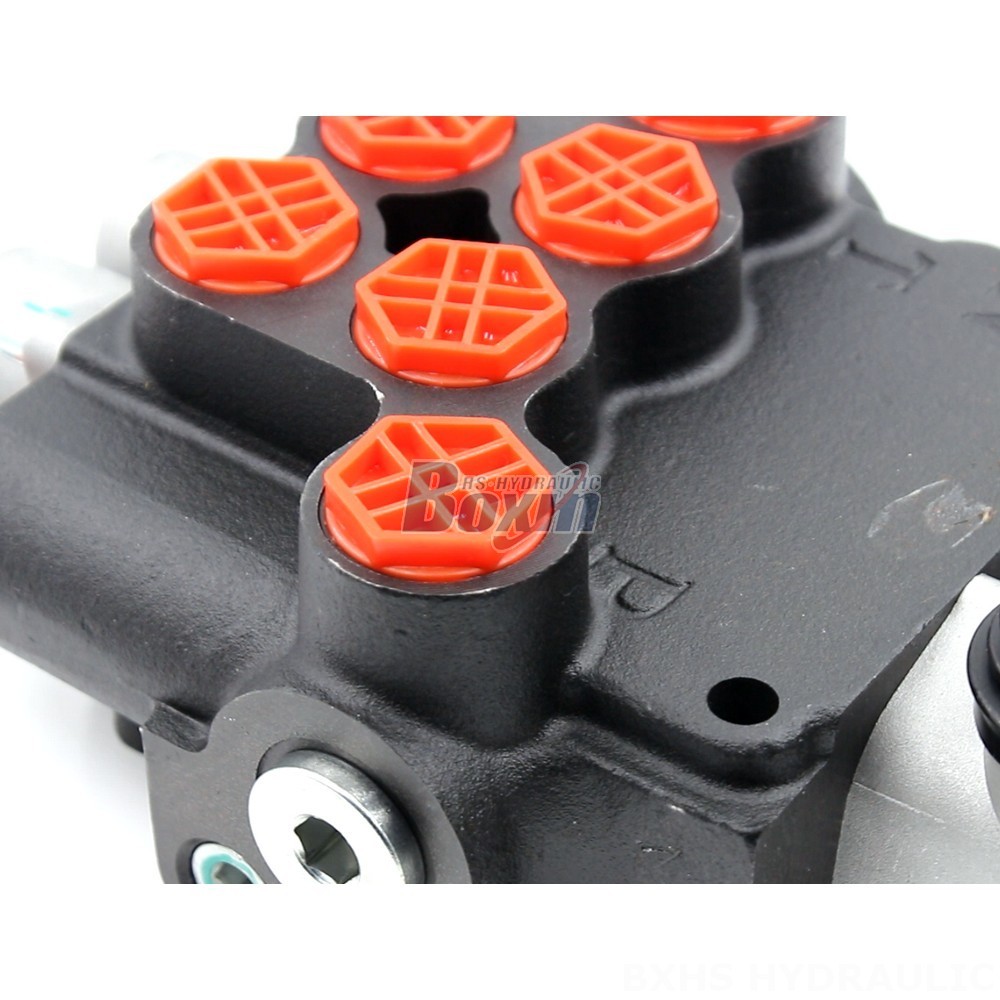

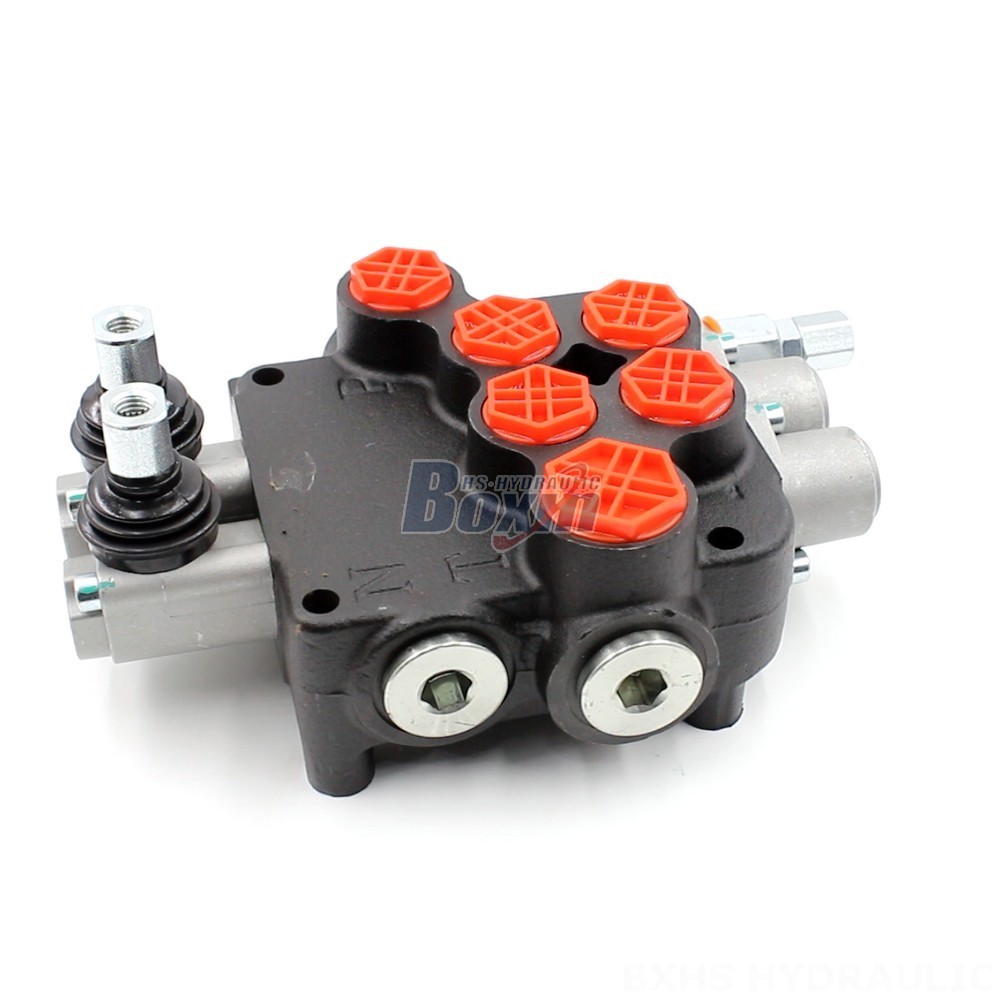

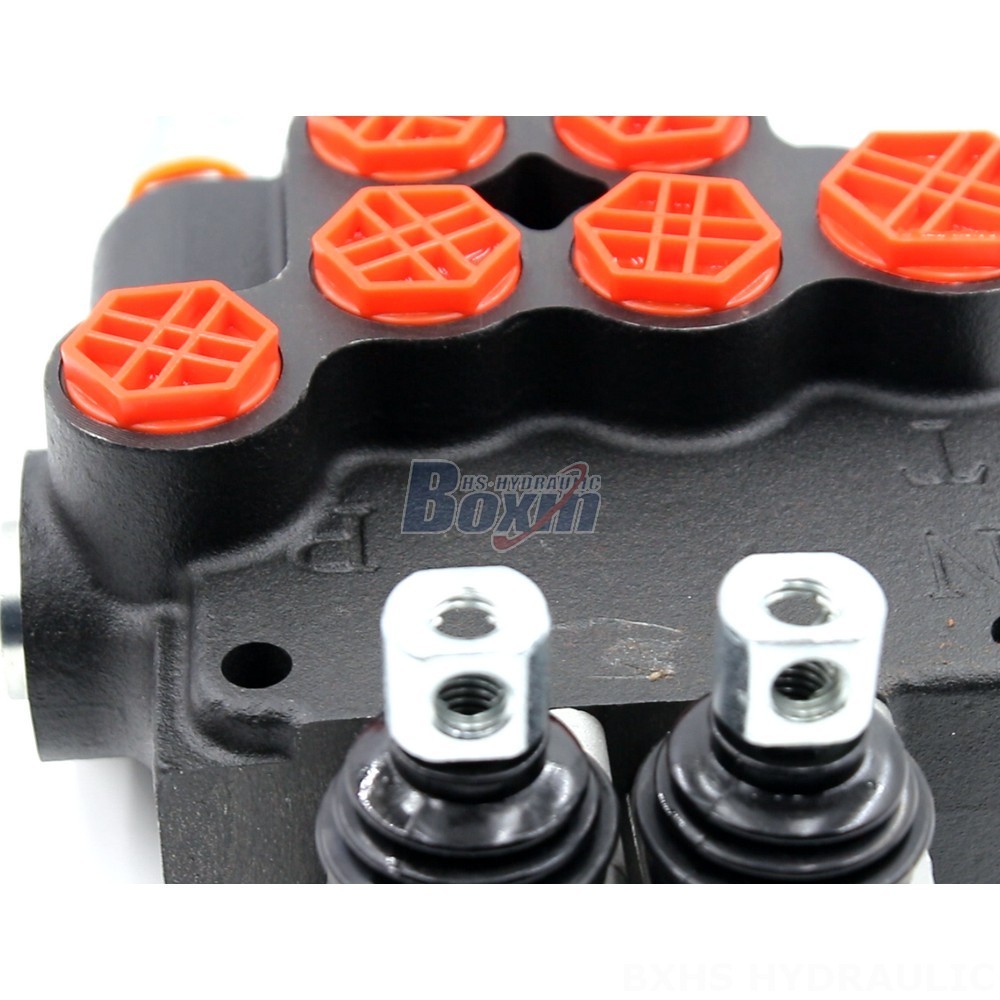

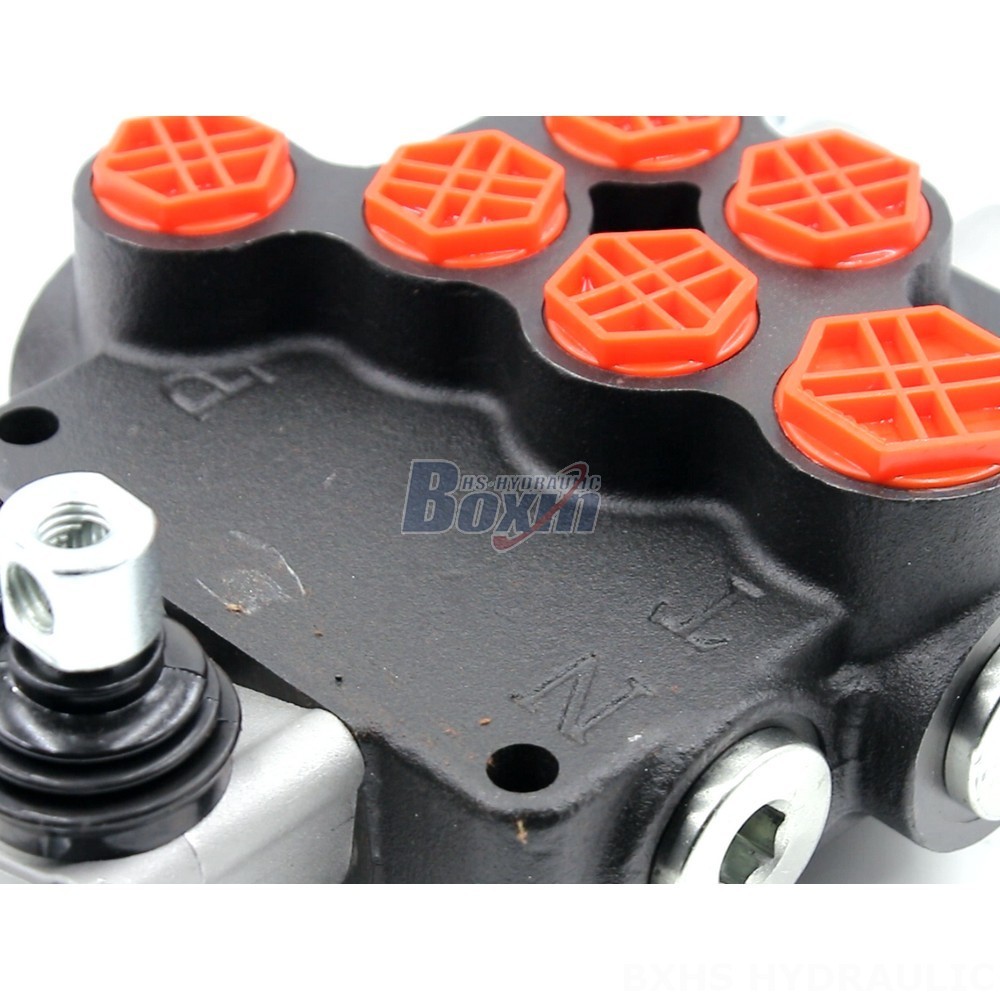

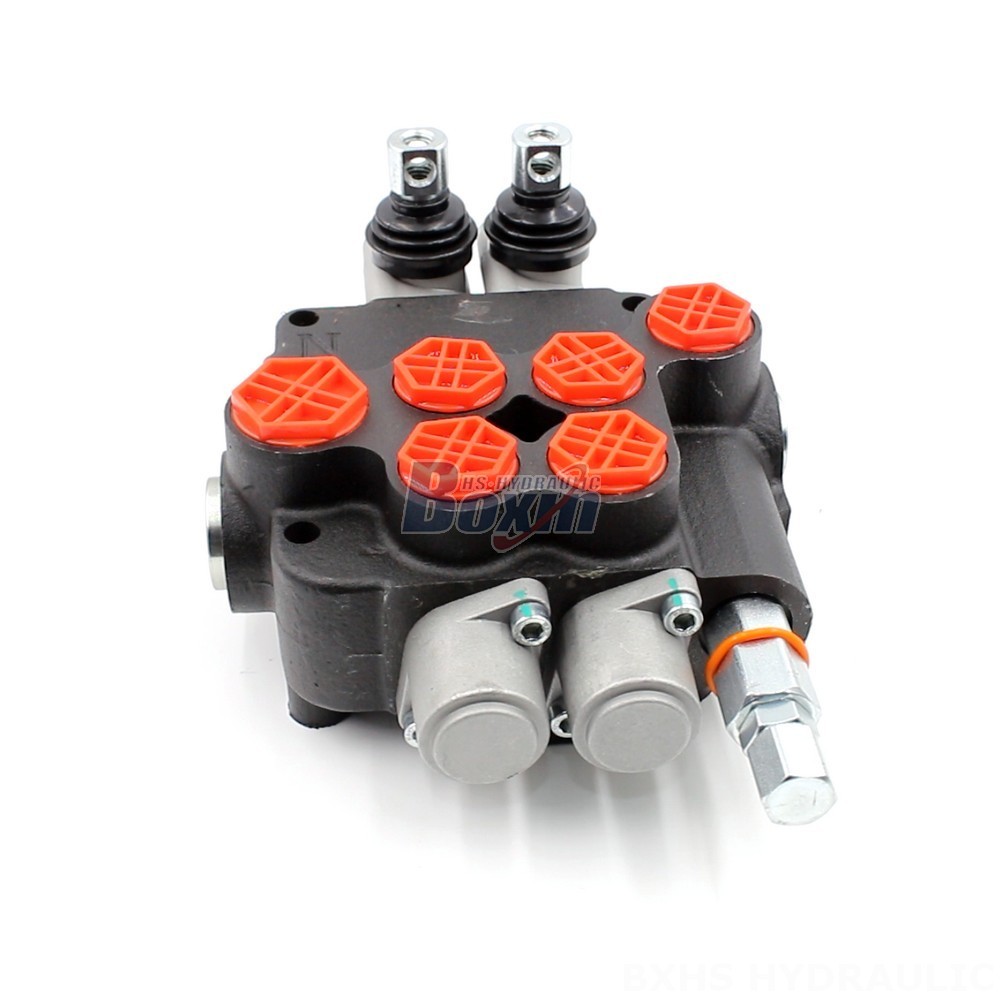

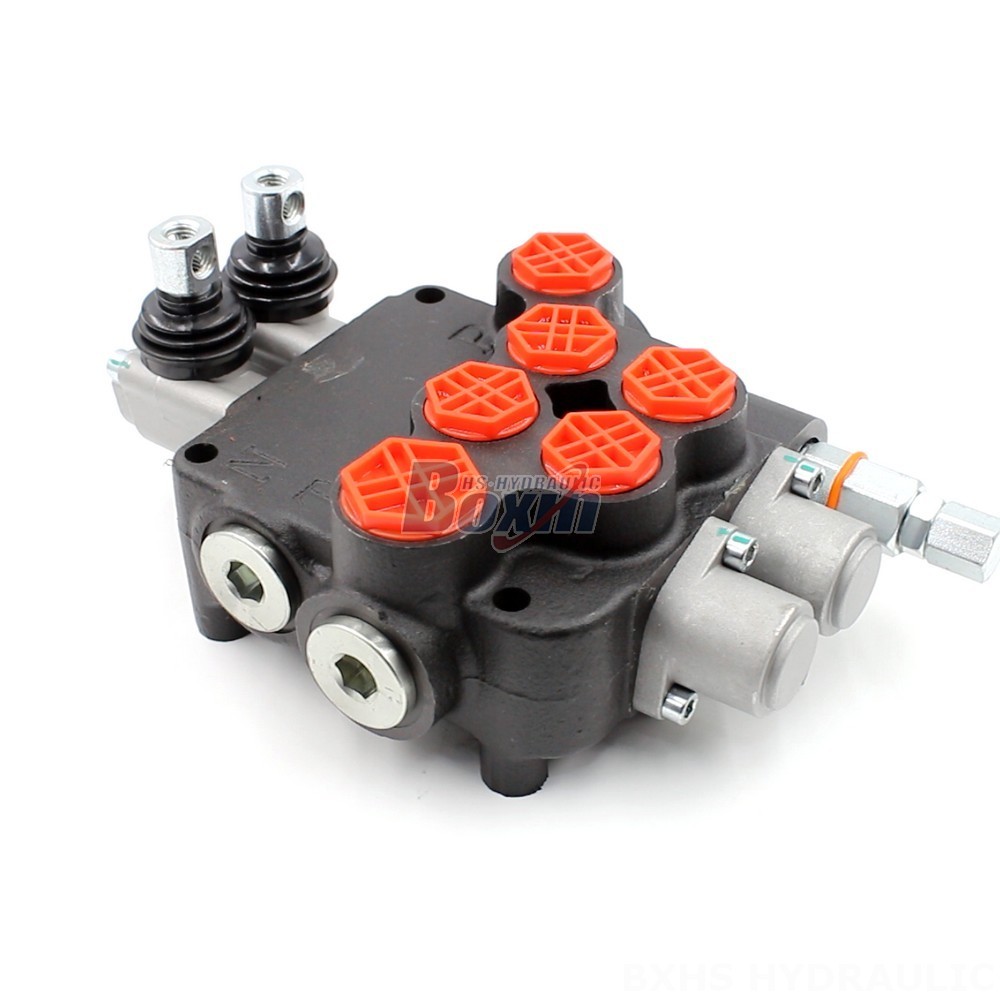

The P80-AQF Directional Valve is a high-performance, 4-way manual control hydraulic valve designed for various applications in material handling, construction, agriculture, and industrial vehicles. It offers a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi).
| Seria P80 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port wylotowy | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Rozmiar portu | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-AQF Directional Valve is a reliable and efficient solution for controlling hydraulic circuits in a wide range of machinery. This 4-way, 2-section monoblock valve features manual control and is designed for high-performance applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for demanding environments. Its robust construction and wide operating temperature range (-40°C to +80°C) ensure durability and reliability. The P80-AQF Directional Valve is commonly used in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, bale wrappers, backhoes, seeding machines, sprayers, and balers. Its versatility and robust design make it an ideal choice for various hydraulic systems in demanding applications.
