P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

Metoda sterowania:Pneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:29*16*11

Waga brutto:3.50 kg

Dostępność: W magazynie

74 Osoby oglądają ten produkt

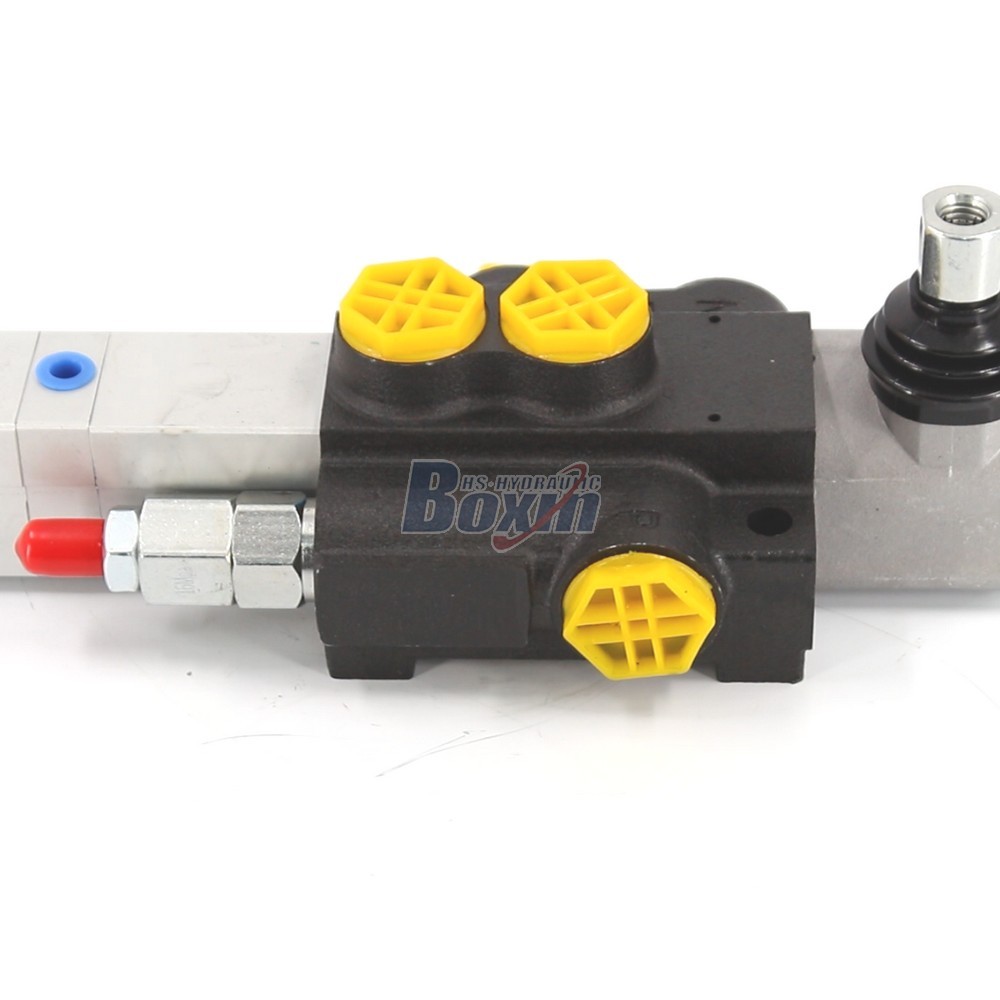

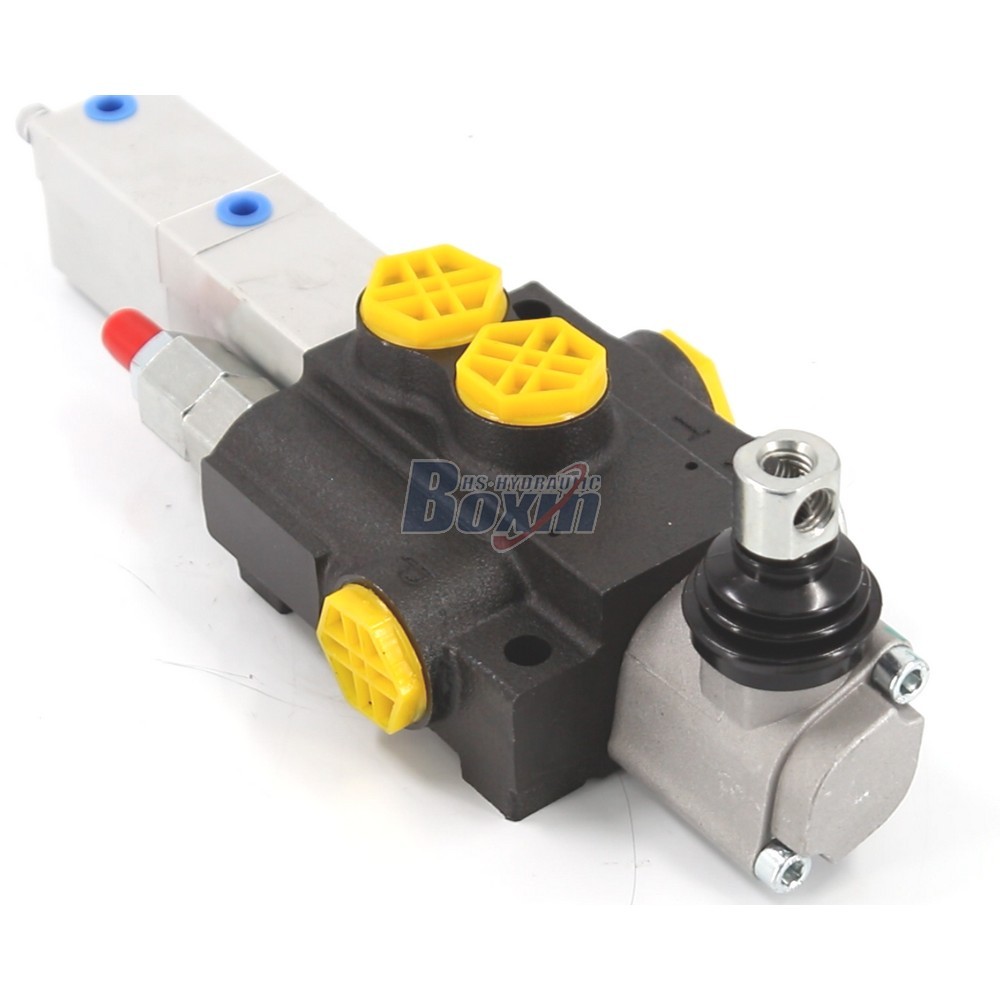

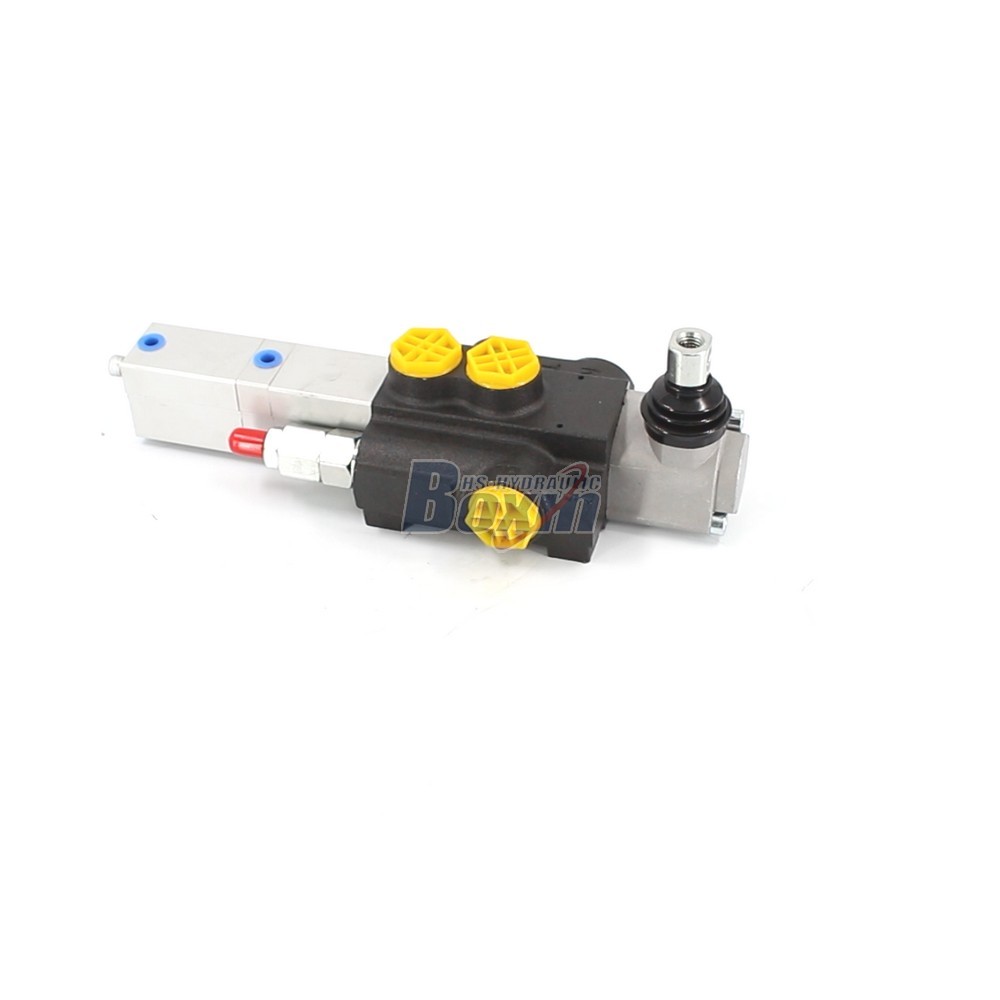

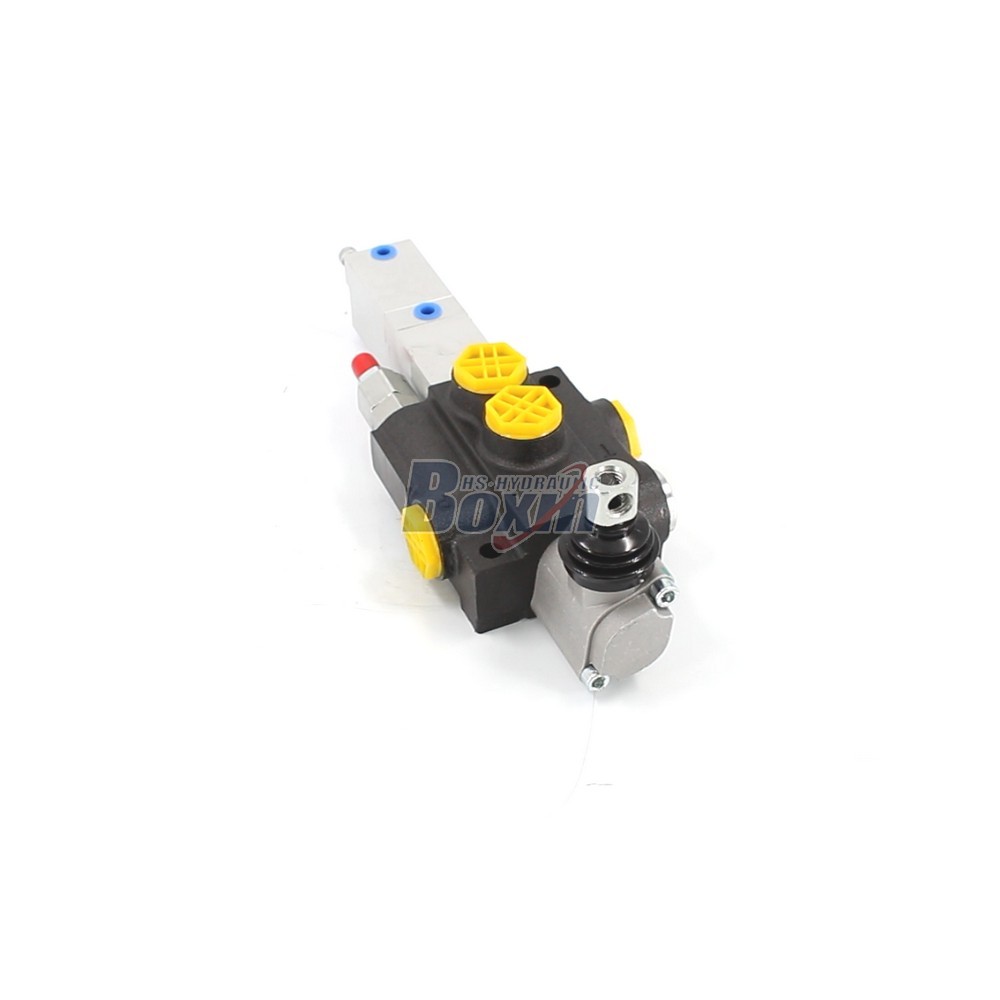

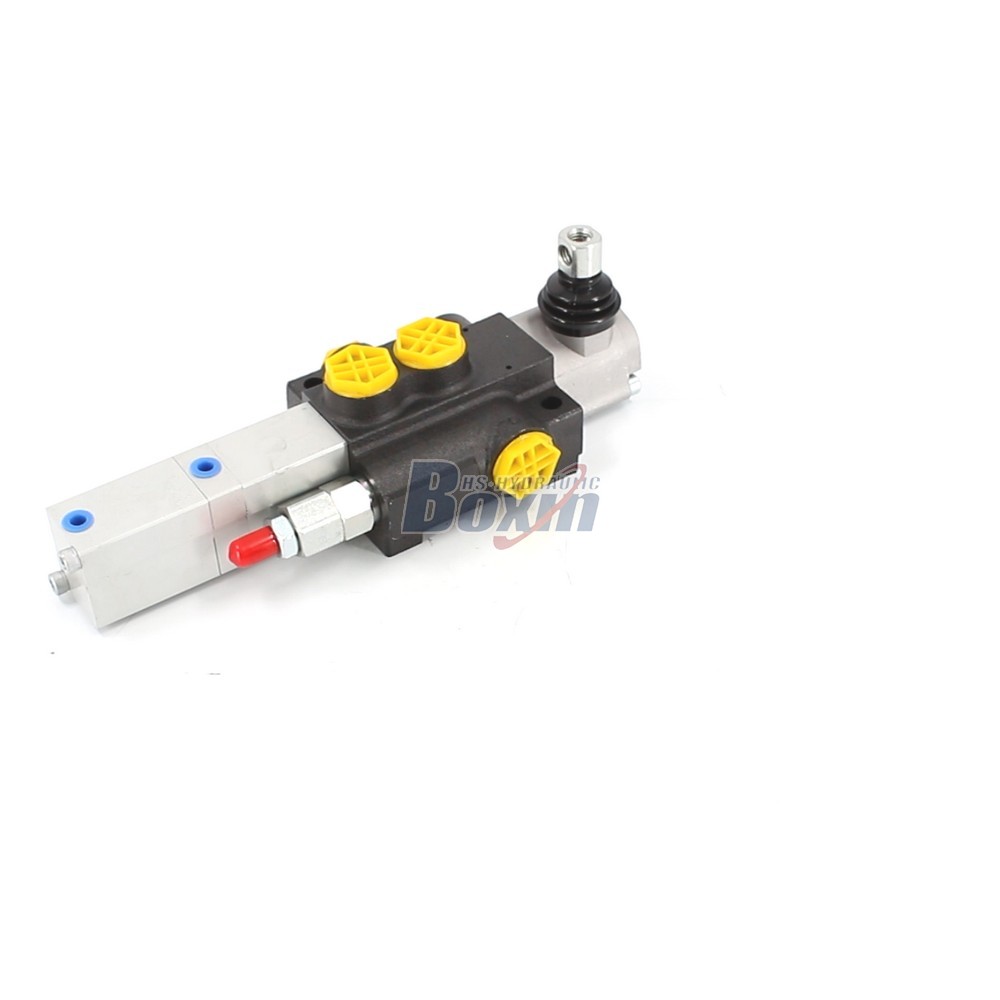

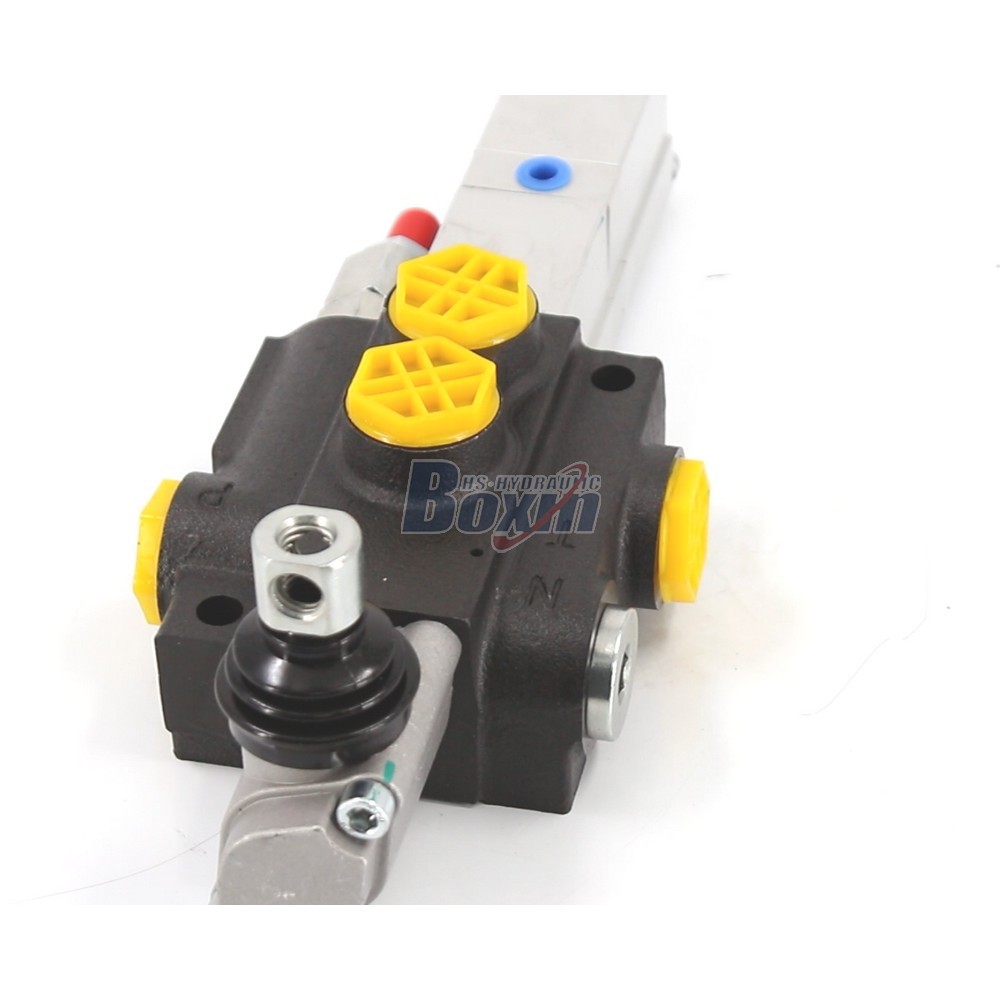

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve

P40Q-OT Pneumatic Operated 1 Spool Hydraulic Monoblock Valve drawing image

The P40Q-OT is a high-performance 1-spool pneumatic operated hydraulic monoblock valve designed for precise flow control in mobile and industrial machinery. Featuring a rated flow of 40 L/min and a maximum pressure of 250 bar, this robust valve is ideal for applications requiring remote air-actuated control in demanding environments like agriculture and construction.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

Our P40Q-OT series pneumatic operated hydraulic monoblock valve is engineered for professional-grade performance in material handling and earth-moving equipment. As a leading hydraulic products manufacturer, we provide reliable factory supply for global markets. This 1-spool valve supports flow rates up to 40 L/min (10.5 US gpm) and pressures up to 3600 psi, making it suitable for forklifts, mini-excavators, and wood splitters. We specialize in OEM, ODM, and private labeling services, offering extensive customization to meet specific technical requirements. We are actively seeking long-term cooperation with distributors, wholesalers, agents, and traders worldwide. Whether you need bulk wholesale orders or tailored manufacturing solutions, our factory provides consistent quality and competitive pricing. This valve features G1/2 inlet/outlet ports and G3/8 working ports, ensuring versatility across various industrial vehicles and agricultural machinery like tractors and harvesters.
