The P40-XNHJ series hydraulic valve is a robust, high-performance 2-section monoblock valve rated at 40 L/min and 250 bar, ideal for various applications in material handling, construction, and agriculture. We are a manufacturer seeking global distributors, wholesalers, and trading partners.
| Seria P40-XNHJ Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Przepływ znamionowy | 40 l/min (10,5 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port wylotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Rozmiar portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |

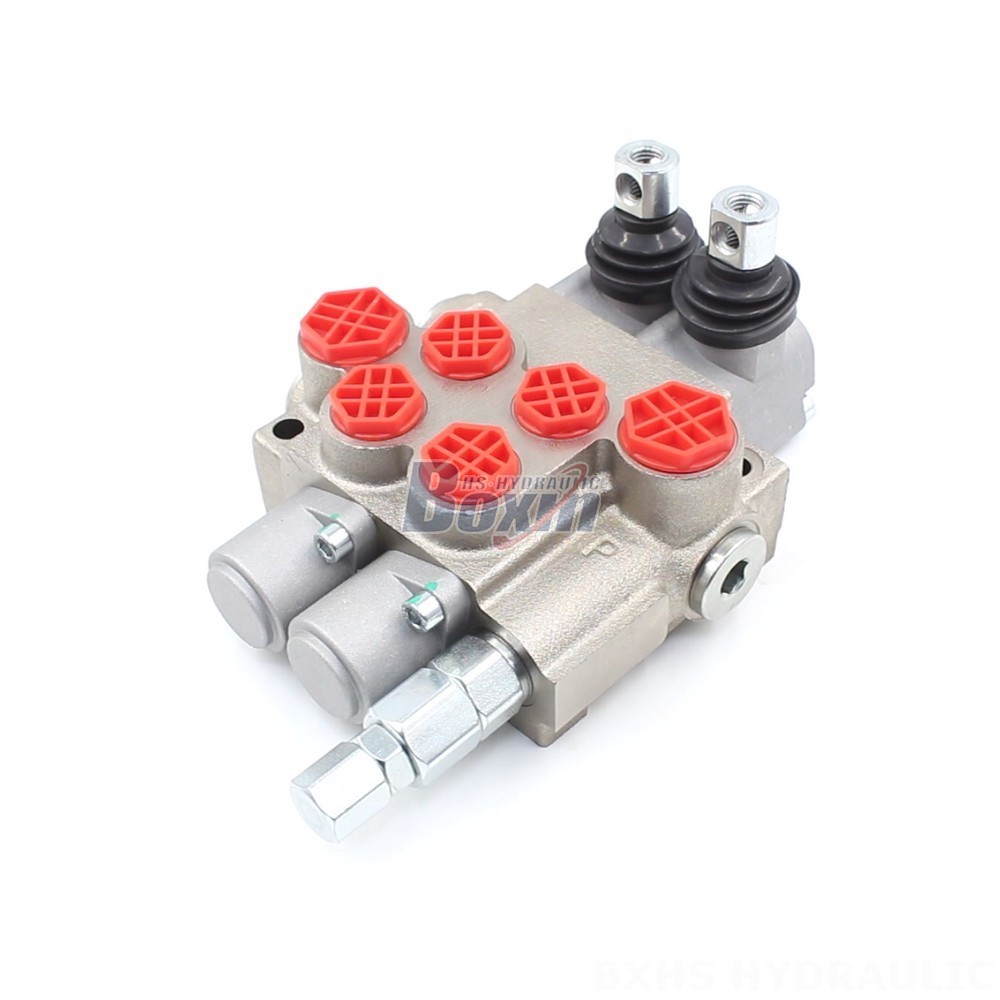

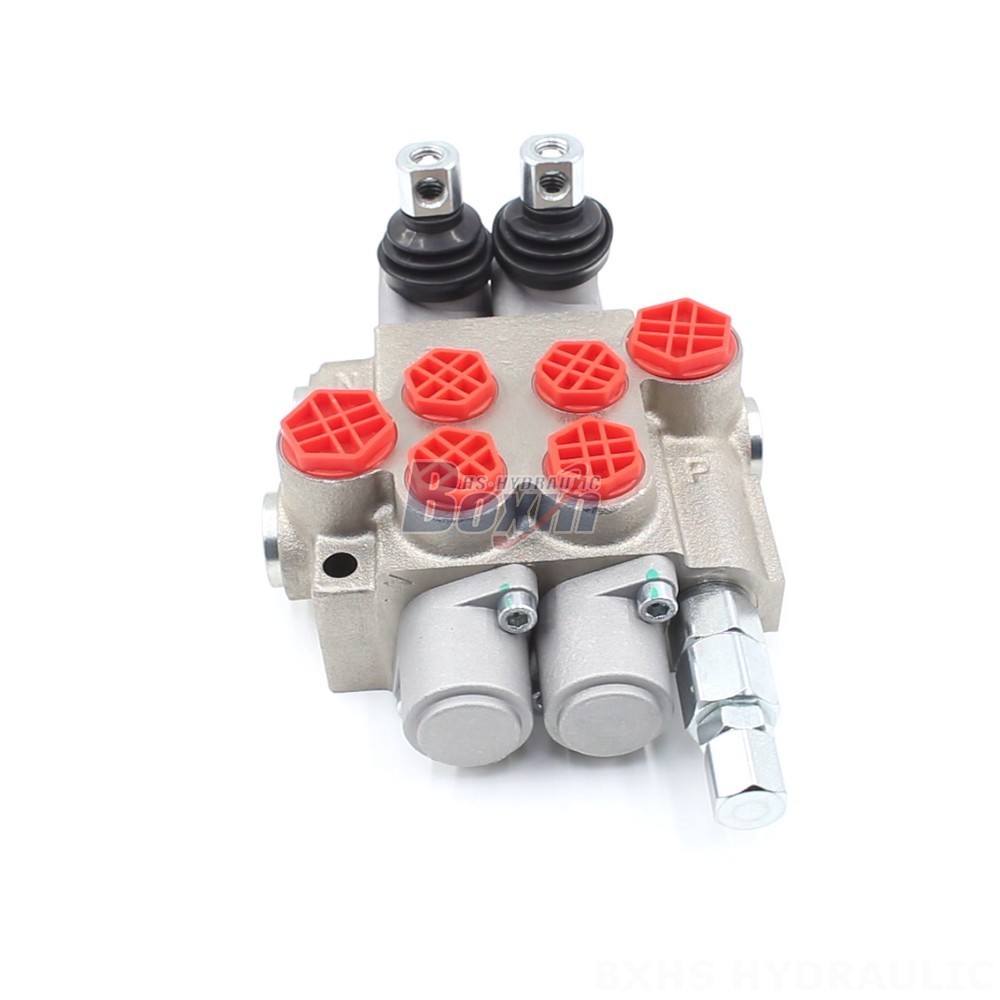

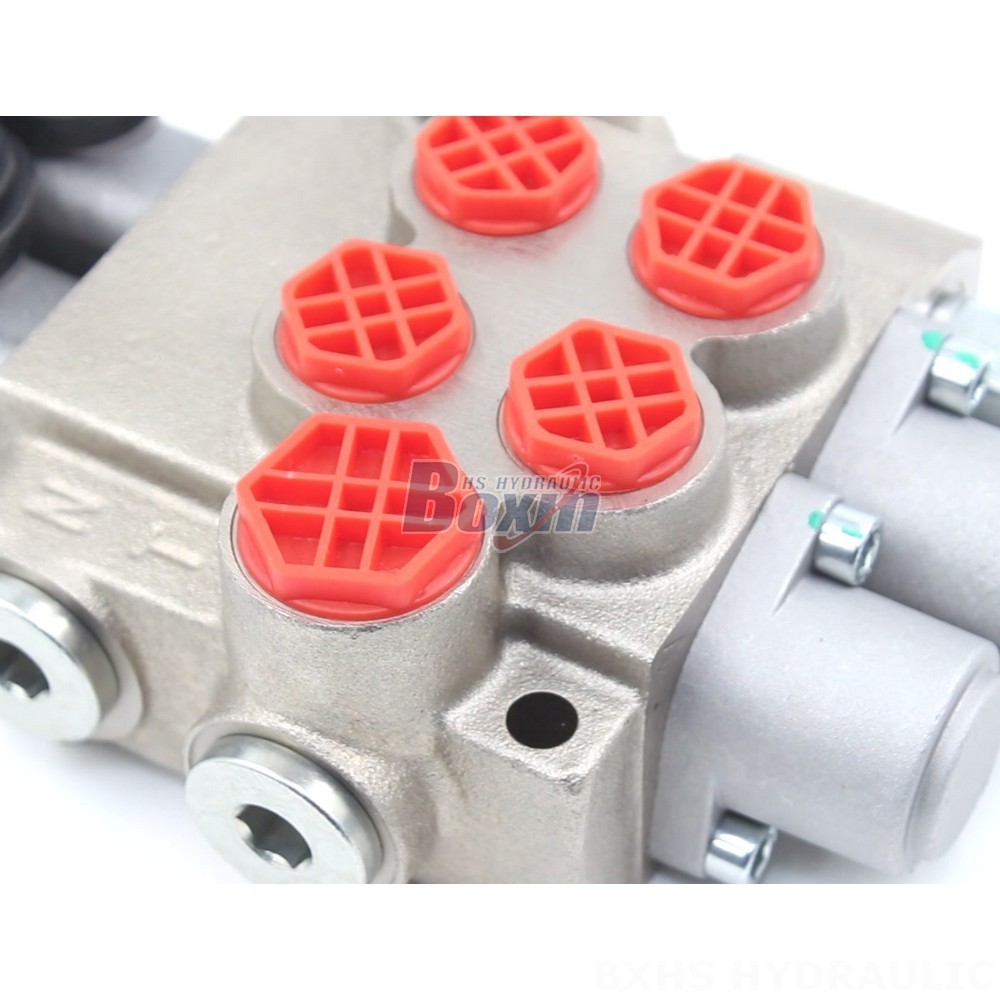

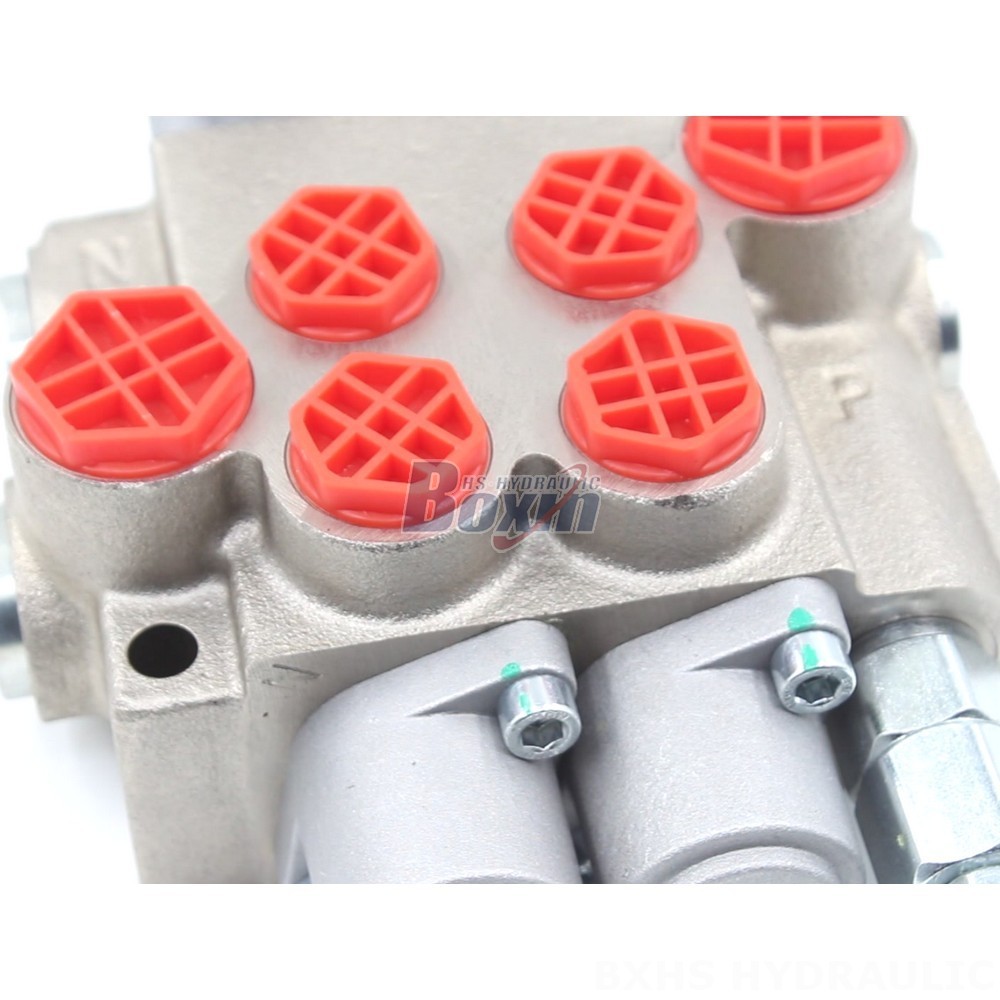

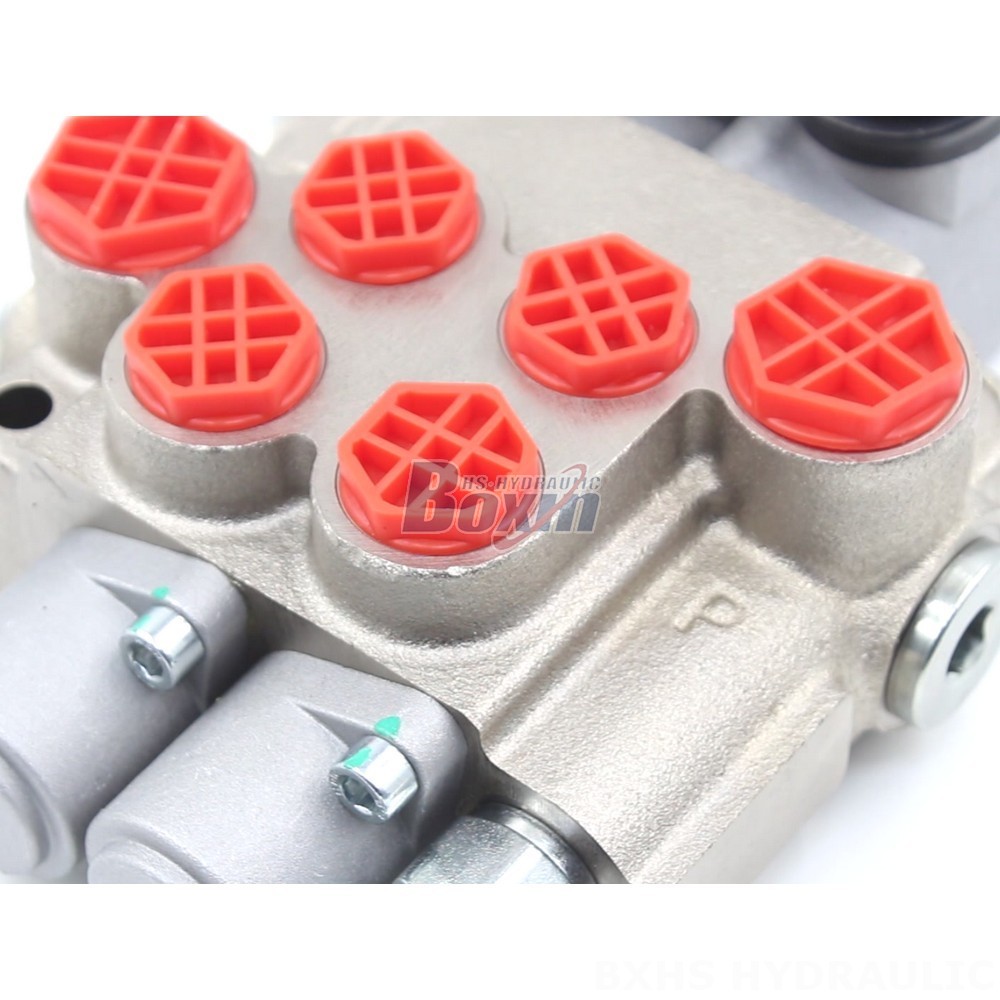

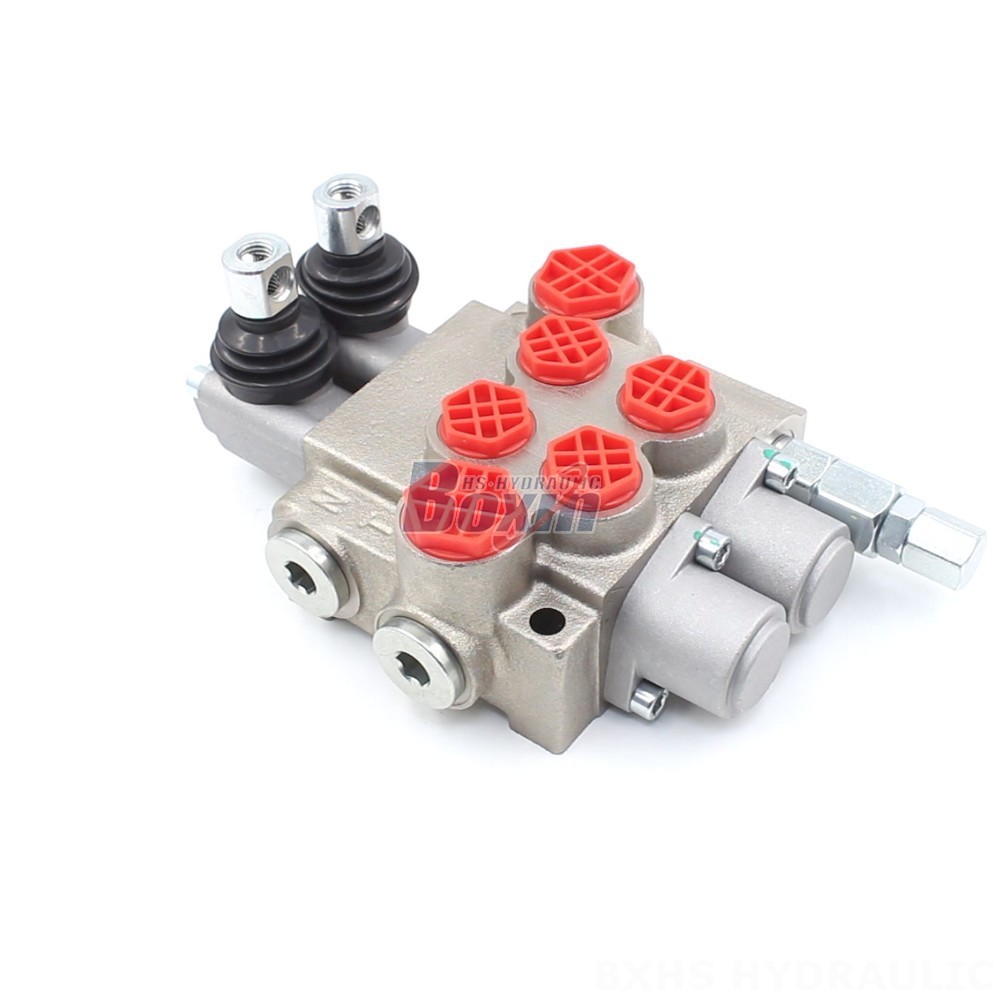

We are a global manufacturer of high-quality hydraulic valves, specializing in the P40-XNHJ series. This manual, 2-section monoblock valve boasts a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It operates within a viscosity range of 15-75 mm²/s (15-75 cSt) and an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve features a 2-spool design and is perfect for a wide range of applications including material handling, construction, and agriculture equipment such as forklifts, telehandlers, skid steer loaders, tractors, mini-excavators, backhoes, balers, harvesters, and sprayers.
We offer a full range of services including manufacturing, OEM, private labeling, customization, and wholesale distribution. We are actively seeking reliable distributors, wholesalers, and trading partners worldwide to expand our market reach. As a factory direct supplier, we offer competitive pricing and high-quality products. Partner with us to provide your customers with superior hydraulic valve solutions. Contact us today to discuss collaboration opportunities and explore the potential of a mutually beneficial partnership. Benefit from our factory direct wholesale pricing and exceptional product quality. We are committed to providing excellent service and support to all of our partners.
