P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

Metoda sterowania:Ręczna

Szpula:5-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:SAE 10

Port wylotowy:SAE 10

Rozmiar portu:SAE 10

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:28*23*13

Waga brutto:9.80 kg

Dostępność: W magazynie

1134 Osoby oglądają ten produkt

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance

P40-U78 Valve: Compatible Fluids, Operating Conditions & Maintenance drawing image

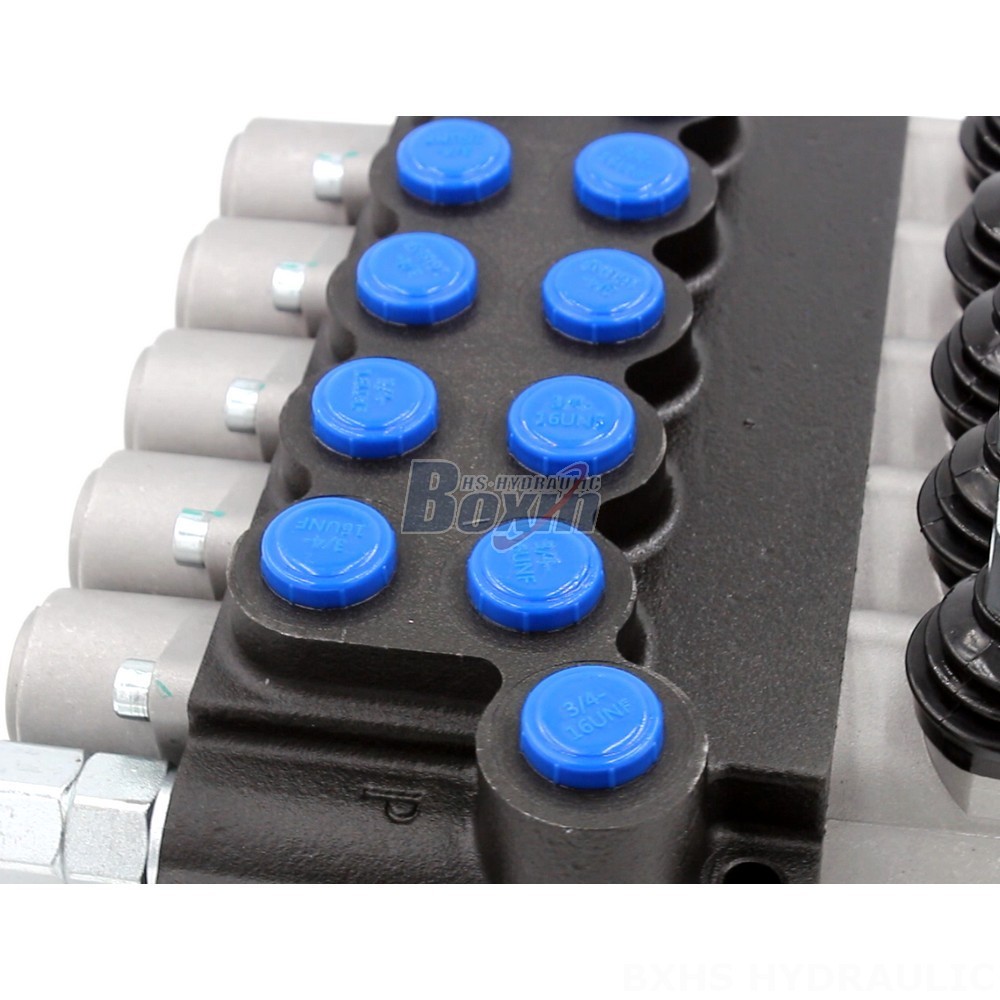

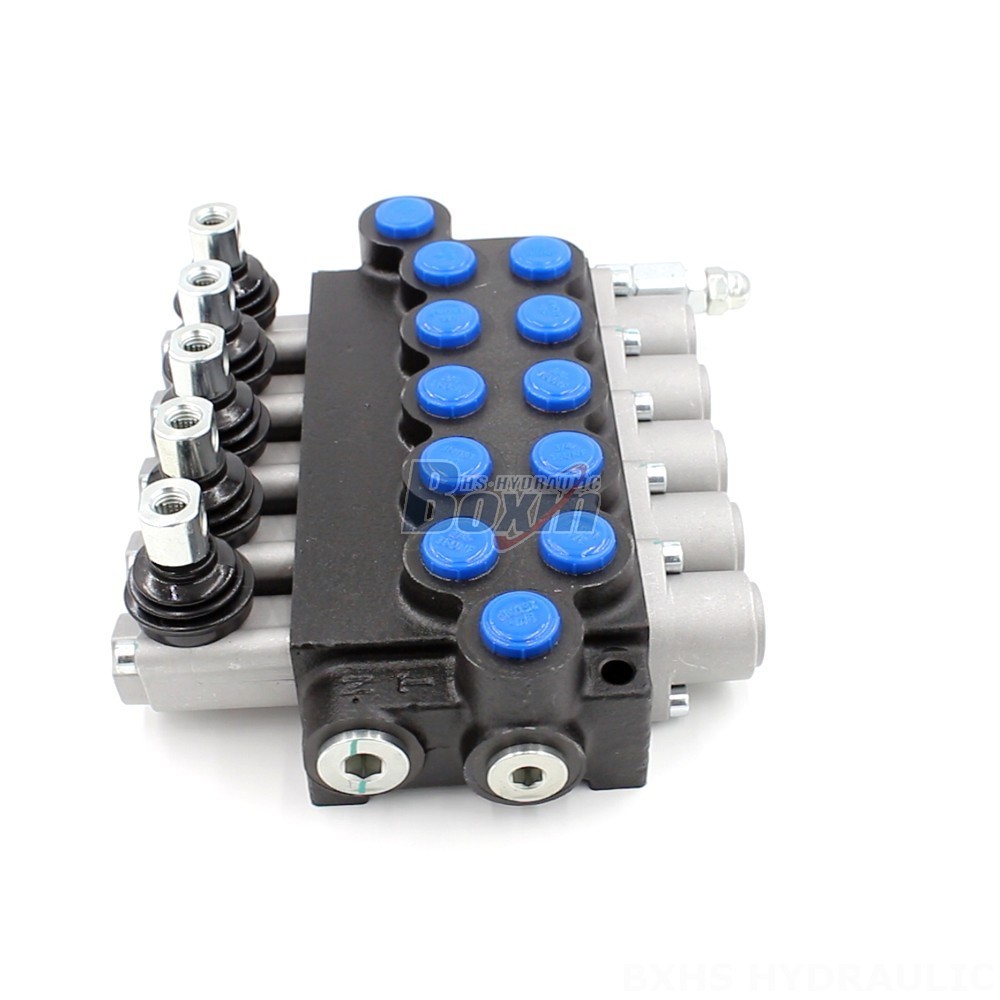

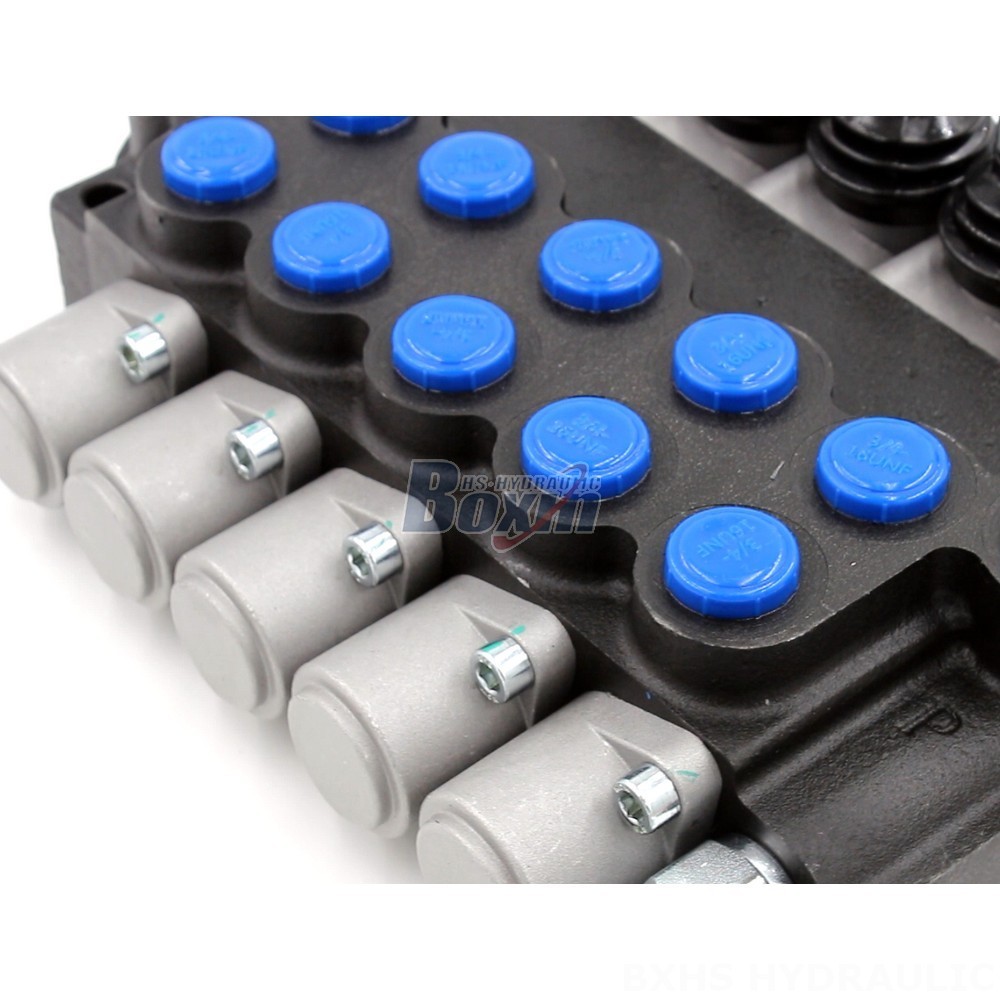

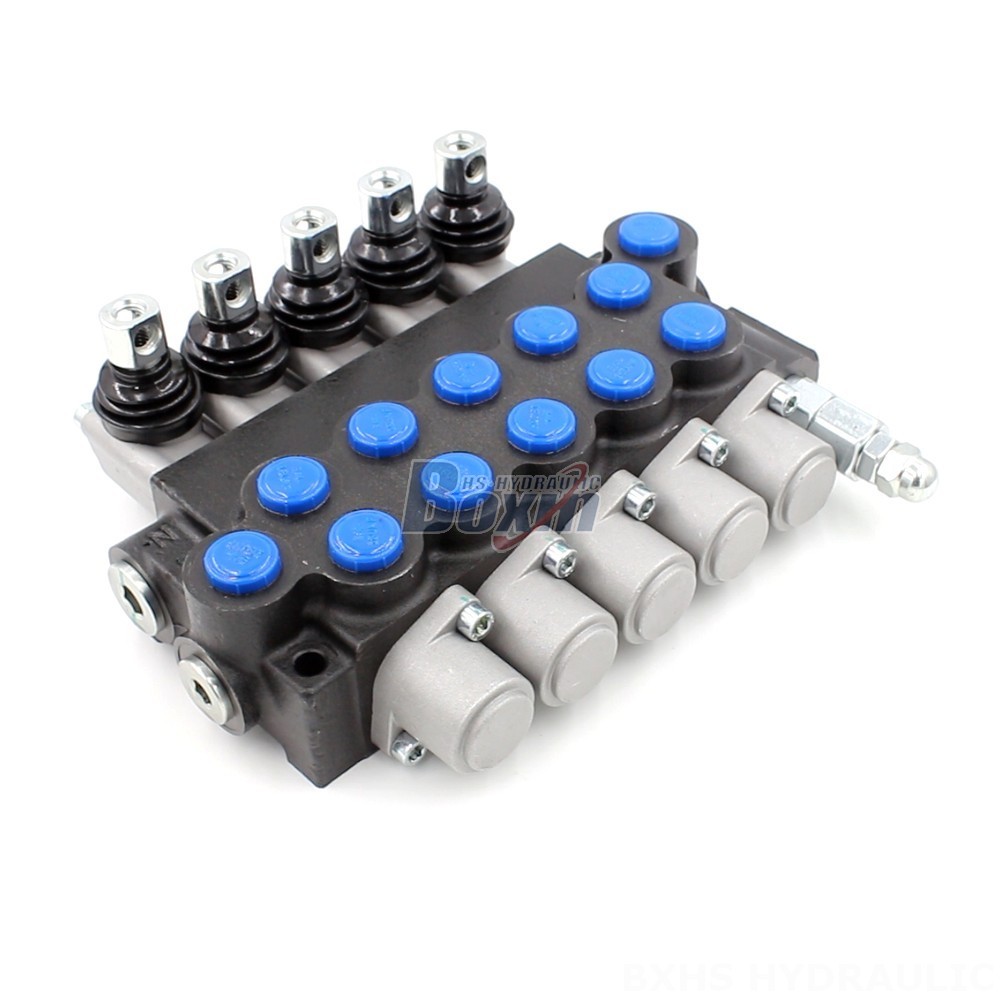

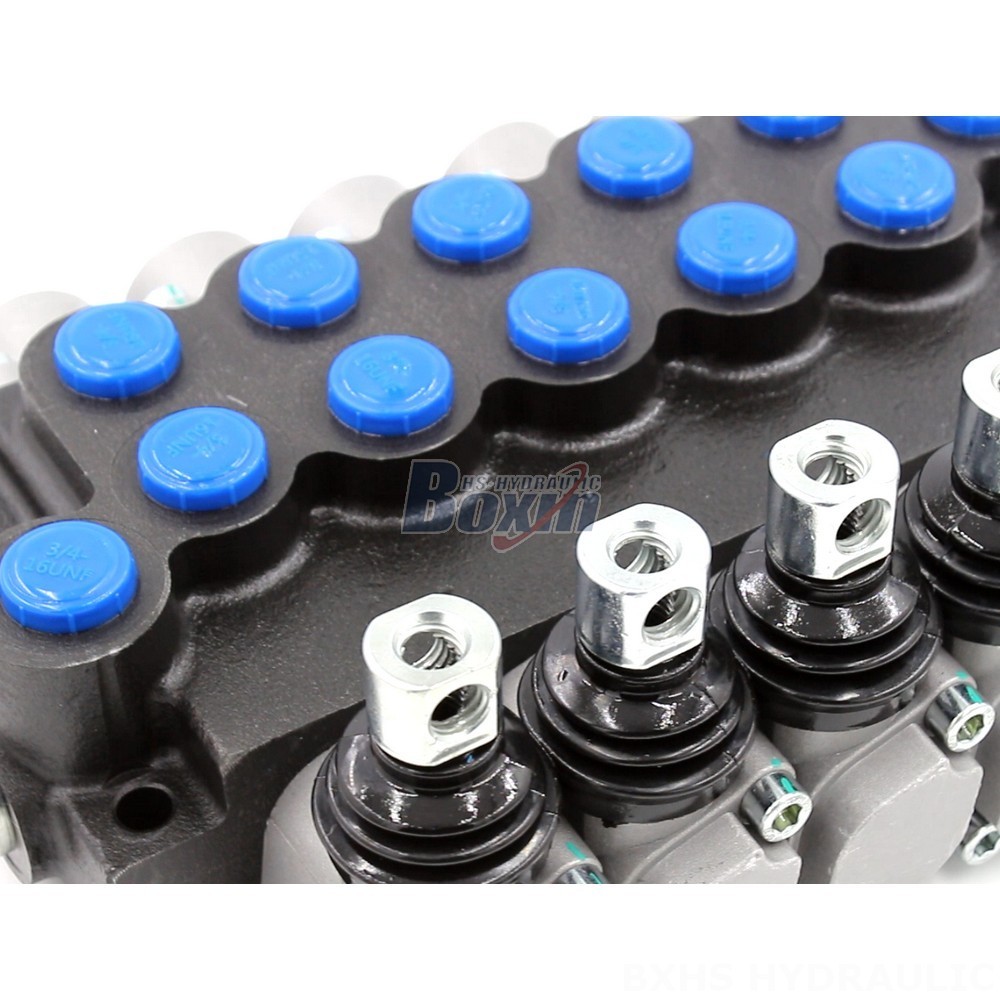

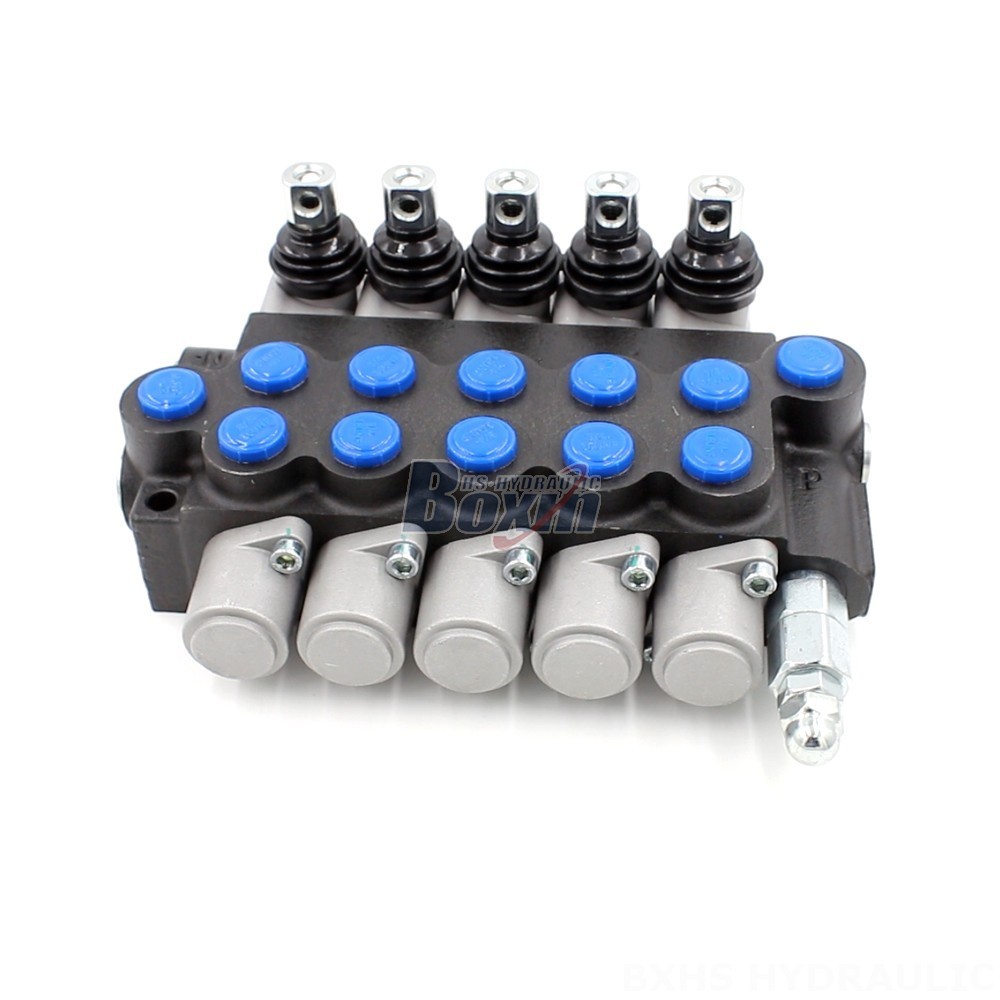

The P40-U78 Adjustable Control Valve is a 5-section, monoblock valve designed for use in a variety of construction, material handling, and industrial equipment. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for demanding applications.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-U78 Adjustable Control Valve is a high-performance, 5-section, monoblock valve that is designed for use in a variety of demanding applications. This valve is suitable for use in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, and compact wheel loaders. The P40-U78 valve is built with quality materials and is designed for a long service life. With its robust construction and durable components, this valve is capable of withstanding high pressures and demanding operating conditions. The P40-U78 valve is also easy to install and maintain, which can help to reduce downtime and increase productivity. The valve can be used with a variety of hydraulic fluids and is compatible with a wide range of operating conditions. This valve is a reliable and efficient solution for a variety of applications.
