P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:5.50 kg

Dostępność: W magazynie

1065 Osoby oglądają ten produkt

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable

P40-G12-G38-OT 2-Spool Directional Valve | Factory Direct & Customizable drawing image

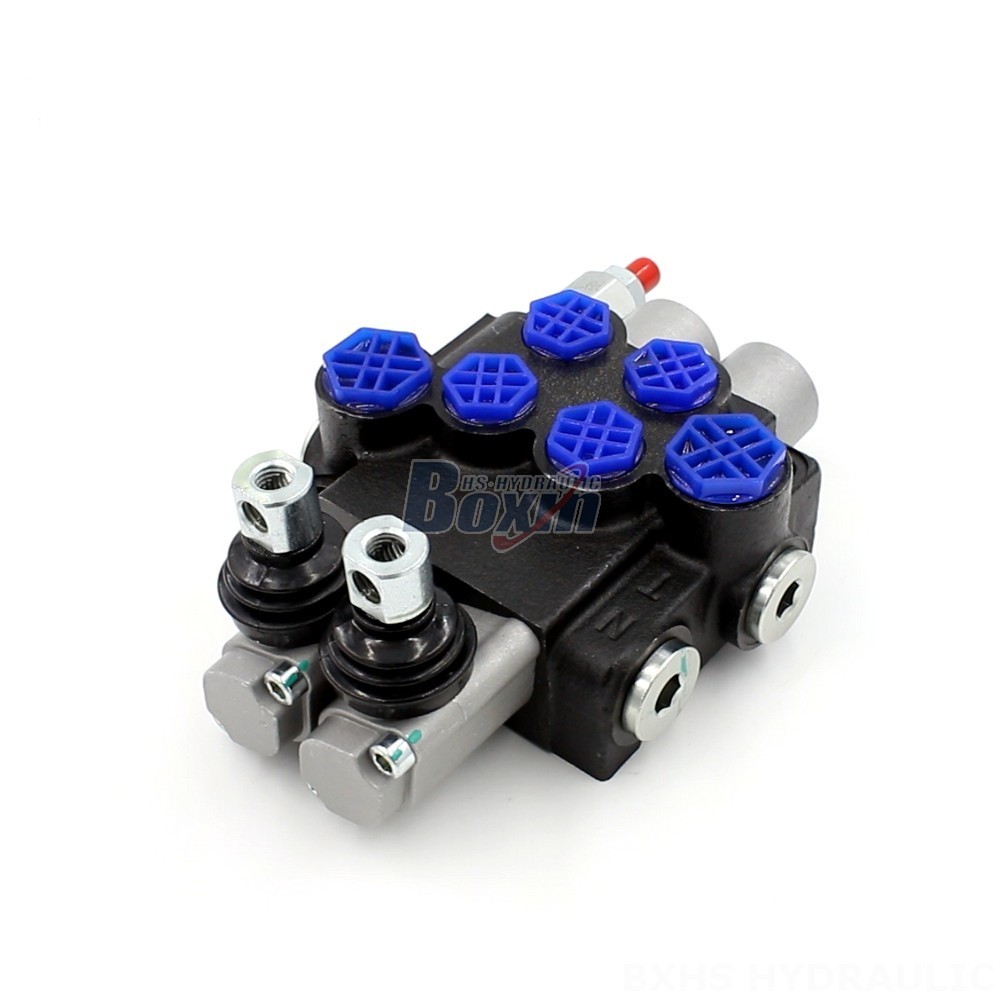

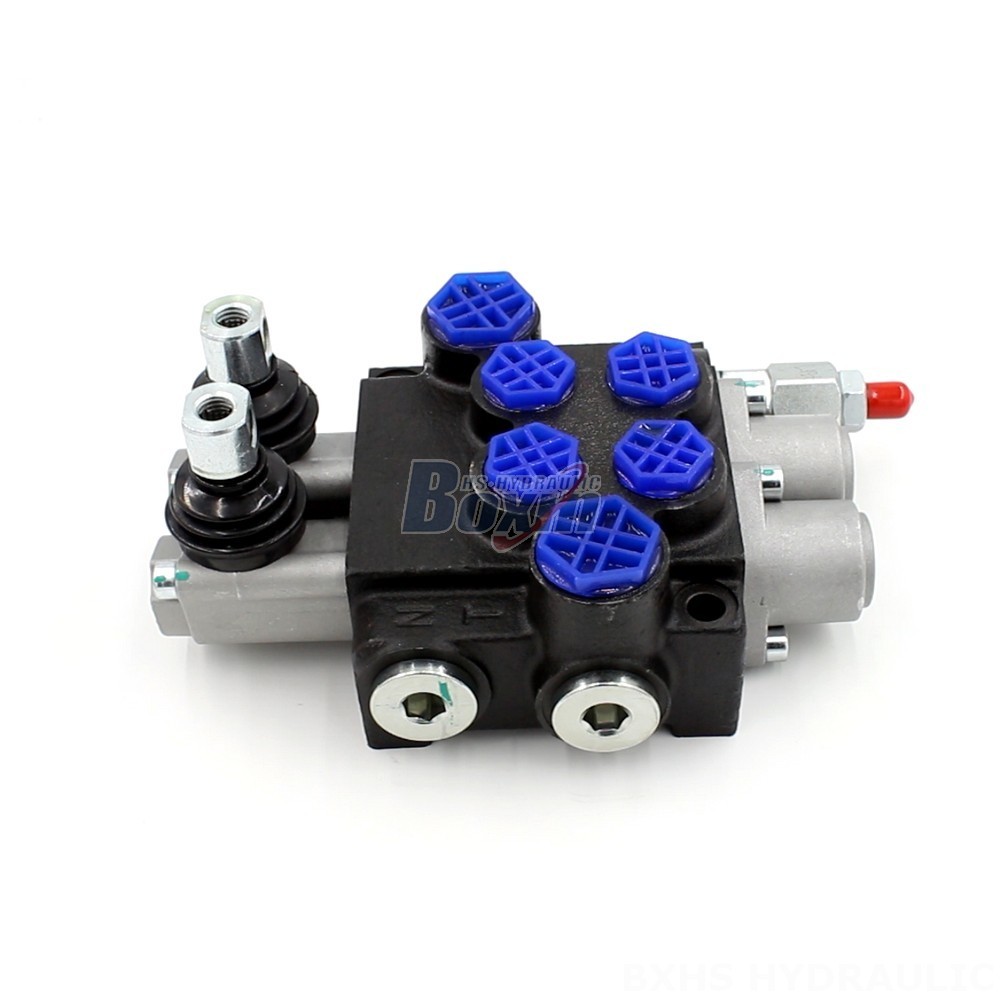

The Steering Unit P40-G12-G38-OT 2-Spool Directional Valve is a robust and reliable hydraulic valve designed for a variety of applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve features manual control, a 40 L/min rated flow, and a maximum pressure of 250 bar, making it suitable for demanding operating conditions. Available for factory direct purchase and customization, this valve is perfect for OEM and ODM needs.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT 2-Spool Directional Valve is a high-performance hydraulic component designed for precise steering control in various applications. This 2-section monoblock valve features a manual control method, providing operators with direct control over the steering system. With a rated flow of 40 L/min and a maximum pressure of 250 bar, the valve is capable of handling demanding workloads. Its wide operating viscosity range of 15 - 75 mm²/s ensures optimal performance across different operating temperatures. The valve's durable construction and robust design allow it to withstand harsh environments and demanding operating conditions. The P40 Series valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and other industrial vehicles. This versatile valve is available for factory direct purchase and offers customization options to meet specific requirements. As a manufacturer, we provide OEM and ODM services, offering wholesale pricing for bulk orders. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
