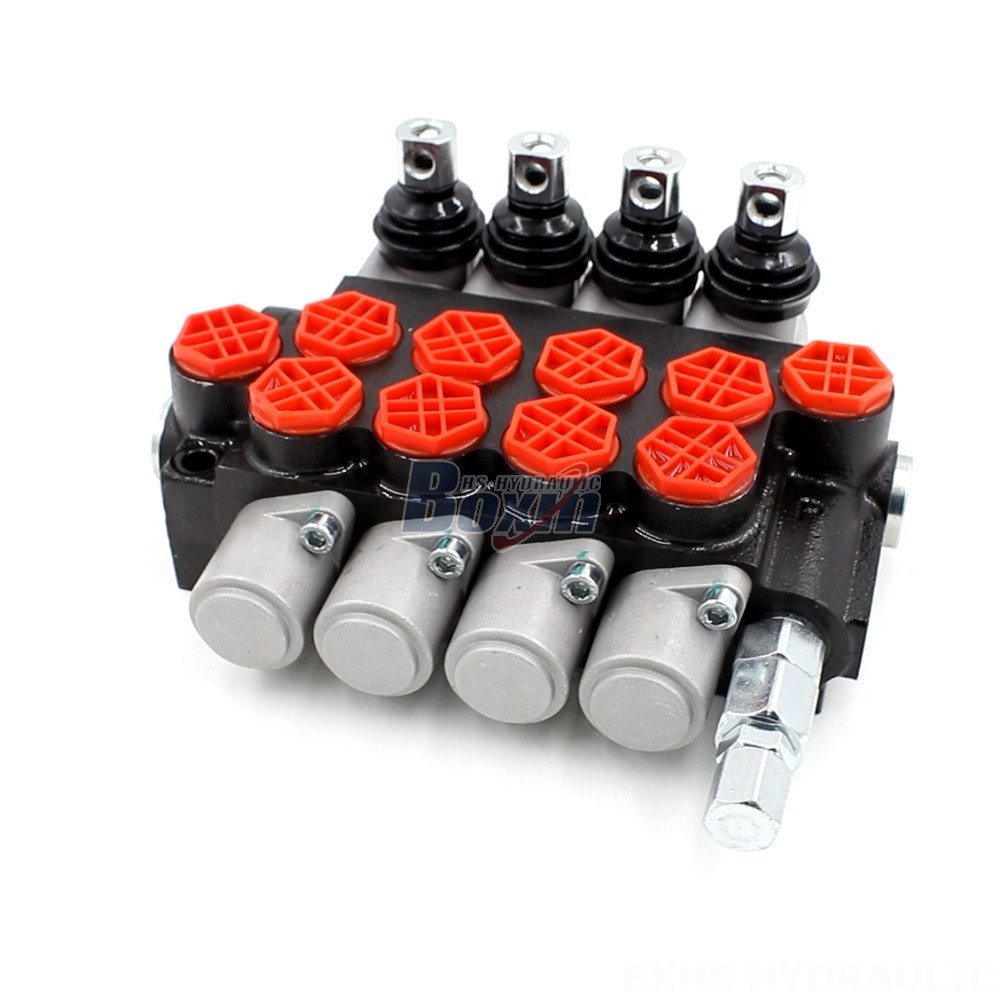

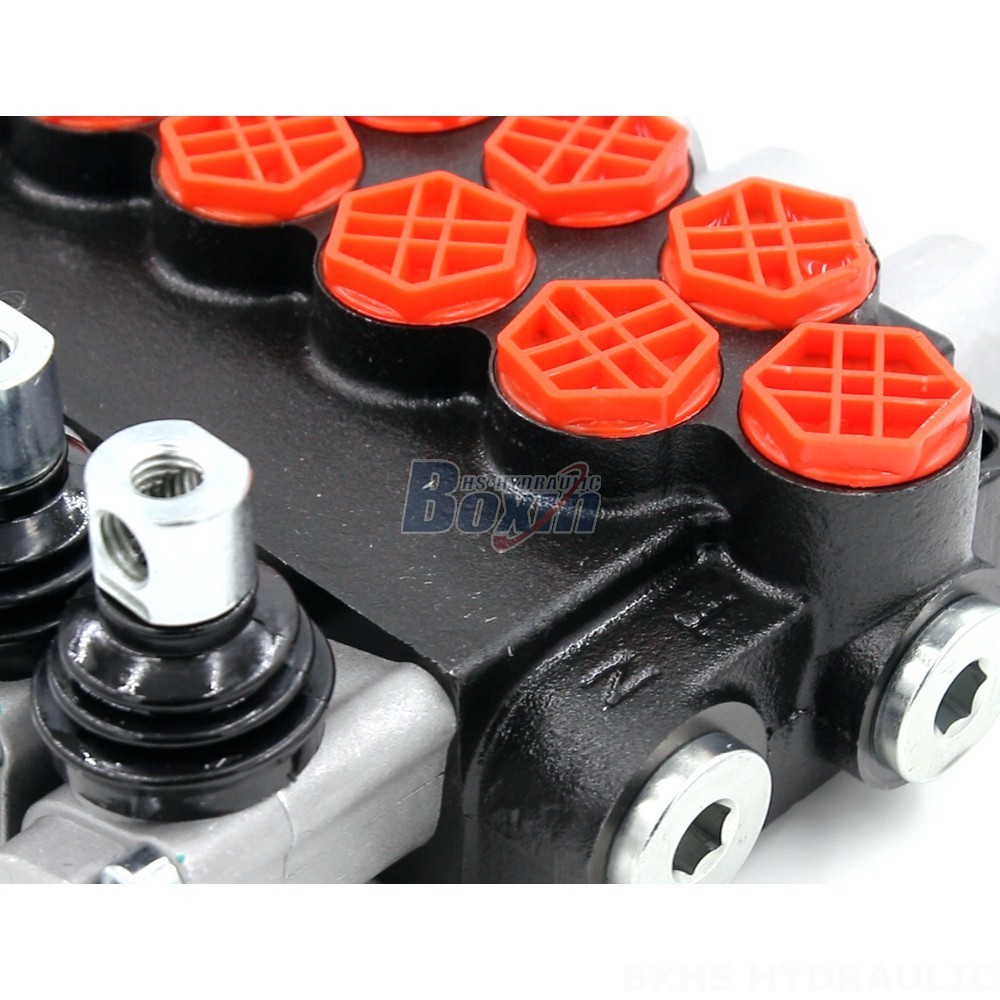

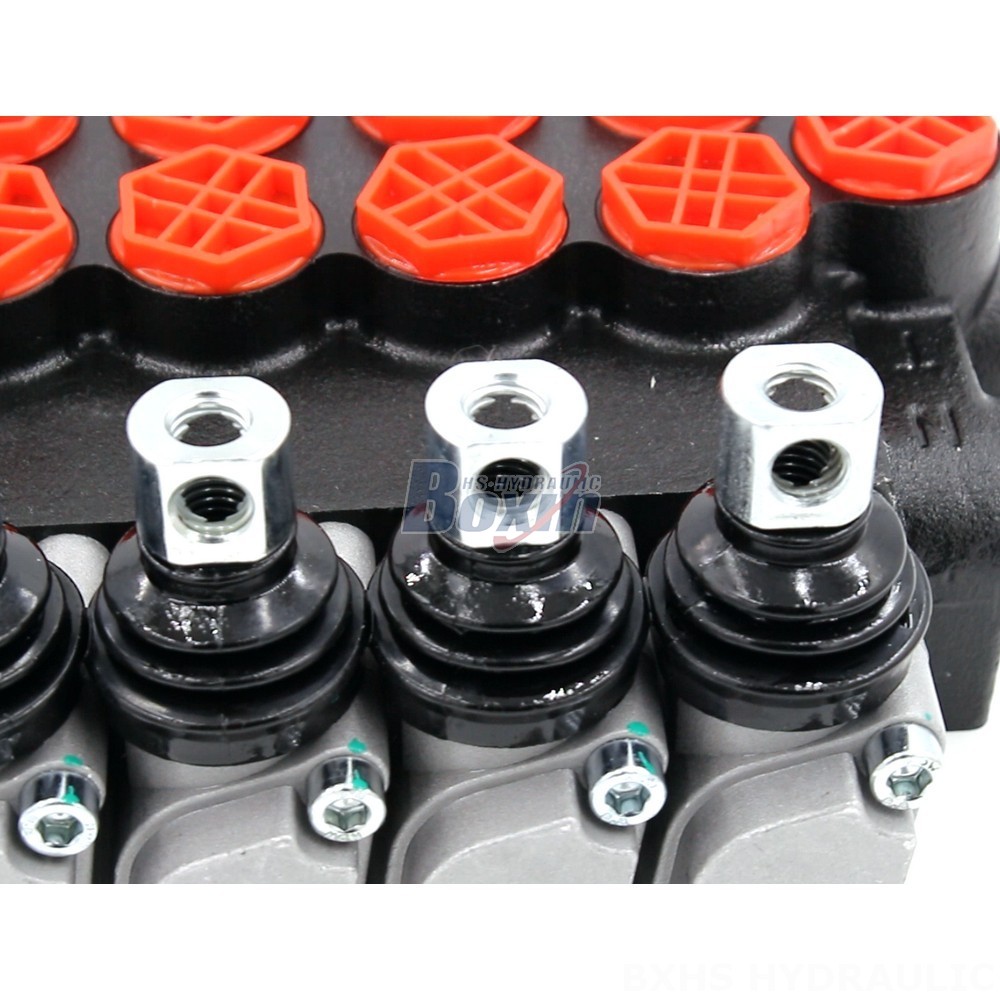

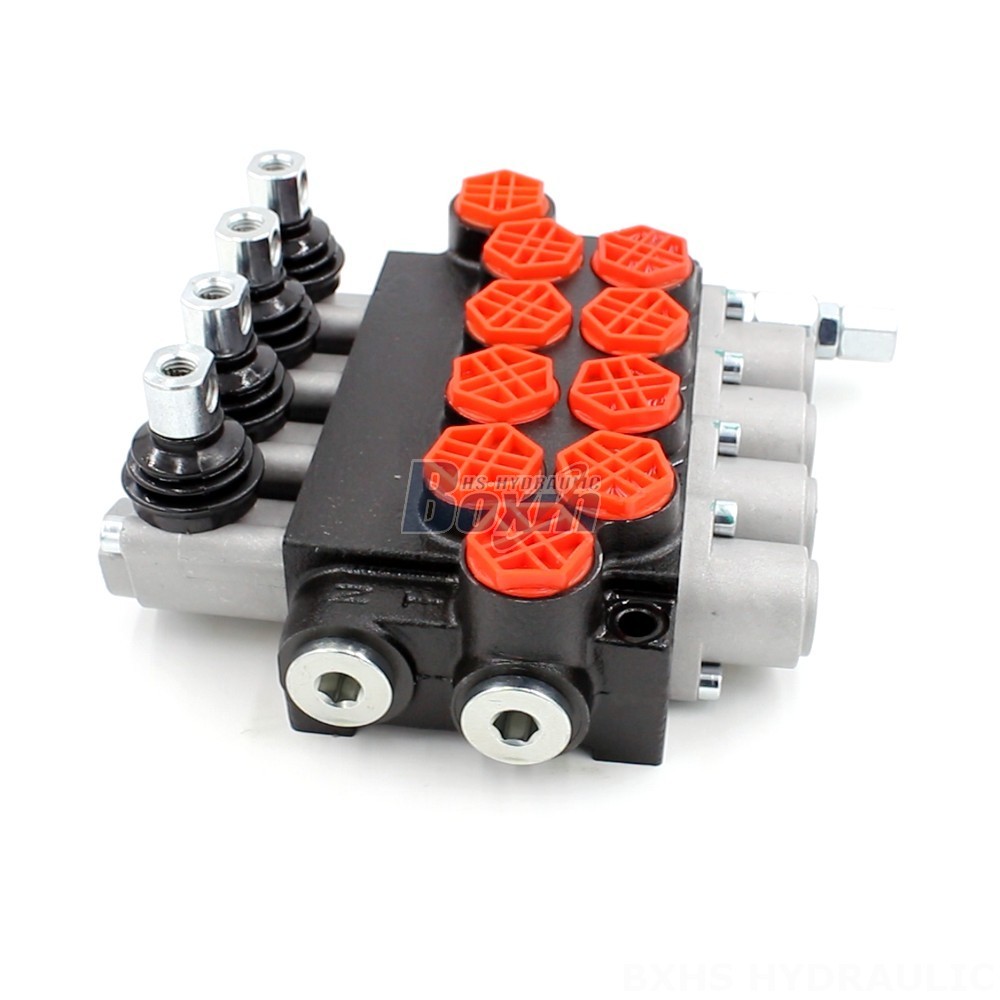

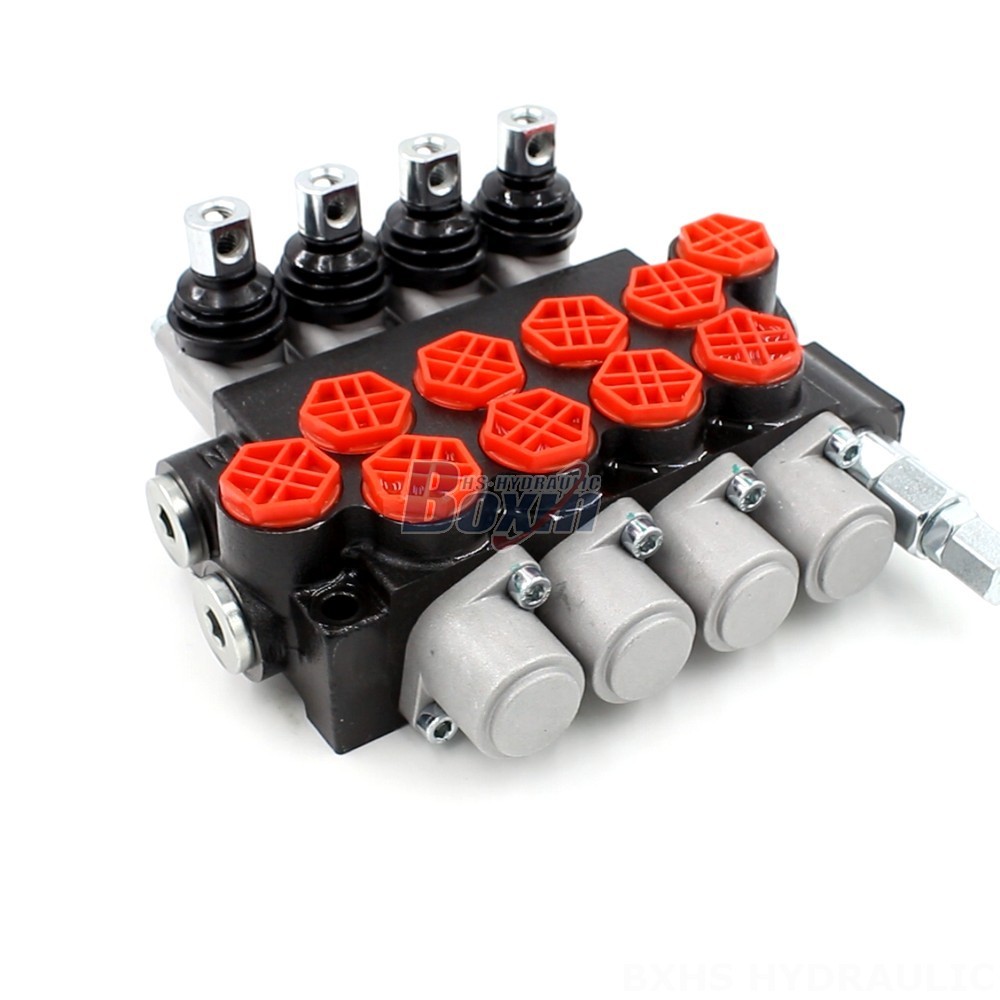

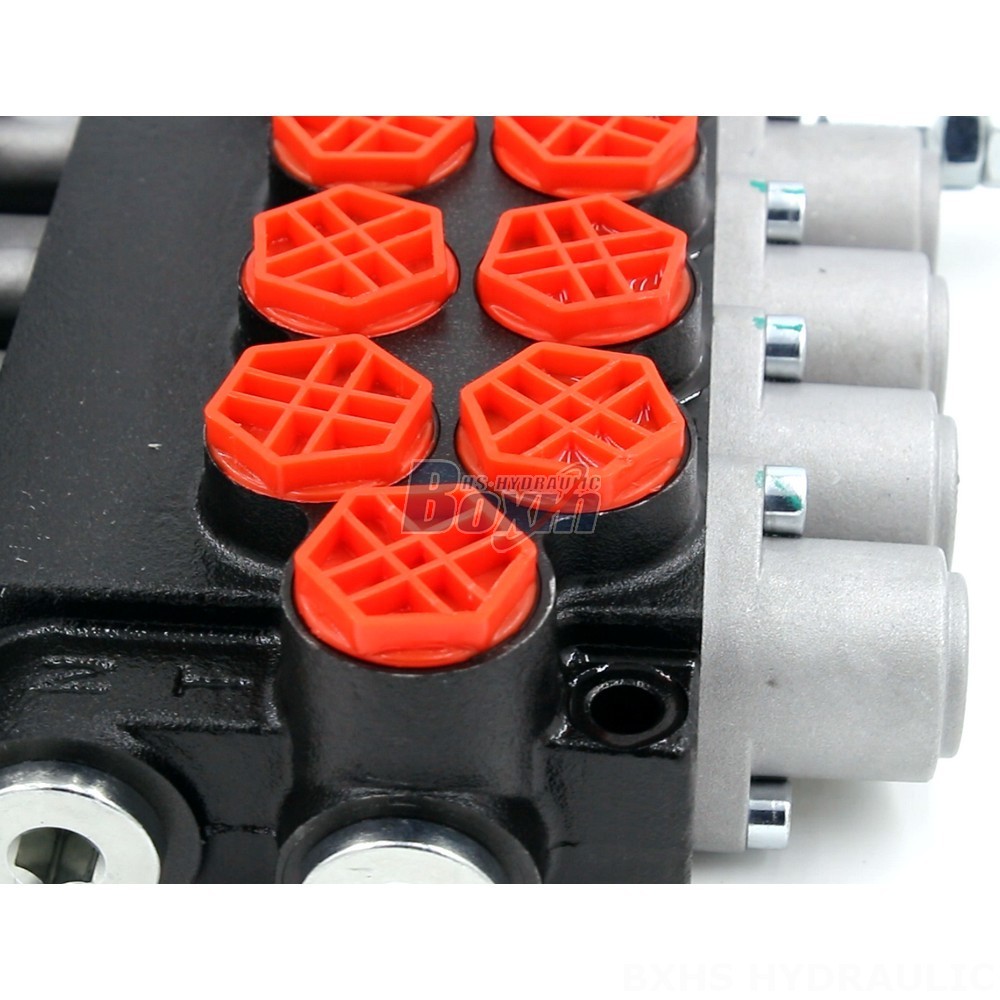

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:24*23*13

Waga brutto:8.20 kg

Dostępność: W magazynie

1444 Osoby oglądają ten produkt

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications

P40-G12-G38-4OT Directional Control Valve: Key Features & Specifications drawing image

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a high-performance, 4-section, manual control valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of mobile hydraulic systems.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Dcv Pneumatic P40-G12-G38-4OT Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications. Its monoblock construction provides a compact and durable design, while its manual control method offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling high-flow, high-pressure applications. Its operating viscosity range of 15 - 75 mm²/s ensures optimal performance in a variety of operating conditions. The valve is suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its versatile design and robust construction make it an ideal choice for various mobile hydraulic systems in construction, material handling, agriculture, and industrial vehicles.
