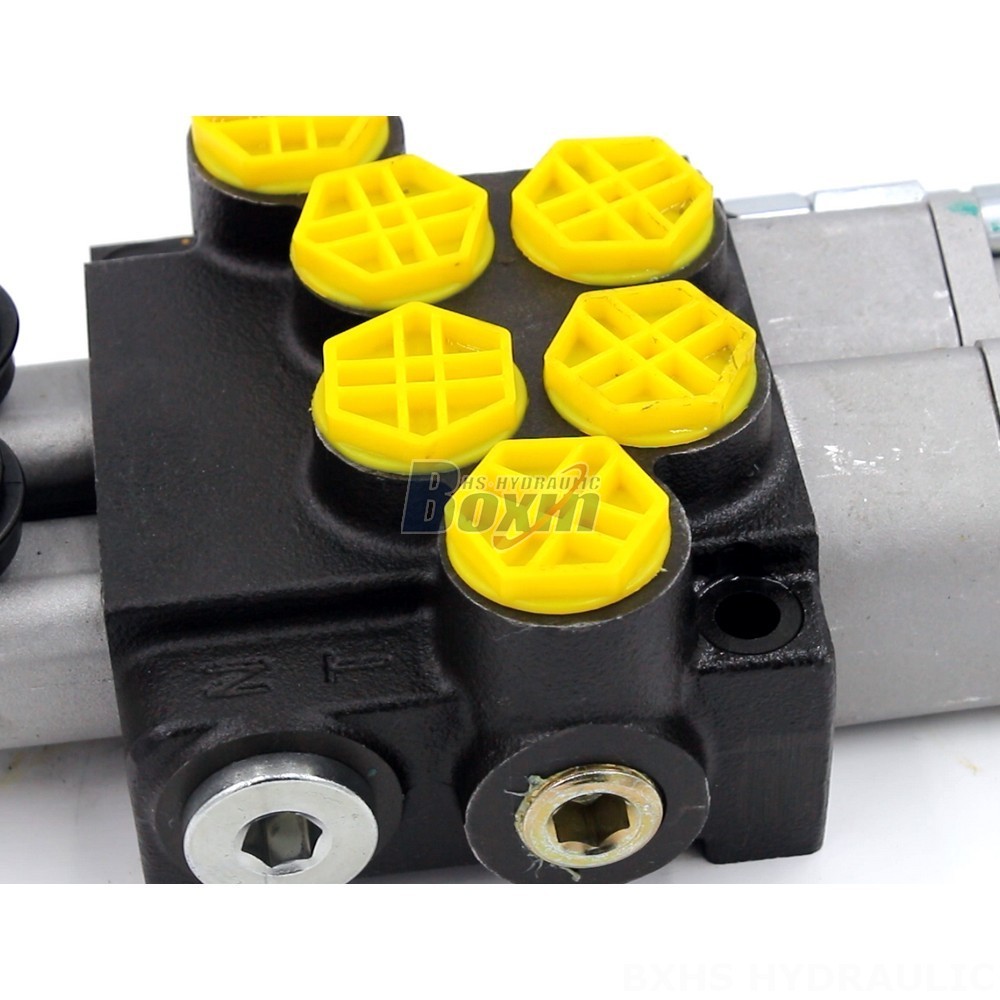

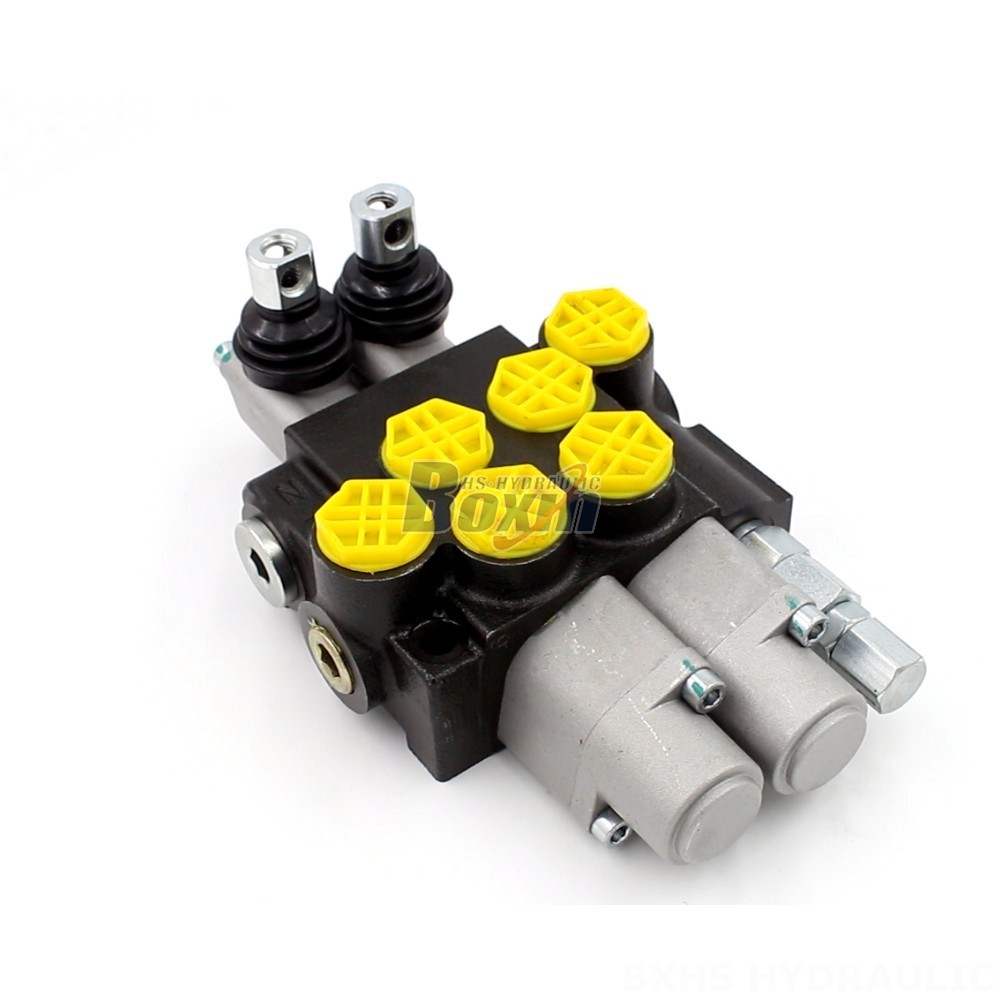

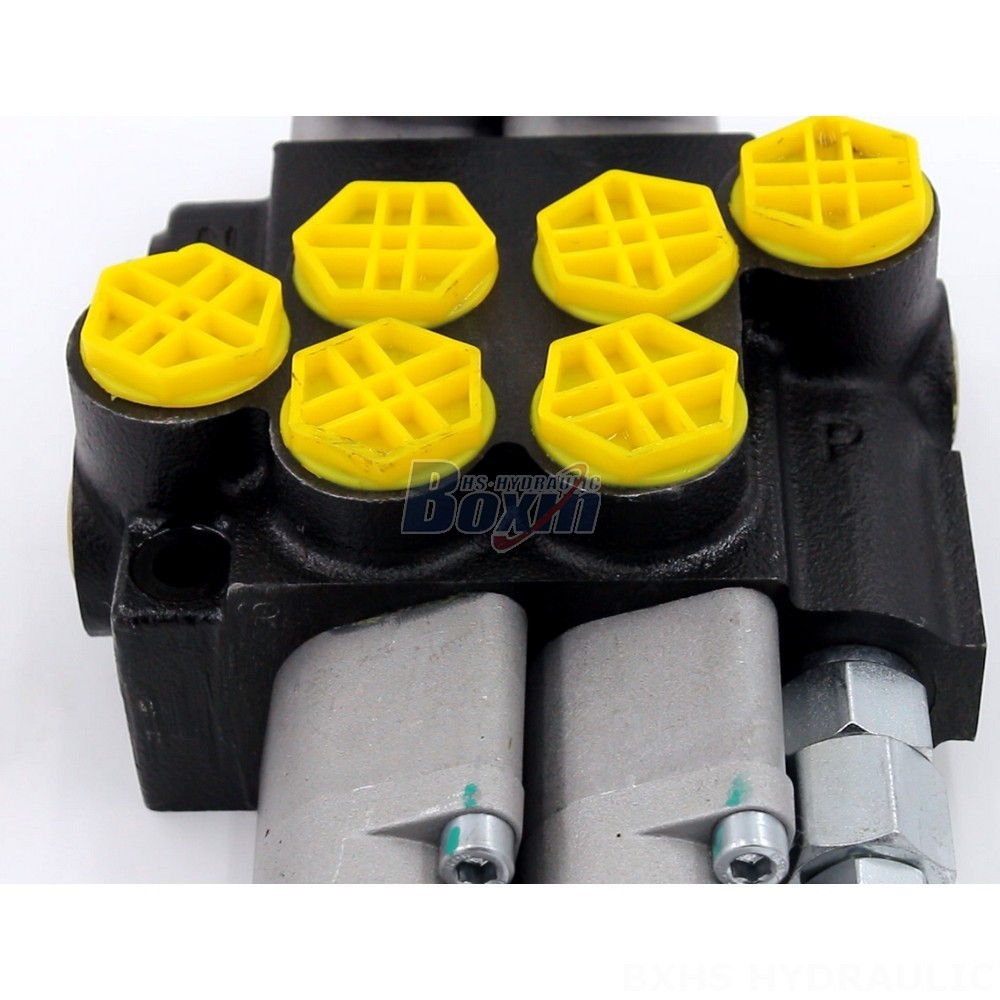

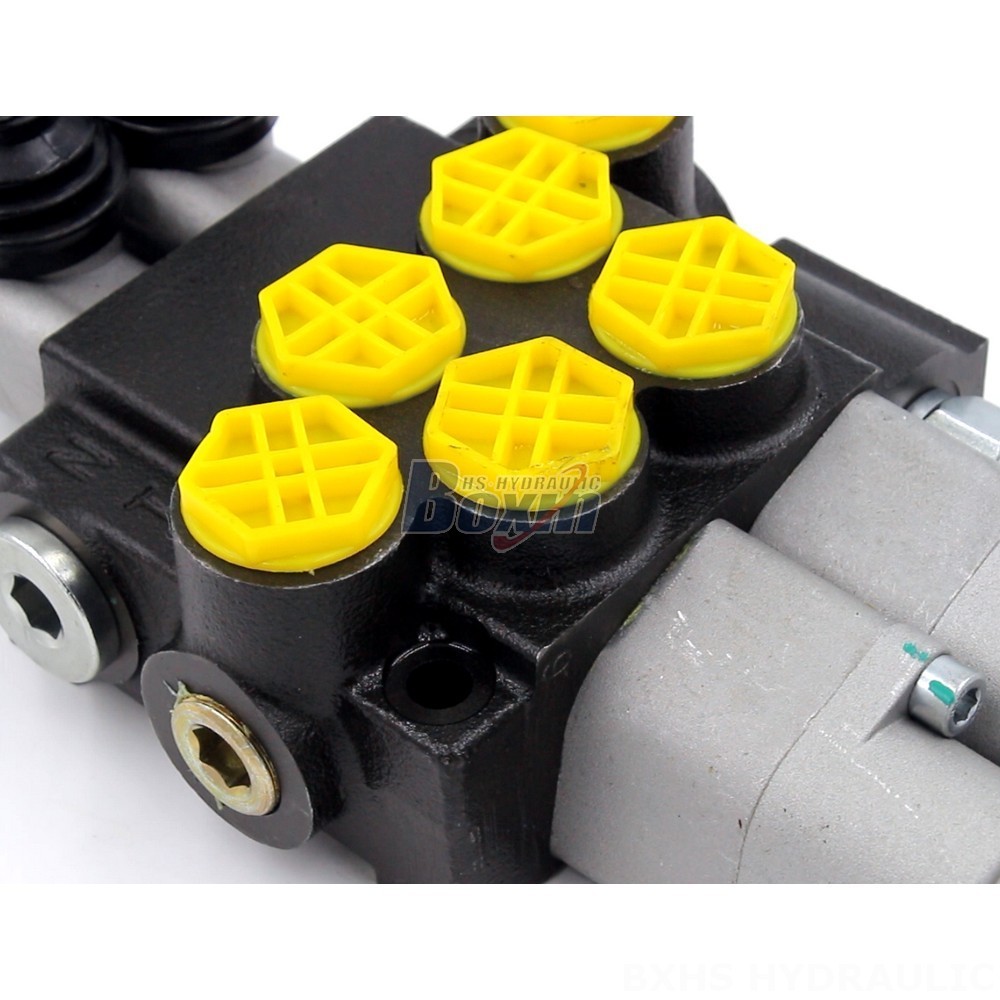

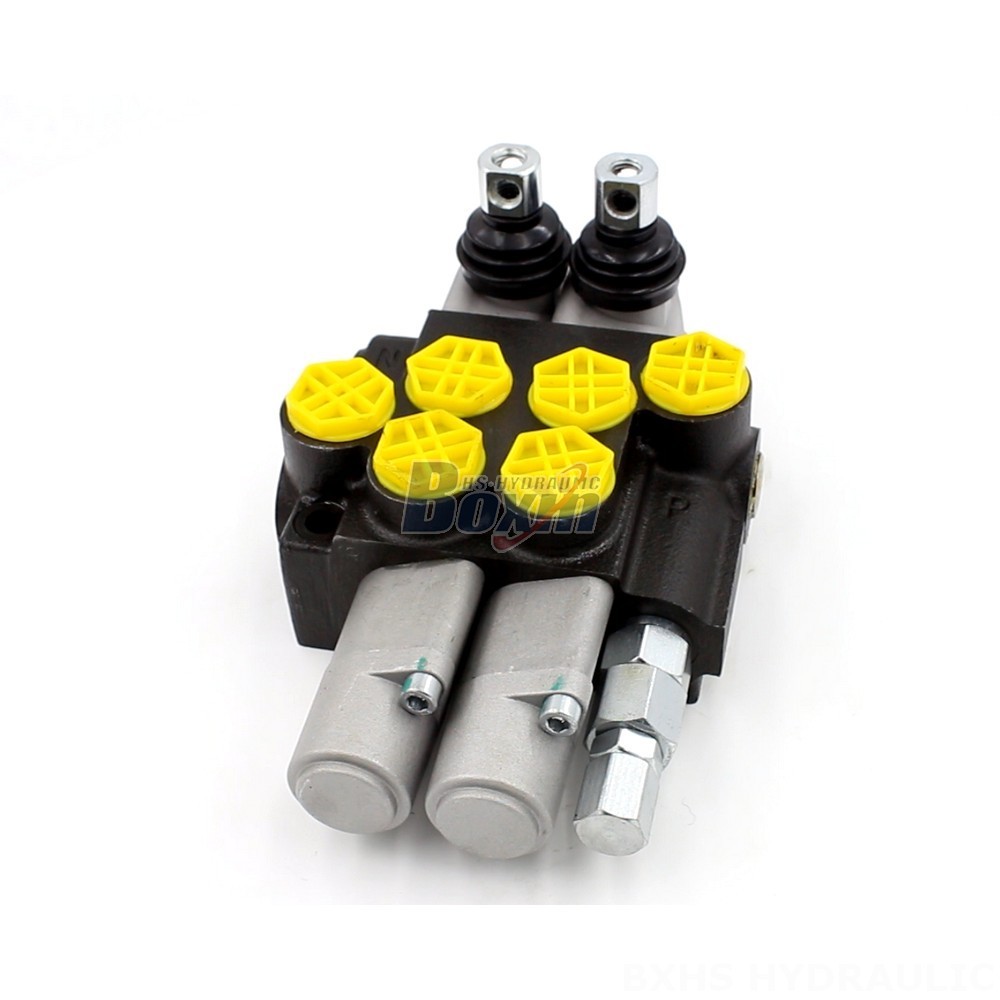

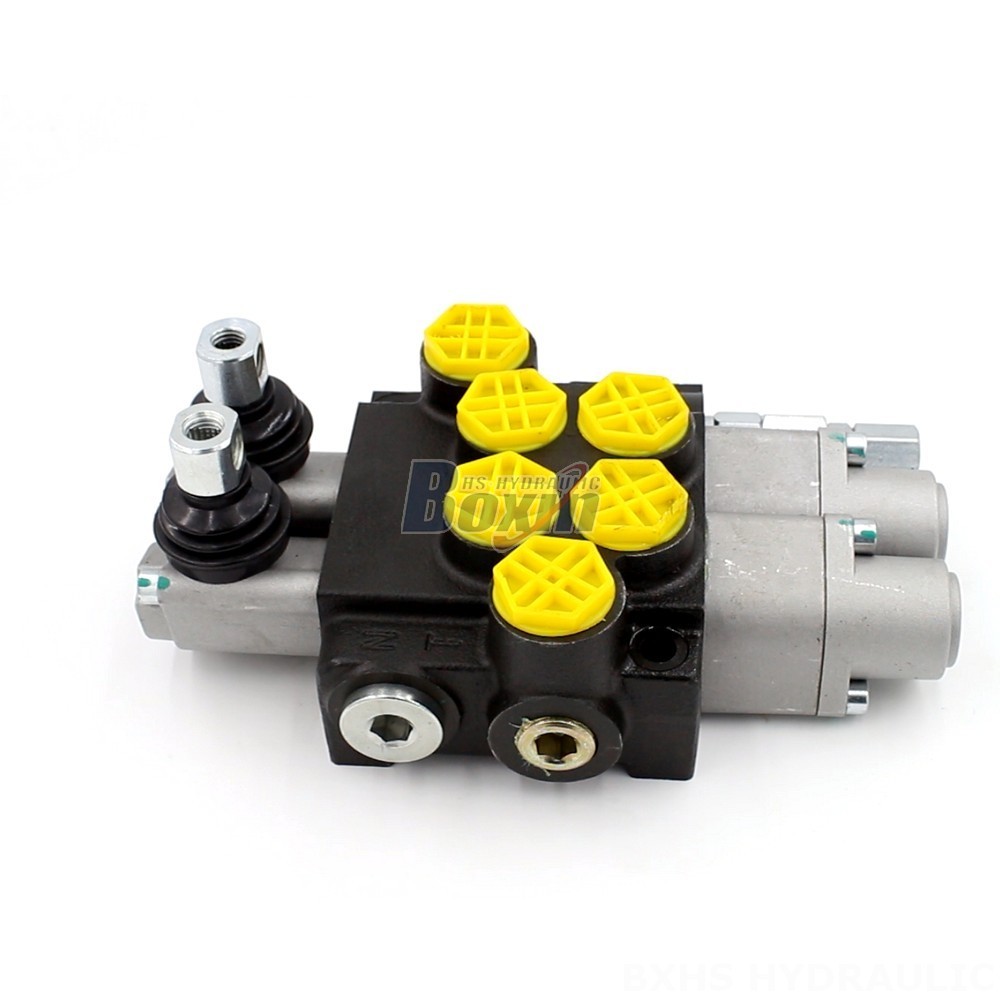

P40-G12-2OT Hydraulic Valve: Private Label, OEM & Custom Manufacturing

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:5.00 kg

Dostępność: W magazynie

1073 Osoby oglądają ten produkt

P40-G12-2OT Hydraulic Valve: Private Label, OEM & Custom Manufacturing

P40-G12-2OT Hydraulic Valve: Private Label, OEM & Custom Manufacturing

P40-G12-2OT Hydraulic Valve: Private Label, OEM & Custom Manufacturing drawing image

The P40-G12-2OT Hydraulic Valve is a high-performance, manual control, 2-section monoblock valve designed for a wide range of applications in construction, material handling, and agriculture. This valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding environments. We offer private label, OEM and custom manufacturing options to meet your specific requirements.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-2OT Hydraulic Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This valve features a manual control method, a 2-section design, and a monoblock structure for enhanced durability and performance. It has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it ideal for handling heavy loads and demanding tasks. The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). We offer private label, OEM, and custom manufacturing options to meet your specific needs. Contact us today to discuss your requirements and learn more about our high-quality hydraulic valves.
