P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

Metoda sterowania:Ręczna i joystick

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:5.20 kg

Dostępność: W magazynie

1177 Osoby oglądają ten produkt

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable

P40-2OT Spool Hydraulic Valve | Factory Direct & Customizable drawing image

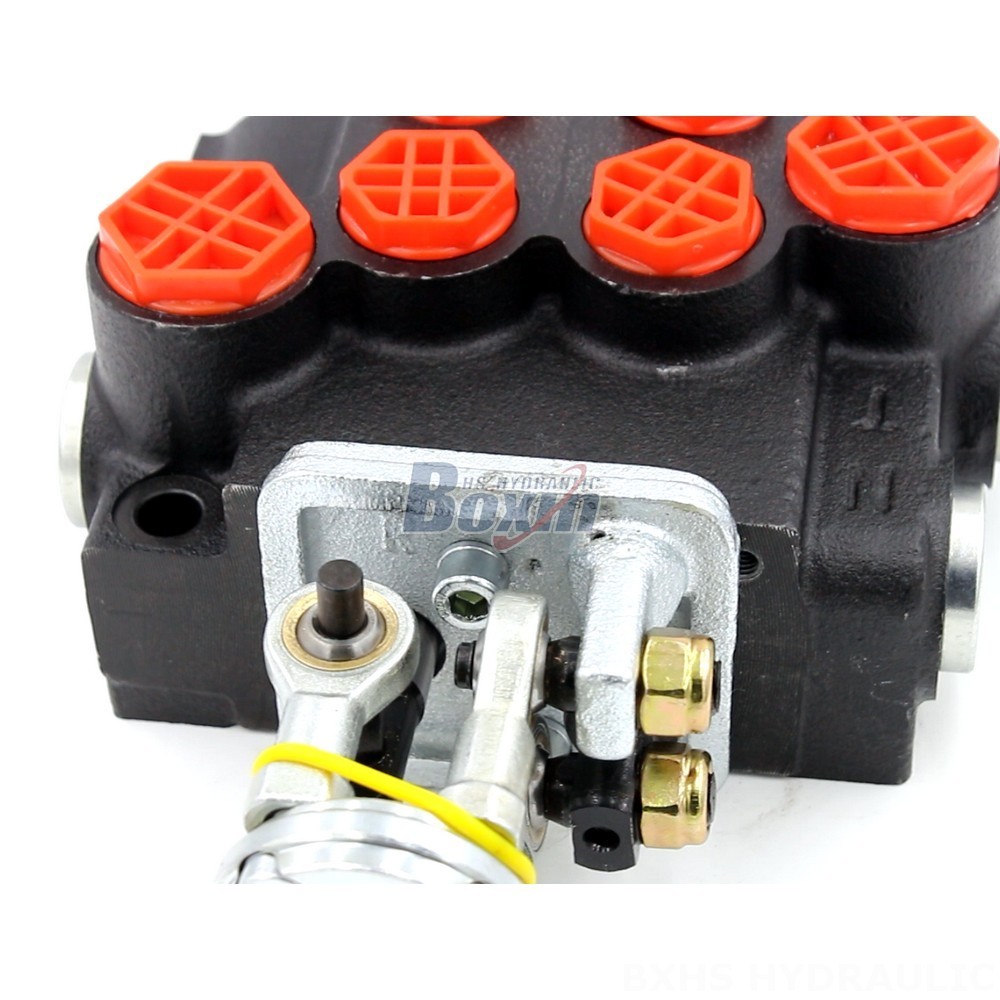

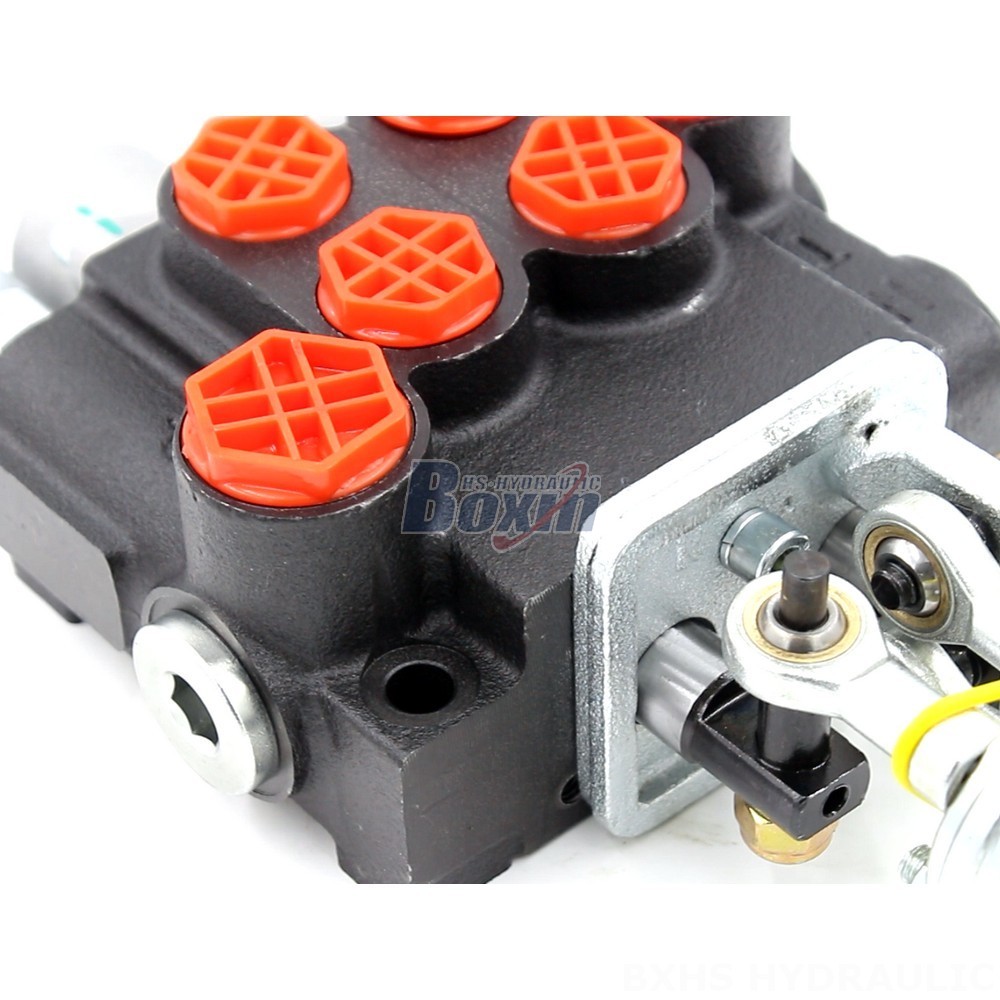

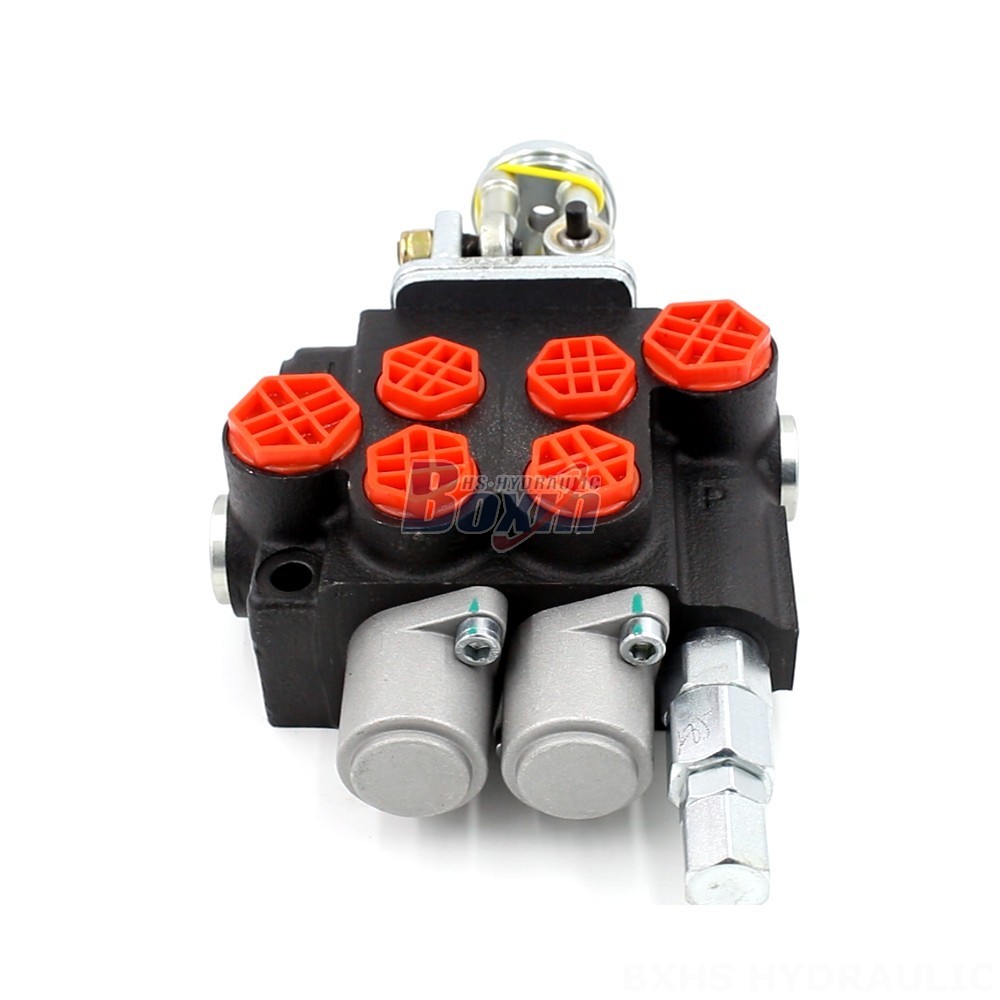

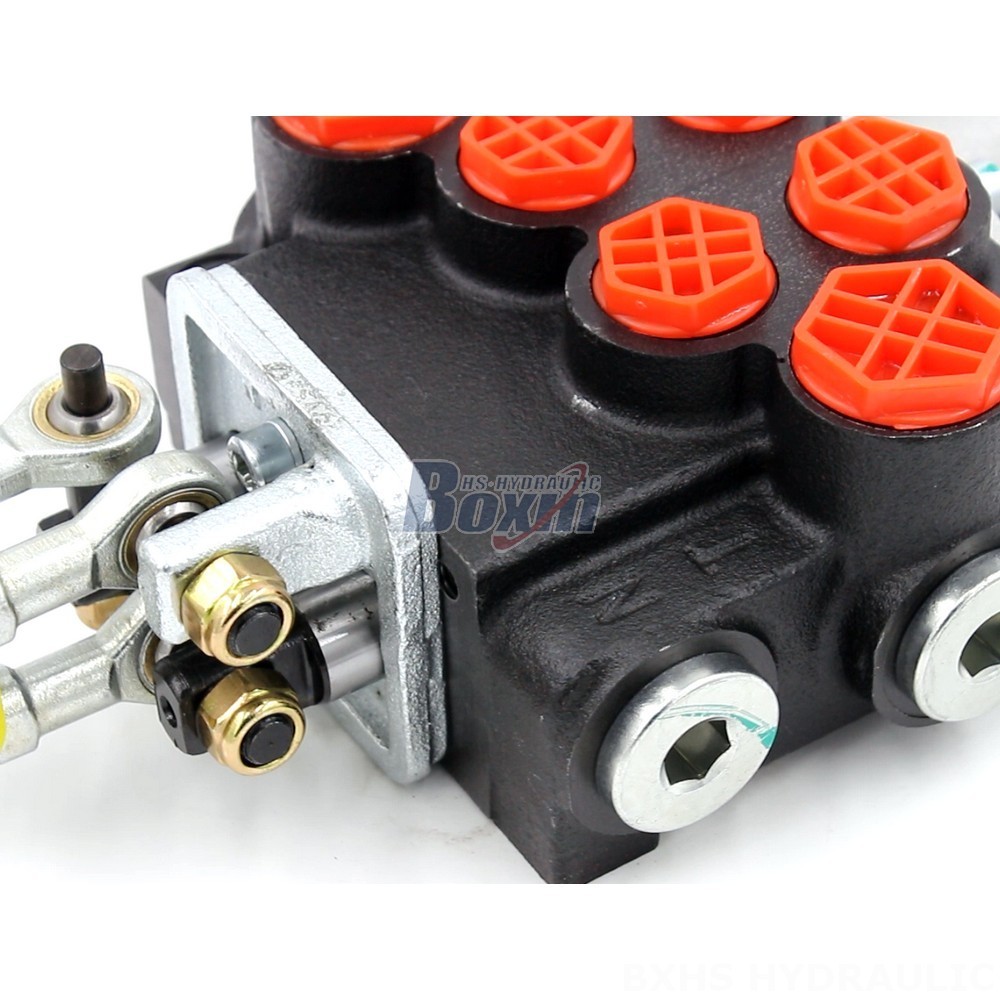

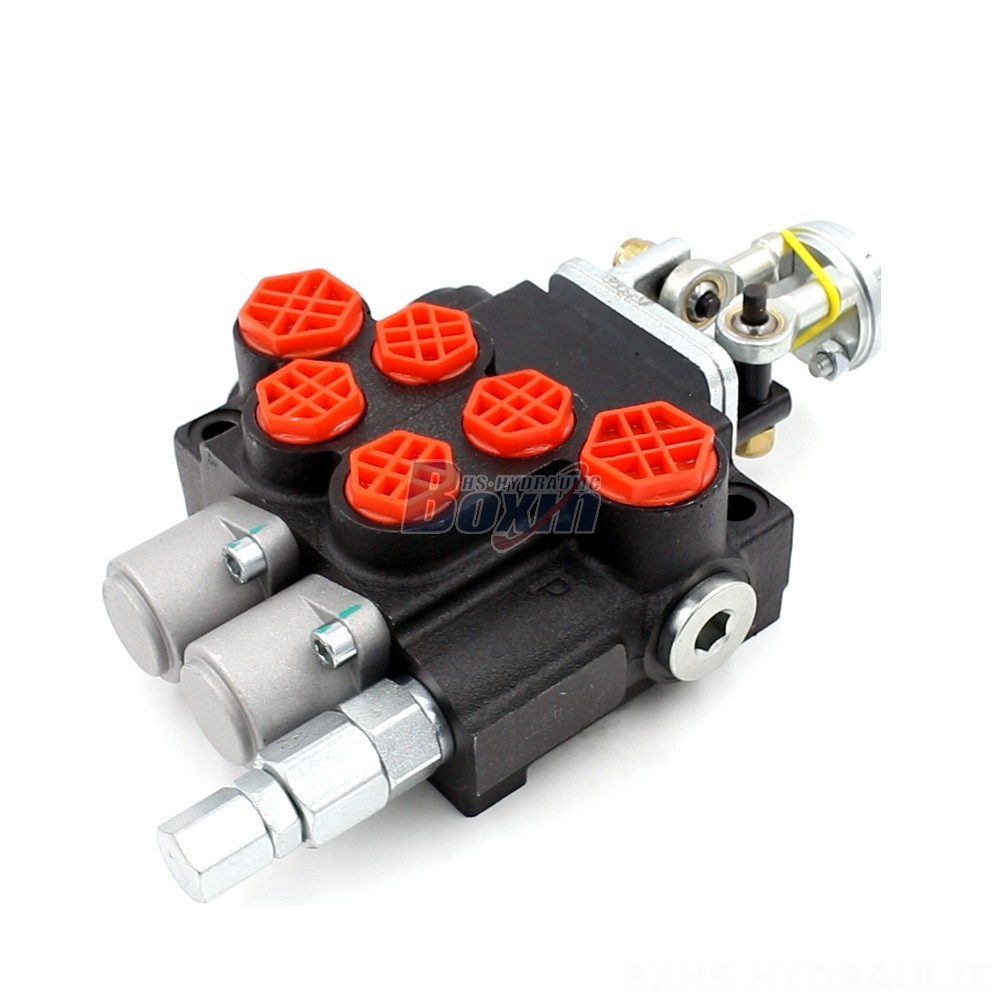

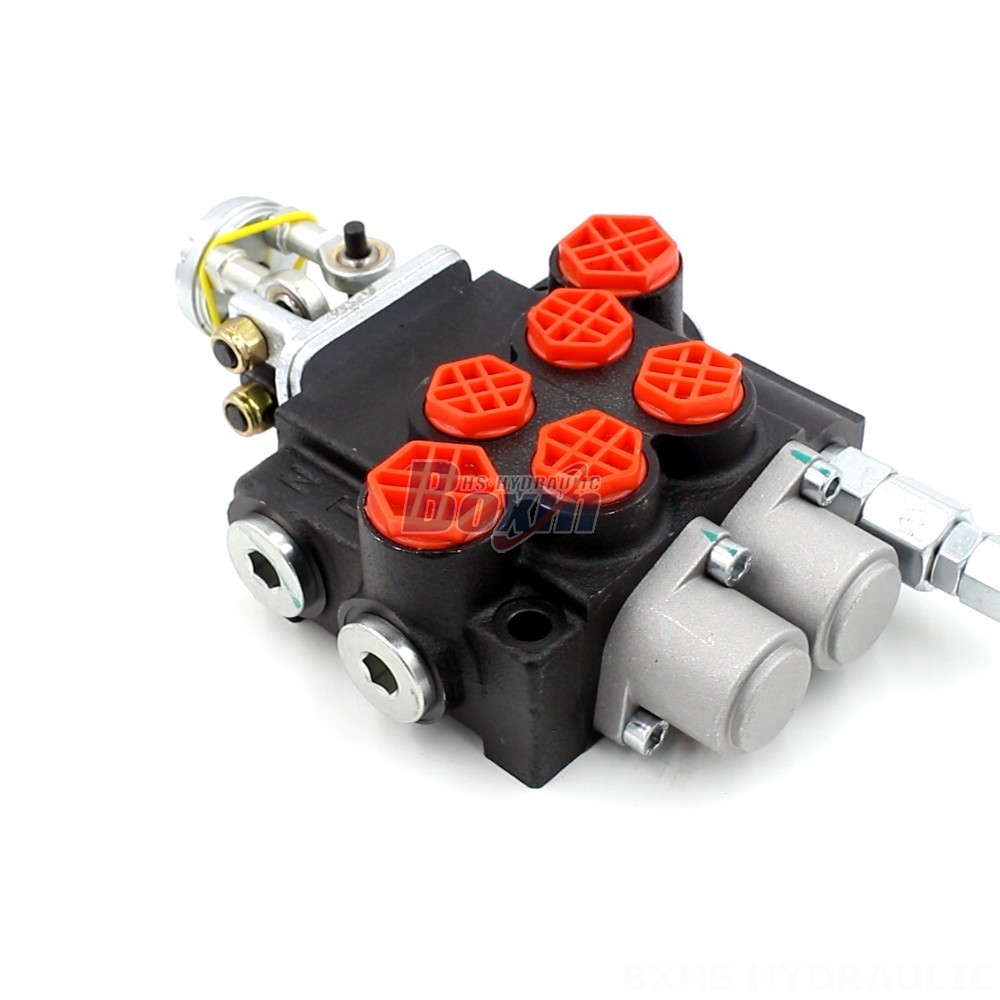

The P40-2OT is a 4 Spool Hydraulic Valve Monoblock in the P40 Series, designed for a variety of applications in construction, material handling, agriculture and industrial vehicles. This valve features 2 sections, a rated flow of 40 L/min and a maximum pressure of 250 bar. It's available with manual or joystick control and is customizable to meet your specific needs.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-2OT is a high-performance 4 Spool Hydraulic Valve Monoblock designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. It features a compact and robust design, offering superior reliability and durability. This valve offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of hydraulic systems. The P40-2OT comes with 2 sections and a choice of manual or joystick control, providing flexibility in operation. The valve features a Monoblock structure, ensuring leak-free performance and long service life. It can handle a wide range of operating viscosities, from 15 to 75 mm²/s, and is designed to withstand temperatures ranging from -40°C to +80°C. This valve is fully customizable, allowing you to specify the spool configuration, control method, and other features to meet your specific requirements. The P40-2OT is suitable for use in various vehicles and equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
