The P120-G1-OT Hydraulic Control Valve is a high-quality, high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
| Seria P120 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Kabel, Dźwignia sterownicza, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny |
| Przepływ znamionowy | 120 l/min (31.7 US gpm) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port wylotowy | G1, SAE 16, 1 NPT, M36×2 |
| Rozmiar portu | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |

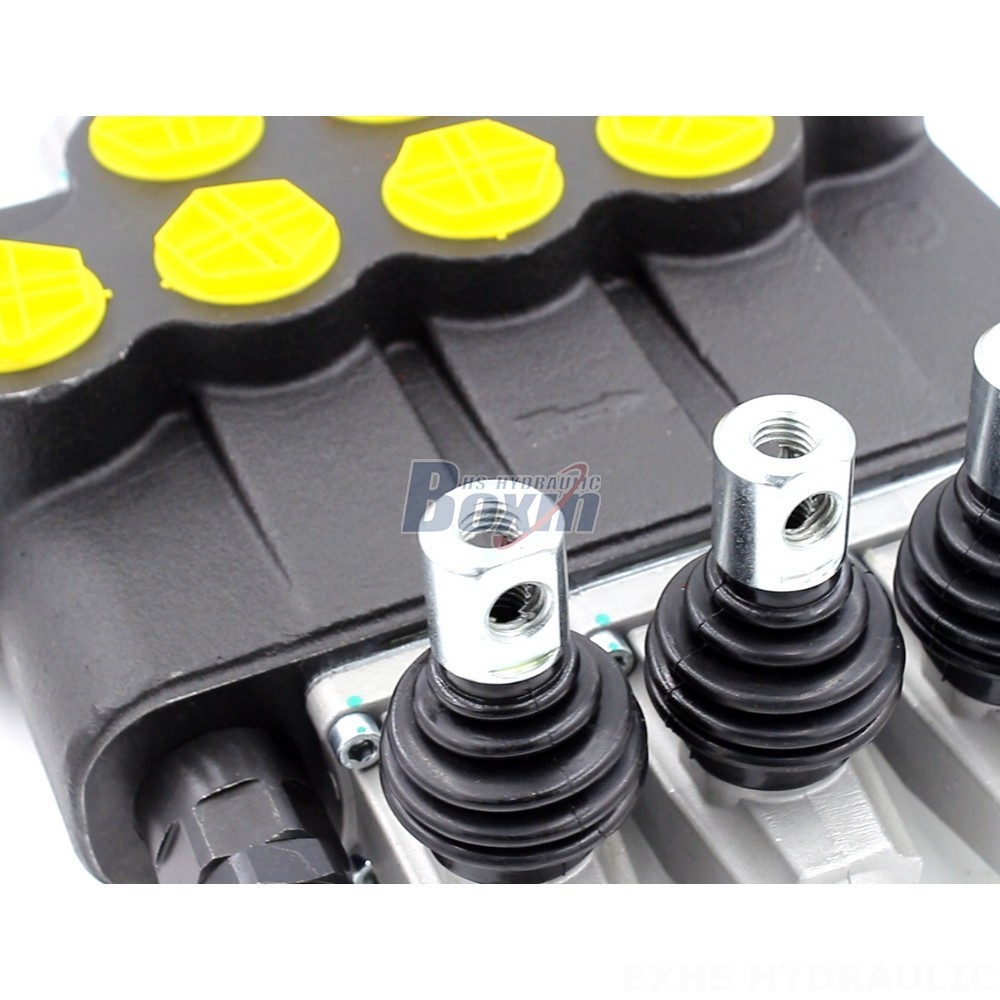

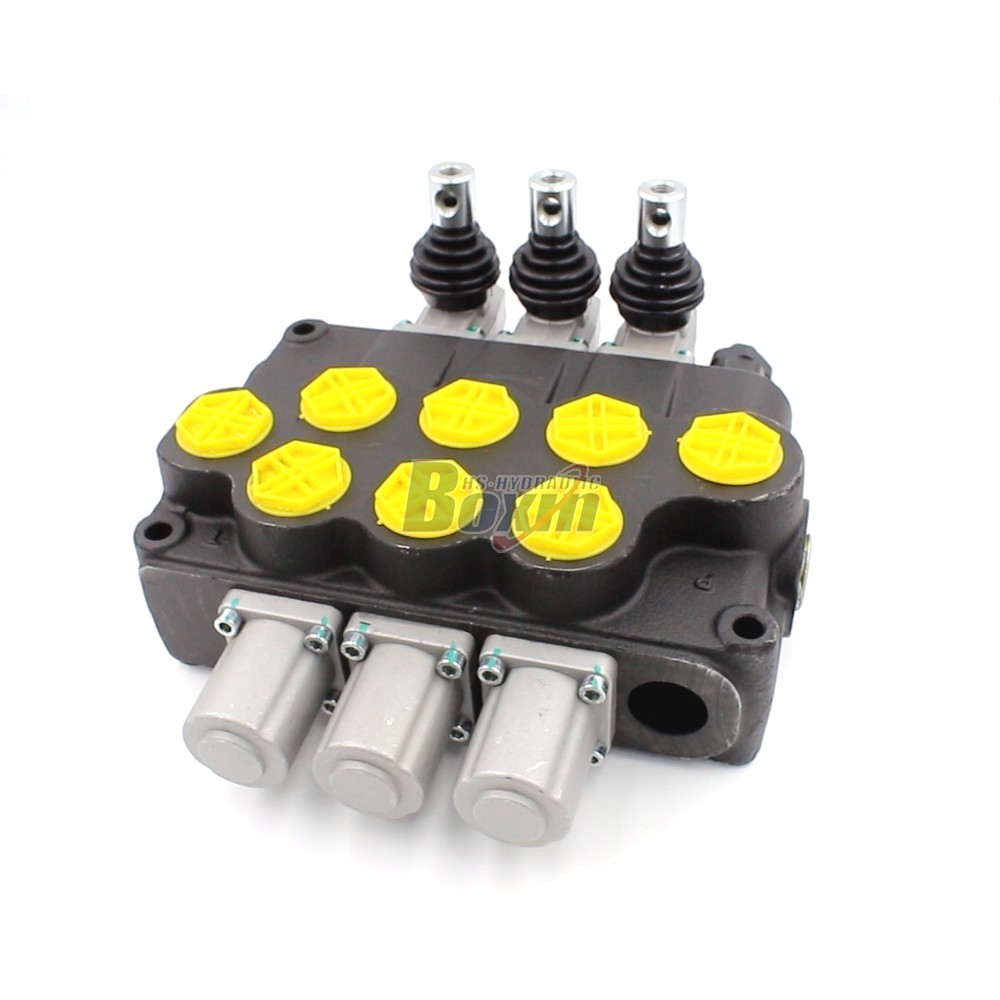

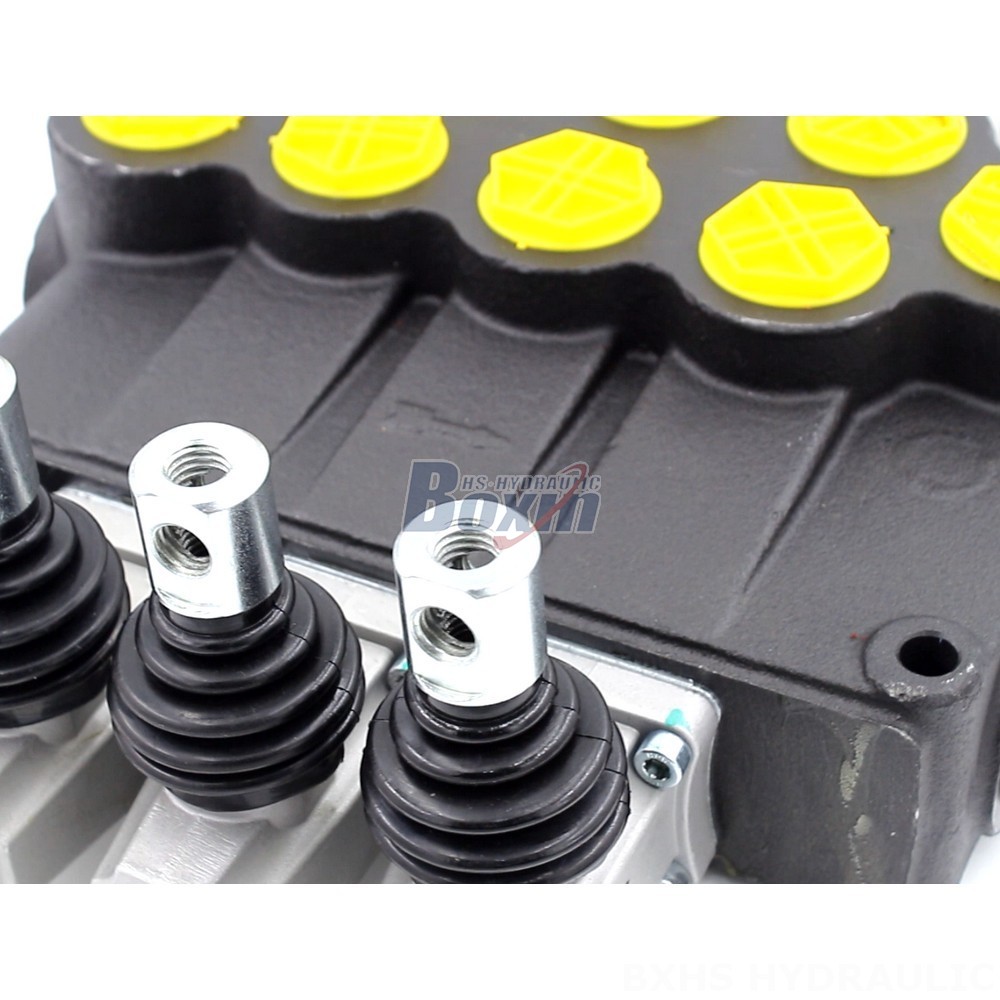

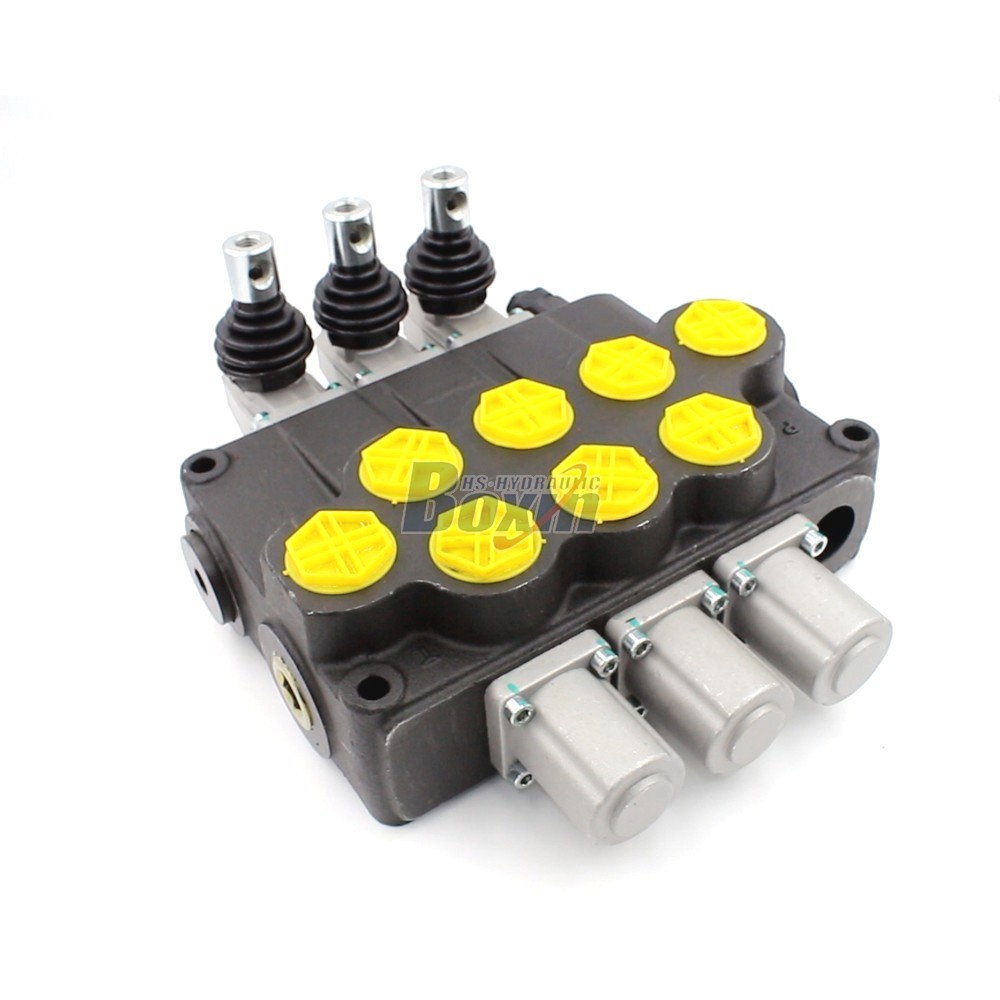

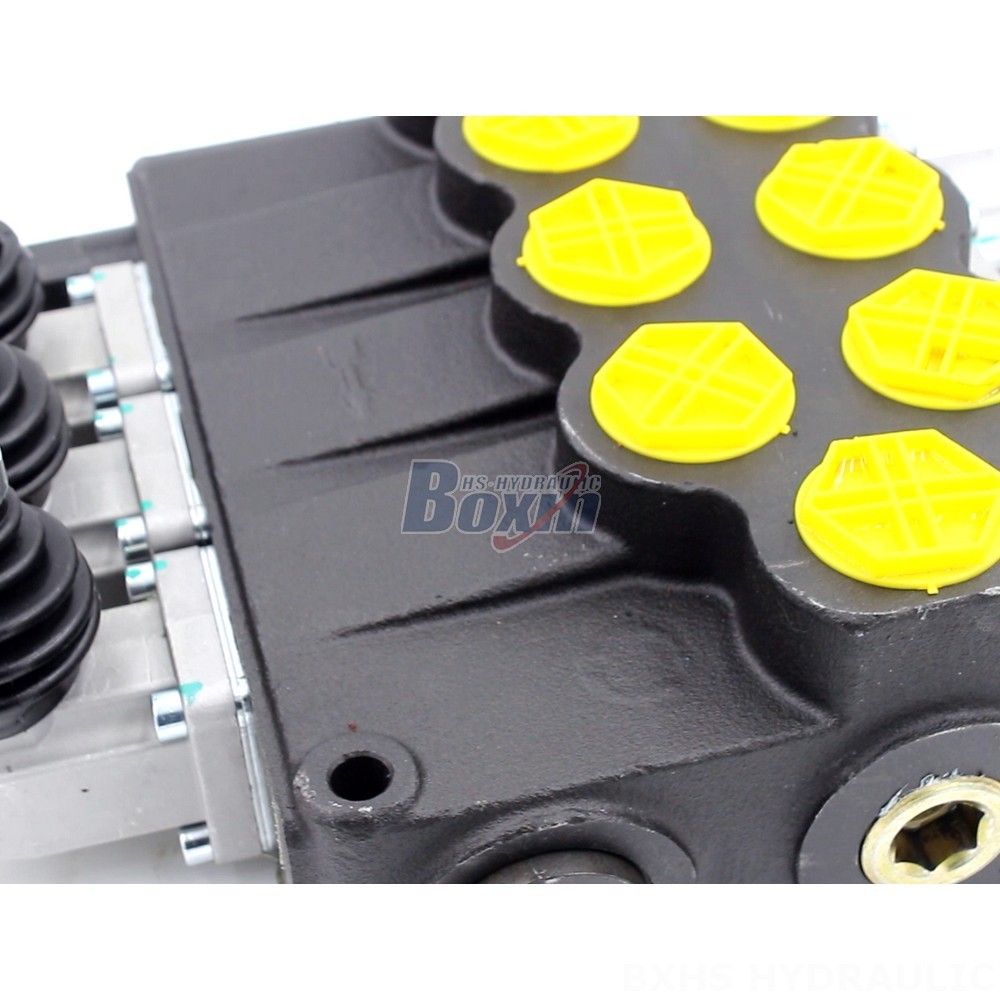

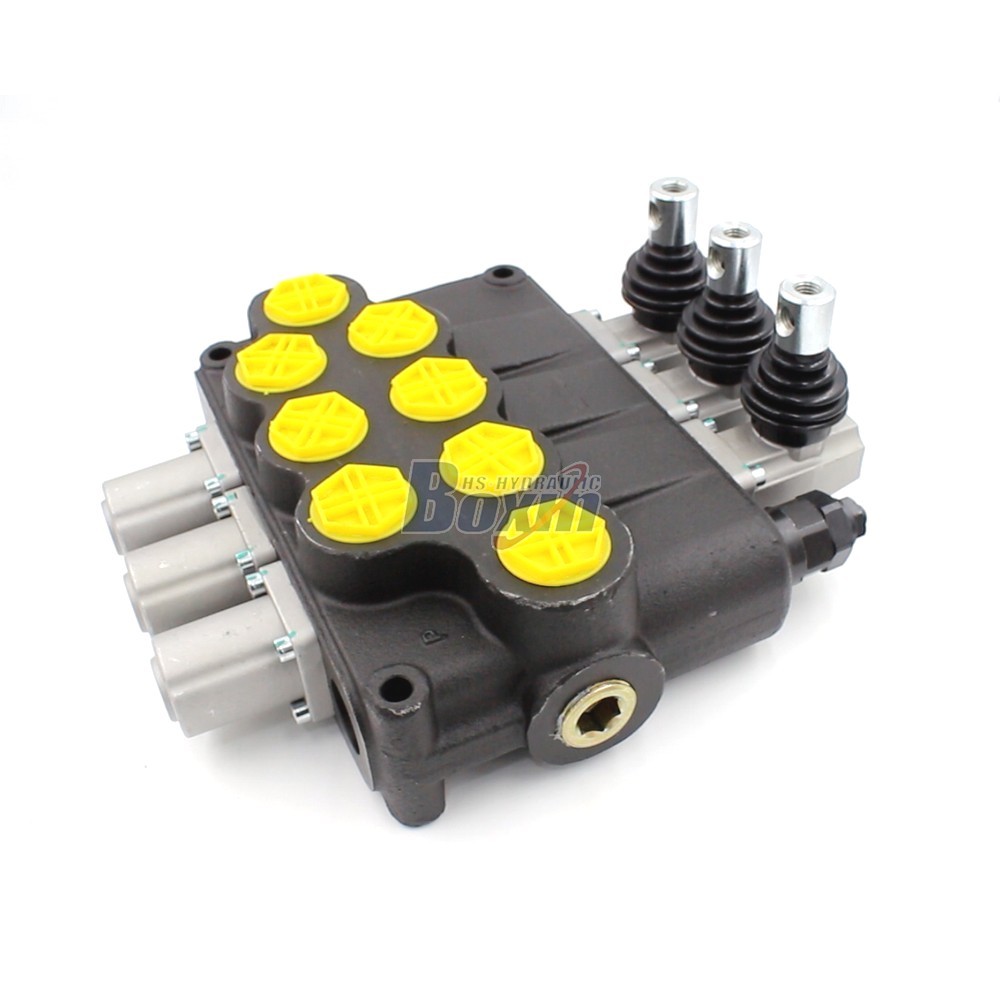

**P120-G1-OT Hydraulic Control Valve: Industry-Leading Quality and Performance**
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
The P120-G1-OT Hydraulic Control Valve is a high-performance valve designed for use in a wide range of industrial applications. With its manual control, 3 section design, and monoblock valve construction, this valve offers precise control and durability. The valve has a rated flow of 120 L/min (31.7 US gpm), a maximum pressure of 250 bar (3600 psi), and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It also has a wide ambient temperature range of -40°C to +80°C (-40°F to +176°F).
**Key Features:**
* Manual control for precise operation
* 3 section design for versatility
* Monoblock valve construction for durability
* Rated flow of 120 L/min (31.7 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 3 Spool
* P120 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,TELEHANDLER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER,WHEEL LOADER,BACKHOE LOADER,DUMPER
