P120 Directional Valve: Quality, Performance, Reliability

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:120 l/min (31.7 US gpm)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1

Port wylotowy:G1

Rozmiar portu:G1

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P120 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30*39*17

Waga brutto:19.00 kg

Dostępność: W magazynie

1627 Osoby oglądają ten produkt

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability

P120 Directional Valve: Quality, Performance, Reliability drawing image

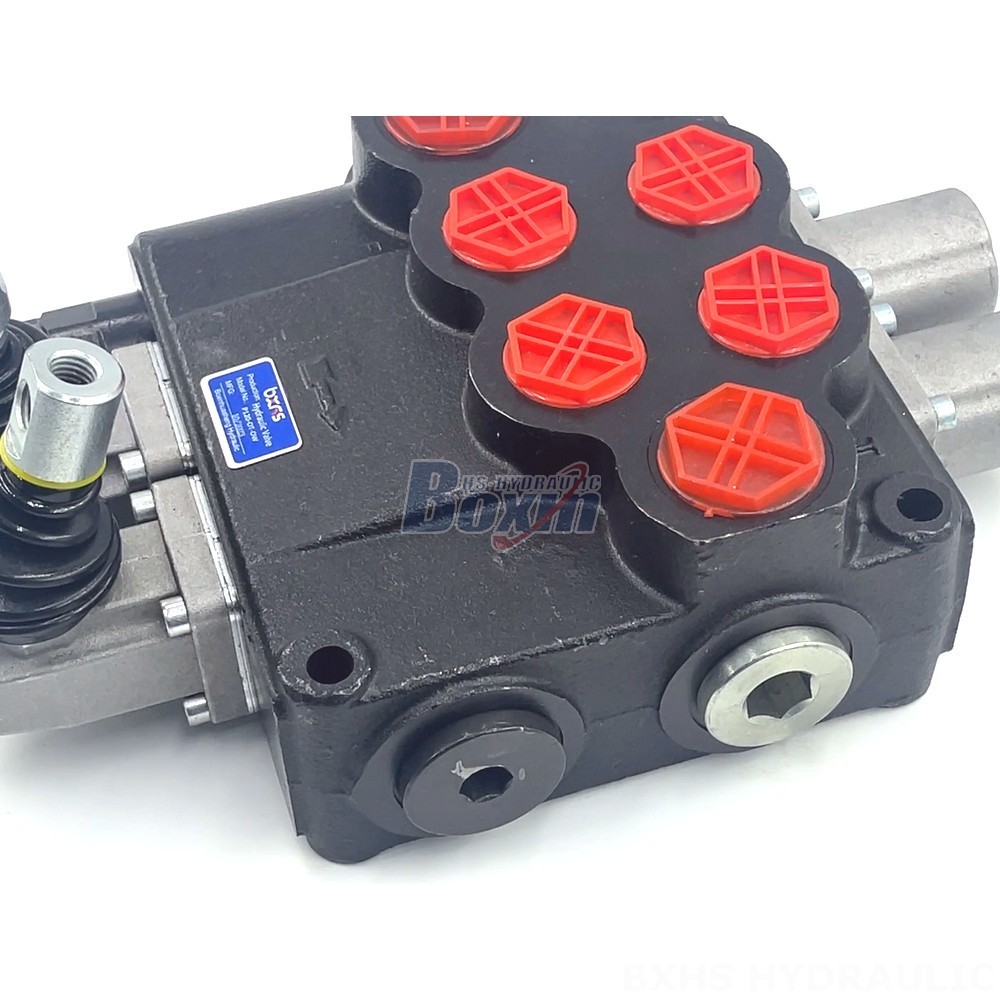

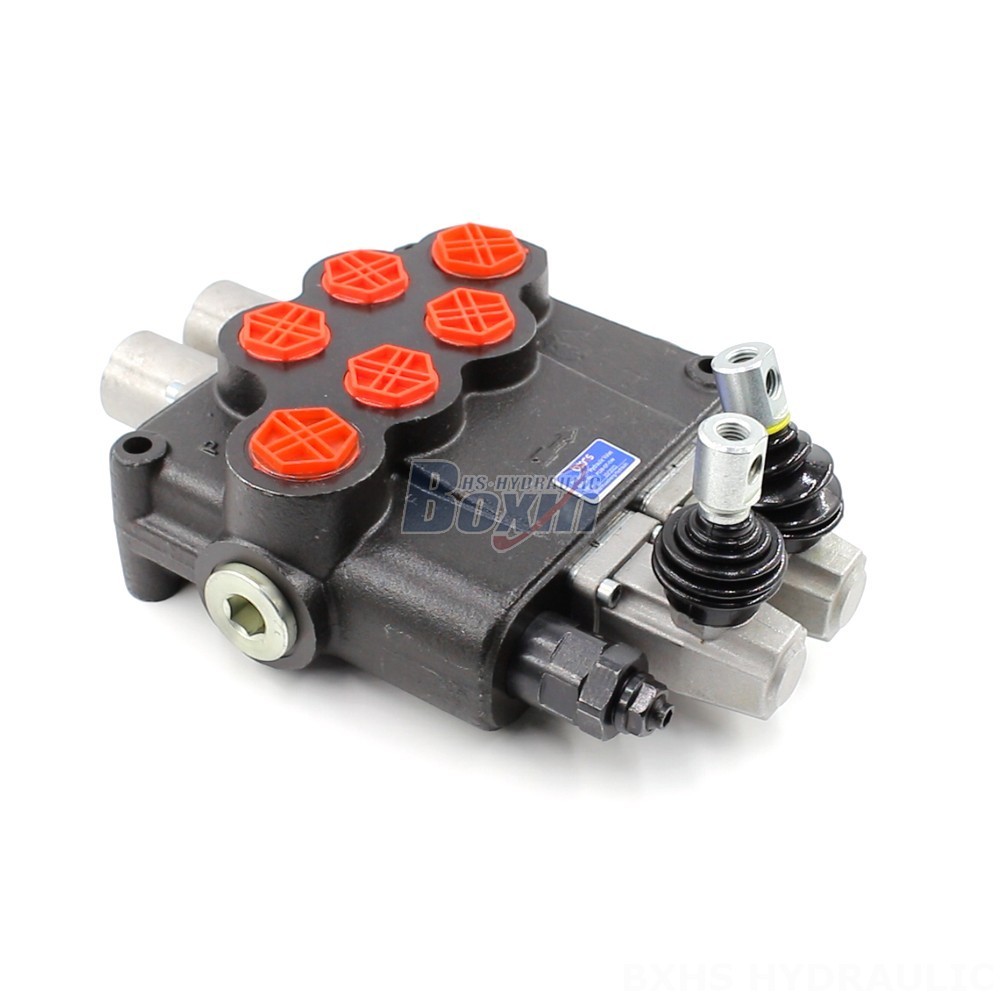

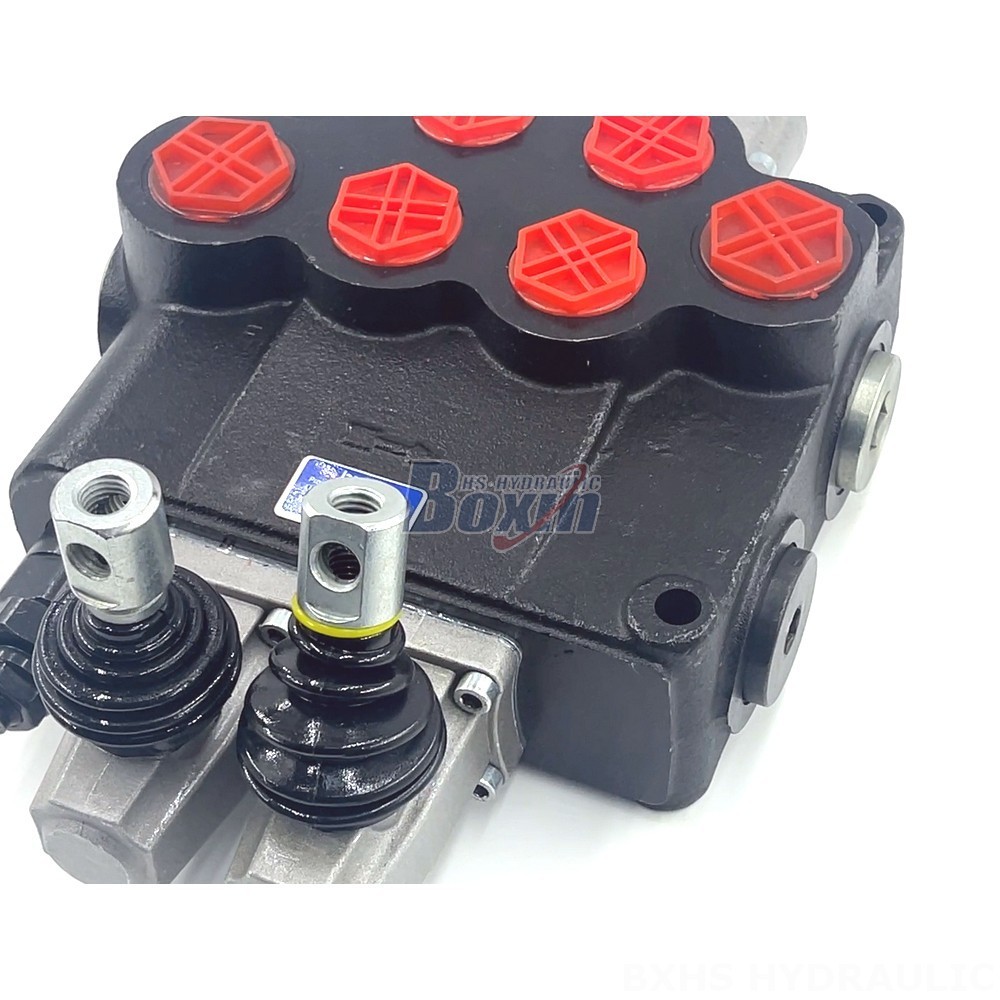

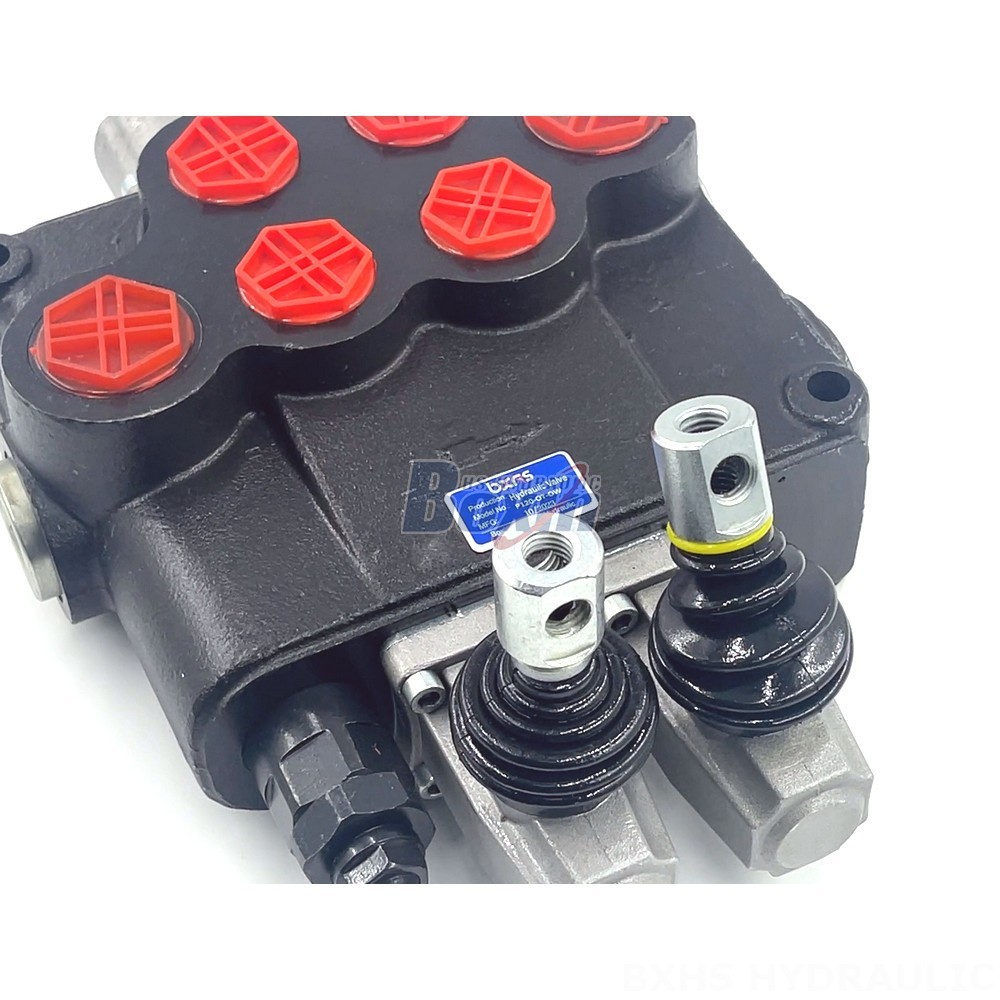

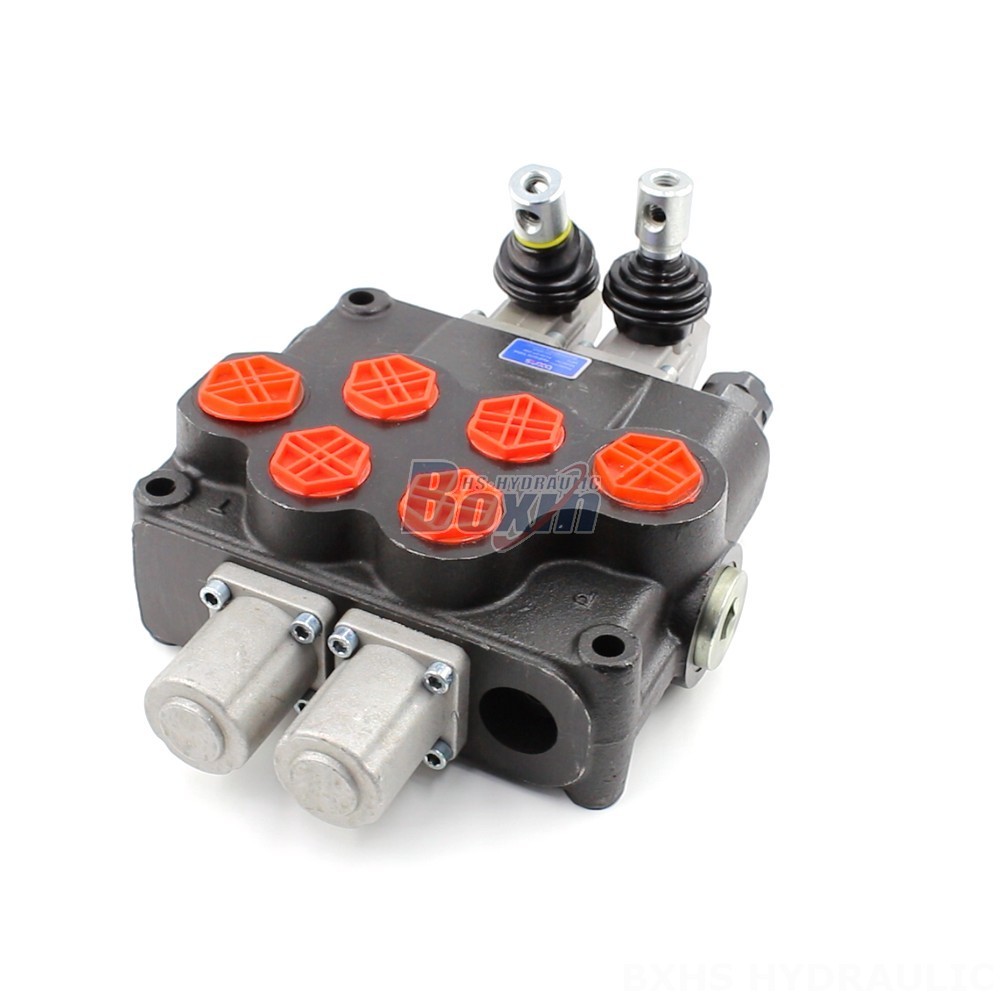

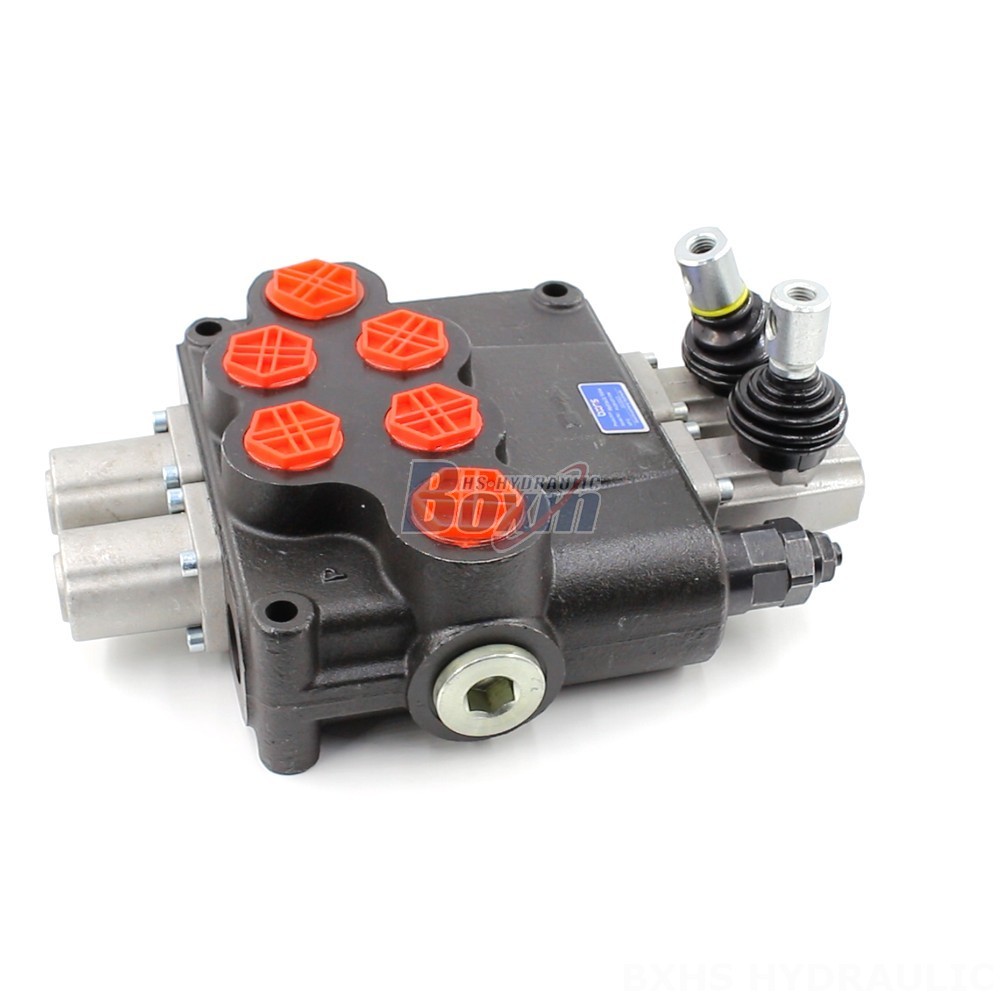

The P120 Series 5/2 Directional Control Valve is a reliable and high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, rated flow of 120 L/min, and a maximum pressure of 250 bar, making it ideal for demanding operating conditions.

Seria P120 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny
Przepływ znamionowy 120 l/min (31.7 US gpm)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Port wylotowy G1, SAE 16, 1 NPT, M36×2
Rozmiar portu G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)

The P120 Series 5/2 Directional Control Valve is a high-quality hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, providing exceptional durability and reliability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve can handle high flow rates and pressures. The valve operates smoothly across a wide viscosity range (15-75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its 2-section design and 2-spool configuration allow for precise control of hydraulic circuits. The valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
