OEM & Wholesaler: SHFY-G25L-00 Valves Straight from the Factory

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:200 l/min (52 galonów amerykańskich na min)

Maksymalne ciśnienie:350 bar (5100 psi)

Port wlotowy:M33×2.0

Port wylotowy:M33×2.0

Rozmiar portu:M33×2.0

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SHFY-G25L-00 Zawór sterujący jednoczęściowy

Rozmiar opakowania:16*32*16

Waga brutto:6.50 kg

Dostępność: W magazynie

1032 Osoby oglądają ten produkt

OEM & Wholesaler: SHFY-G25L-00 Valves Straight from the Factory

OEM & Wholesaler: SHFY-G25L-00 Valves Straight from the Factory

OEM & Wholesaler: SHFY-G25L-00 Valves Straight from the Factory drawing image

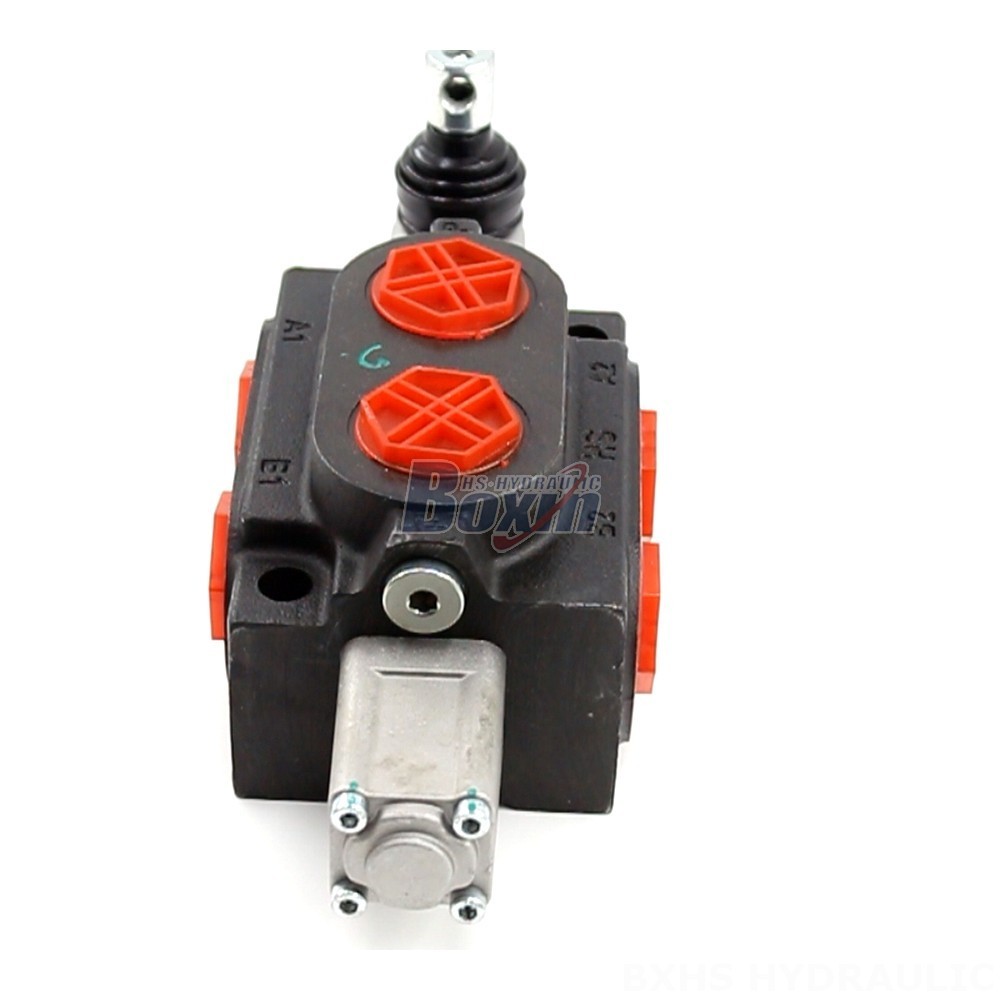

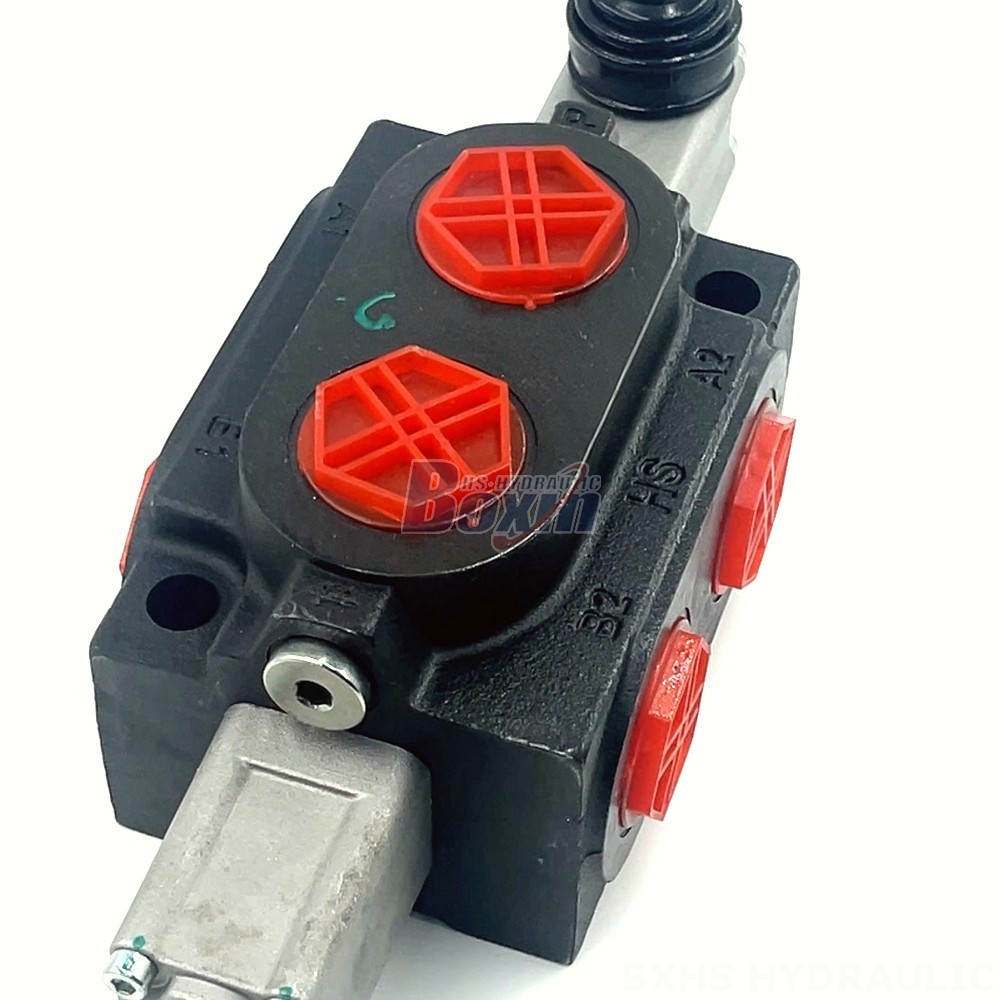

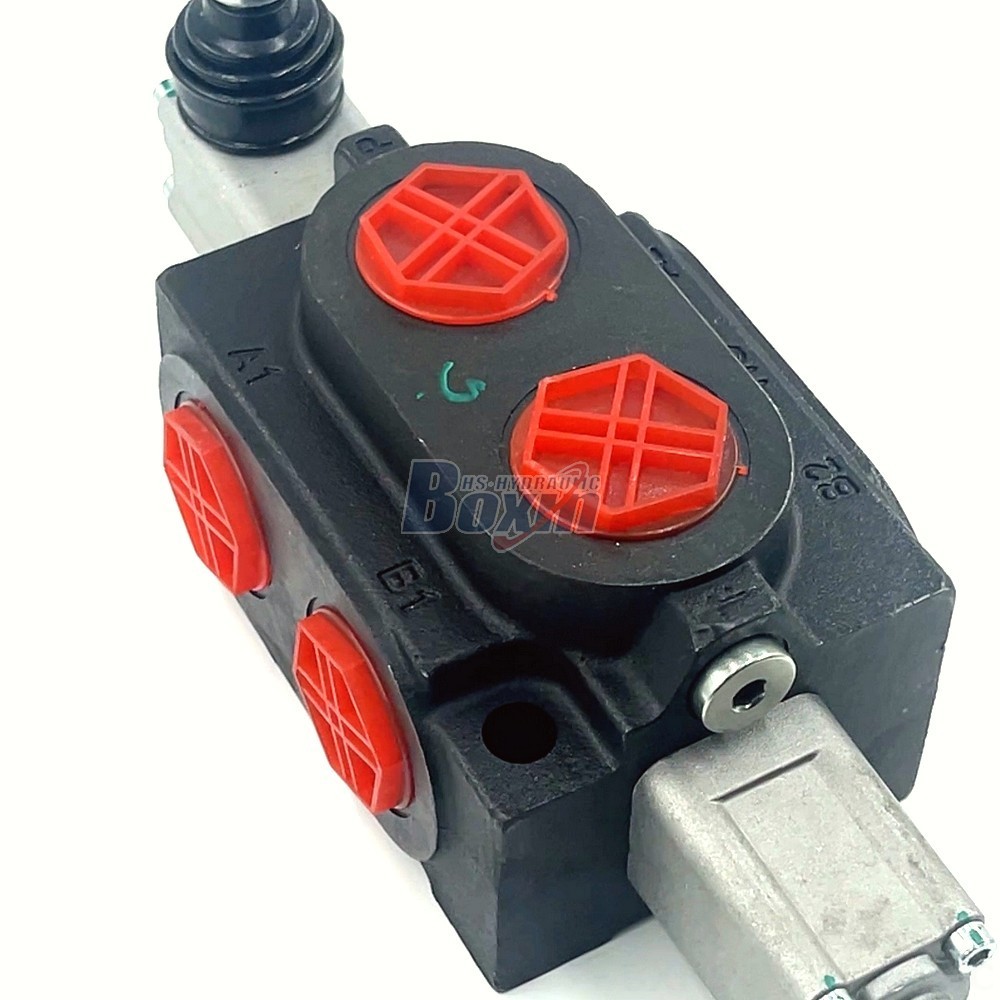

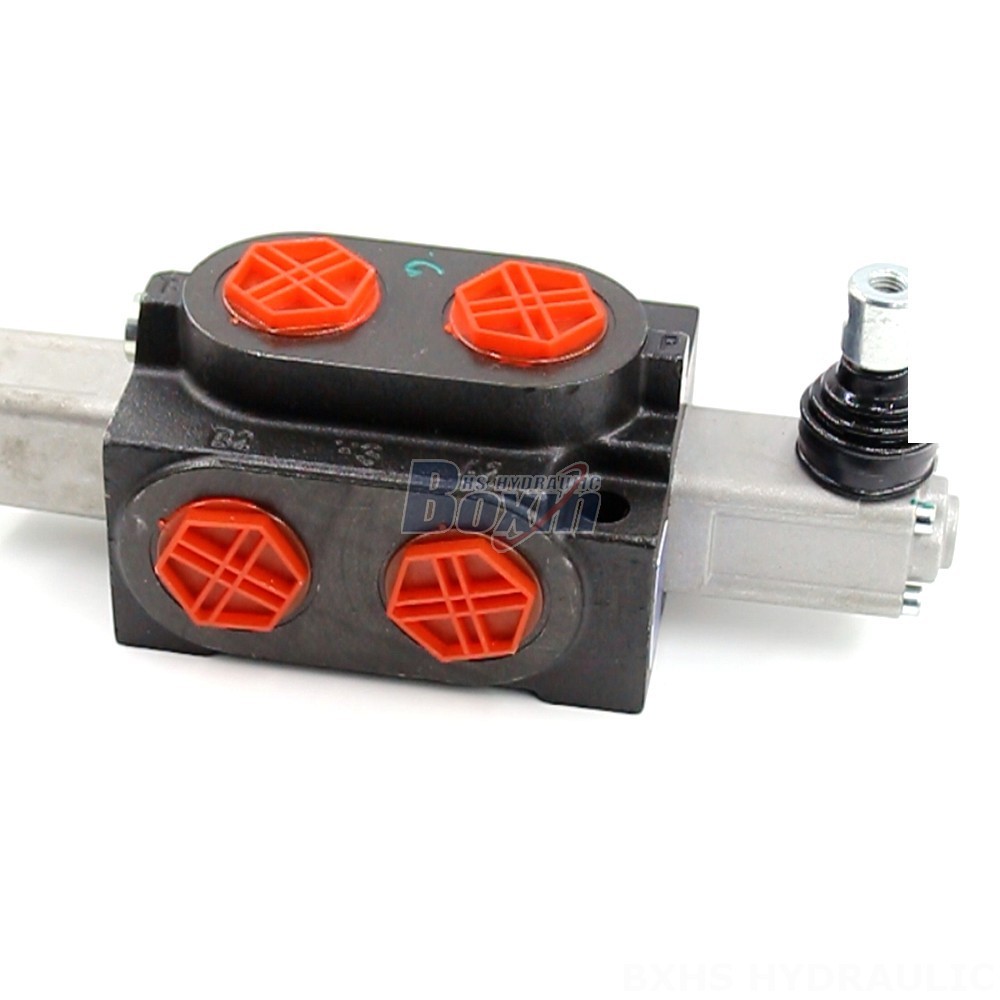

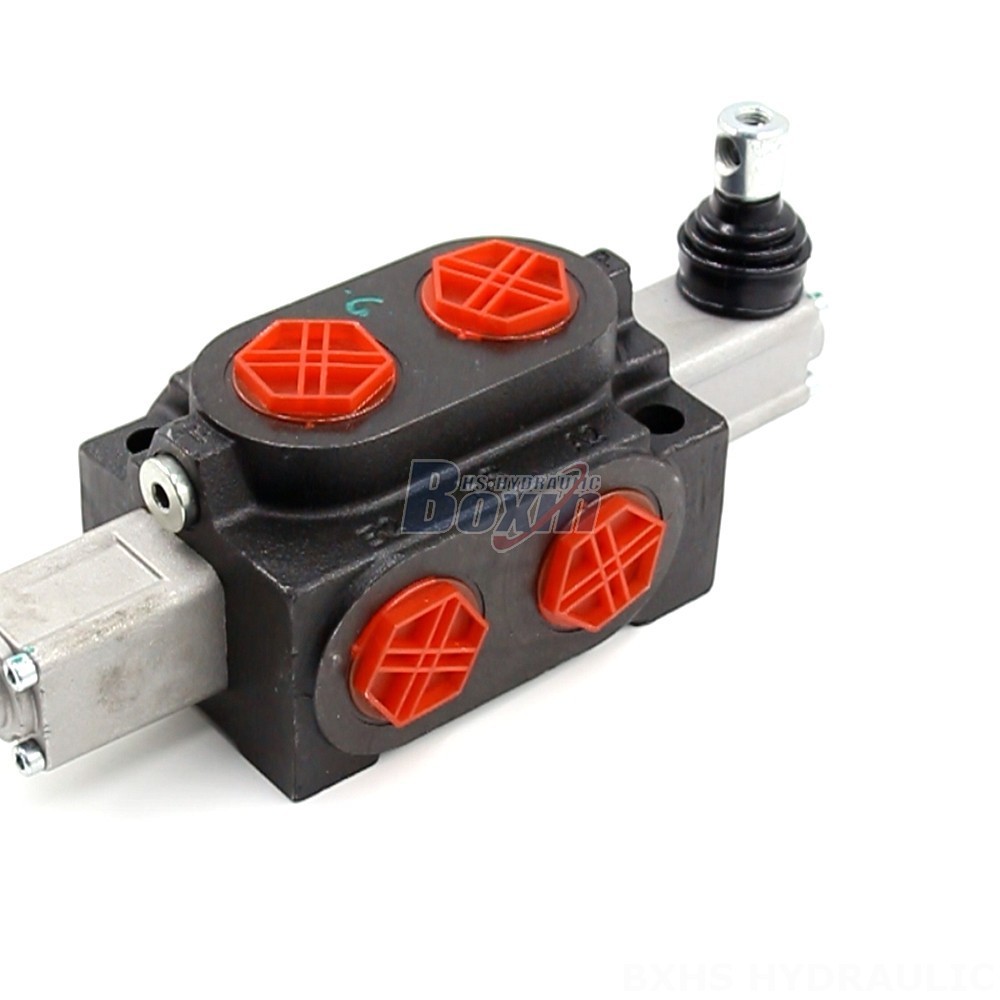

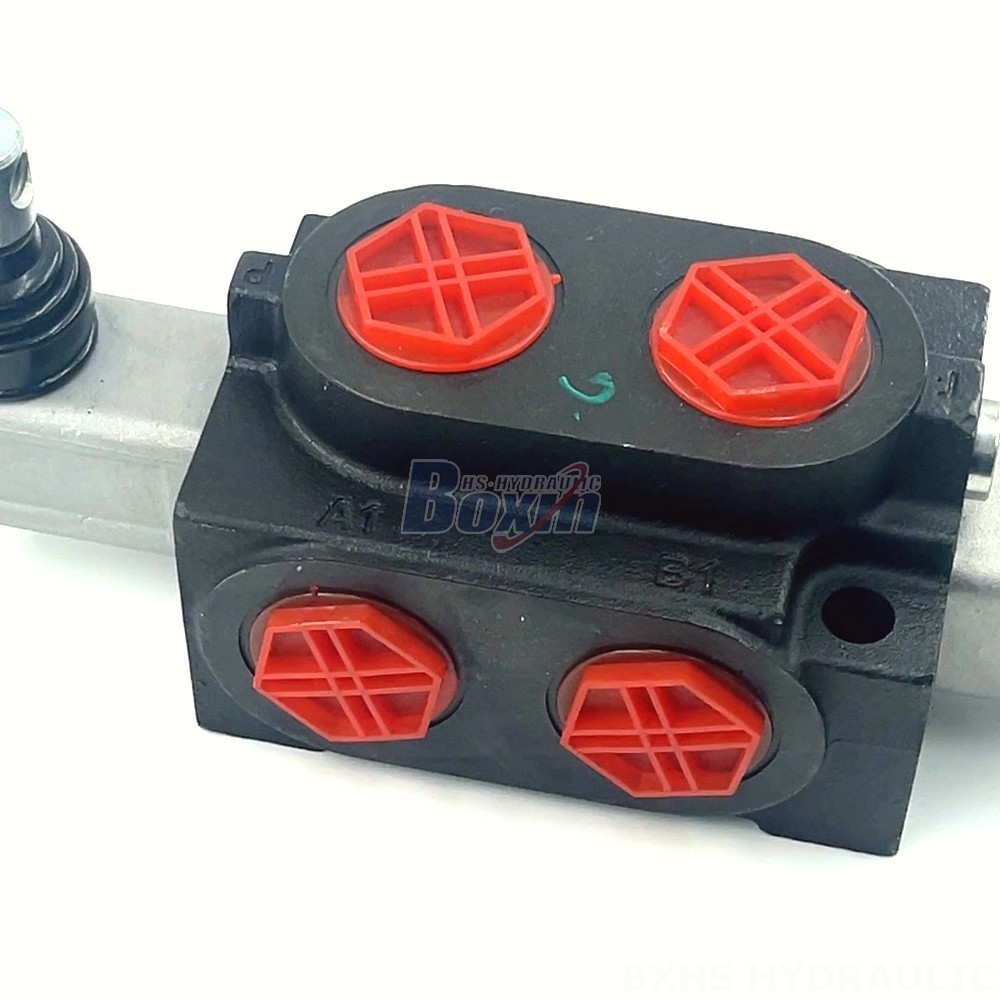

The SHFY-G25L-00 Series Manual Hydraulic Splitter Valve is a high-performance, heavy-duty valve designed for demanding applications in construction, material handling, and industrial vehicles. This 1-section, sectional valve offers a rated flow of 200 L/min and a maximum pressure of 315 bar, making it ideal for a wide range of hydraulic systems.

Seria SHFY-G25L-00 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Hydrauliczna
Szpula 1-sekcyjny
Przepływ znamionowy 200 l/min (52 galonów amerykańskich na min)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy M33×2.0
Port wylotowy M33×2.0
Rozmiar portu M33×2.0
Sekcja 1 Sekcja
Typ konstrukcji Zawór blokowy
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)

Our SHFY-G25L-00 Series Manual Hydraulic Splitter Valve is manufactured to the highest quality standards and available directly from our factory. We offer OEM, wholesale, and private labeling options to meet your specific needs. This valve is suitable for use in various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, and balers. It features a 1-section design, a rated flow of 200 L/min, and a maximum pressure of 315 bar. The valve also boasts a wide operating viscosity range and ambient temperature range, ensuring reliable performance in diverse environments. Contact us today to learn more about our factory direct pricing and custom options.
