OEM/ODM and Private Label Services for QSF32 Sweeper Truck Valves

Metoda sterowania:Proporcjonalny z czujnikiem obciążenia

Szpula:2-sekcyjny

Przepływ znamionowy:250 l/min (66 USGPM)

Maksymalne ciśnienie:230 bar (3300 psi)

Port wlotowy:M36×2

Port wylotowy:M36×2

Rozmiar portu:M18×1.5

Marka:BXHS

Typ produktu:Zawór do zamiatarki drogowej

Seria produktów:Seria QSF32 Zawór do zamiatarki drogowej

Packagingsize:27*27*20

Grossweight:35.00 kg

Dostępność: W magazynie

105 Osoby oglądają ten produkt

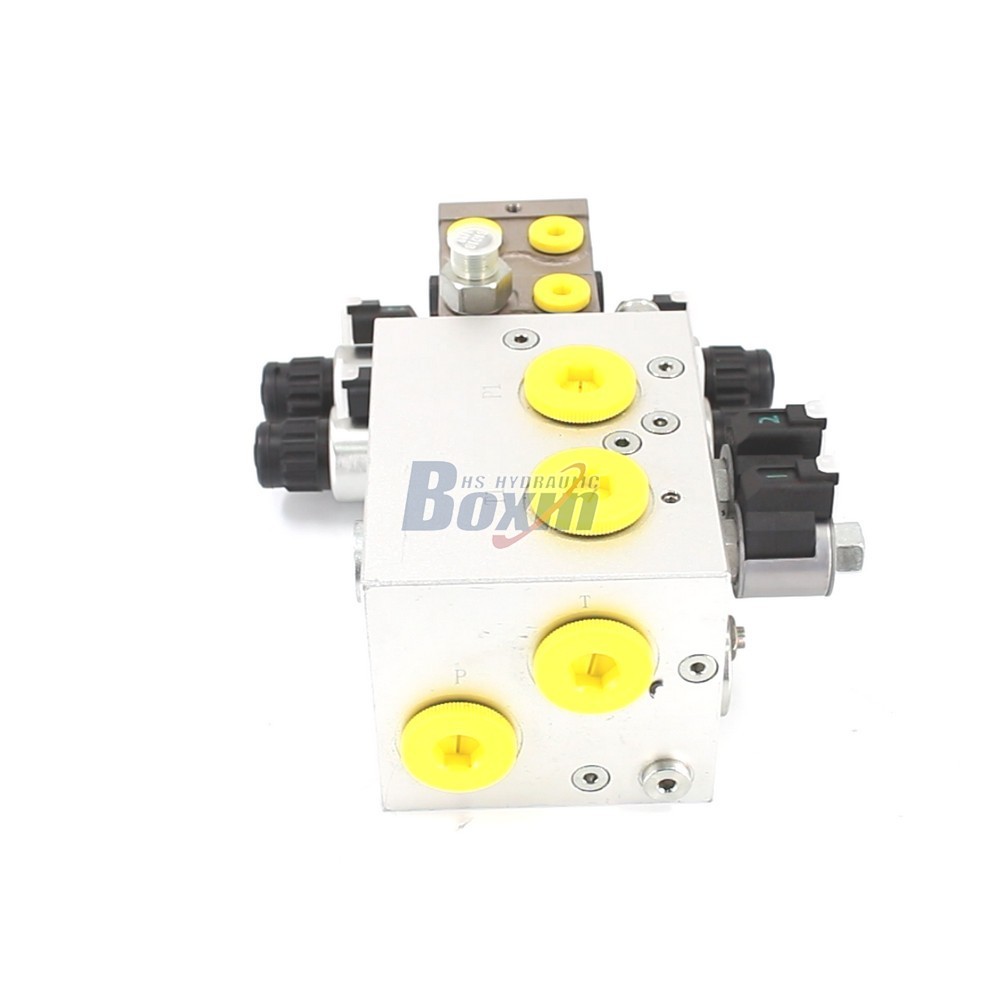

OEM/ODM and Private Label Services for QSF32 Sweeper Truck Valves

OEM/ODM and Private Label Services for QSF32 Sweeper Truck Valves

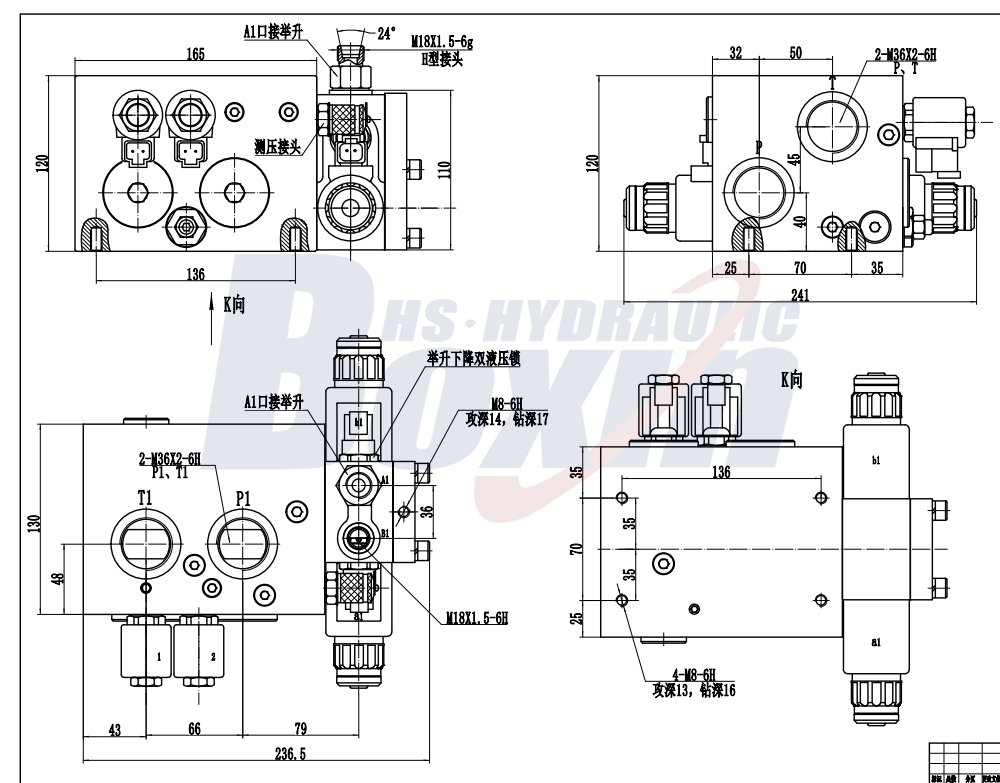

OEM/ODM and Private Label Services for QSF32 Sweeper Truck Valves drawing image

The QSF32 series is a high-performance load-sensitive proportional control valve designed for heavy-duty applications. Engineered for precision and reliability, it supports a flow rate of 250 L/min and pressures up to 230 bar, making it an ideal solution for construction, agricultural, and industrial machinery.

Seria QSF32 Zawór do zamiatarki drogowej Parametry
Metoda sterowania Elektromagnes, Proporcjonalny z czujnikiem obciążenia
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 250 l/min (66 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G1, SAE 16, 1 NPT, M36×2
Port wylotowy G1, SAE 16, 1 NPT, M36×2
Rozmiar portu G1, SAE 16, 1 NPT, M36×2

As a leading manufacturer of high-quality hydraulic components, we offer the QSF32 series load-sensitive proportional valve designed for demanding environments including construction, earth-moving, and material handling equipment. Our facility provides end-to-end manufacturing, OEM, ODM, and private label services tailored to your specific engineering requirements. Whether you require customized flow configurations or branded hydraulic solutions, our factory-direct wholesale model ensures competitive pricing and consistent quality. We are actively seeking global partnerships and invite inquiries from distributors, wholesalers, trade companies, and equipment manufacturers looking for reliable, high-capacity hydraulic valve supply. Benefit from our extensive manufacturing capabilities and professional support as you integrate our precision-engineered valves into your wheel loaders, excavators, forklifts, and specialized agricultural machinery.
