OEM and Private Label Customization for DCV20 4 Spool Monoblock Valve

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:20 l/min (5,2 galonów amerykańskich na min)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria DCV20 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*21*11

Waga brutto:6.20 kg

Dostępność: W magazynie

157 Osoby oglądają ten produkt

OEM and Private Label Customization for DCV20 4 Spool Monoblock Valve

OEM and Private Label Customization for DCV20 4 Spool Monoblock Valve

OEM and Private Label Customization for DCV20 4 Spool Monoblock Valve drawing image

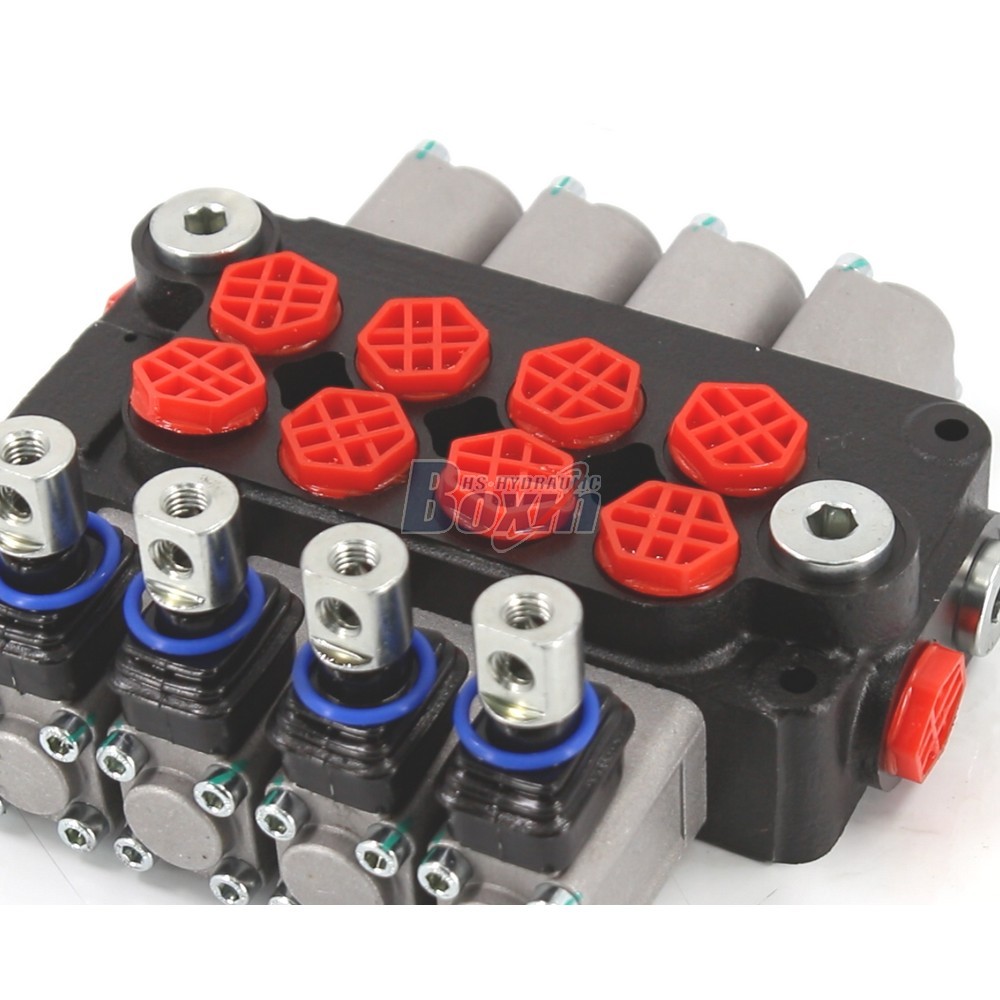

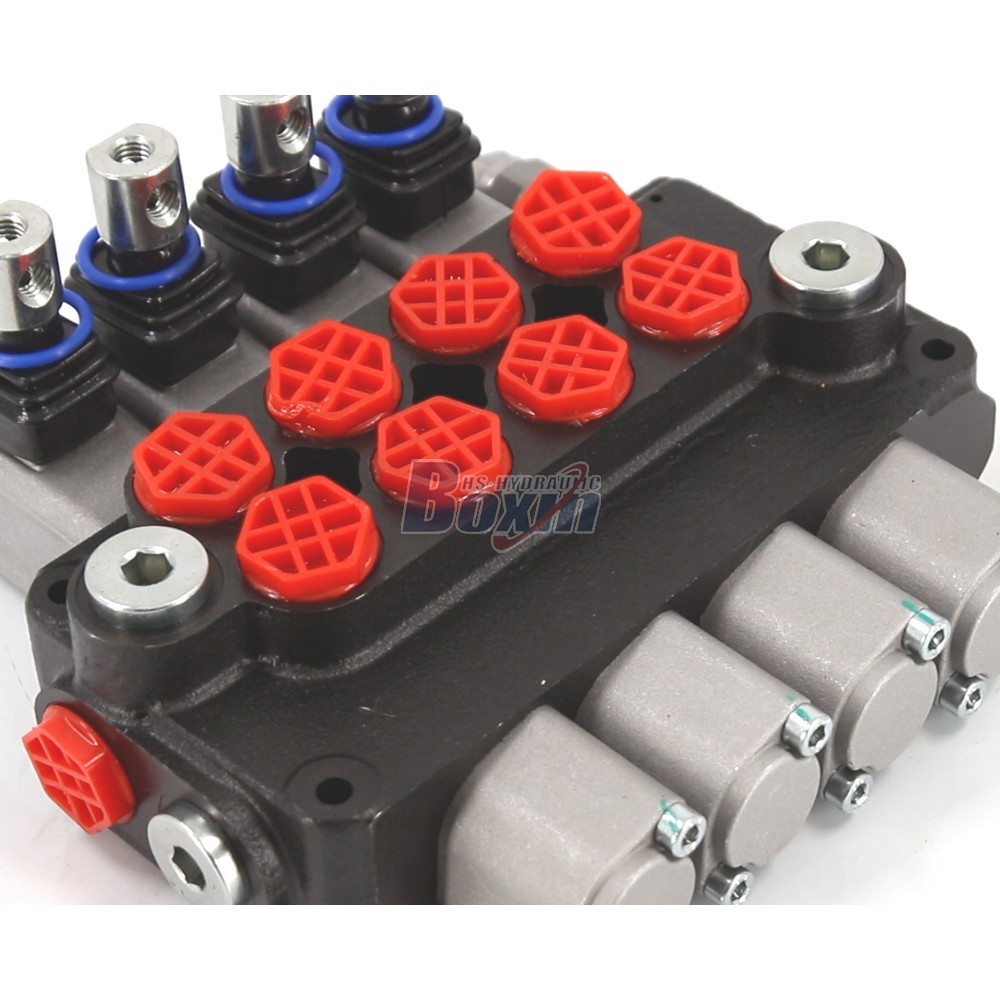

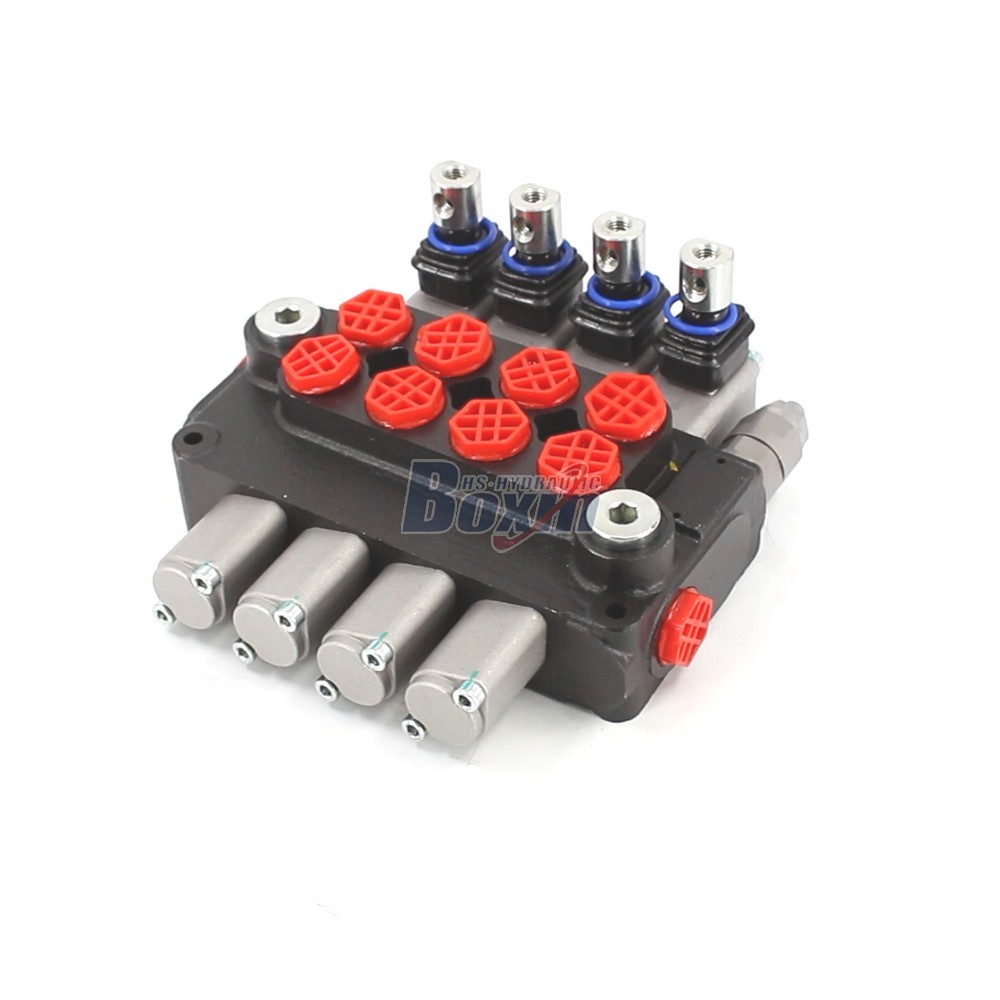

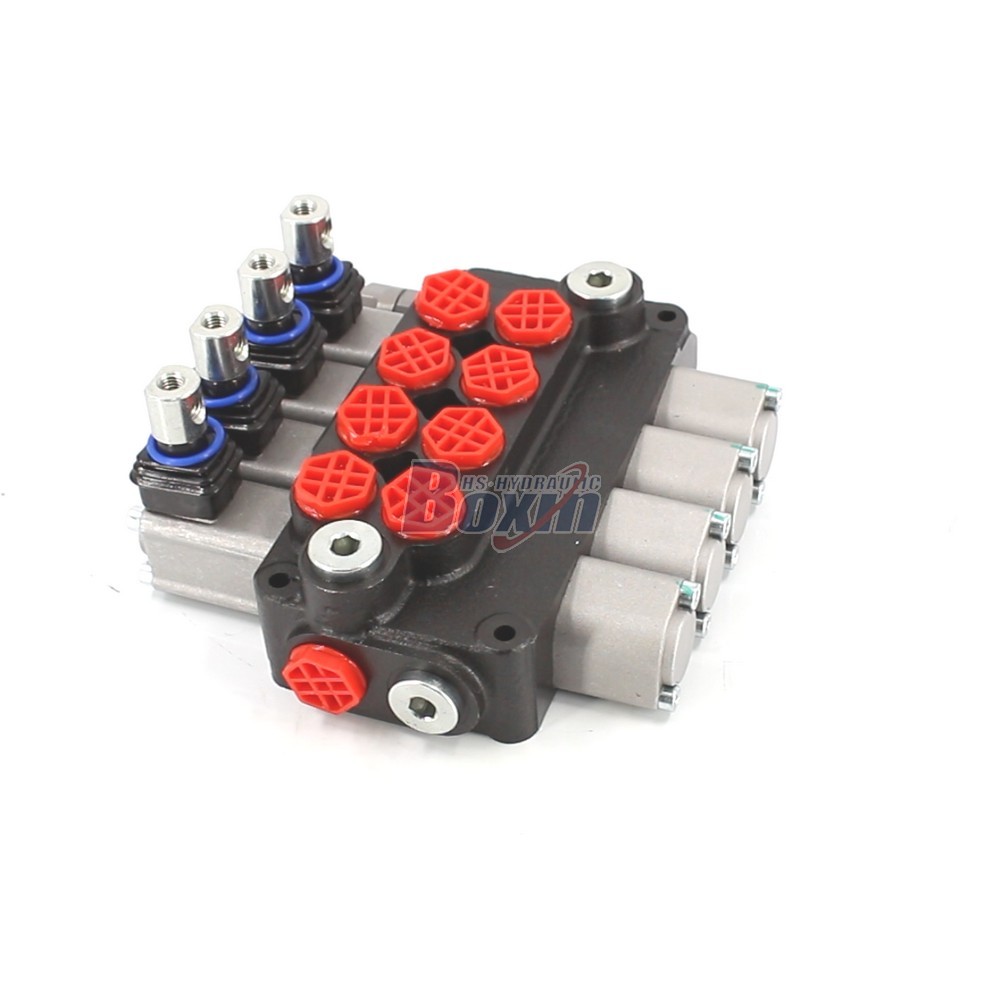

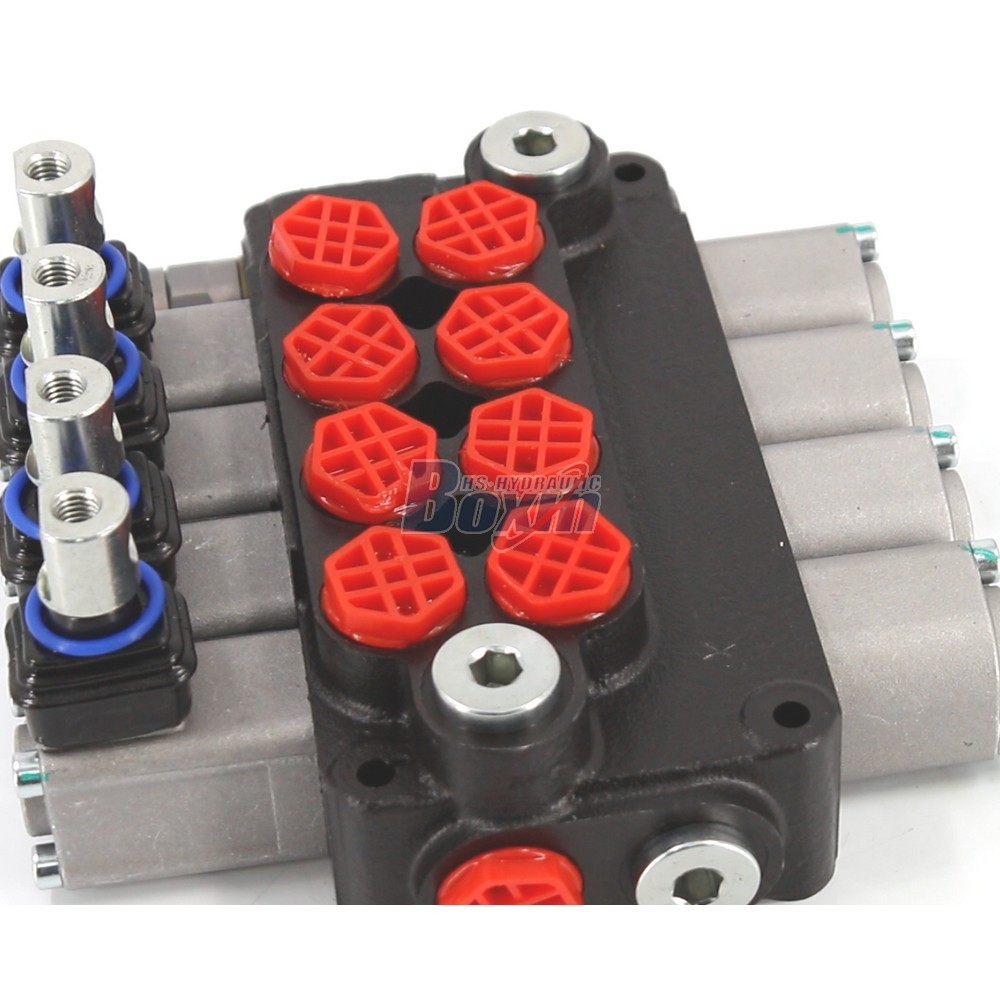

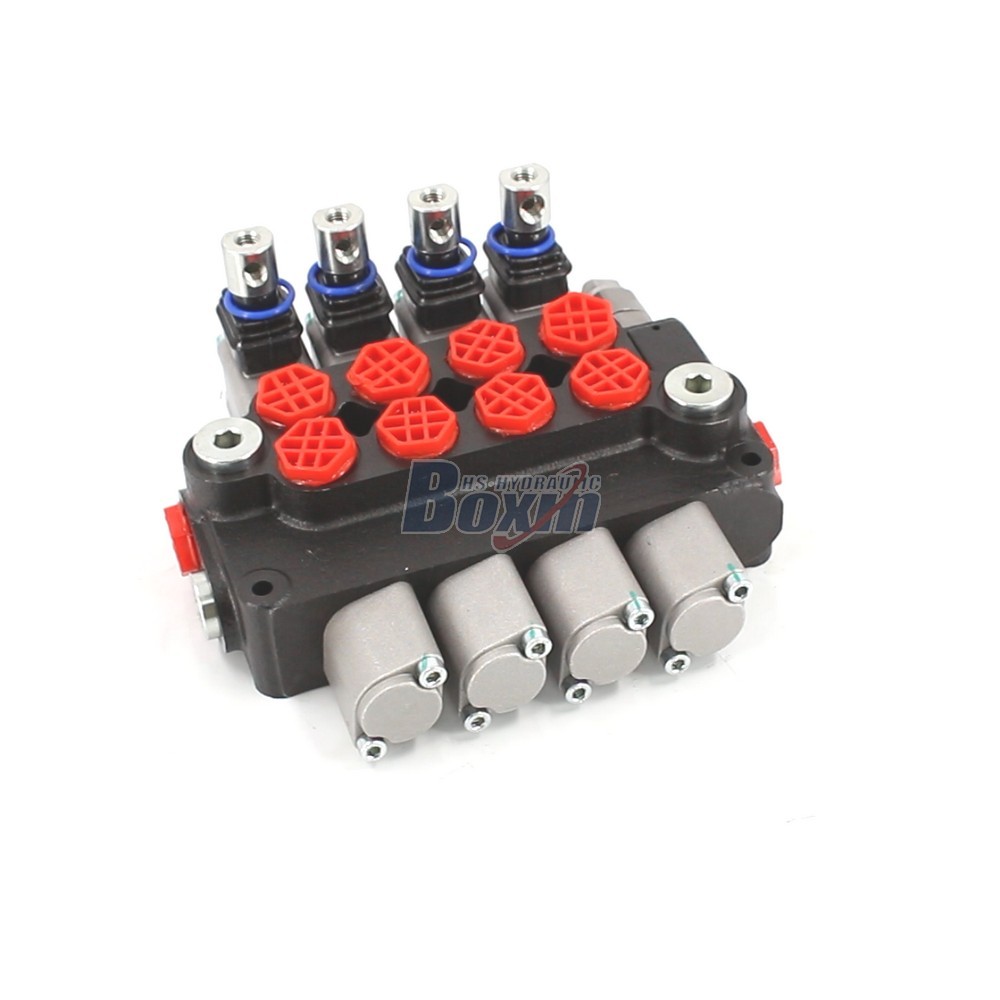

The DCV20 Series 4 Spool Monoblock Valve is a compact, manual directional control valve designed for high-pressure applications up to 350 bar. Delivering a rated flow of 20 L/min, it is ideal for precision control in agriculture, construction, and material handling machinery.

Seria DCV20 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Elektrohydrauliczna, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 20 l/min (5,2 galonów amerykańskich na min)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Port wylotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Rozmiar portu G3/8, M18×1.5, SAE 8, 3/8 NPT

As a leading manufacturer of high-performance hydraulic components, we offer the DCV20 Series 4 Spool Monoblock Valve, engineered for demanding industrial environments. This manual control valve features a robust monoblock design, capable of handling max pressures up to 5100 psi (350 bar) with a rated flow of 20 L/min. It is highly versatile and widely applied in forklifts, mini-excavators, tractors, skid steer loaders, and aerial platforms.

We specialize in providing flexible manufacturing solutions, including professional OEM and Private Label customization to align with your brand's specific technical requirements. Our factory supply model ensures competitive pricing for wholesale and bulk orders. We are actively seeking global partners, including distributors, wholesalers, regional agents, and international traders to expand our global footprint. By choosing our factory-direct supply, you gain access to reliable product quality, customized port sizing (G3/8), and technical support tailored for material handling and construction vehicle applications. Partner with us for a stable supply chain and high-quality hydraulic solutions.
