Produkcja i dostawa
Czas realizacji produkcji 15-30 dni
Innowacja napędza rozwój. Technologia tworzy przyszłość.
1726 Osoby oglądają ten produkt

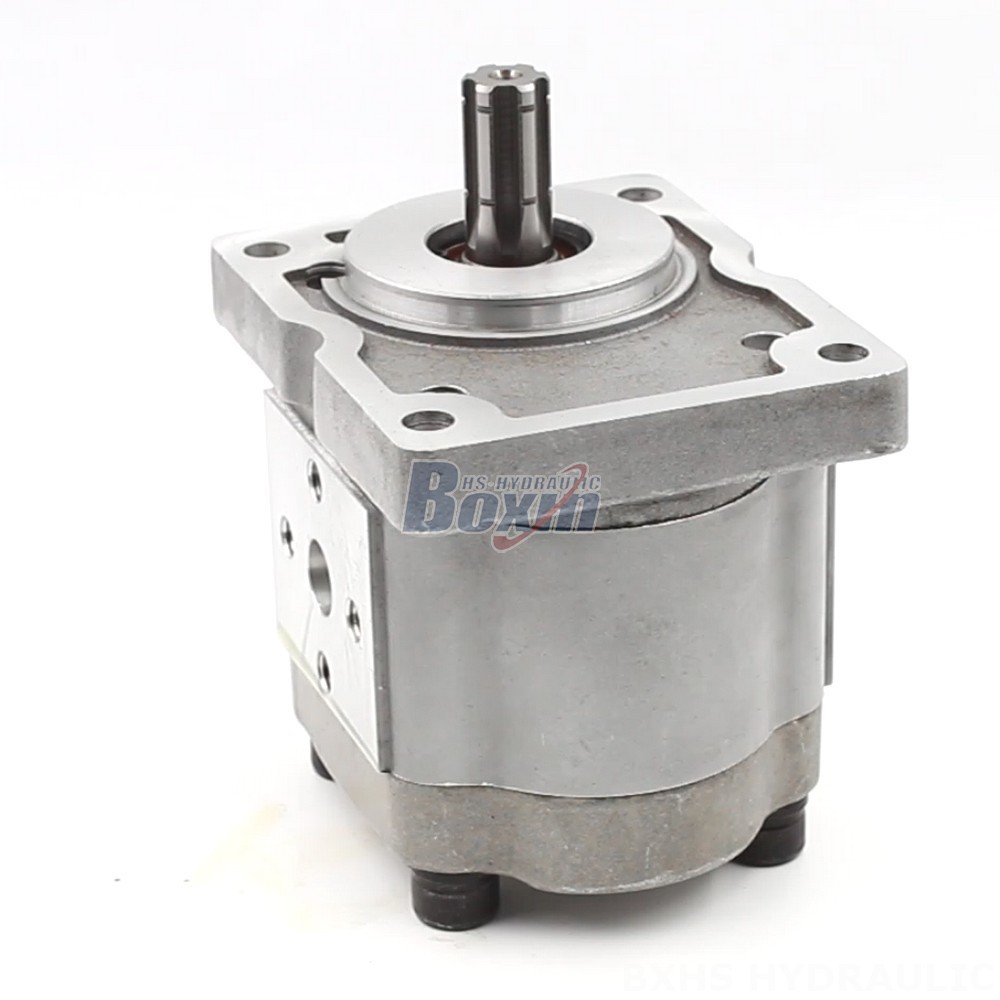

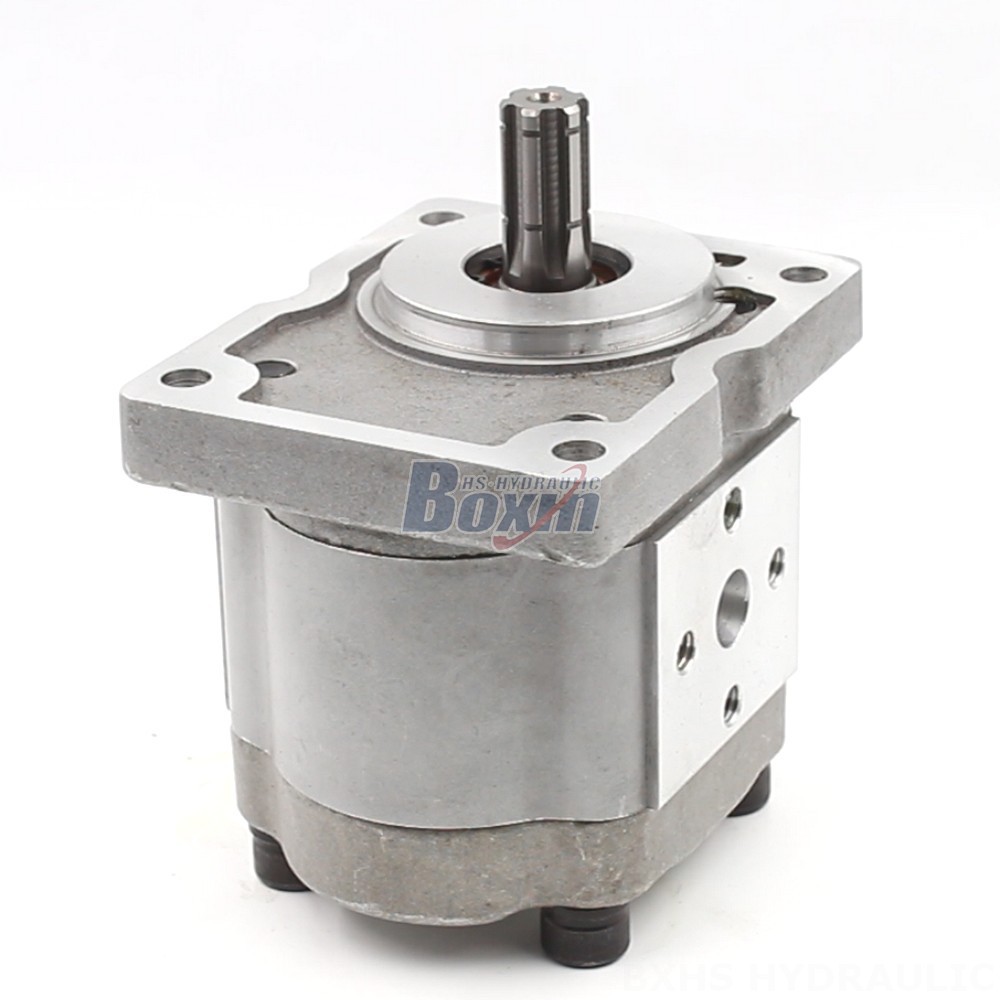

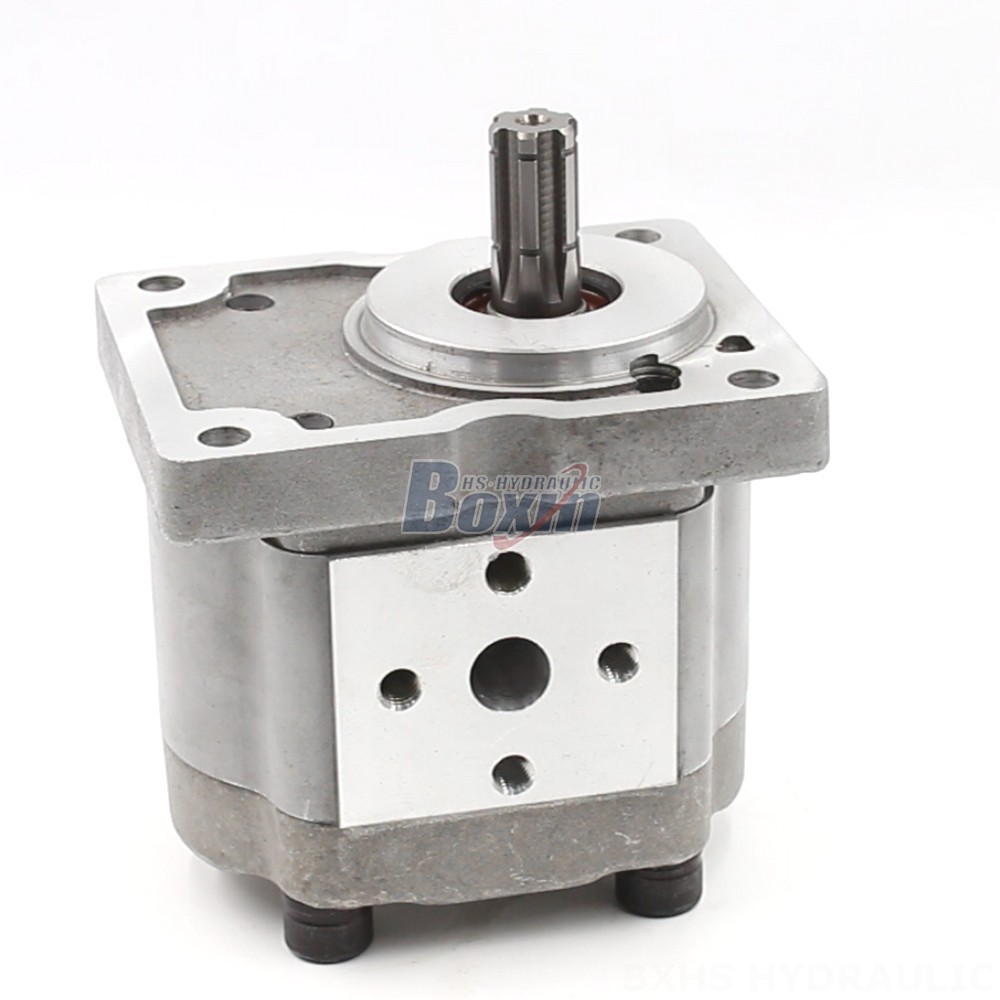

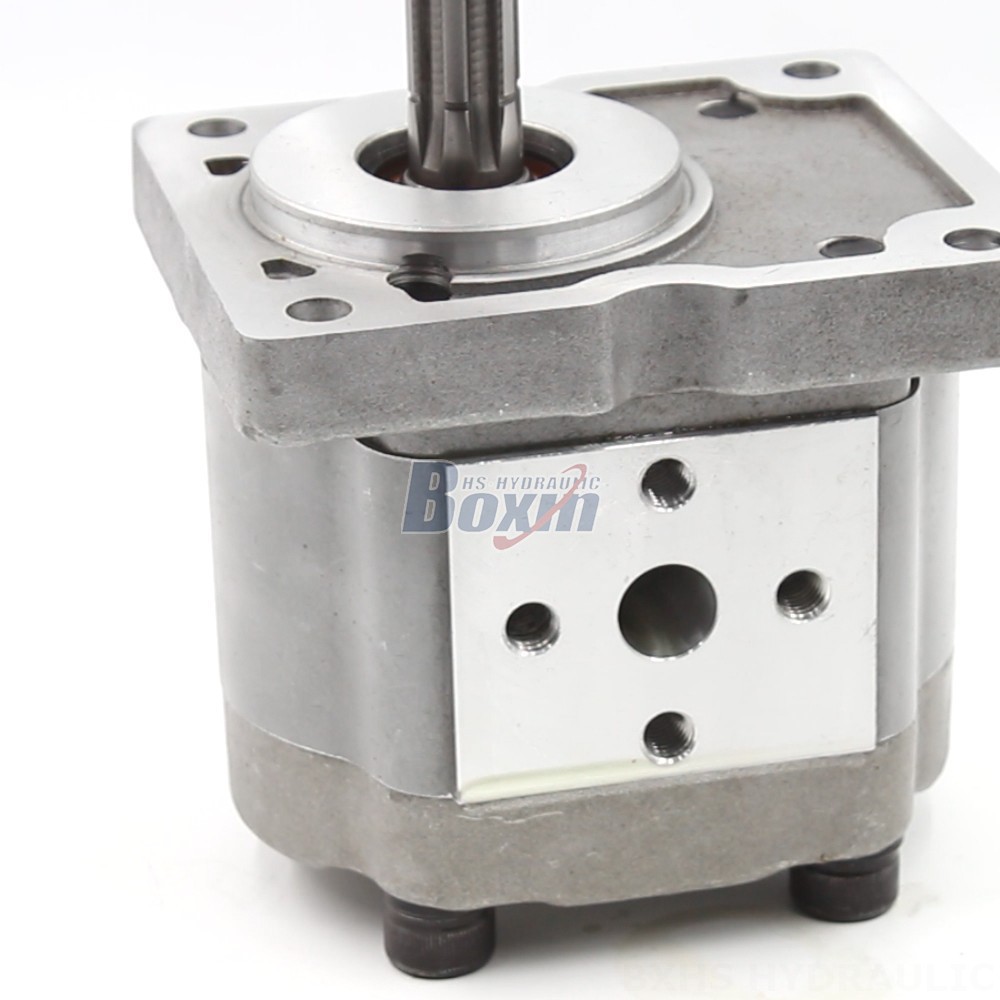

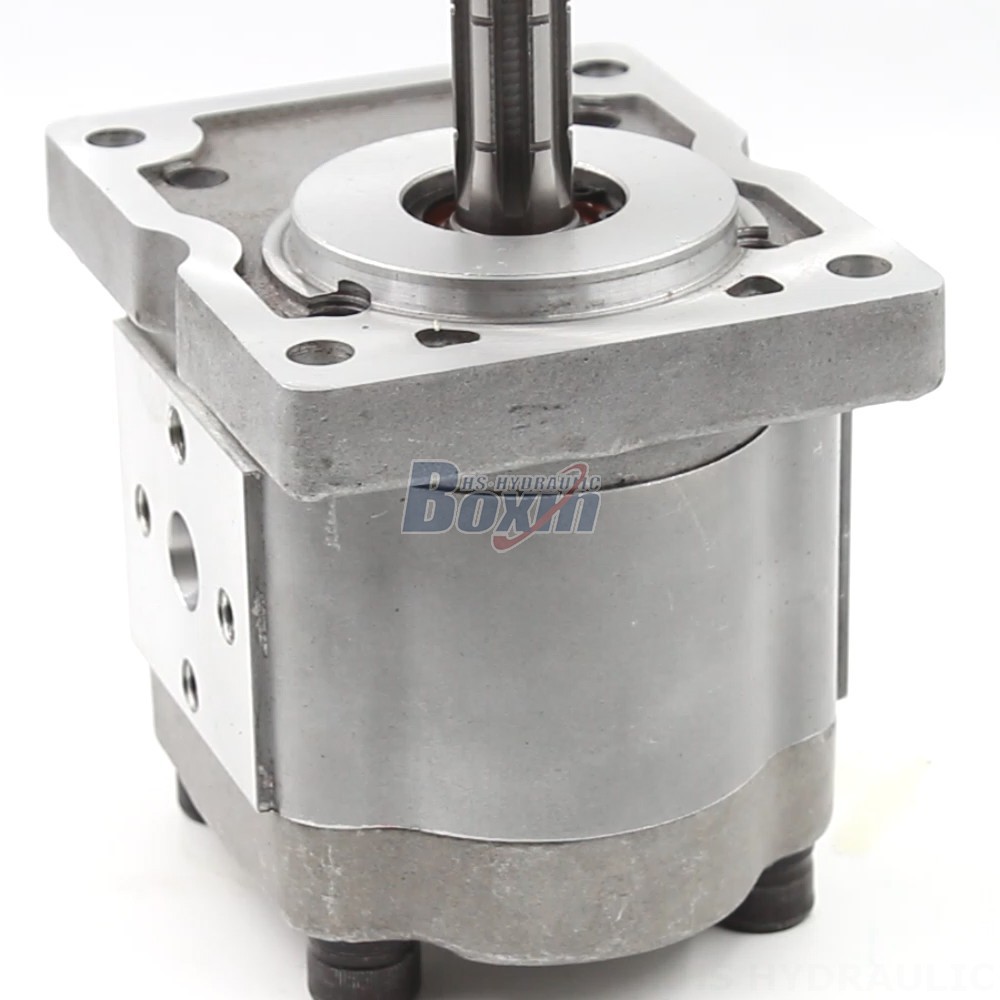

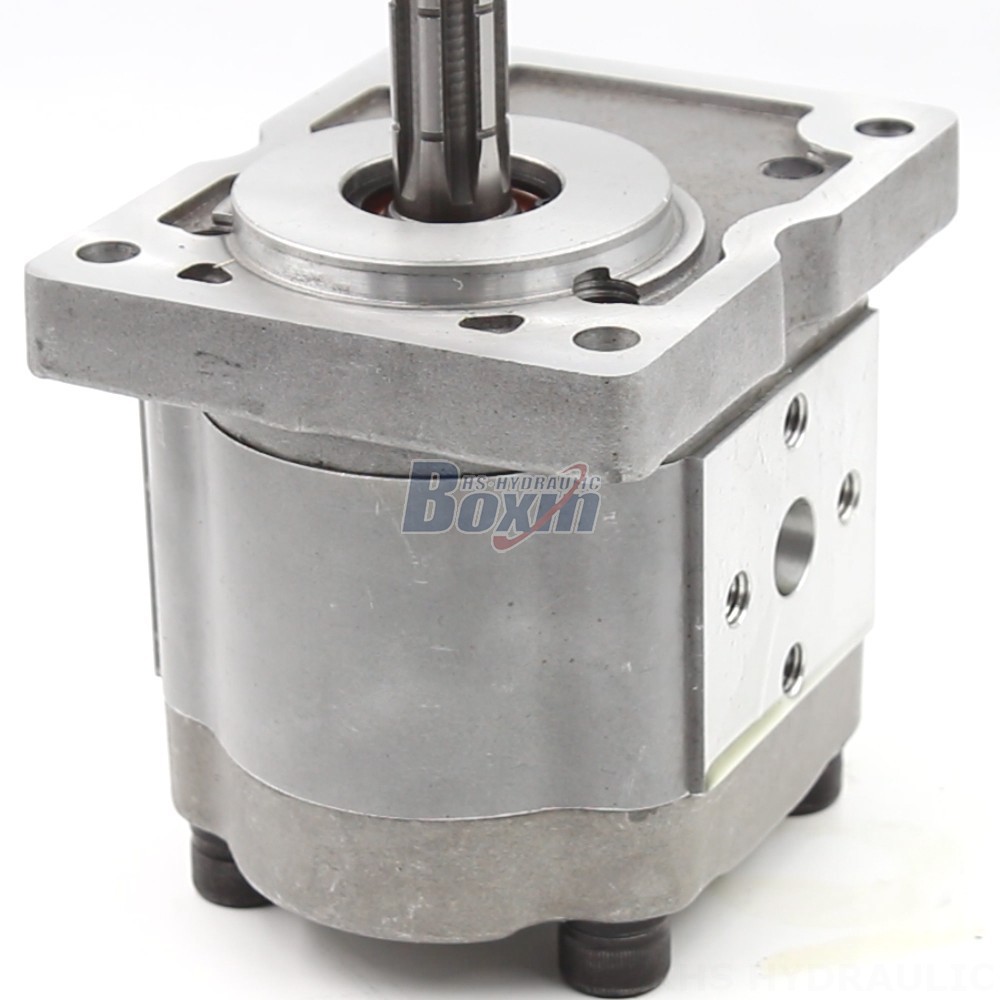

The NSH-10 Hydraulic Gear Pump is a versatile and reliable hydraulic pump designed for demanding applications in various industries, including material handling, construction, agriculture, and industrial vehicles. It delivers exceptional performance with a displacement of 100 cc/rev and a rated pressure of 18 MPa (2610 psi).
| Seria NSH Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 32 cm³/obr, 40 cm³/obr, 50 cm³/obr, 100 cm³/obr |
| Ciśnienie znamionowe | 18 MPa (2610 psi) |
| Maksymalne ciśnienie | 20 MPa (2900 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 4200 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara) |
| Materiał | Aluminium |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange kwadratowy B |
| Typ wału | Nacięcie ewolwentowe X |
**NSH-10 Hydraulic Gear Pump: Power and Efficiency for Demanding Applications**
The NSH-10 Hydraulic Gear Pump is a высококачественный and durable pump constructed from robust aluminium. It features an external gear design with a B-Square Flange and an Involute Spline shaft type. This pump is part of the NSH Series and is available in various displacements, including 10 cc/rev, 40 cc/rev, and 50 cc/rev.
**Key Features and Benefits:**
* Displacement: 100 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Left (counter-clockwise) rotation
* External Gear Pump structure
* Aluminium material
* B-Square Flange version
* Involute Spline shaft type
The NSH-10 Hydraulic Gear Pump is widely used in various applications, including:
* Material Handling Equipment
* Construction and Earth Moving Equipment
* Agricultural Machinery
* Industrial Vehicles
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
With its exceptional performance, durability, and versatility, the NSH-10 Hydraulic Gear Pump is an ideal choice for a wide range of hydraulic applications that demand power and efficiency.
