Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:24*21*13

Waga brutto:6.60 kg

Dostępność: W magazynie

1096 Osoby oglądają ten produkt

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM drawing image

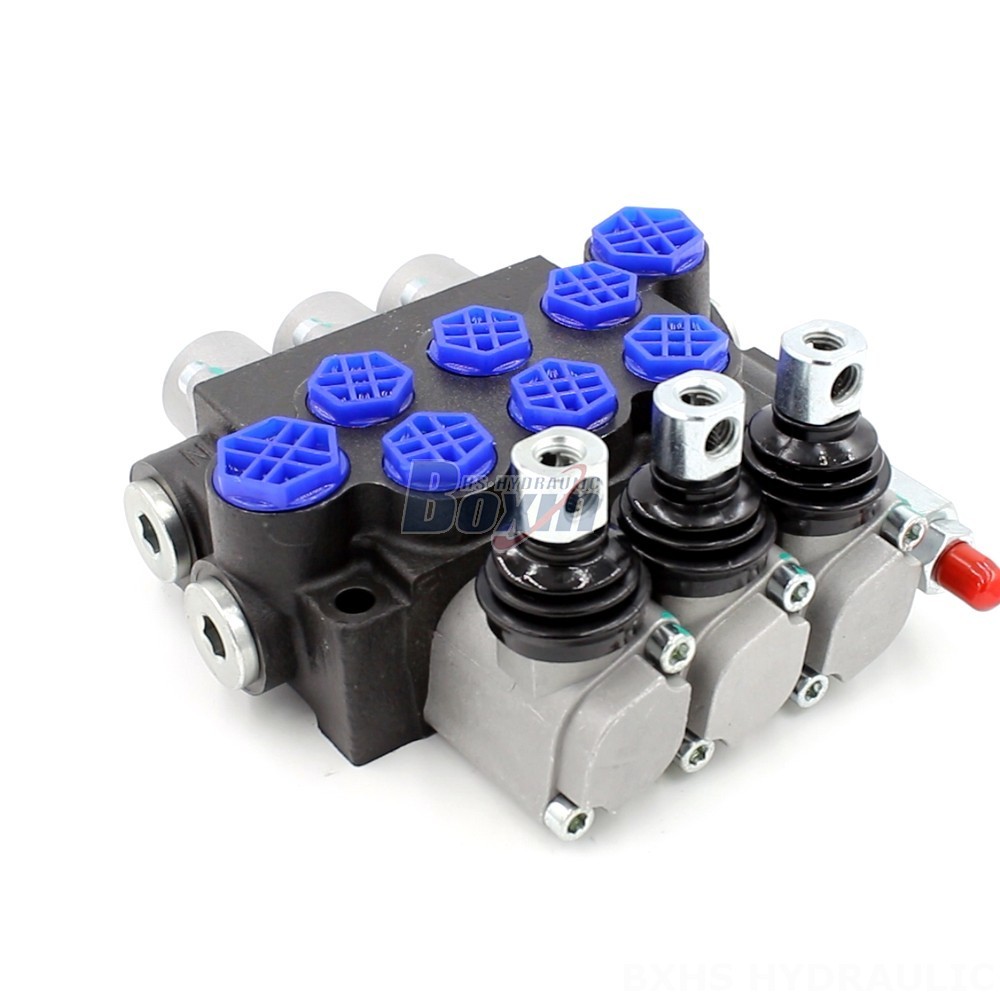

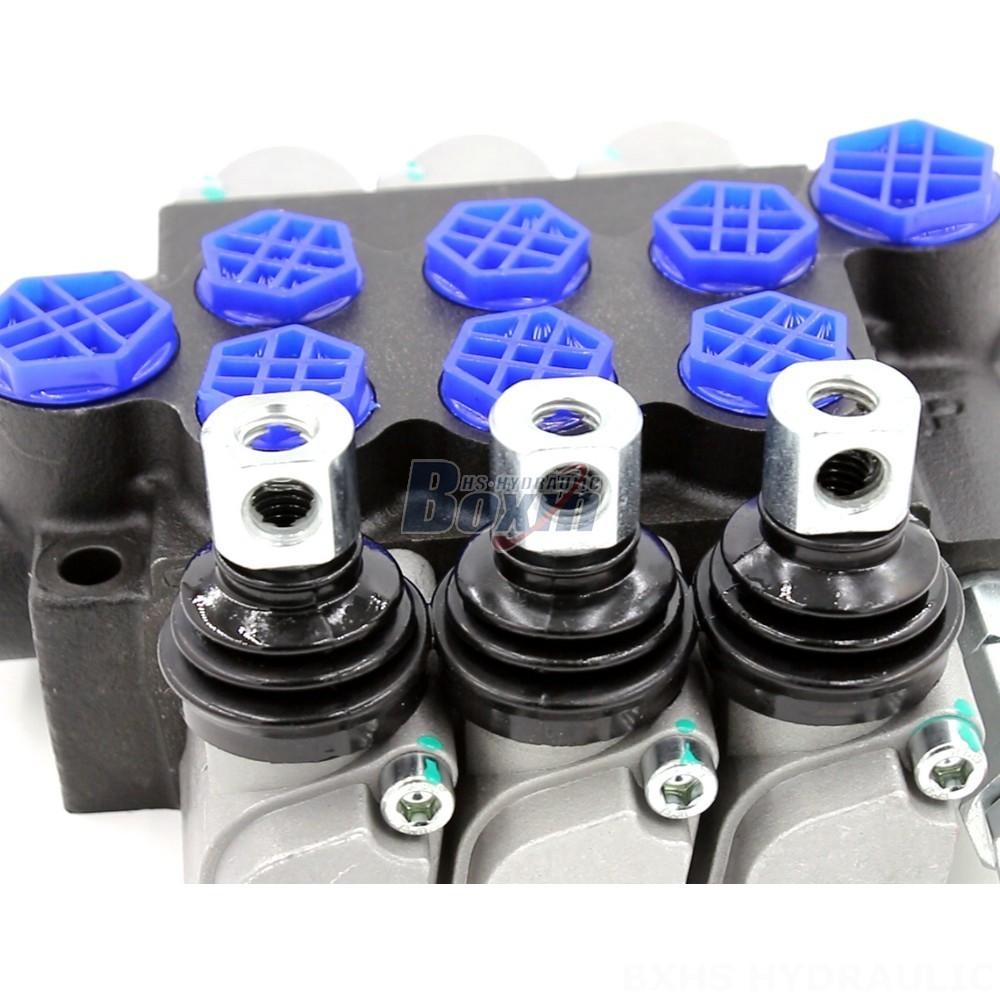

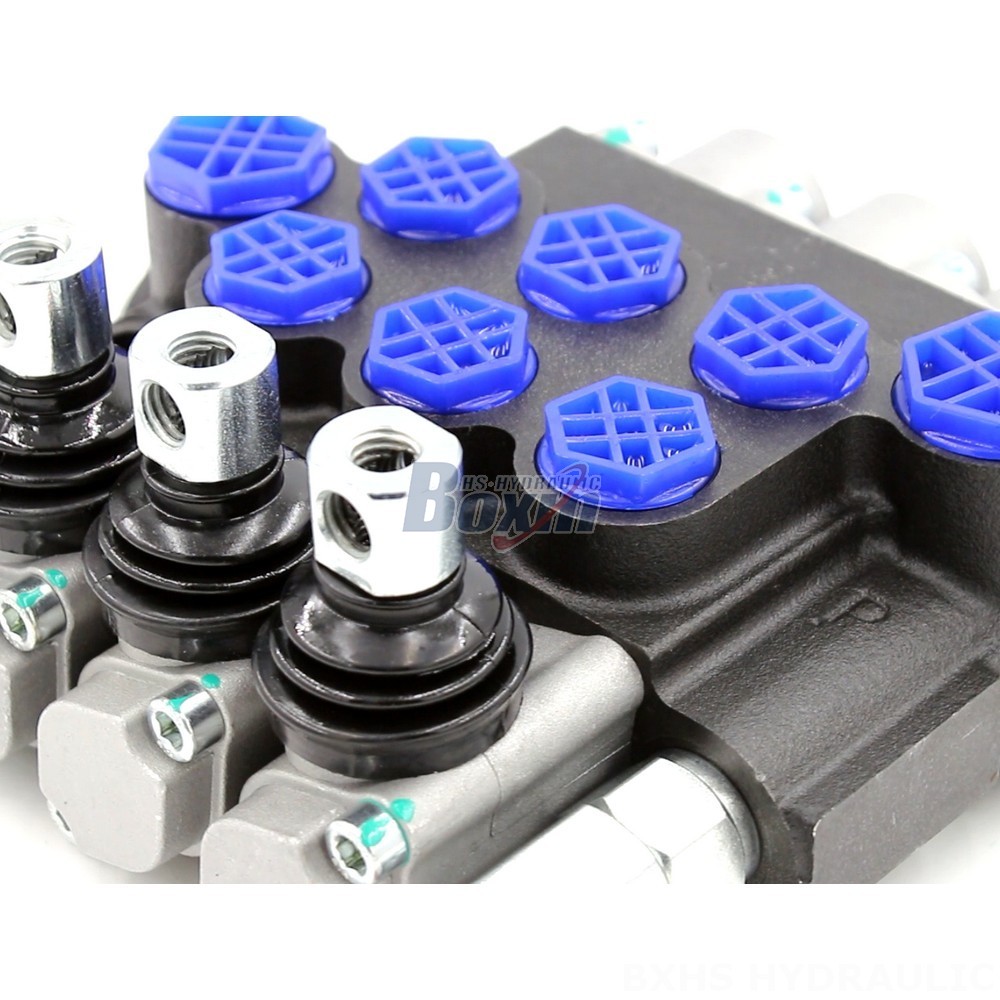

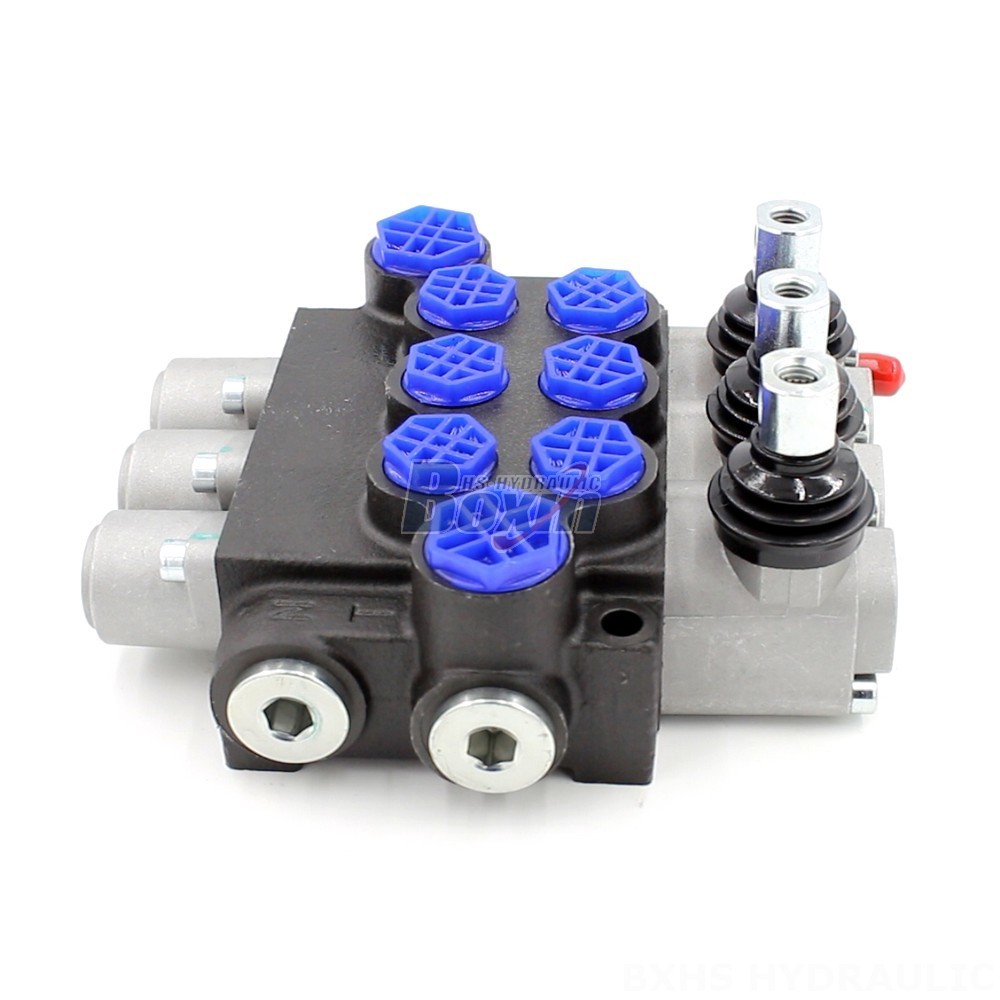

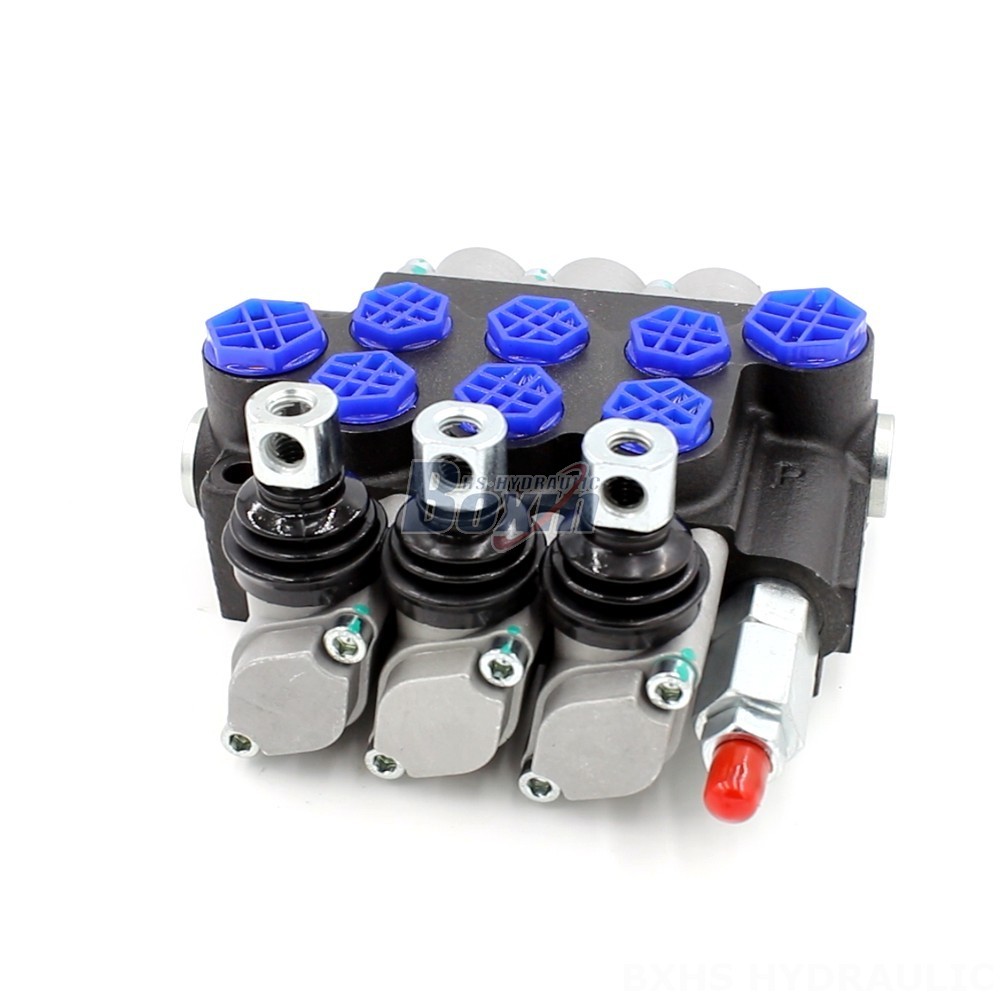

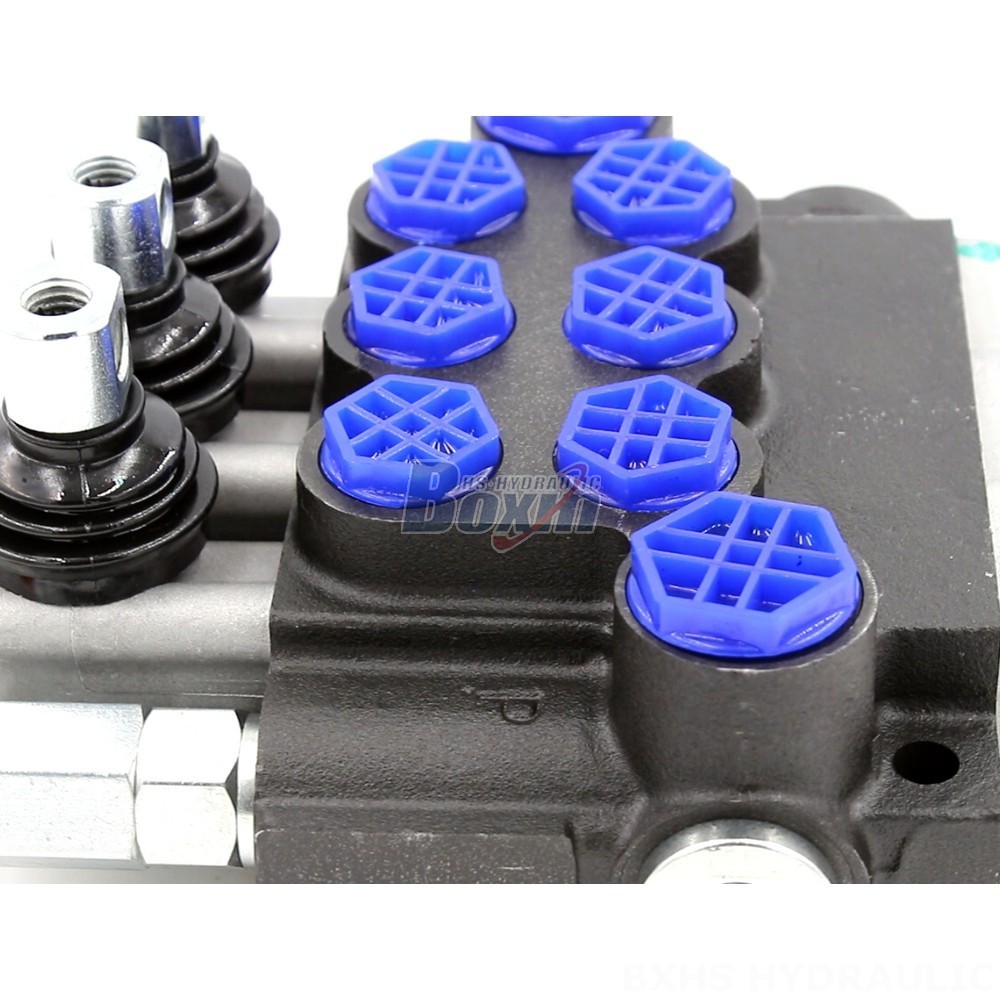

The P40-G12-G38-OT is a high-performance, 3-section monoblock directional control valve designed for various applications in material handling, construction, and industrial vehicles. It features a manual control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. This valve is ideal for OEM and wholesale customers seeking a reliable and durable solution for their hydraulic systems.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT is a pressure independent control valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a 3-section monoblock design, providing a compact and robust solution for controlling hydraulic circuits. The valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications. Its manual control method allows for easy and precise operation. This versatile valve is compatible with a variety of equipment, including telehandlers, forklifts, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders. Its reliable performance, durability, and wide operating temperature range make it an excellent choice for OEM and wholesale customers seeking a high-quality hydraulic valve for their equipment.
