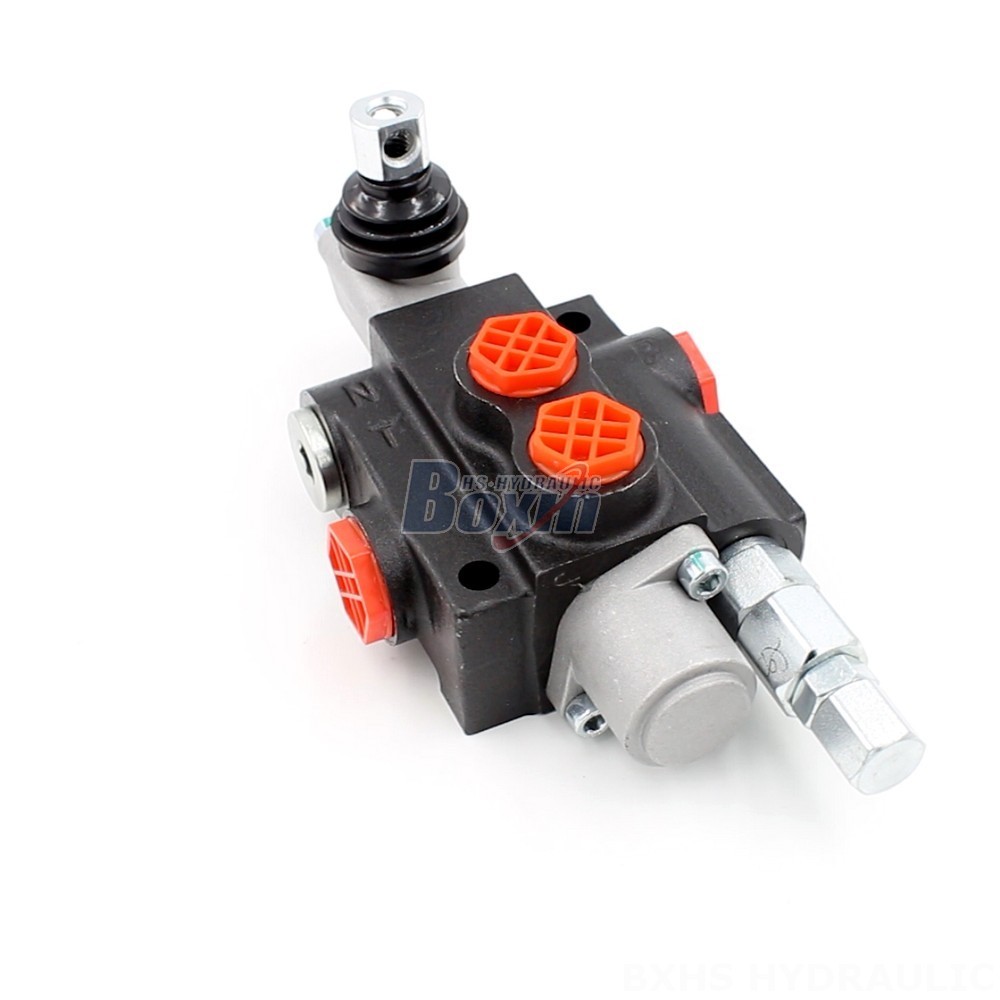

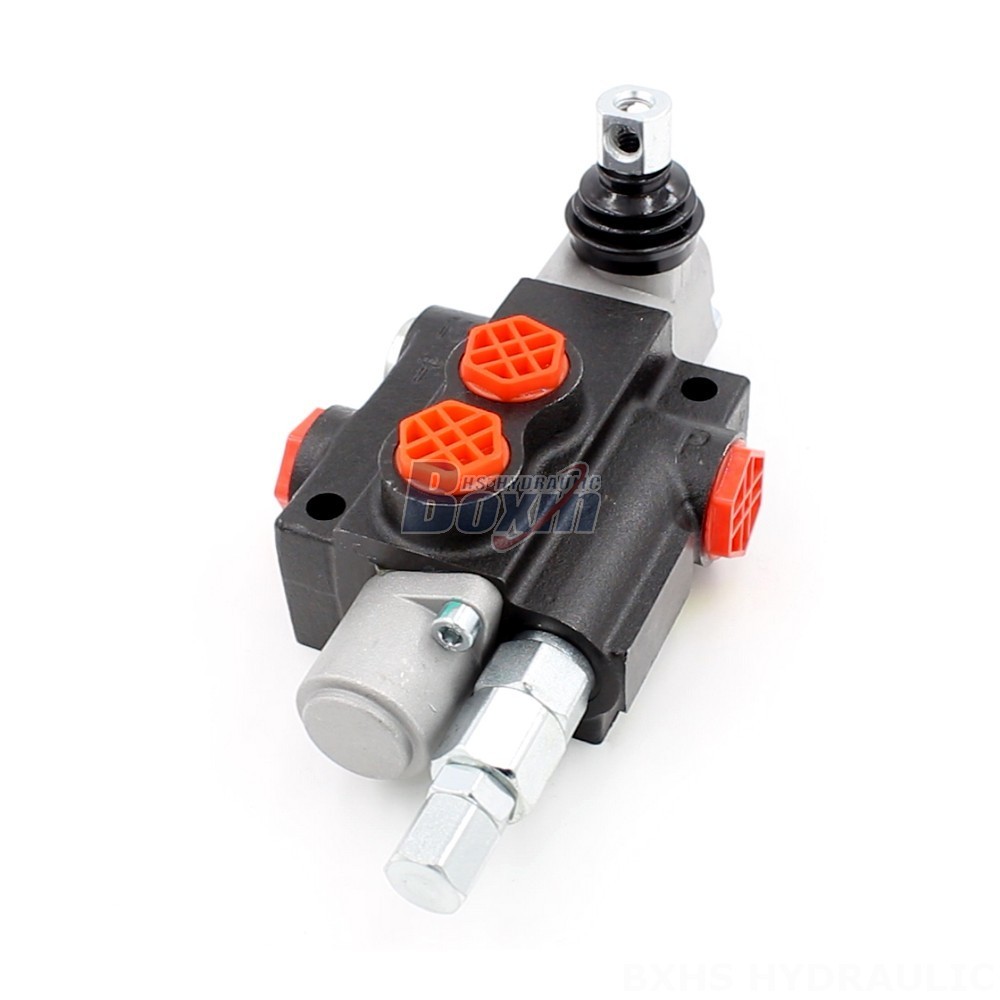

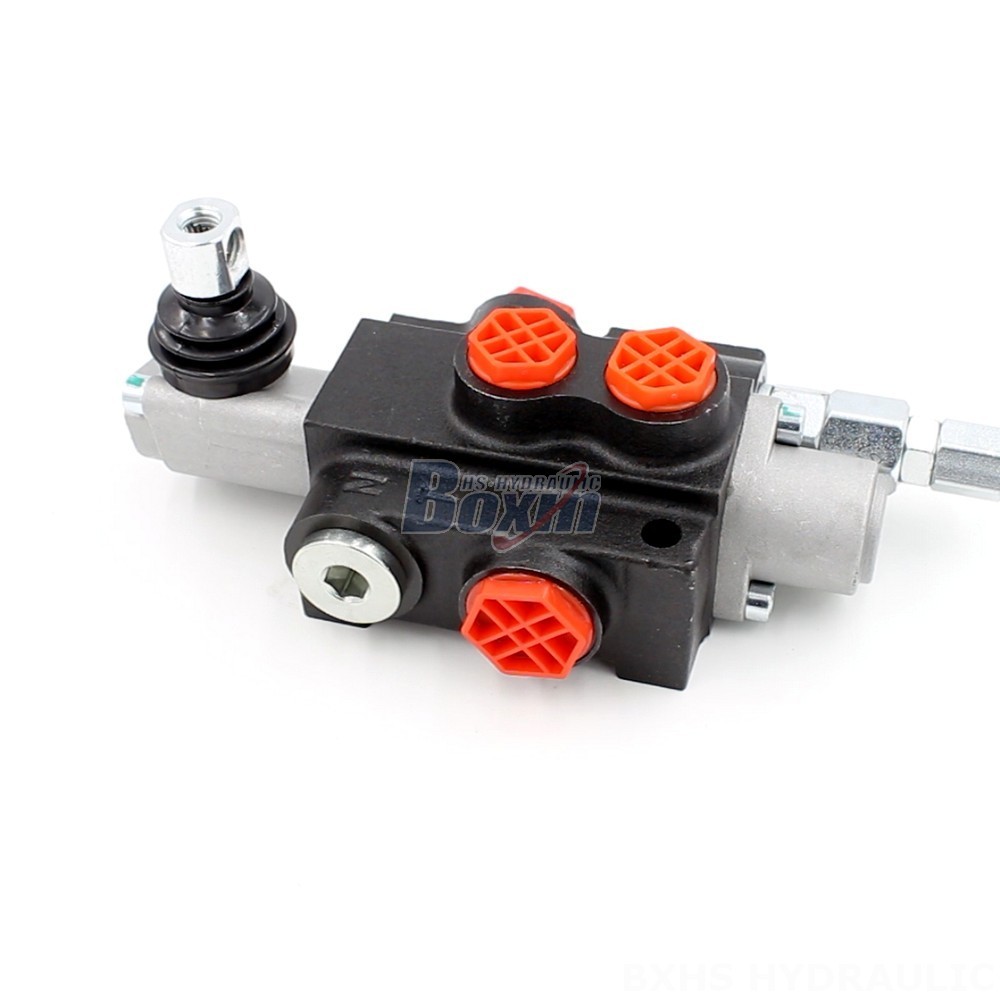

The P40-OT Wood Splitter Control Valve is a high-performance, manual directional control valve designed for demanding applications in construction, material handling, and agriculture. This robust monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering various hydraulic systems in heavy-duty machinery.
| Seria P40 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 40 l/min (10,5 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port wylotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Rozmiar portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-OT Wood Splitter Control Valve is a reliable and durable hydraulic component that delivers superior performance in challenging environments. Its monoblock construction ensures exceptional strength and longevity, while its manual control offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for powering a wide range of hydraulic systems in construction equipment, material handling machinery, and agricultural vehicles. The P40-OT is specifically designed for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its robust construction and high flow rate make it an ideal choice for heavy-duty applications where reliability and performance are paramount.
