Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*16*11

Waga brutto:3.00 kg

Dostępność: W magazynie

1243 Osoby oglądają ten produkt

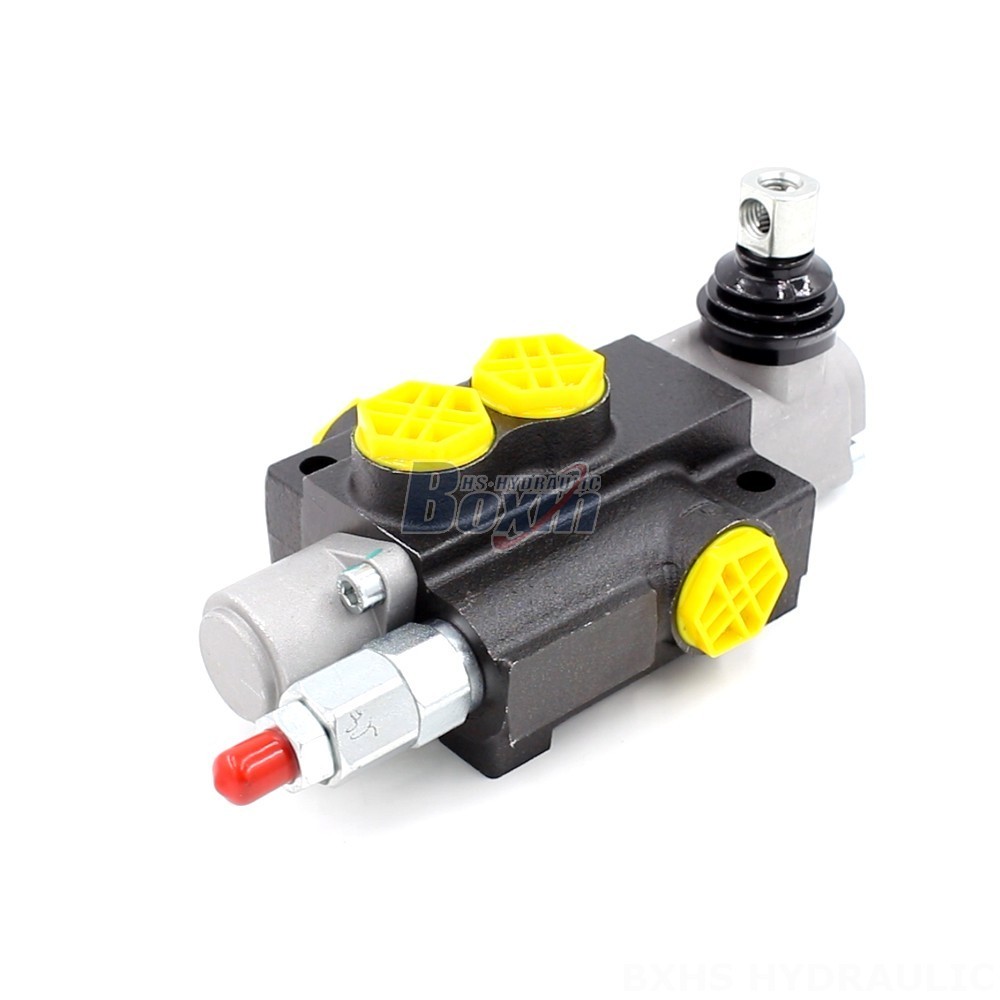

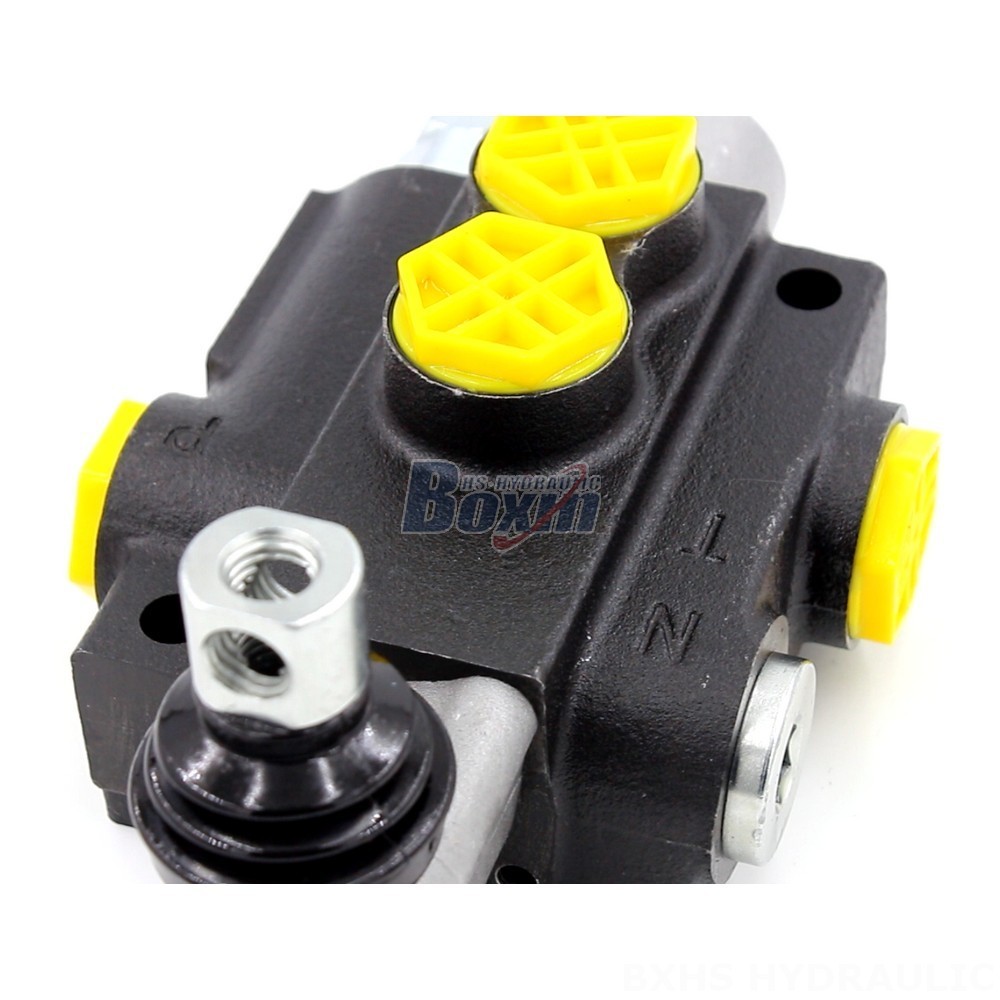

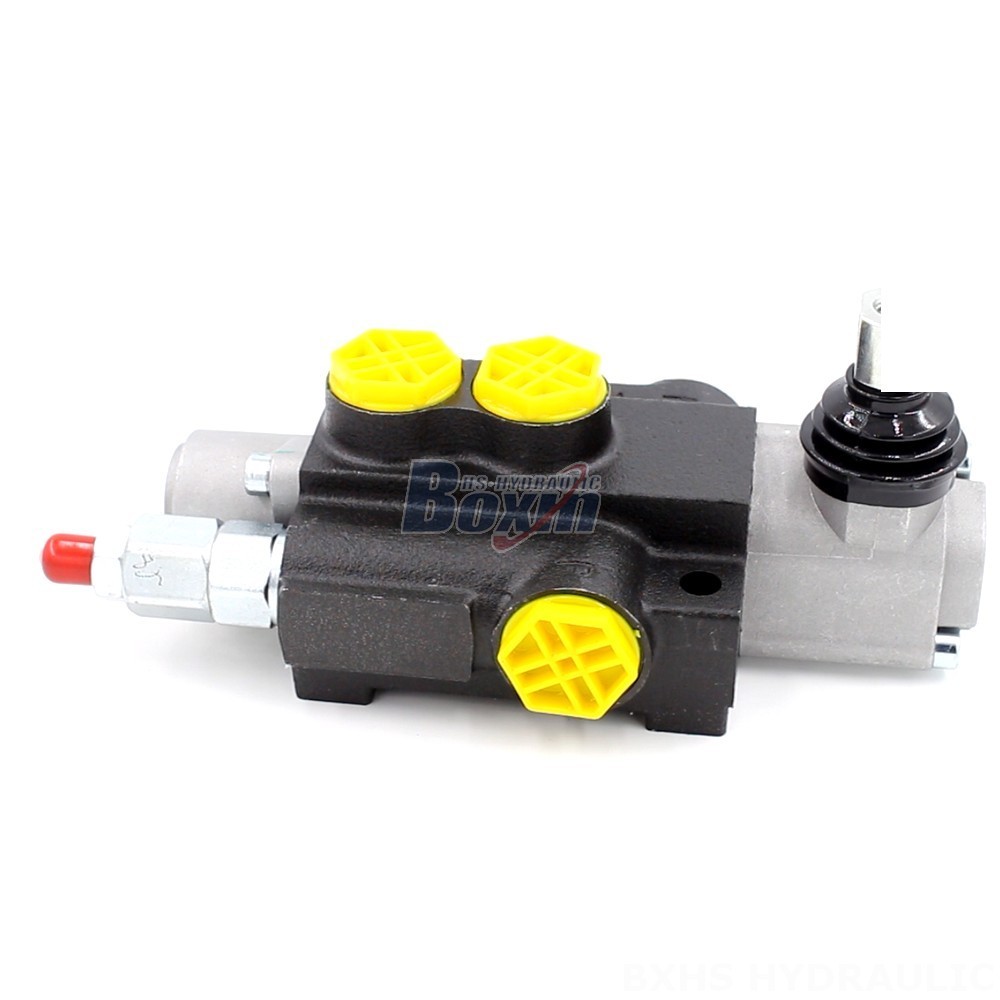

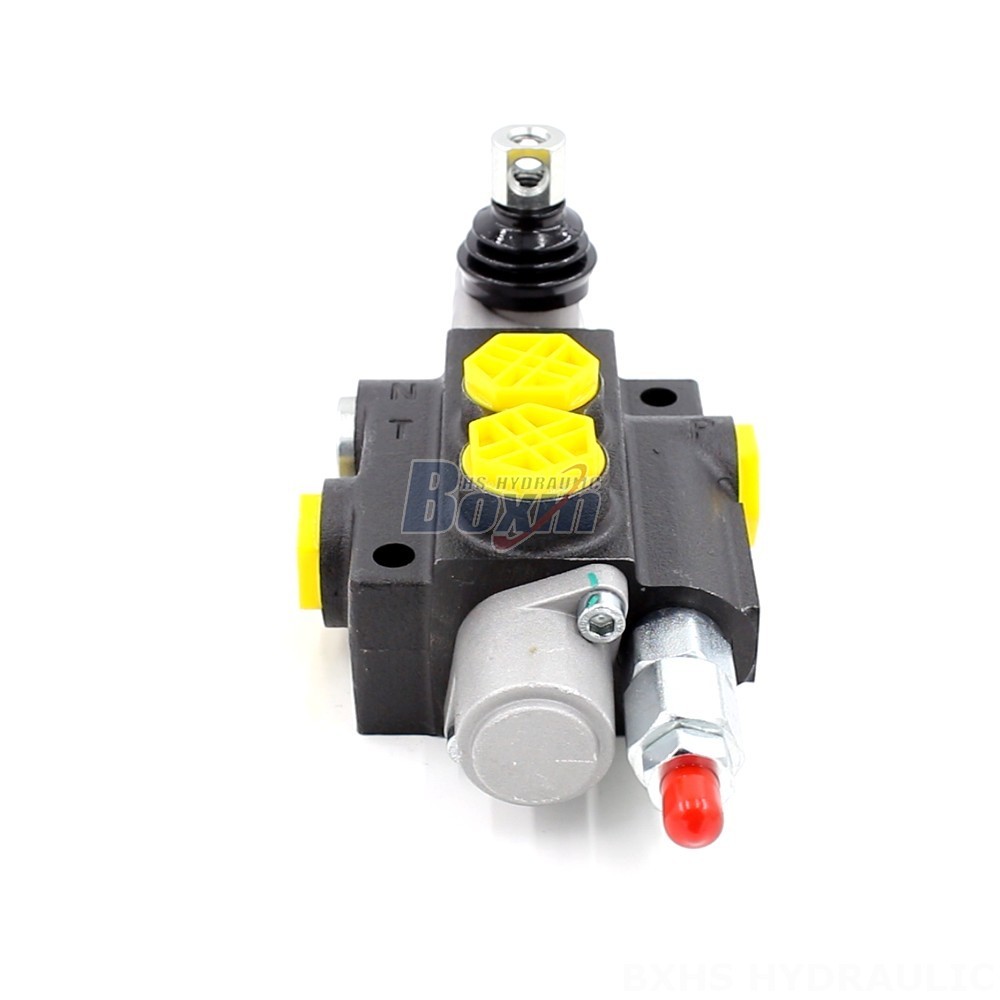

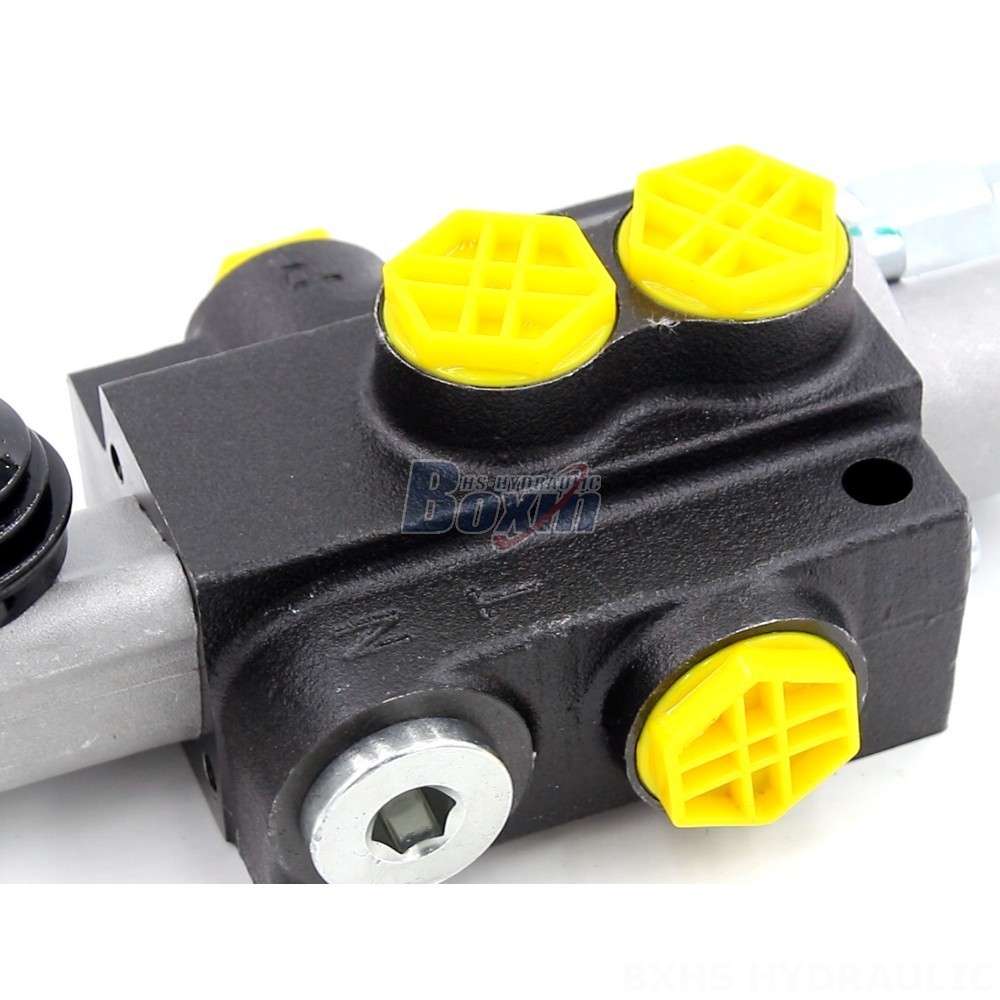

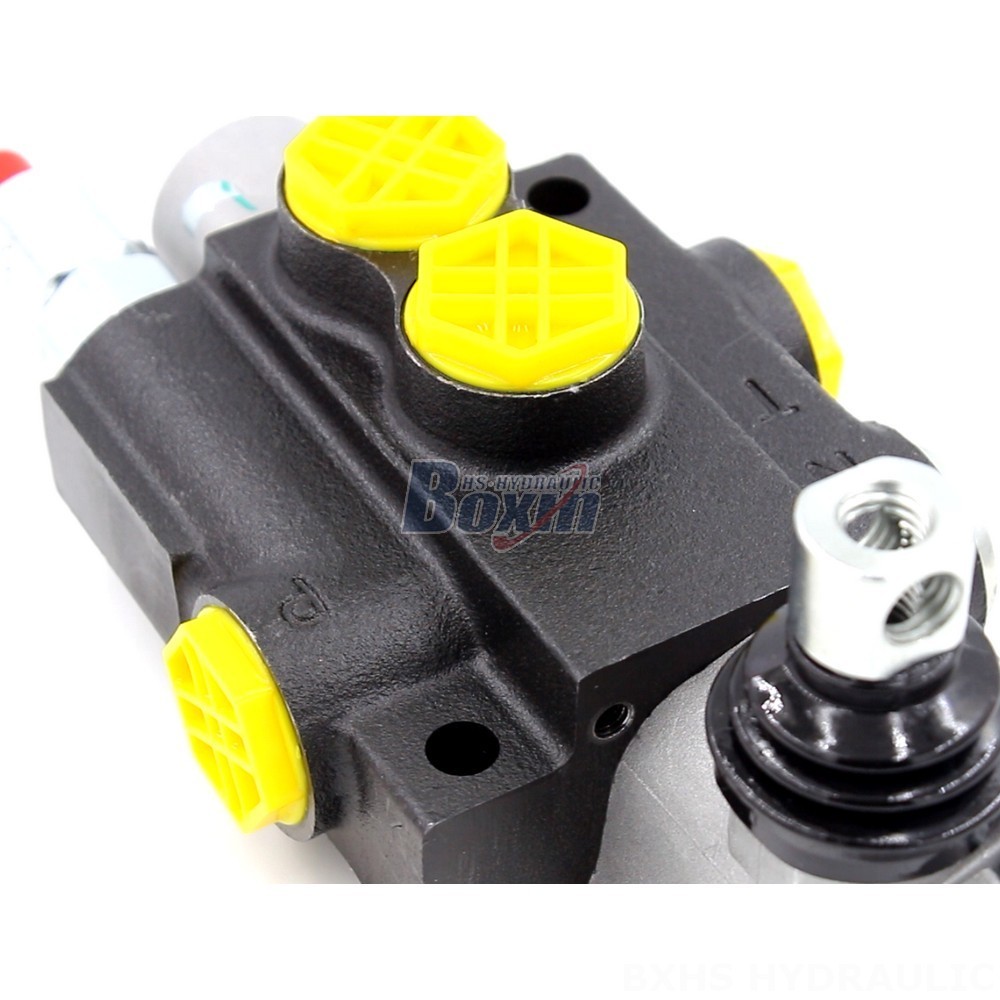

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics drawing image

This P40 Series Pressure Compensated Control Valve is a monoblock directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-1OT Hydraulics is a high-performance, manual control, monoblock directional control valve designed for demanding applications. This valve offers pressure compensation, ensuring consistent performance across varying loads and pressures. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for a wide range of hydraulic systems. Its compact design and robust construction make it ideal for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications. The valve is compatible with a variety of equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
