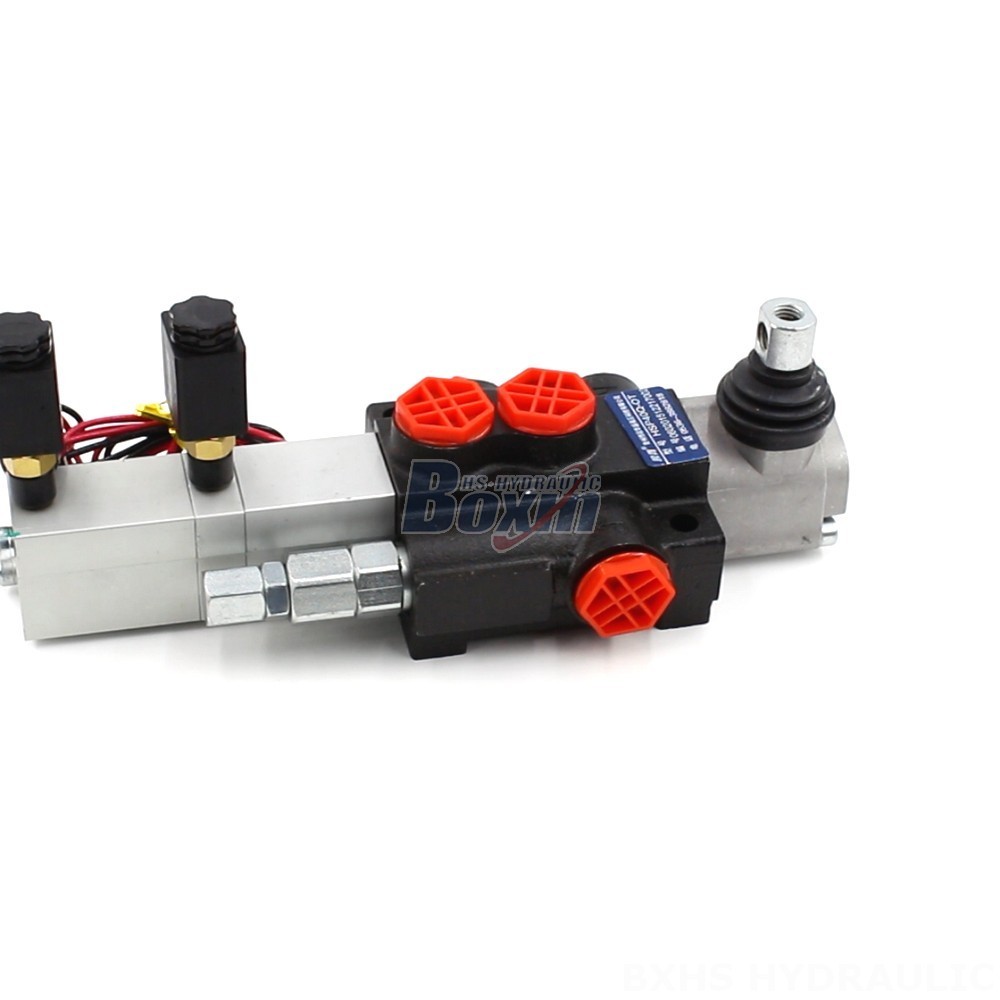

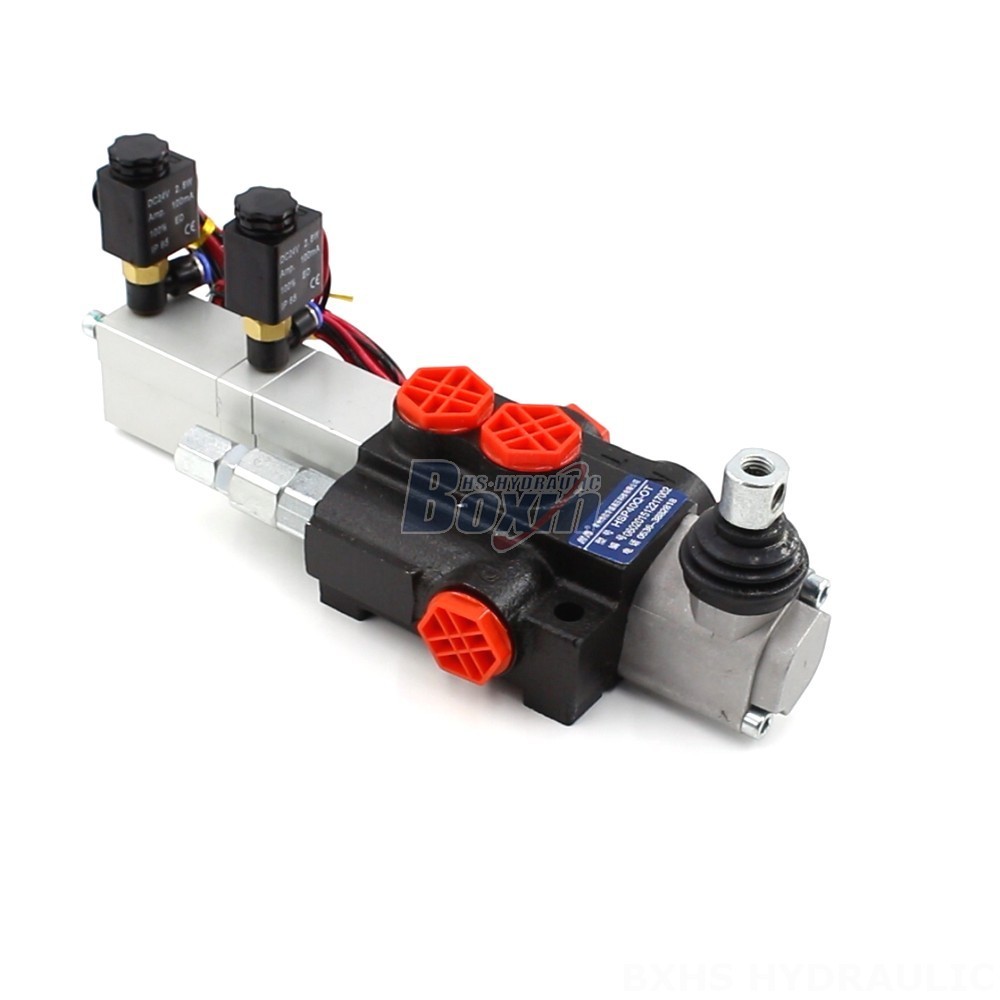

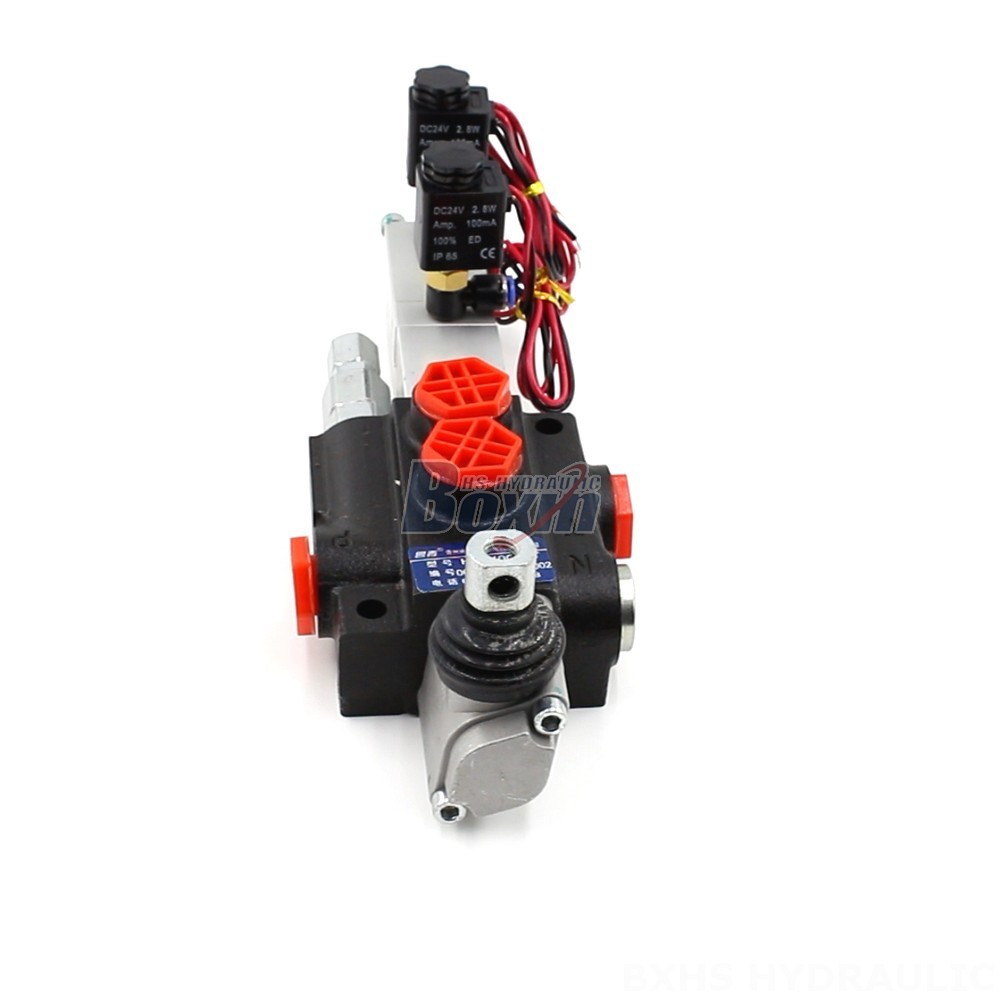

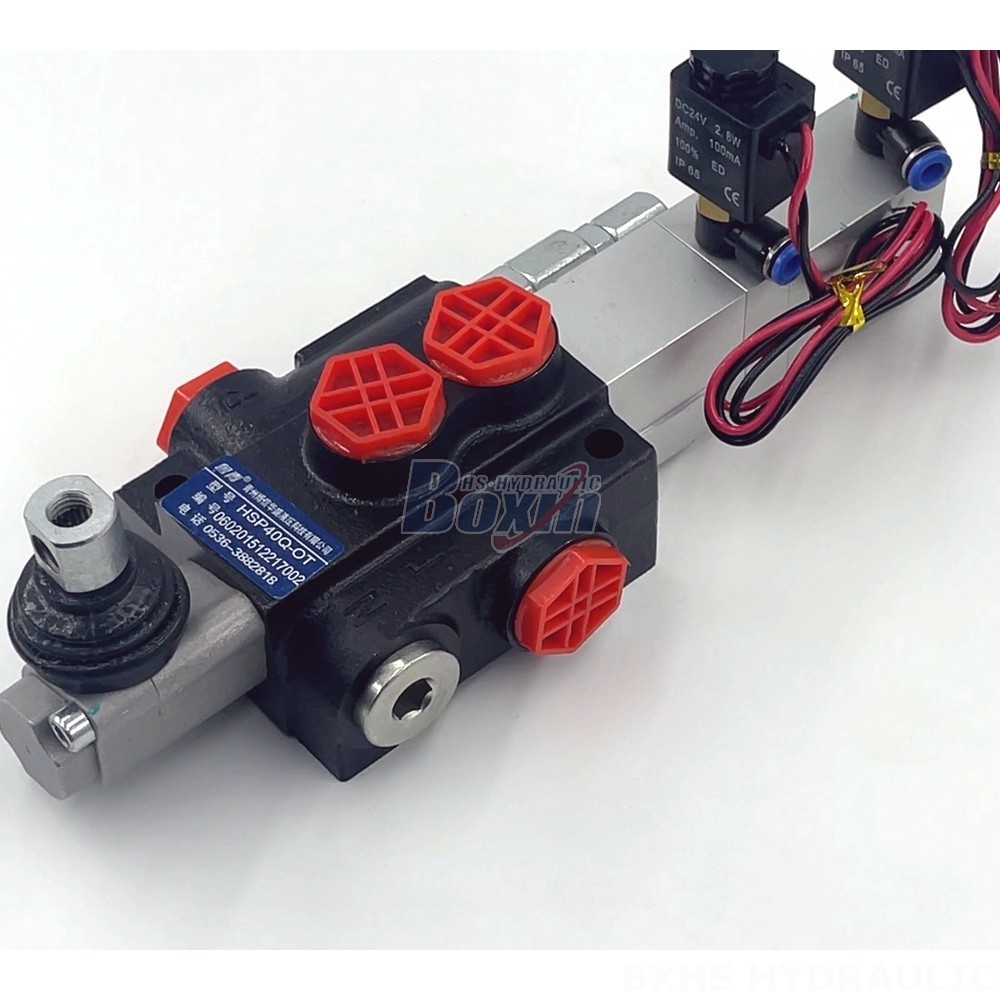

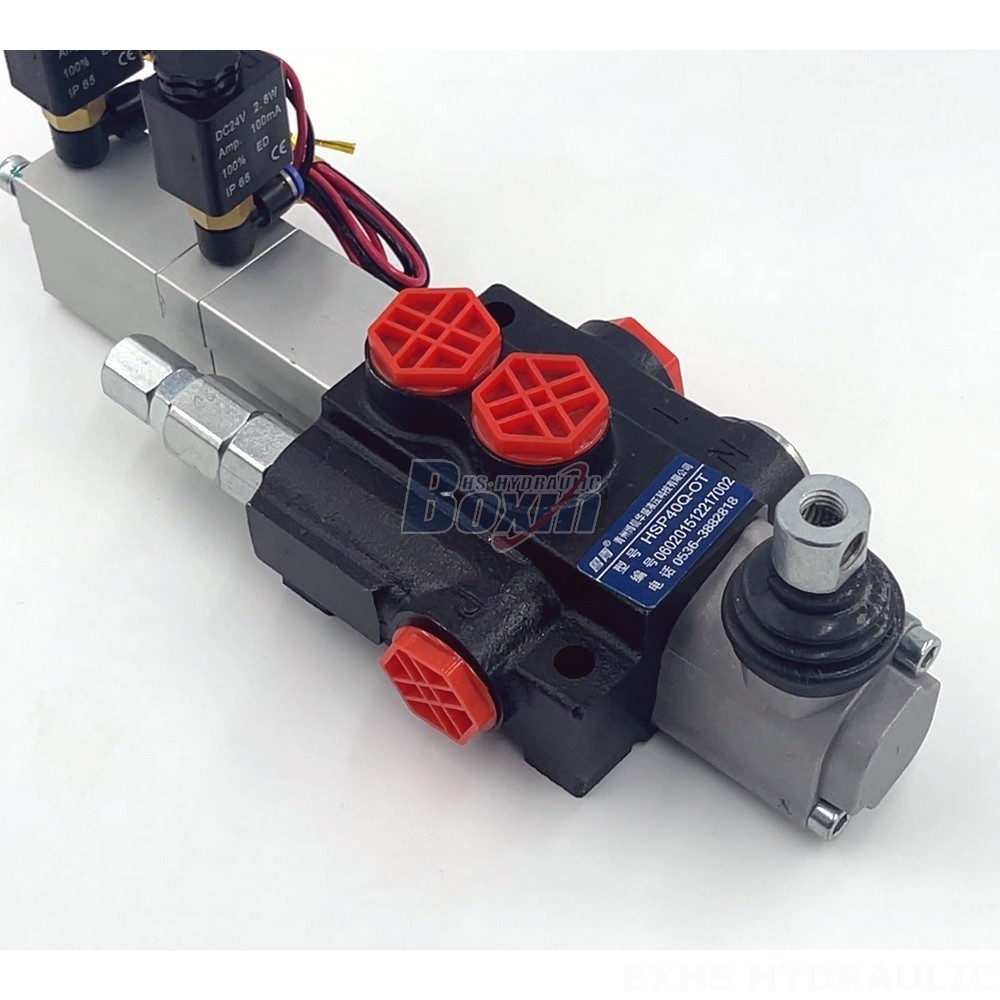

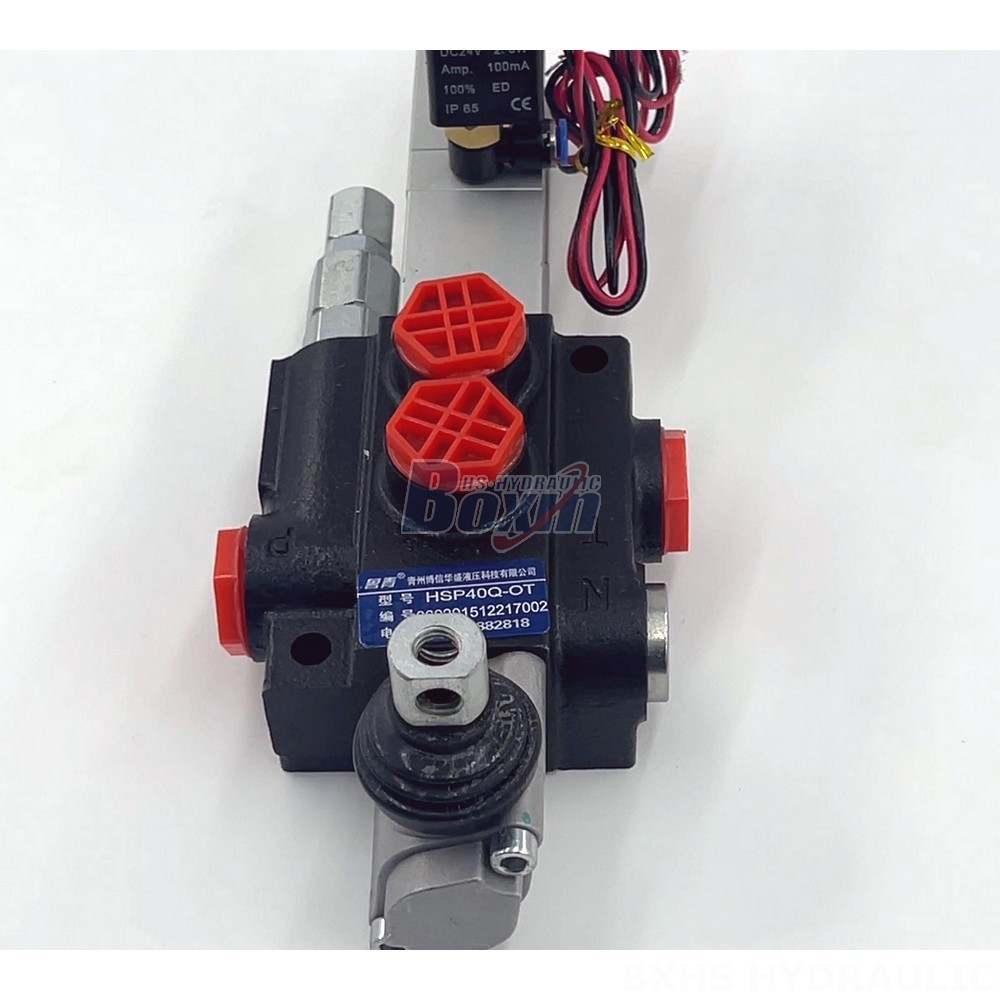

Manufacturer Supply: Get Your P40 Electro-pneumatic Valves Straight from the Source

Metoda sterowania:Elektropneumatyczna

Szpula:1-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:13*30*12

Waga brutto:3.80 kg

Dostępność: W magazynie

831 Osoby oglądają ten produkt

Manufacturer Supply: Get Your P40 Electro-pneumatic Valves Straight from the Source

Manufacturer Supply: Get Your P40 Electro-pneumatic Valves Straight from the Source

Manufacturer Supply: Get Your P40 Electro-pneumatic Valves Straight from the Source drawing image

Get your P40 Electro-pneumatic Valves straight from the source! Our valves are designed and manufactured to provide reliable and efficient performance in demanding applications like material handling, construction, earth moving, and industrial vehicles.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

**P40 Electro-pneumatic Valves: Precision and Performance**

As a leading manufacturer and supplier of hydraulic and pneumatic components, we proudly offer our premium P40 Electro-pneumatic Valves. These high-quality valves are engineered to meet the specific demands of industrial applications, ensuring optimal performance and reliability.

**Key Features and Benefits:**

- Electro-pneumatic control for precise and responsive operation
- Monoblock valve construction for durability and compact design
- Rated flow rate of 40 L/min (10.5 US gpm) for efficient fluid handling
- Maximum pressure rating of 250 bar (3600 psi) for handling high-pressure applications
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility and adaptability
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in challenging environments
- Single spool design for simple and effective control
- Extensive applications in material handling, construction, earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders

**Direct from the Manufacturer: Quality and Reliability**

As the manufacturer of these P40 Electro-pneumatic Valves, we guarantee their quality and reliability. Our in-house production processes ensure strict adherence to industry standards and rigorous testing procedures. By purchasing directly from us, you can eliminate intermediaries and benefit from factory-direct pricing and expert technical support.

**Factory Supply and Wholesale:**

We offer competitive factory supply and wholesale options for large orders, providing cost-effective solutions for distributors, resellers, and end-users. Our flexible manufacturing capabilities allow us to meet your specific requirements and ensure timely delivery.
