Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

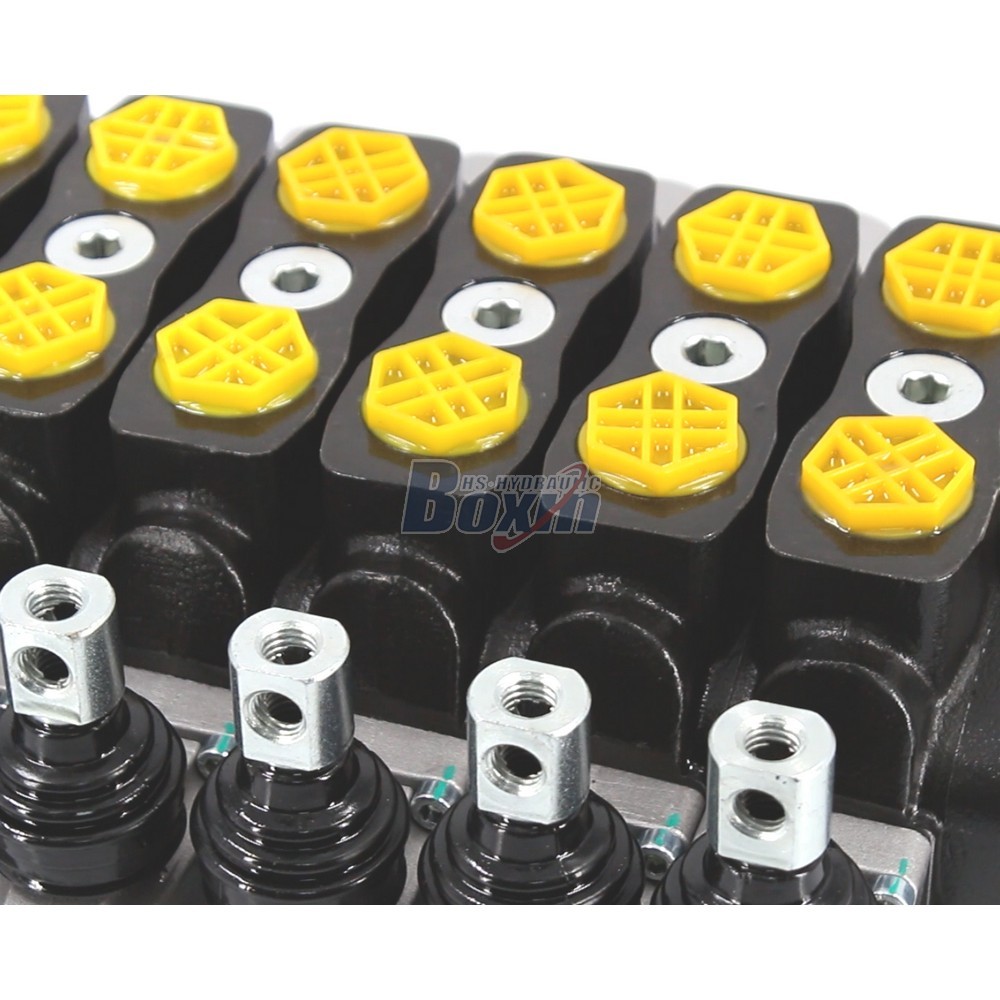

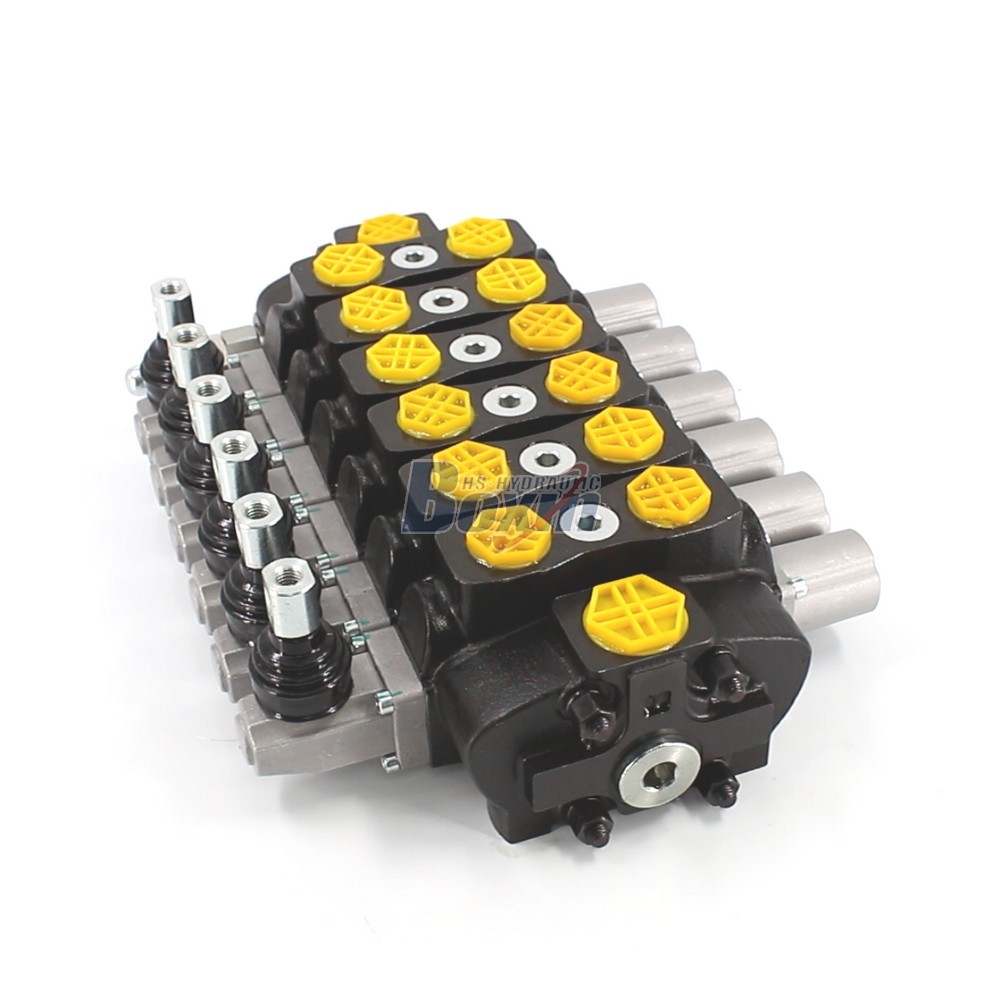

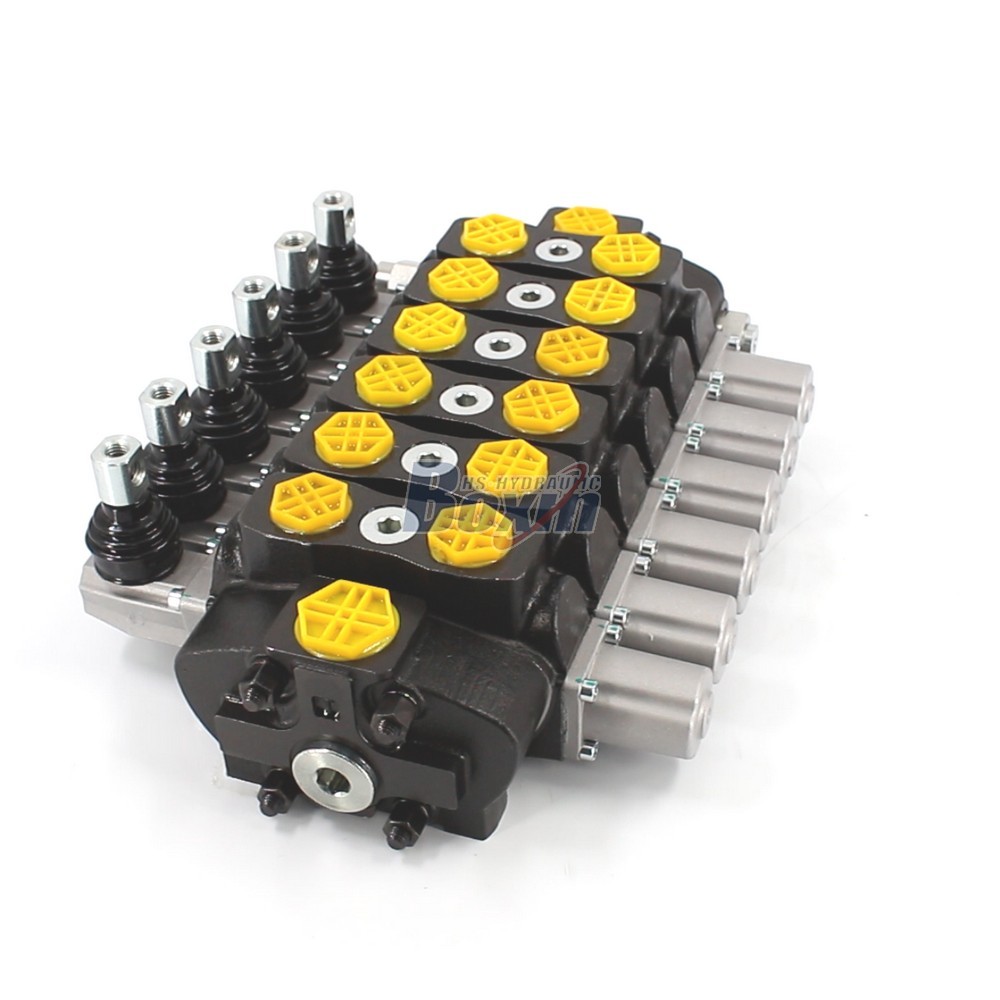

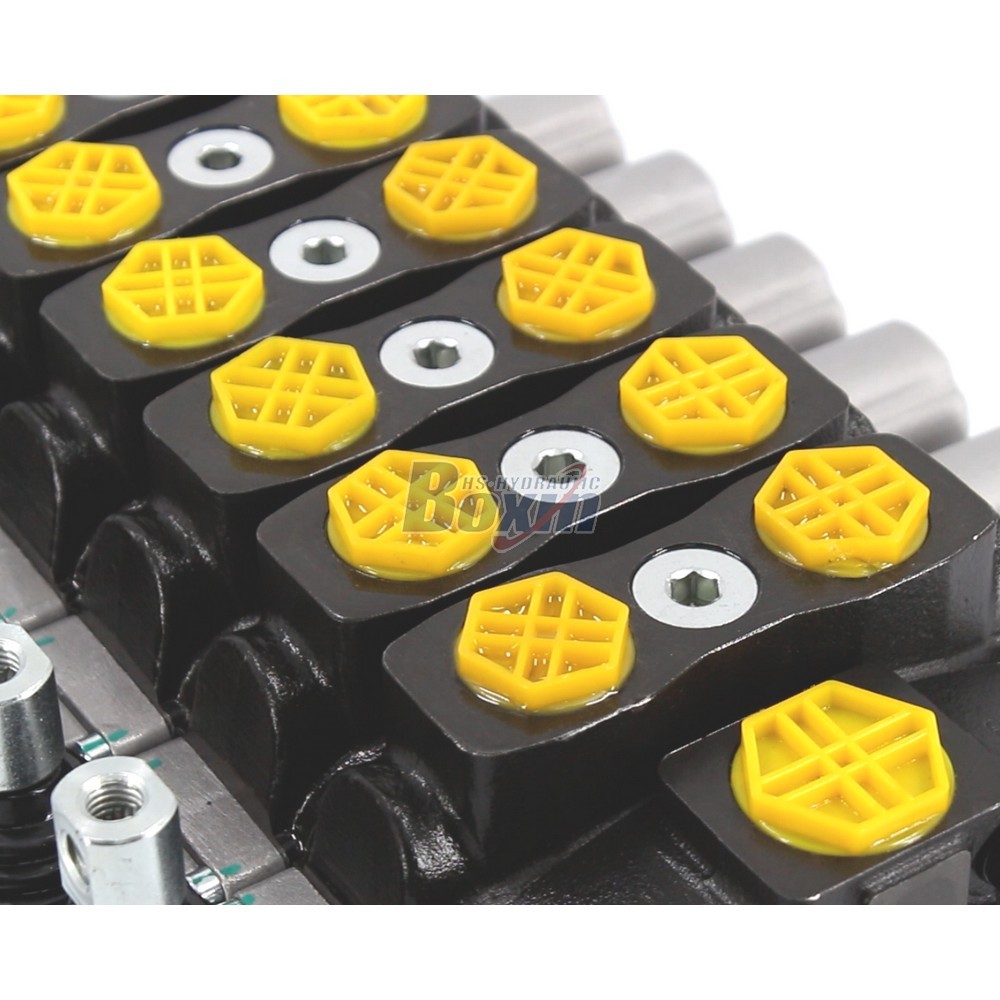

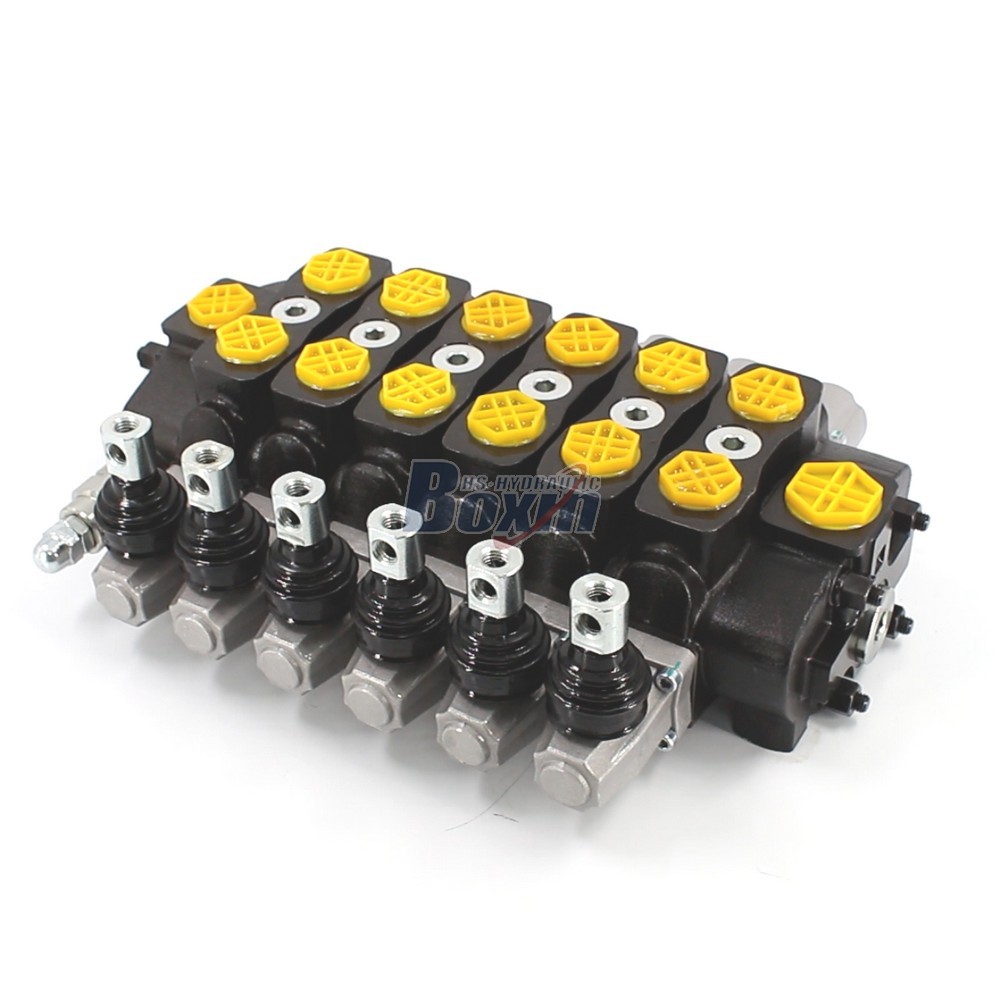

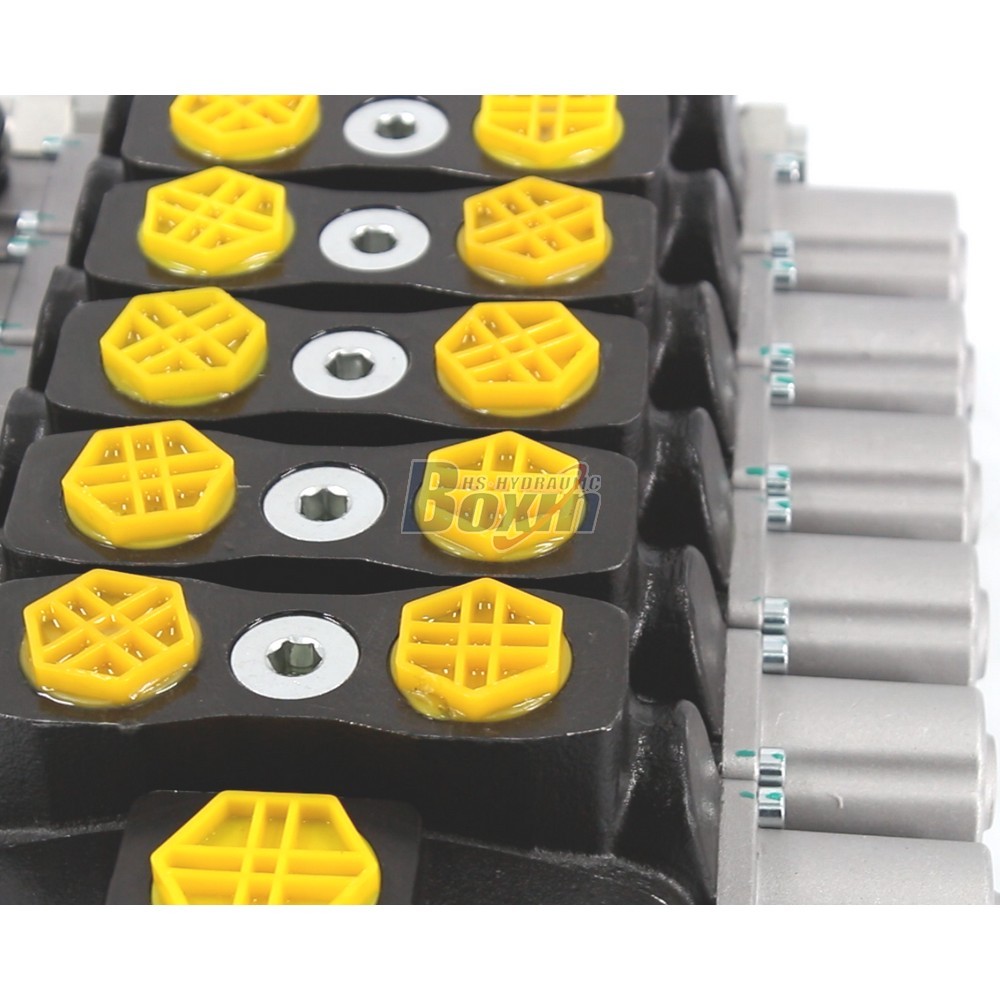

High-performance SD8 series 6-spool manual hydraulic sectional valve, featuring a rated flow of 80 L/min and maximum pressure of 315 bar, designed for versatile applications in construction and agriculture.
| Seria SD8 Zawór kierunkowy sekcyjny Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór sekcyjny |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji |
| Zakres lepkości roboczej | 12 - 400 mm²/s (12 cSt do 400 cSt) |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, SAE 10 |
| Port wylotowy | G1/2, G3/4, SAE 10, 3/4 NPT |
| Rozmiar portu | G1/2, SAE 10 |
As a leading manufacturer of premium hydraulic solutions, we offer the SD8 Series 6 Spool Hydraulic Sectional Valve at competitive factory prices. This manual control valve is engineered for heavy-duty performance with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capacity of 315 bar (4600 psi). It is an ideal fit for diverse machinery including mini-excavators, skid steer loaders, tractors, forklifts, and wood splitters. We specialize in global supply, providing comprehensive services for OEM, ODM, and customized branding requirements. Our factory supply ensures reliable quality for large-scale wholesale and batch orders. We are actively seeking long-term cooperation with global distributors, wholesalers, agents, and traders. Whether you need reliable components for industrial vehicles or material handling equipment, our factory wholesale model provides the flexibility and technical support your business requires. Partner with us for professional hydraulic manufacturing and global distribution opportunities.
