Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*18*11

Waga brutto:8.20 kg

Dostępność: W magazynie

949 Osoby oglądają ten produkt

Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution

Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution

Manual Hydraulic Valve P80-G34-G12 | Wholesale & Distribution drawing image

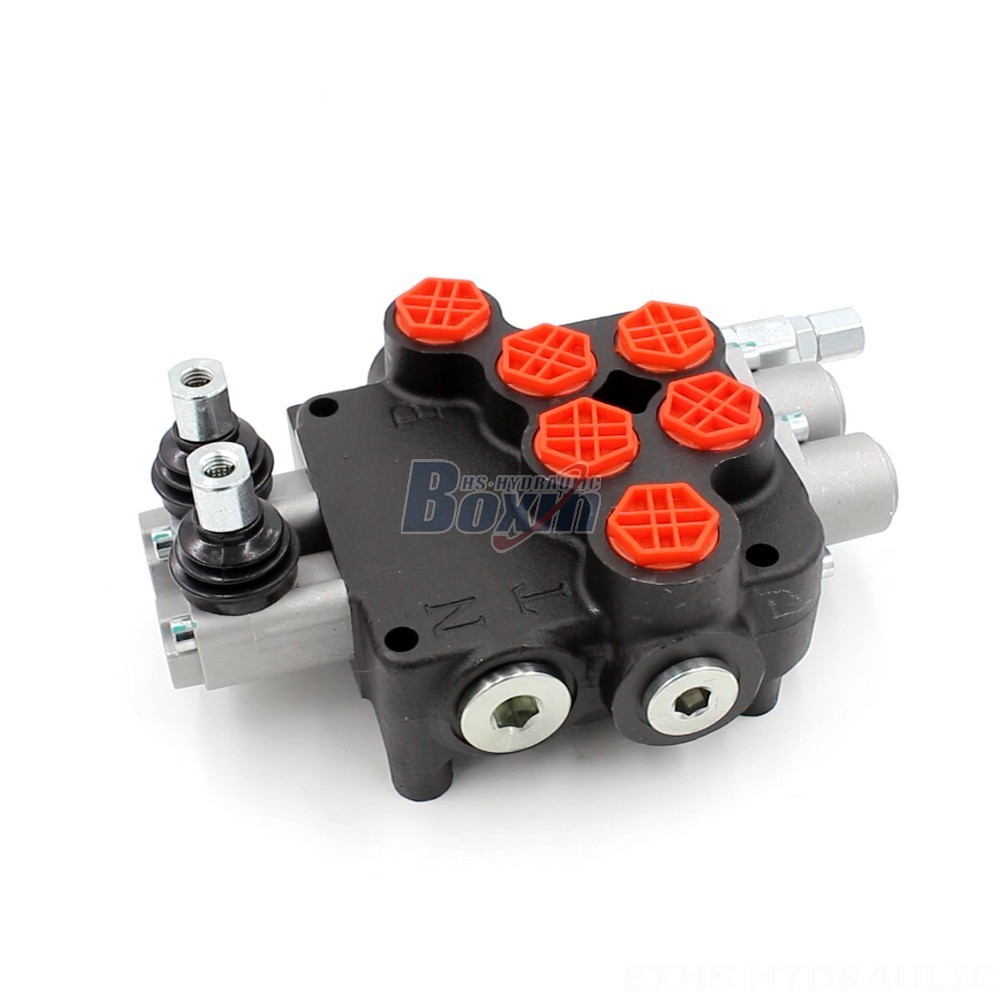

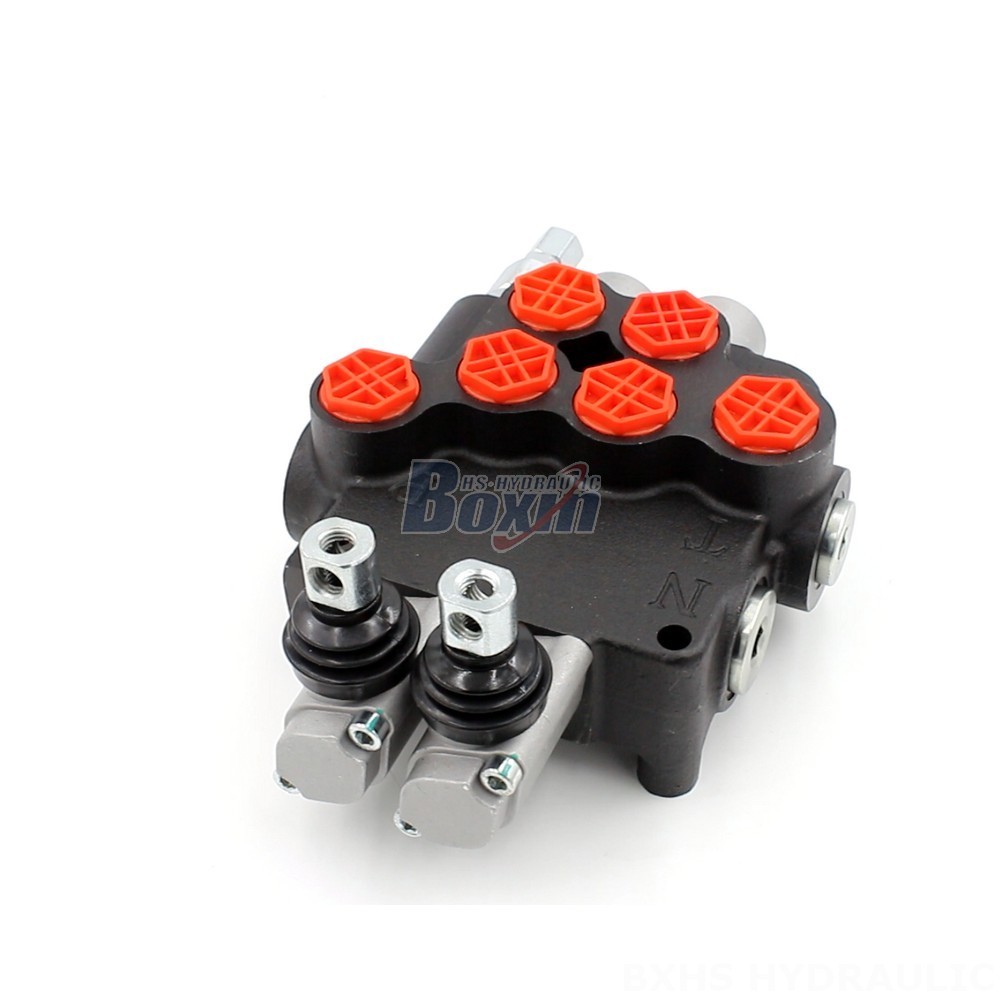

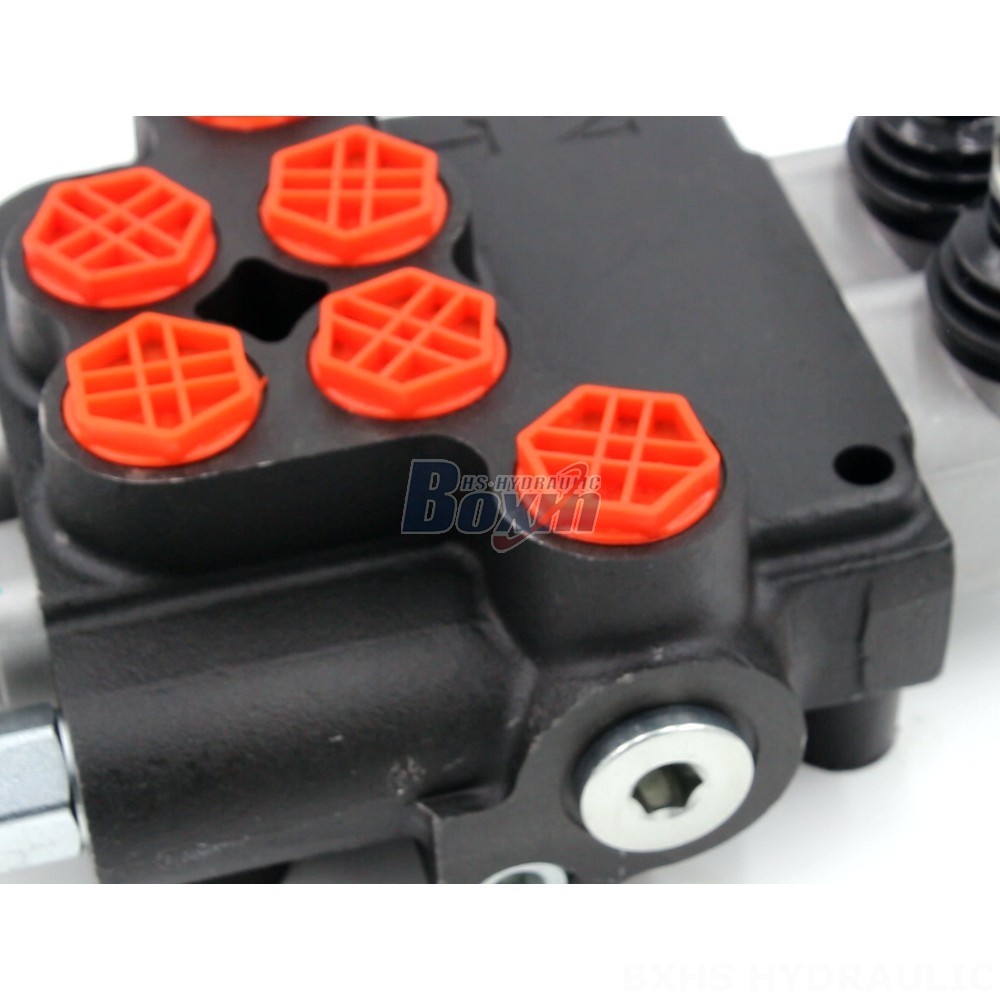

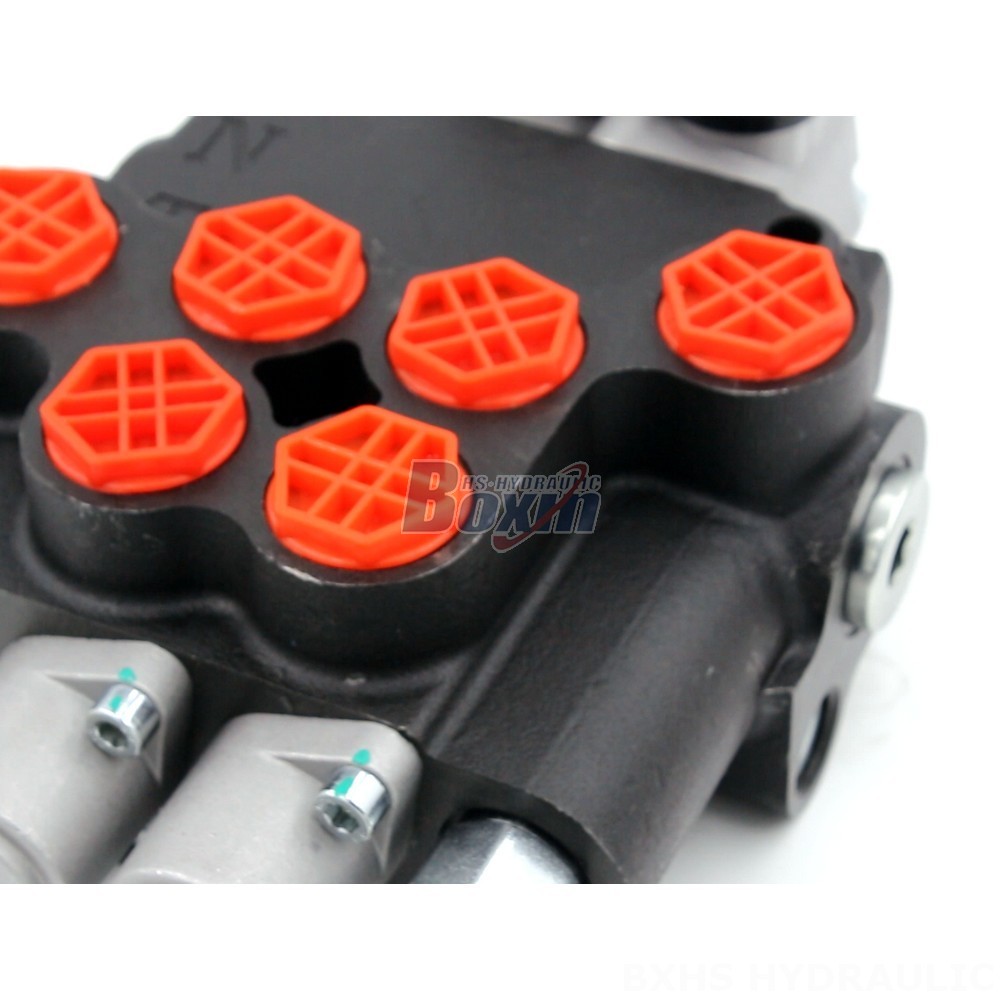

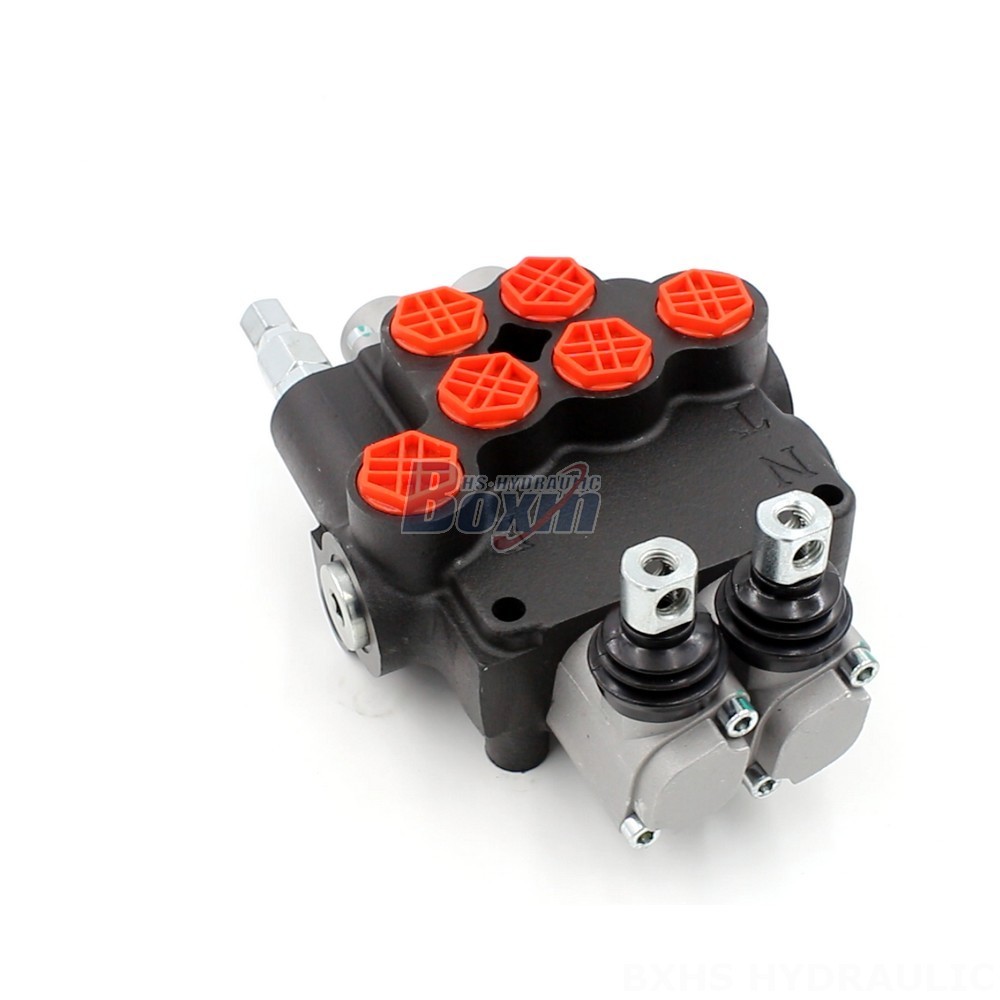

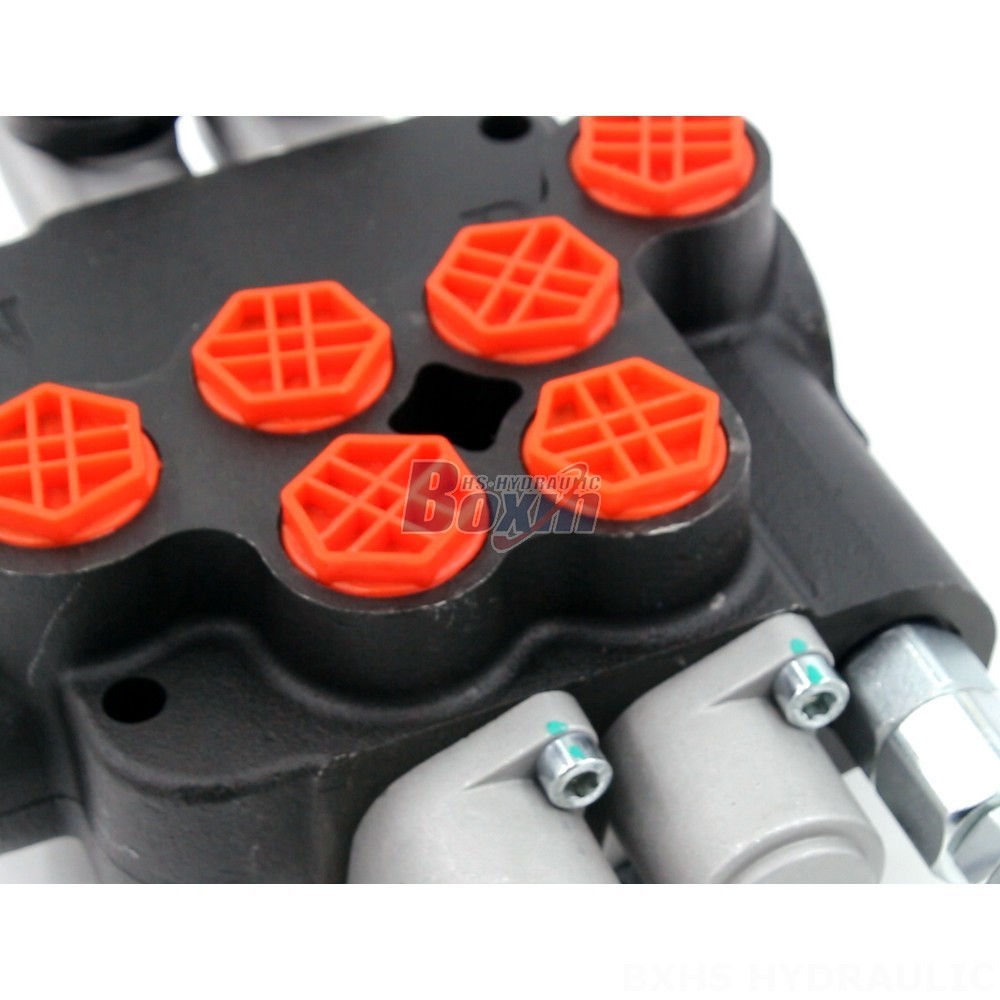

The P80-G34-G12 is a manual hydraulic pressure control valve designed for use in various applications, including construction equipment, material handling, agriculture, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve offers reliable performance and durability.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80-G34-G12 is a 2-section manual hydraulic pressure control valve featuring a monoblock design. This valve is specifically engineered for demanding applications in the construction, material handling, agriculture, and industrial vehicle industries. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, the P80-G34-G12 offers exceptional performance across a wide range of operating conditions. Its robust construction ensures long-lasting durability and reliability in even the most challenging environments. This versatile valve is suitable for use in various machines such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders. The P80-G34-G12 provides precise control of hydraulic pressure, enabling smooth and efficient operation in various applications. Its compact size and lightweight design allow for easy installation and integration into a variety of systems.
