Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Metoda sterowania:Ręczna i joystick

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:5.20 kg

Dostępność: W magazynie

1194 Osoby oglądają ten produkt

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications

Manual and Joystick Valve | P40-2OT Series | Key Features & Applications drawing image

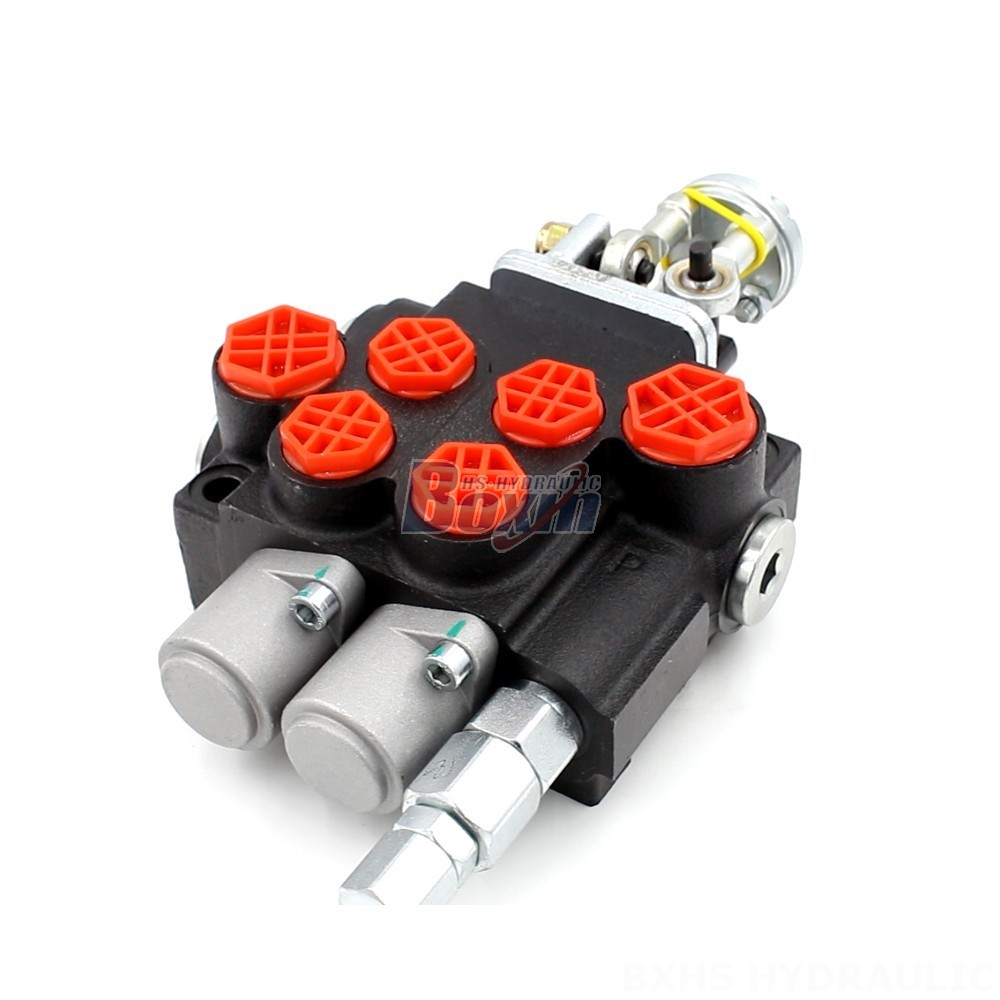

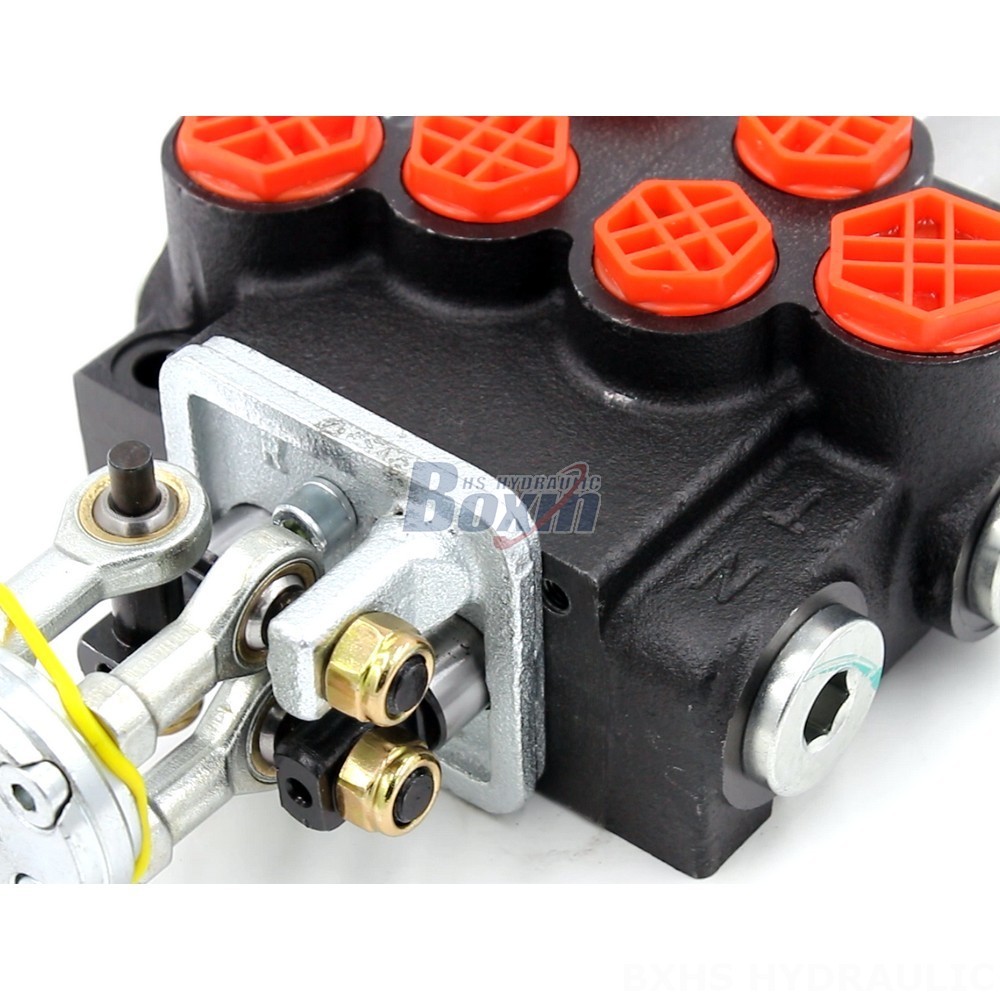

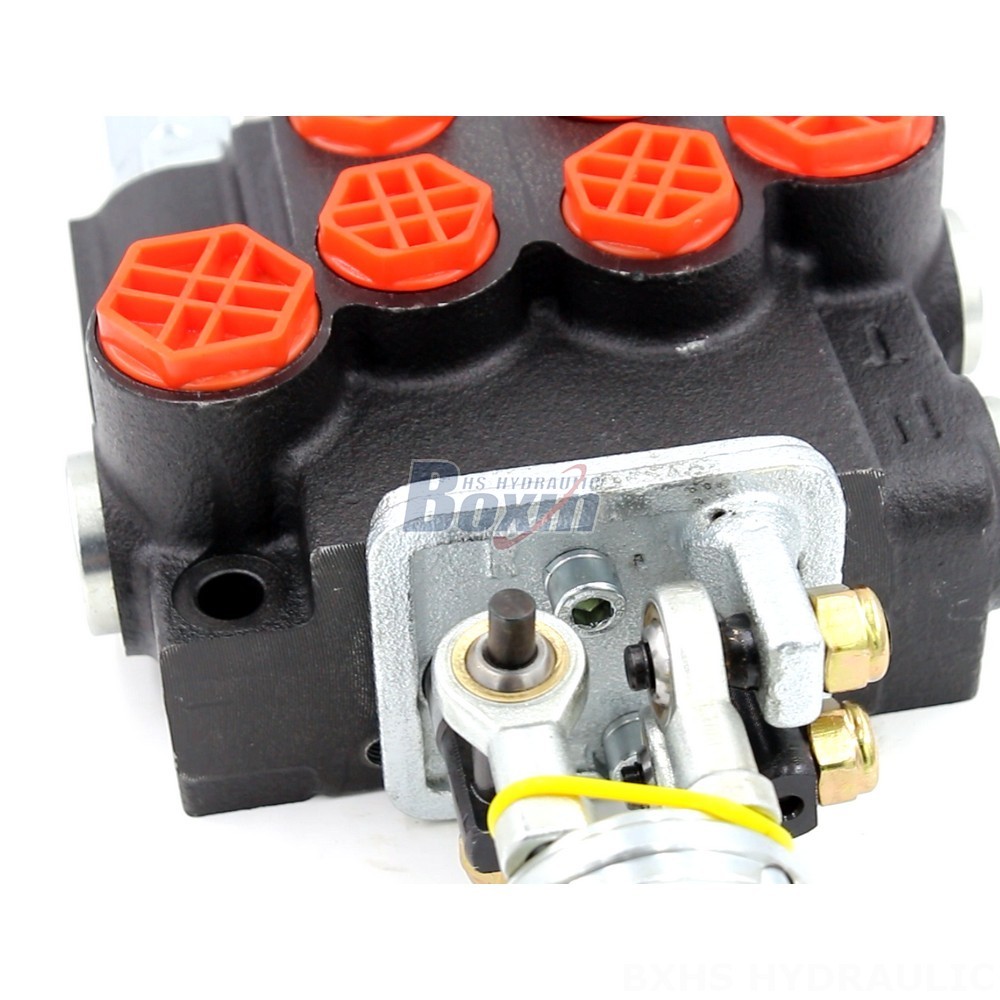

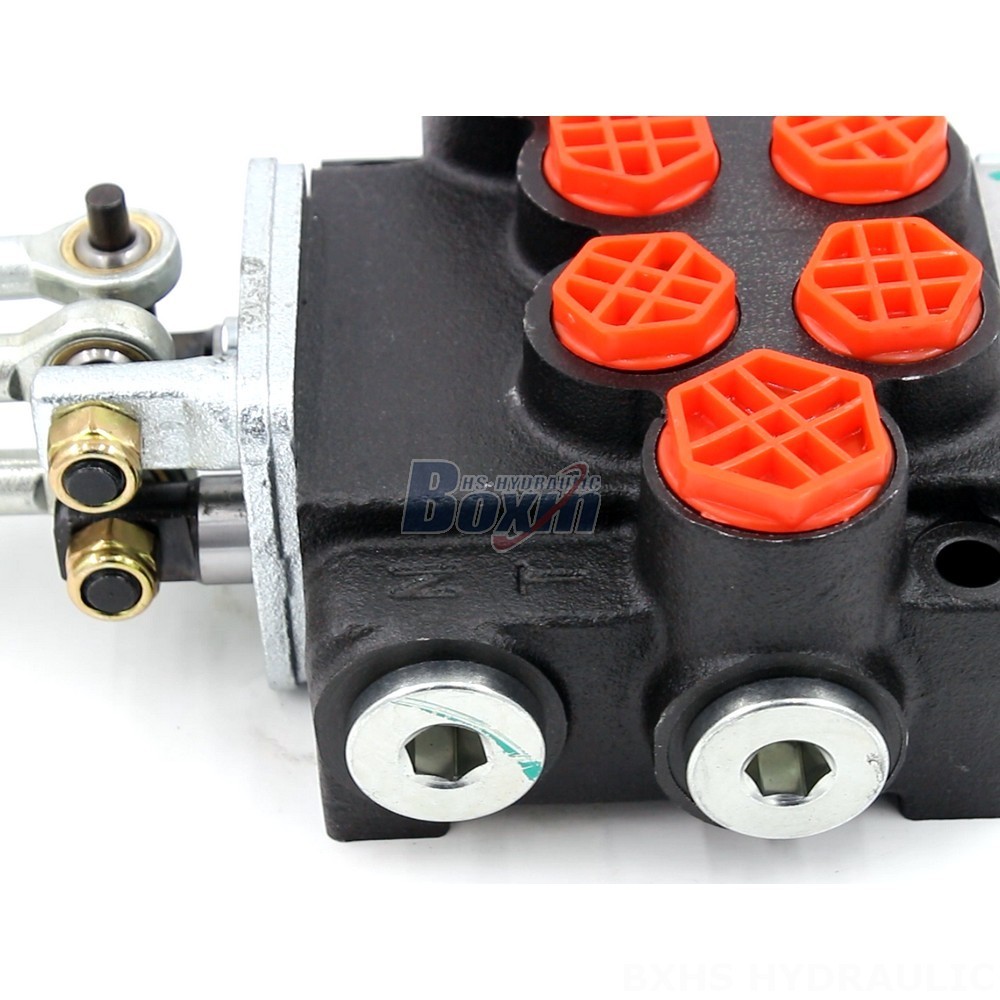

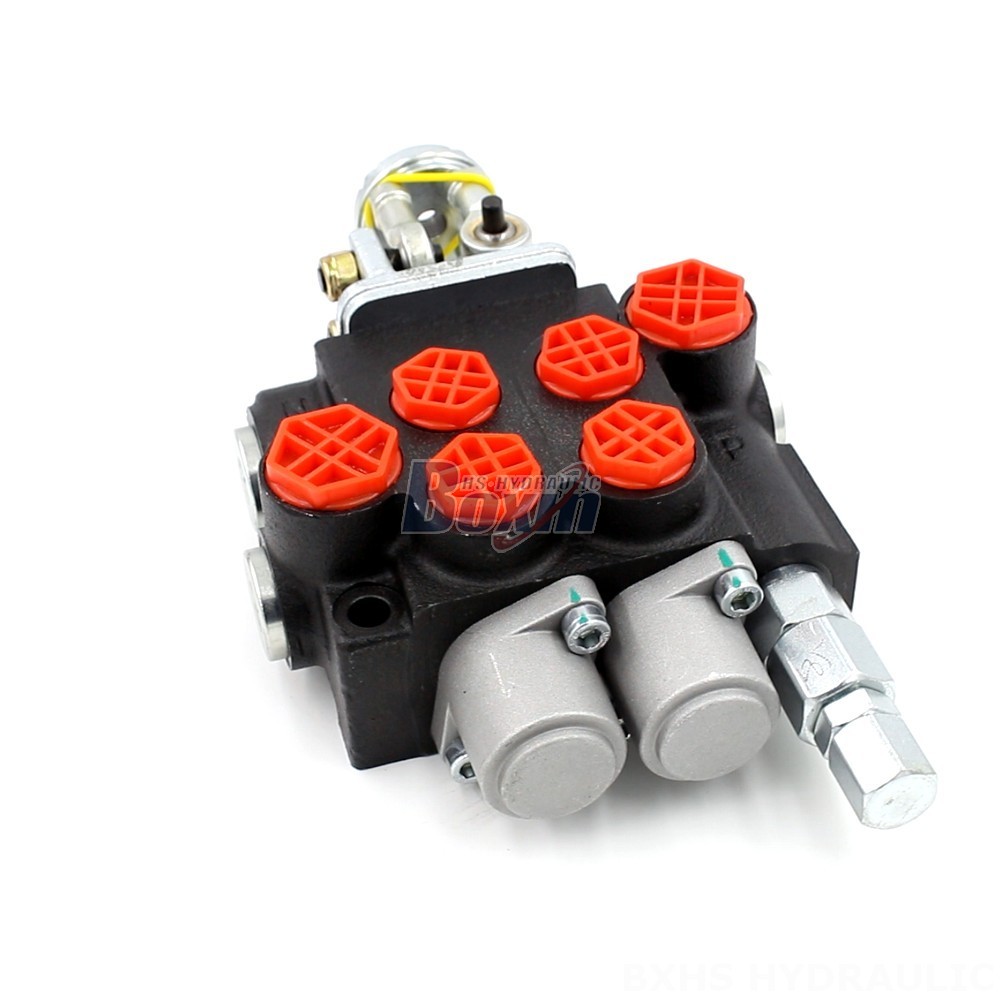

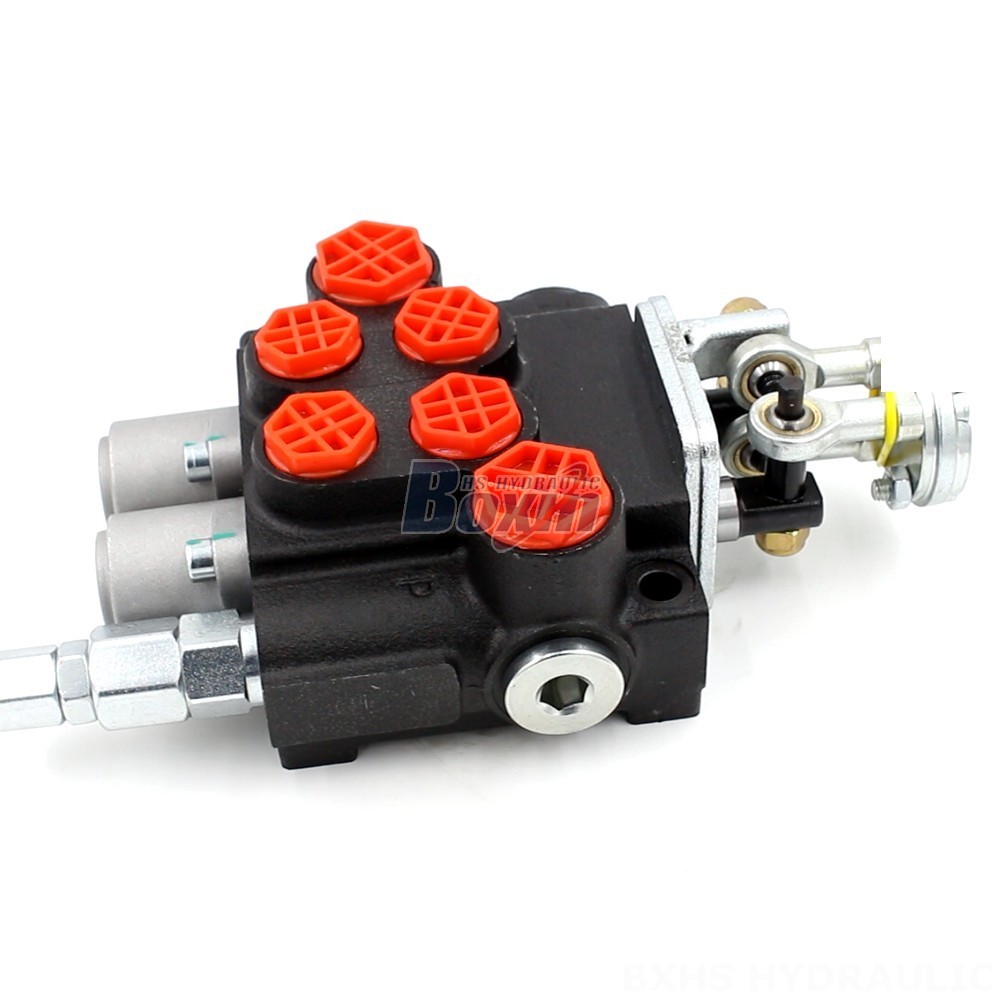

The Bxhs P40-2OT Series Hydraulic Manual and Joystick Valve is a 2-section monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. Ideal for various applications in material handling, construction, and industrial vehicles.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Bxhs P40-2OT Series is a robust and versatile hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve features a manual and joystick control method, offering precise and reliable control. It boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment. The valve operates within a viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 2-spool design, the P40-2OT Series provides flexibility and adaptability, ensuring compatibility with various machine types. This valve is specifically designed for applications in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
