Leading Manufacturer of WZF-125 Monoblock Directional Valves

Metoda sterowania:Pneumatyczne i ręczne

Szpula:3-sekcyjny

Przepływ znamionowy:110 l/min (29 US gpm)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria WZF-125 Zawór sterujący jednoczęściowy

Rozmiar opakowania:38*25*12

Waga brutto:19.50 kg

Dostępność: W magazynie

70 Osoby oglądają ten produkt

Leading Manufacturer of WZF-125 Monoblock Directional Valves

Leading Manufacturer of WZF-125 Monoblock Directional Valves

Leading Manufacturer of WZF-125 Monoblock Directional Valves drawing image

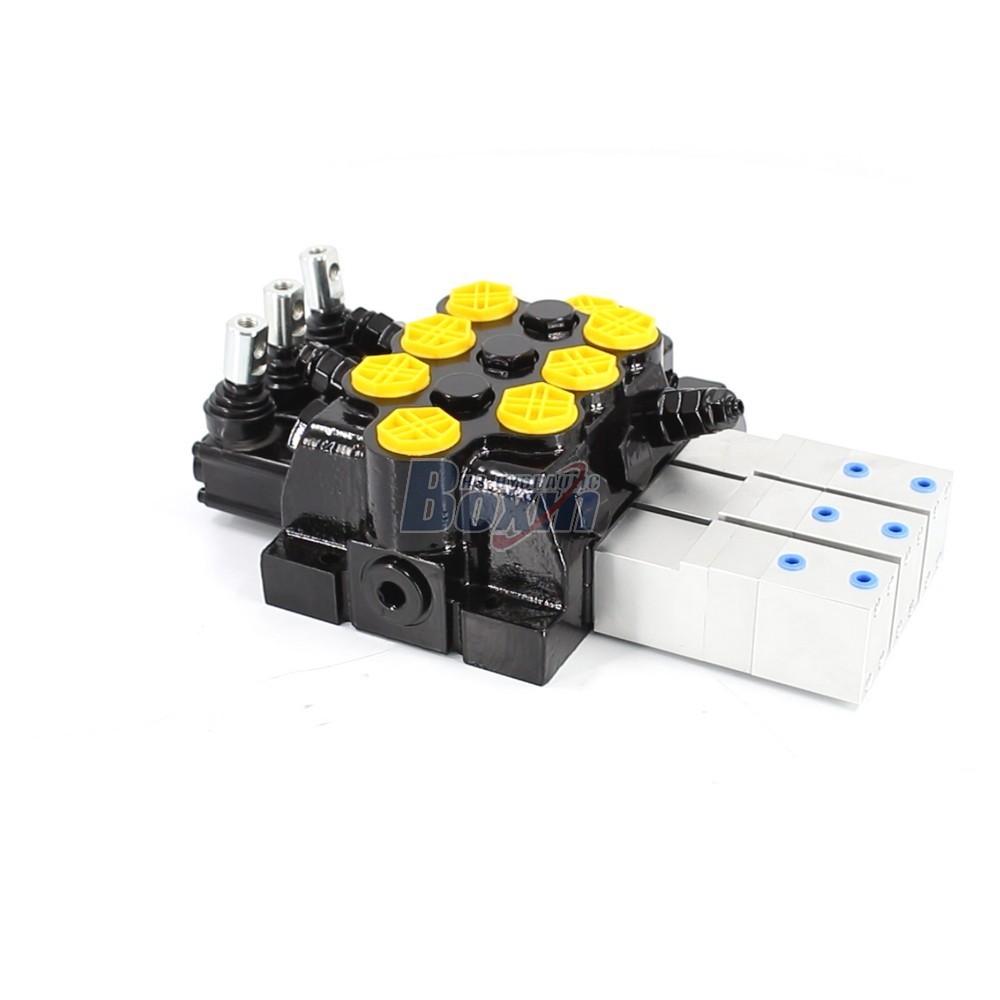

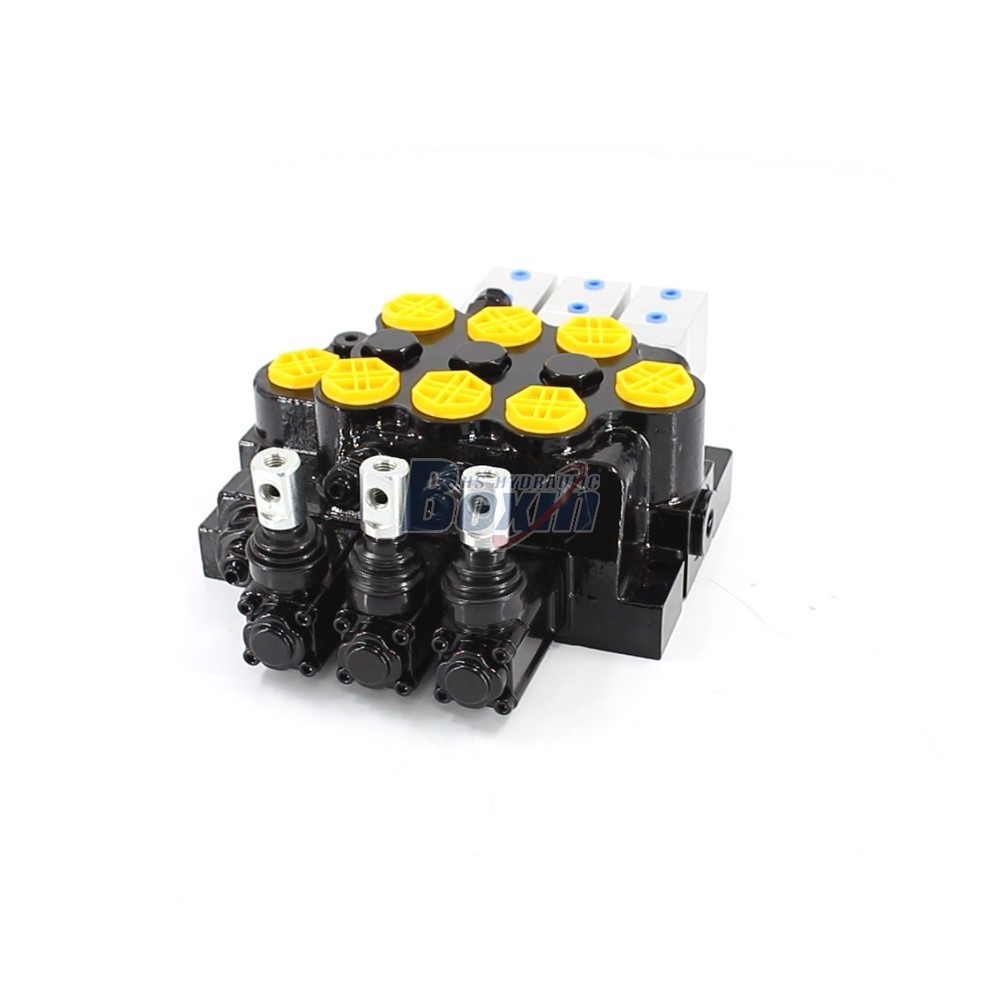

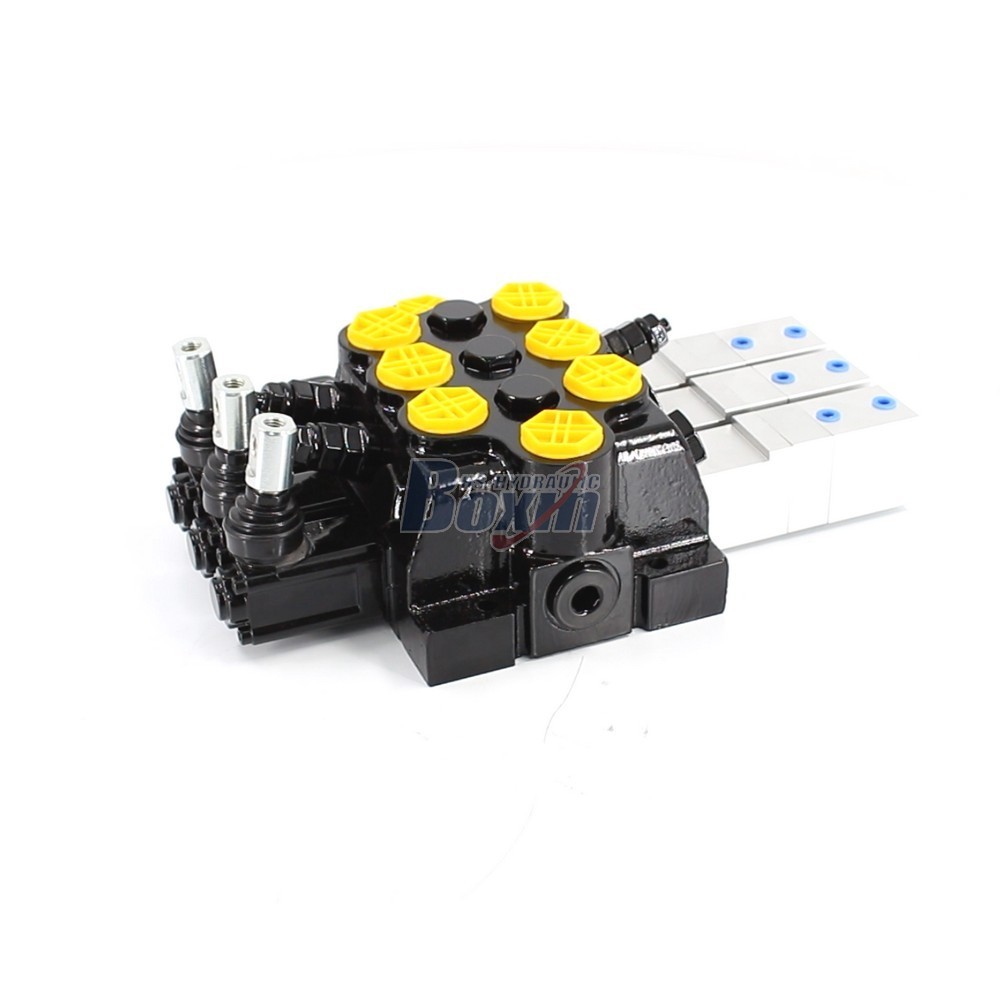

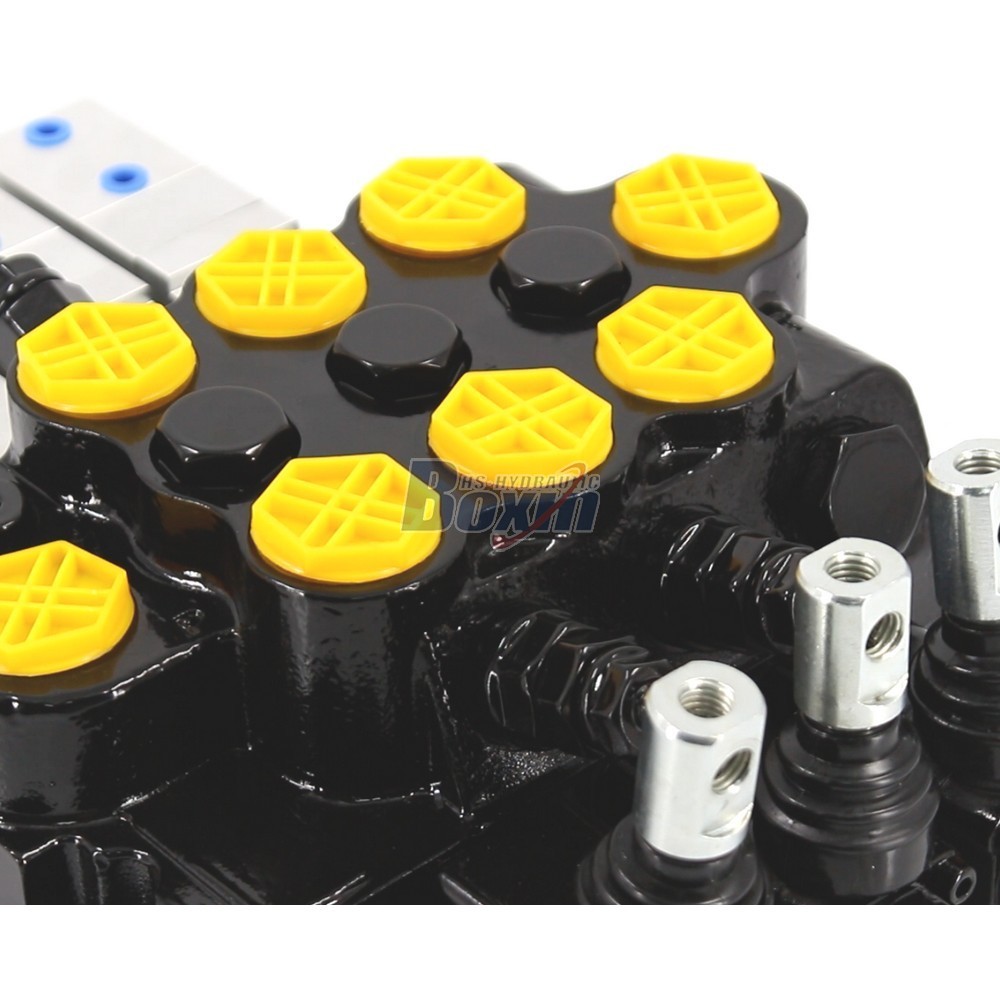

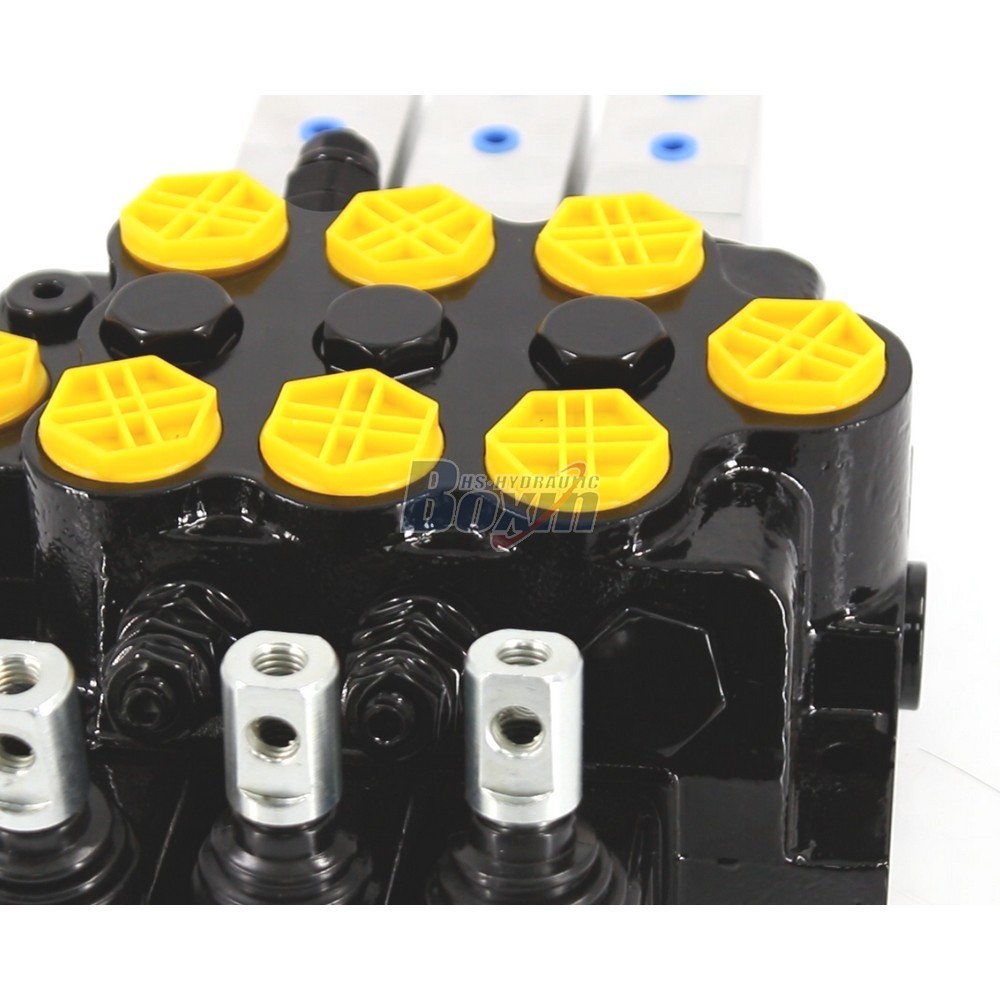

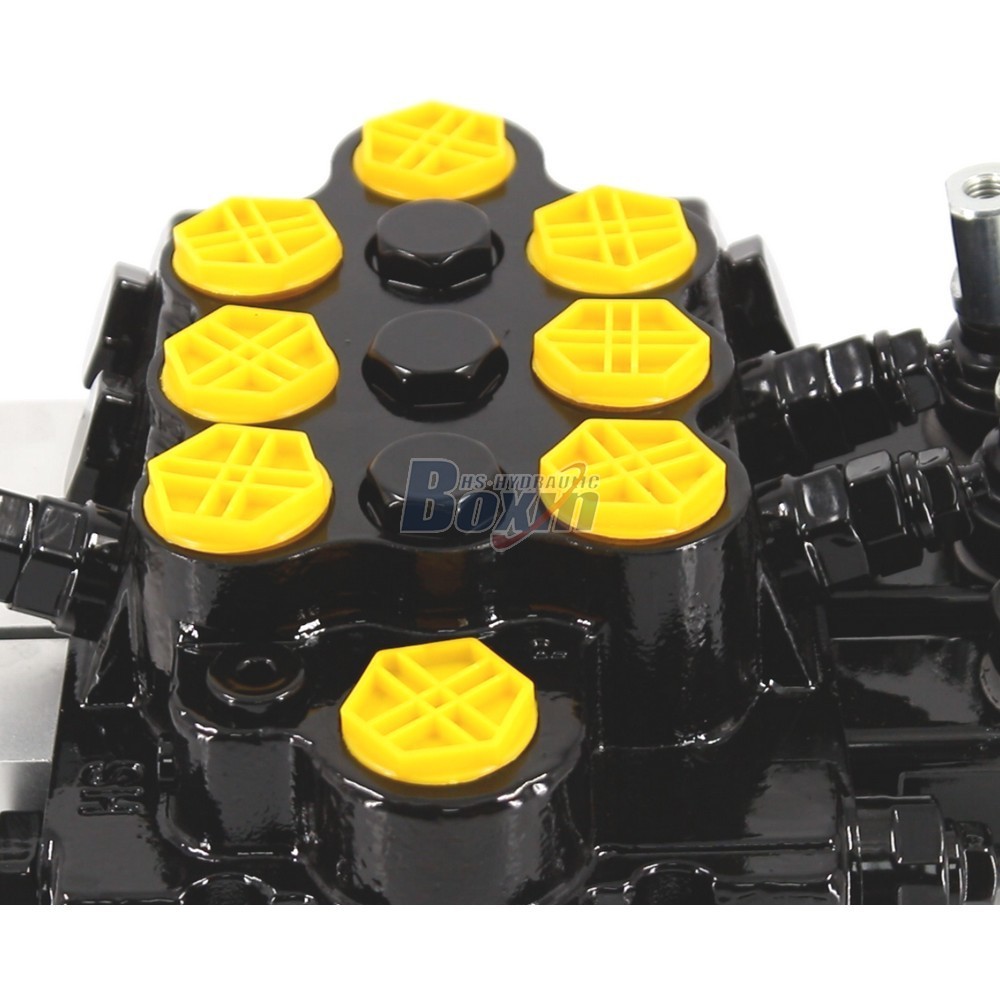

The WZF-125 series is a high-performance 3-spool monoblock directional control valve designed for demanding hydraulic applications. Supporting both pneumatic and manual control with a 110 L/min flow rate and 315 bar pressure, it is engineered for reliability in construction, agriculture, and material handling machinery.

Seria WZF-125 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Pneumatyczne i ręczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 110 l/min (29 US gpm)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G3/4

As a leading manufacturer of hydraulic components, we specialize in the production of high-precision WZF-125 series monoblock directional valves. Our facility offers comprehensive manufacturing solutions including OEM, ODM, custom design, and large-scale wholesale supply. Designed for heavy-duty performance, this 3-spool valve provides versatile pneumatic and manual control for equipment such as tractors, forklifts, skid steer loaders, and forestry trailers. We are actively seeking partnerships with global distributors, wholesalers, trade companies, and agents to expand our reach in the international market. With robust quality control and scalable production capacity, we provide flexible manufacturing options tailored to your specific technical requirements. Whether you need private labeling, custom valve configurations, or consistent factory-direct supply, we are committed to providing reliable hydraulic solutions to support your business growth.
