Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

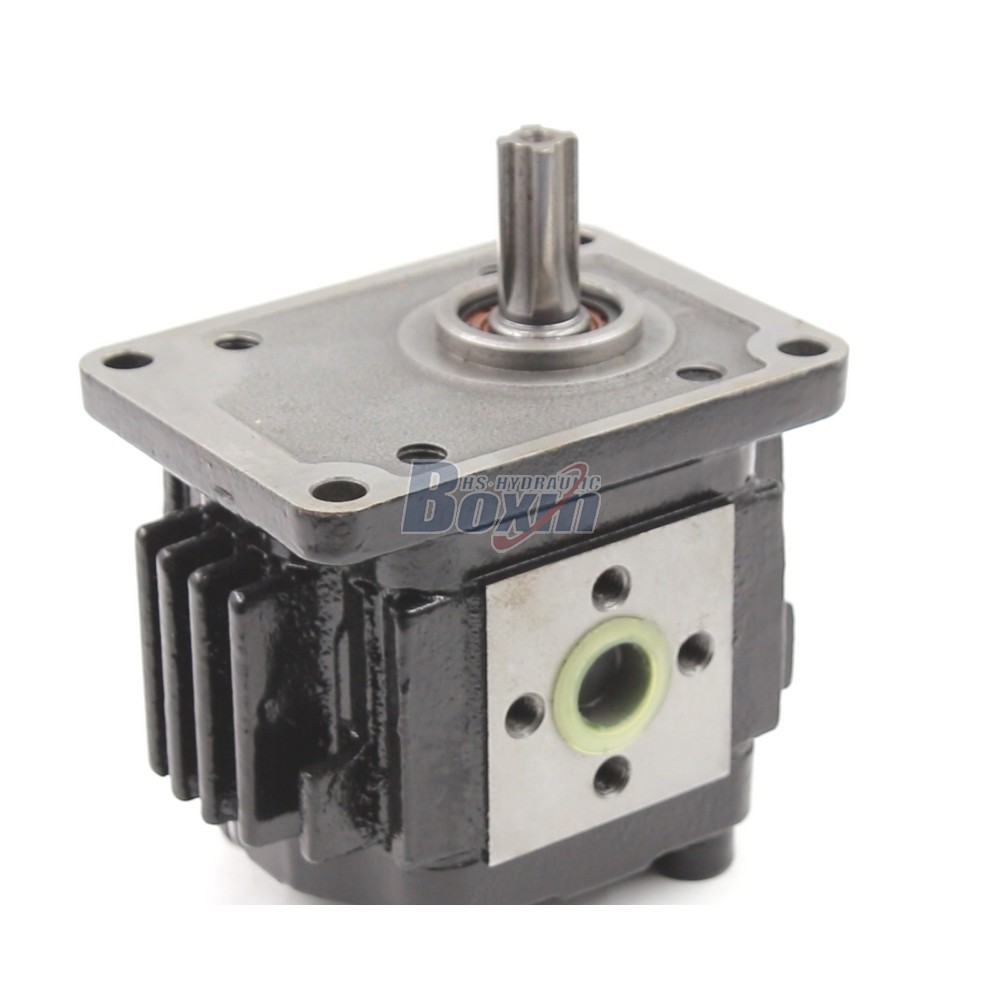

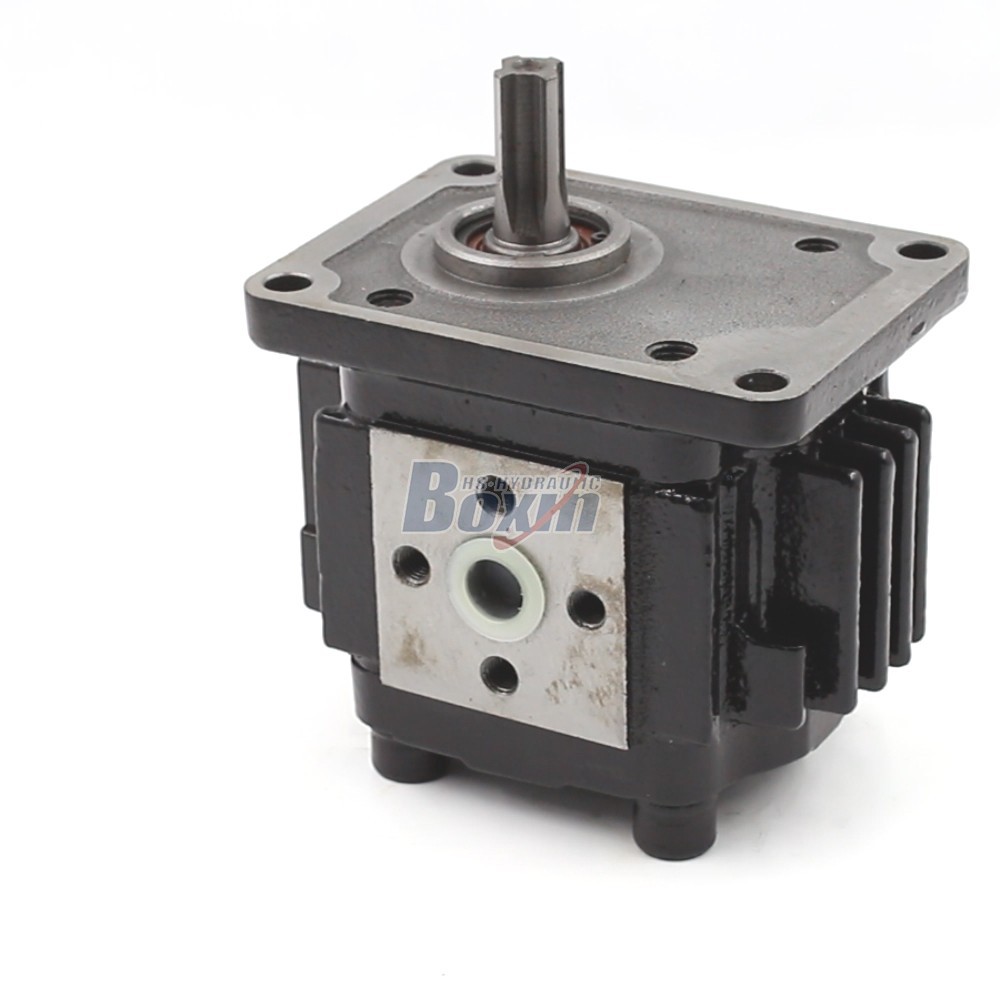

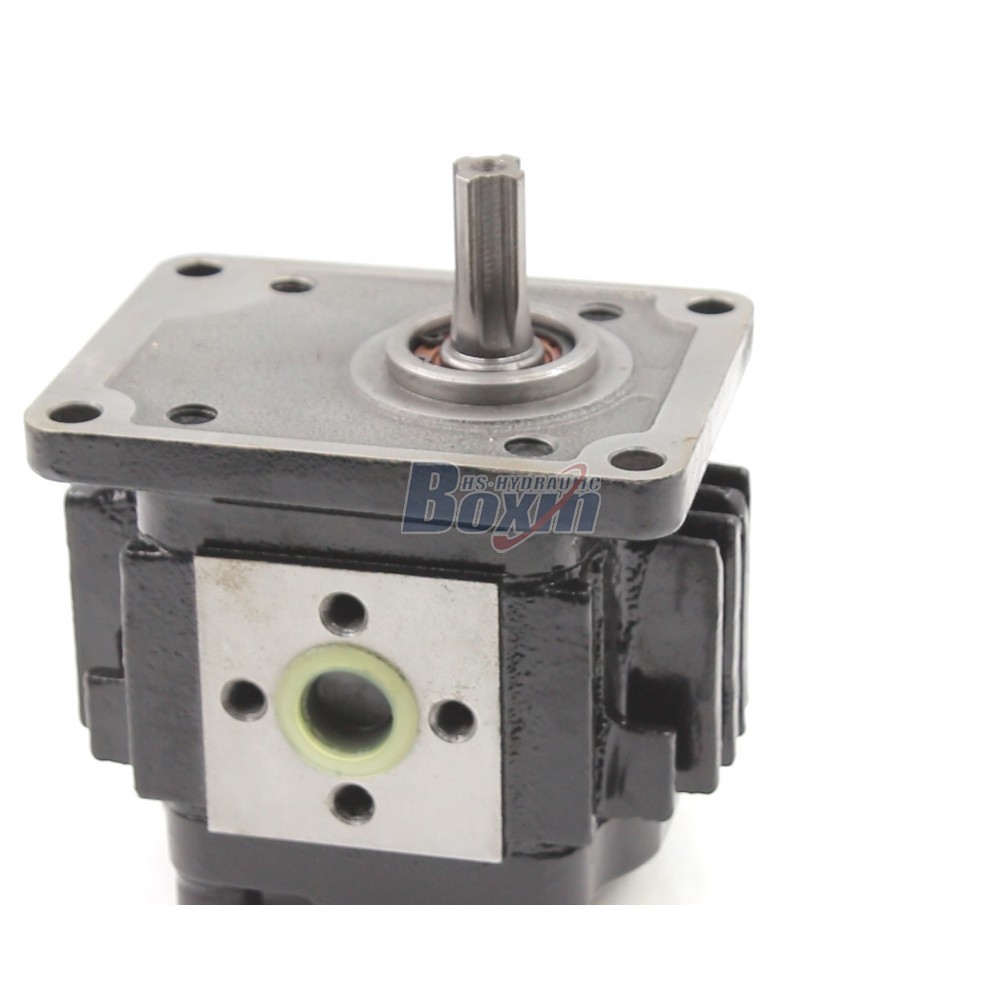

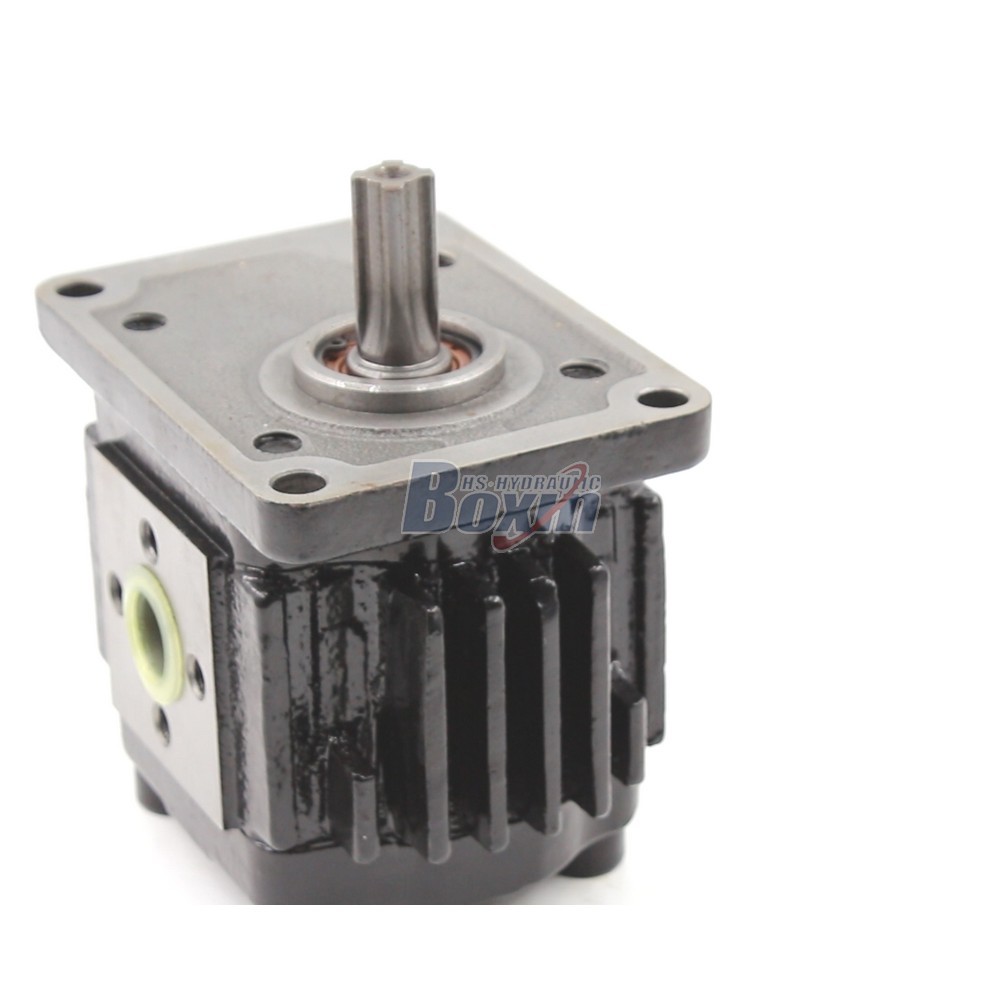

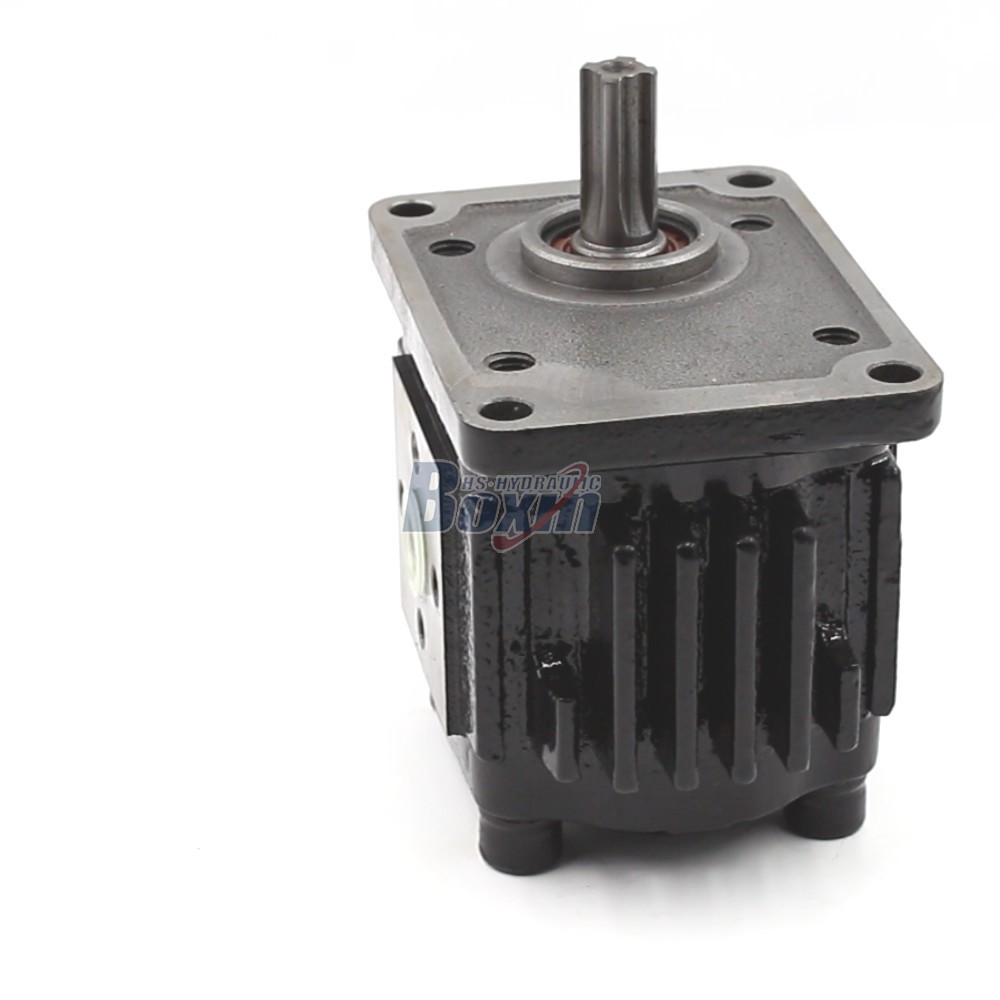

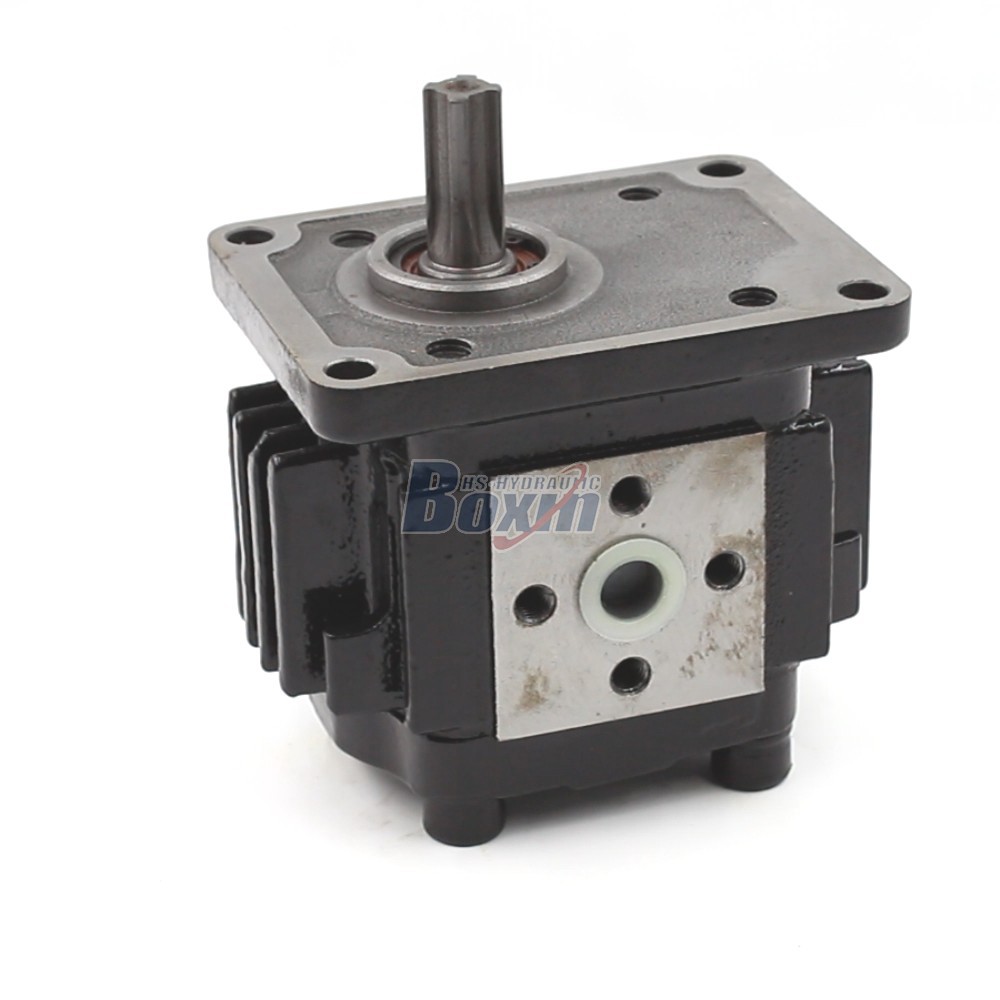

This industrial hydraulic gear pump is designed for high performance and heavy duty applications. It features a robust construction with a displacement of 16 cc/rev and a rated pressure of 18 MPa (2610 psi), ensuring reliable operation in demanding environments.
| Seria CBHS-F3 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 20 cm³/obr, 16 cm³/obr, 14 cm³/obr, 6 cm³/obr |
| Ciśnienie znamionowe | 16 MPa (2320 psi) |
| Maksymalne ciśnienie | 18 MPa (2610 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 2200 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Struktura | Zewnętrzna pompa zębata |
| Materiał | Aluminium |
| Typ wału | P: Zwykły klucz |
| Wersja kołnierza | Flange owalny A |
Our Industrial Hydraulic Gear Pump is available in various displacements, including 50 cc/rev, 32 cc/rev, 45 cc/rev, and 63 cc/rev. It is designed to withstand a maximum pressure of 20 MPa (2900 psi) and can operate at speeds up to 2200 r/min. The pump features a robust cam plate type design and is available with both internal and external gear configurations. Constructed from durable aluminium, the pump comes with an A-oval flange and plain key shaft. This pump is ideal for a wide range of applications including material handling, construction, earth moving, agriculture, and industrial vehicles. It is particularly suited for use in forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. We offer a complete range of services including manufacturing, OEM, ODM, private label, and customization to meet the specific requirements of our customers.
