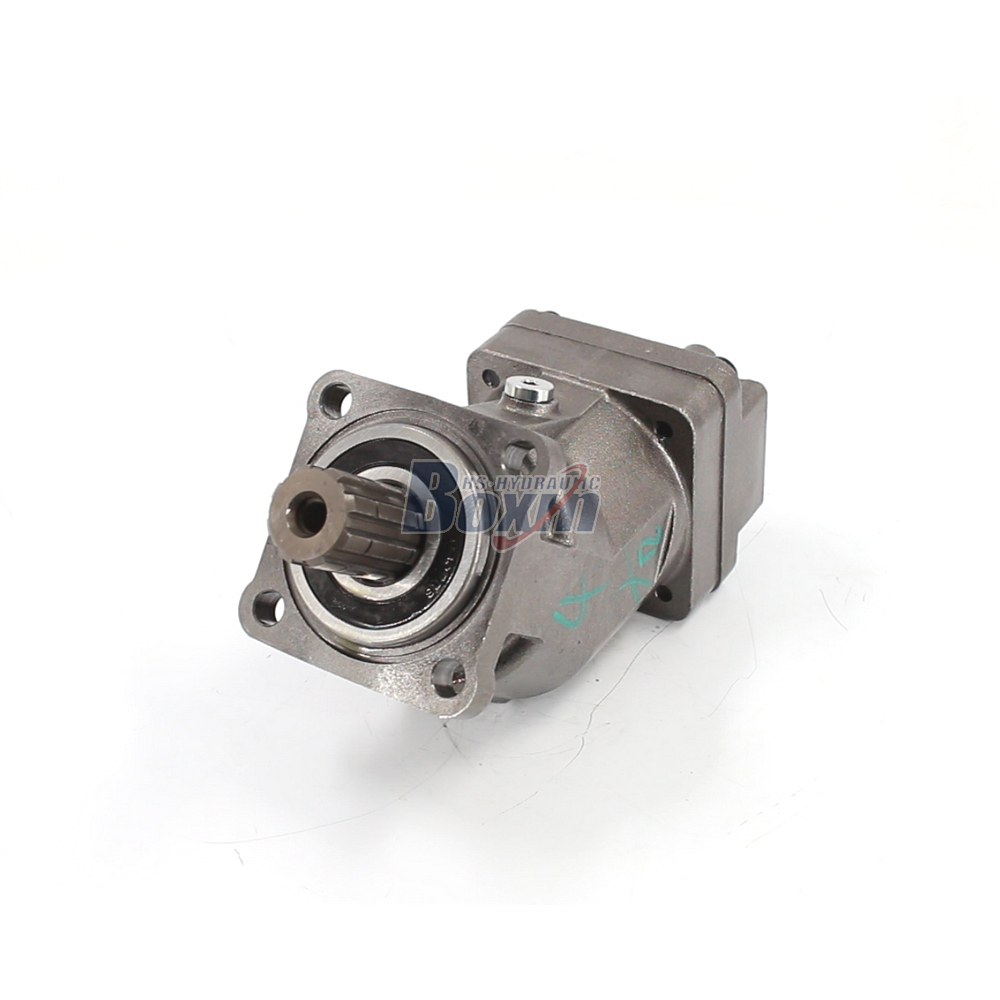

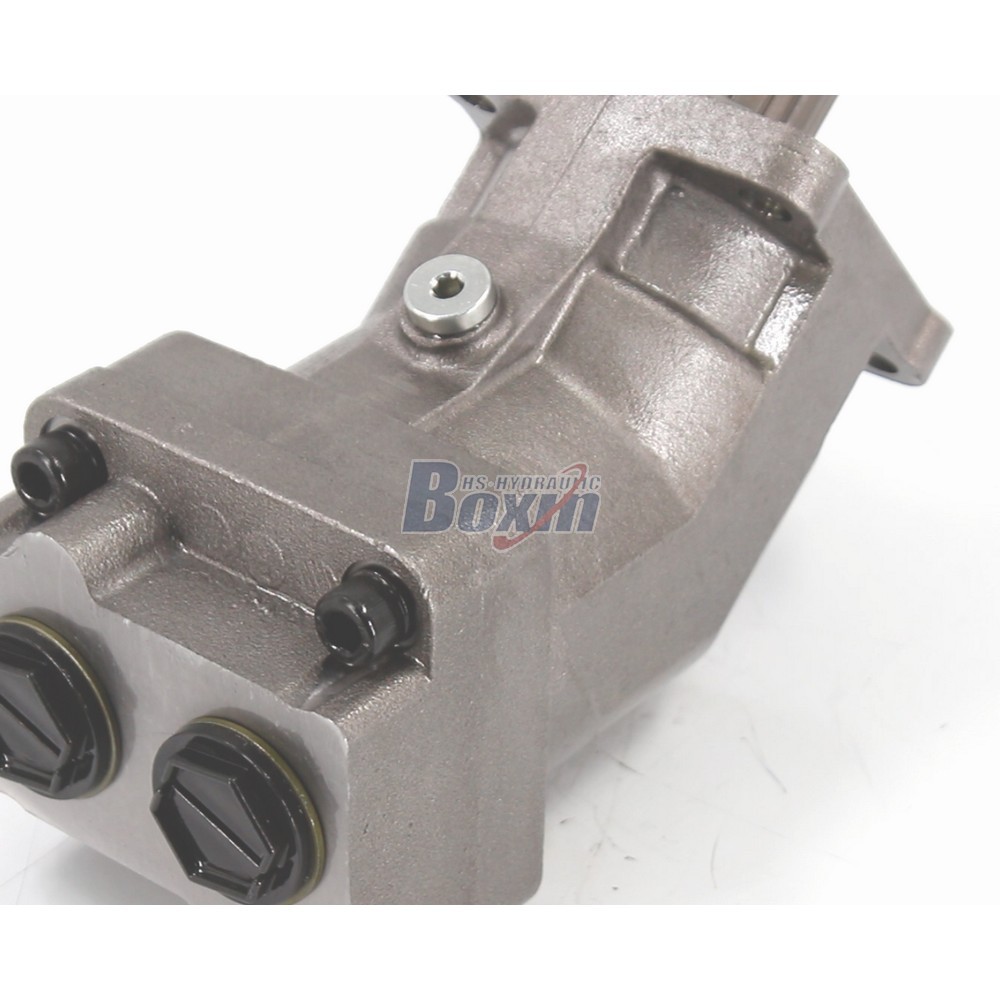

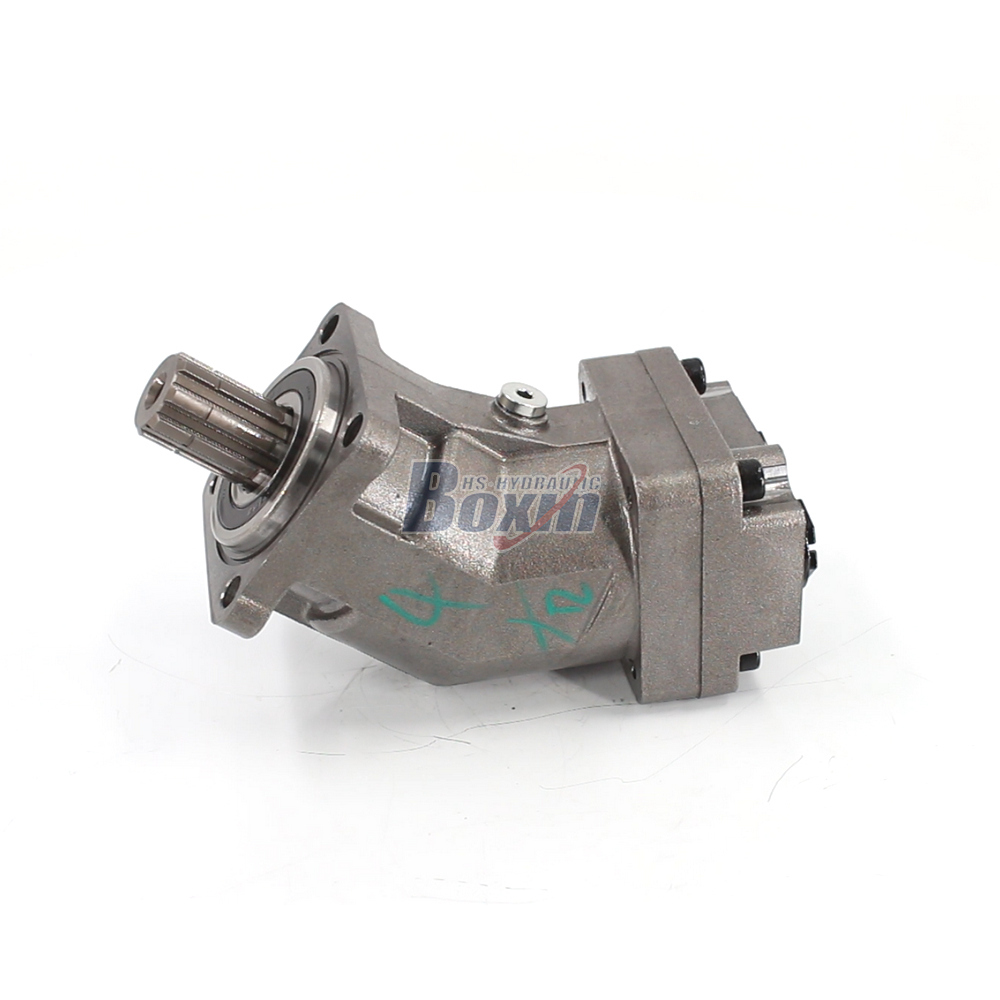

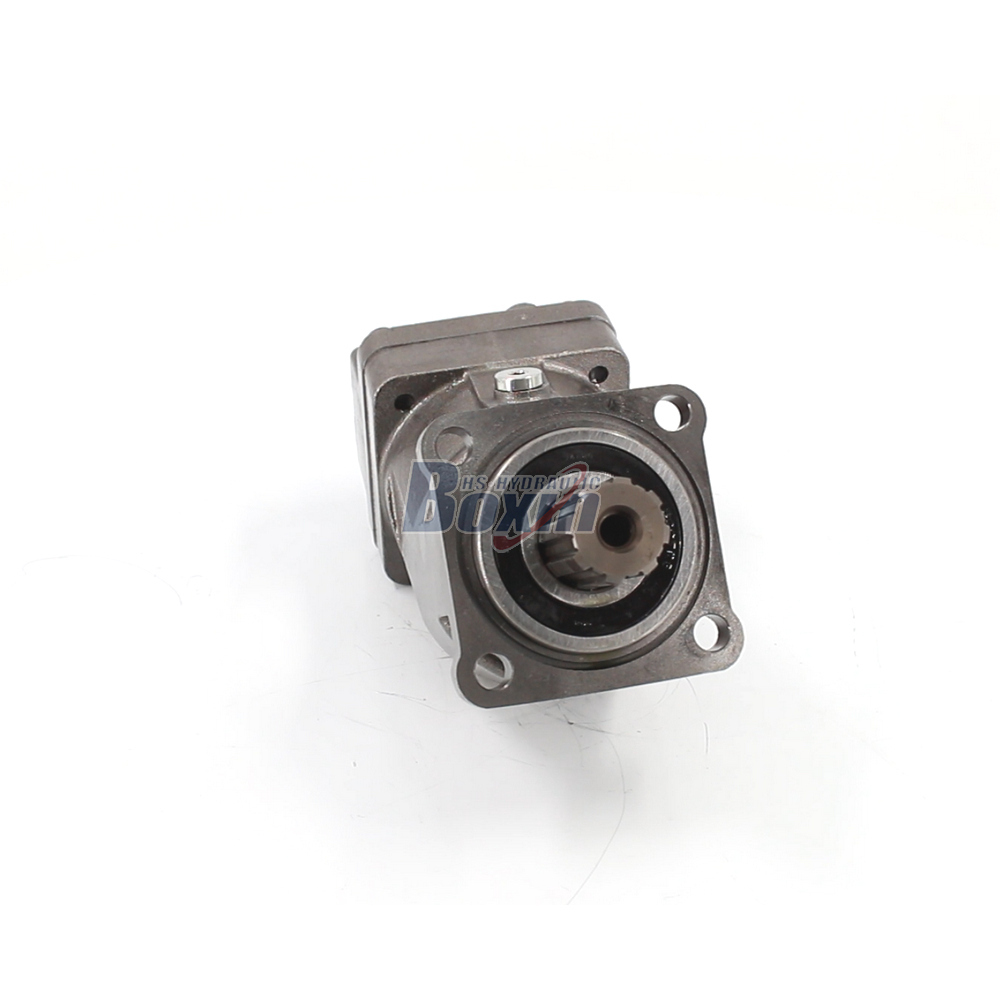

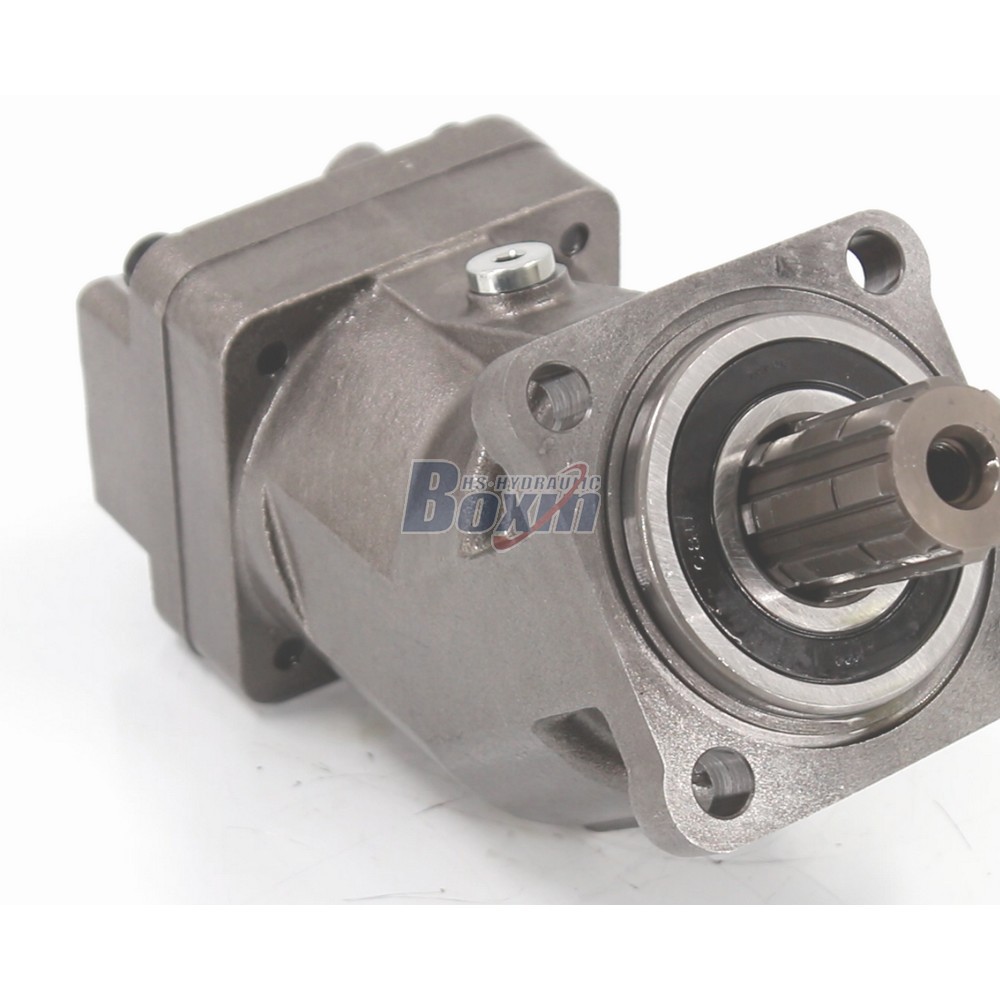

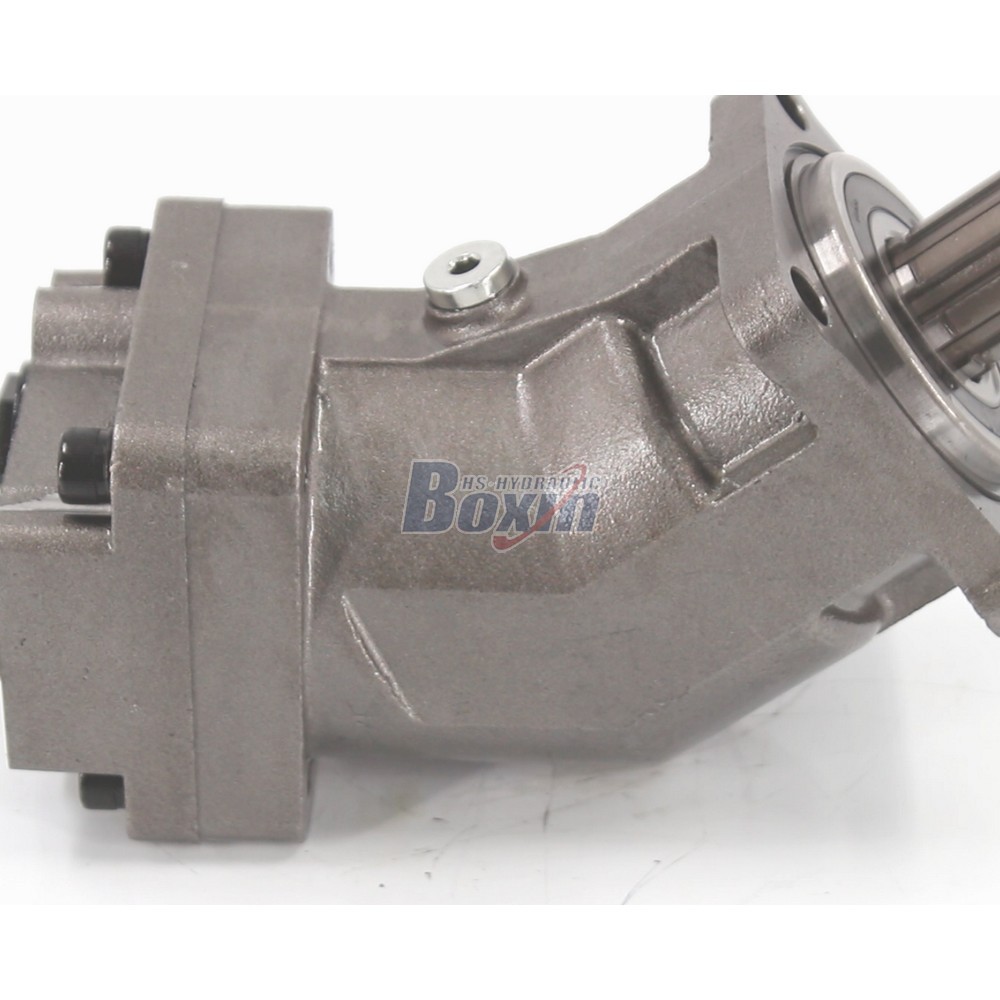

Industrial Grade XPi-40L Hydraulic Piston Pump from Factory Source

Pojemność skokowa:40 cm³/obr

Ciśnienie znamionowe:38 MPa (5511 psi)

Maksymalne ciśnienie:42 MPa (6091 psi)

Maksymalna prędkość:1900 obr./min

Kierunek obrotu:L: Lewo (przeciwnie do ruchu wskazówek zegara)

Marka:BXHS

Typ produktu:Pompa hydrauliczna tłokowa

Seria produktów:Seria XPI Pompa hydrauliczna tłokowa

Rozmiar opakowania:34*17*17

Waga brutto:13.00 kg

Dostępność: W magazynie

189 Osoby oglądają ten produkt

Industrial Grade XPi-40L Hydraulic Piston Pump from Factory Source

Industrial Grade XPi-40L Hydraulic Piston Pump from Factory Source

Industrial Grade XPi-40L Hydraulic Piston Pump from Factory Source drawing image

Source the Industrial Grade XPi-40L Hydraulic Piston Pump directly from a factory with 25+ years of expertise. Featuring 40 cc/rev displacement, 38 MPa rated pressure, and left rotation, this unit is ideal for mini-excavators and skid steers. Backed by IATF 16949 certification and 100% testing, we offer reliable OEM/ODM solutions for global distributors.

Seria XPI Pompa hydrauliczna tłokowa Parametry
Pojemność skokowa 32 cm³/obr, 40 cm³/obr, 45 cm³/obr, 50 cm³/obr, 63 cm³/obr, 80 cm³/obr, 25 cm³/obr, 108 cm³/obr.
Ciśnienie znamionowe 38 MPa (5511 psi)
Maksymalne ciśnienie 42 MPa (6091 psi)
Prędkość znamionowa 1600 obr./min
Maksymalna prędkość 1900 obr./min
Kierunek obrotu L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara)
Materiał Żeliwo
Struktura Kołyska osiowa
Wersja kołnierza Otwory montażowe ISO-4
Typ wału Nacięcie prostokątne H

**1. High-Efficiency hydraulic piston pump Specifications**
- Delivers precise 40 cc/rev displacement with a rated pressure of 38 MPa (5511 psi) and max pressure of 42 MPa, ensuring stable power output.
- Optimized for rated speed of 1600 r/min and max speed of 1900 r/min, providing consistent flow control for demanding hydraulic systems.

**2. Durable axial piston pump for Heavy Duty Use**
- Designed with Left (counter-clockwise) rotation specifically for Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders.
- Fully compatible with major international brands, serving as a cost-effective replacement for Agriculture and Industrial Vehicle applications.

**3. Reliable construction machinery pump from Source Factory**
- Manufactured in our 68,000 sqm facility with 1.5 million annual capacity, leveraging 25+ years of industry experience since 2001.
- As a Professional Manufacturer, we ensure supply chain stability and fast lead times for bulk orders and wholesale direct sales.

**4. Certified Quality Control & Testing Standards**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing, supported by IATF 16949, CE, and SGS certifications.
- Utilizes 260+ vertical machining centers and CMM inspection to guarantee oil cleanliness and dimensional accuracy for long service life.

**5. Custom OEM/ODM Solutions & Global Export**
- Supported by 35+ senior engineers, we offer private label services, custom logo laser marking, and tailored casting designs.
- Exported Worldwide with rust-proof treatment and heavy-duty wooden crate packaging, making us the preferred partner for China wholesale buyers.
