Industrial Grade SD14Y-OT Hydraulic Directional Valve

Metoda sterowania:Hydrauliczna

Szpula:1-sekcyjny

Przepływ znamionowy:120 l/min (31.7 US gpm)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria SD14 Zawór sterujący jednoczęściowy

Rozmiar opakowania:12.5*23.8*7.1

Waga brutto:5.50 kg

Dostępność: W magazynie

104 Osoby oglądają ten produkt

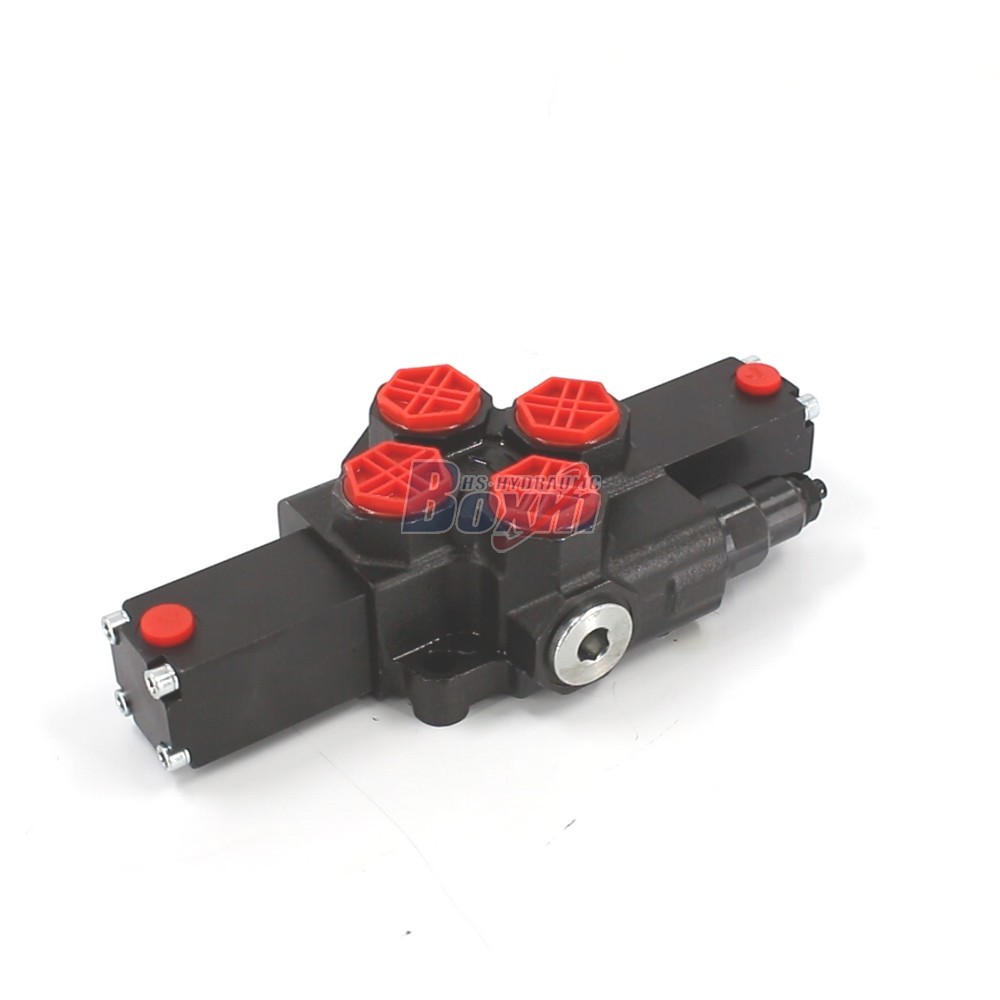

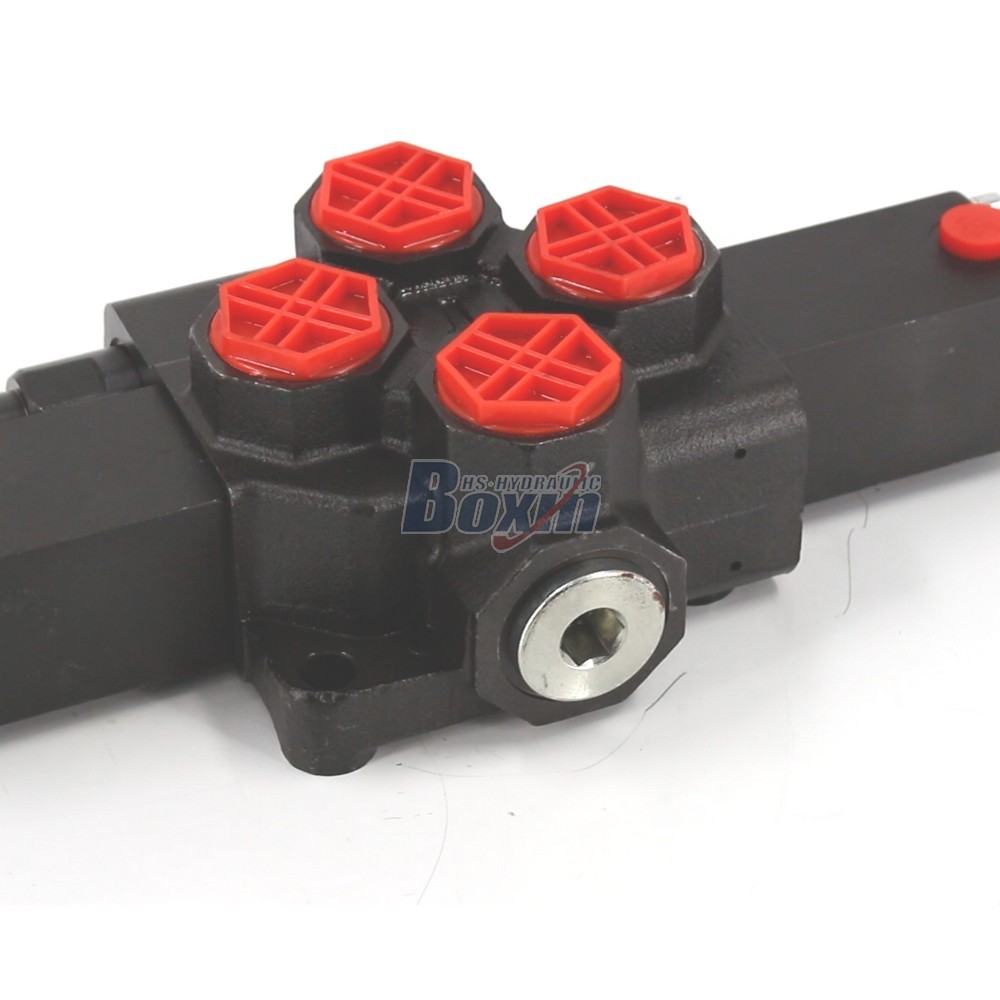

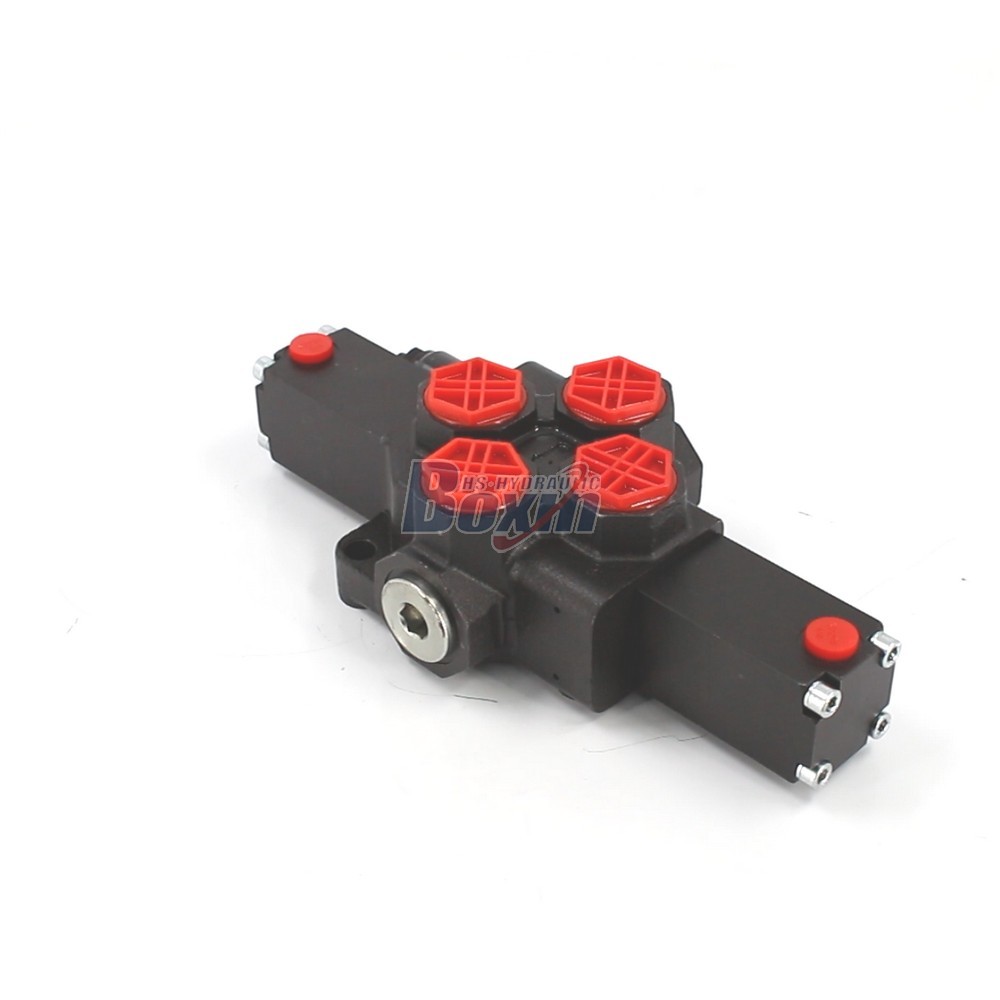

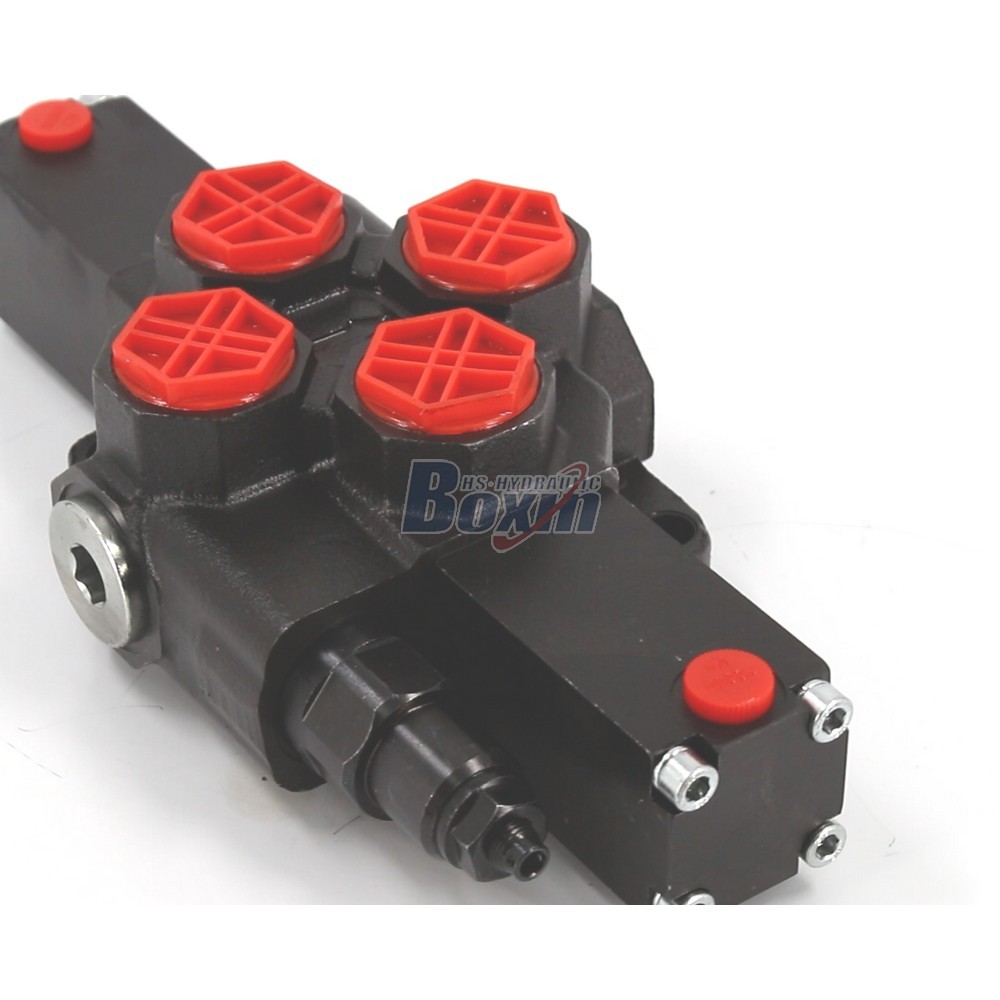

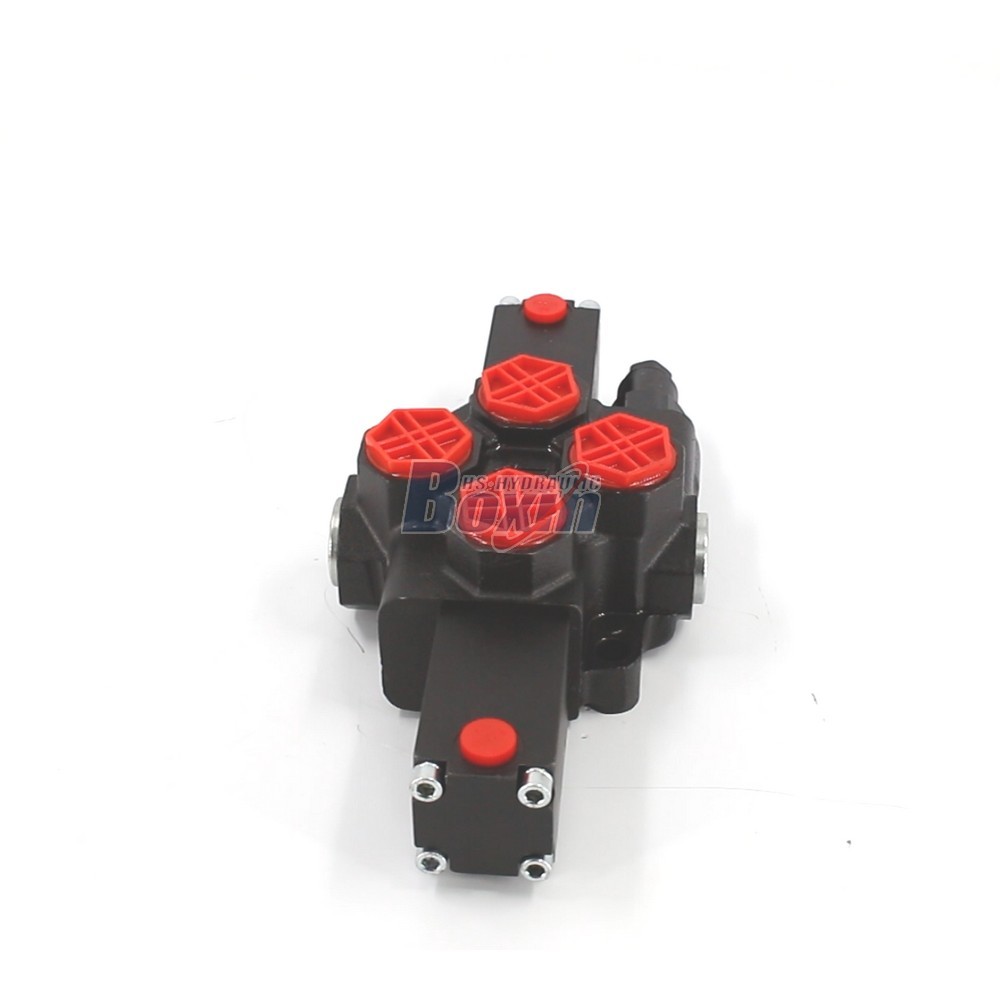

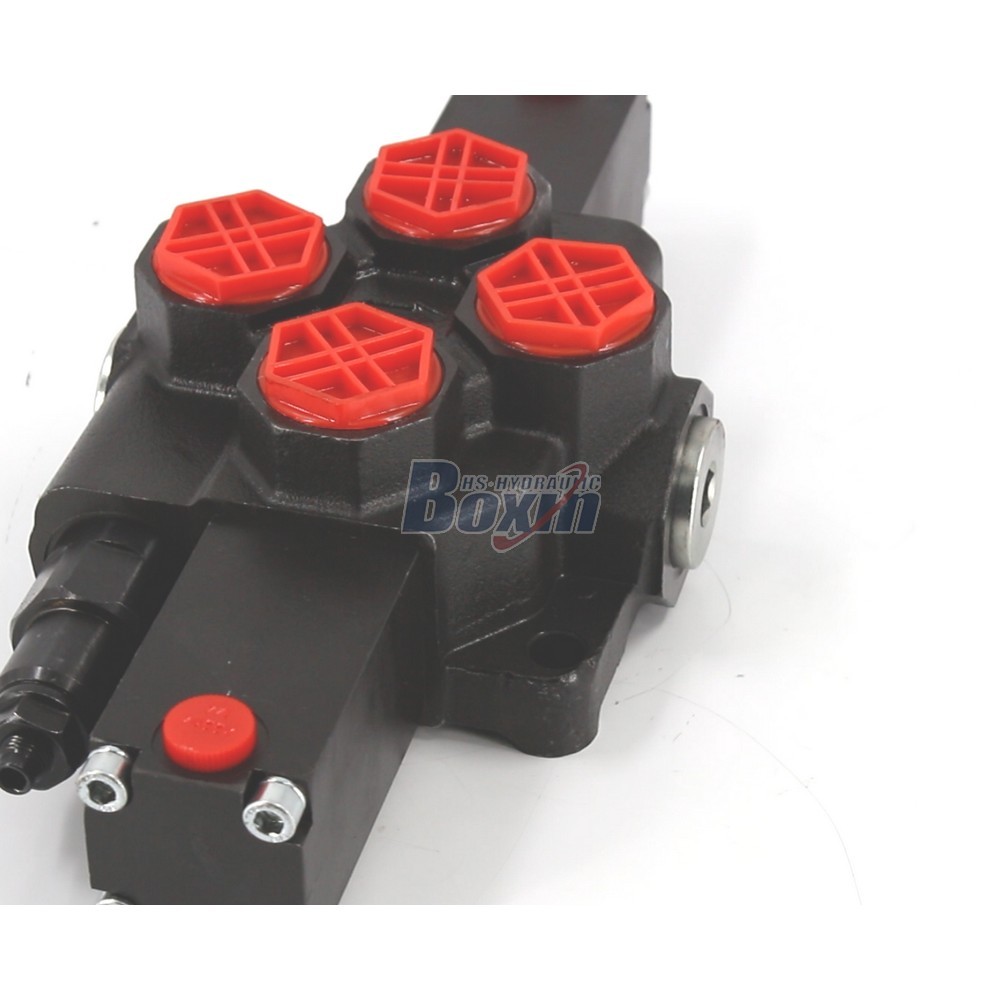

Industrial Grade SD14Y-OT Hydraulic Directional Valve

Industrial Grade SD14Y-OT Hydraulic Directional Valve

Industrial Grade SD14Y-OT Hydraulic Directional Valve drawing image

The Industrial Grade SD14Y-OT is a high-performance 1-spool hydraulic directional valve engineered for heavy-duty applications. With a rated flow of 120 L/min and a maximum pressure of 315 bar, this SD14 series valve provides reliable hydraulic control for construction, agriculture, and material handling equipment.

Seria SD14 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Hydrauliczna
Szpula 1-sekcyjny
Zakres temperatury otoczenia -40°C do +60°C (-40°F do +140°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 120 l/min (31.7 US gpm)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G3/4

As a leading manufacturer of high-pressure hydraulic solutions, we offer the SD14Y-OT hydraulic directional valve designed for demanding industrial environments. This 120 L/min (31.7 US gpm) valve is compatible with high-pressure systems up to 315 bar (4600 psi) and features G3/4 porting. It is extensively used in wheel loaders, backhoes, tractors, and wood splitters. Our factory provides comprehensive manufacturing services including factory wholesale, professional OEM, and custom private labeling solutions to meet specific technical requirements. We are actively seeking global business partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Benefit from direct factory supply, competitive bulk pricing, and reliable quality for construction vehicles and material handling machinery. Partner with us for stable supply chains and expert technical support in the hydraulic component industry.
