Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:SAE 8

Port wylotowy:SAE 8

Rozmiar portu:SAE 8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:23*18*13

Waga brutto:4.80 kg

Dostępność: W magazynie

1054 Osoby oglądają ten produkt

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution

Hydraulic Valves P40-U34-2OT | Factory Direct & Global Distribution drawing image

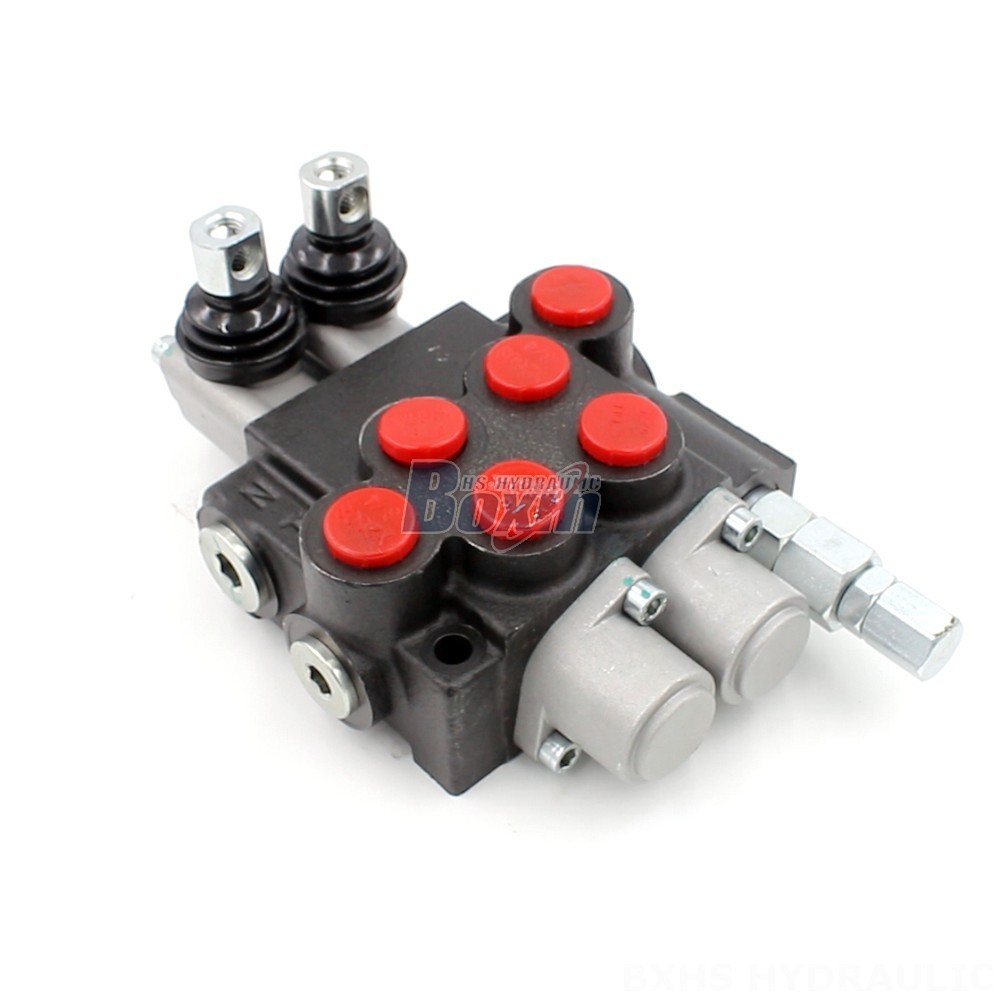

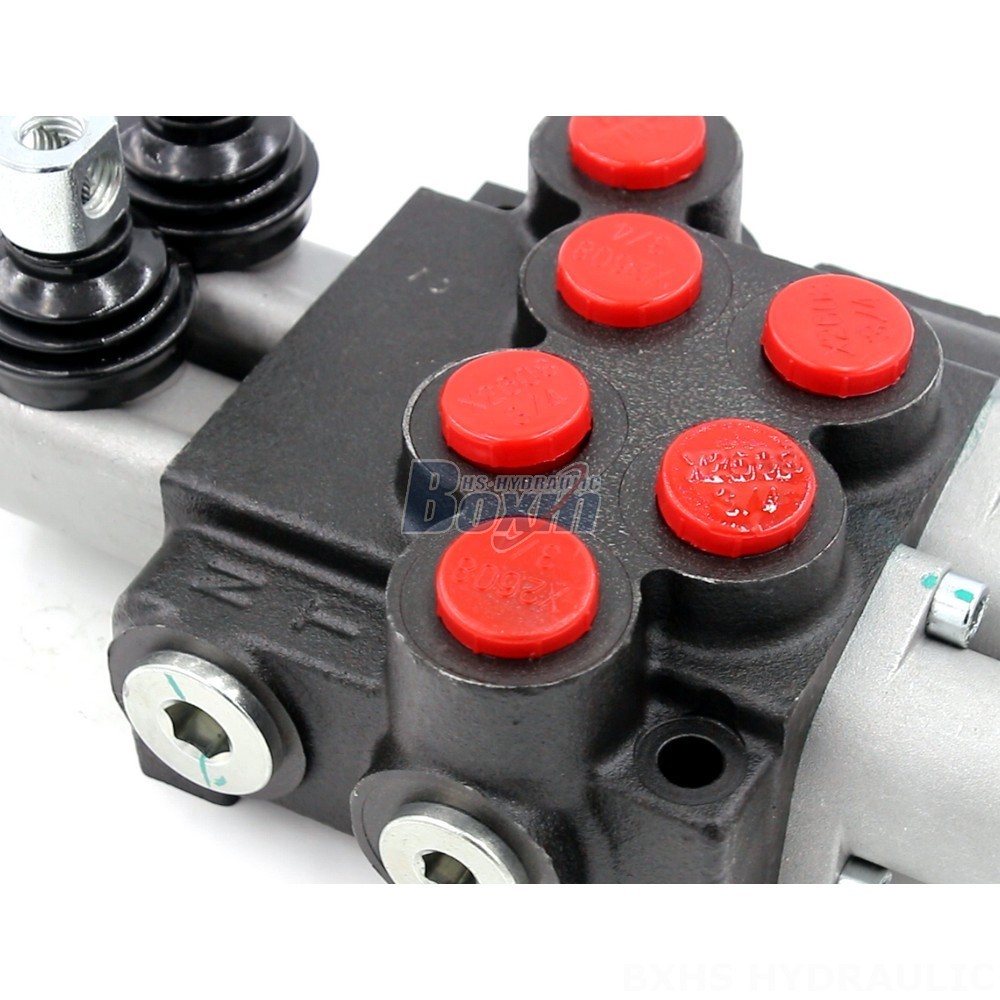

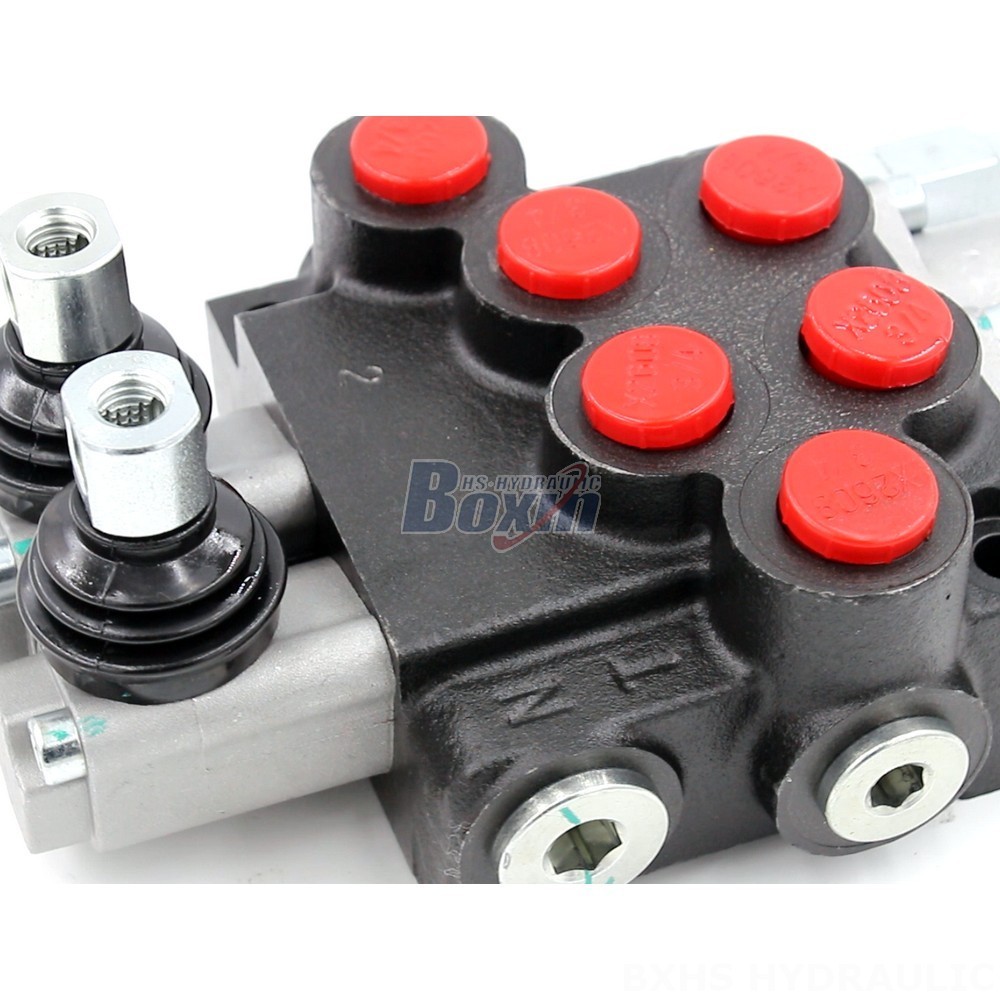

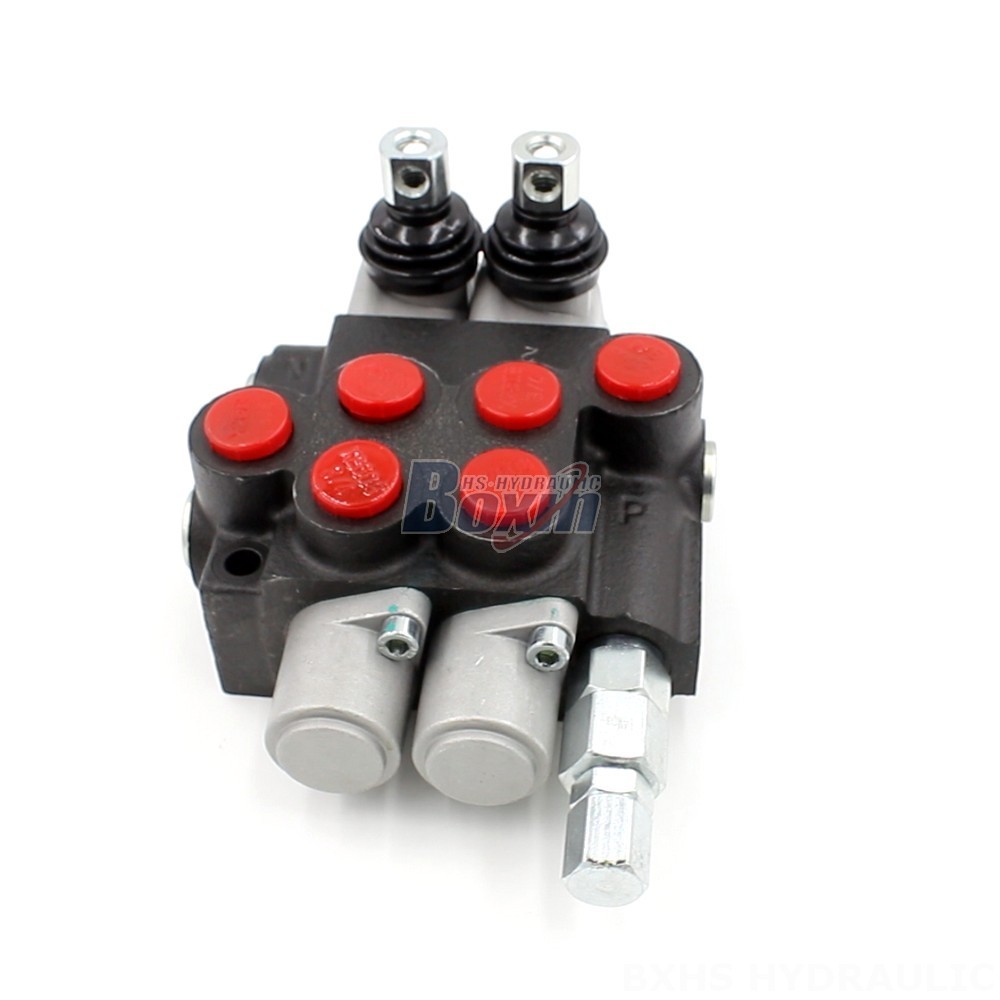

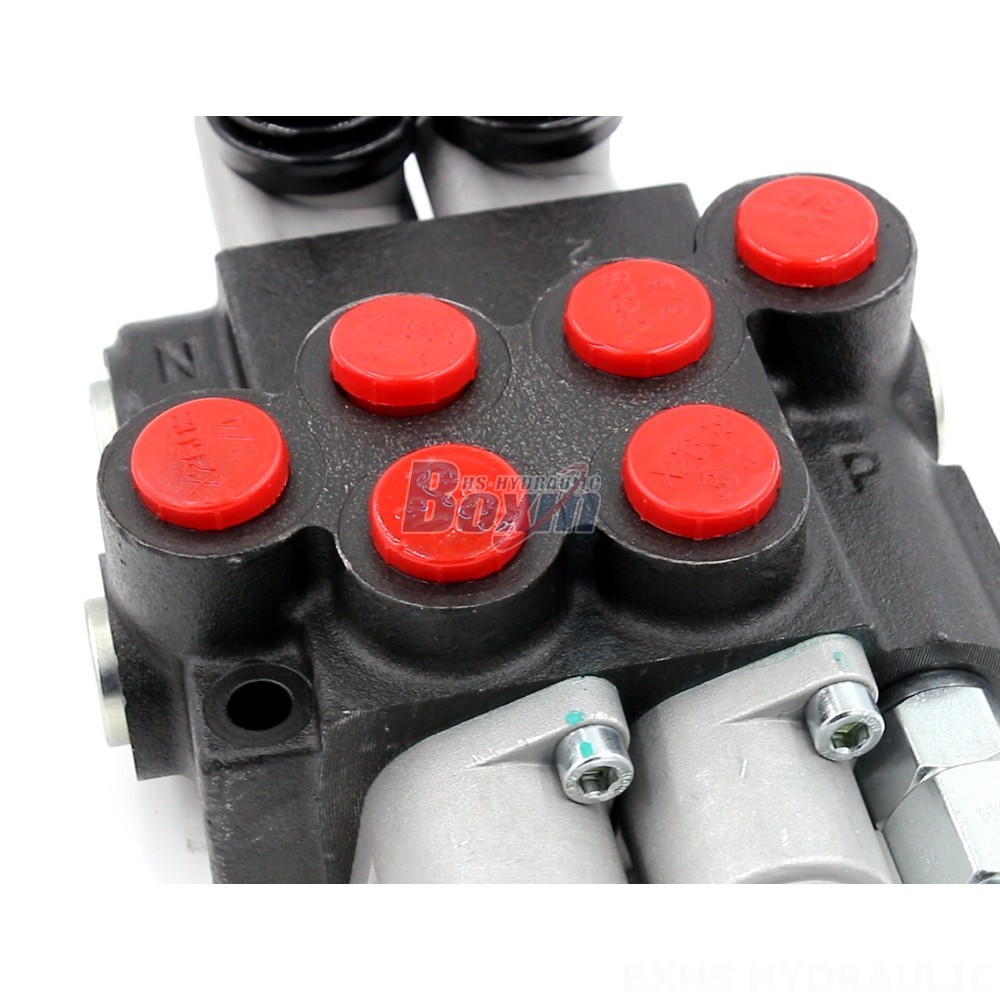

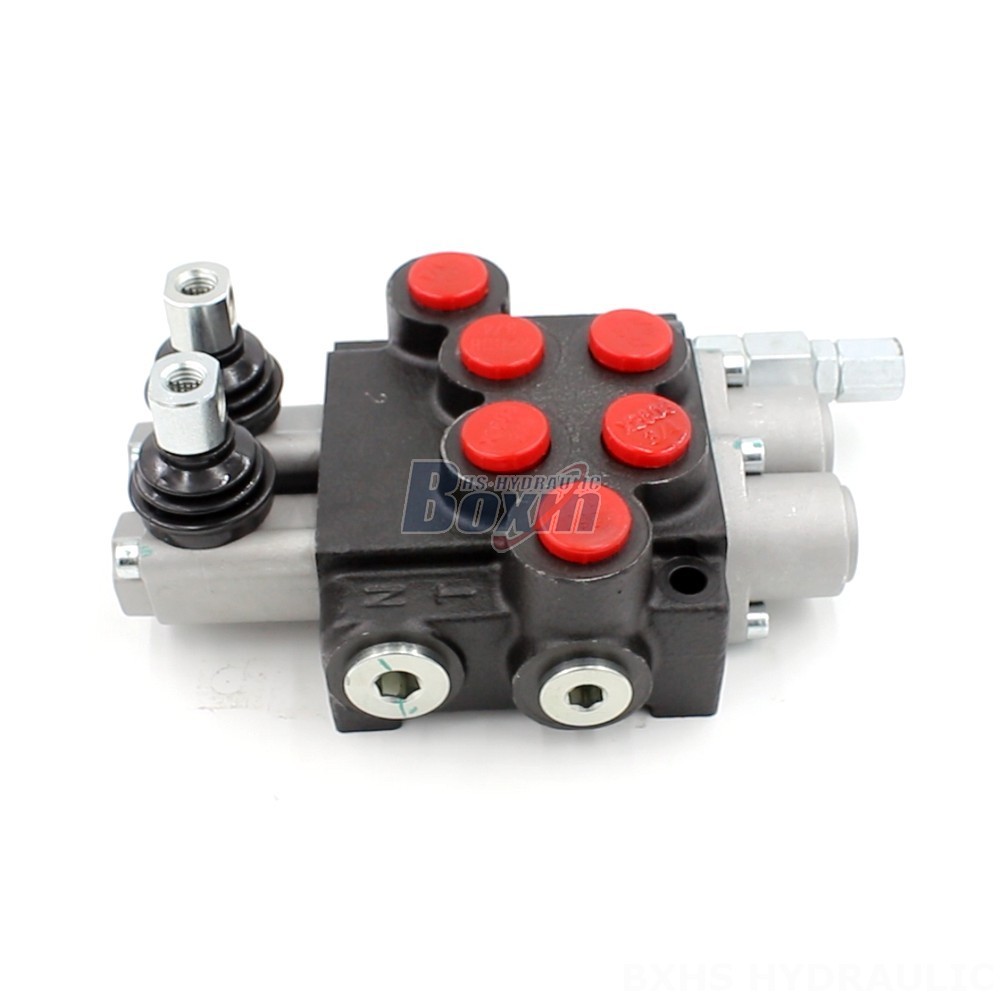

The P40-U34-2OT is a high-performance electromagnetic hydraulic valve designed for demanding applications in material handling, construction, and industrial vehicles. This 2-section monoblock valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, ensuring reliable operation in a wide range of environments.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U34-2OT is a robust and reliable electromagnetic hydraulic valve specifically engineered for heavy-duty applications. It features a compact monoblock design with a 2-section configuration, offering efficient control and high flow capacity. This valve is capable of handling a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi), making it suitable for demanding applications. Its wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) ensure reliable performance in various operating conditions. The P40-U34-2OT is specifically designed for applications in material handling, construction, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. Its high performance and durability make it an ideal choice for manufacturers and end-users looking for reliable and efficient hydraulic control solutions.
