Hydraulic Valve P80J: Factory Direct & Global Distribution

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:1/2 NPT

Port wylotowy:1/2 NPT

Rozmiar portu:1/2 NPT

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80J Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*15*11

Waga brutto:5.00 kg

Dostępność: W magazynie

1085 Osoby oglądają ten produkt

Hydraulic Valve P80J: Factory Direct & Global Distribution

Hydraulic Valve P80J: Factory Direct & Global Distribution

Hydraulic Valve P80J: Factory Direct & Global Distribution drawing image

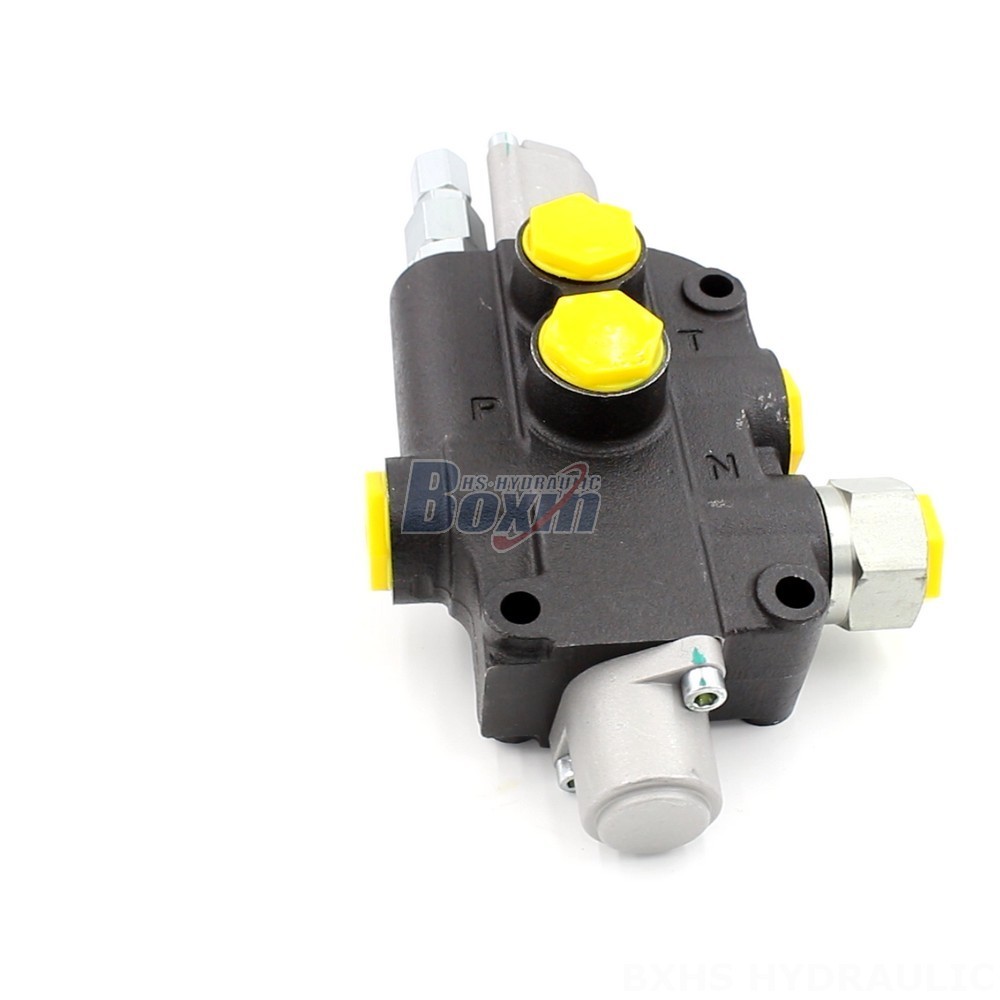

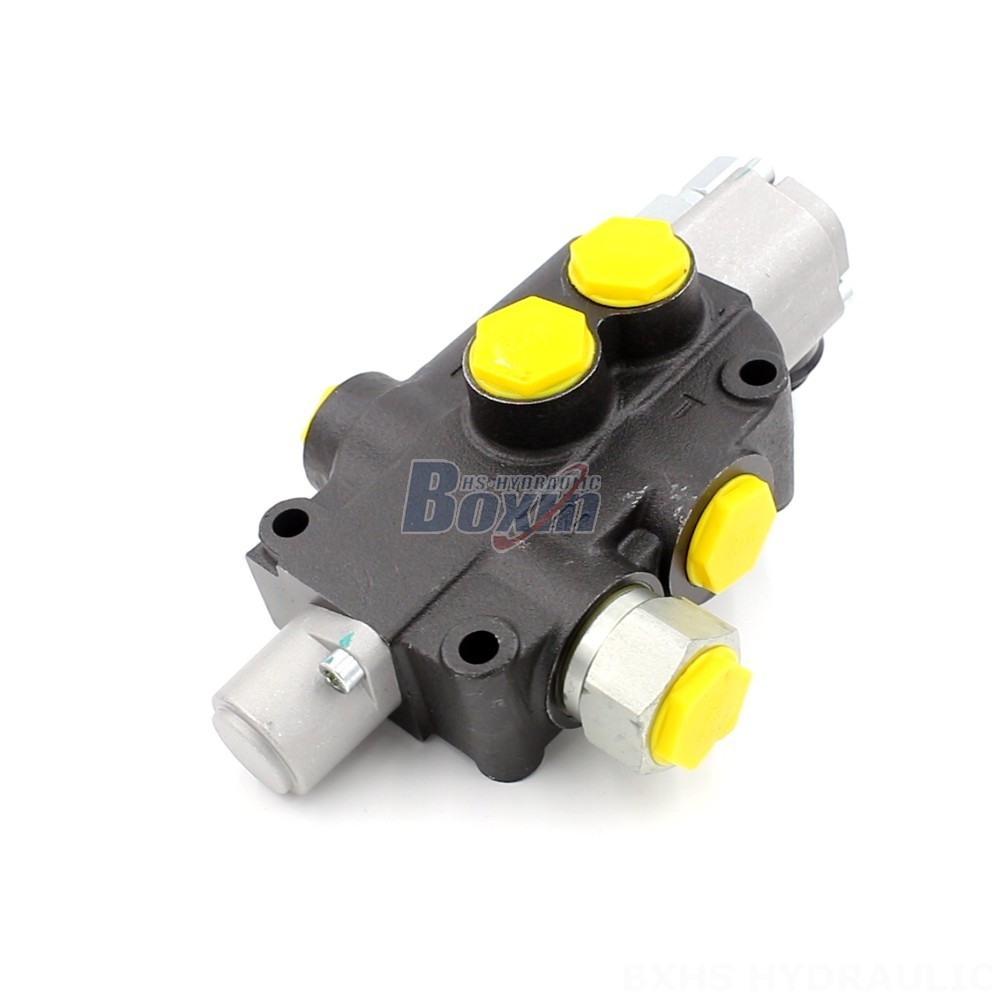

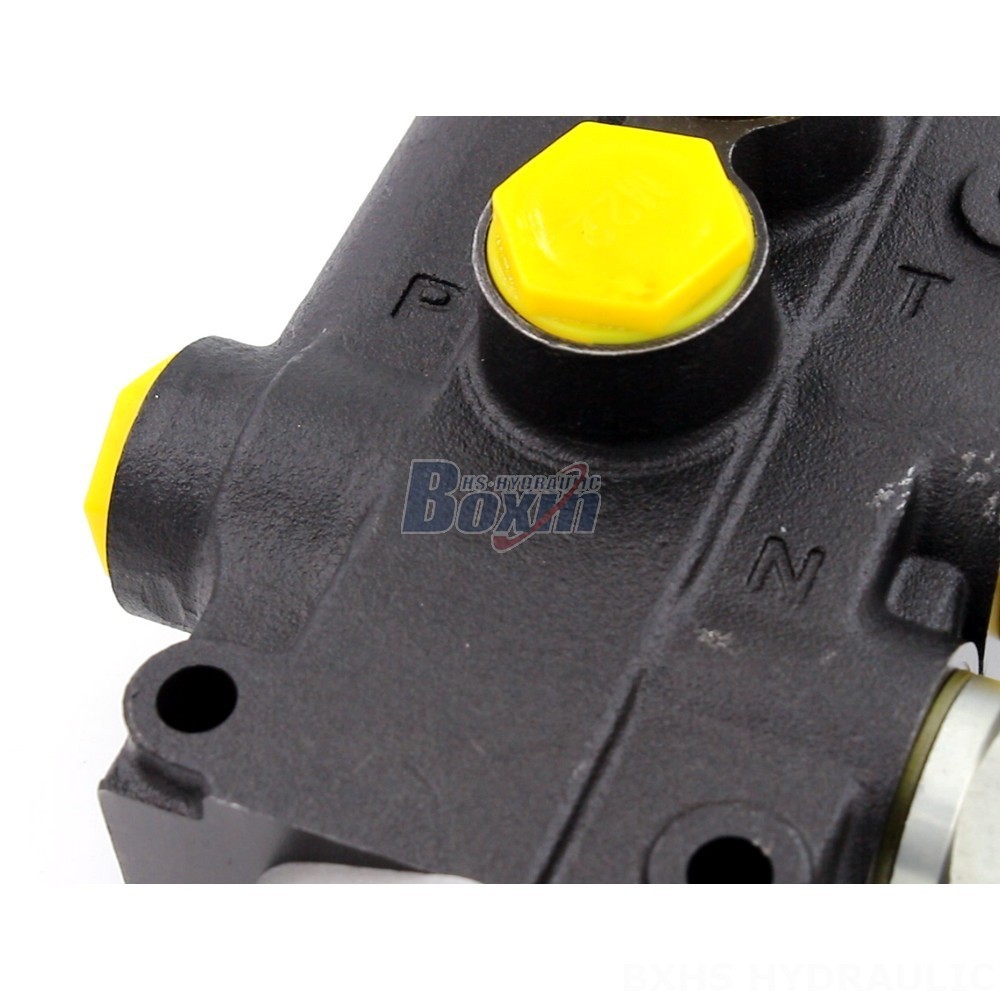

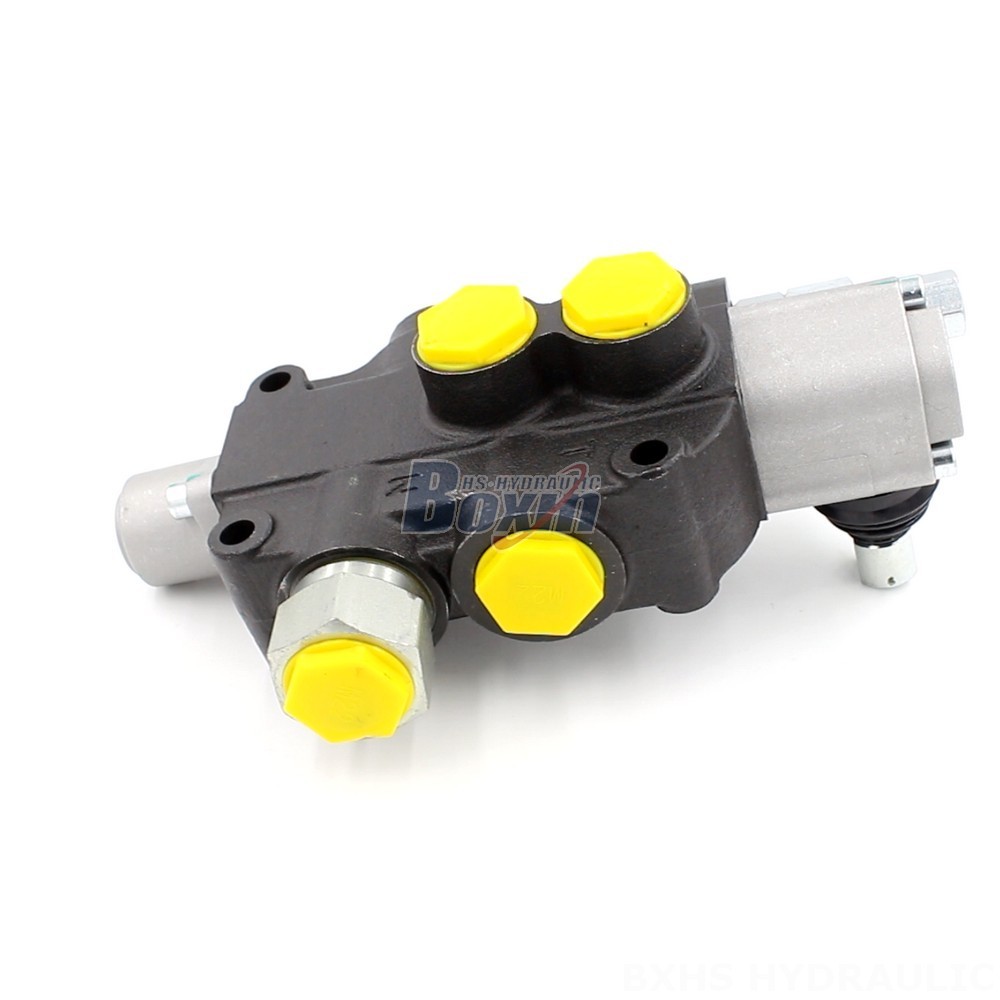

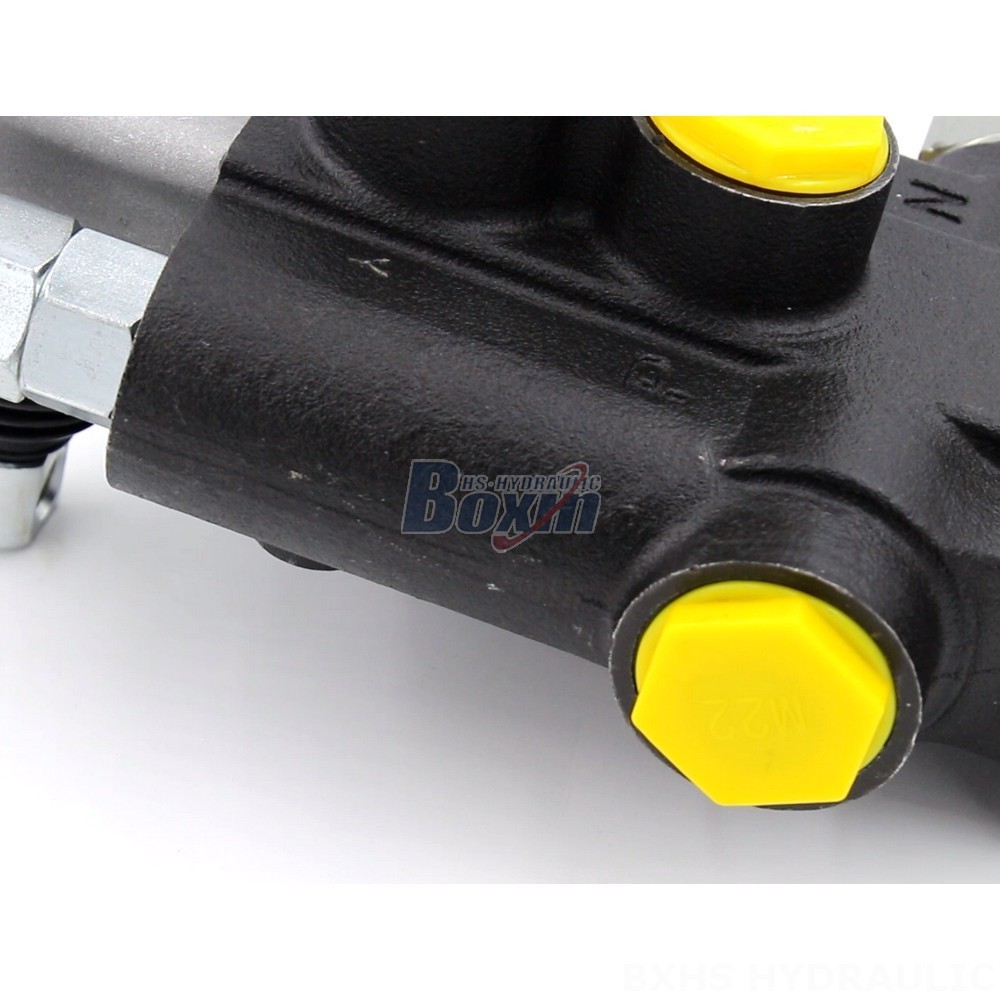

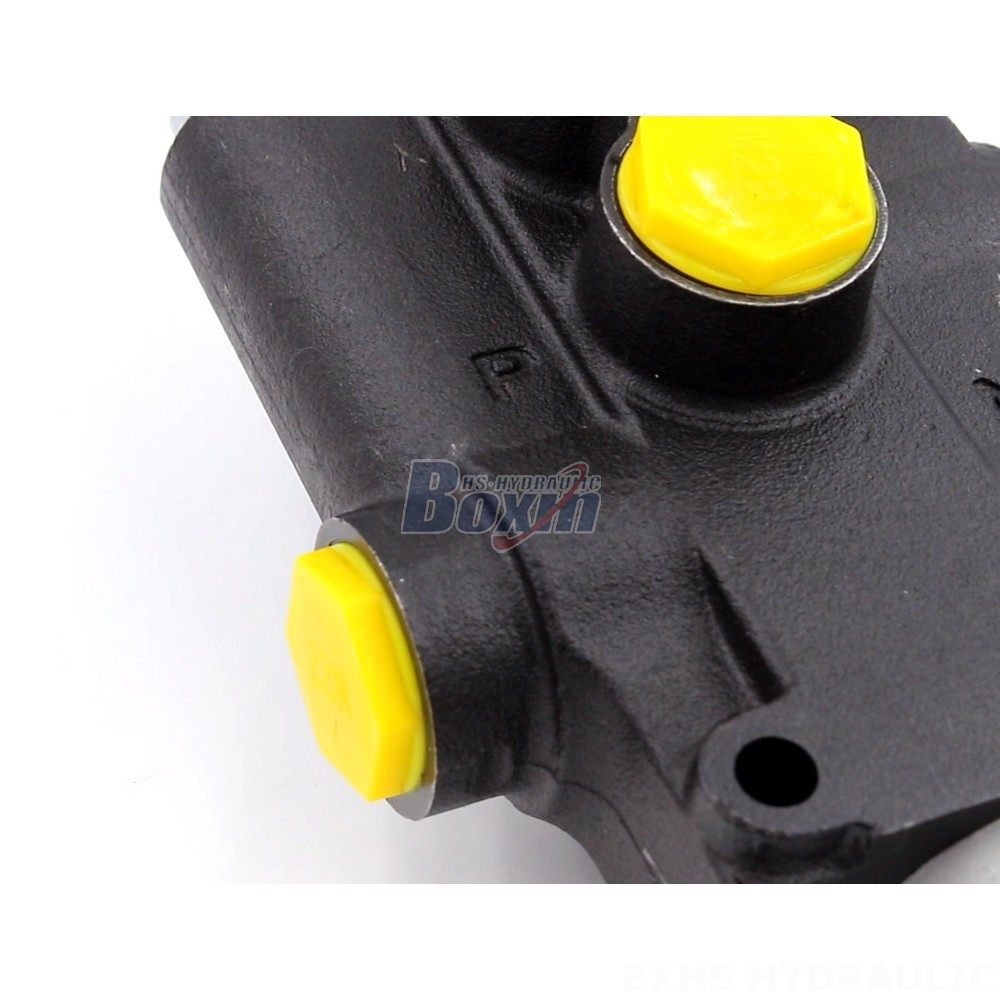

The P80J Hydraulic Control Valve is a high-performance, manual control valve designed for log splitters and a variety of construction and material handling equipment. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this monoblock valve is built to withstand demanding applications. It is available for global distribution directly from the factory.

Seria P80J Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektryczna, Elektromagnetyczne i ręczne, Elektromagnes i joystick, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M20×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M20×1.5, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

The P80J Hydraulic Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. Its monoblock construction ensures durability and long-lasting performance. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is suitable for heavy-duty log splitting and other applications requiring high flow and pressure. The manual control method provides simple and straightforward operation. This valve is specifically designed for use in various equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P80J series is manufactured to the highest quality standards and is available for global distribution directly from the factory, ensuring a reliable and cost-effective solution for your hydraulic needs.
