Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*23*11

Waga brutto:10.70 kg

Dostępność: W magazynie

1154 Osoby oglądają ten produkt

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities

Hydraulic Pump & Motor Drive | Distributor & Partner Opportunities drawing image

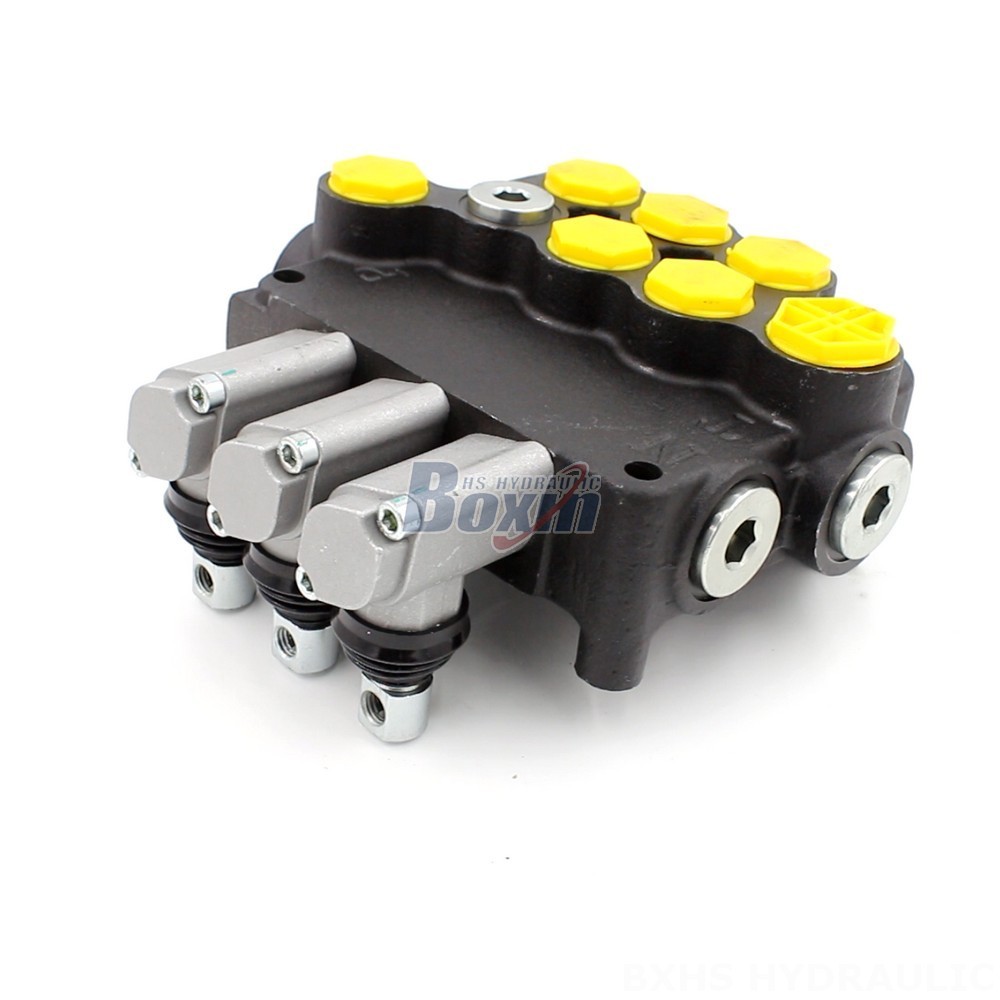

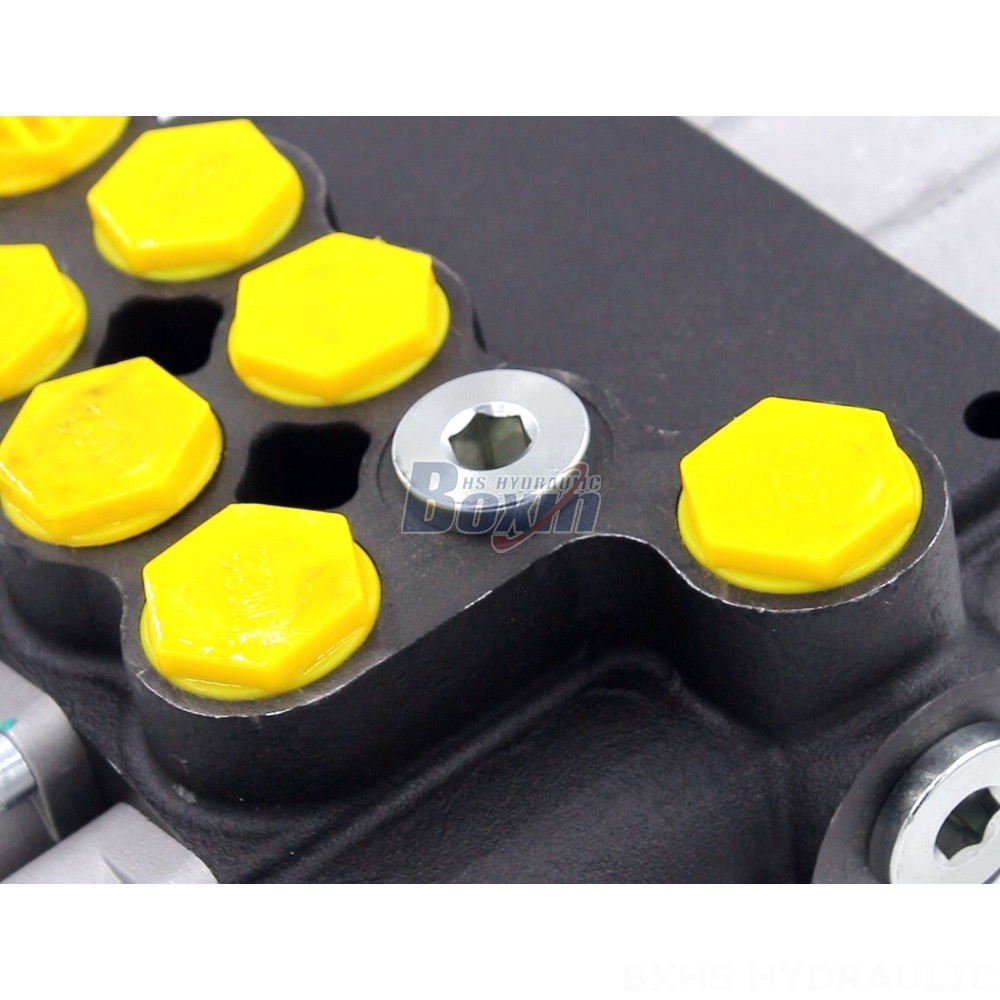

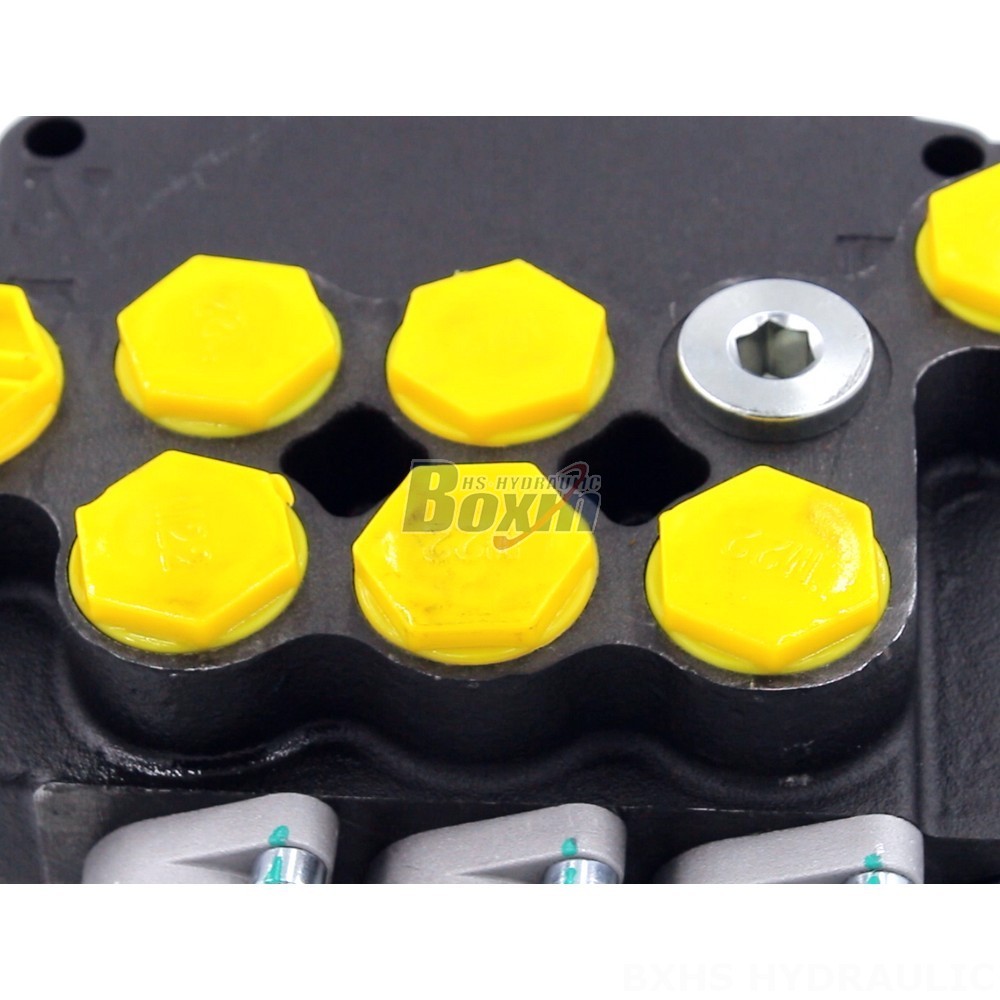

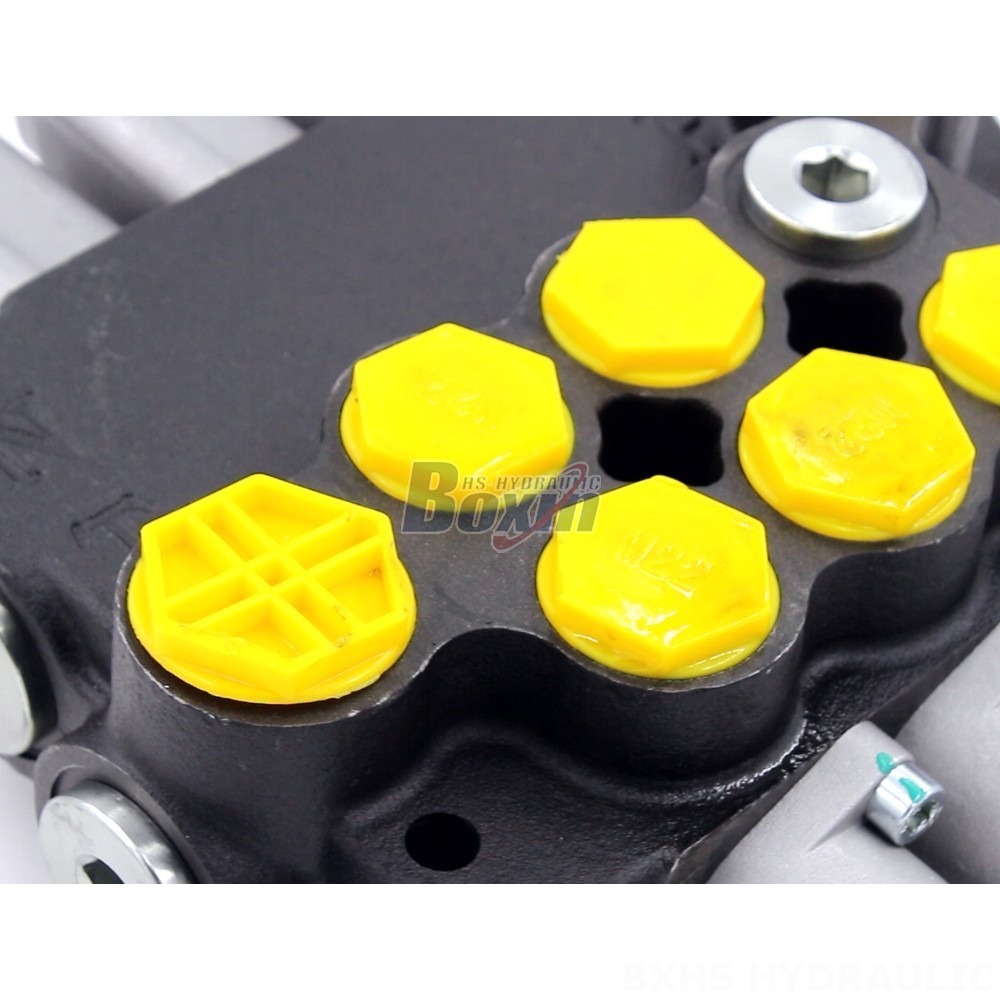

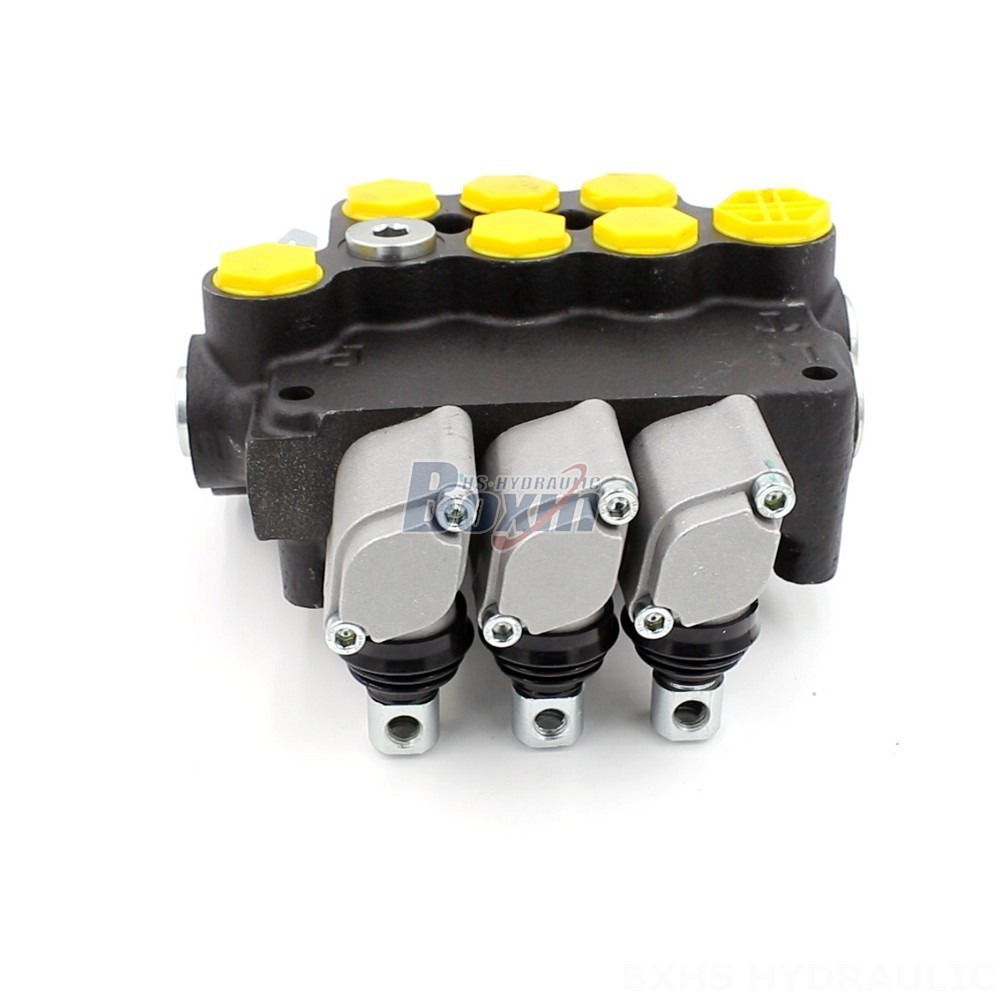

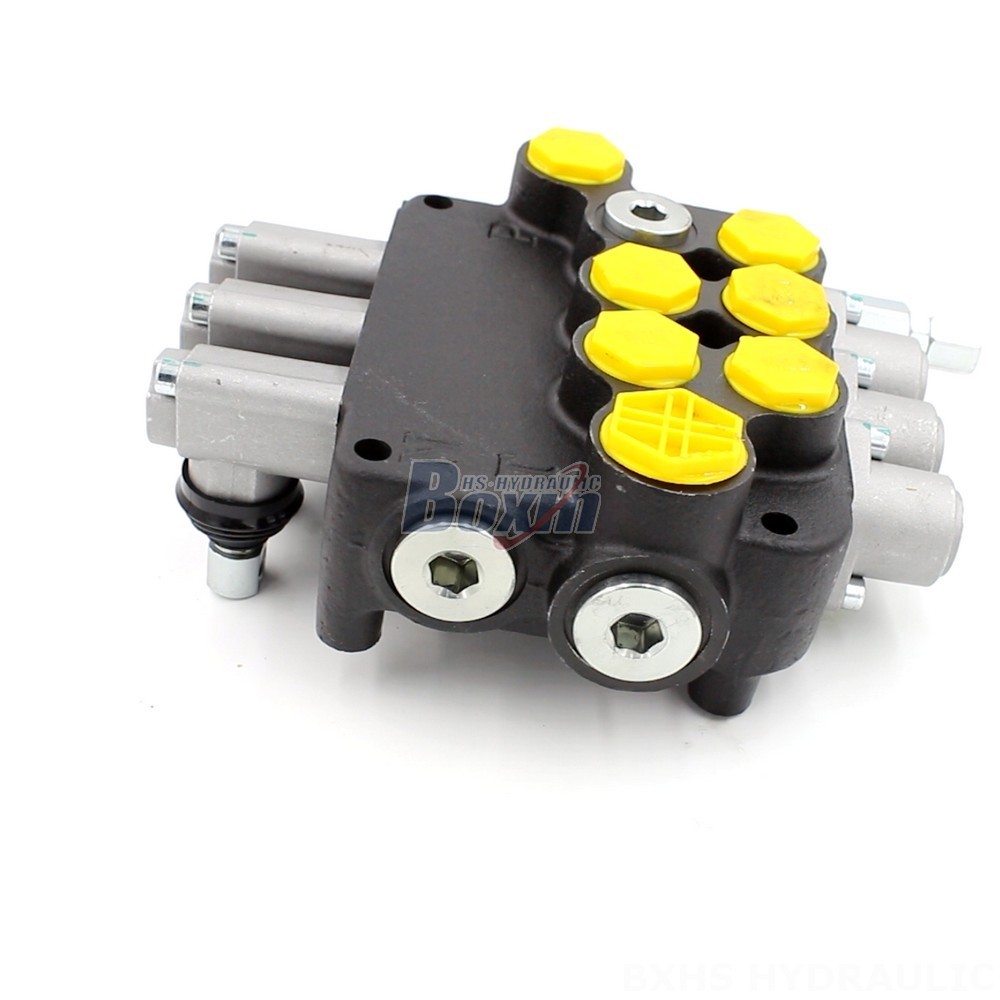

This 3-way hydraulic spool valve is designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 80 L/min, and a maximum pressure rating of 250 bar. We offer manufacturing, OEM/ODM, private label, and customized solutions.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The P80 series 3-way hydraulic spool valve is a high-performance component suitable for a wide range of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. It offers a manual control method, a 3-section design, and a robust monoblock valve construction. This valve is designed for high flow rates (80 L/min) and high pressure operation (250 bar). It is also engineered for a wide range of operating temperatures (-40°C to +80°C) and viscosity ranges (15-75 mm²/s). As a global hydraulic product manufacturer, we offer a comprehensive range of services including manufacturing, OEM/ODM, private label, and custom solutions to meet the specific needs of our clients. We are also actively seeking distributors, wholesalers, agents, and trading partners to expand our global reach.
