Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

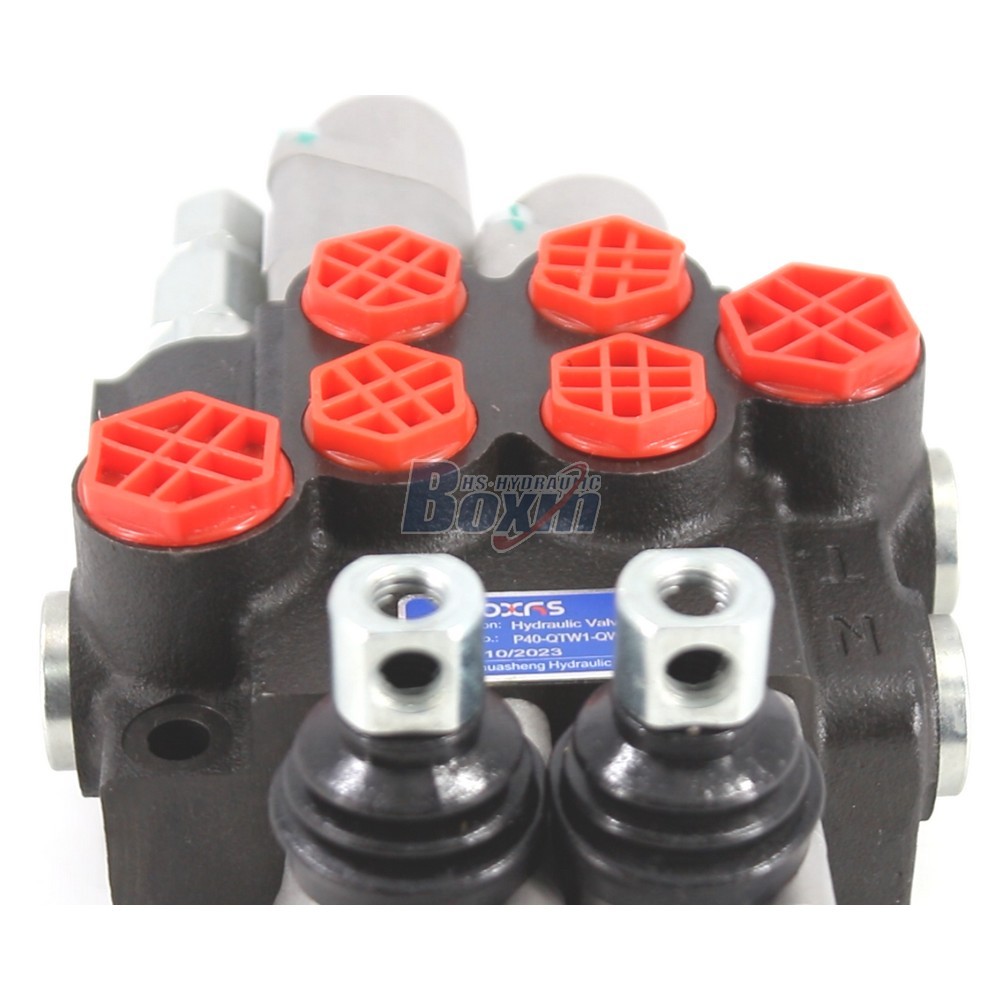

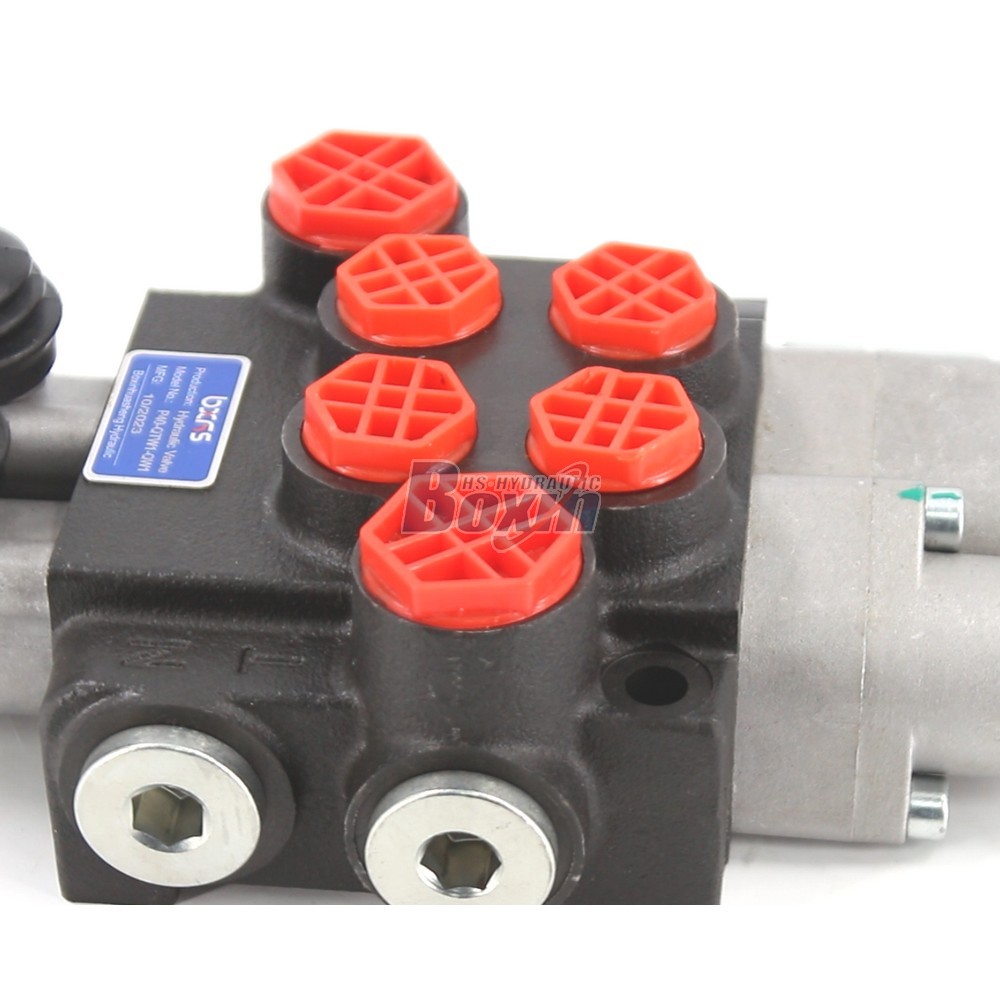

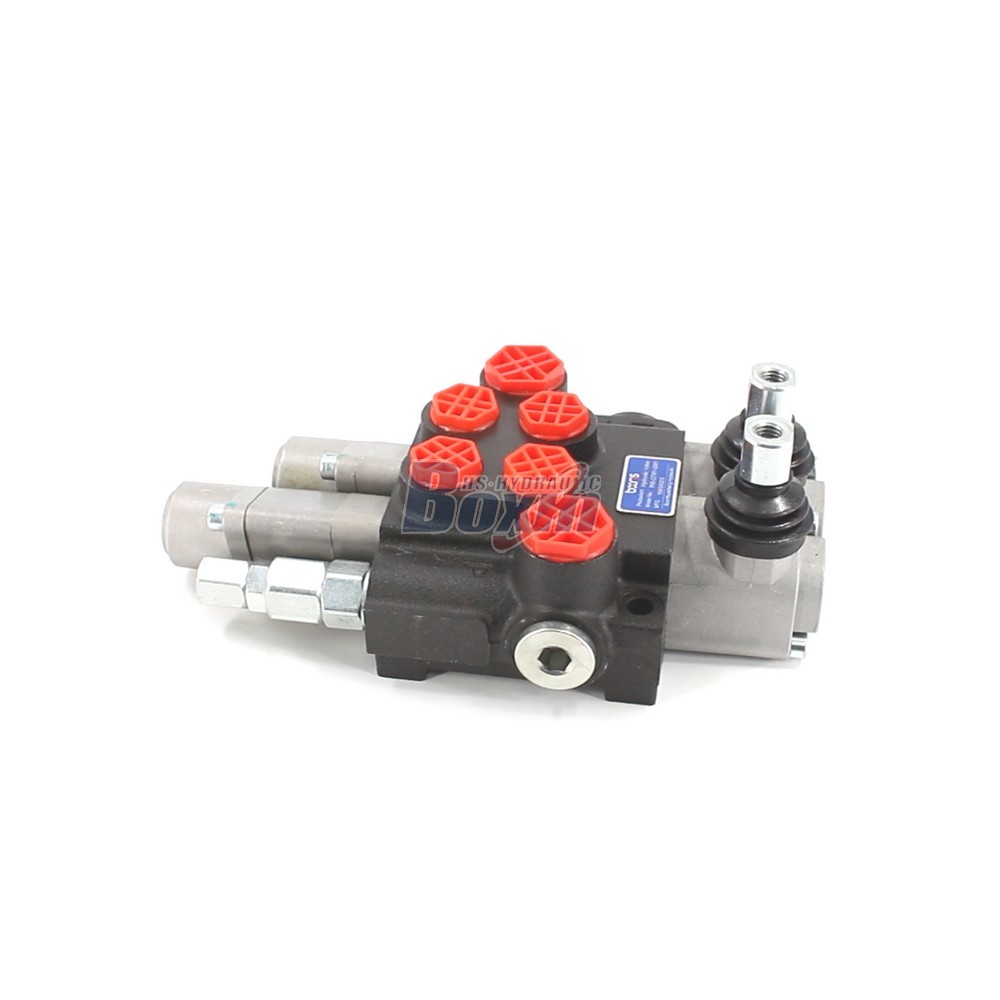

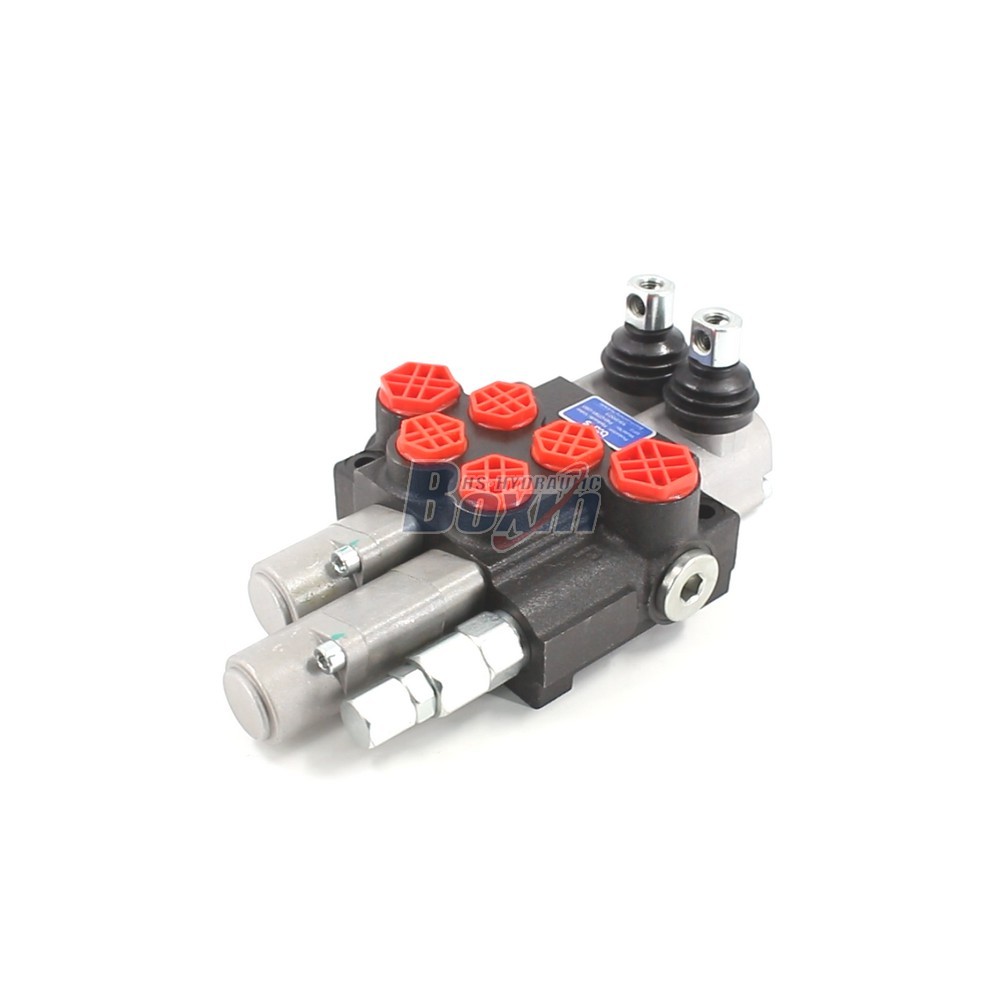

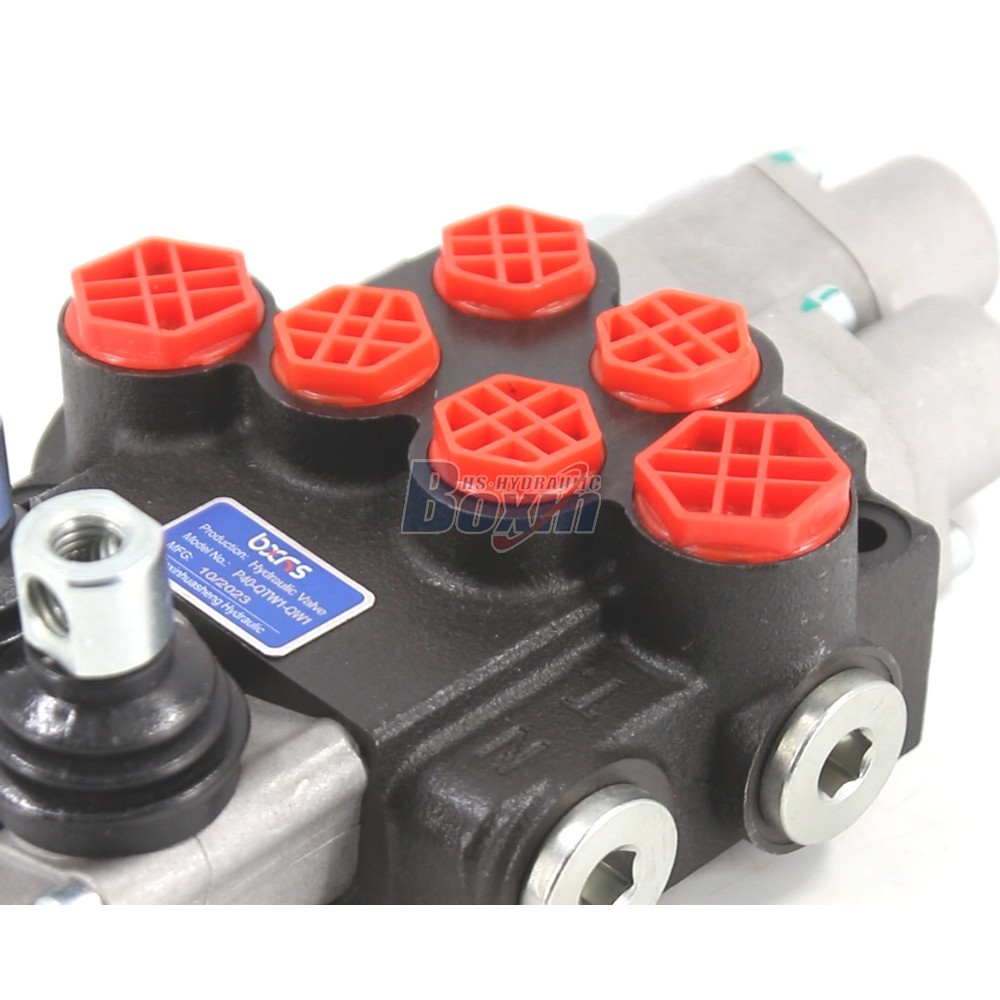

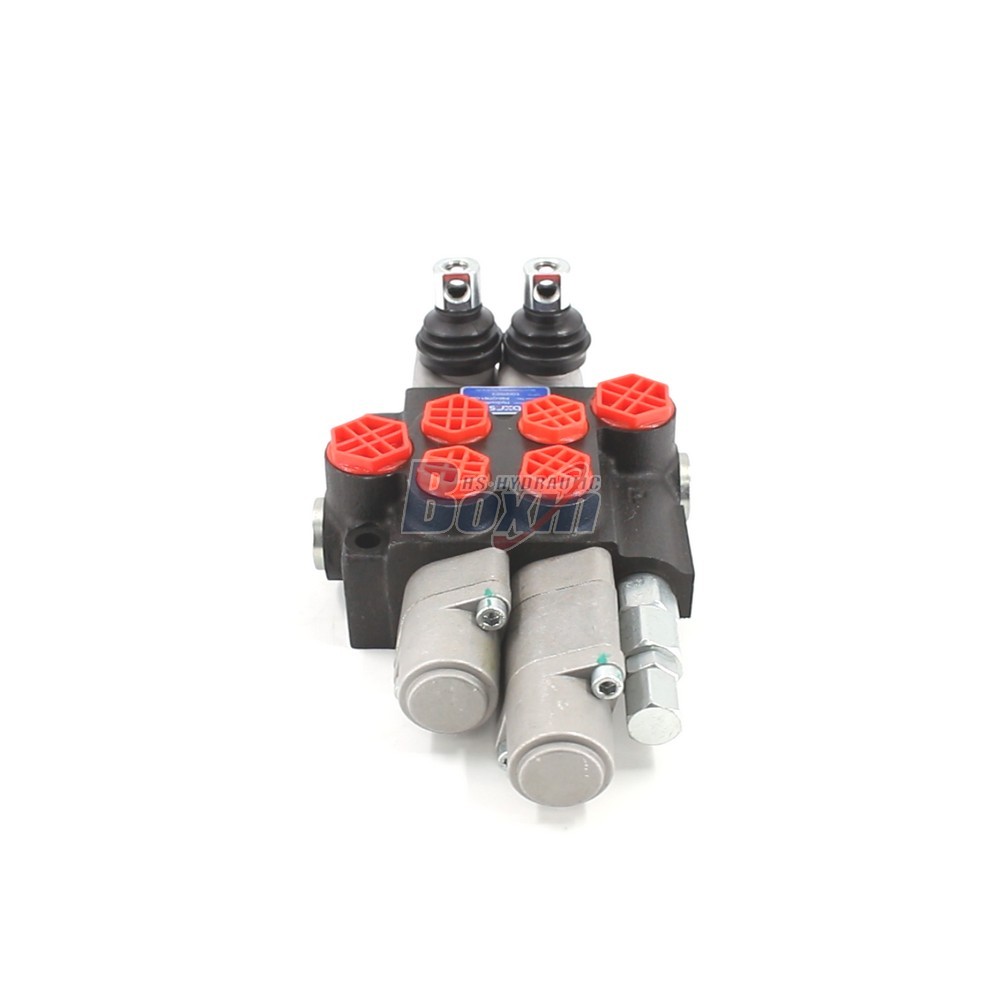

High-performance P40 series monoblock directional control valve designed for manual operation in demanding mobile and industrial hydraulic systems, offering reliable performance for construction, agriculture, and material handling equipment.
| Seria P40 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe |
| Szpula | 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 40 l/min (10,5 USGPM) |
| Maksymalne ciśnienie | 250 bar (3600 psi) |
| Port wlotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port wylotowy | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Rozmiar portu | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
As a professional hydraulic manufacturer, we provide precision-engineered P40 series monoblock valves with a rated flow of 40 L/min and maximum pressure of 250 bar. Our robust manual control valves are ideal for tractors, forklifts, wood splitters, and excavators. We specialize in factory-direct supply, offering comprehensive services including OEM, ODM, custom configuration, and wholesale distribution. We are actively seeking long-term partnerships with global distributors, wholesalers, and international traders. With our advanced manufacturing facilities, we ensure high quality, competitive pricing, and flexible customization capabilities to meet your specific project requirements. Partner with us to benefit from professional technical support and reliable supply chain logistics for your hydraulic component needs.
