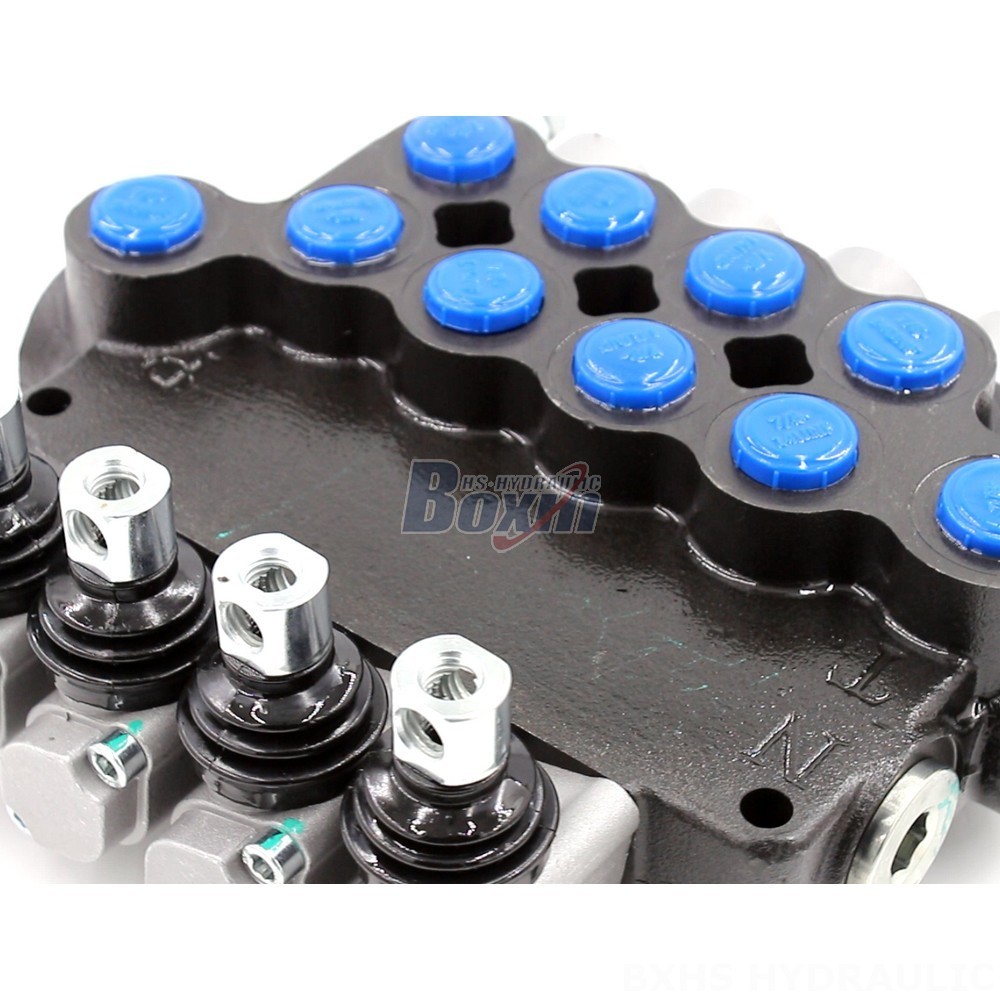

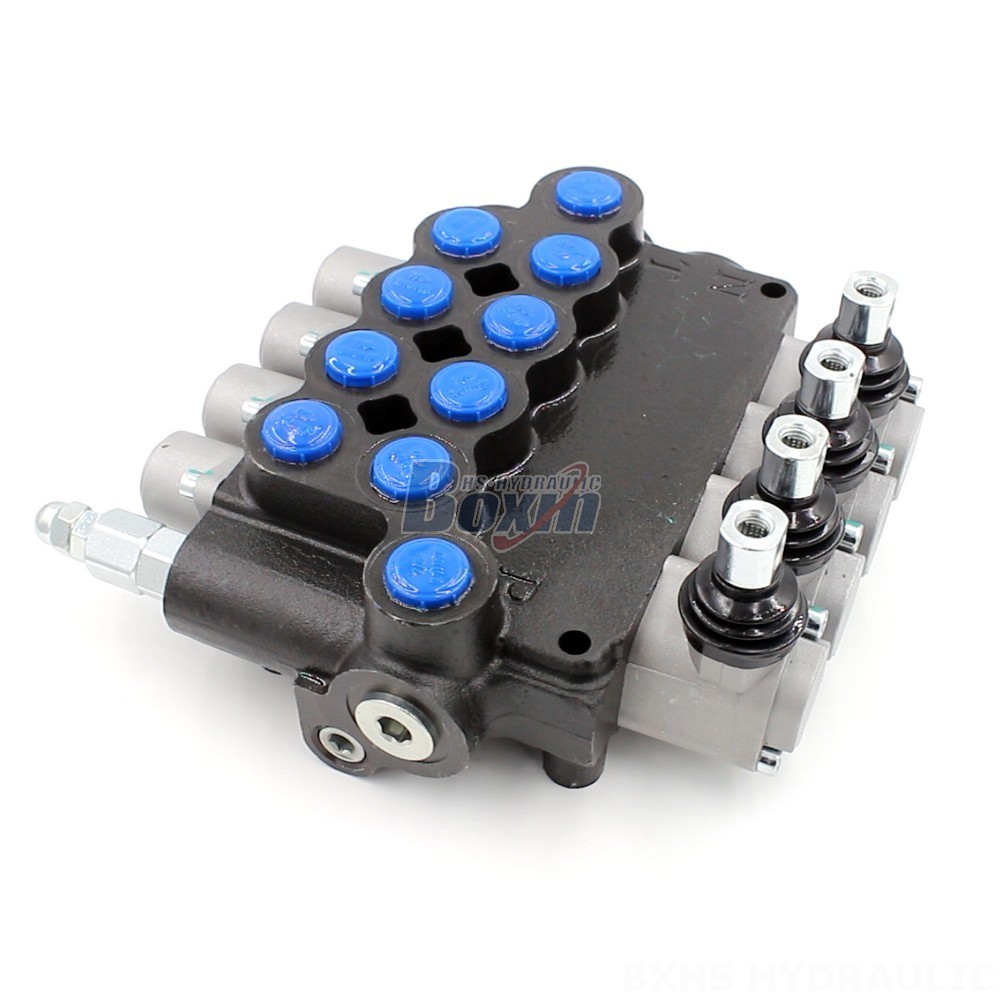

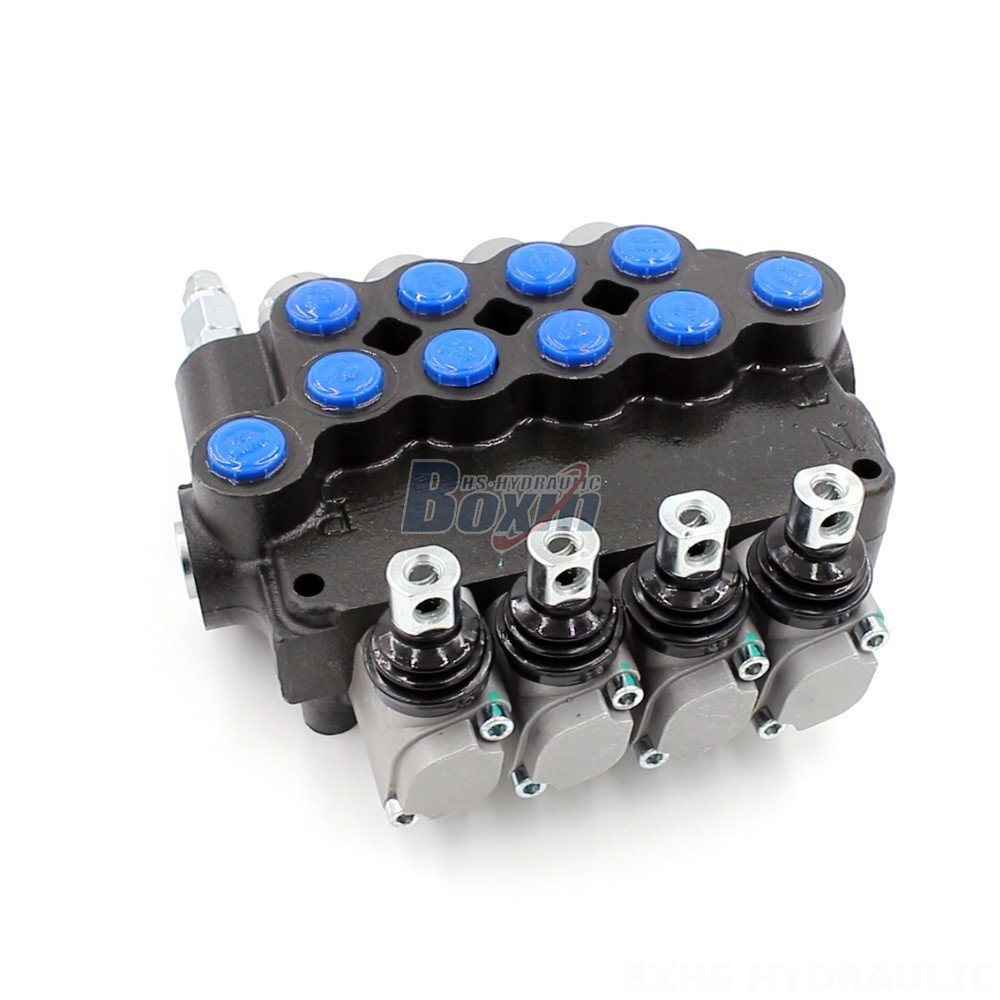

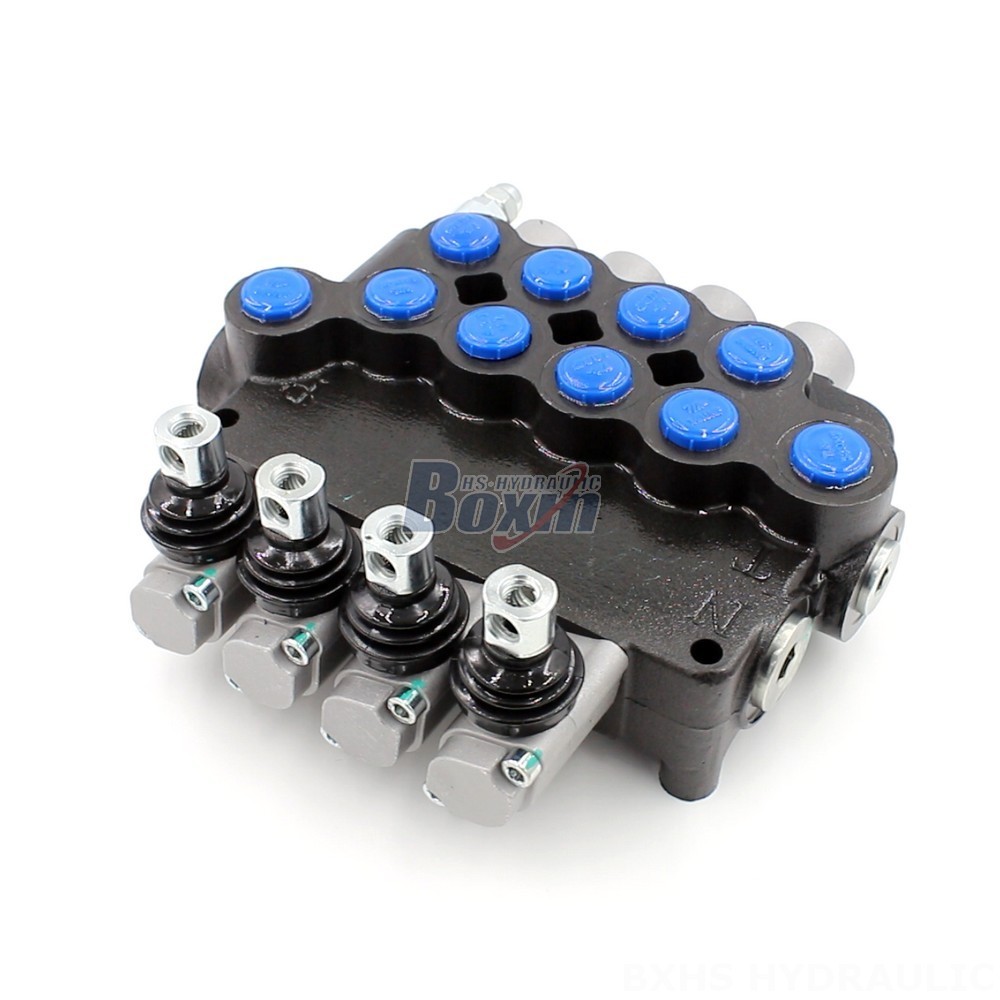

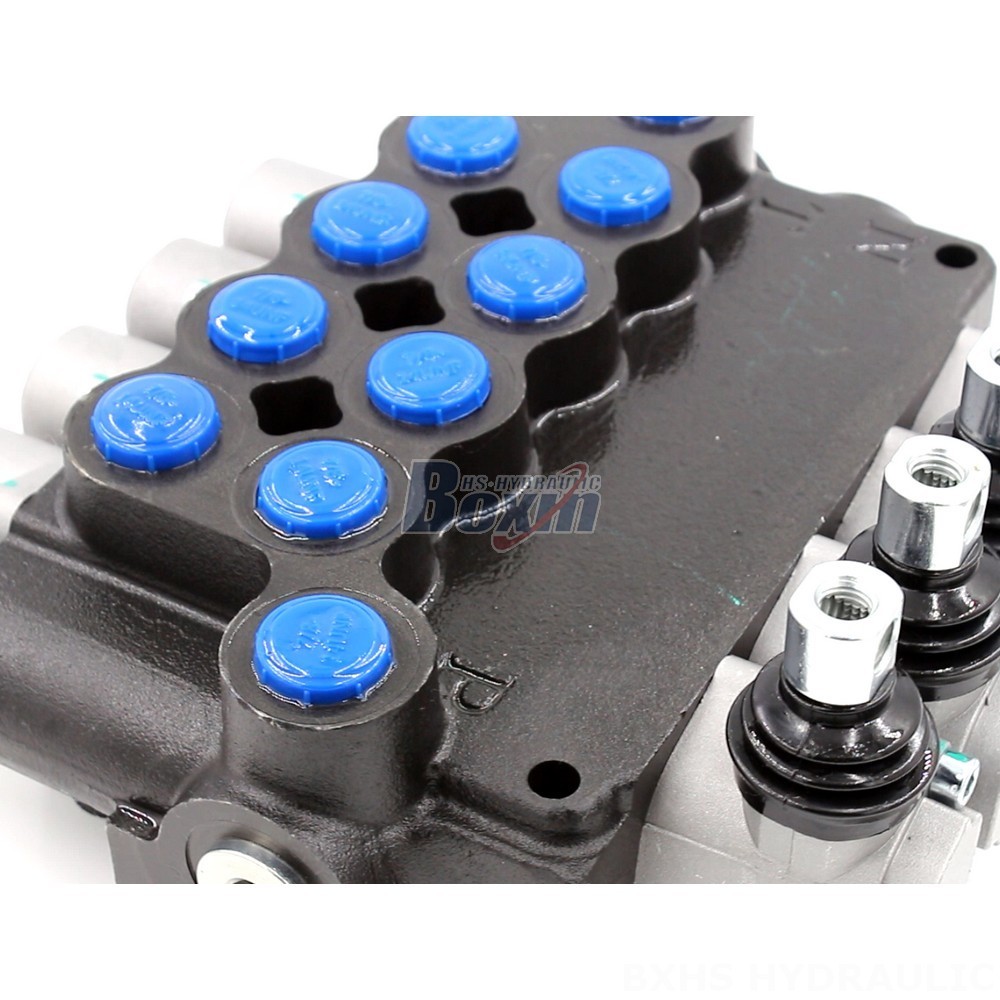

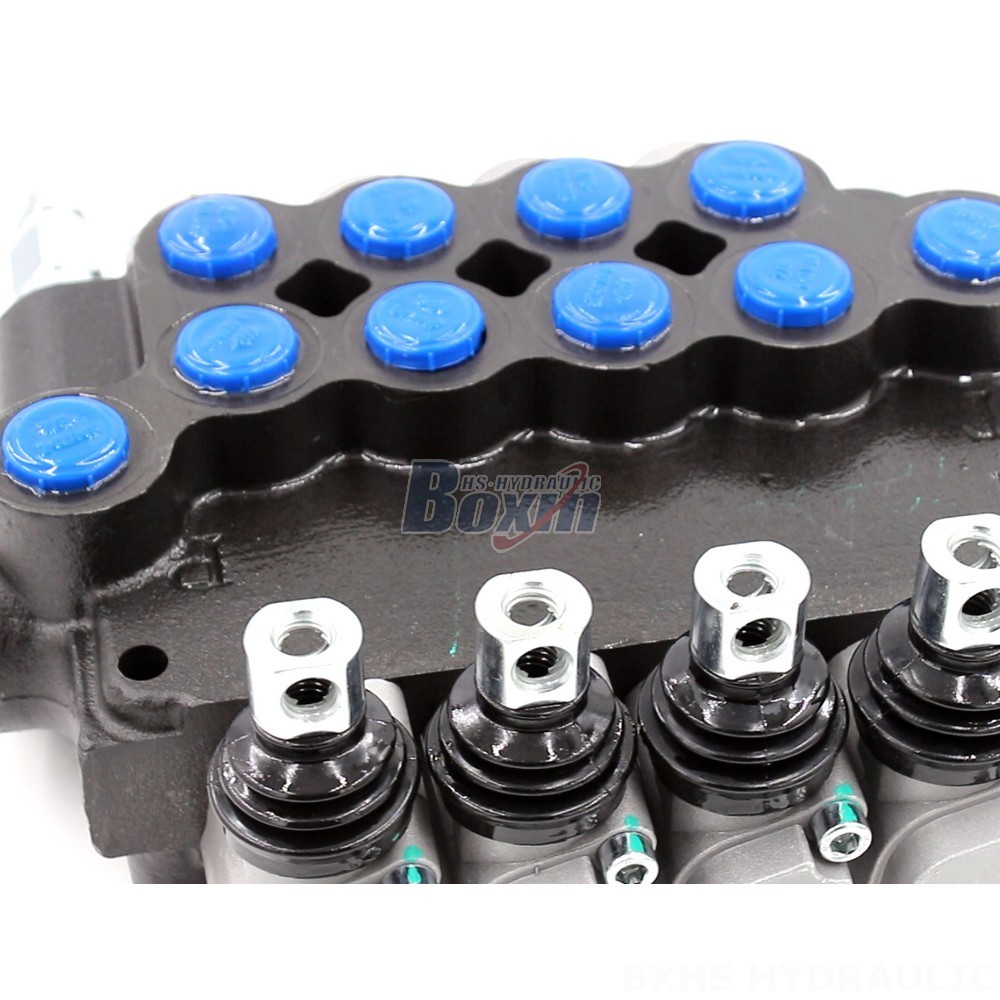

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:SAE 10

Port wylotowy:SAE 10

Rozmiar portu:SAE 10

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*27*11

Waga brutto:13.40 kg

Dostępność: W magazynie

1243 Osoby oglądają ten produkt

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT drawing image

The P80-U78-4OT Hydraulic Control Panel is a 4-spool, monoblock directional valve designed for material handling, construction, agriculture, and industrial vehicle applications. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for various equipment like telehandlers, forklifts, and mini-excavators.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80-U78-4OT Hydraulic Control Panel features a 4-spool, monoblock design, providing a compact and reliable solution for hydraulic systems. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. The control method is manual, offering straightforward operation. The valve is designed for an operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This durable and efficient valve is specifically designed for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
