Hydraulic Directional Control Valve P80-G12-1OW | Wholesale & OEM

Metoda sterowania:Ręczna

Szpula:1-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*15*11

Waga brutto:5.00 kg

Dostępność: W magazynie

1215 Osoby oglądają ten produkt

Hydraulic Directional Control Valve P80-G12-1OW | Wholesale & OEM

Hydraulic Directional Control Valve P80-G12-1OW | Wholesale & OEM

Hydraulic Directional Control Valve P80-G12-1OW | Wholesale & OEM drawing image

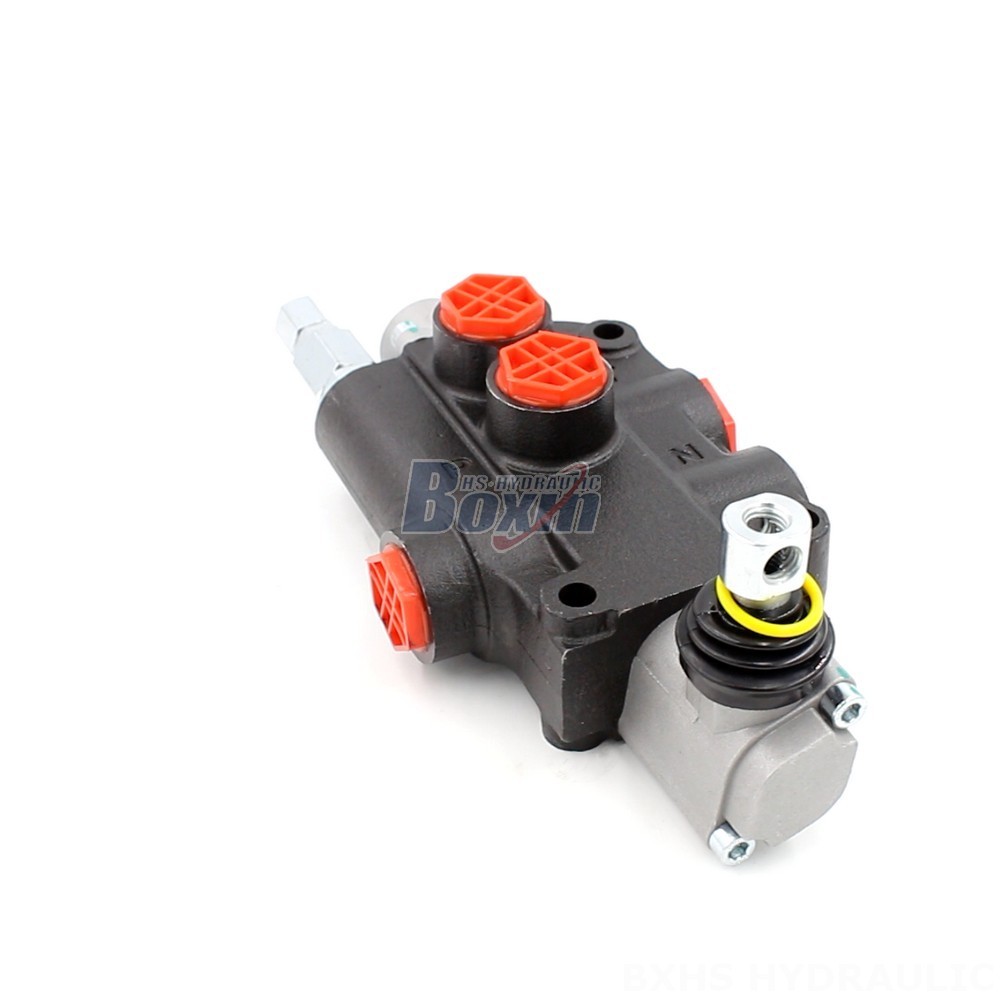

The P80-G12-1OW is a high-performance, proportional hydraulic directional control valve designed for use in a wide range of applications, including material handling, construction, and agriculture. This manual control, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar. Available for wholesale and OEM orders.

Seria P80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Rozmiar portu G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series proportional hydraulic directional control valve is a high-quality, reliable solution for your hydraulic system needs. Its monoblock structure offers durability and efficiency, while the manual control provides easy operation. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications. Its versatility extends to a range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve for wholesale and OEM orders, allowing you to integrate it seamlessly into your own designs or purchase it in bulk for your project. Contact us today to learn more about this reliable and efficient hydraulic directional control valve.
