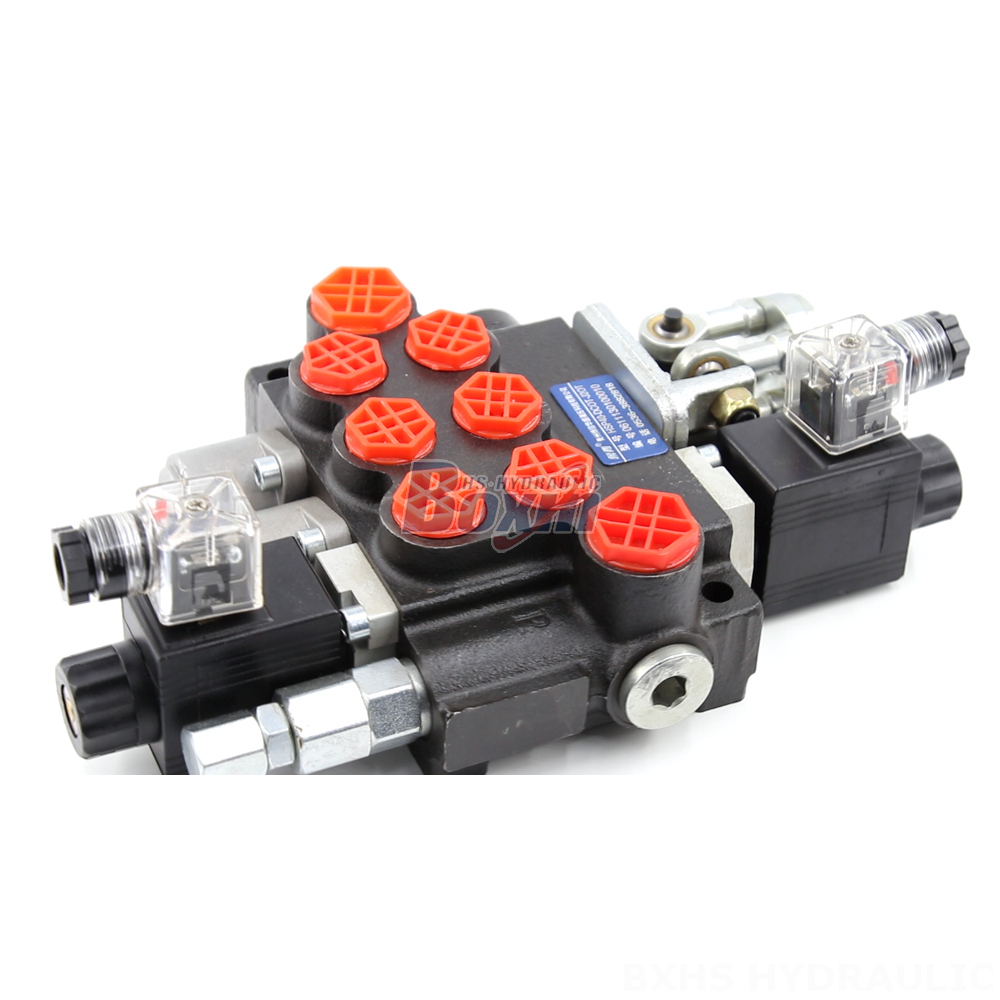

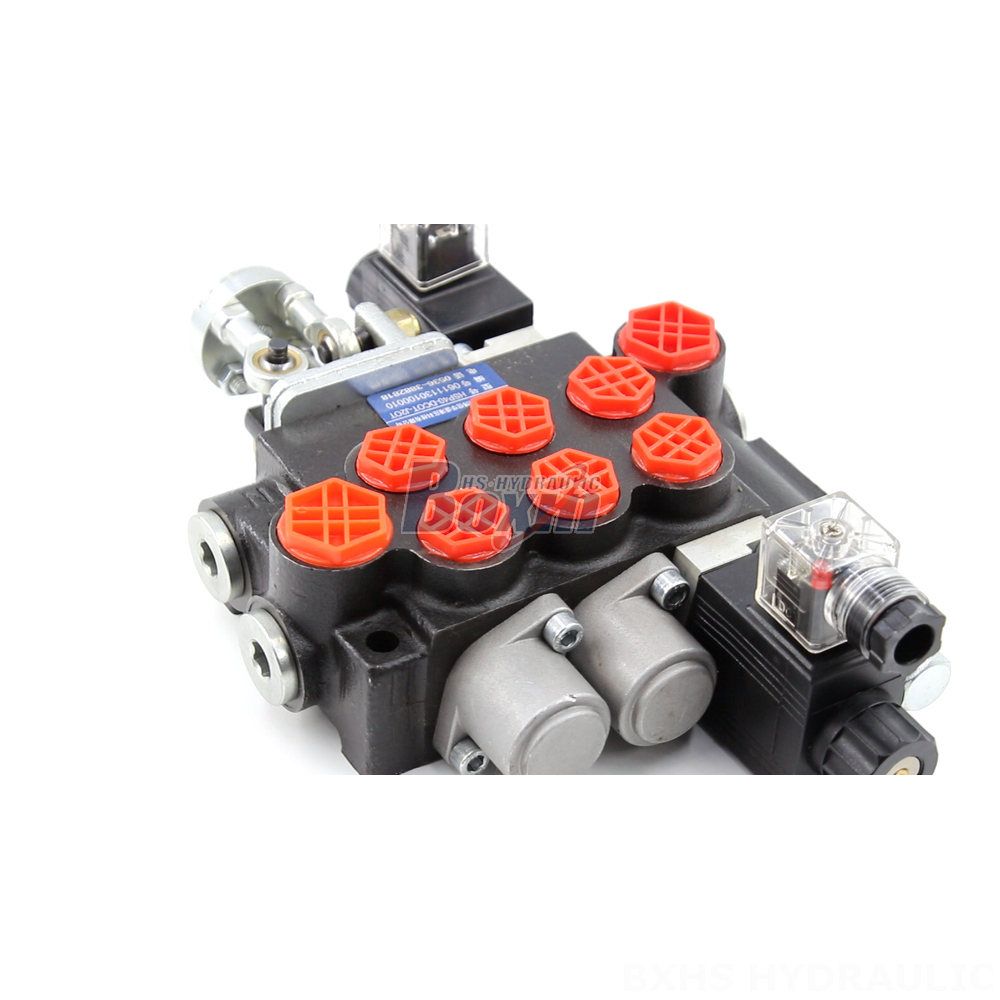

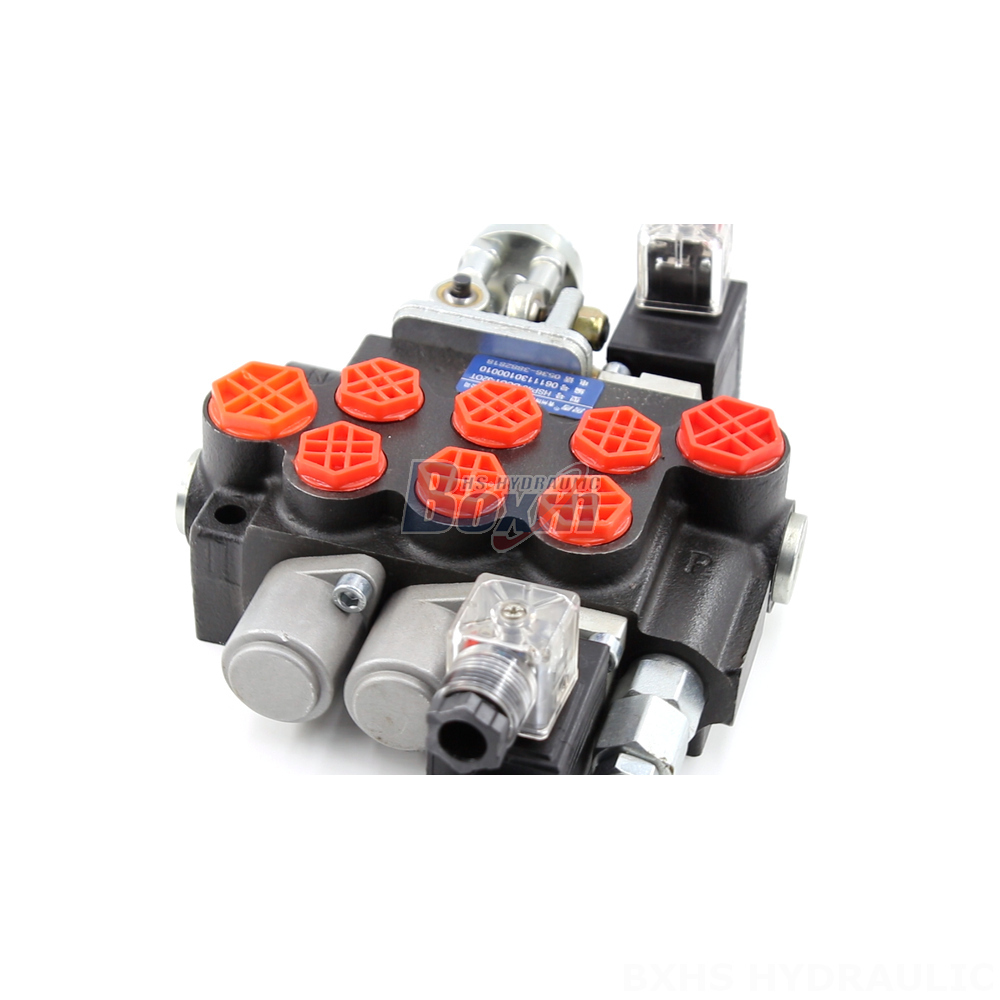

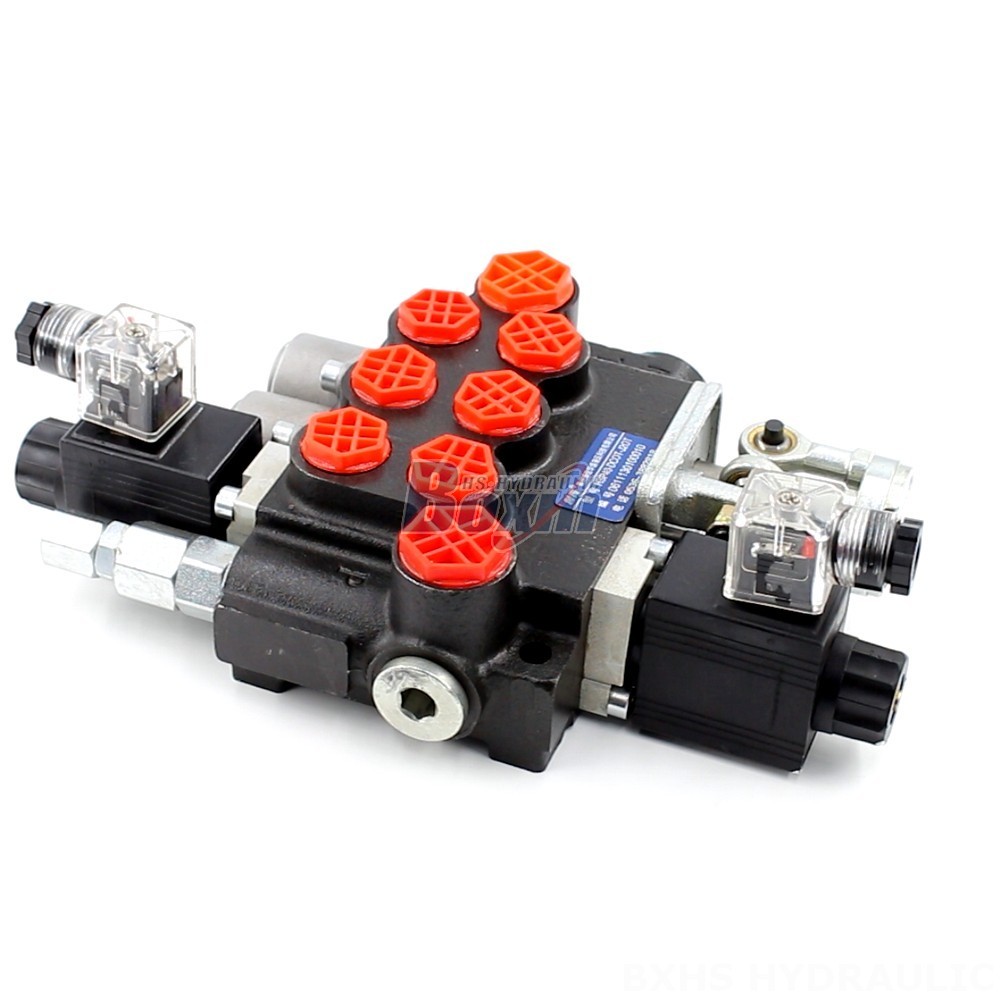

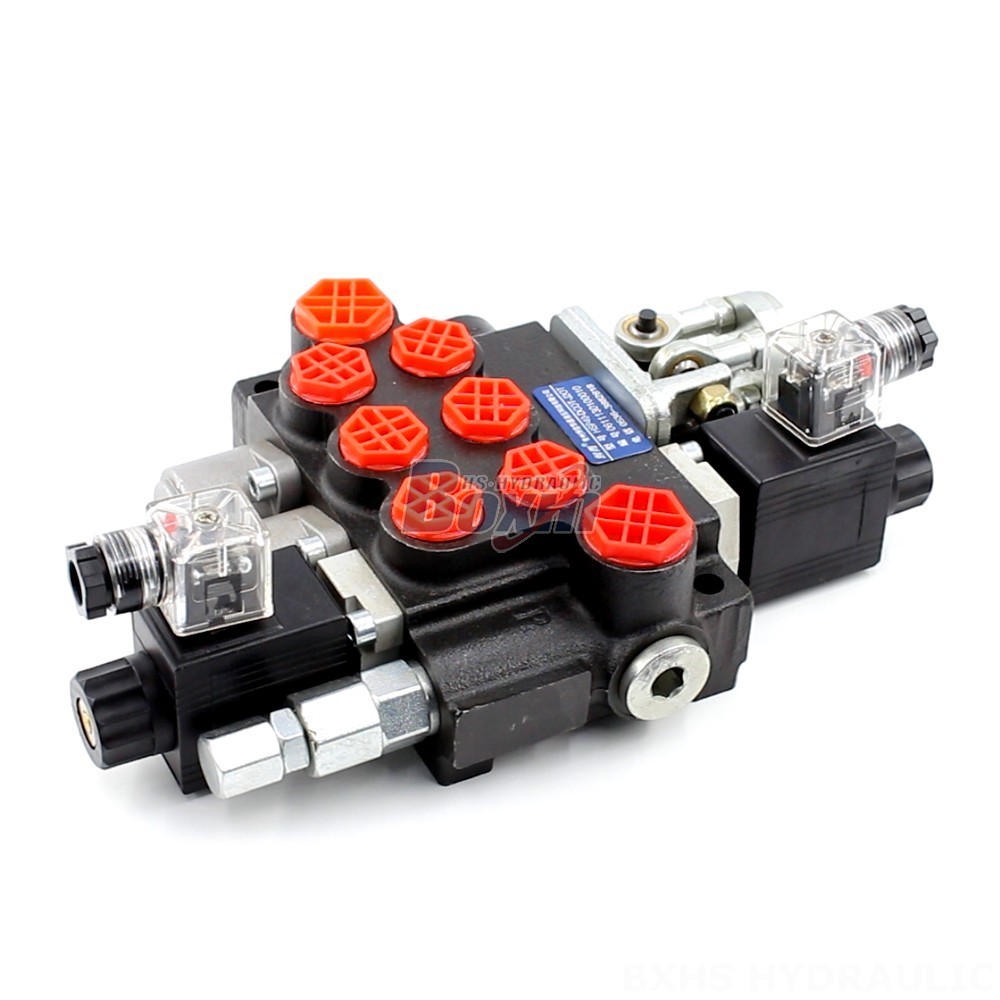

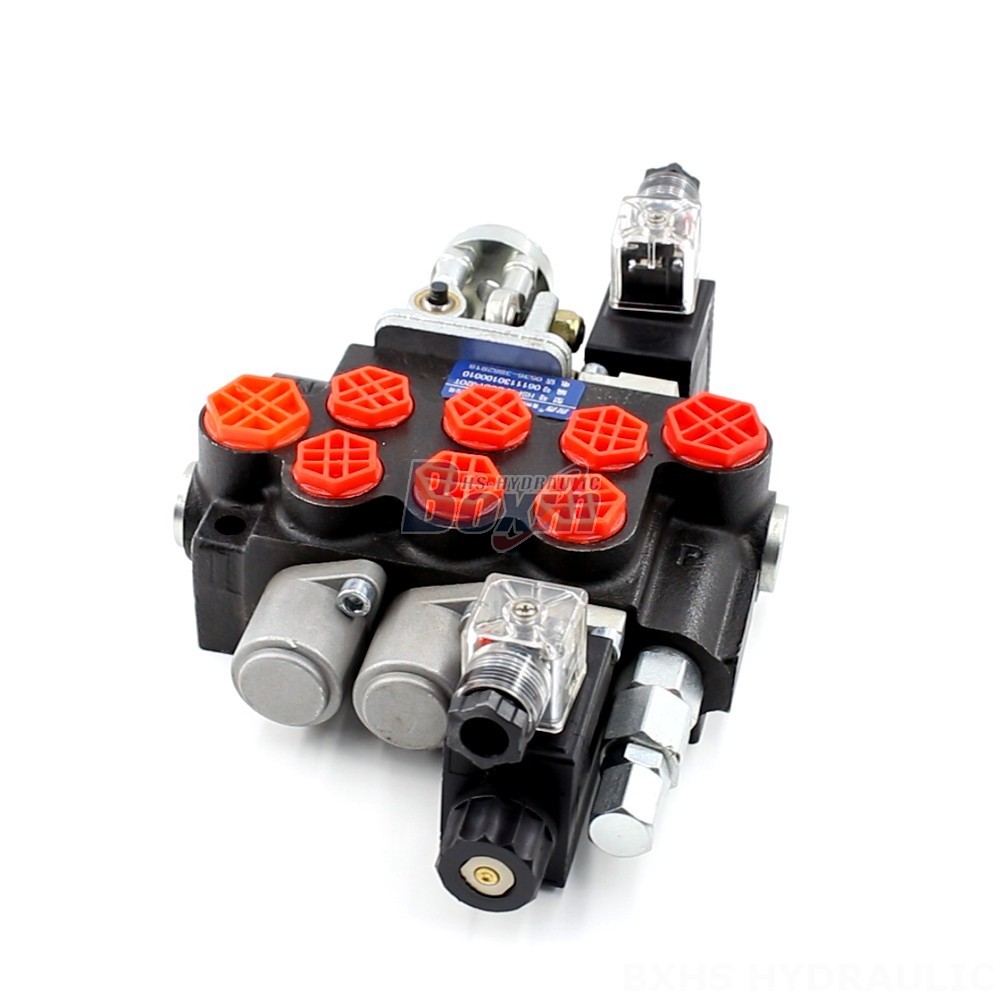

Hydraulic Directional Control Valve - P40 Series: Monoblock, 3 Spool, Solenoid & Joystick

Metoda sterowania:Elektromagnes i joystick

Szpula:3-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30*22*15

Waga brutto:10.00 kg

Dostępność: W magazynie

1270 Osoby oglądają ten produkt

Hydraulic Directional Control Valve - P40 Series: Monoblock, 3 Spool, Solenoid & Joystick

Hydraulic Directional Control Valve - P40 Series: Monoblock, 3 Spool, Solenoid & Joystick

Hydraulic Directional Control Valve - P40 Series: Monoblock, 3 Spool, Solenoid & Joystick drawing image

The P40 Series Hydraulic Directional Control Valve is a robust and reliable monoblock valve designed for heavy-duty applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. This 3-spool valve offers both solenoid and joystick control options, delivering precise and responsive hydraulic control for a wide range of equipment.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Hydraulic Directional Control Valve is a high-performance monoblock valve featuring a compact and robust design for reliable operation in demanding environments. It is equipped with 3 spools, offering versatile control options for hydraulic systems. The valve can be controlled via solenoid actuators or a joystick, providing flexibility and user-friendly operation. It is capable of handling high flow rates up to 40 L/min (10.5 US gpm) and withstands high pressures up to 250 bar (3600 psi). With a wide operating viscosity range and ambient temperature tolerance, this valve ensures optimal performance in various operating conditions. Its versatile design and robust construction make it suitable for a variety of applications in various industries, including material handling, construction, earthmoving, agriculture, and industrial vehicles. The valve is also designed for various equipment, such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer a range of services, including manufacturing, OEM, ODM, and customization options to meet specific customer requirements.
