Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Metoda sterowania:Ręczna

Szpula:5-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P80F Zawór sterujący jednoczęściowy

Rozmiar opakowania:26*30*11

Waga brutto:16.00 kg

Dostępność: W magazynie

1258 Osoby oglądają ten produkt

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier drawing image

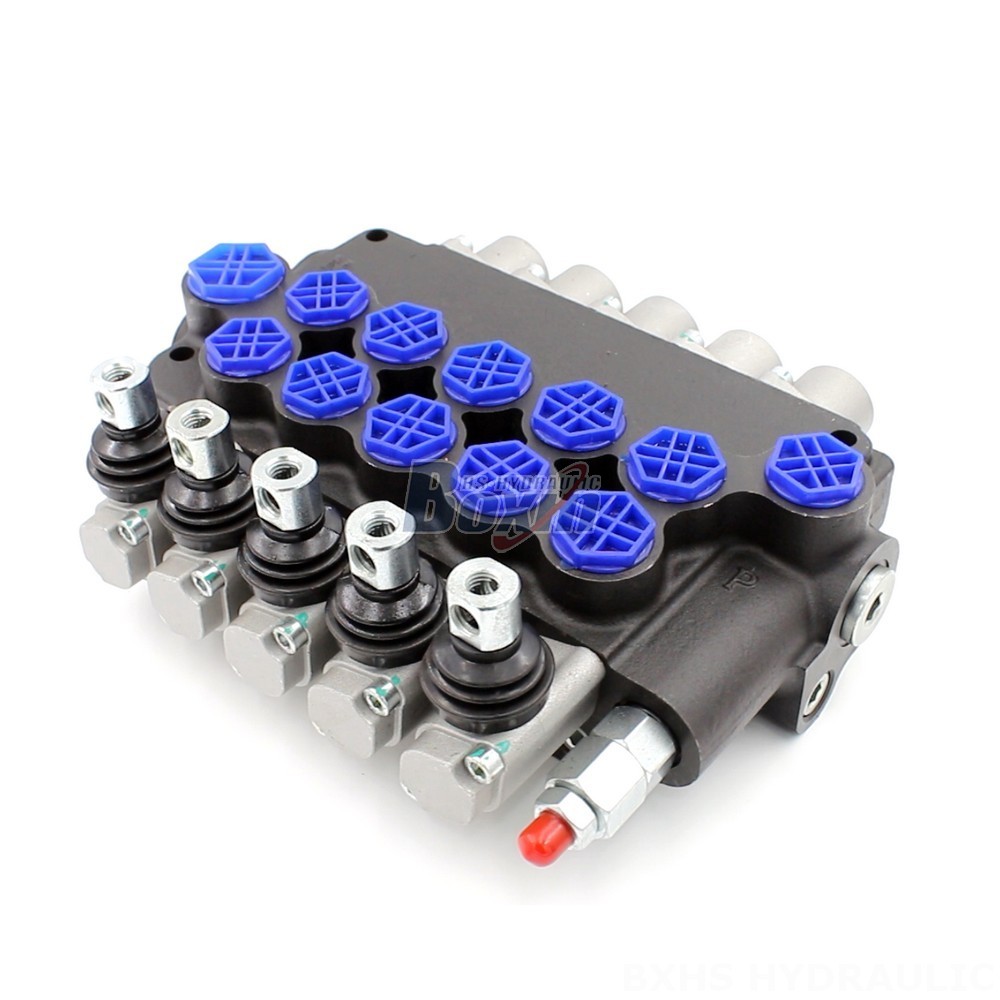

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.

Seria P80F Zawór sterujący jednoczęściowy Parametry
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza
Rozmiar portu G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Maksymalne ciśnienie 315 bar (4600 psi)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Typ konstrukcji Zawór blokowy
Port wlotowy G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
