Hydraulic Directional Control Valve | Manual & Joystick Operation | Wholesale & OEM

Metoda sterowania:Ręczna i joystick

Szpula:6-sekcyjny

Przepływ znamionowy:20 l/min (5,2 galonów amerykańskich na min)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria DCV20 Zawór sterujący jednoczęściowy

Rozmiar opakowania:32*35*2

Waga brutto:9.00 kg

Dostępność: W magazynie

1695 Osoby oglądają ten produkt

Hydraulic Directional Control Valve | Manual & Joystick Operation | Wholesale & OEM

Hydraulic Directional Control Valve | Manual & Joystick Operation | Wholesale & OEM

Hydraulic Directional Control Valve | Manual & Joystick Operation | Wholesale & OEM drawing image

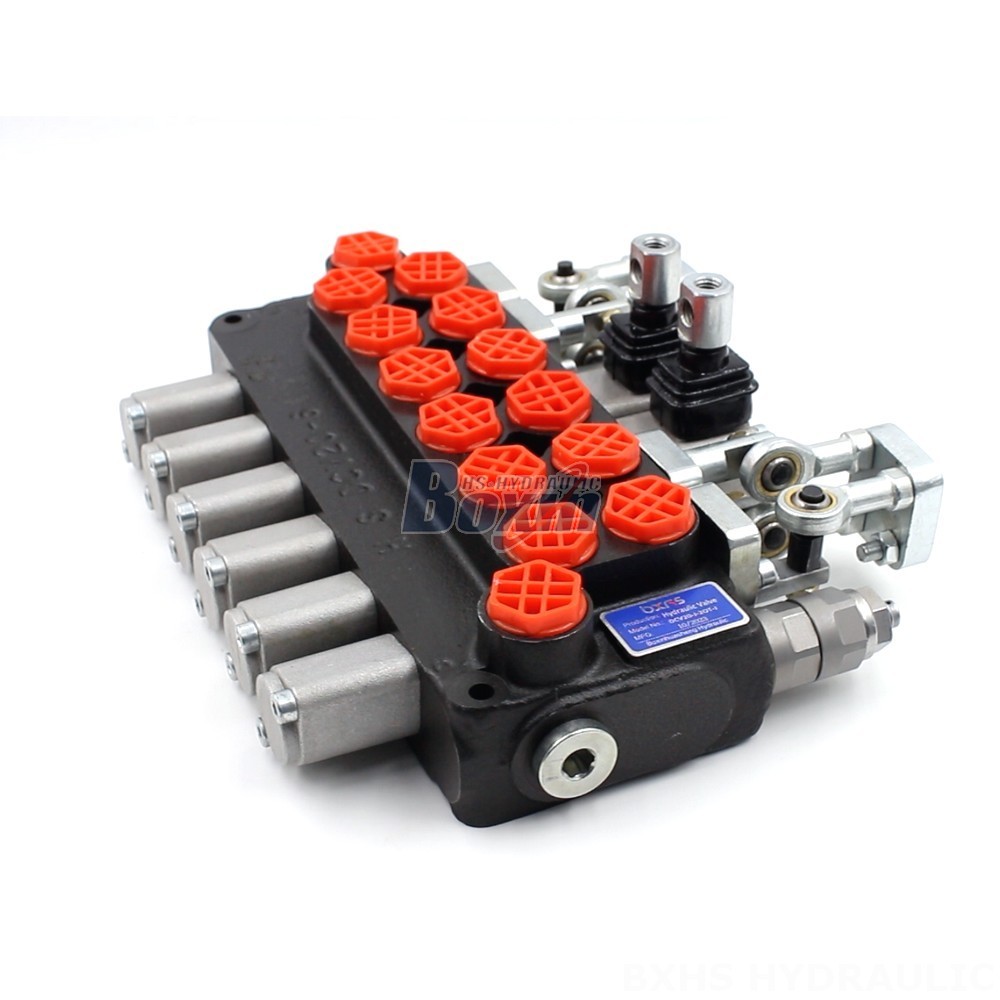

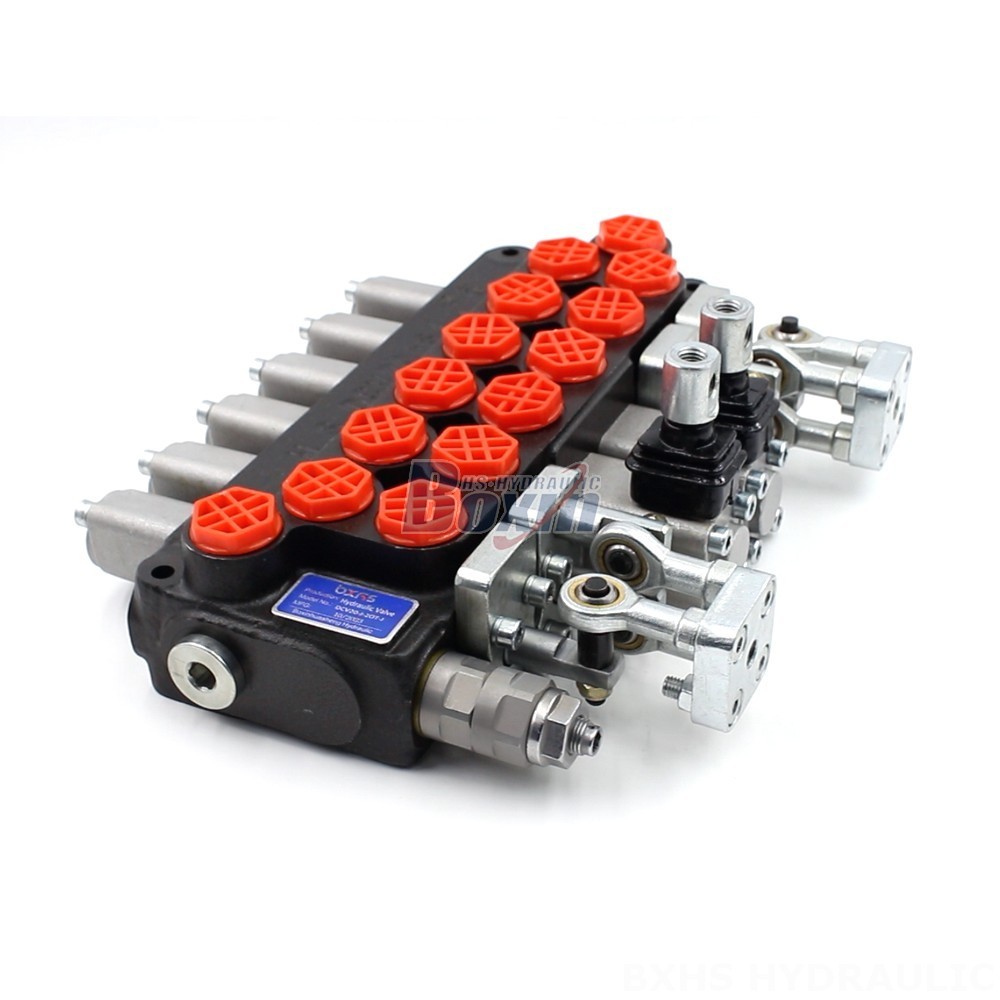

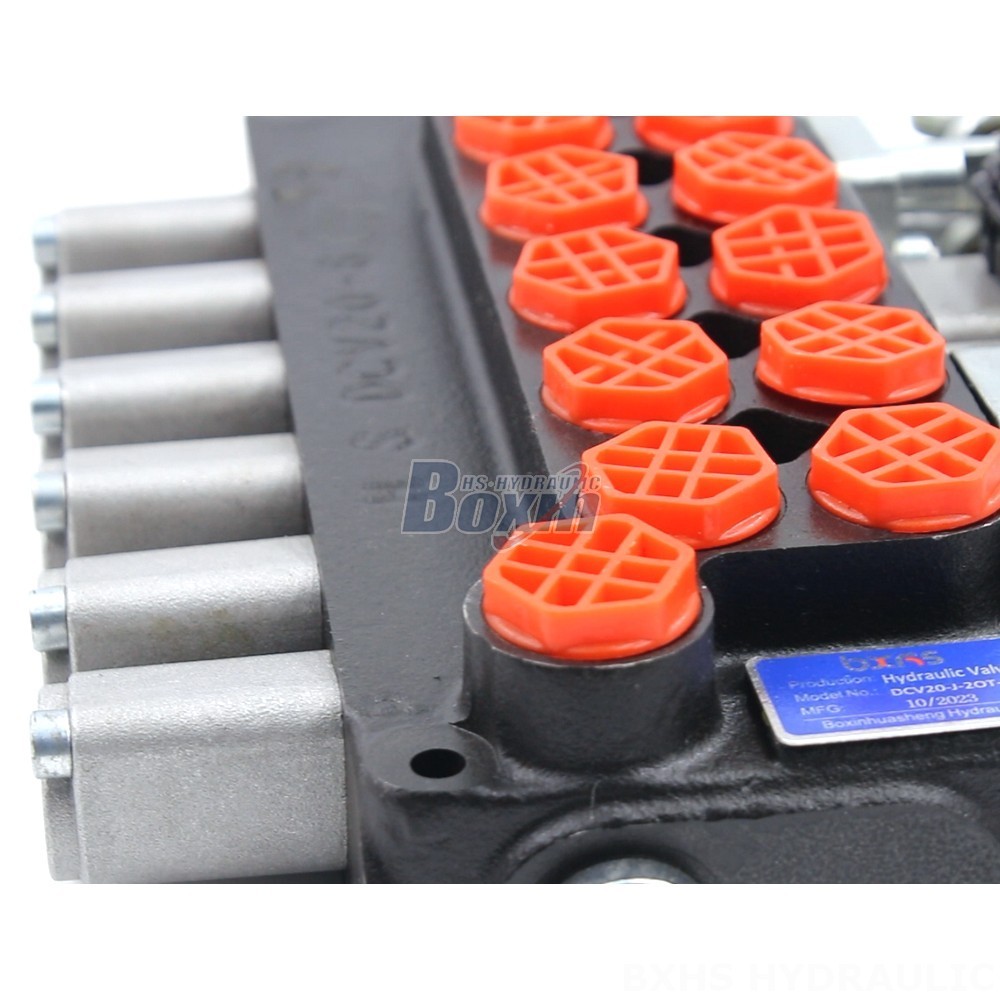

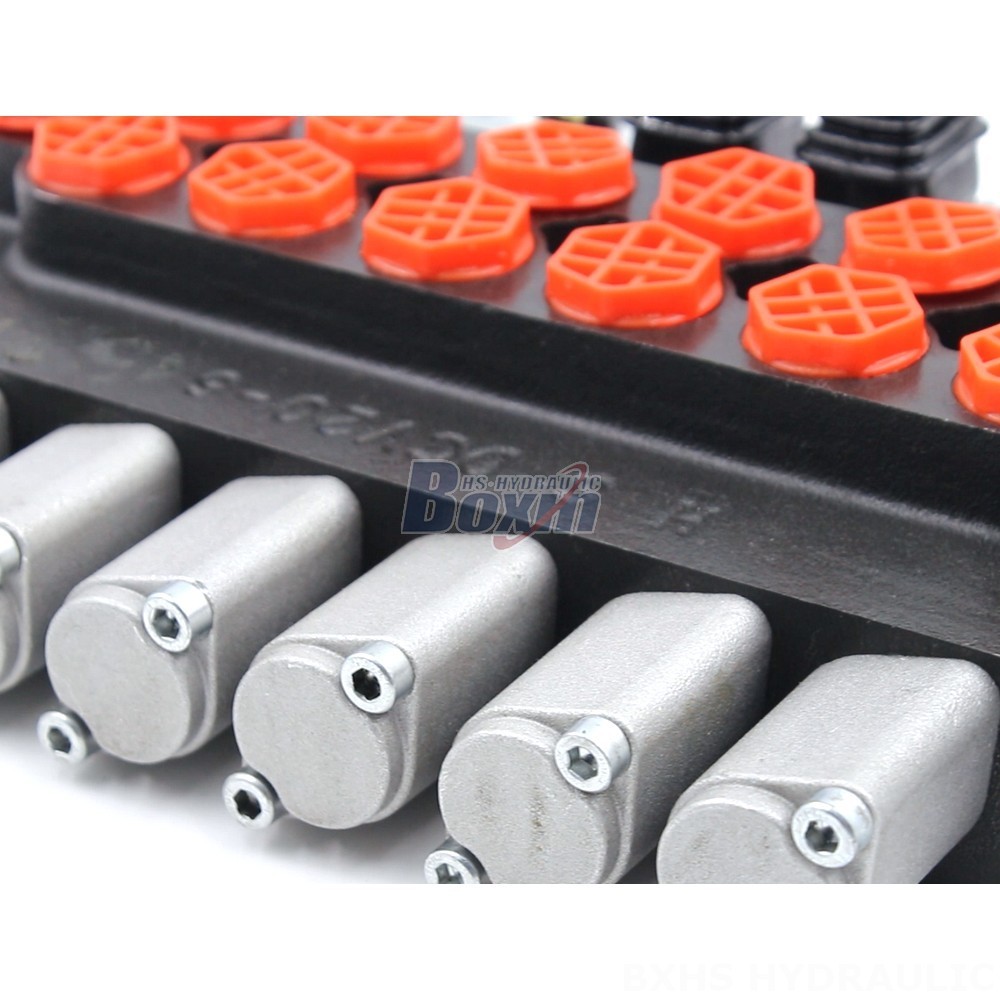

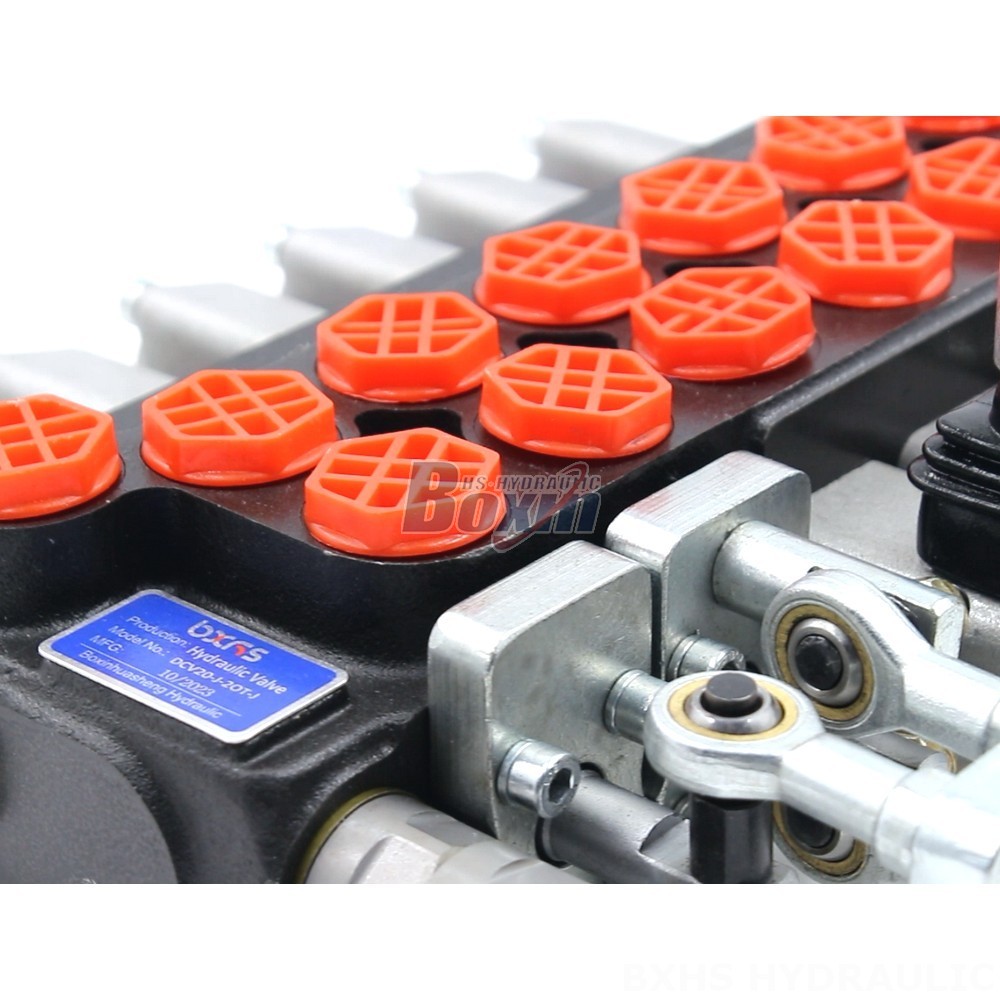

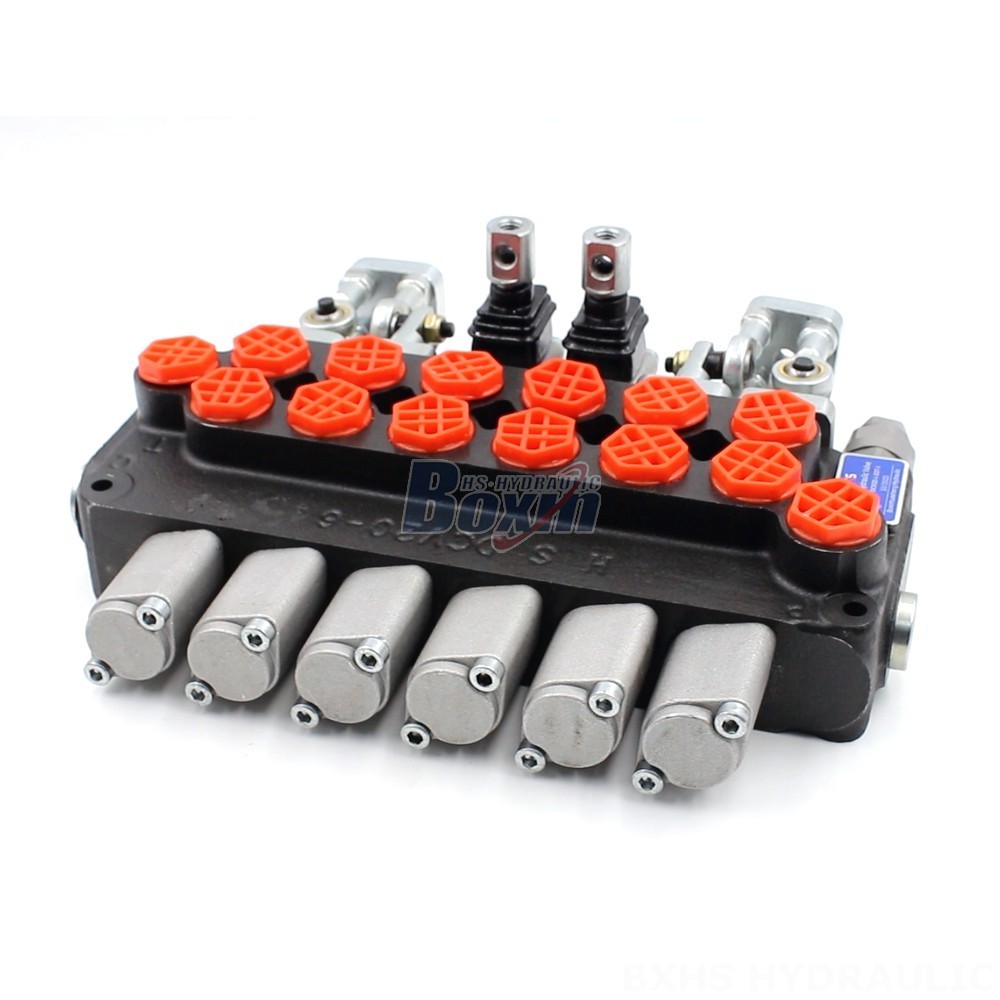

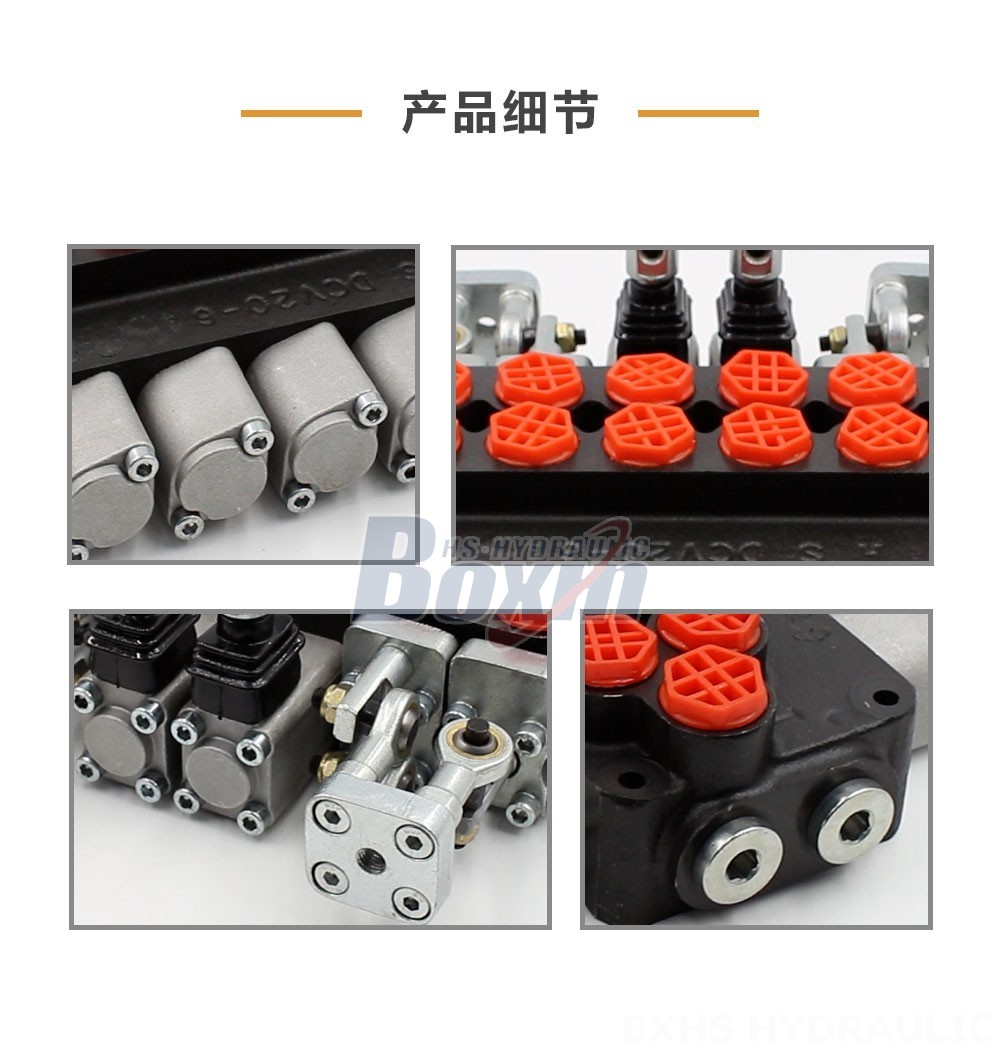

This is a 6-section, monoblock hydraulic directional control valve designed for manual and joystick operation, offering versatile control for various construction, material handling, agricultural, and industrial applications. With a 20 L/min flow rate and 350 bar pressure, it is ideal for use in telehandlers, forklifts, excavators, skid steer loaders, wheel loaders, backhoes, tractors, harvesters, and more.

Seria DCV20 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Elektrohydrauliczna, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 20 l/min (5,2 galonów amerykańskich na min)
Maksymalne ciśnienie 350 bar (5100 psi)
Port wlotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Port wylotowy G3/8, M18×1.5, SAE 8, 3/8 NPT
Rozmiar portu G3/8, M18×1.5, SAE 8, 3/8 NPT

This high-performance hydraulic directional control valve from our manufacturing facility is designed for demanding applications across a variety of industries. It features a 6-section monoblock structure for durability and efficiency, with a rated flow of 20 L/min (5.2 US gpm) and a maximum pressure of 350 bar (5100 psi). This valve is compatible with a wide range of operating viscosity (15-75 mm²/s) and ambient temperatures (-40°C to +80°C). The valve comes with a 6-spool configuration and is part of our DCV20 series. The valve is suitable for use in various applications including construction and earthmoving, material handling, agriculture, and industrial vehicles. Specific applications include telehandlers, forklifts, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, and harvesters. We offer this valve for wholesale purchase, OEM applications, and customized solutions to meet your specific needs. We are actively seeking distributors, wholesalers, agents, and traders to expand our global market reach.
