Hydraulic Directional Control Valve HSDLS180: Electric Unloading, Factory Supply

Metoda sterowania:Ręczna

Szpula:4-sekcyjny

Przepływ znamionowy:160 l/min (42,2 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/4

Port wylotowy:G1

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SDS180 Zawór kierunkowy sekcyjny

Rozmiar opakowania:36*40*18

Waga brutto:34.00 kg

Dostępność: W magazynie

525 Osoby oglądają ten produkt

Hydraulic Directional Control Valve HSDLS180: Electric Unloading, Factory Supply

Hydraulic Directional Control Valve HSDLS180: Electric Unloading, Factory Supply

Hydraulic Directional Control Valve HSDLS180: Electric Unloading, Factory Supply drawing image

High-performance Hydraulic Directional Control Valve HSDLS180, 4-section, 160 L/min rated flow, 350 bar max pressure. Factory direct supply, OEM/ODM available. Ideal for material handling, construction, and agriculture.

Seria SDS180 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Hydrauliczna
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 160 l/min (42,2 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi), 350 bar (5100 psi)
Port wlotowy G3/4, G1, SAE 12
Port wylotowy G1, SAE 16
Rozmiar portu G3/4, G1, SAE 12

We are a global hydraulic product manufacturer offering manufacturing, OEM, ODM, customization, and wholesale services. We are seeking distributors, wholesalers, agents, and trading companies to partner with.

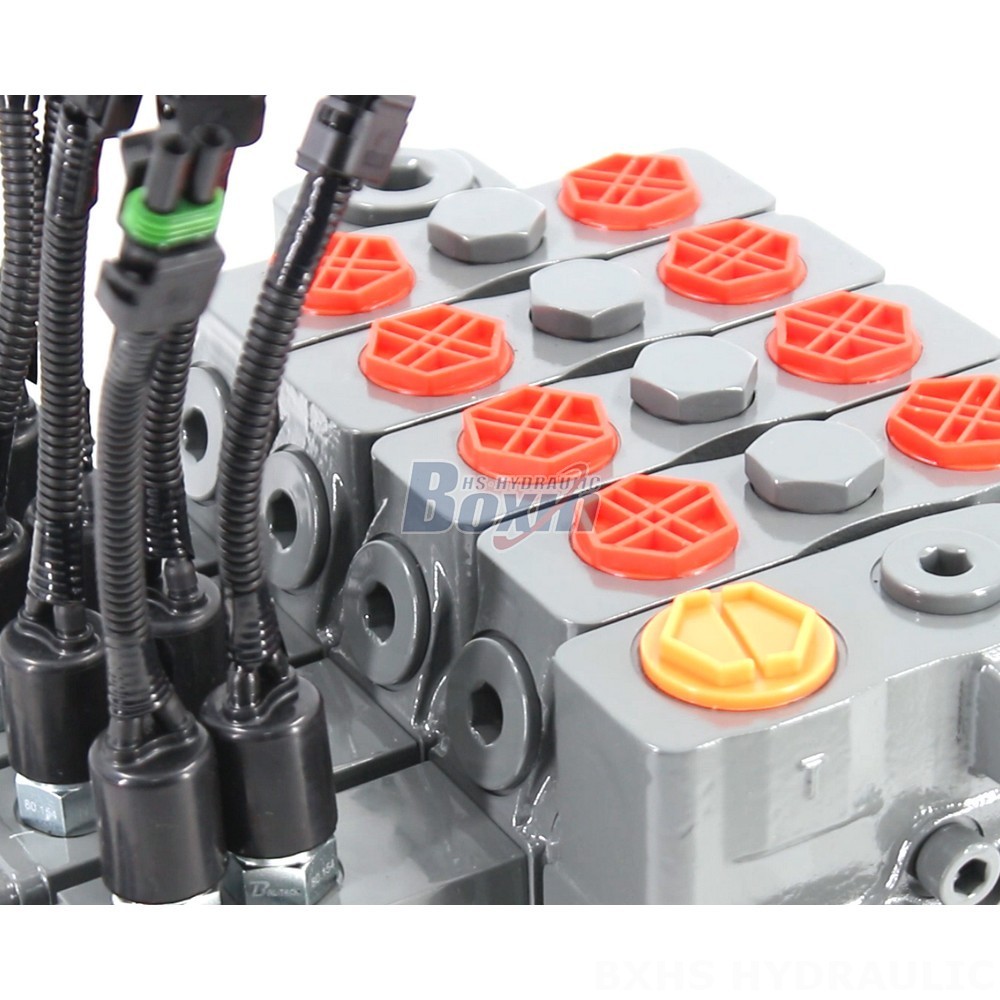

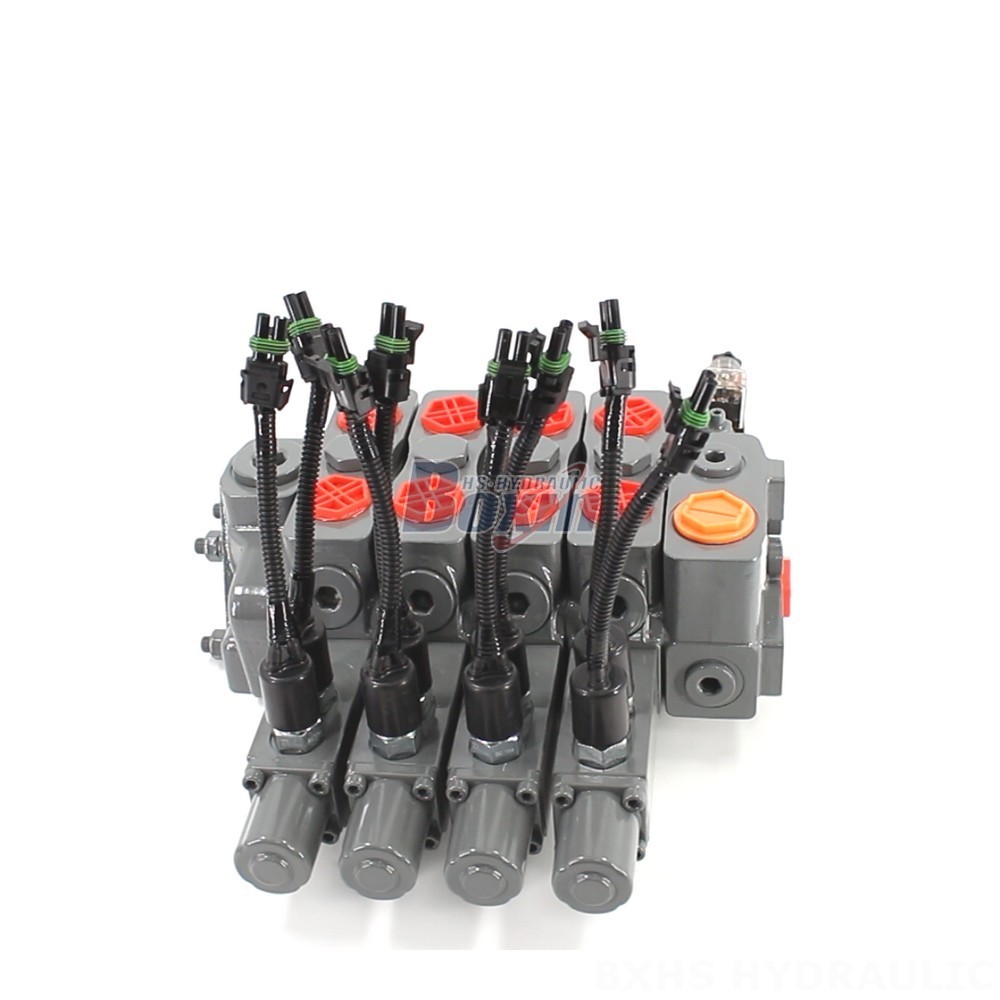

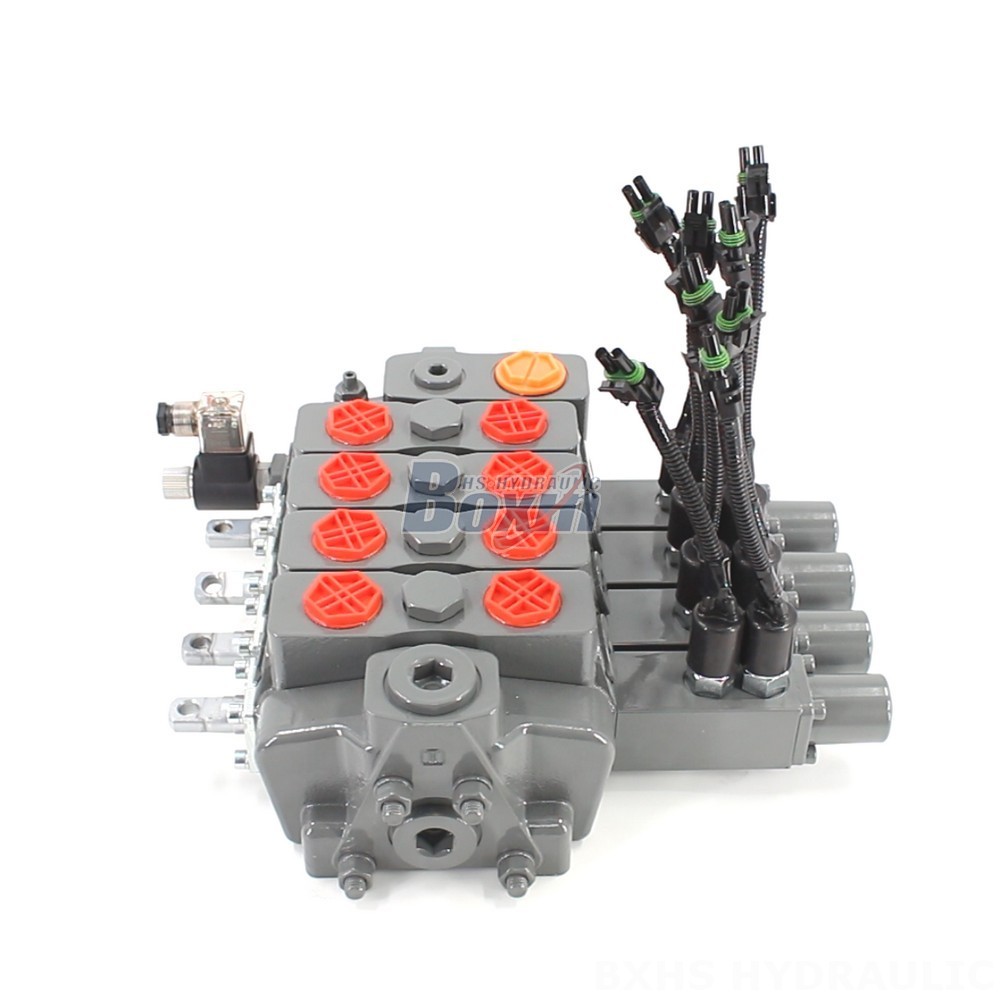

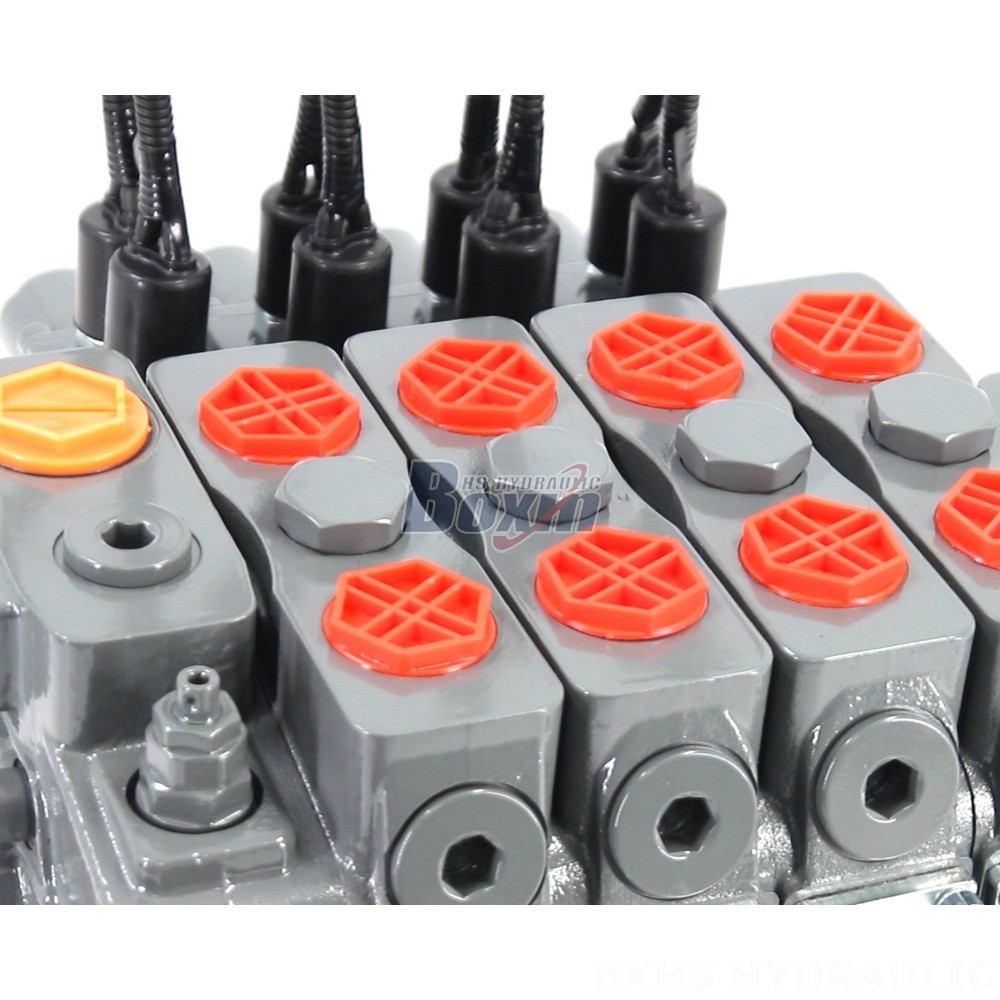

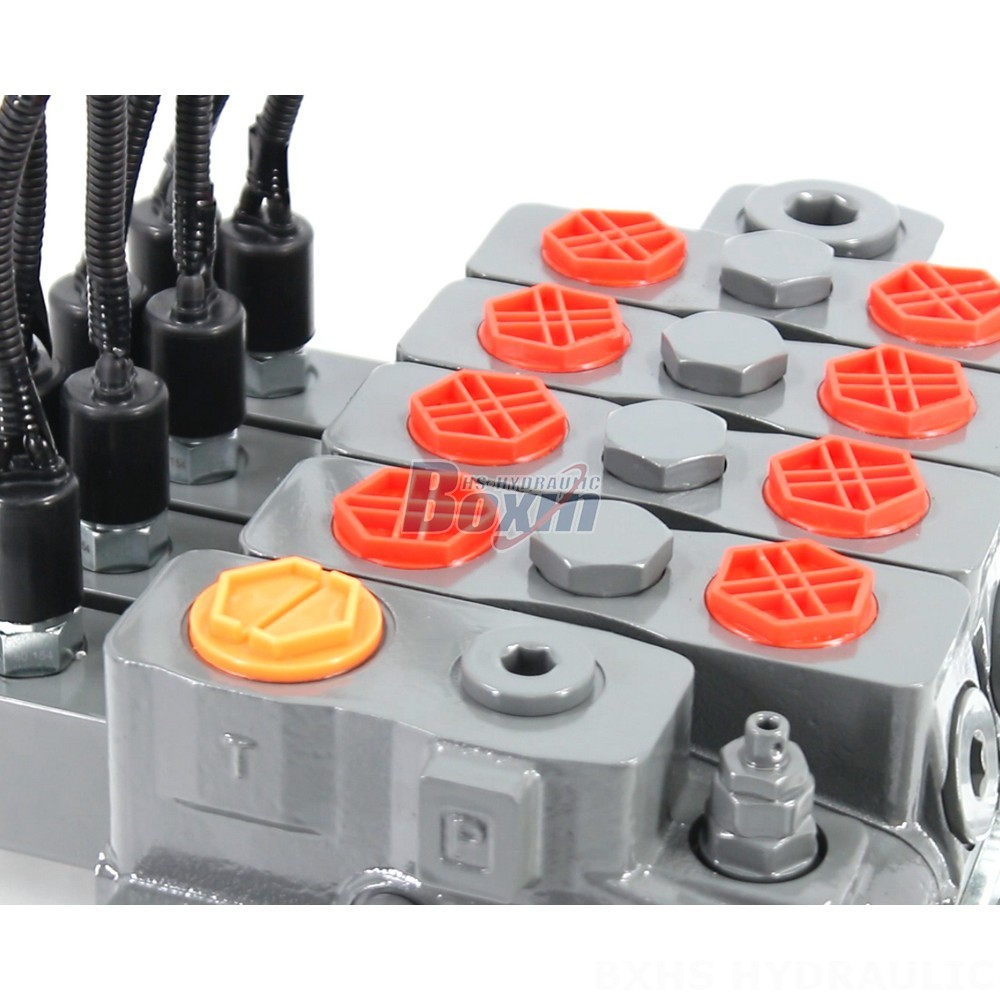

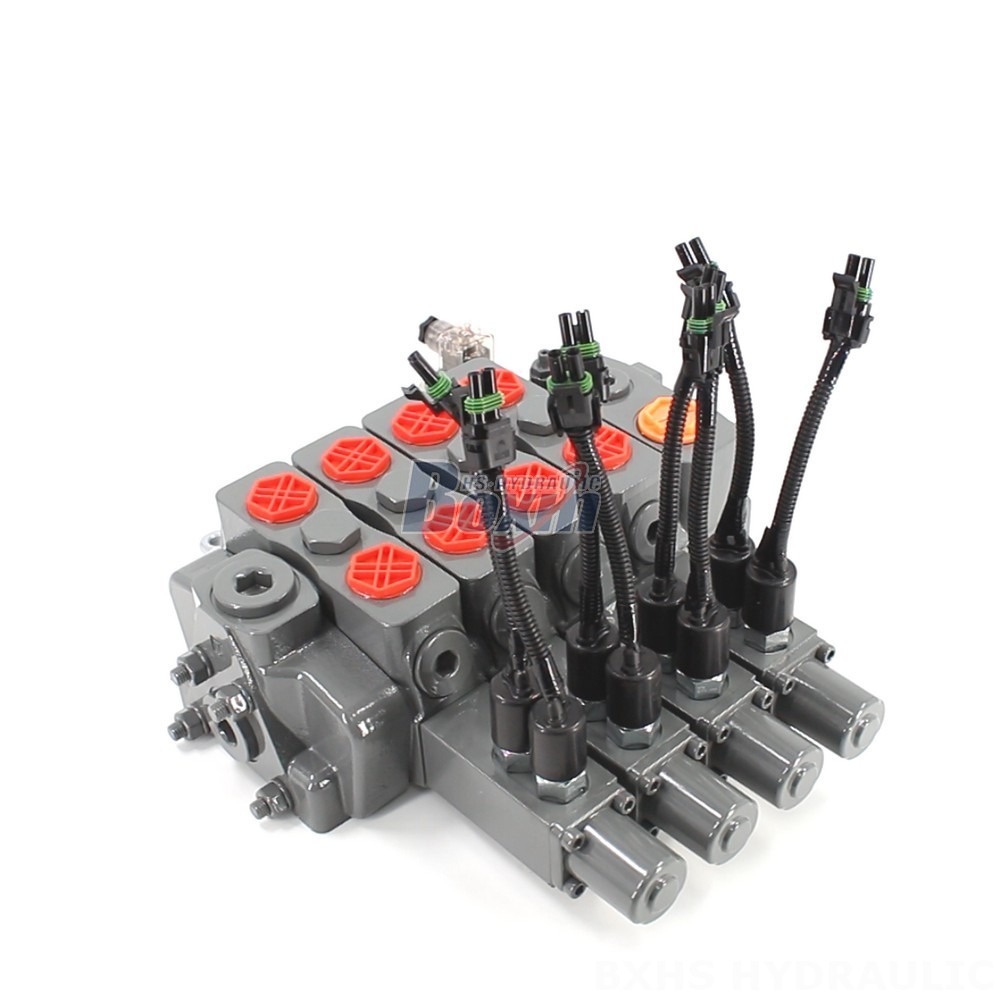

Our flagship product, the **Hydraulic Directional Control Valve HSDLS180**, is a high-performance, **4-section sectional valve** with **electric unloading** capabilities. This robust valve boasts a rated flow of **160 L/min (42.2 US gpm)** and a maximum pressure of **350 bar (5100 psi)**. Its versatility extends to a wide operating viscosity range (12-400 mm²/s) and ambient temperature range (-40°C to +80°C). The **4-spool** design provides precise control, making it suitable for diverse applications.

**Key Features:**
* **Control Method:** Manual
* **Rated Flow:** 160 L/min
* **Max Pressure:** 350 bar
* **Spool:** 4 Spool
* **Series:** SDS180 Series

**Applications:** Material Handling, Construction and Earth Moving, Industrial Vehicles, Agriculture. Specifically designed for Forklifts, Telehandlers, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Balers.

**Collaboration Opportunities:** As a factory direct supplier, we offer competitive pricing and flexible options for OEM, ODM, customization, and wholesale orders. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to expand our market reach. Contact us today to discuss your specific needs and explore mutually beneficial partnerships. We offer **factory wholesale** pricing and guarantee **factory supply** quality.

**Important Keywords:** hydraulic directional control valve, 4 spool valve, sectional valve, high pressure, high flow, electric unloading, material handling, construction equipment, agriculture equipment, factory supply, OEM, ODM, wholesale.
