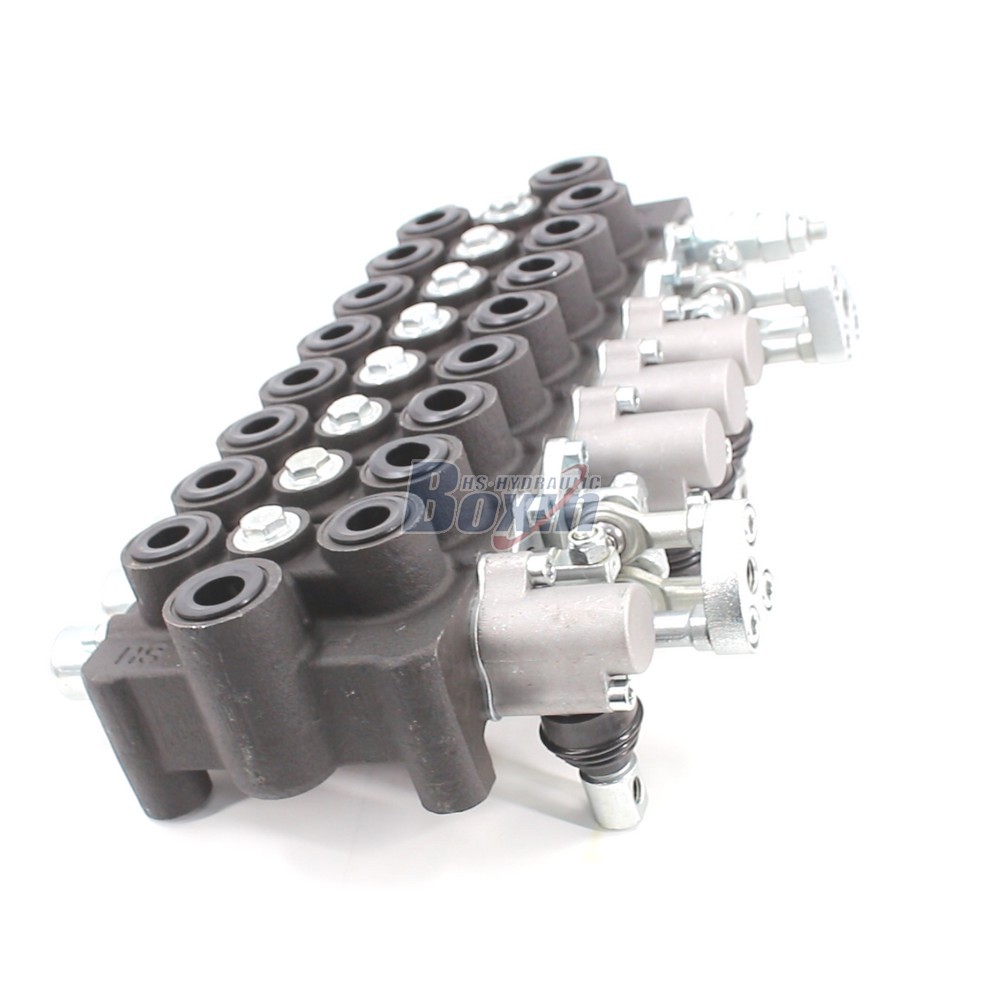

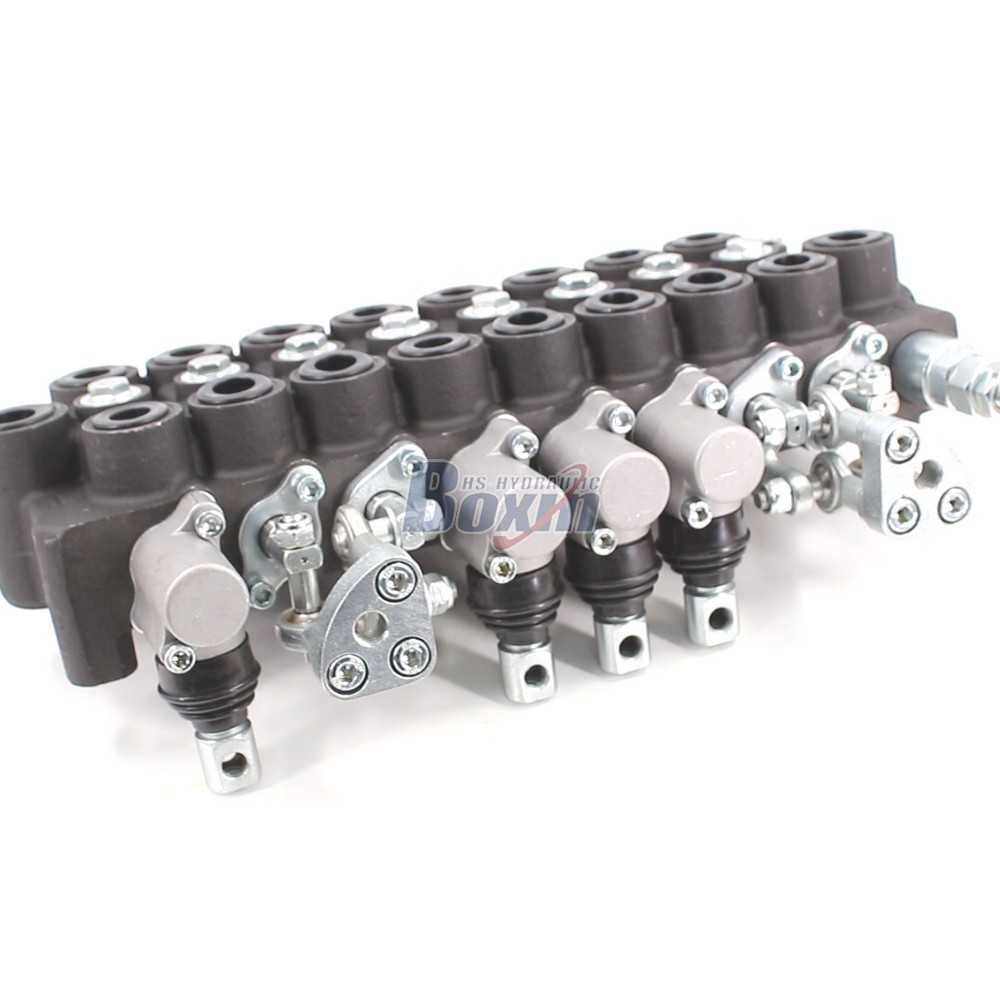

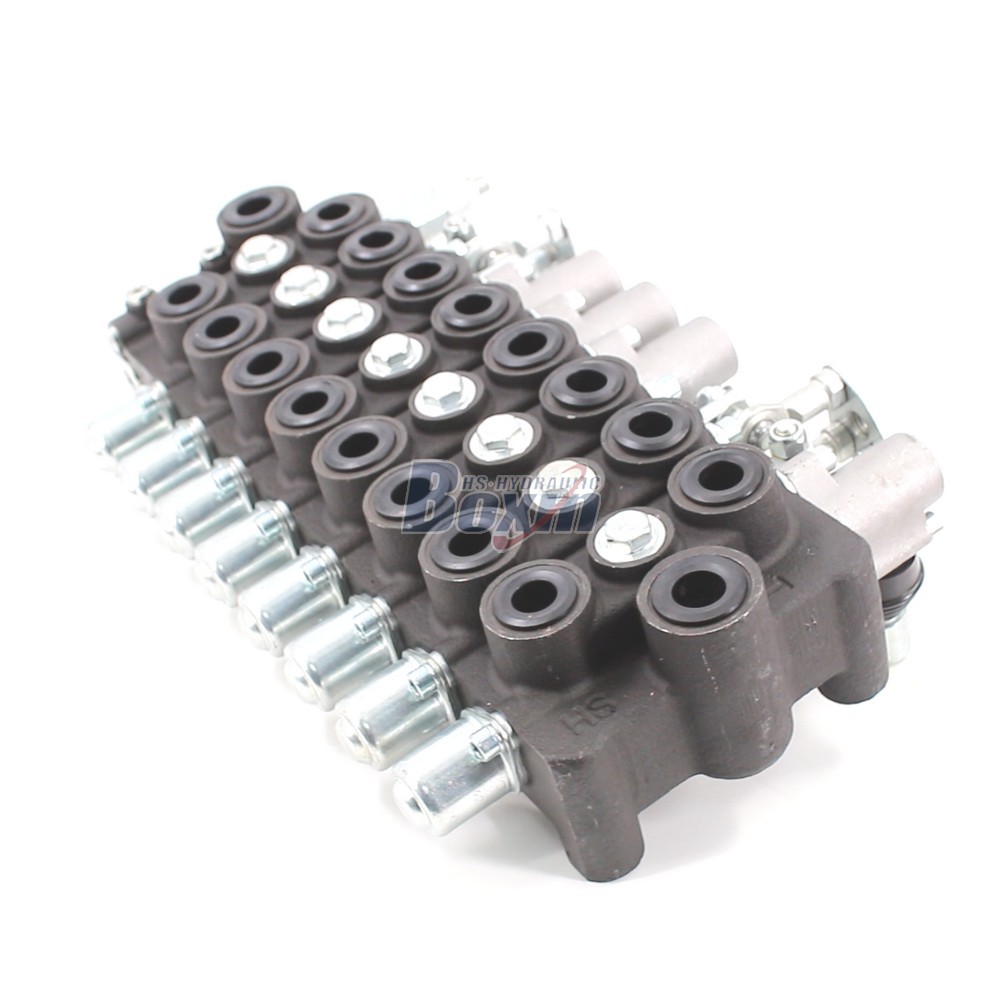

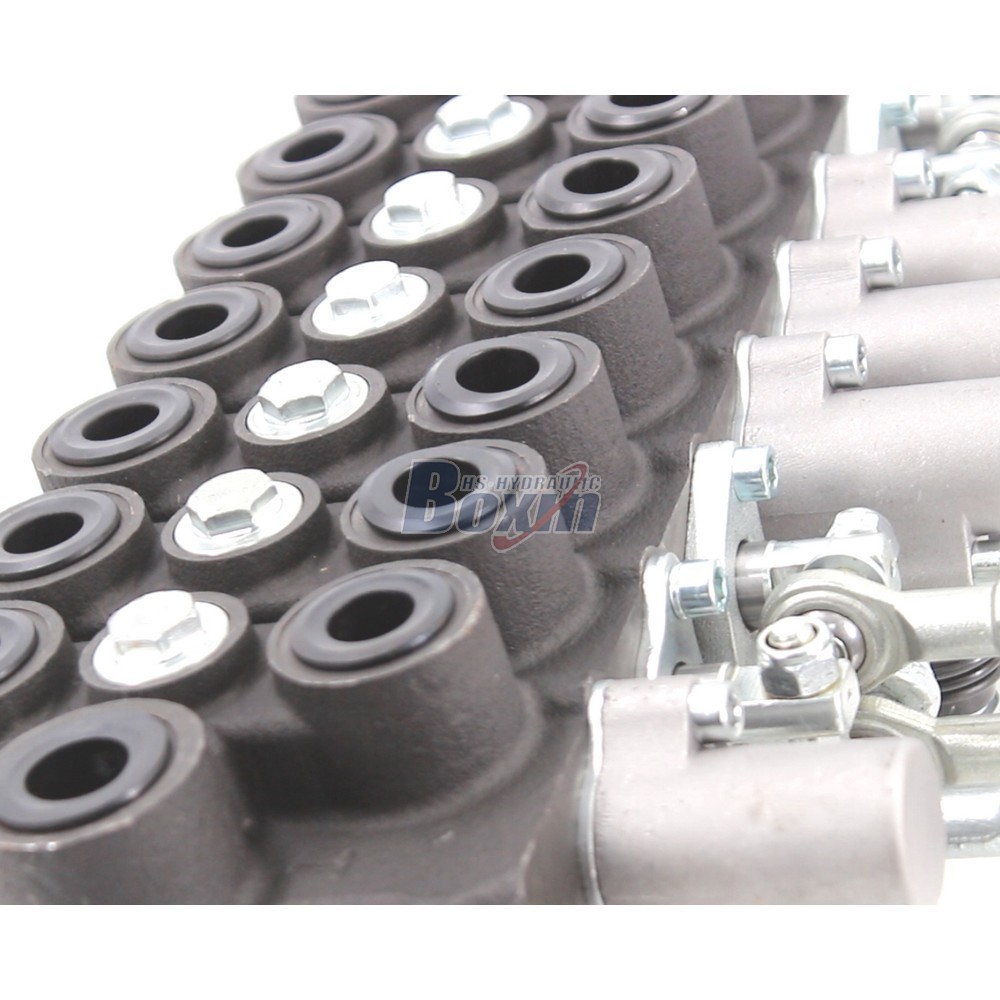

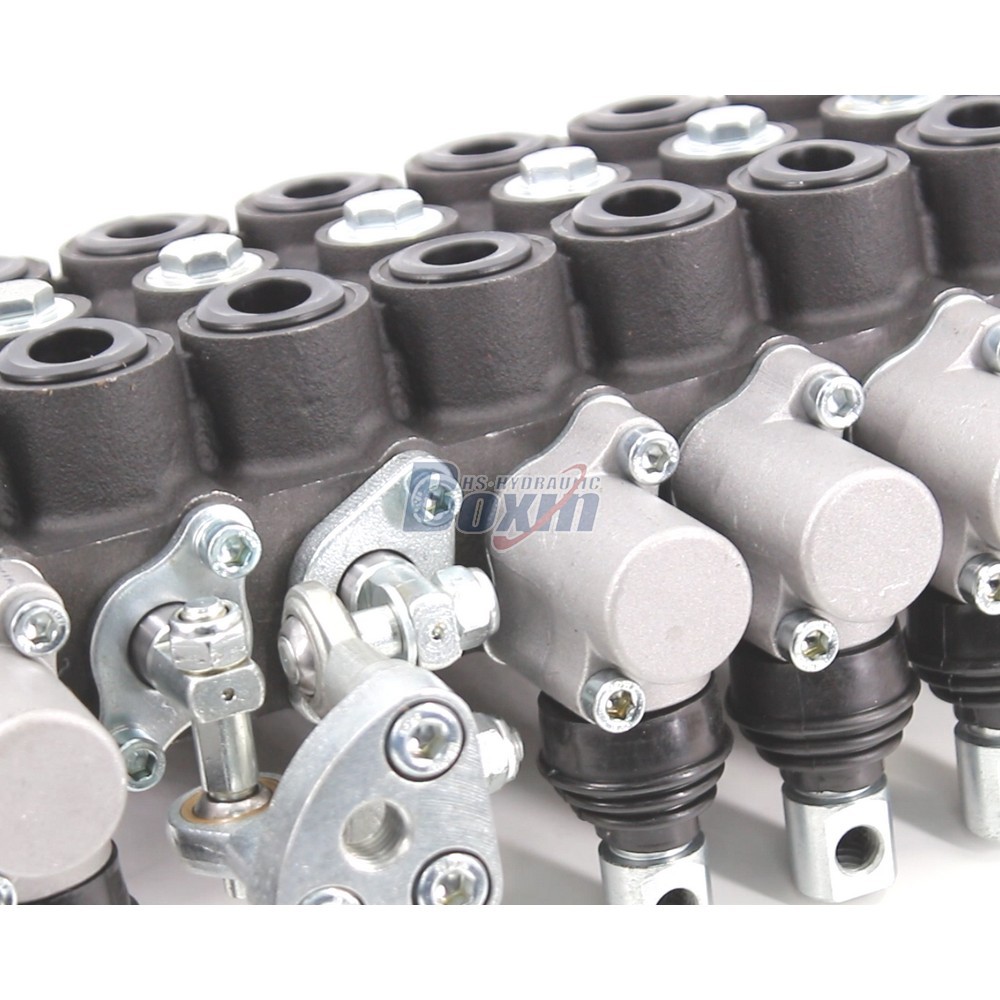

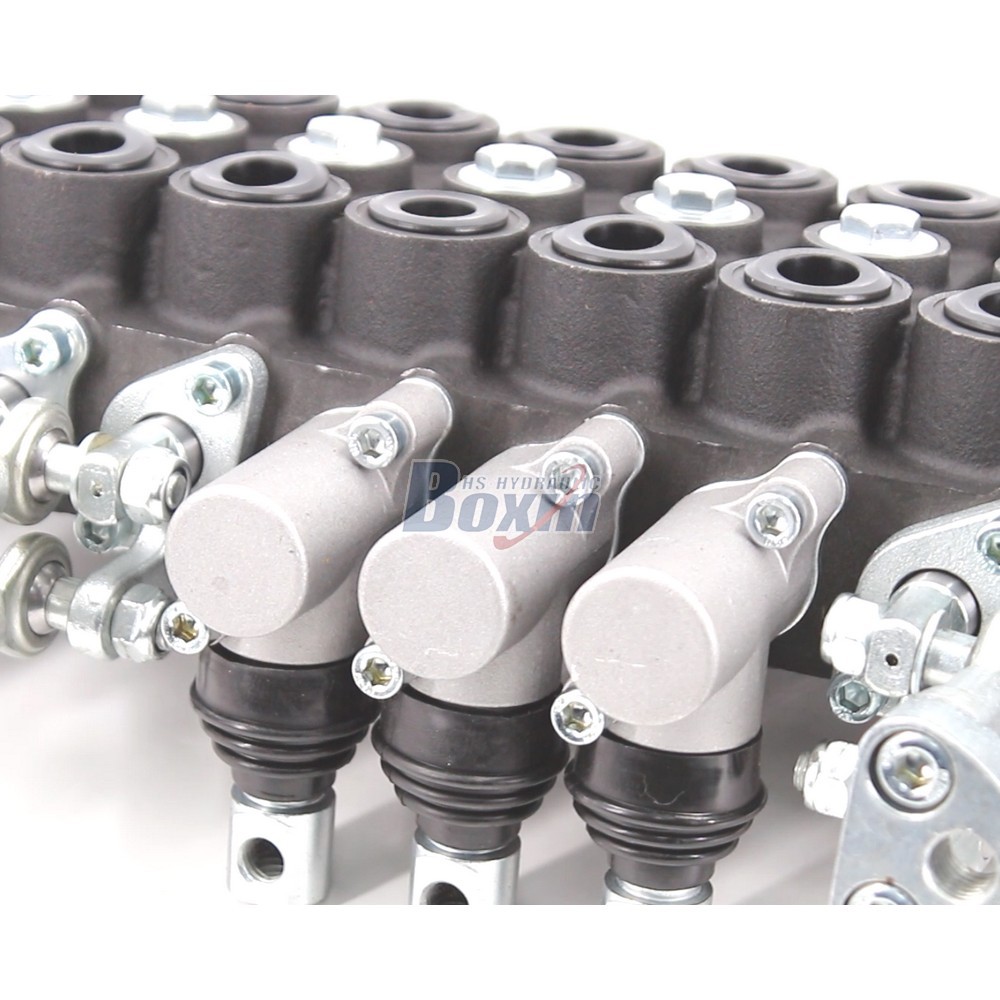

HSW50 Series 8 Spool Hydraulic Monoblock Valve for Mobile Equipment

Metoda sterowania:Ręczna i joystick

Szpula:8-sekcyjny

Przepływ znamionowy:63 l/min (16,6 USGPM)

Maksymalne ciśnienie:160 bar (2300 psi)

Port wlotowy:M22×1.5

Port wylotowy:M22×1.5

Rozmiar portu:M20×1.5

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria HSW50 Zawór sterujący jednoczęściowy

Rozmiar opakowania:40*48*18

Waga brutto:22.00 kg

Dostępność: W magazynie

88 Osoby oglądają ten produkt

HSW50 Series 8 Spool Hydraulic Monoblock Valve for Mobile Equipment

HSW50 Series 8 Spool Hydraulic Monoblock Valve for Mobile Equipment

HSW50 Series 8 Spool Hydraulic Monoblock Valve for Mobile Equipment drawing image

The HSW50 series is a robust 8-spool monoblock hydraulic valve designed for high-performance mobile equipment. With a rated flow of 63 L/min and a maximum pressure of 160 bar, it offers precise manual and joystick control for versatile applications in agriculture, construction, and material handling.

Seria HSW50 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Hydrauliczna, Hydrauliczny i ręczny, Ręczna i joystick
Szpula 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -20°C do +80°C (-4°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 63 l/min (16,6 USGPM)
Maksymalne ciśnienie 160 bar (2300 psi)
Port wlotowy M22×1.5
Port wylotowy M22×1.5
Rozmiar portu M20×1.5

As a large-scale manufacturer, we provide the HSW50 series 8-spool hydraulic monoblock valve designed for demand-heavy applications like tractors, telehandlers, and skid steer loaders. Our factory specializes in high-quality production, offering comprehensive solutions for OEM, ODM, private labeling, and custom engineering to meet specific technical requirements. We are actively seeking partnerships with global distributors, wholesalers, and international trade companies. By choosing us as your direct factory source, you benefit from competitive wholesale pricing, consistent production capacity, and reliable supply chain support. Whether you need specialized configuration or bulk manufacturing, our professional team ensures that every valve meets industry standards for efficiency and durability in material handling and earth-moving tasks. Contact us today to discuss distribution opportunities and custom manufacturing collaborations.
