HSSP-2OT-J Manual Hydraulic Directional Control Valve 2 Spool

Metoda sterowania:Ręczna

Szpula:2-sekcyjny

Przepływ znamionowy:75 l/min (19,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:1/2 NPT

Port wylotowy:1/2 NPT

Rozmiar portu:1/2 NPT

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria HSSP Zawór sterujący jednoczęściowy

Rozmiar opakowania:26.5*19*11.5

Waga brutto:11.50 kg

Dostępność: W magazynie

133 Osoby oglądają ten produkt

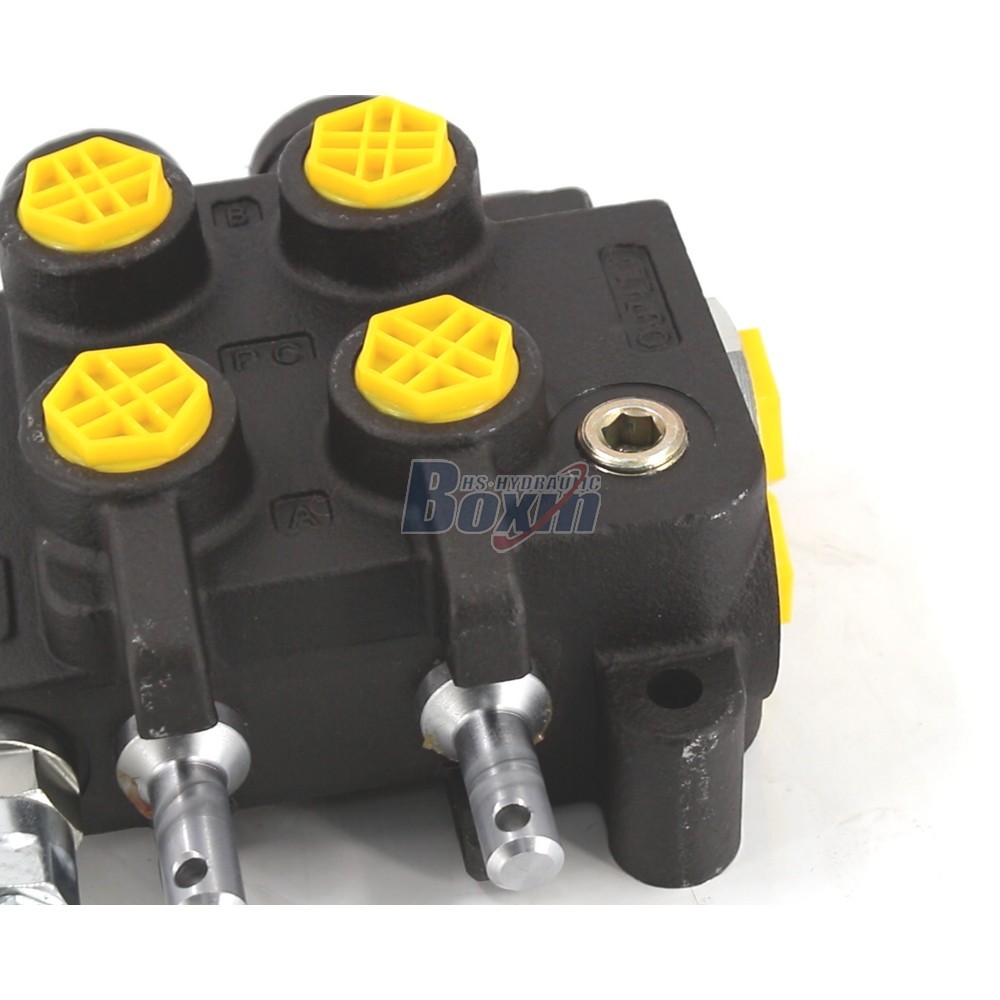

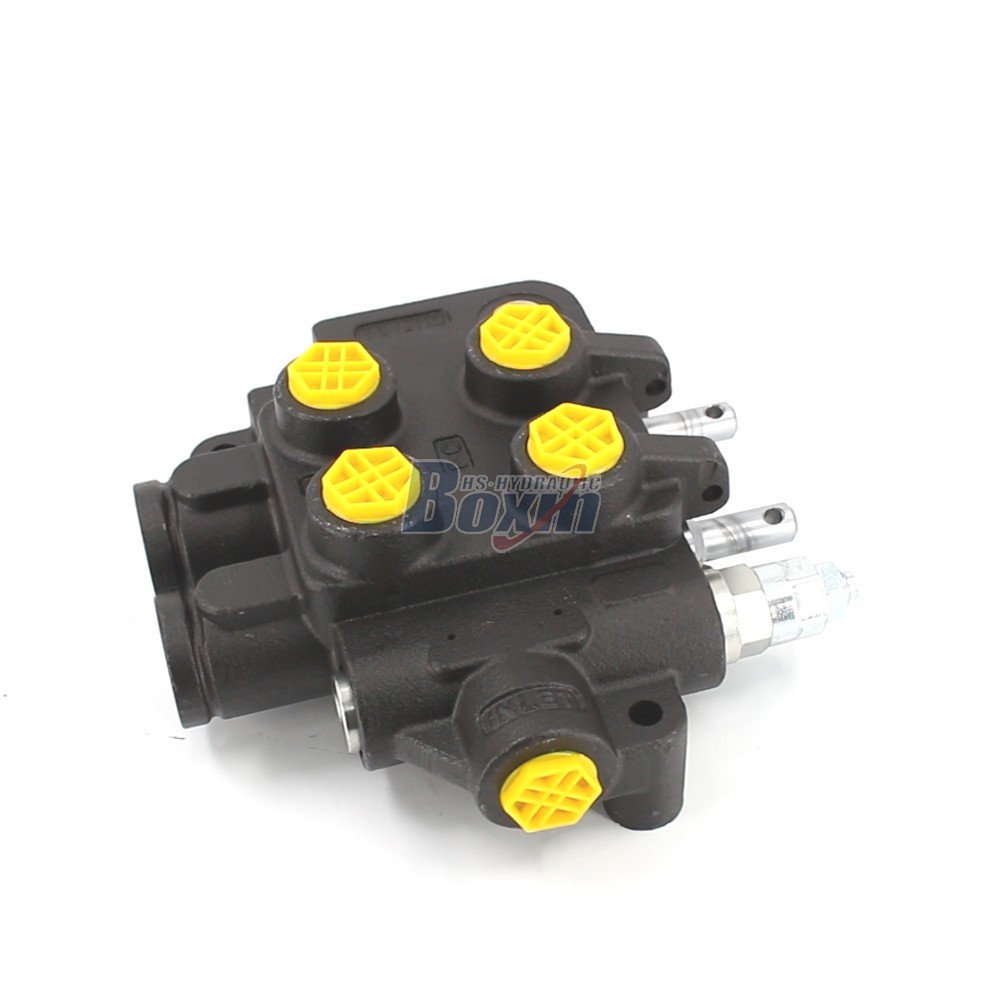

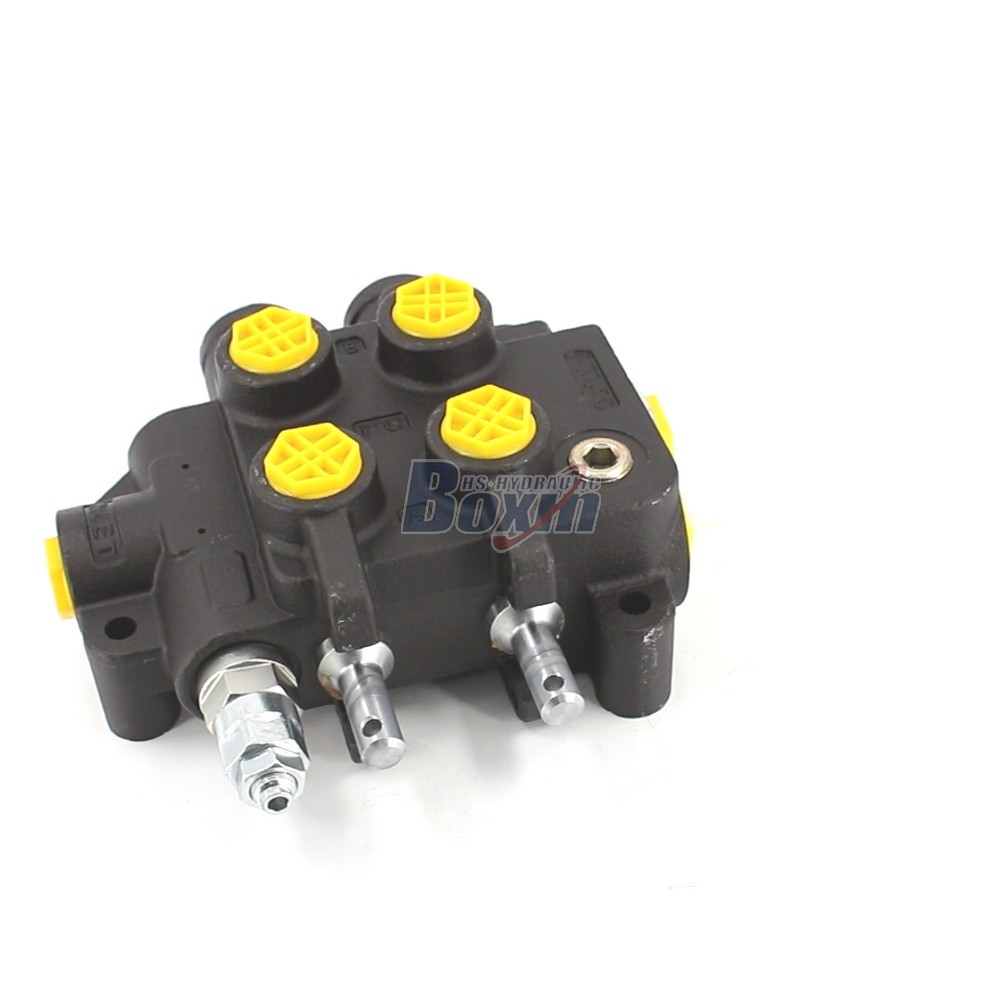

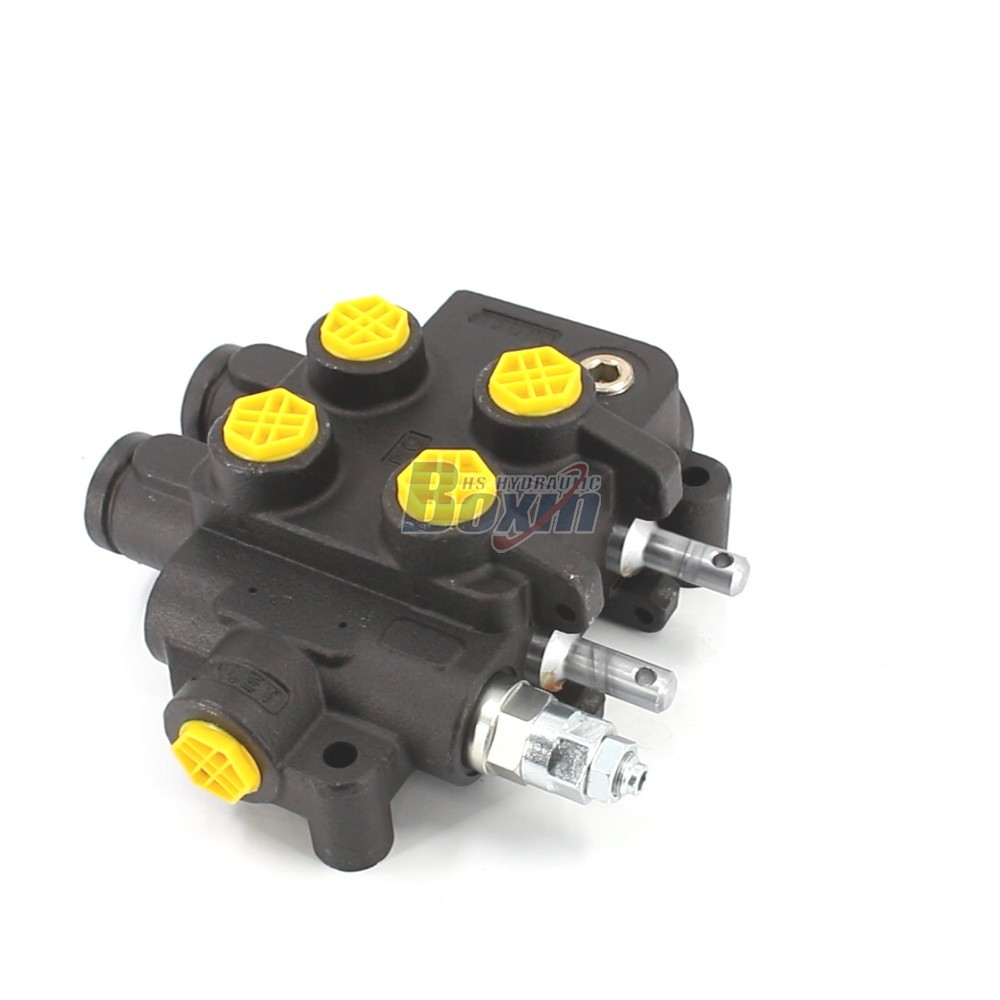

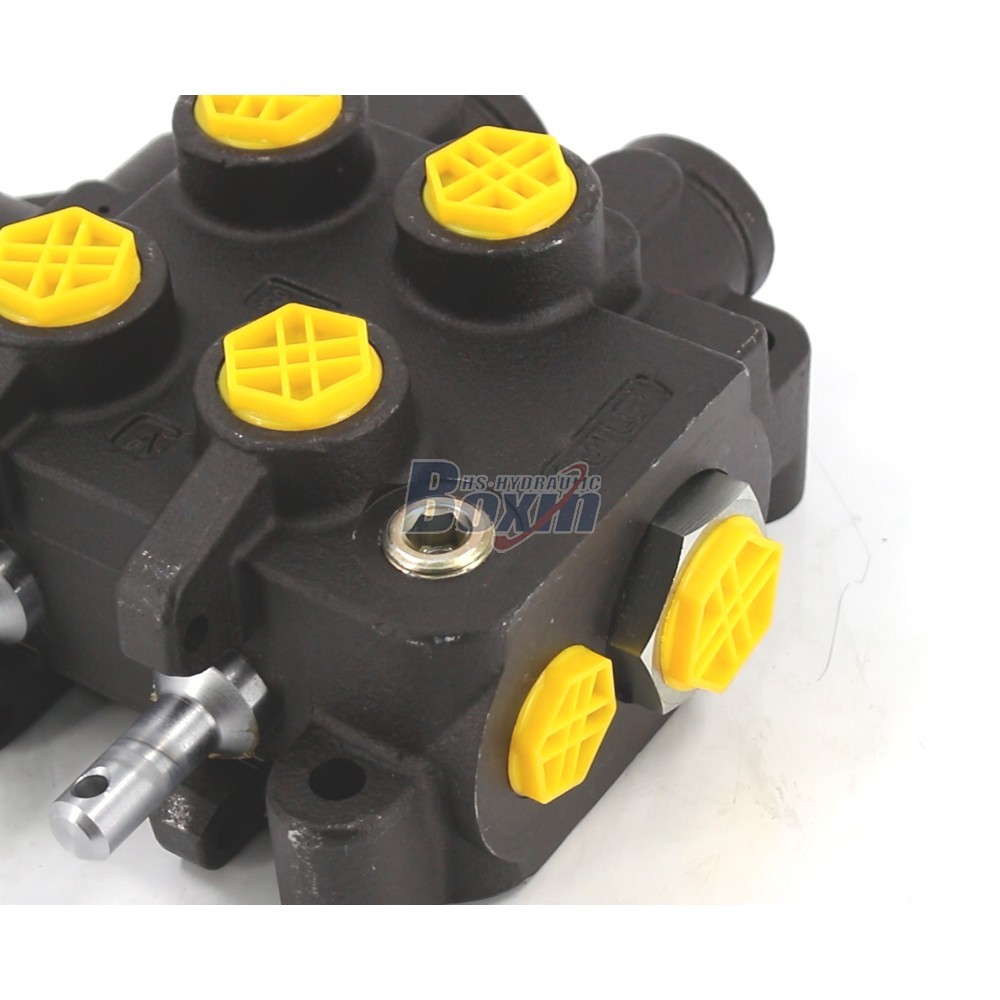

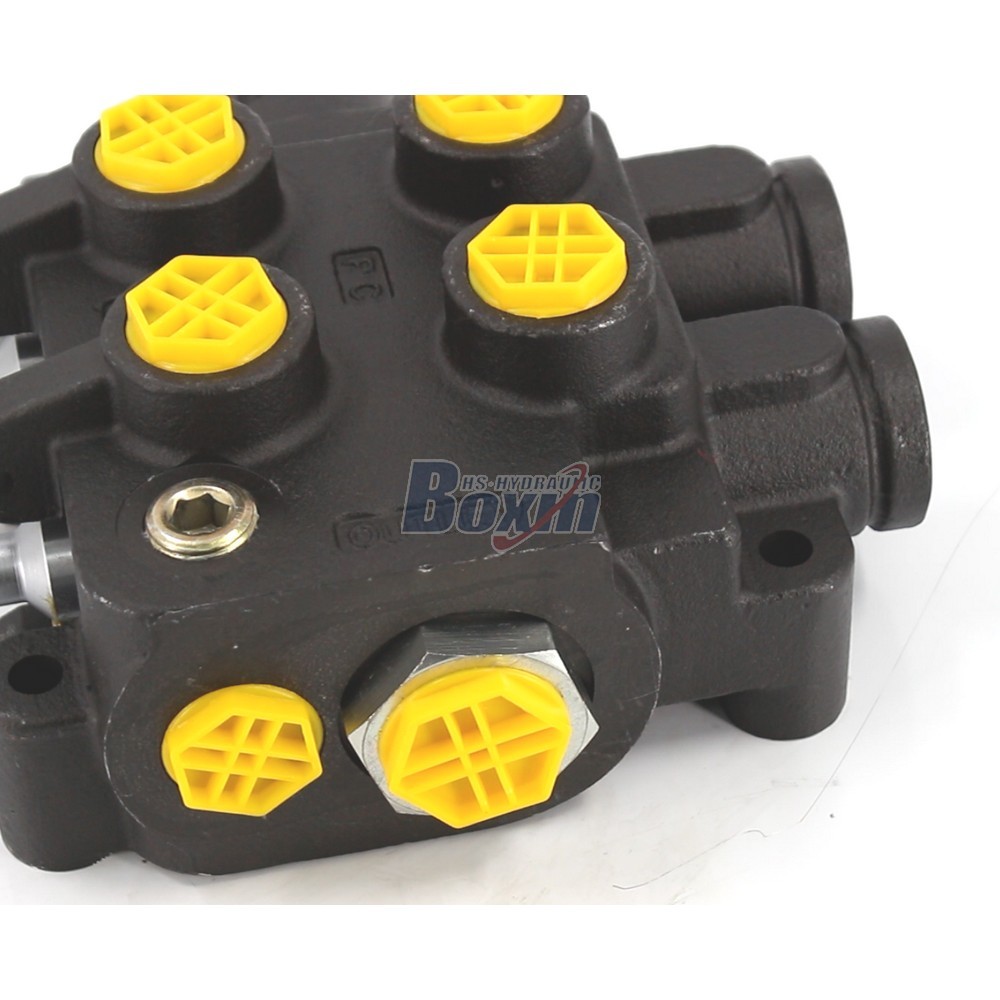

HSSP-2OT-J Manual Hydraulic Directional Control Valve 2 Spool

HSSP-2OT-J Manual Hydraulic Directional Control Valve 2 Spool

HSSP-2OT-J Manual Hydraulic Directional Control Valve 2 Spool drawing image

The HSSP-2OT-J is a high-performance 2-spool manual hydraulic directional control valve designed for precise fluid management in mobile and industrial machinery. Featuring a rated flow of 75 L/min and capable of handling pressures up to 315 bar, this HSSP series valve is ideal for diverse applications from agriculture to construction.

Seria HSSP Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna
Szpula 1-sekcyjny, 2-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 75 l/min (19,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy 1/2 NPT
Port wylotowy 1/2 NPT
Rozmiar portu 1/2 NPT

As a prominent hydraulic product manufacturer, we offer the HSSP-2OT-J manual hydraulic directional control valve engineered for reliability in demanding environments. This 2-spool valve features 1/2 NPT ports and supports a maximum pressure of 315 bar (4600 psi), making it suitable for mini-excavators, tractors, skid steer loaders, and material handling equipment. Our large-scale factory provides comprehensive manufacturing, OEM, and private label services to meet specific technical requirements. We specialize in bulk wholesale and custom production for global markets. We are actively seeking long-term partnerships with distributors, wholesalers, agents, and traders worldwide. By choosing our factory supply, you benefit from direct manufacturer pricing and professional engineering support. Whether you need standardized HSSP series components or customized hydraulic solutions for harvesters, forklifts, or wood splitters, our production capacity ensures timely delivery and consistent quality for your inventory or fleet needs.
