Produkcja i dostawa
Czas realizacji produkcji 15-30 dni
Innowacja napędza rozwój. Technologia tworzy przyszłość.
539 Osoby oglądają ten produkt

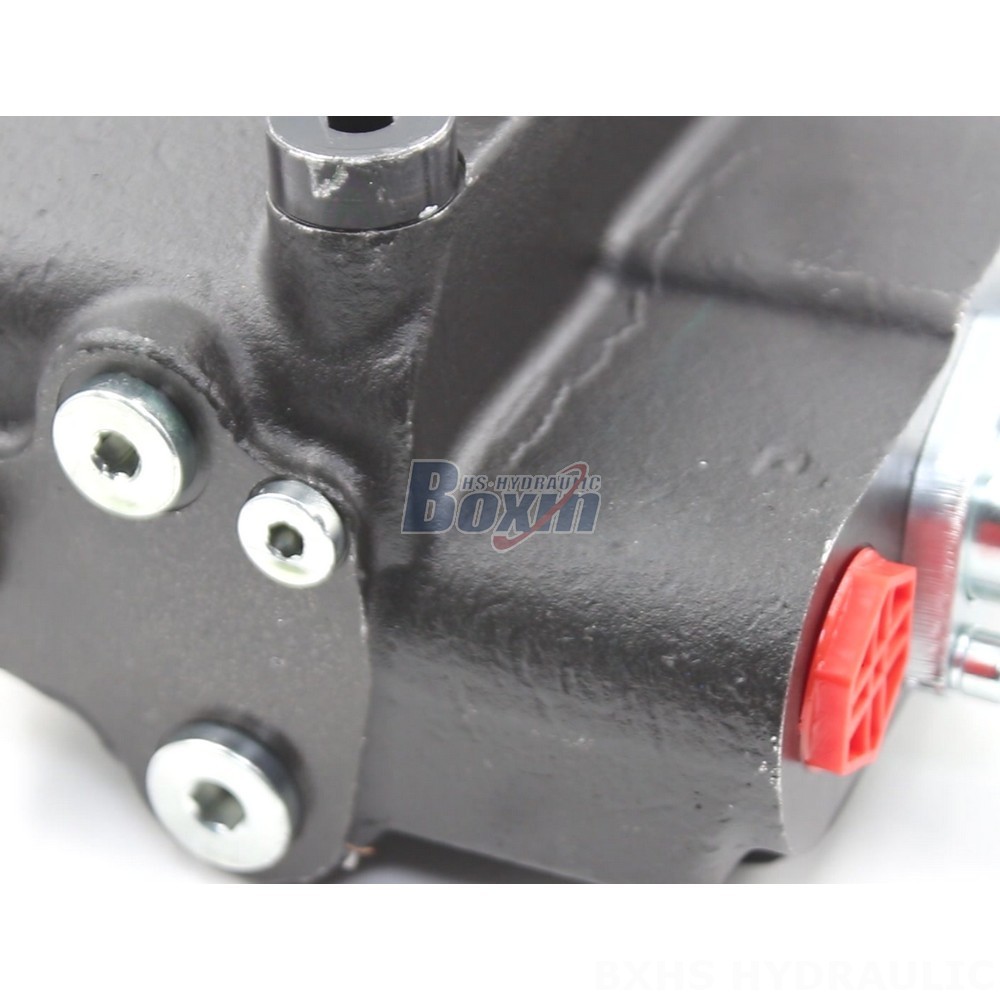

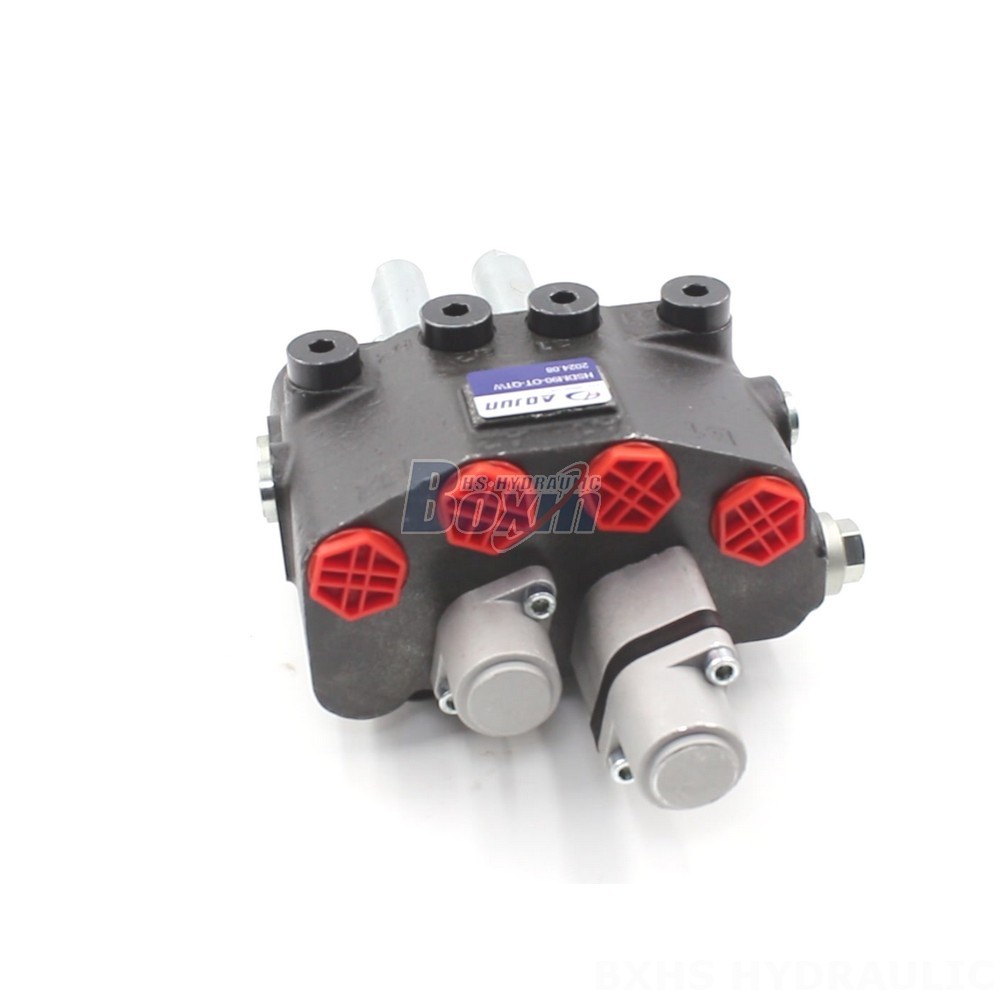

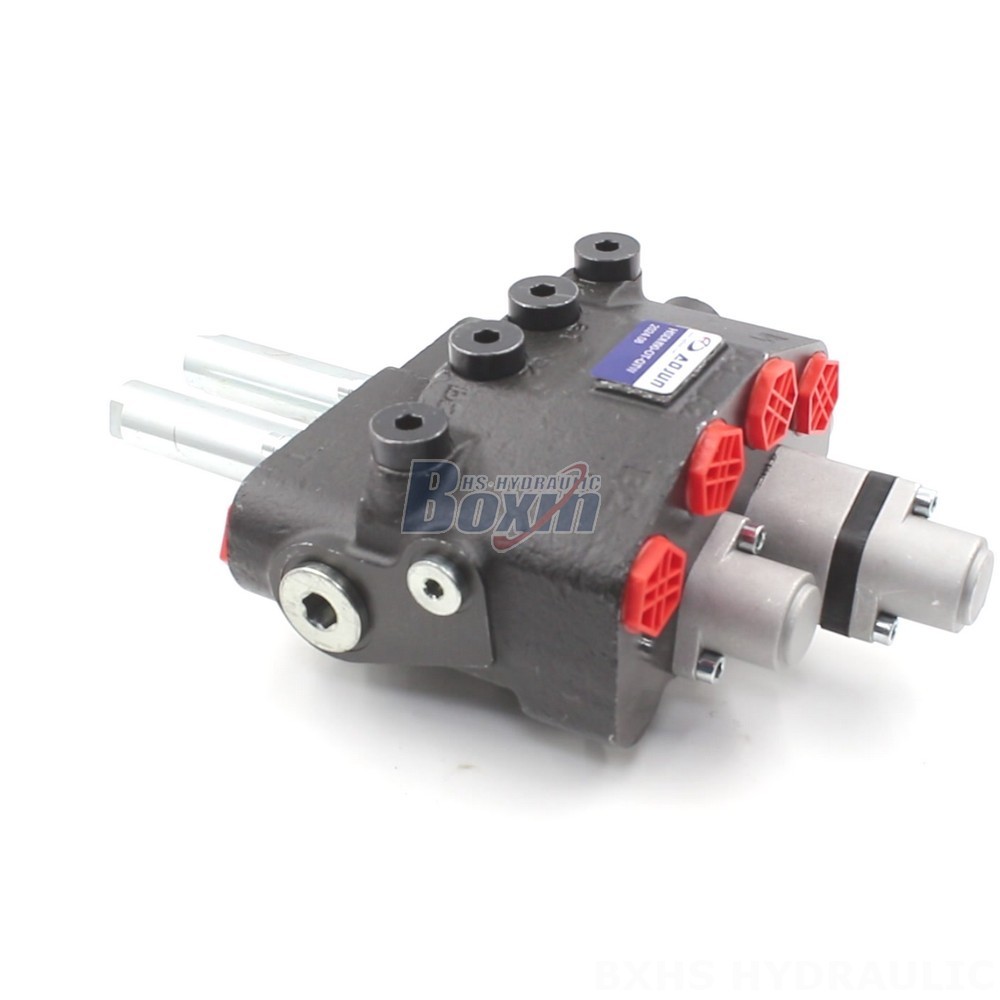

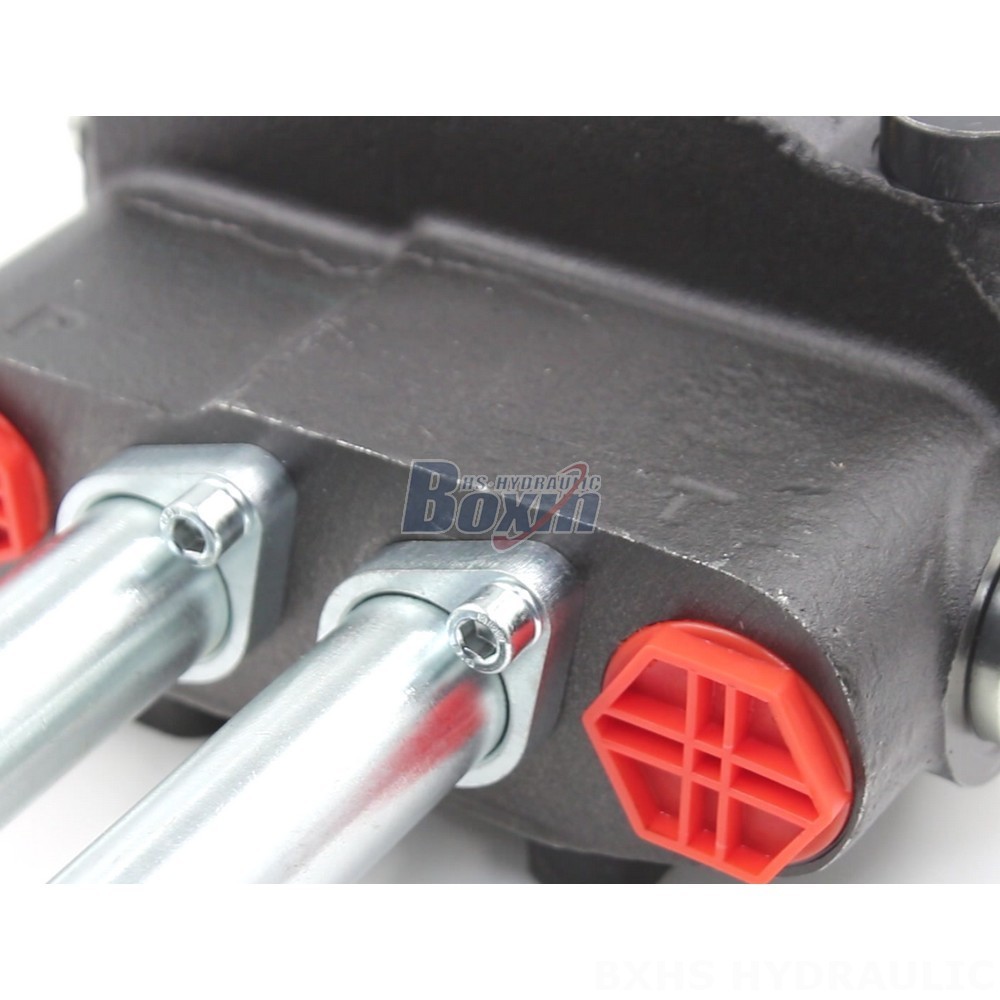

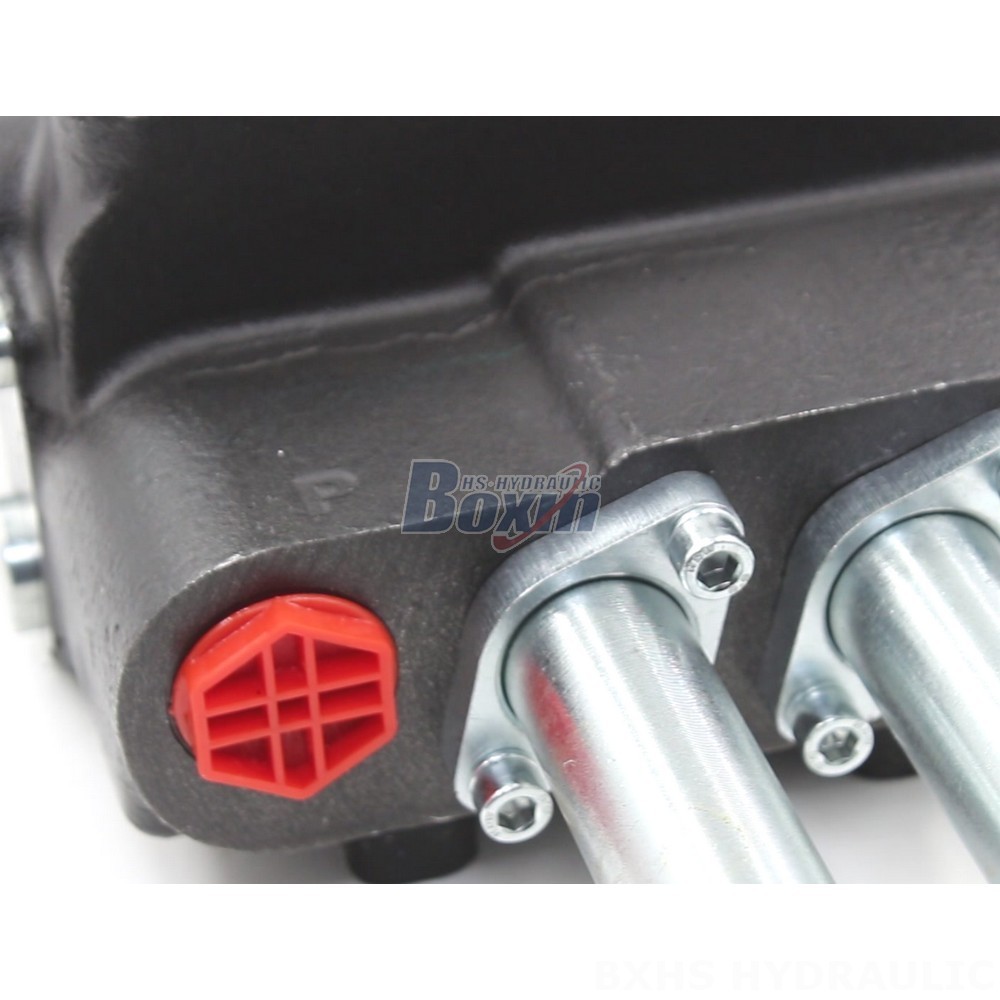

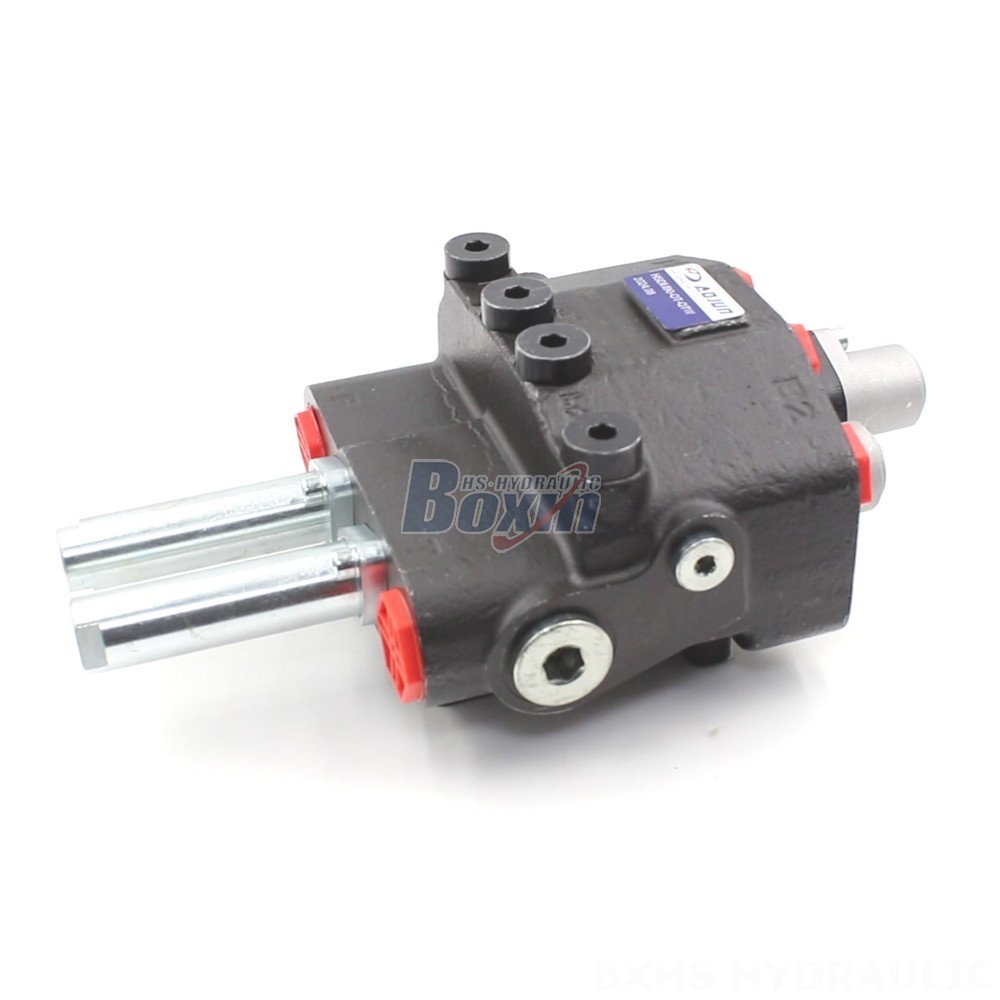

HSDM90B Hydraulic Valve: A high-performance, 90 L/min monoblock valve for construction, agriculture, and material handling applications. Available for OEM, ODM, and custom orders. Seeking distributors, wholesalers, and trading partners worldwide.
| Seria HSDM90 Zawór sterujący jednoczęściowy Parametry | |
|---|---|
| Metoda sterowania | Kabel |
| Szpula | 2-sekcyjny |
| Przepływ znamionowy | 90 l/min (23,8 USGPM) |
| Maksymalne ciśnienie | 315 bar (4600 psi) |
| Port wlotowy | G1/2, G3/4, SAE 10, SAE 12 |
| Port wylotowy | G3/4, SAE 10, SAE 12 |
| Rozmiar portu | G1/2, SAE 10 |
| Sekcja | 2 Sekcje |
| Typ konstrukcji | Zawór blokowy |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
HSDM90B Hydraulic Valve: High-performance, robust, and reliable, the HSDM90B is a 2-section monoblock valve with cable control, delivering a rated flow of 90 L/min (23.8 US gpm) at a maximum pressure of 315 bar (4600 psi). Its operating viscosity range is 15-75 mm²/s (15 cSt to 75 cSt), and it operates effectively in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Ideal for a wide array of applications, including material handling equipment (forklifts, telehandlers), construction and earthmoving machinery (skid steer loaders, compact wheel loaders, mini/midi excavators, backhoe loaders), agricultural equipment (tractors, harvesters, balers), and various industrial vehicles.
**Key Features:**
* Rated Flow: 90 L/min
* Max Pressure: 315 bar
* Cable Control
* Monoblock Structure
* Wide Operating Temperature Range
* 2 Spool
**We Offer:**
* Manufacturing
* OEM (Original Equipment Manufacturing)
* ODM (Original Design Manufacturing)
* Customization
* Wholesale
**We are actively seeking:**
* Distributors
* Wholesalers
* Trading partners
* Agents
As a leading hydraulic product manufacturer and factory, we offer competitive pricing, high-quality products, and reliable delivery. Partner with us and benefit from our factory direct wholesale prices. Contact us today to discuss your needs and explore lucrative partnership opportunities.
