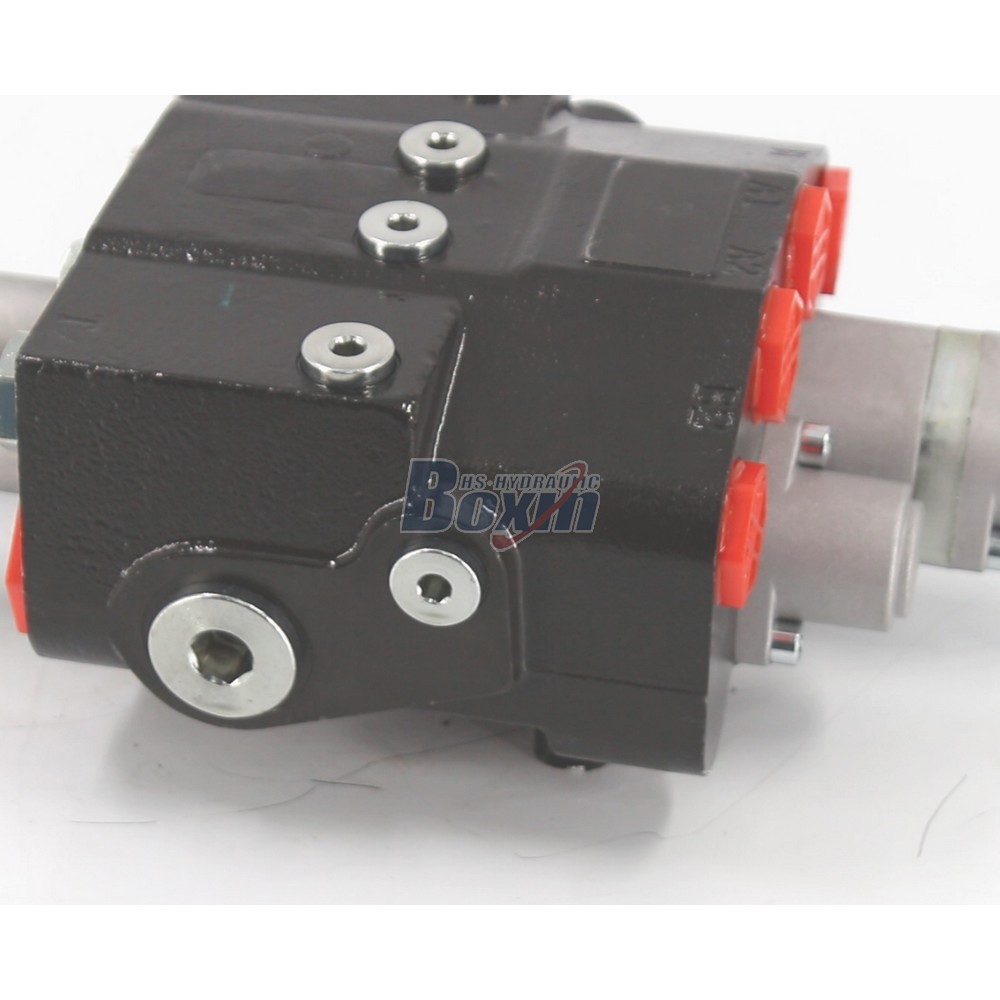

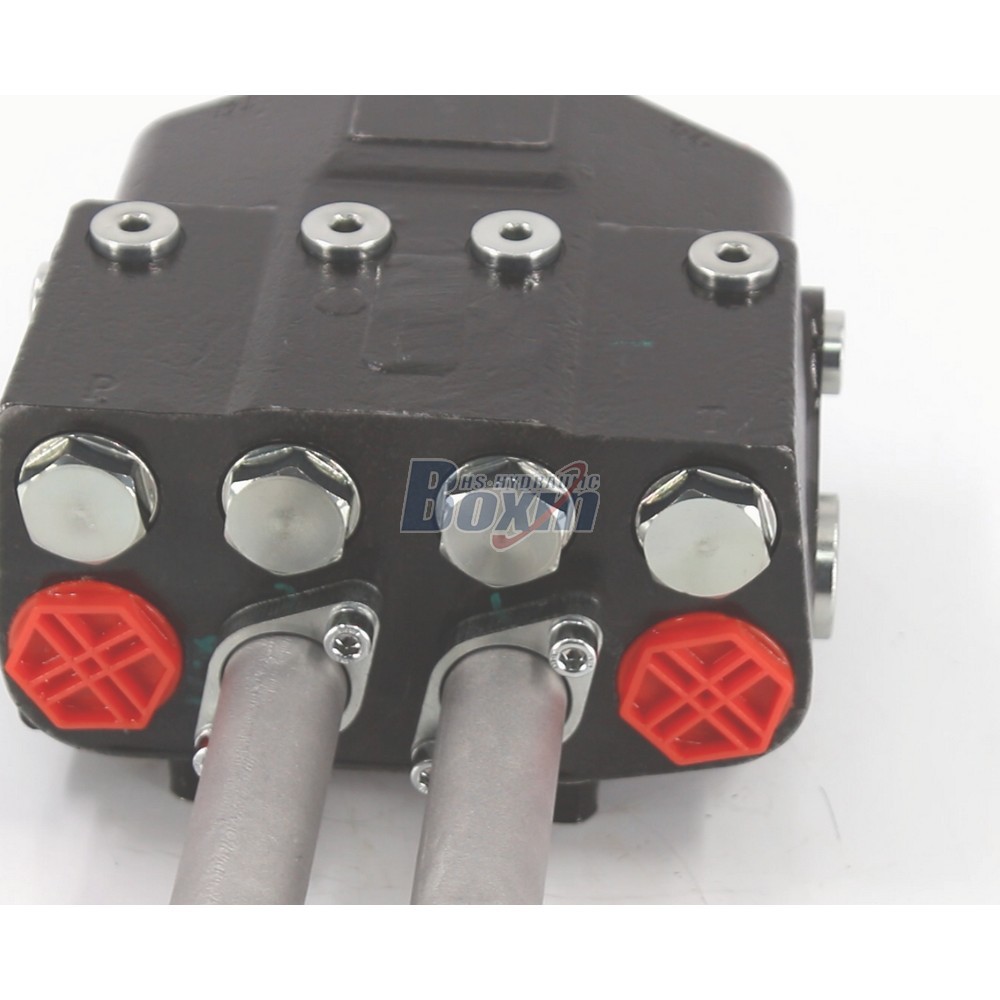

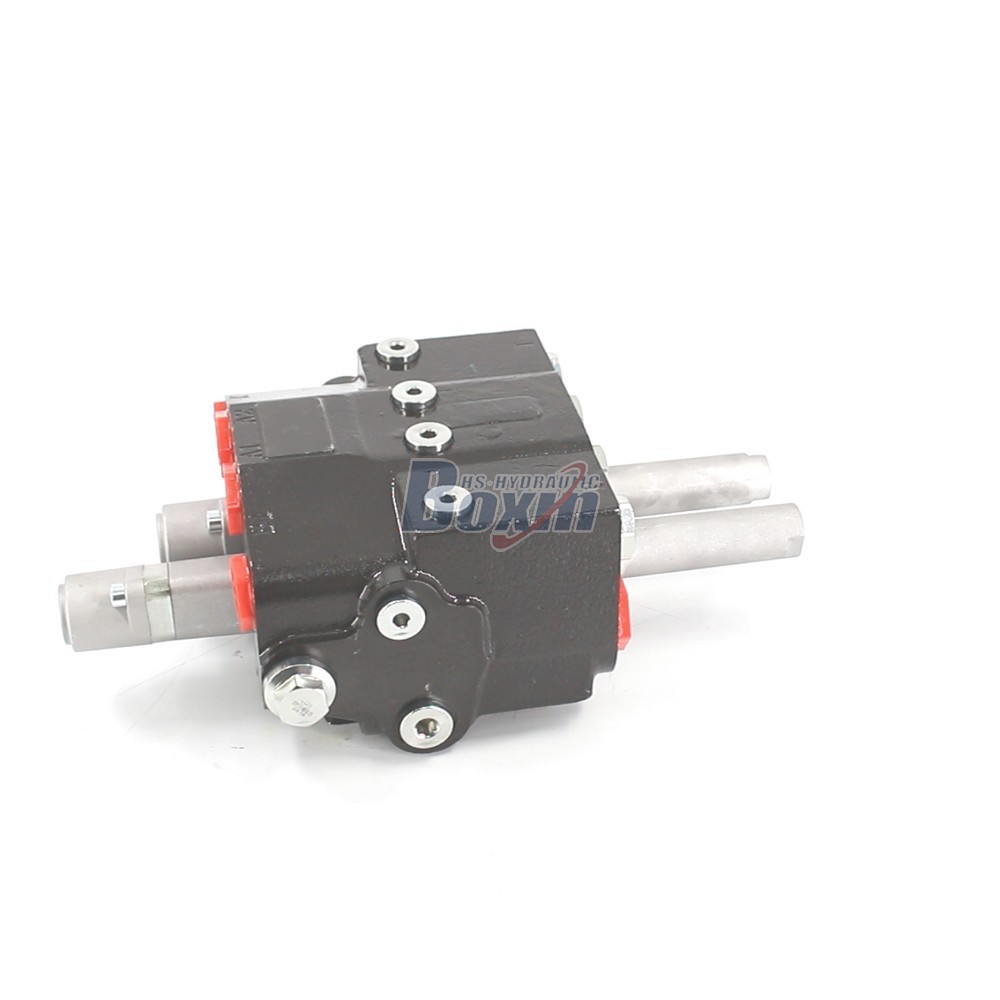

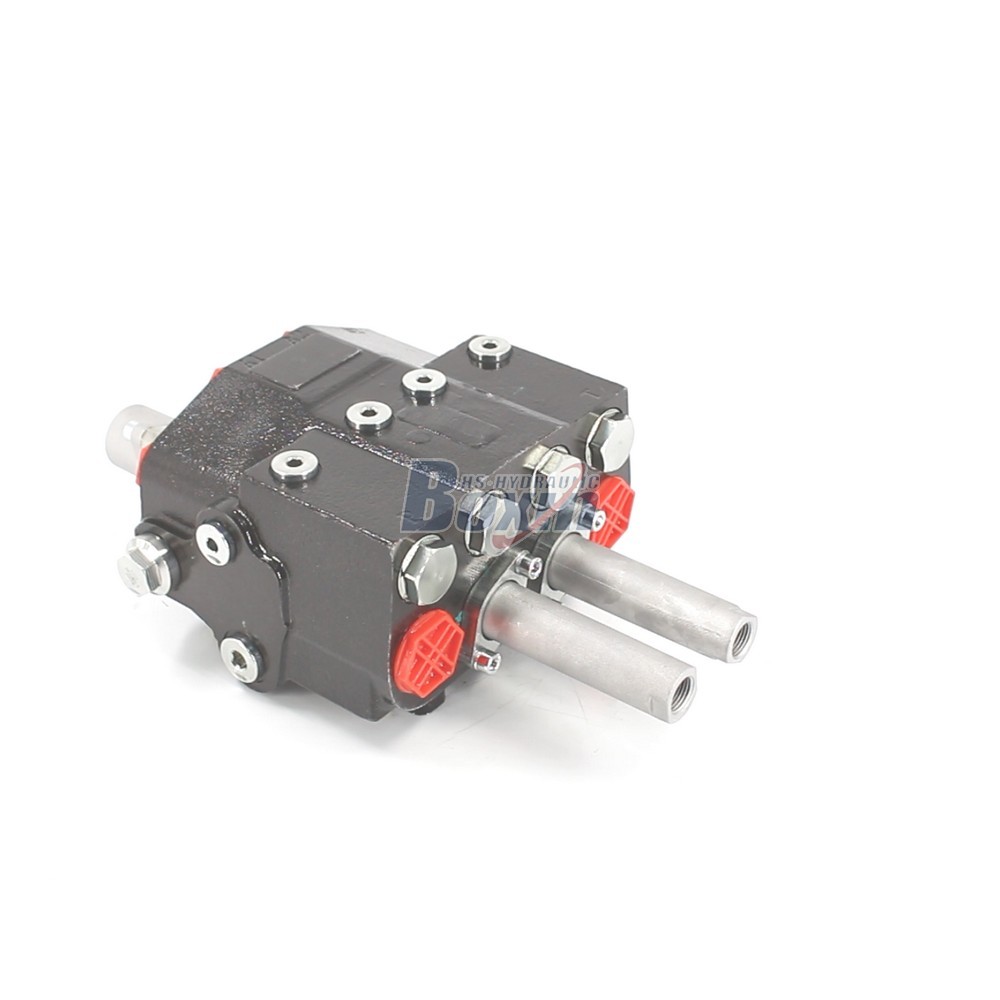

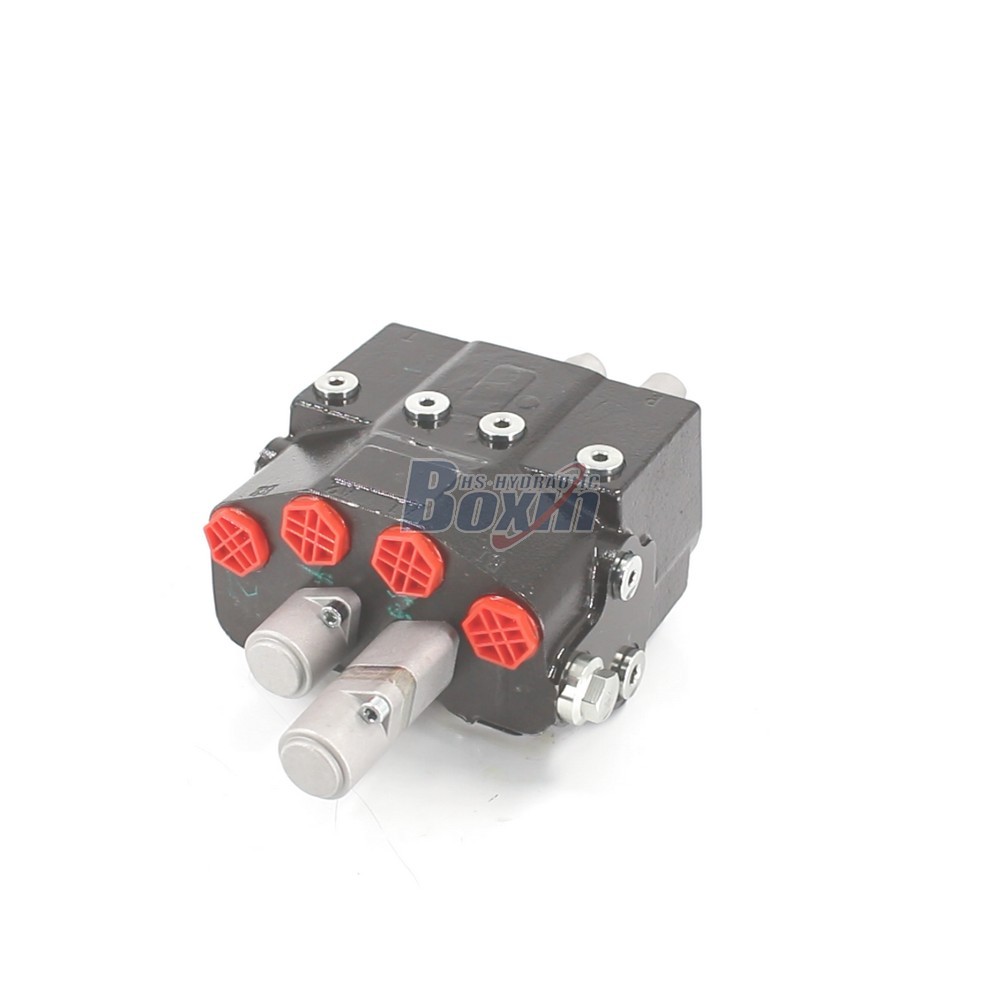

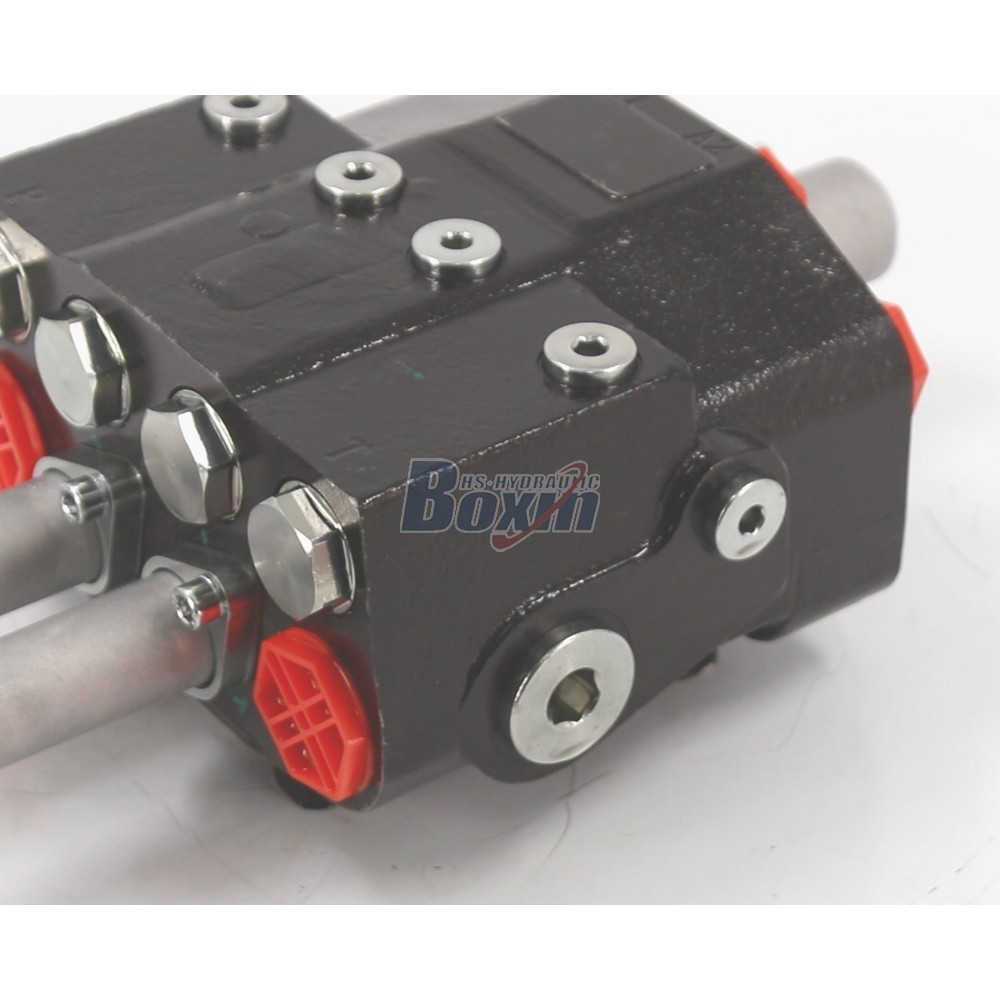

HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve

Metoda sterowania:Kabel

Szpula:2-sekcyjny

Przepływ znamionowy:80 l/min (21,2 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria HSDM80 Zawór sterujący jednoczęściowy

Rozmiar opakowania:34*24*15.5

Waga brutto:14.00 kg

Dostępność: W magazynie

108 Osoby oglądają ten produkt

HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve

HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve

HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve drawing image

The HSDM80 Series is a high-performance 2-spool monoblock hydraulic directional control valve featuring cable control operation. With a rated flow of 80 L/min and a maximum pressure rating of 250 bar, it provides reliable fluid power management for various mobile and industrial applications.

Seria HSDM80 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Kabel
Szpula 2-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 2 Sekcje
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 80 l/min (21,2 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G1/2

As a leading manufacturer of hydraulic components, we proudly offer the HSDM80 Series 2 Spool Hydraulic Monoblock Directional Control Valve. This robust cable-controlled valve is engineered for precision and durability, delivering a flow rate of 80 L/min (21.2 US gpm) and sustaining pressures up to 250 bar (3600 psi). It features G3/4 inlet/outlet ports and G1/2 work ports to ensure versatile connectivity. We specialize in global supply, providing comprehensive OEM, ODM, and custom manufacturing services to meet specific technical requirements. Our factory supports large-scale wholesale and private labeling for international brands. We are actively seeking long-term partnerships with professional distributors, wholesalers, agents, and traders worldwide. By choosing our factory supply, you gain access to competitive pricing, reliable technical support, and the capacity for high-volume orders. Ideal for agricultural machinery, construction equipment, and specialized mobile applications, the HSDM80-2 valve ensures efficient performance under demanding conditions.
