HS45 Series 2 Spool Monoblock Control Valve with Joystick Handle

Metoda sterowania:Dźwignia sterownicza

Szpula:2-sekcyjny

Przepływ znamionowy:45 l/min (11,8 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G3/8

Port wylotowy:G3/8

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria HS45 Zawór sterujący jednoczęściowy

Rozmiar opakowania:25*15*12

Waga brutto:5.80 kg

Dostępność: W magazynie

107 Osoby oglądają ten produkt

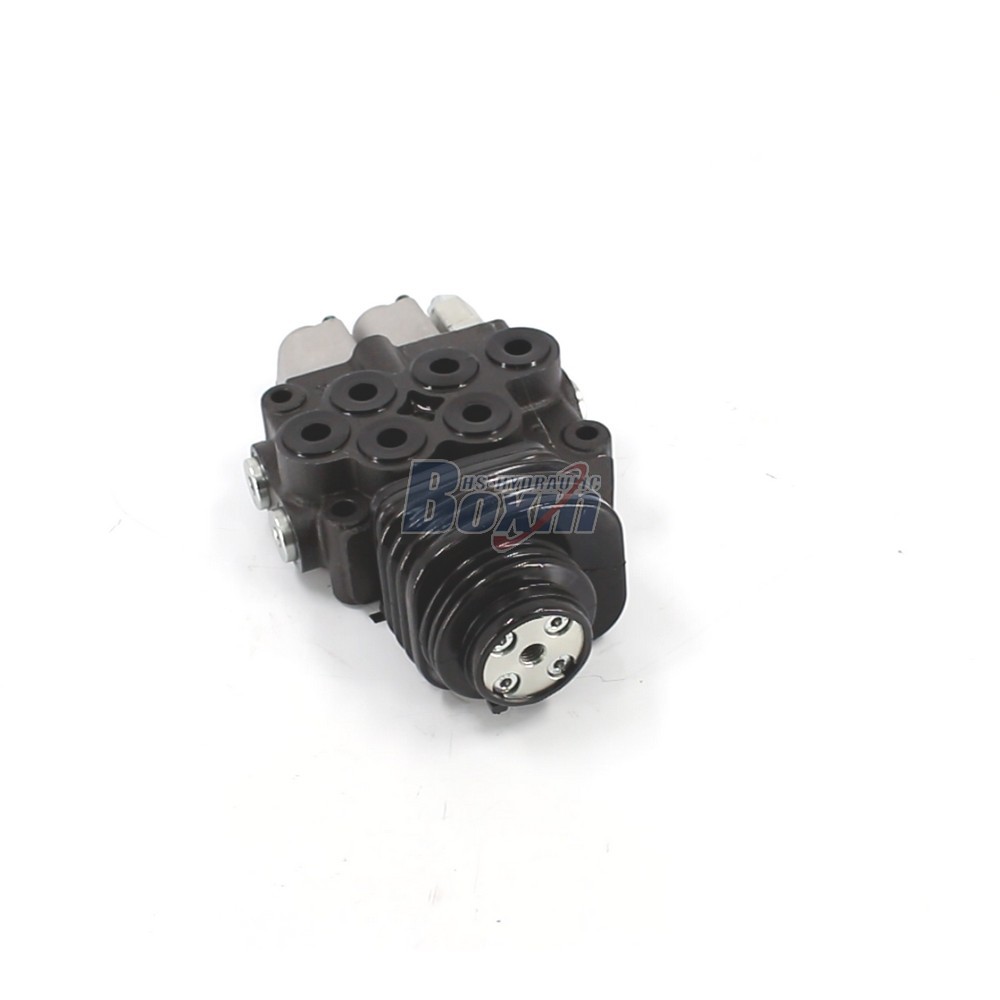

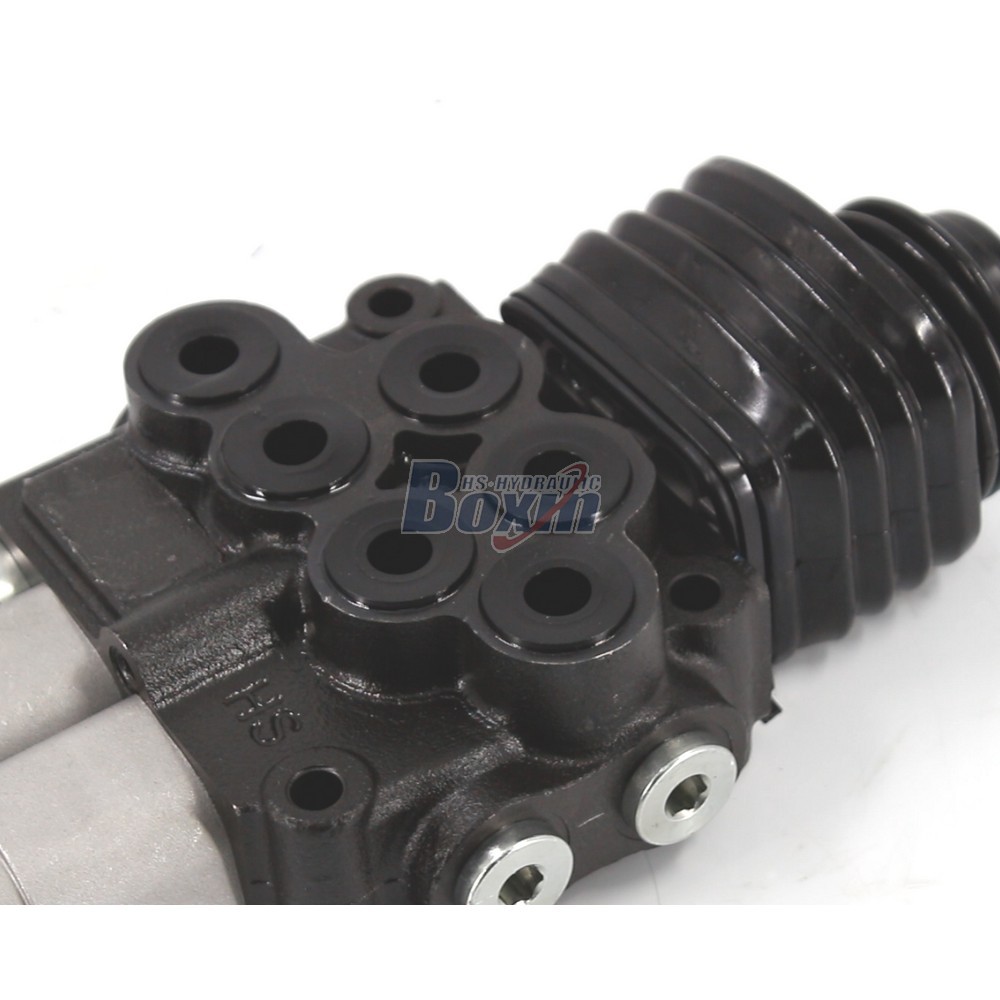

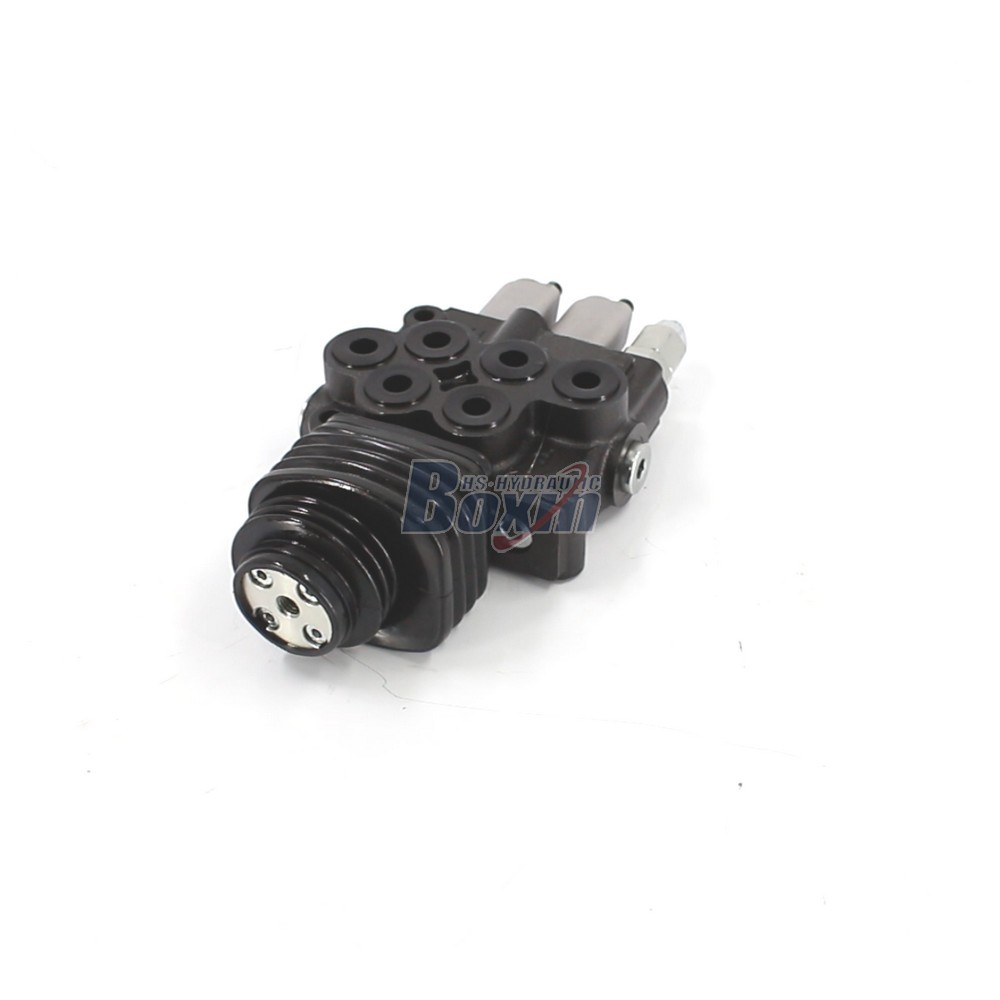

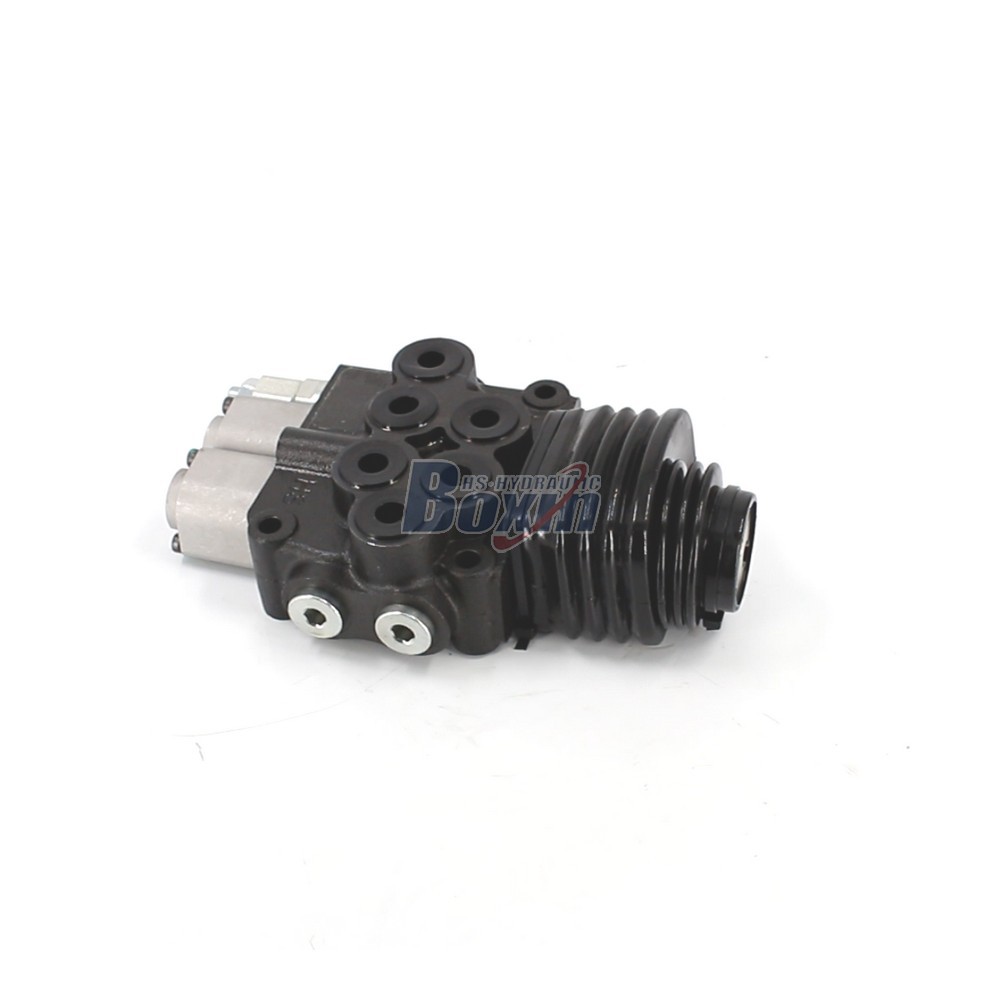

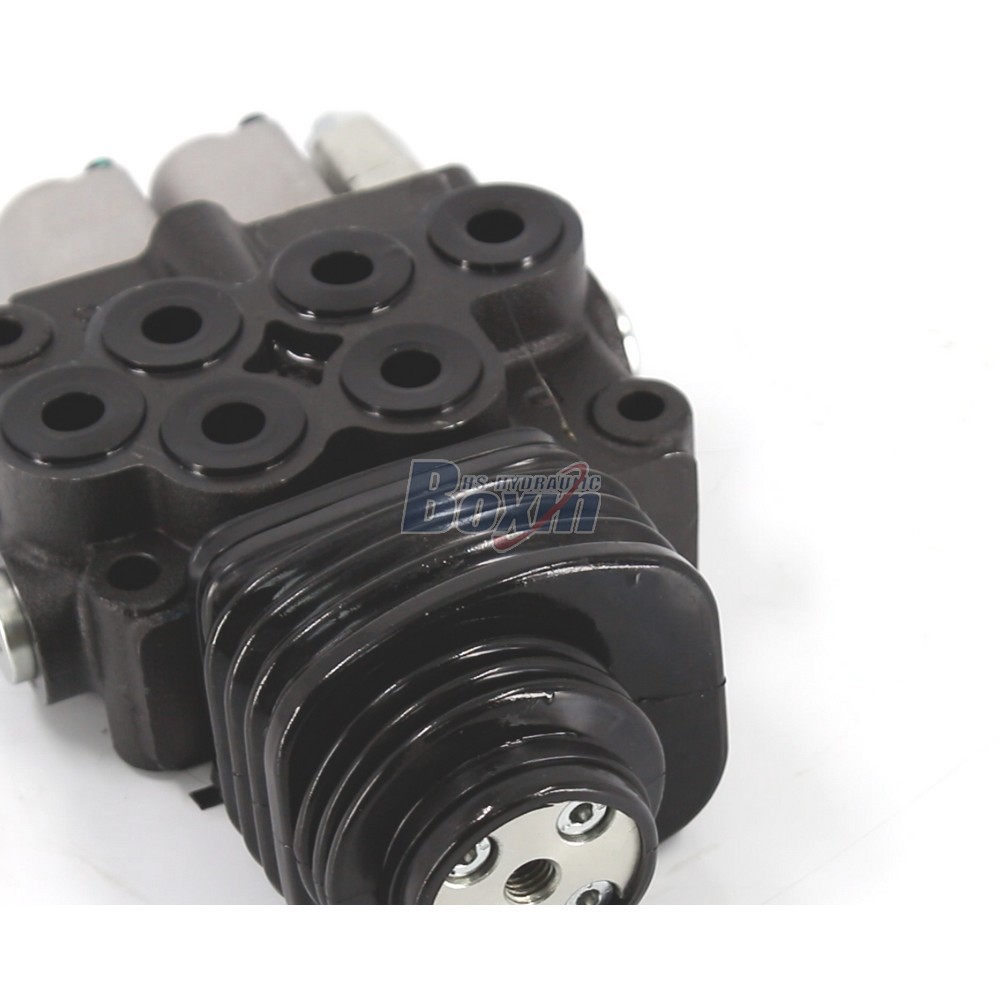

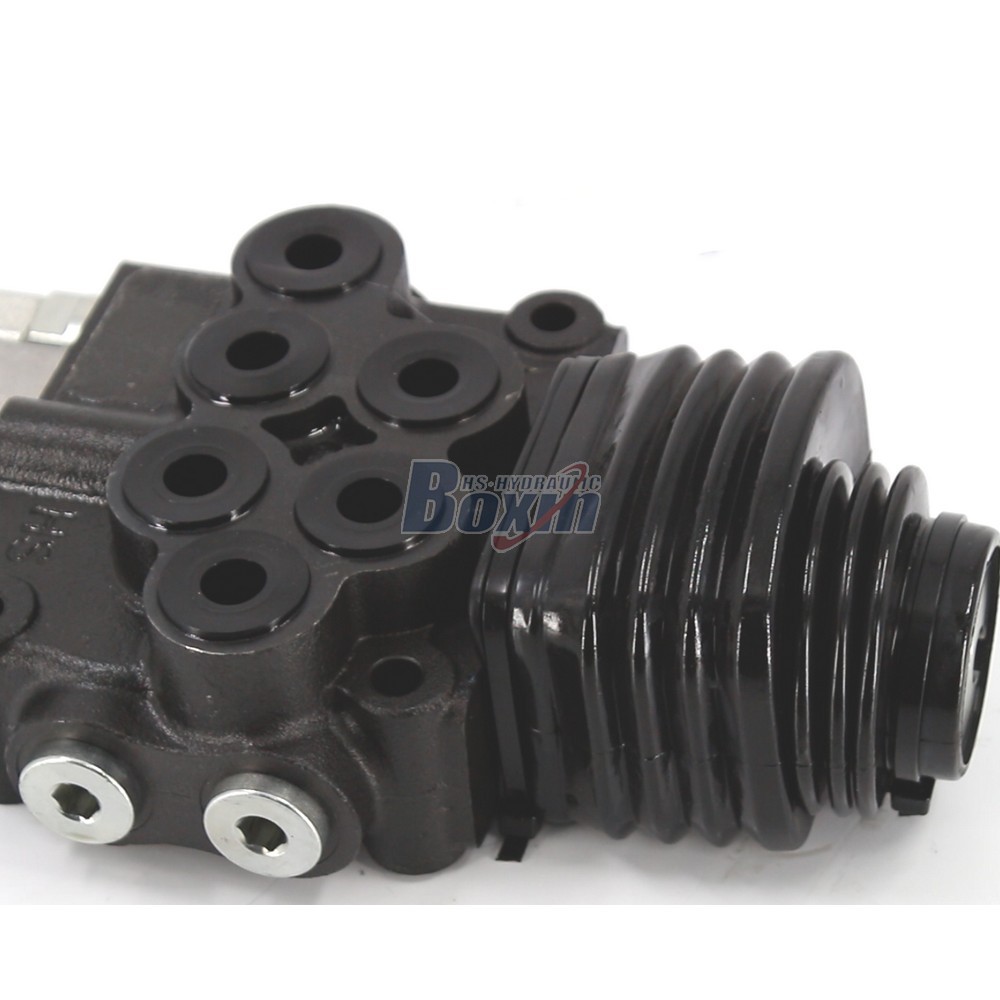

HS45 Series 2 Spool Monoblock Control Valve with Joystick Handle

HS45 Series 2 Spool Monoblock Control Valve with Joystick Handle

HS45 Series 2 Spool Monoblock Control Valve with Joystick Handle drawing image

High-performance HS45 series 2 spool monoblock hydraulic control valve featuring an integrated joystick handle for precise operation. Designed for flow rates up to 45 L/min and pressures up to 250 bar, it is ideal for mobile machinery including tractors, mini-excavators, and material handling equipment.

Seria HS45 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Dźwignia sterownicza, Ręczna i joystick, Ręczne i elektrohydrauliczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny
Zakres temperatury otoczenia -20°C do +80°C (-4°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 45 l/min (11,8 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8
Port wylotowy G3/8
Rozmiar portu G3/8

As a leading manufacturer of premium hydraulic components, we proudly present the HS45 Series 2 Spool Monoblock Control Valve. This heavy-duty valve is engineered with a joystick handle for intuitive control, making it a perfect match for front-end loaders, wood splitters, and aerial platforms. With a rated flow of 45 L/min (11.8 US gpm) and a maximum pressure rating of 250 bar, it delivers reliable performance in demanding agricultural and construction environments. Our factory specializes in large-scale production, offering extensive OEM, ODM, and customized manufacturing services to meet specific technical requirements. We are actively expanding our global footprint and seeking long-term cooperation with distributors, wholesalers, and trade agents. We offer competitive factory wholesale pricing and flexible private labeling options. Whether you need a consistent supply for skid steer loaders, forklifts, or backhoes, our professional production line ensures high-grade quality and timely delivery for the international market.
