High-Quality P40 Monoblock Directional Valve - Available for Bulk Orders

Metoda sterowania:Elektromagnes i joystick

Szpula:3-sekcyjny

Przepływ znamionowy:40 l/min (10,5 USGPM)

Maksymalne ciśnienie:250 bar (3600 psi)

Port wlotowy:G1/2

Port wylotowy:G1/2

Rozmiar portu:G3/8

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria P40 Zawór sterujący jednoczęściowy

Rozmiar opakowania:30*22*15

Waga brutto:10.00 kg

Dostępność: W magazynie

917 Osoby oglądają ten produkt

High-Quality P40 Monoblock Directional Valve - Available for Bulk Orders

High-Quality P40 Monoblock Directional Valve - Available for Bulk Orders

High-Quality P40 Monoblock Directional Valve - Available for Bulk Orders drawing image

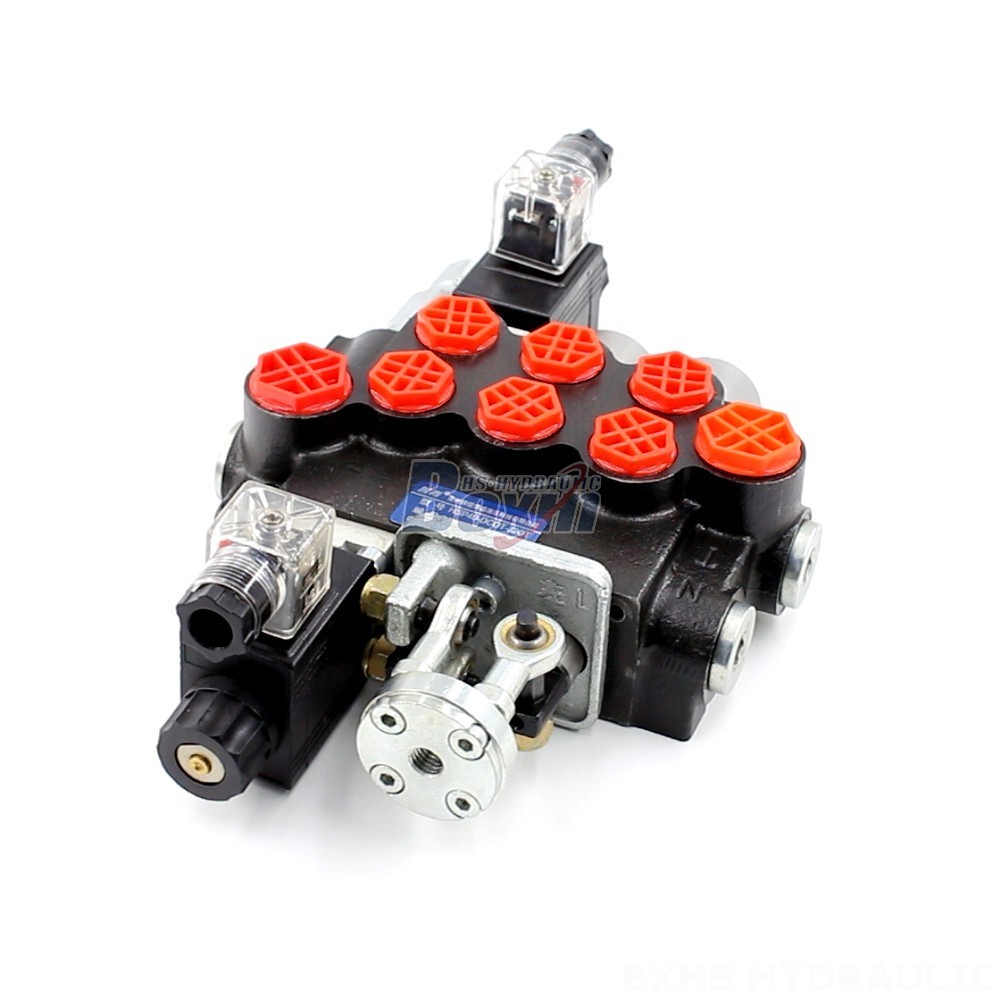

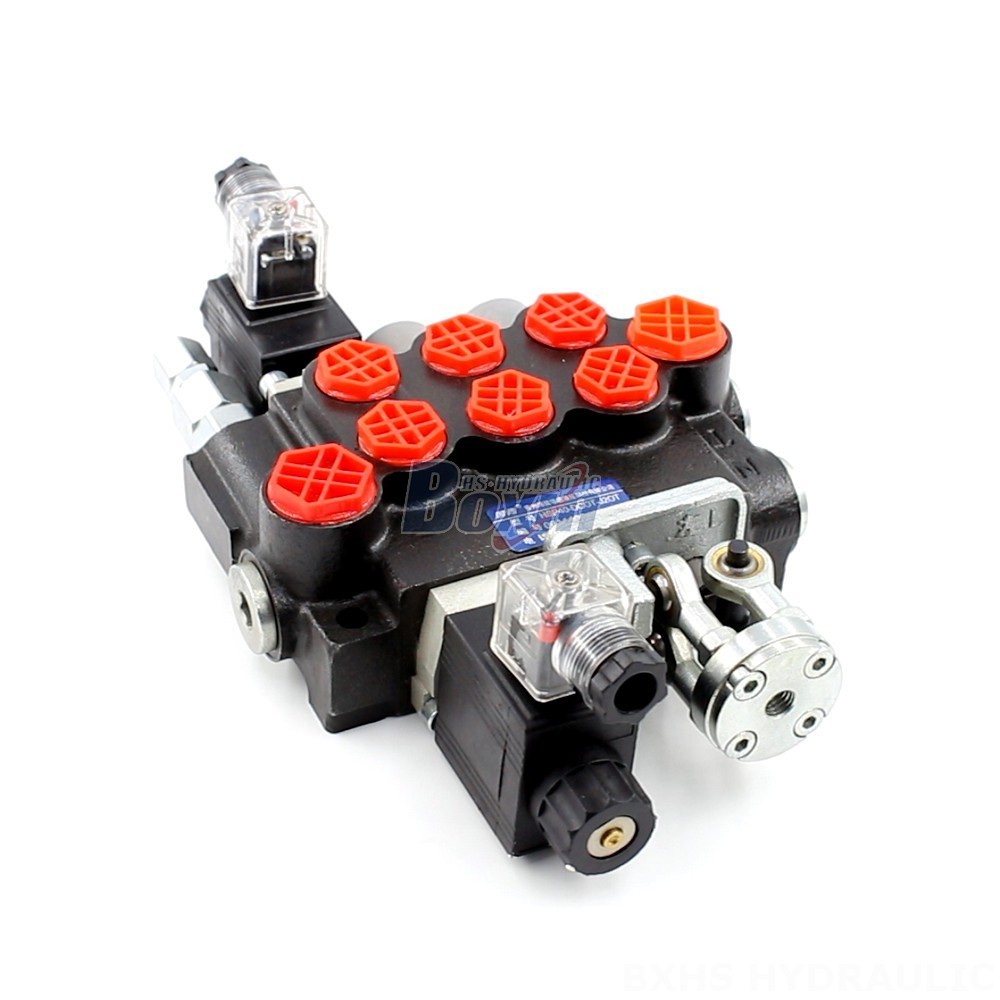

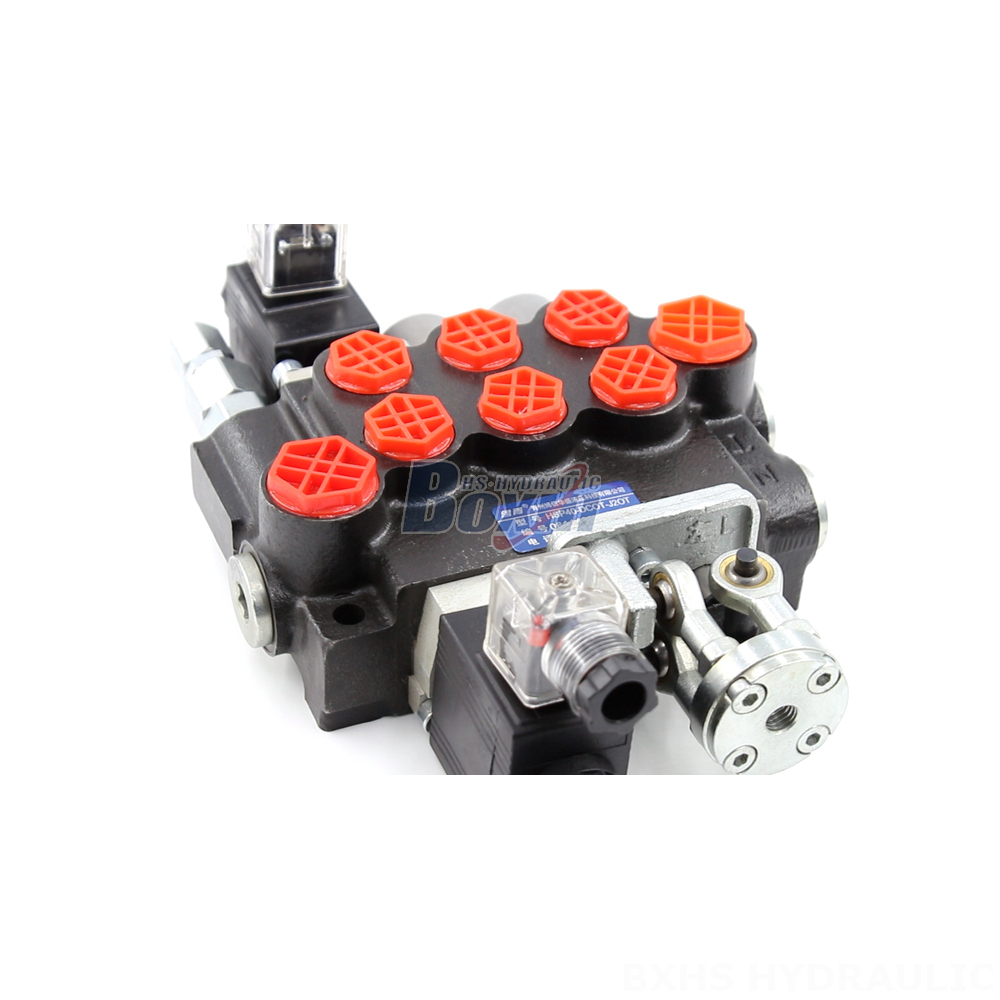

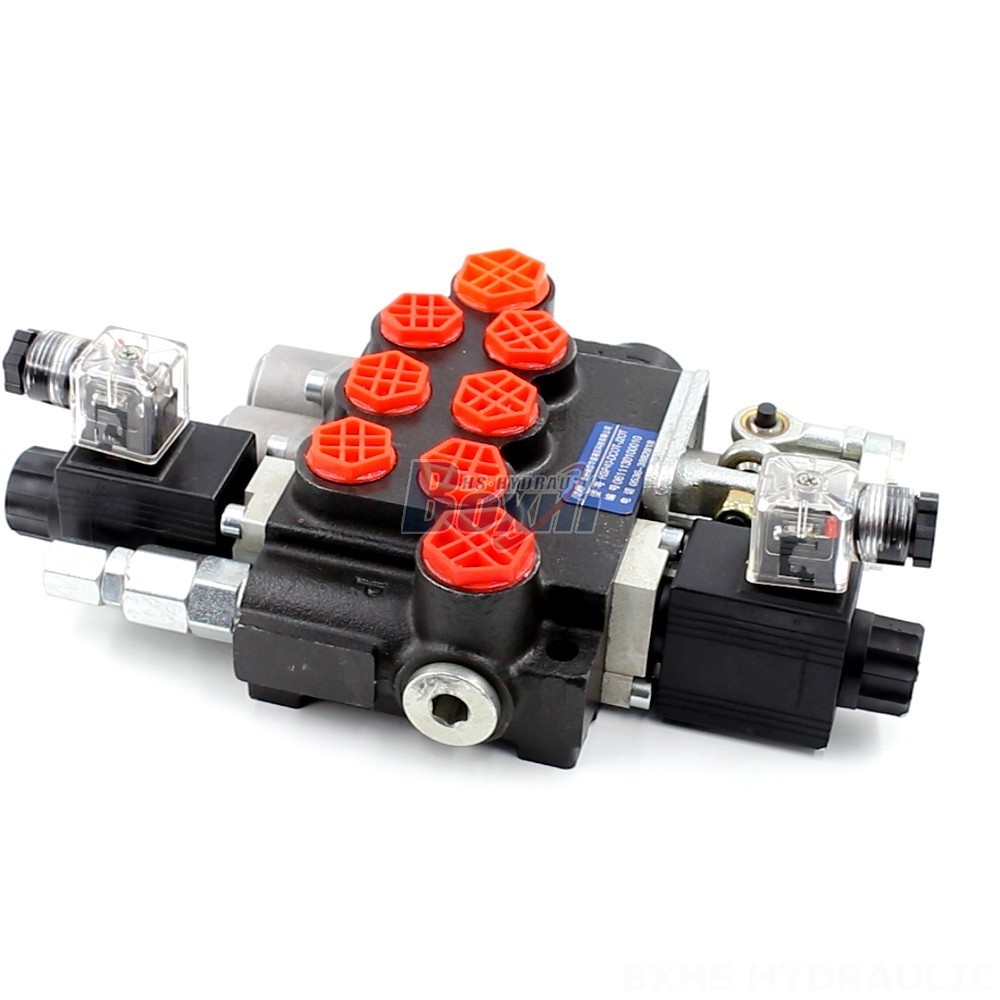

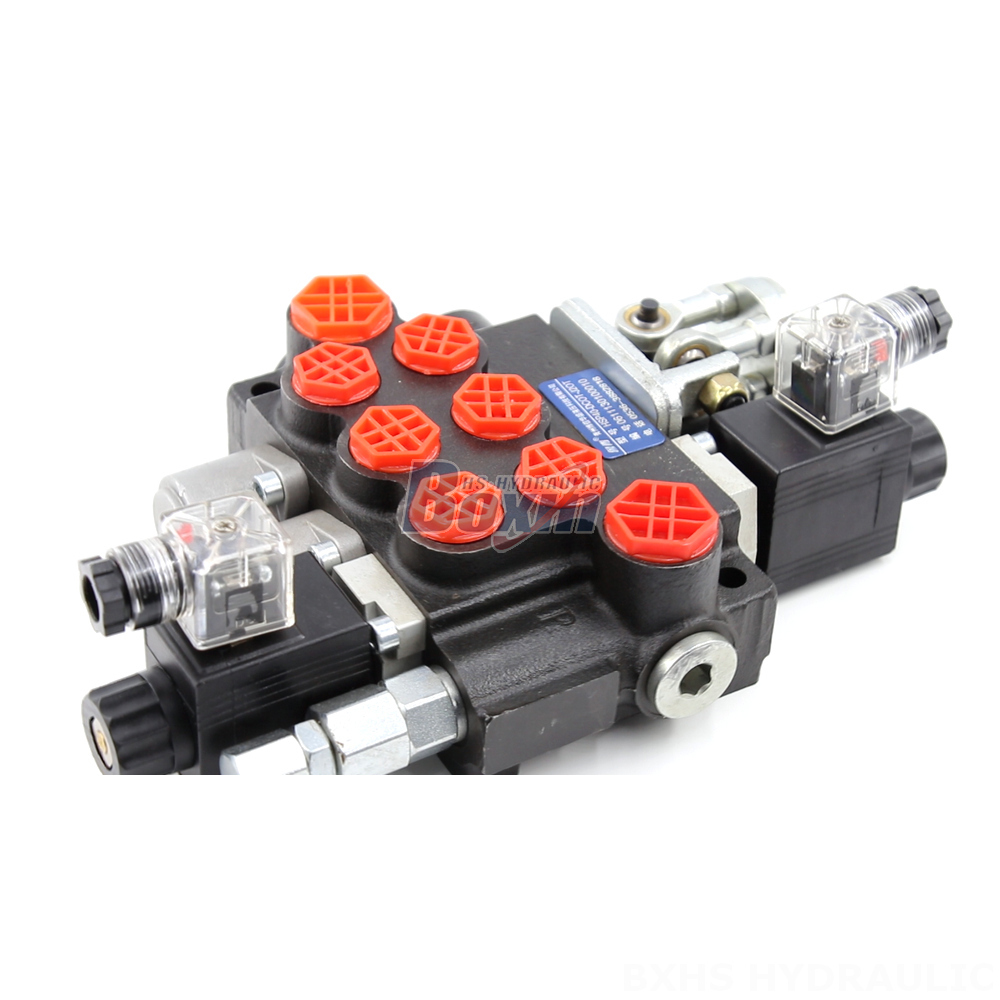

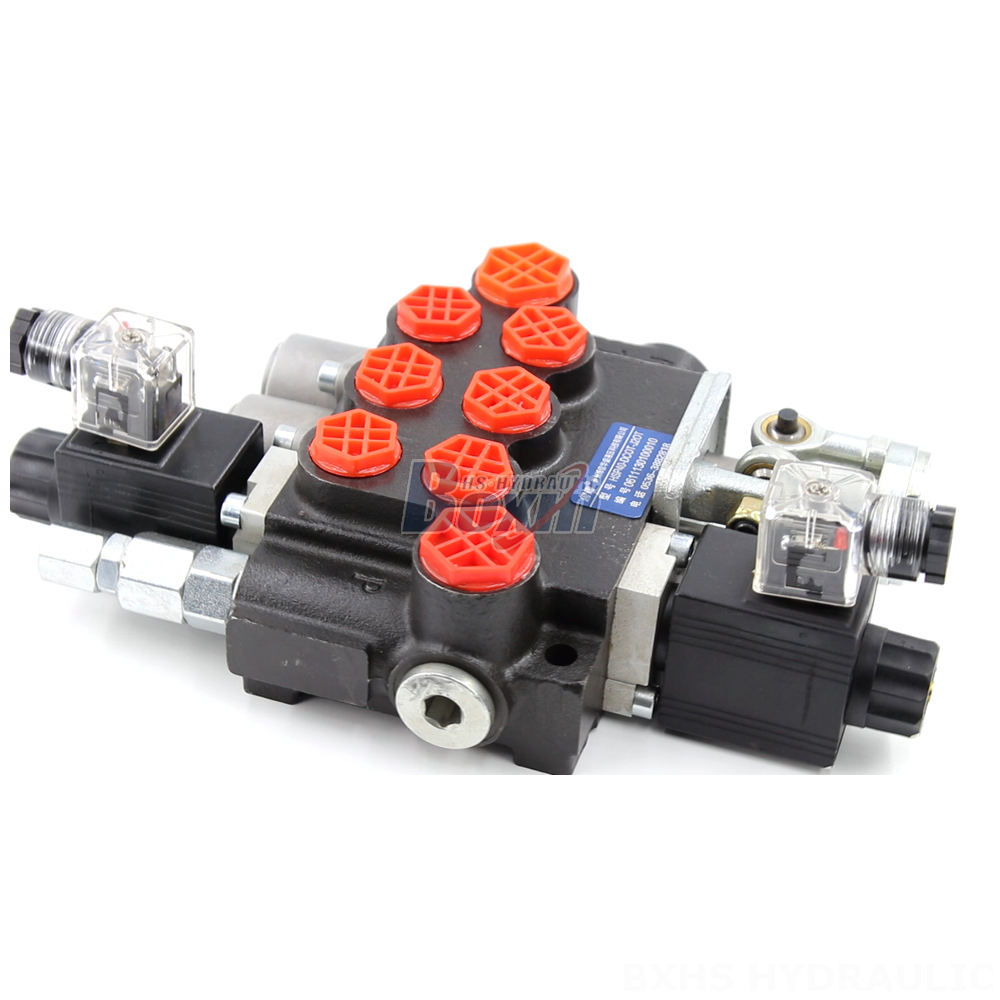

The P40 Monoblock Directional Valve is a high-performance, heavy-duty valve designed for use in a wide range of applications including material handling, construction, agriculture, and industrial vehicles. Featuring solenoid and joystick control, 3 sections, and a rated flow of 40 L/min, this valve is built for demanding environments.

Seria P40 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Elektromagnetyczne i kablowe
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 40 l/min (10,5 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port wylotowy G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Rozmiar portu G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40 Series Monoblock Directional Valve is a high-quality, robust valve designed for heavy-duty applications in various industries such as material handling, construction, agriculture, and industrial vehicles. This valve features a 3-section monoblock structure with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It can handle a wide operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and operates effectively in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). Equipped with both solenoid and joystick control, the P40 valve offers versatile control options. With its 3 spools and robust design, this valve is well-suited for demanding applications like telehandlers, forklifts, mini- excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. This valve is available for bulk orders and can be customized to meet specific requirements.
