High Quality Manual 3 Spool Monoblock Directional Valve | Factory Direct & OEM

Metoda sterowania:Ręczna

Szpula:3-sekcyjny

Przepływ znamionowy:60 l/min (15,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria HSDS15 Zawór kierunkowy sekcyjny

Rozmiar opakowania:23.5*22*11

Waga brutto:12.00 kg

Dostępność: W magazynie

995 Osoby oglądają ten produkt

High Quality Manual 3 Spool Monoblock Directional Valve | Factory Direct & OEM

High Quality Manual 3 Spool Monoblock Directional Valve | Factory Direct & OEM

High Quality Manual 3 Spool Monoblock Directional Valve | Factory Direct & OEM drawing image

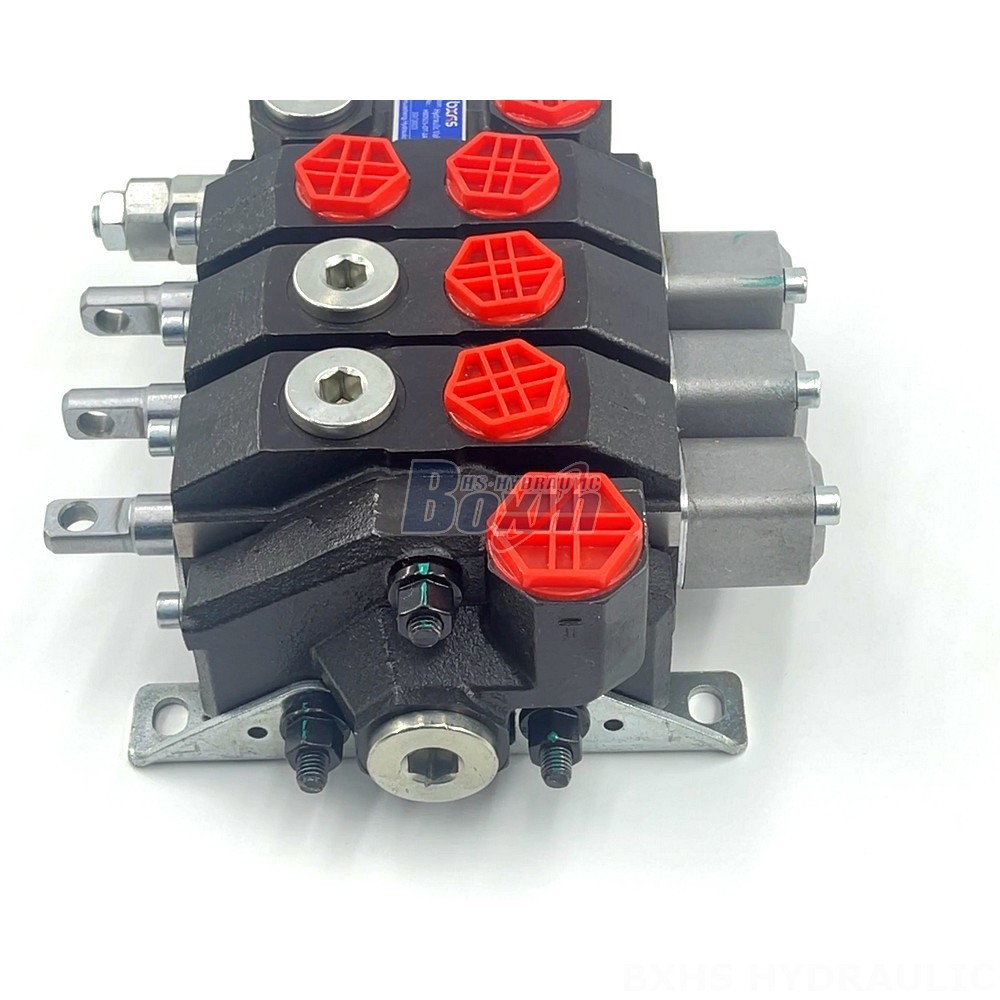

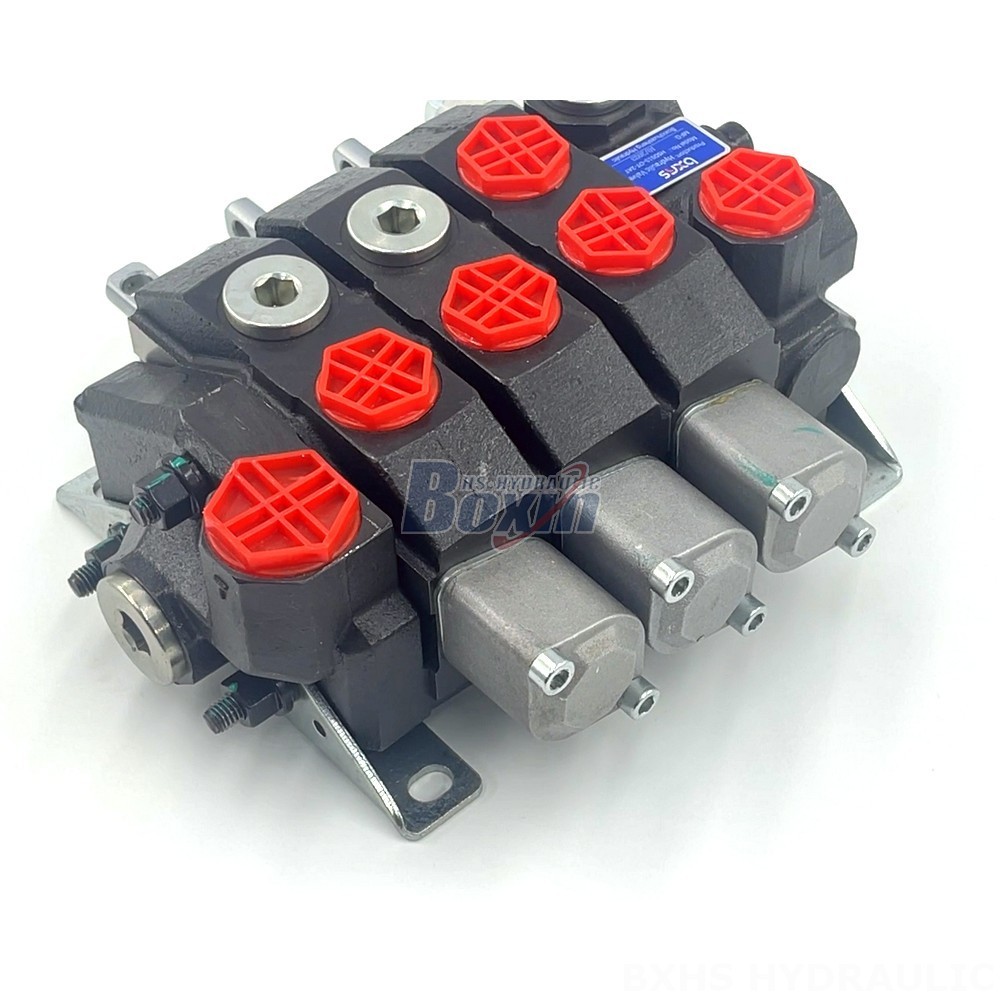

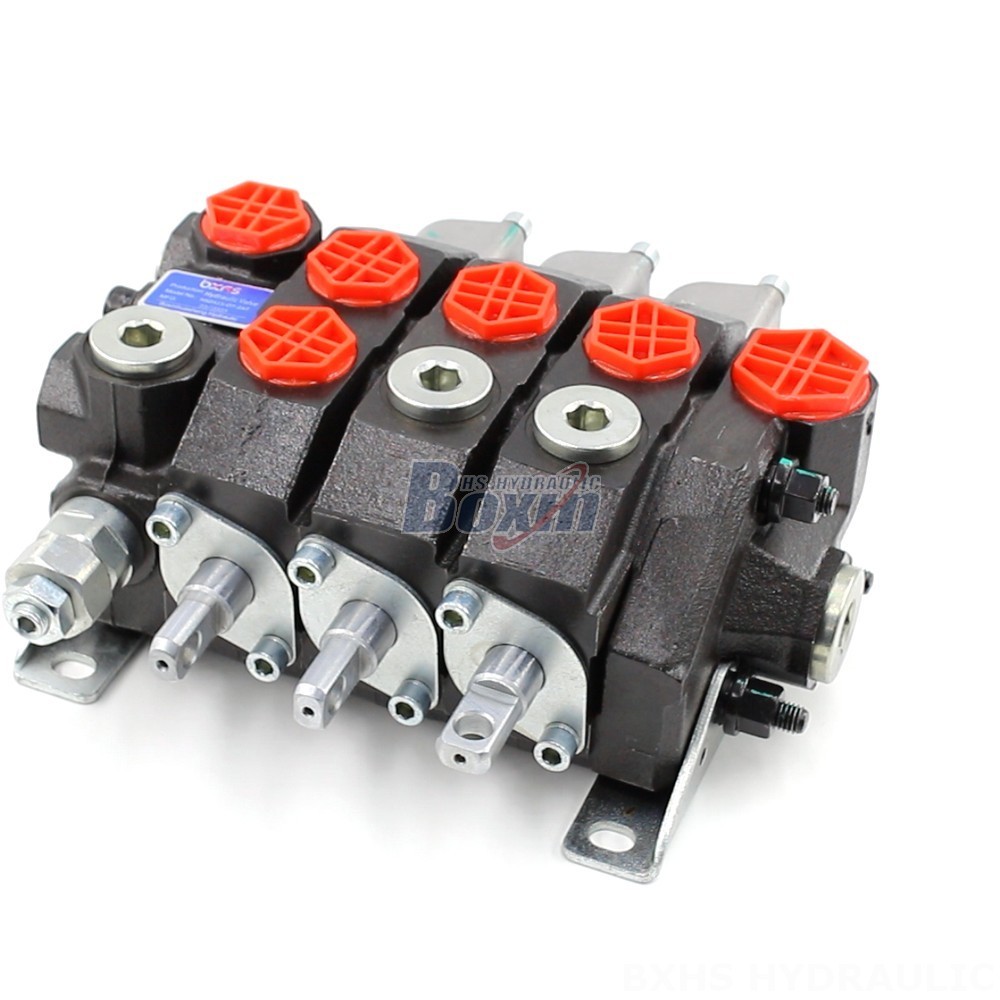

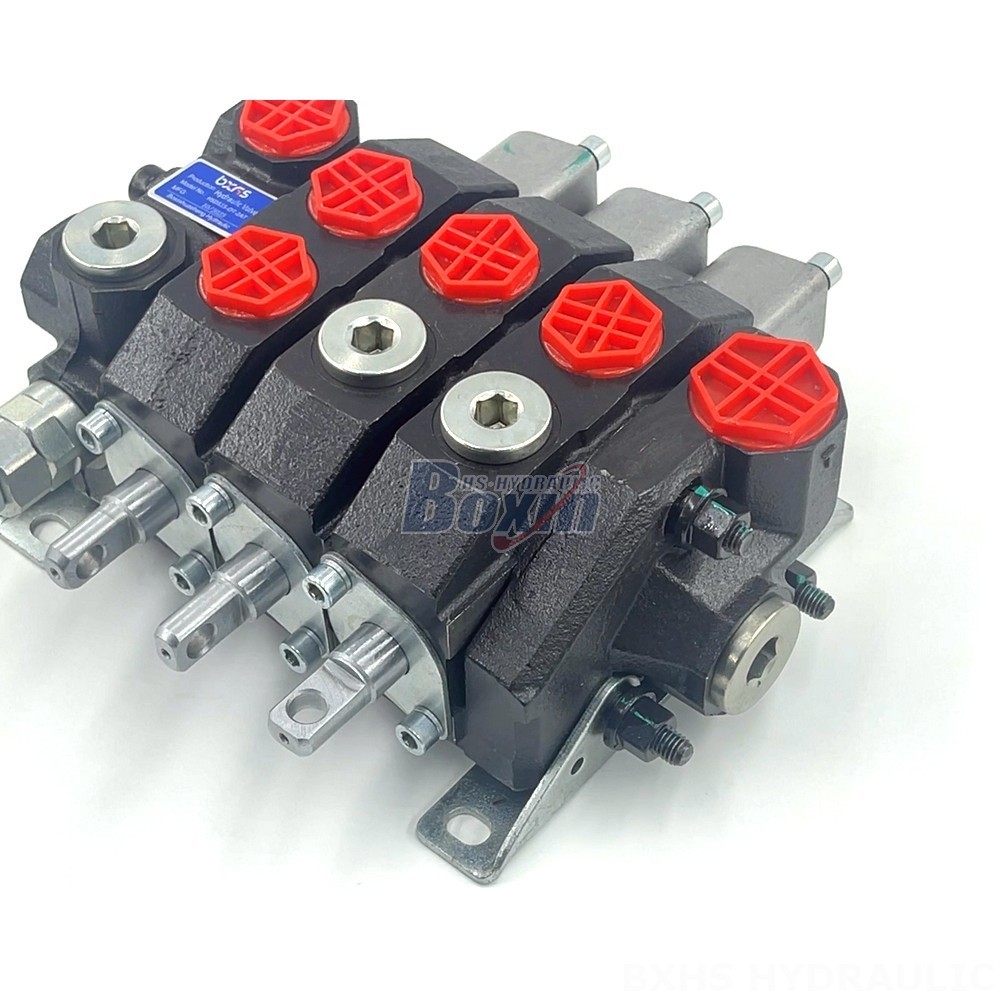

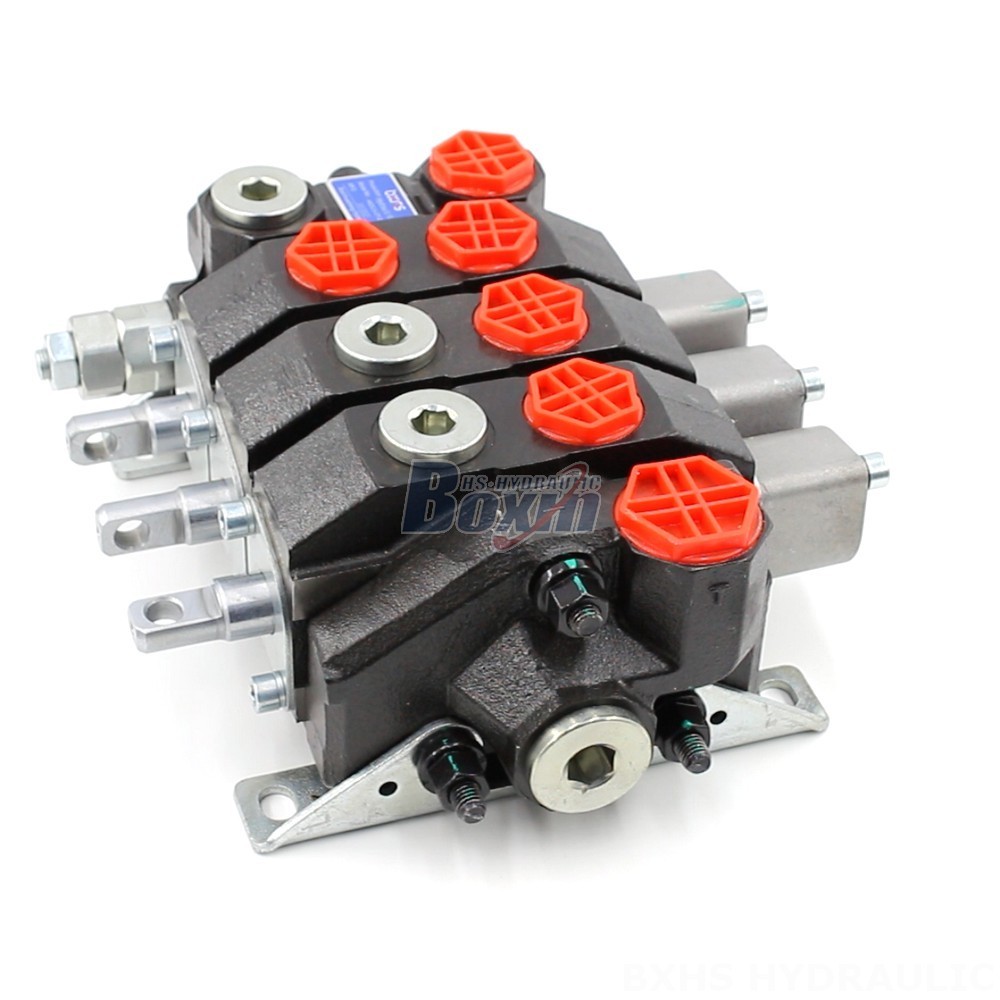

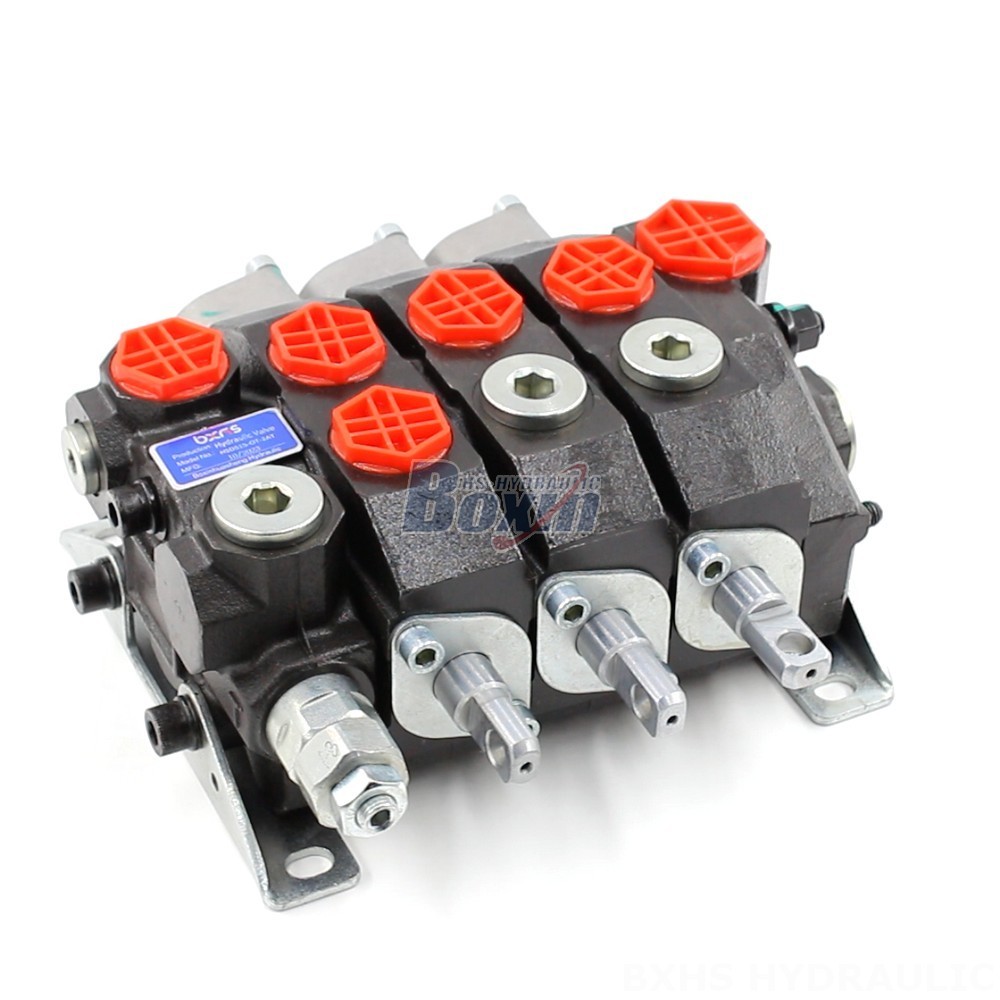

This high-quality, manually operated 3-spool monoblock directional valve is designed for heavy-duty applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 60 L/min and a maximum pressure of 315 bar, making it ideal for demanding operating conditions.

Seria HSDS15 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Ręczna i joystick
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny, 11-sekcyjny, 12-sekcyjny
Przepływ znamionowy 60 l/min (15,8 USGPM)
Maksymalne ciśnienie 250 bar (3600 psi)
Port wlotowy G1/2, SAE 8
Port wylotowy G1/2, G3/4, SAE 8
Rozmiar portu G1/2, SAE 8
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji, 11 Sekcji, 12 Sekcji
Typ konstrukcji Zawór sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)

This robust and reliable 3-spool monoblock directional valve is built for performance and durability. It boasts a rated flow of 60 L/min and a maximum pressure of 315 bar, making it suitable for a wide range of applications. Its sectional valve structure allows for easy maintenance and repair, while its high operating viscosity range ensures optimal performance in diverse environments. This valve is engineered for various applications across industries, including material handling, construction, agriculture, and industrial vehicles. It is compatible with forklifts, telehandlers, mini-excavators, skid steer loaders, compact wheel loaders, tractors, front-end loaders, harvesters, balers, backhoes, and sprayers. This valve is available for direct purchase or as an OEM solution, making it a versatile option for manufacturers and end-users alike. The HSDS15 series offers a reliable and efficient solution for controlling hydraulic systems in demanding environments.
