High Performance WZF-125 Monoblock Valve for Hydraulic Systems

Metoda sterowania:Pneumatyczne i ręczne

Szpula:3-sekcyjny

Przepływ znamionowy:110 l/min (29 US gpm)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G3/4

Port wylotowy:G3/4

Rozmiar portu:G3/4

Marka:BXHS

Typ produktu:Zawór sterujący jednoczęściowy

Seria produktów:Seria WZF-125 Zawór sterujący jednoczęściowy

Rozmiar opakowania:38*25*12

Waga brutto:19.50 kg

Dostępność: W magazynie

89 Osoby oglądają ten produkt

High Performance WZF-125 Monoblock Valve for Hydraulic Systems

High Performance WZF-125 Monoblock Valve for Hydraulic Systems

High Performance WZF-125 Monoblock Valve for Hydraulic Systems drawing image

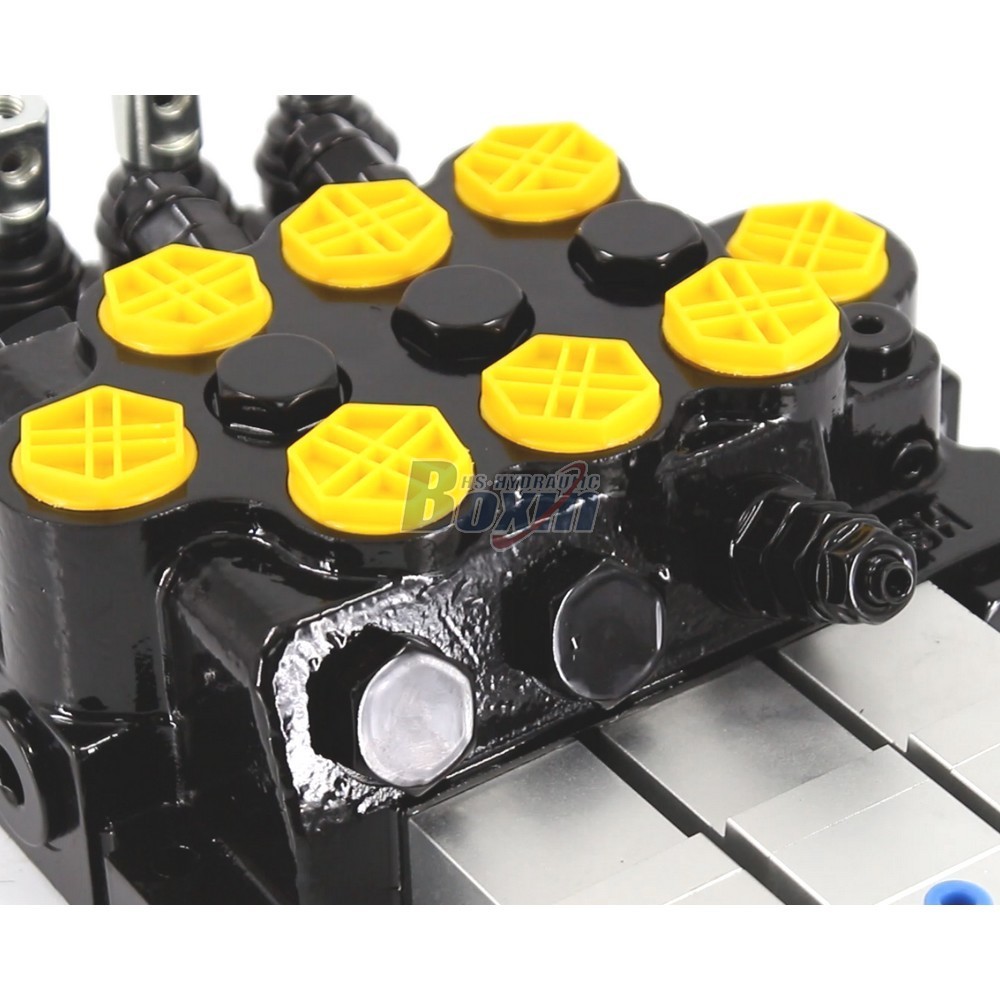

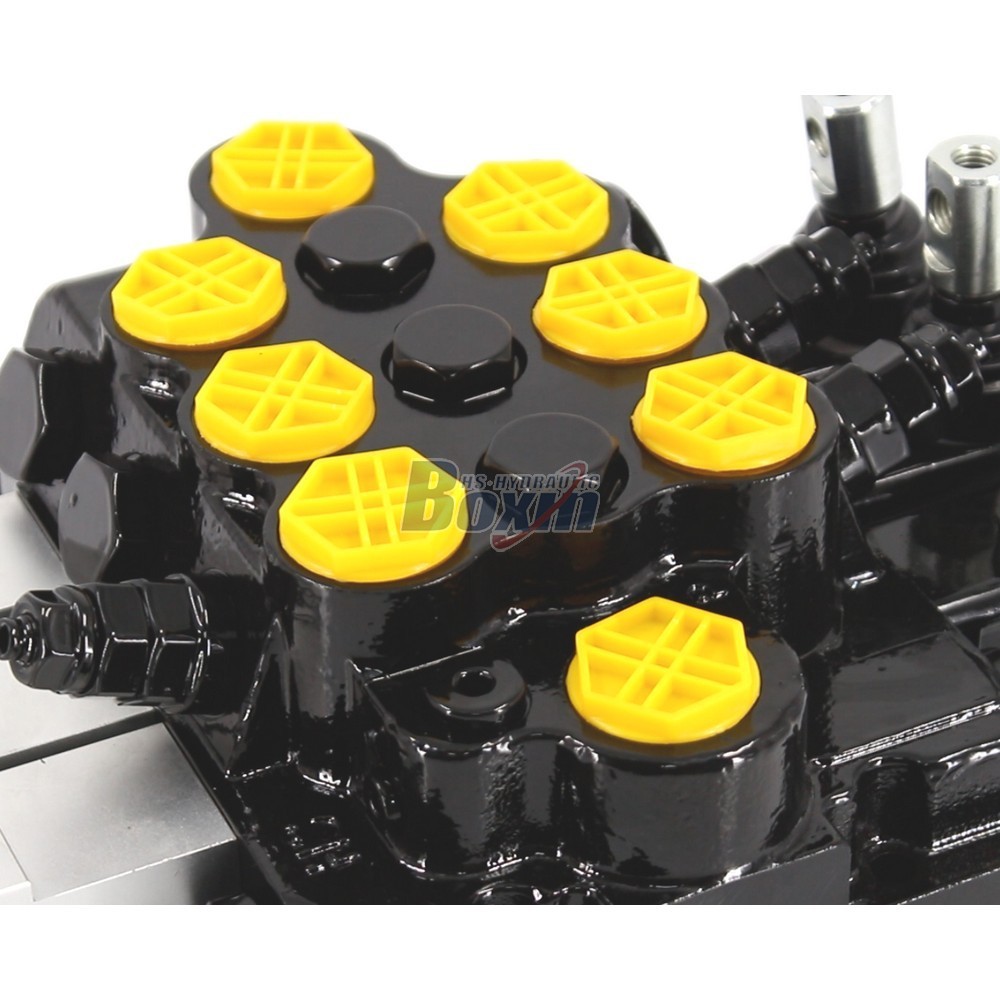

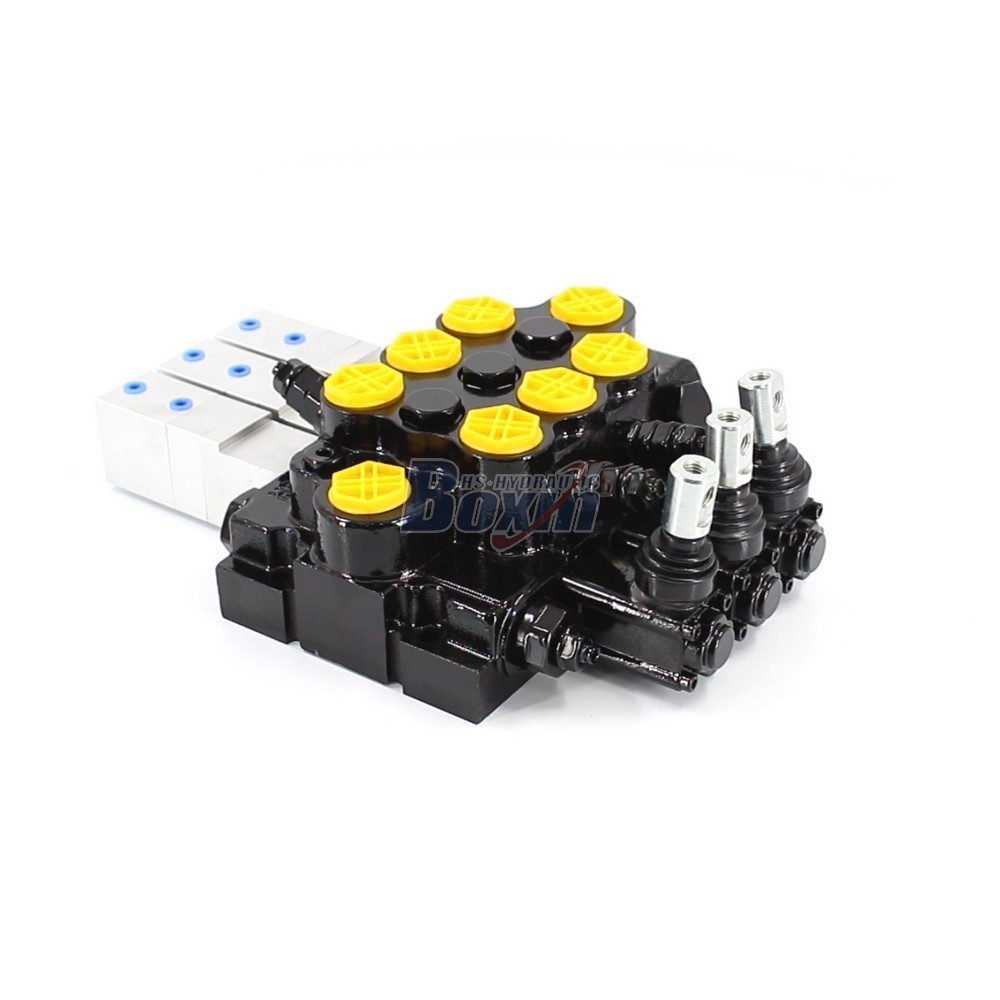

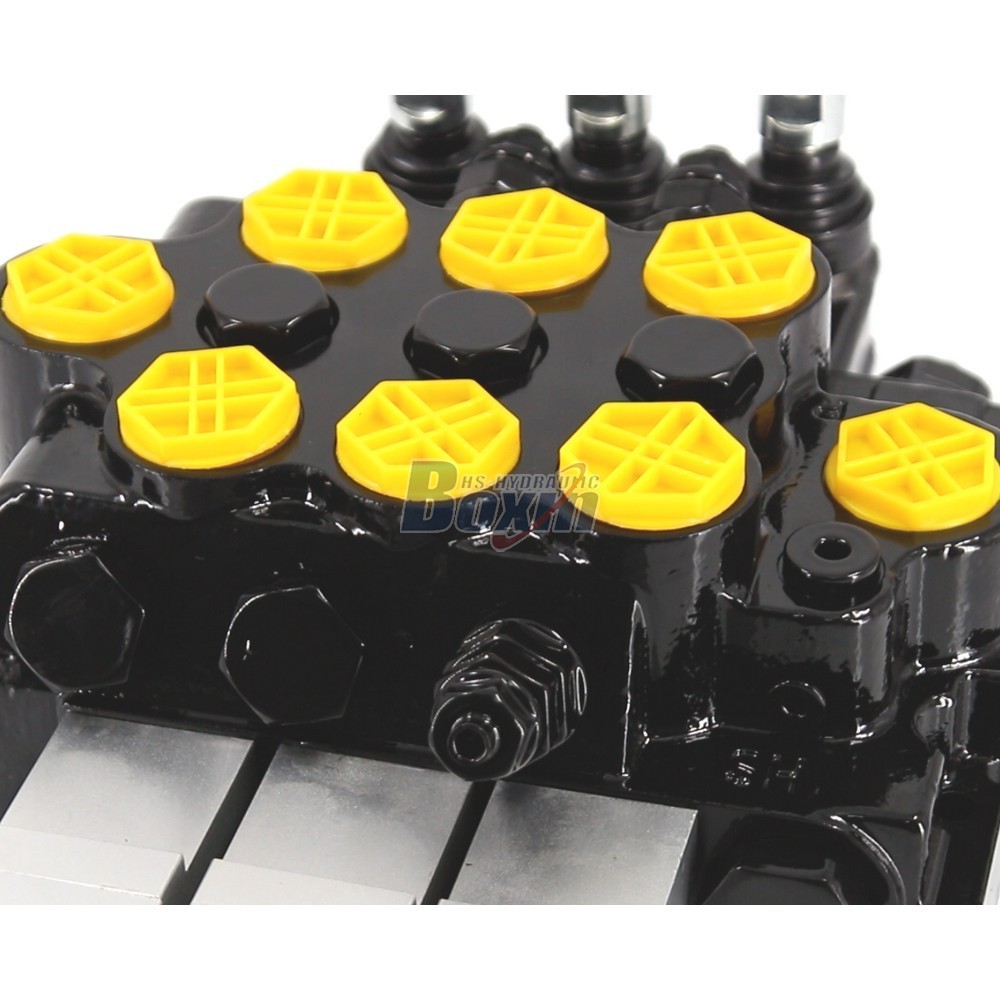

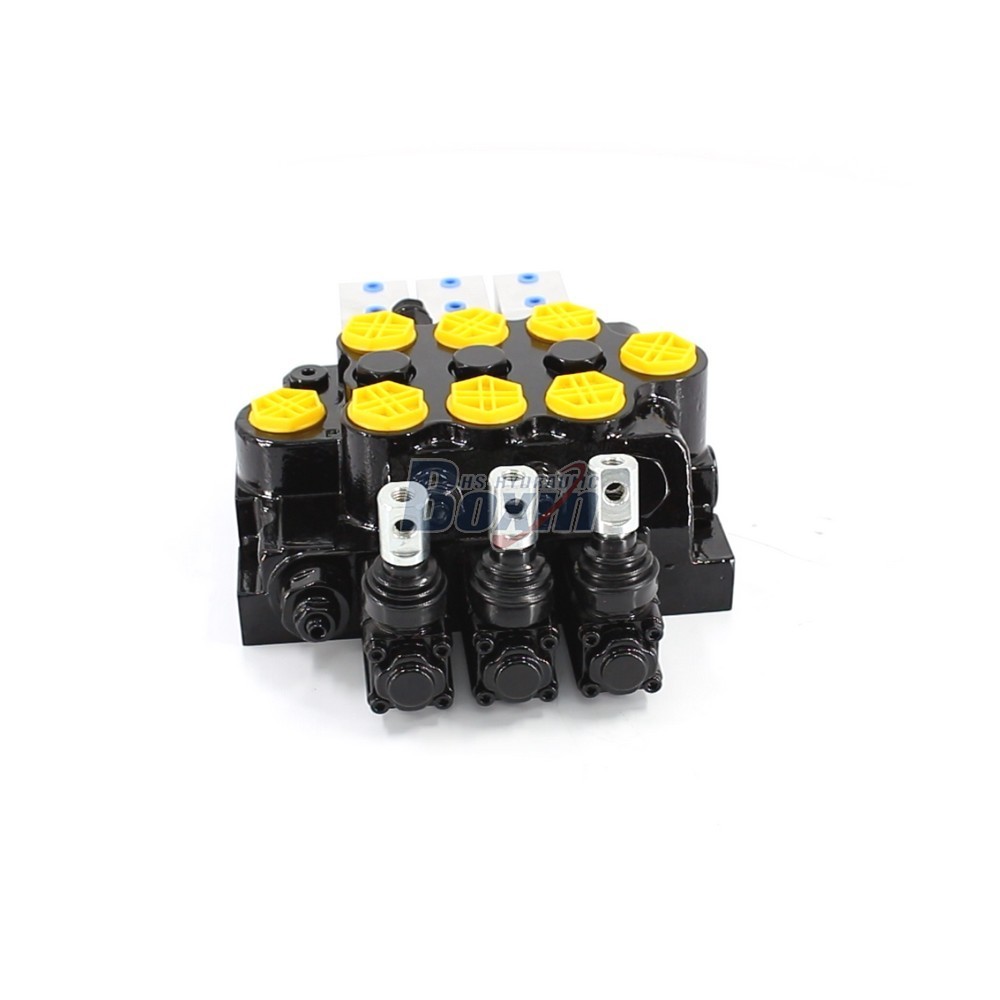

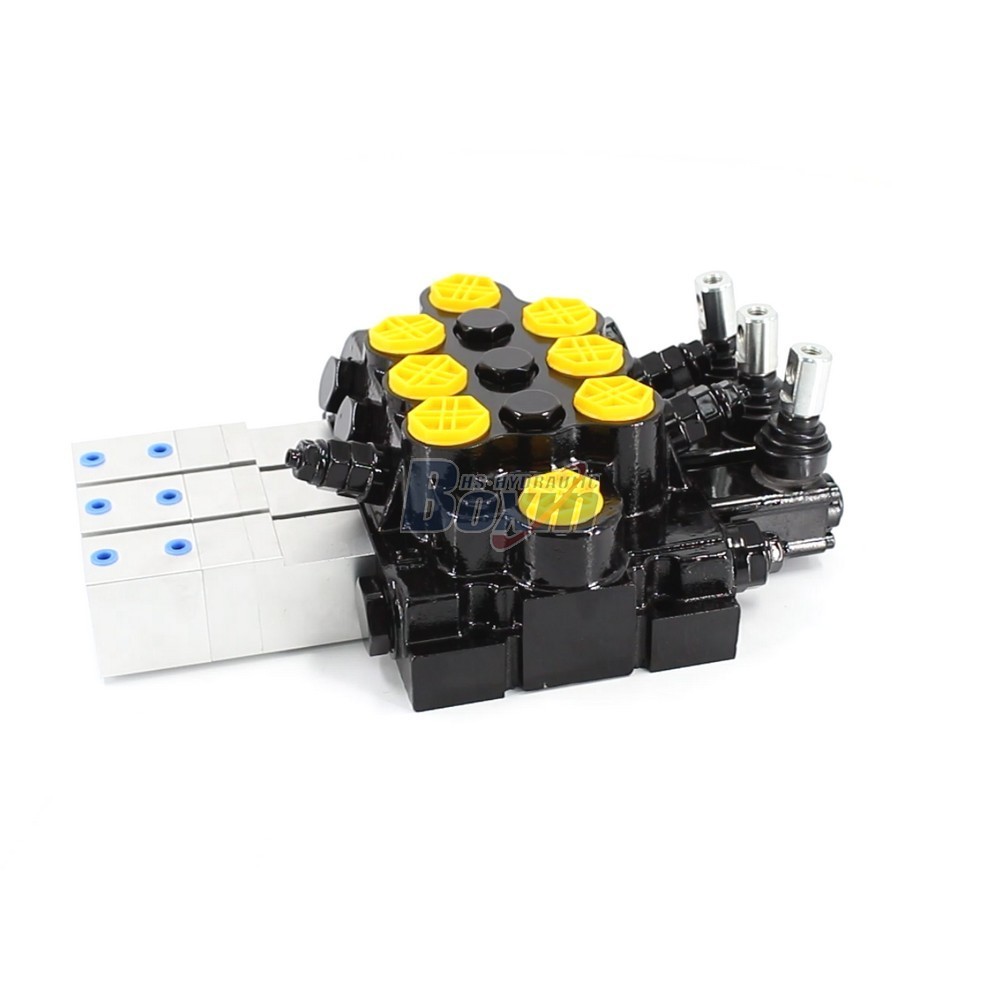

The WZF-125 Series is a high-performance 3-spool monoblock hydraulic valve designed for versatile control in heavy-duty machinery. Featuring both pneumatic and manual operation, this valve supports a rated flow of 110 L/min and maximum pressure of 315 bar, offering robust performance for construction, agricultural, and material handling applications.

Seria WZF-125 Zawór sterujący jednoczęściowy Parametry
Metoda sterowania Ręczna, Pneumatyczna, Pneumatyczne i ręczne
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór blokowy
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje
Zakres lepkości roboczej 15 - 75 mm²/s (15 cSt do 75 cSt)
Przepływ znamionowy 110 l/min (29 US gpm)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G3/4
Port wylotowy G3/4
Rozmiar portu G3/4

Engineered for durability and efficiency, the WZF-125 Monoblock Valve offers superior fluid control for diverse industries including forestry, construction, and agriculture. As a large-scale manufacturer, we specialize in high-capacity production to meet global market demands. Key features include a maximum pressure rating of 315 bar and a versatile G3/4 port interface, making it ideal for skid steer loaders, forklifts, tractors, and forestry trailers.

We provide comprehensive services including OEM, private labeling, and customized engineering solutions to meet your specific hardware requirements. We are currently expanding our global supply chain and are seeking partnerships with professional distributors, wholesalers, and international trade partners. Benefit from direct-from-factory pricing, reliable manufacturing quality, and localized support. Whether you require small-batch wholesale or mass production manufacturing, our factory is equipped to provide stable supply and technical assistance for all your hydraulic system integration needs. Contact our sales department to discuss distribution opportunities and factory-direct procurement.
