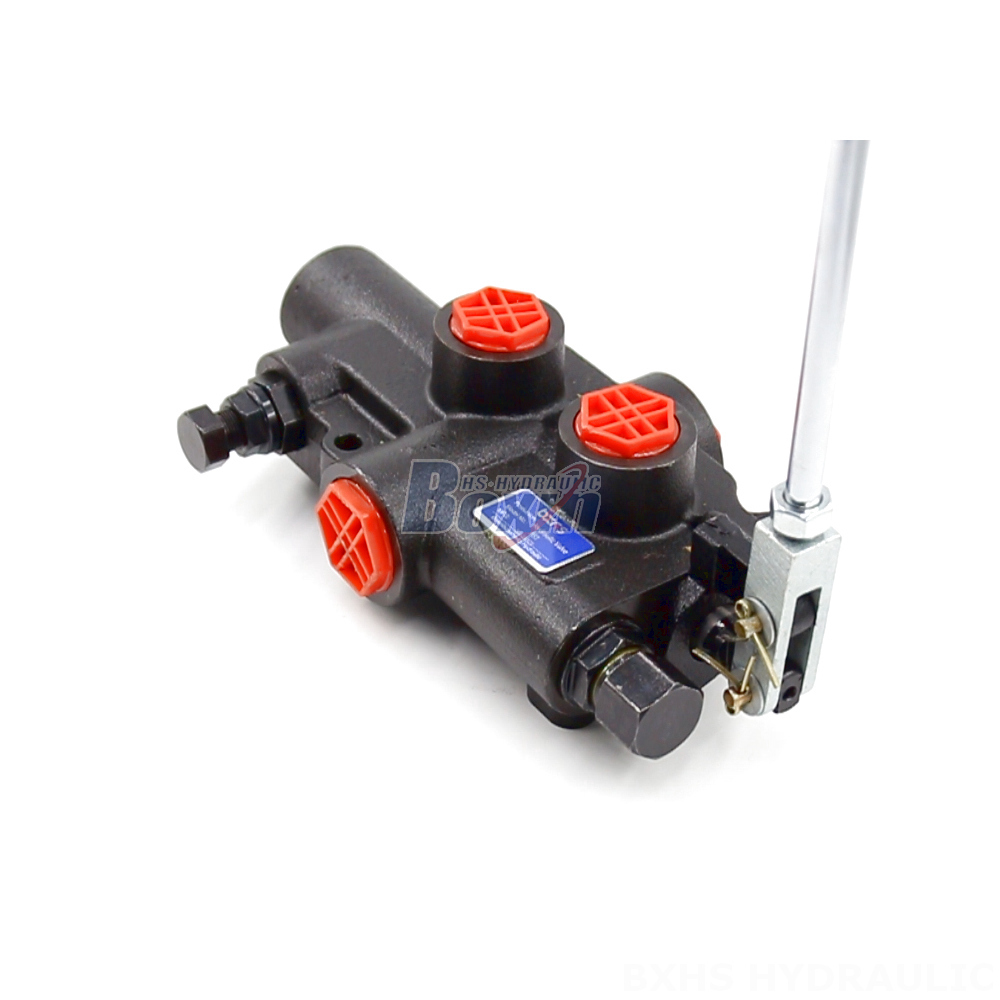

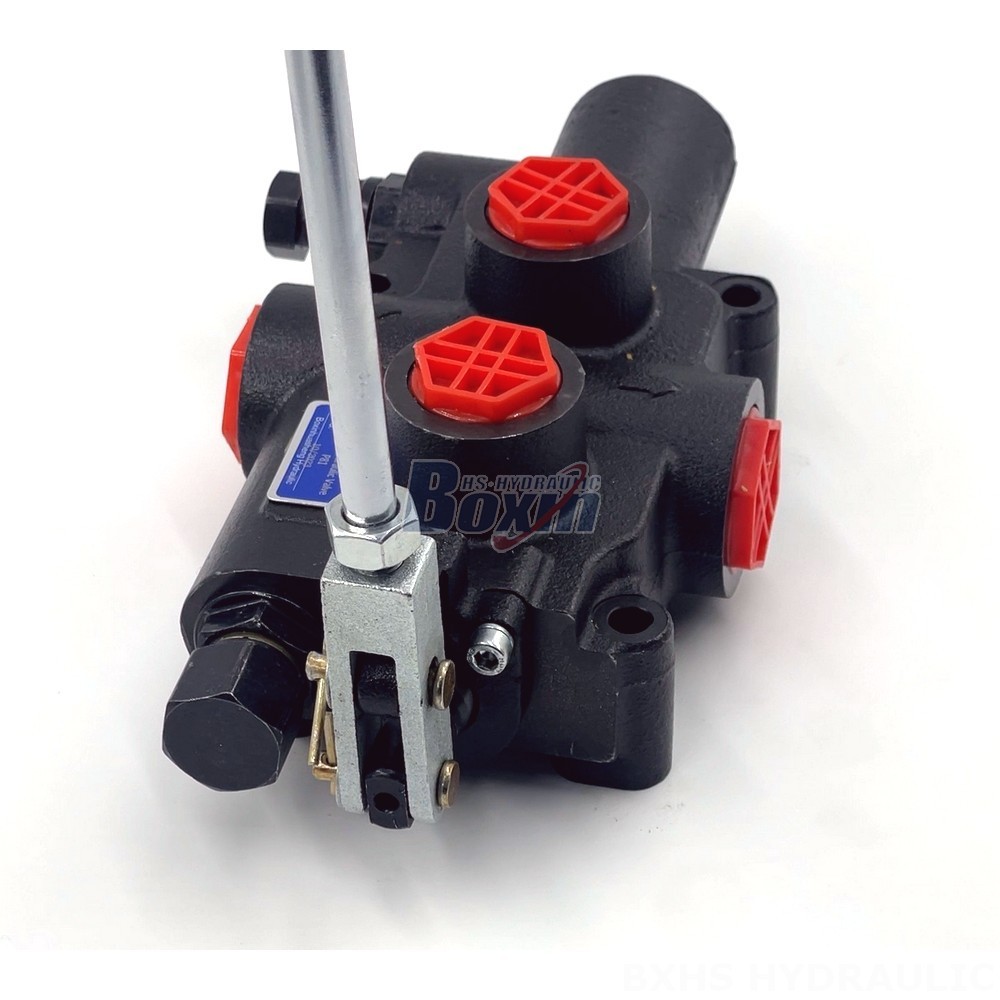

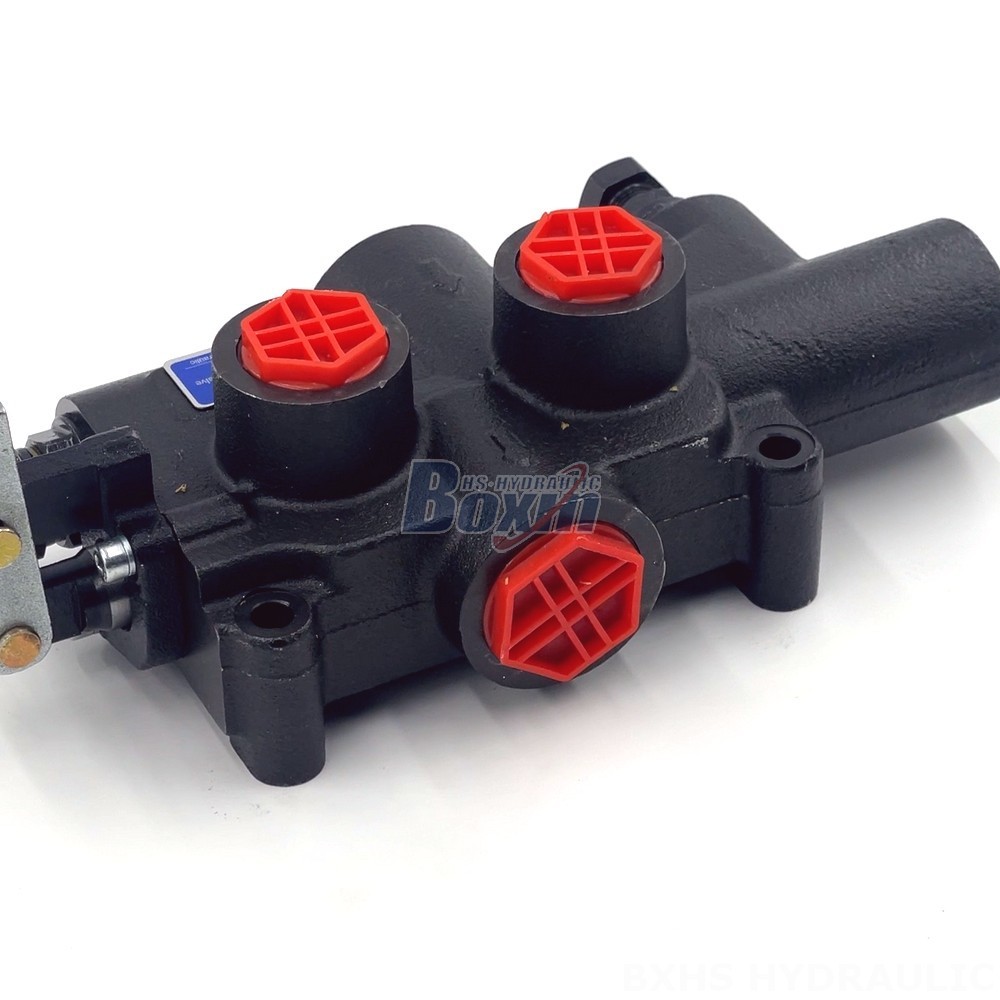

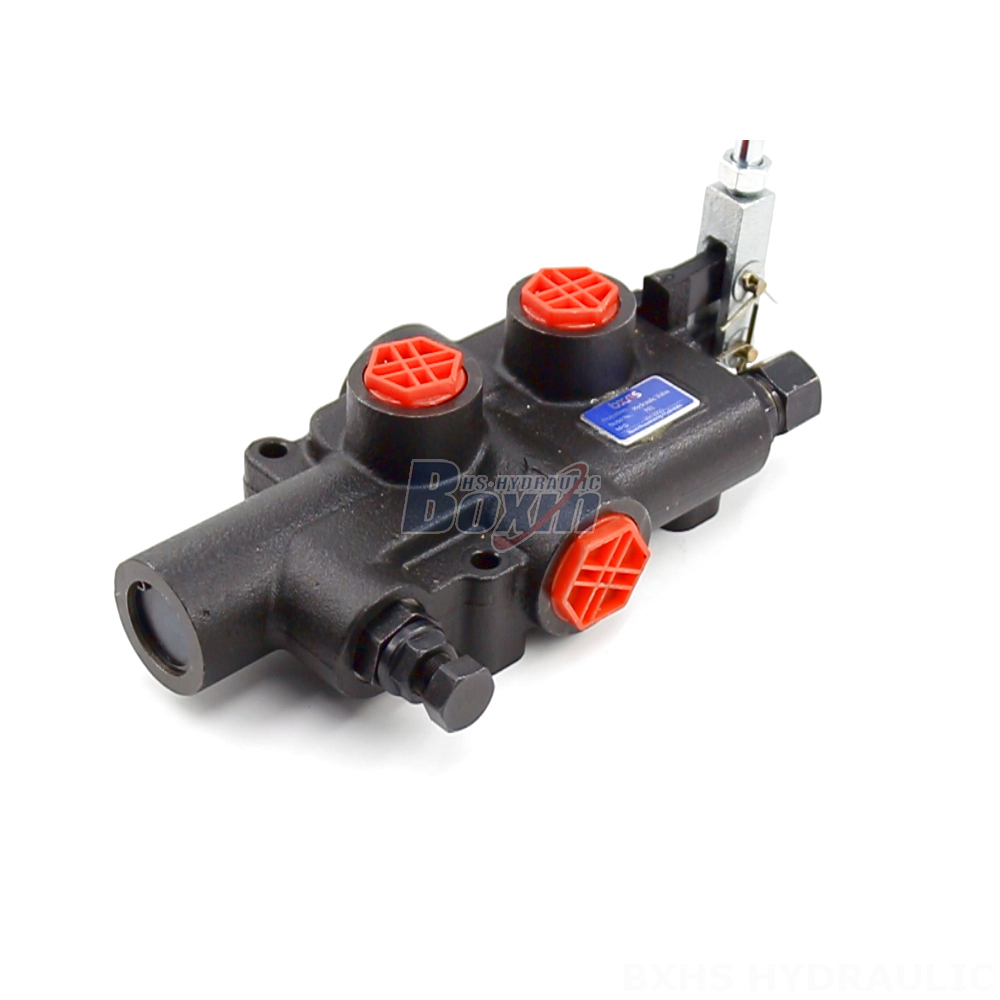

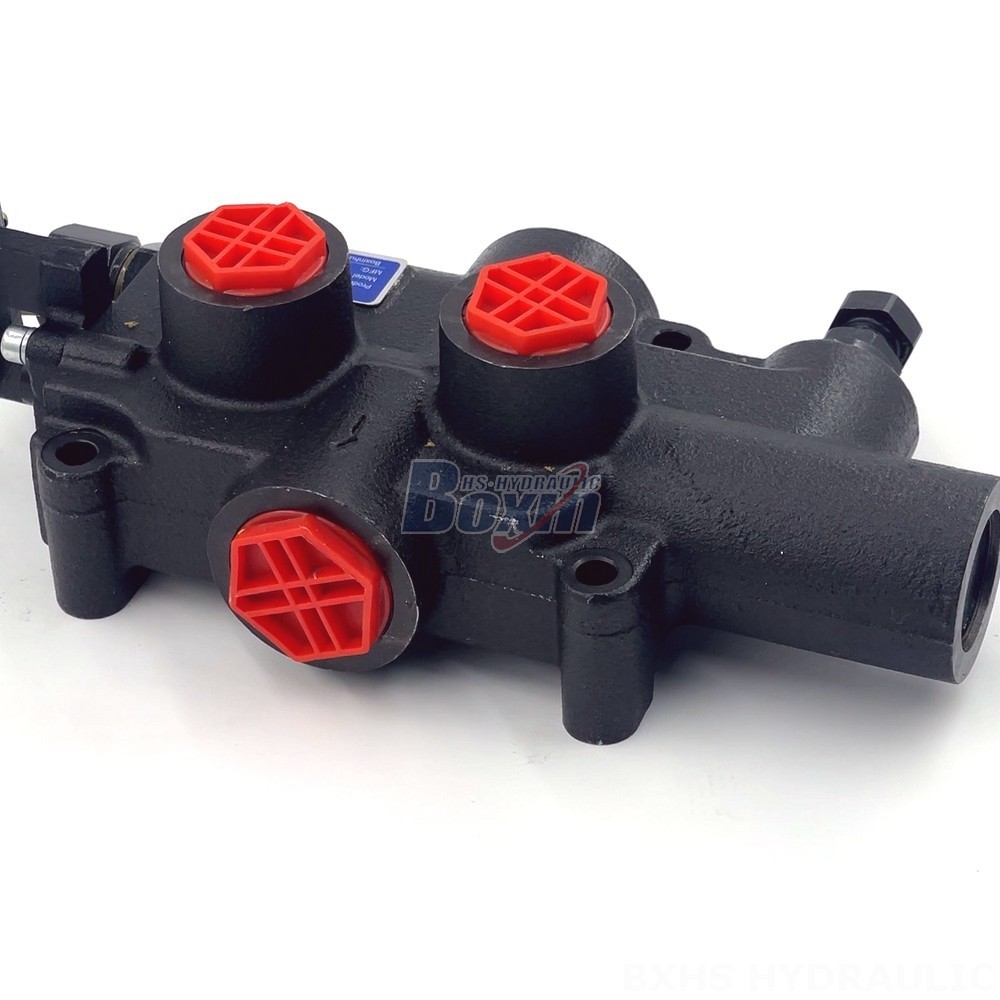

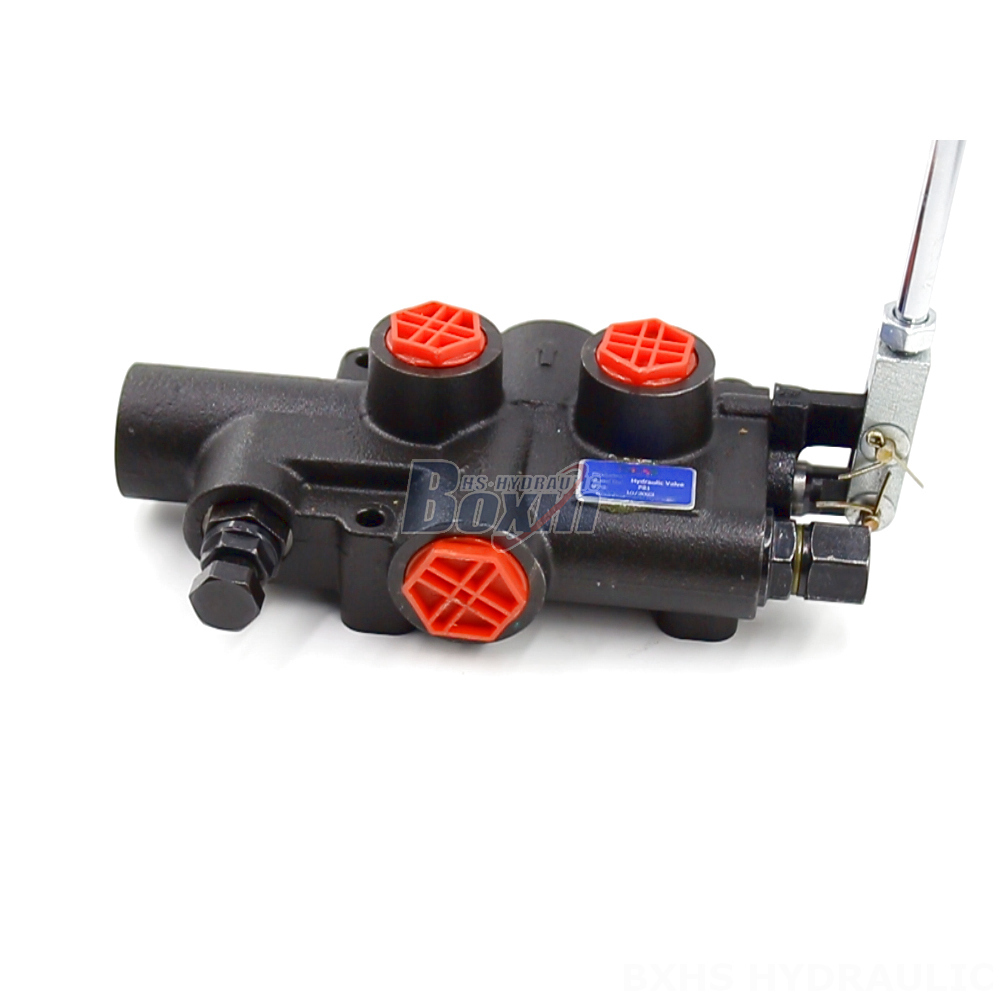

The P81 Series Multiway Directional Valve is a high-performance hydraulic valve designed for demanding applications in industrial vehicles, particularly wood splitters. This manual control valve features a monoblock structure and delivers a rated flow of 80 L/min (21.2 US gpm) at a maximum pressure of 250 bar (3600 psi).
| Seria P81 Zawór do łuparki do drewna Parametry | |
|---|---|
| Metoda sterowania | Ręczna |
| Szpula | 1-sekcyjny |
| Zakres temperatury otoczenia | -40°C do +80°C (-40°F do +176°F) |
| Typ konstrukcji | Zawór blokowy |
| Sekcja | 1 Sekcja |
| Zakres lepkości roboczej | 15 - 75 mm²/s (15 cSt do 75 cSt) |
| Przepływ znamionowy | 80 l/min (21,2 USGPM), 95 l/min (25,1 USGPM) |
| Maksymalne ciśnienie | Ciśnienie 19 MPa |
| Port wlotowy | G1/2 |
| Port wylotowy | G1/2 |
| Rozmiar portu | G3/4 |
The P81 Series Multiway Directional Valve is a robust and reliable solution for controlling hydraulic systems in demanding industrial applications. This high-performance valve is specifically designed for wood splitters, offering superior control and efficiency. Its monoblock construction provides durability and strength, ensuring long-lasting performance. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure rating of 250 bar (3600 psi), the P81 valve is capable of handling high-pressure hydraulic systems. The valve operates within a wide viscosity range (15 - 75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its kick-out setting pressure is adjustable between 70~140bar (1015-2030psi), providing precise control and safety. The P81 Series Multiway Directional Valve is an ideal choice for manufacturers and users of industrial vehicles and equipment requiring a high-performance, reliable, and durable hydraulic valve solution.
