High-Performance Manual 5 Spool Sectional Directional Valve

Metoda sterowania:Ręczna

Szpula:5-sekcyjny

Przepływ znamionowy:90 l/min (23,8 USGPM)

Maksymalne ciśnienie:315 bar (4600 psi)

Port wlotowy:G1/2

Port wylotowy:G3/4

Rozmiar portu:G1/2

Marka:BXHS

Typ produktu:Zawór kierunkowy sekcyjny

Seria produktów:Seria SD8 Zawór kierunkowy sekcyjny

Rozmiar opakowania:35*40*17

Waga brutto:25.00 kg

Dostępność: W magazynie

2091 Osoby oglądają ten produkt

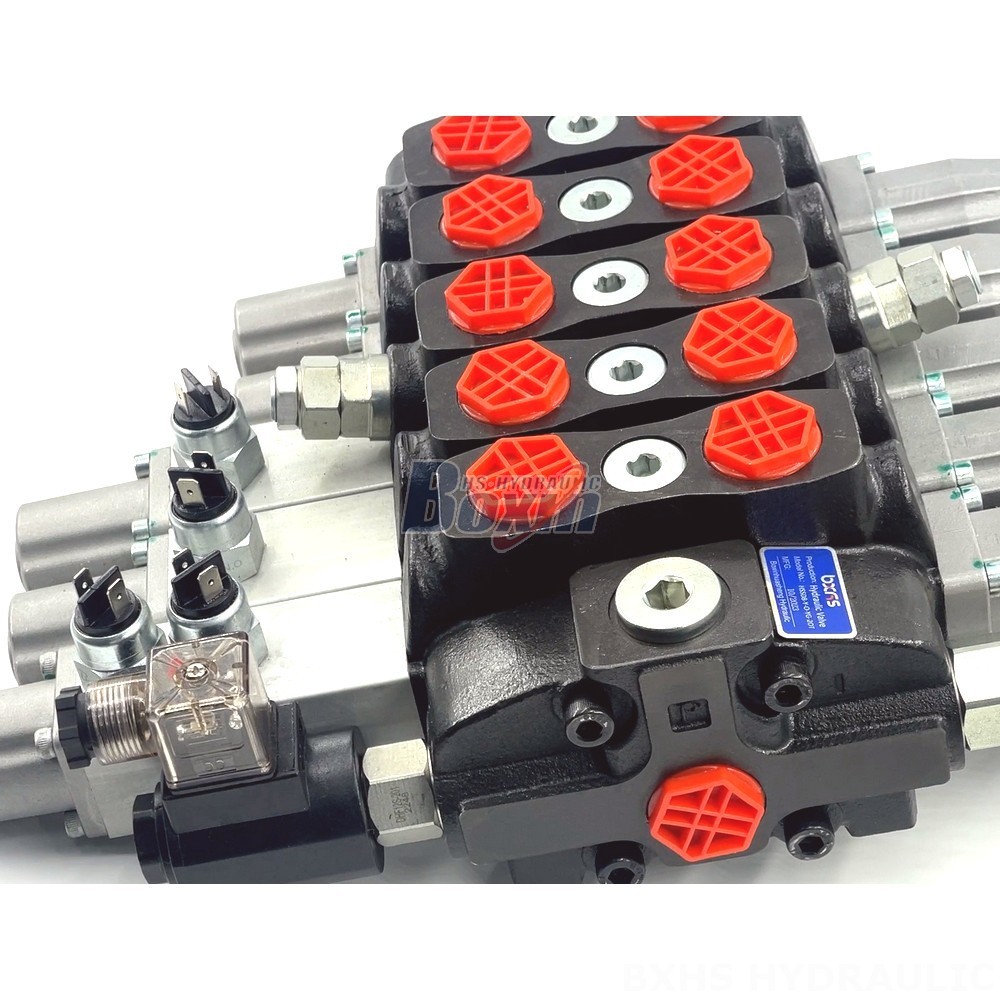

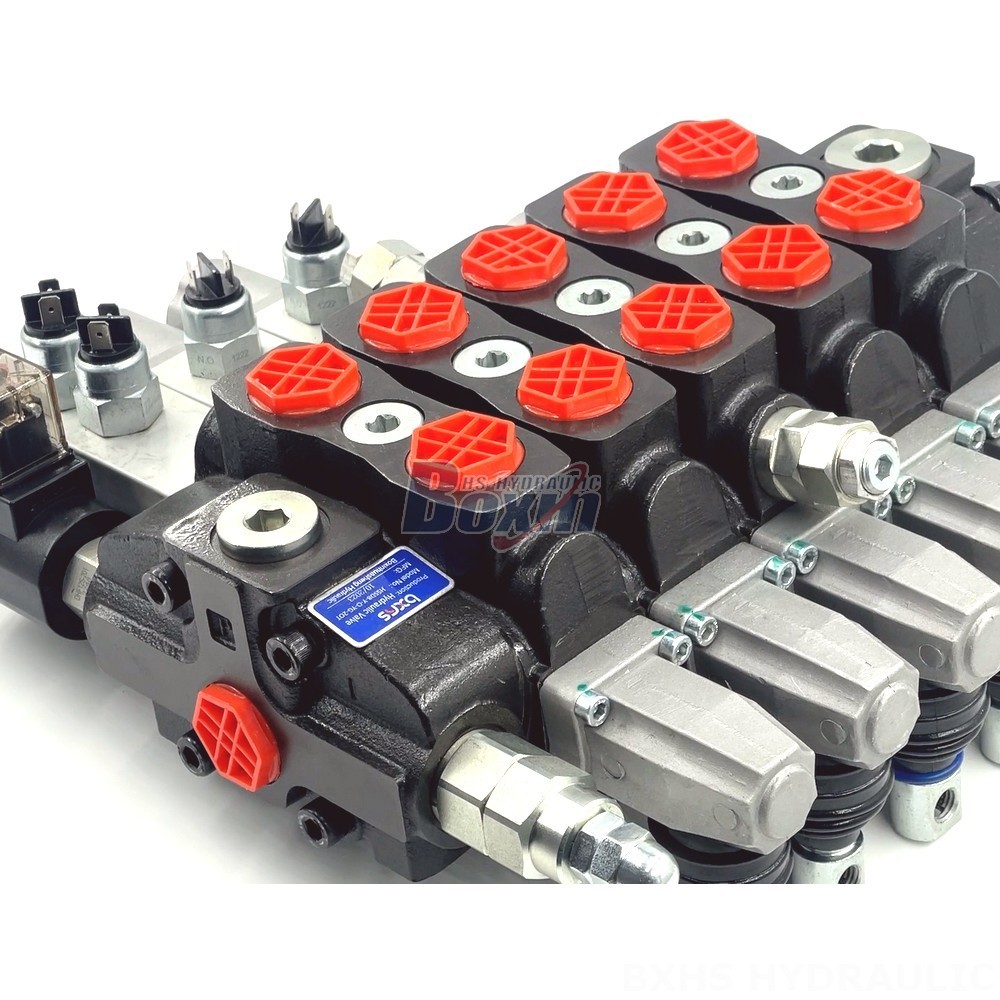

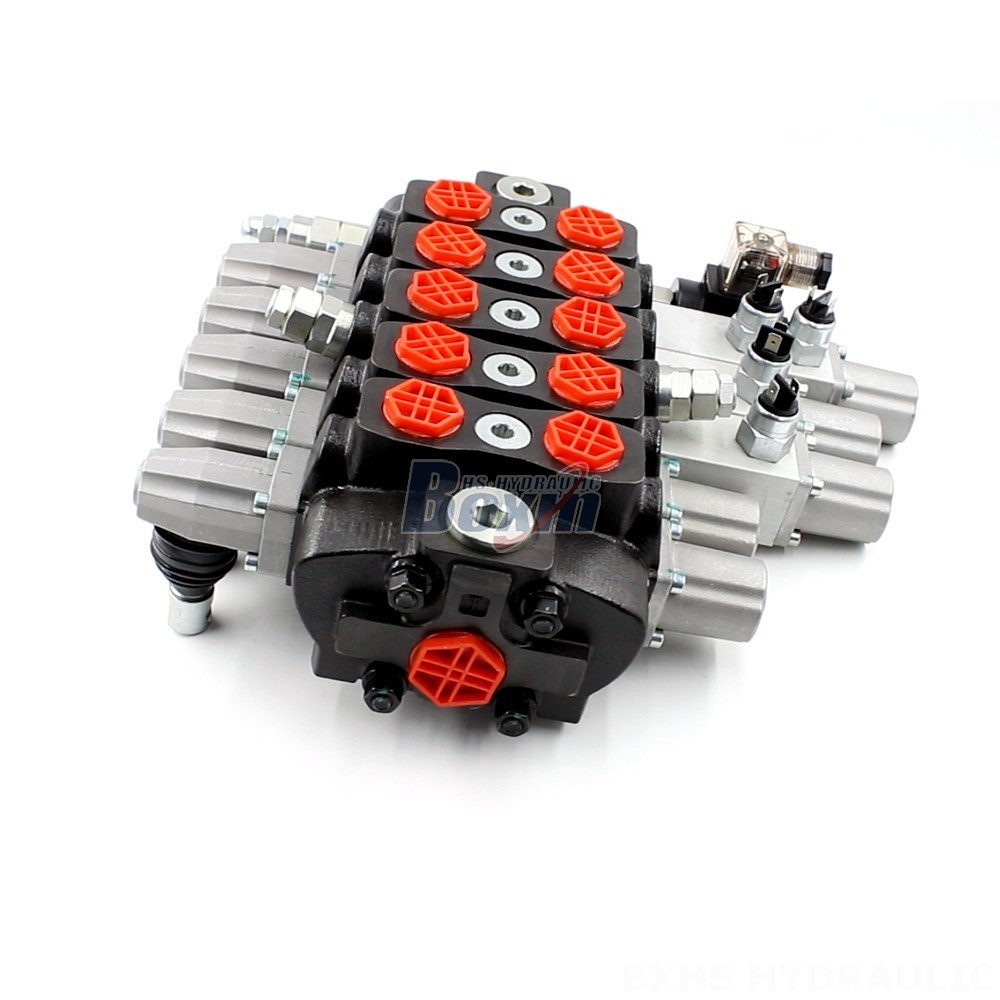

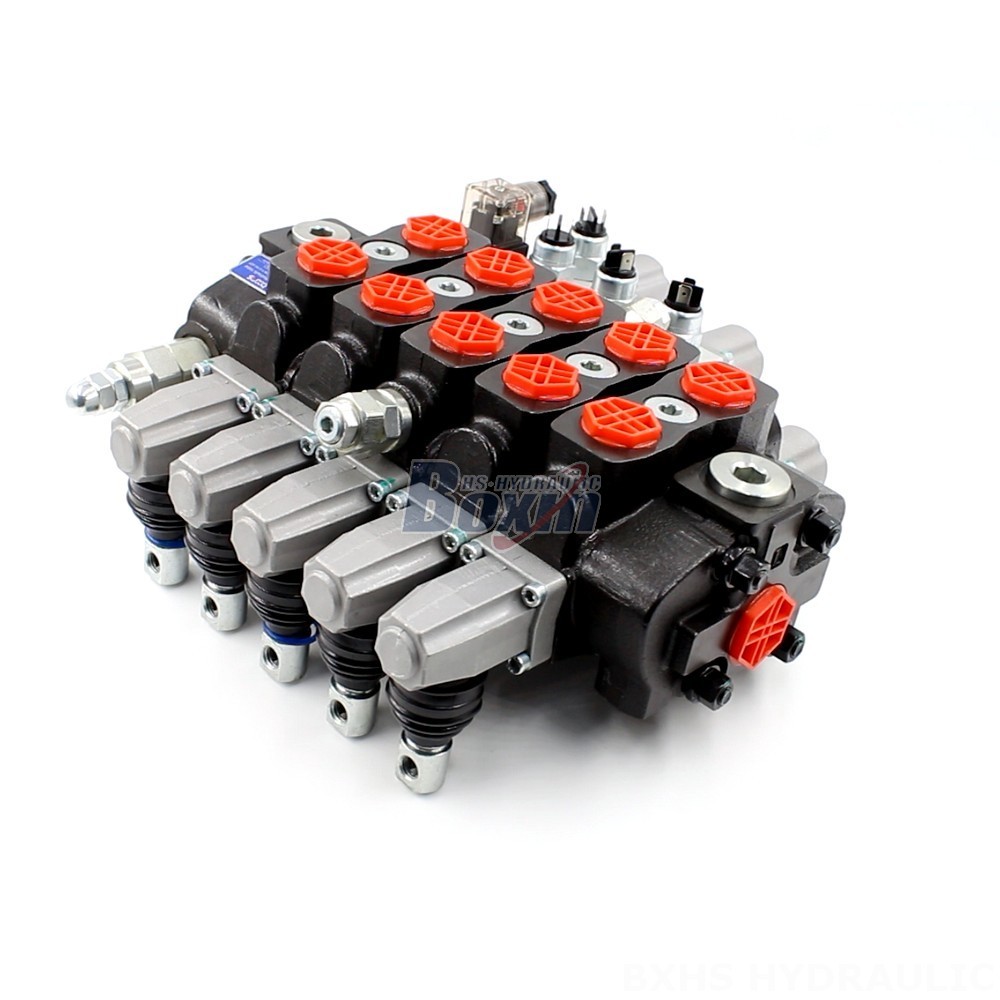

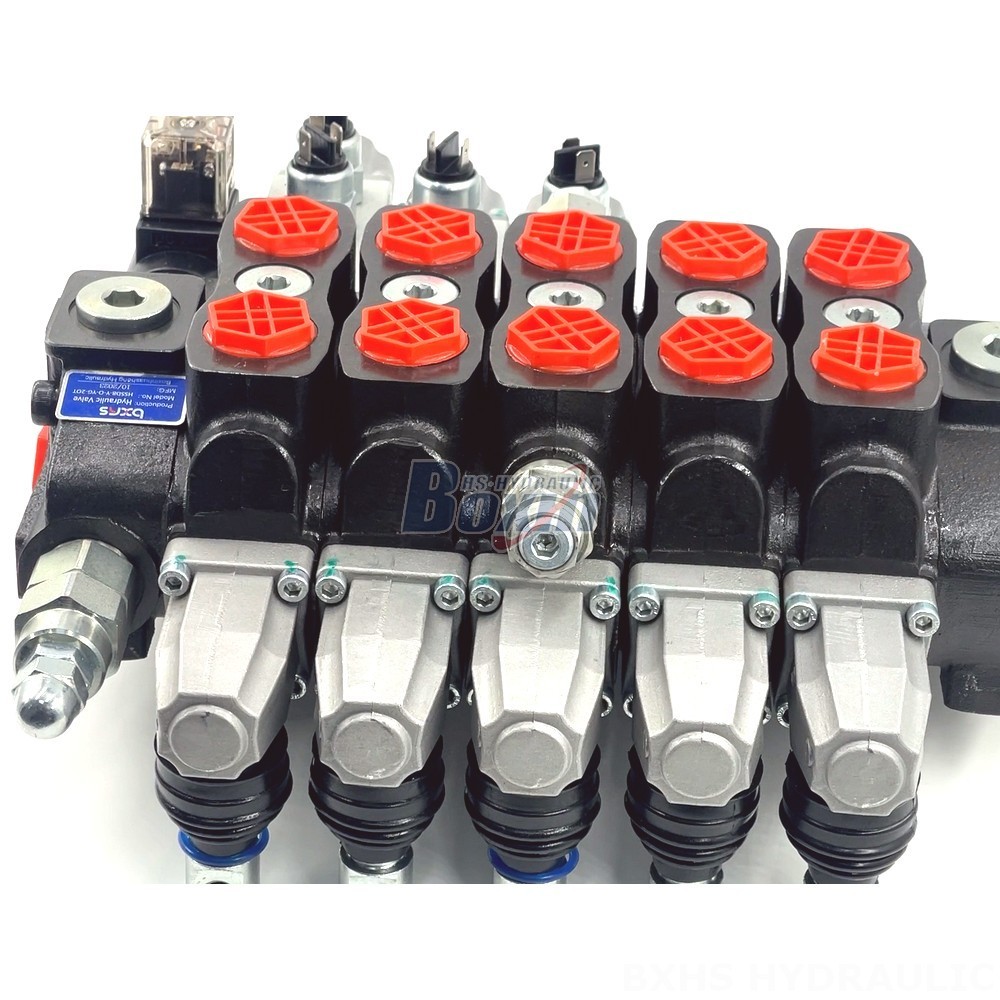

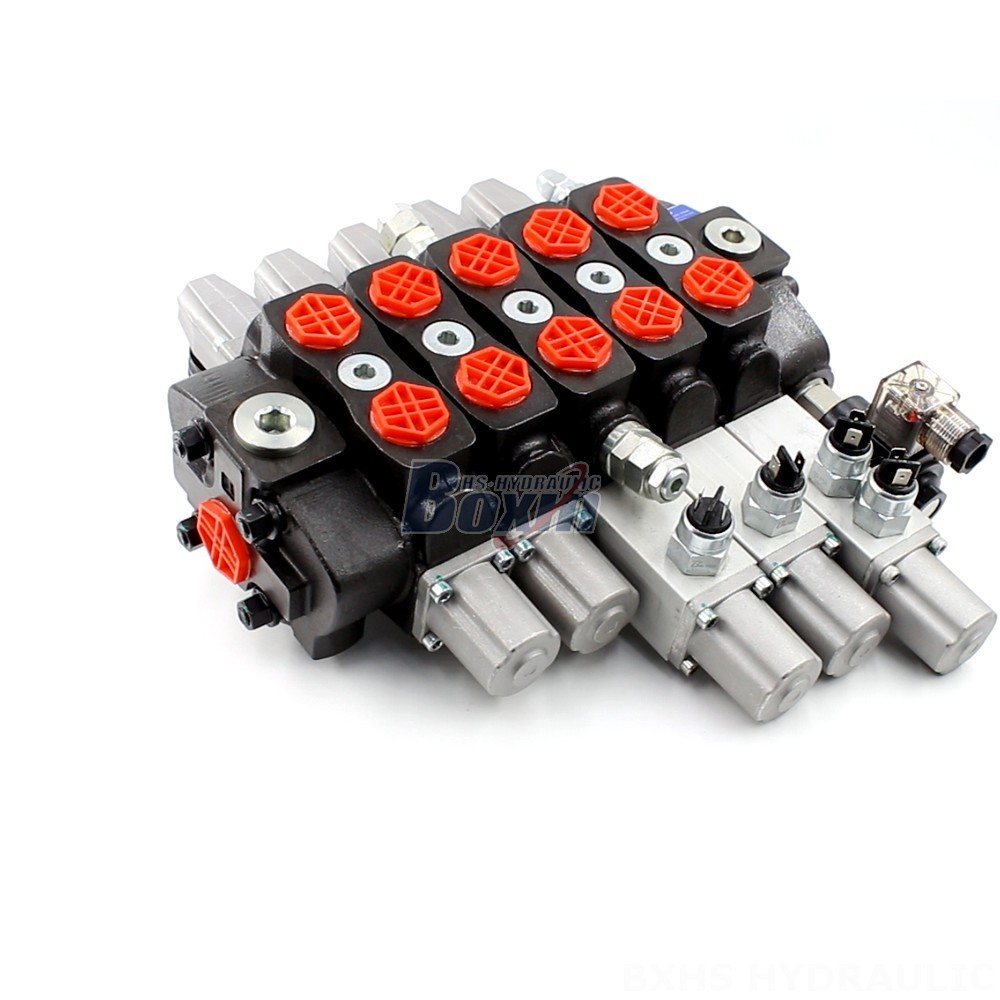

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve

High-Performance Manual 5 Spool Sectional Directional Valve drawing image

This is a high-performance manual 5 spool sectional directional valve designed for excavators and other heavy equipment. It features a rated flow of 90 L/min and a maximum pressure of 350 bar, making it ideal for demanding applications.

Seria SD8 Zawór kierunkowy sekcyjny Parametry
Metoda sterowania Ręczna, Pneumatyczna, Elektropneumatyczna, Elektrohydrauliczna, Elektromagnes, Hydrauliczna, Hydrauliczny i ręczny, Kabel, Dźwignia sterownicza, Elektromagnes i joystick, Ręczna i joystick, Silnik elektryczny
Szpula 1-sekcyjny, 2-sekcyjny, 3-sekcyjny, 4-sekcyjny, 5-sekcyjny, 6-sekcyjny, 7-sekcyjny, 8-sekcyjny, 9-sekcyjny, 10-sekcyjny
Zakres temperatury otoczenia -40°C do +80°C (-40°F do +176°F)
Typ konstrukcji Zawór sekcyjny
Sekcja 1 Sekcja, 2 Sekcje, 3 Sekcje, 4 Sekcje, 5 Sekcji, 6 Sekcji, 7 Sekcji, 8 Sekcji, 9 Sekcji, 10 Sekcji
Zakres lepkości roboczej 12 - 400 mm²/s (12 cSt do 400 cSt)
Przepływ znamionowy 90 l/min (23,8 USGPM)
Maksymalne ciśnienie 315 bar (4600 psi)
Port wlotowy G1/2, G3/4, M22×1.5, SAE 10
Port wylotowy G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Rozmiar portu G1/2, M22×1.5, SAE 10

Our Excavator Joystick Hydraulic Valve is a high-performance, manually controlled, 5 spool sectional directional valve. It is designed for demanding applications in the construction, material handling, agriculture, and industrial vehicle sectors. This valve offers a rated flow of 90 L/min and a maximum pressure of 350 bar. It is suitable for a wide range of applications, including excavators, forklifts, telehandlers, mini-excavators, midi-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, front-end loaders, and harvesters. The valve features a robust construction and reliable performance, ensuring long-lasting operation. With its 5 spool design, it offers precise control and responsiveness. This valve is an excellent choice for any application requiring high performance and reliable hydraulic control.
