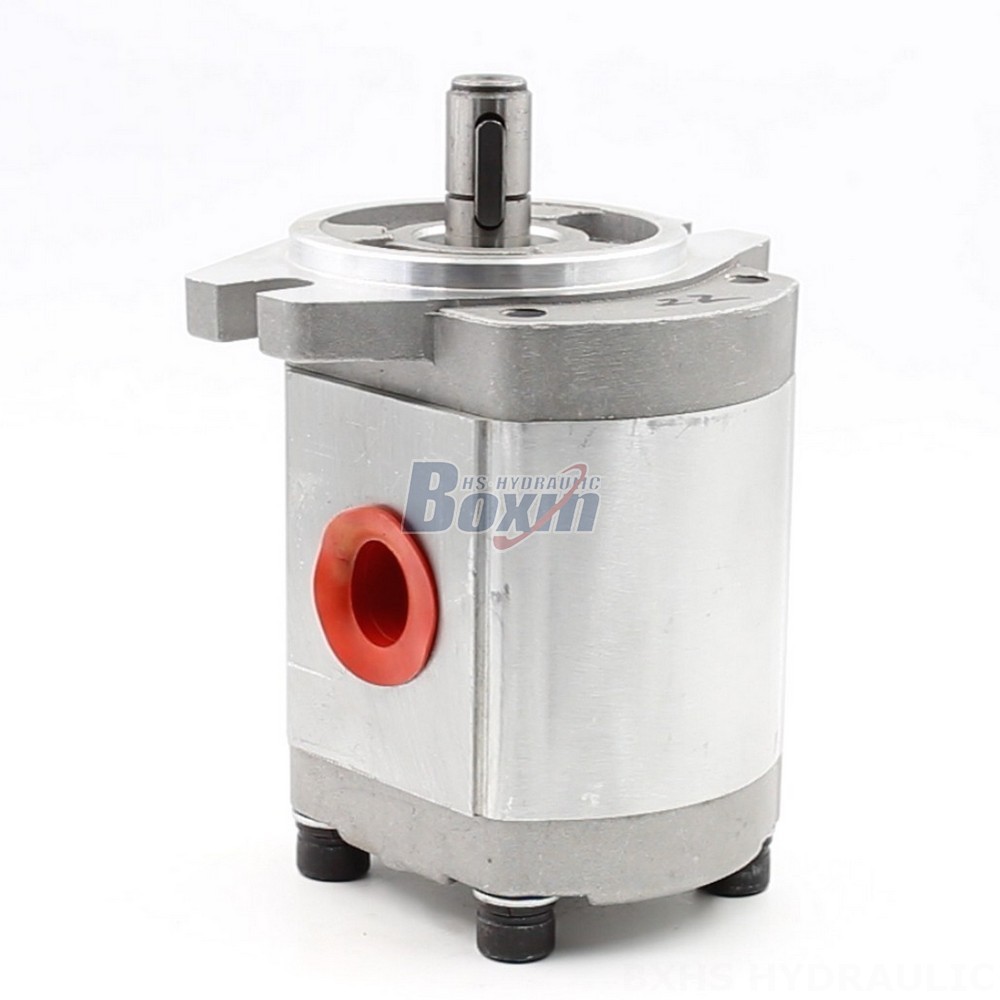

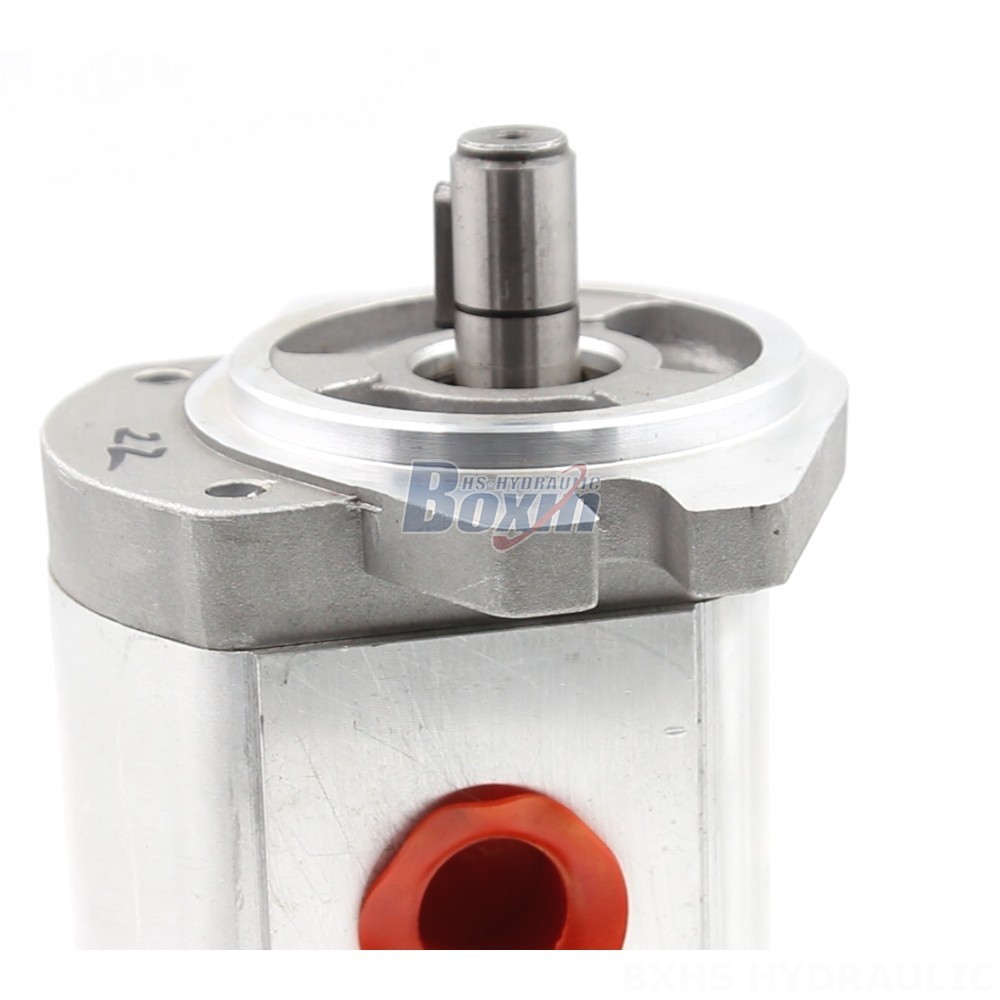

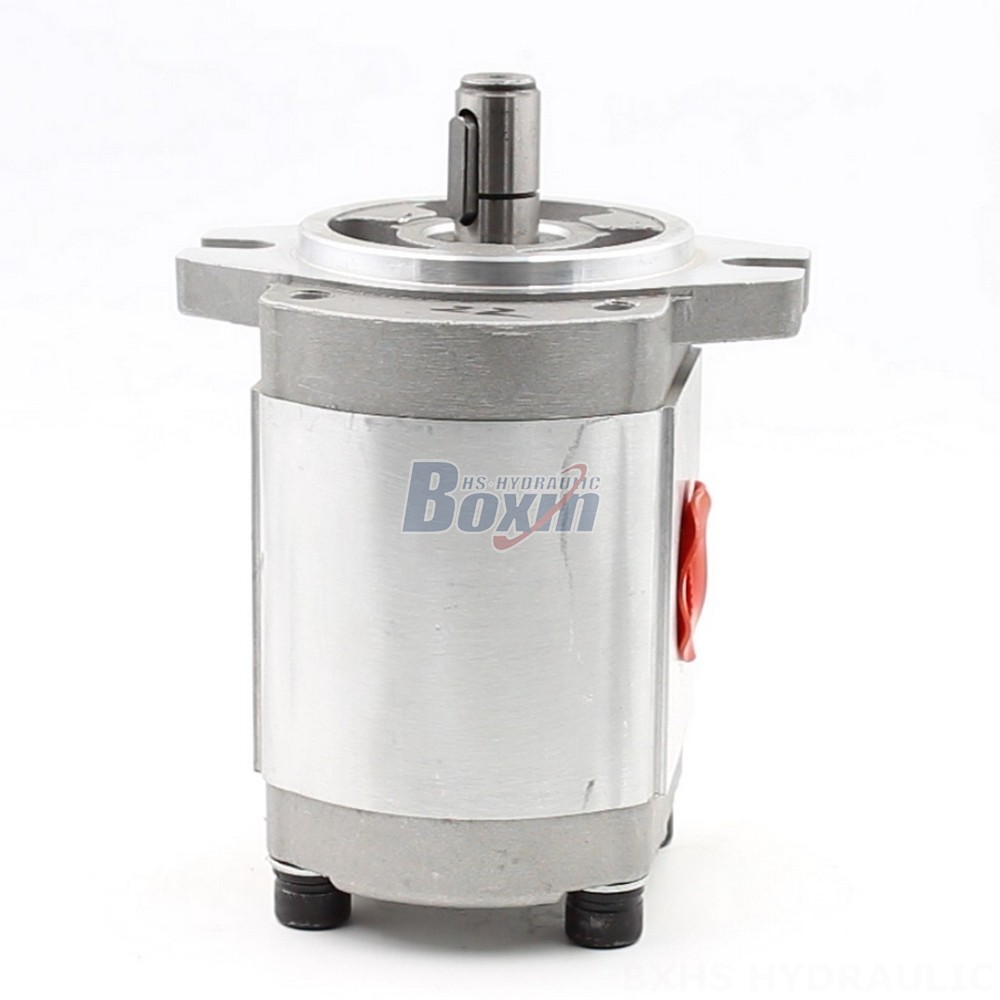

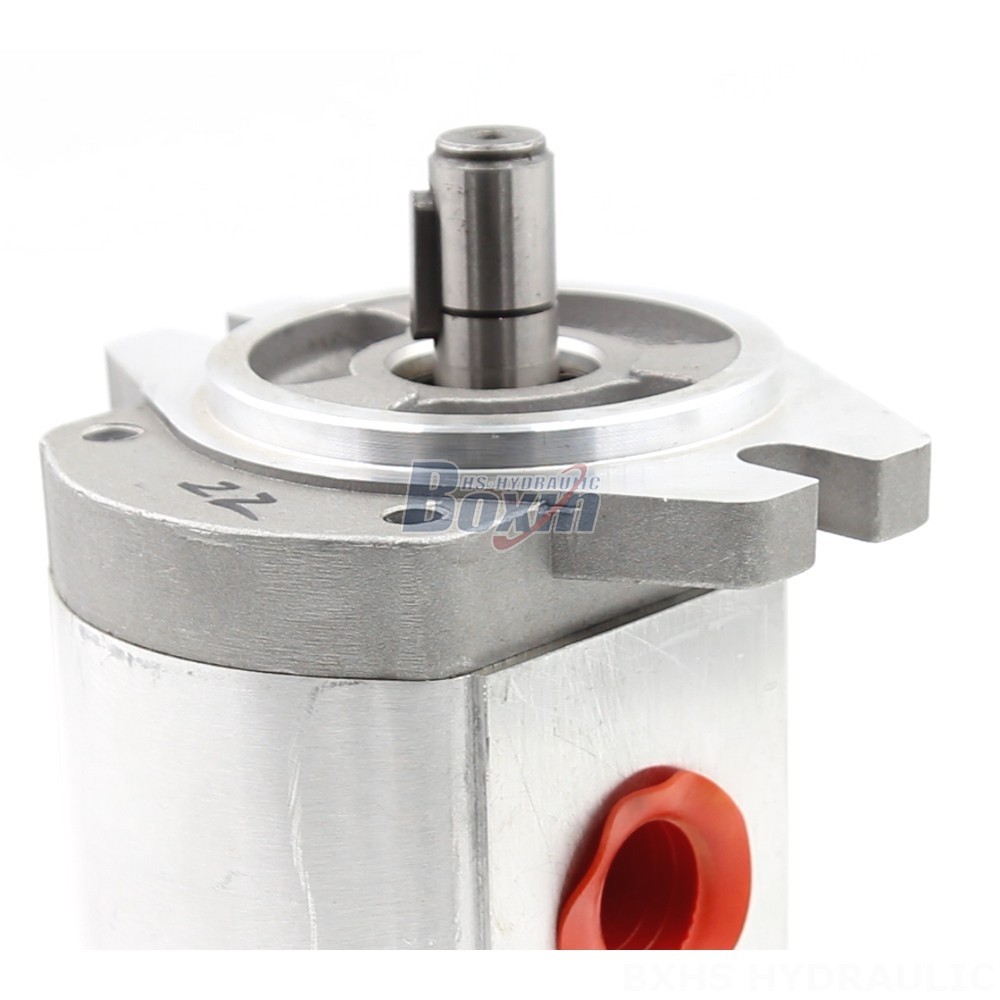

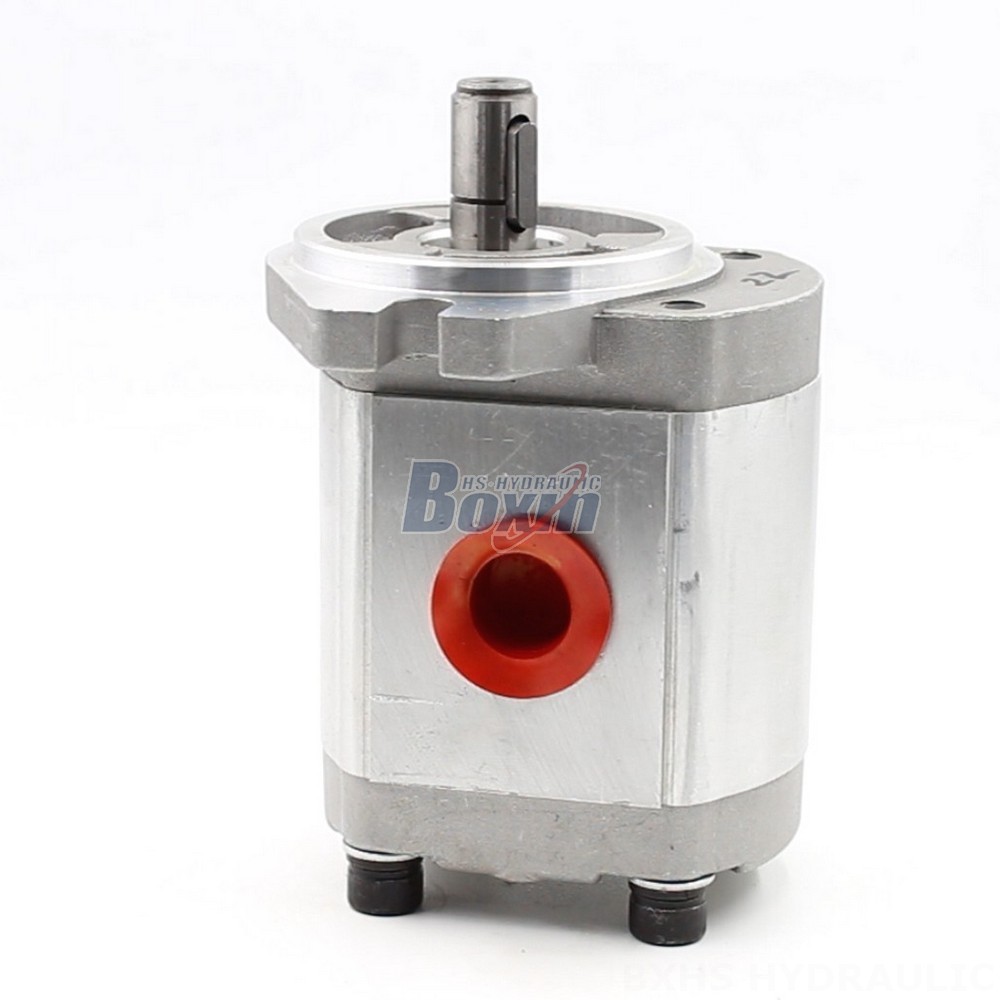

The CBHS-FL304 is a high-performance hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. This pump is ideal for a wide range of applications, including construction equipment, agriculture equipment, and industrial vehicles.
| Seria CBHS-FL3 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 4 cm³/obr, 20 cm³/obr, 16 cm³/obr, 14 cm³/obr, 6 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 3000 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Aluminium |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange owalny A |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
The CBHS-FL304 is a powerful and reliable hydraulic gear pump designed for heavy-duty applications. With a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and maximum speed of 3000 r/min, this pump delivers high flow rates and strong performance. Its internal gear design ensures smooth operation and long service life. The pump is constructed from durable aluminium and features an A-oval flange with a plain key shaft. It is available in both left and right rotation configurations. The CBHS-FL304 is widely used in various applications including construction equipment such as telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors, and front-end loaders. It is also suitable for agriculture equipment like harvesters and balers. As a manufacturer, we offer wholesale, OEM, and customisation services to meet the specific requirements of our customers.
