Produkcja i dostawa
Czas realizacji produkcji 15-30 dni

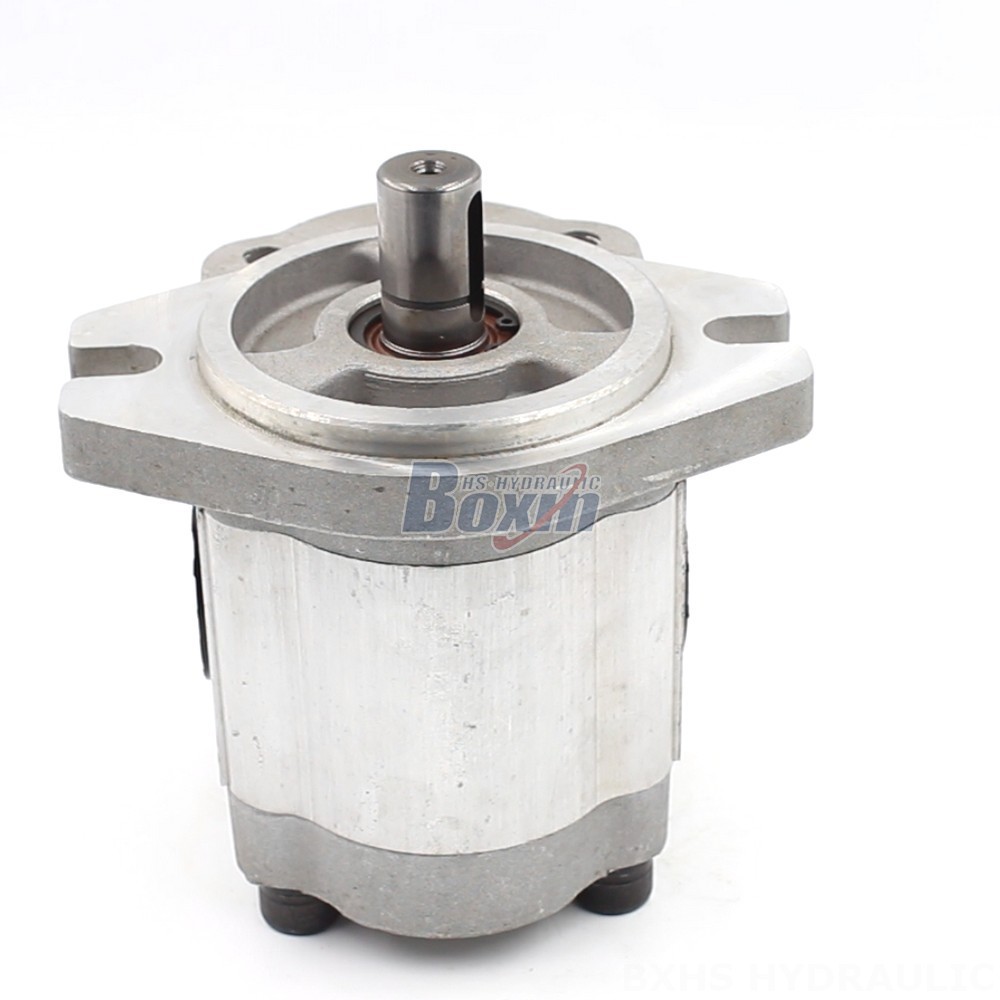

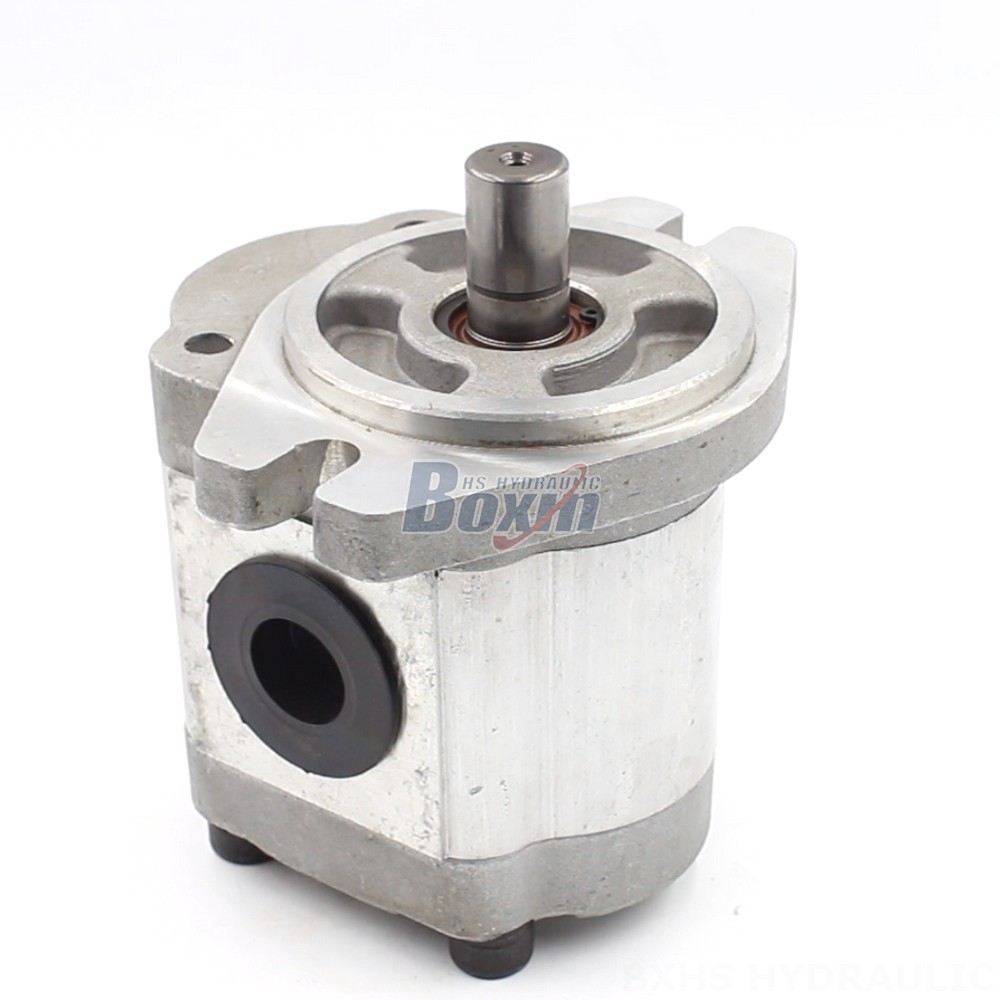

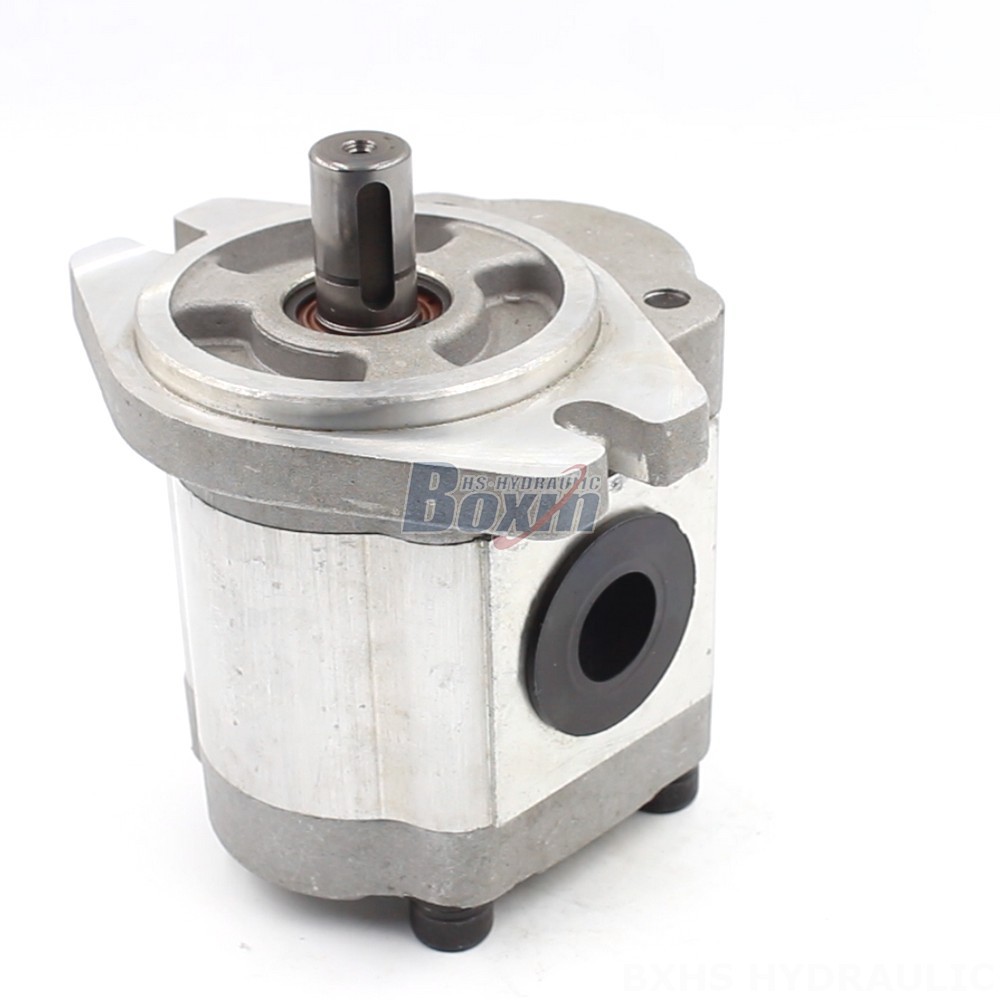

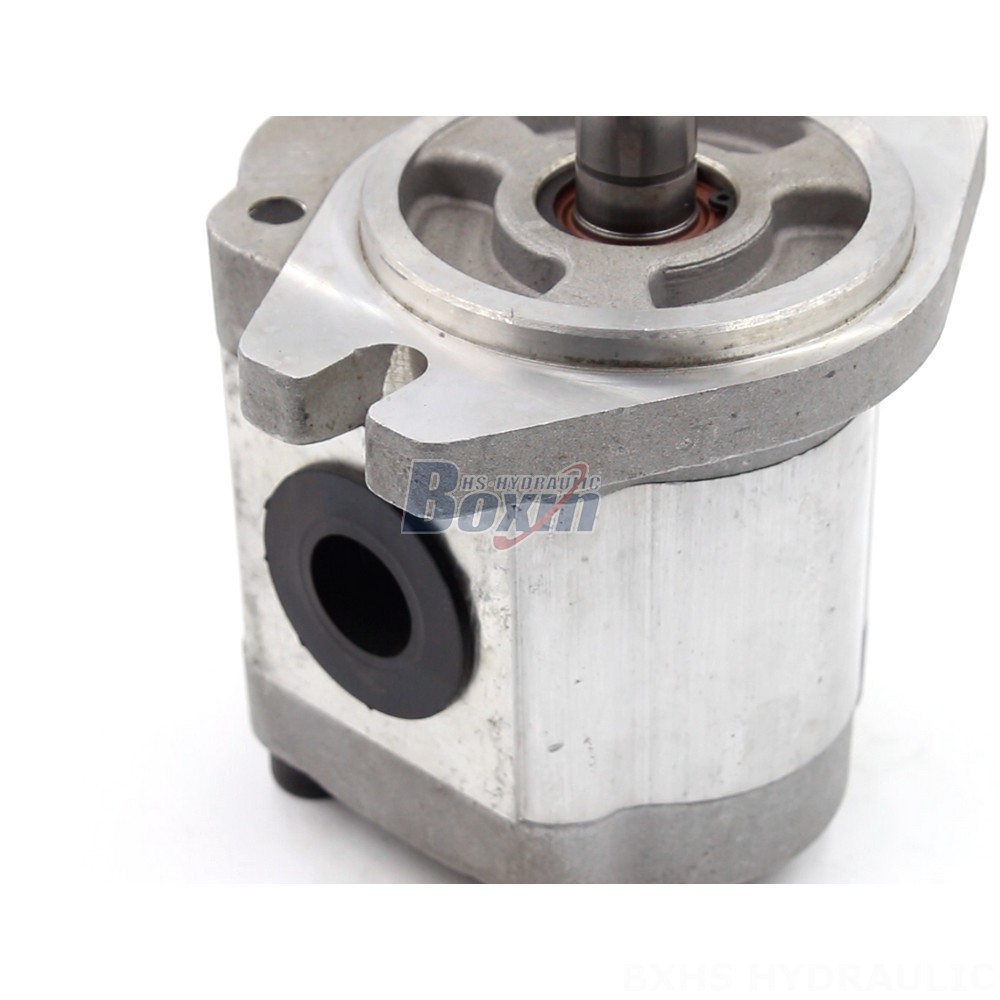

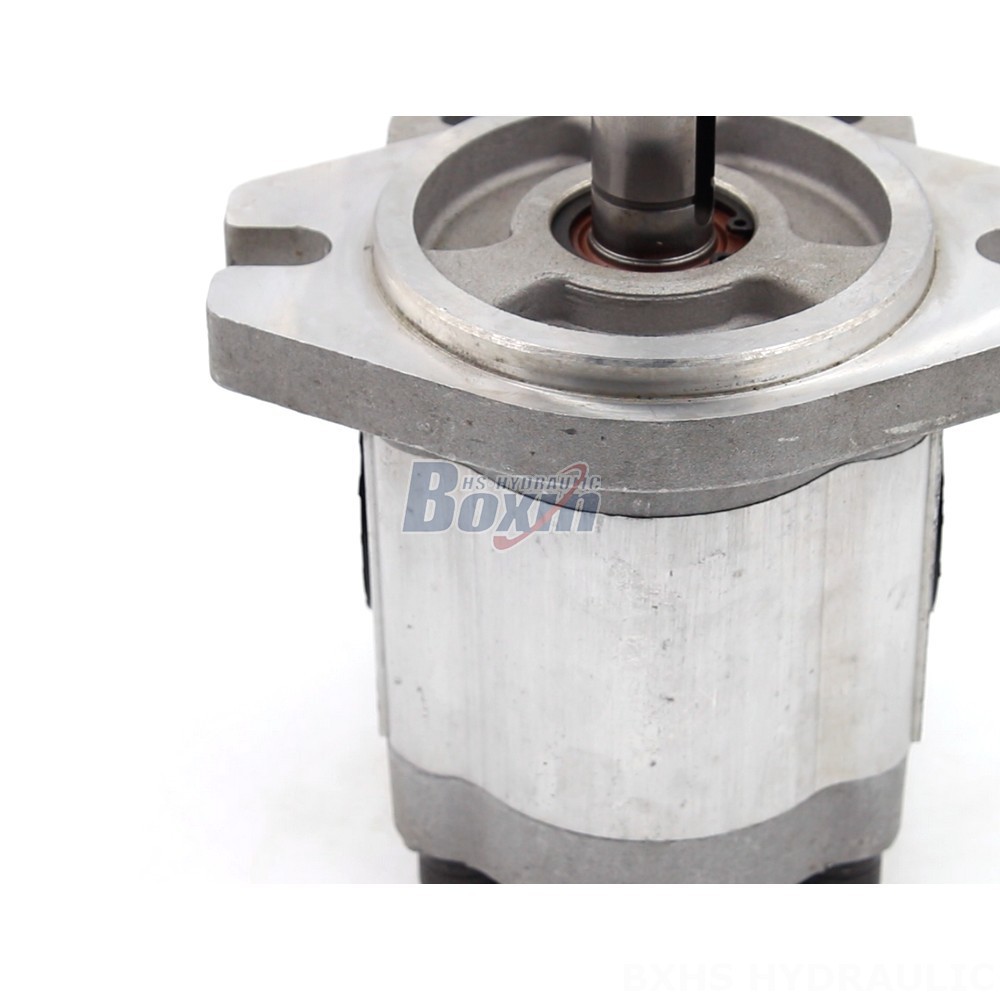

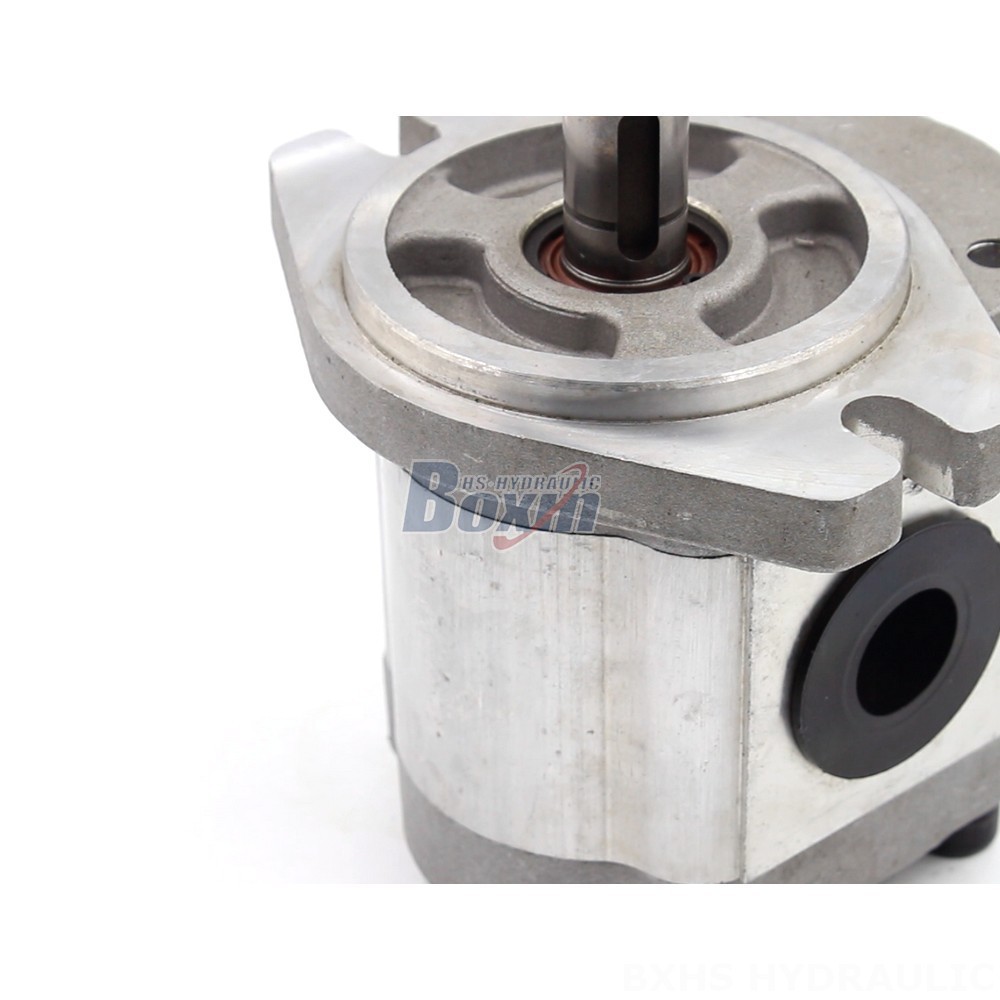

This high-performance, 14 cc/rev hydraulic gear pump is manufactured directly from our factory and is ideal for various applications in material handling, construction, earth moving, agriculture, and industrial vehicles. With a durable aluminium construction and A-oval flange, this pump is built to last and perform reliably in demanding environments.
| Seria CBHS-FL3 Pompa hydrauliczna zębata Parametry | |
|---|---|
| Pojemność skokowa | 10 cm³/obr, 4 cm³/obr, 20 cm³/obr, 16 cm³/obr, 14 cm³/obr, 6 cm³/obr |
| Ciśnienie znamionowe | 20 MPa (2900 psi) |
| Maksymalne ciśnienie | 25 MPa (3625 psi) |
| Prędkość znamionowa | 2000 obr./min |
| Maksymalna prędkość | 3000 obr./min |
| Kierunek obrotu | L: Lewo (przeciwnie do ruchu wskazówek zegara), R: Prawo (zgodnie z ruchem wskazówek zegara) |
| Materiał | Aluminium |
| Struktura | Zewnętrzna pompa zębata |
| Wersja kołnierza | Flange owalny A |
| Typ wału | Nacięcie prostokątne H, Nacięcie ewolwentowe X, P: Zwykły klucz |
This robust hydraulic gear pump delivers exceptional performance with a displacement of 14 cc/rev. It is designed for high-pressure applications, boasting a rated pressure of 20 MPa (2900 psi) and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump features an internal gear design and is constructed from durable aluminium. It comes with an A-oval flange and a plain key shaft, making it compatible with a wide range of applications. This versatile pump is part of the CBHS-FL3 series and is specifically designed for use in forklifts, telehandlers, mini-excavators, skid steer loaders, and tractors. Its high performance and reliability make it a suitable choice for various industries including material handling, construction, earth moving, agriculture, and industrial vehicles.
